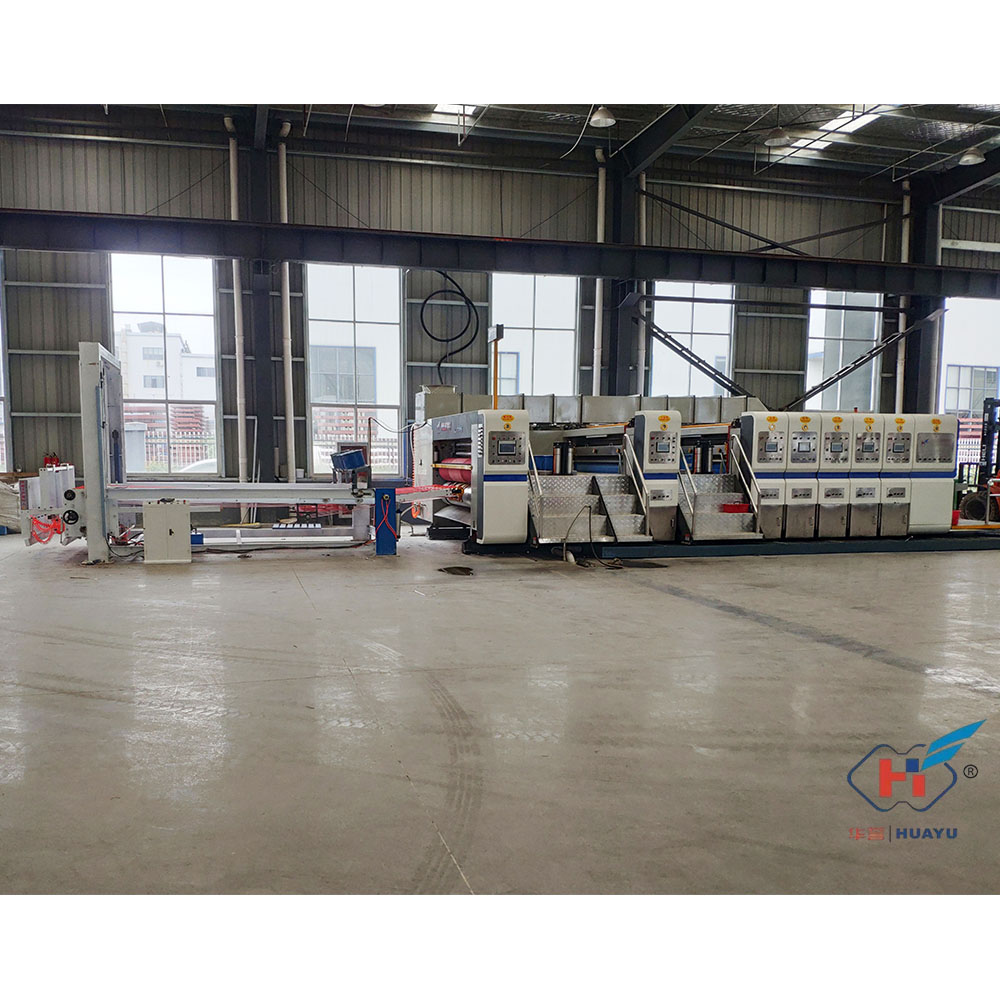

Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
1 / 5
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine
Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine

Automatic Feeding Type Printing Machine Corrugated Carton Flexo Printing Machine Carton Box Printing Machine

Send Inquiry

Product Description

Printing Machine Overview

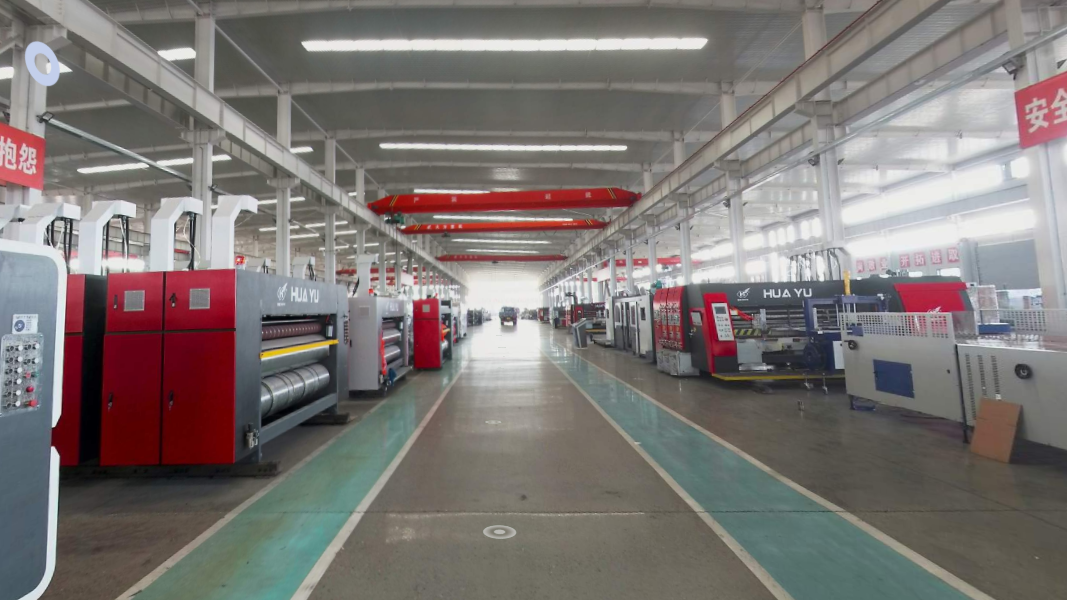

VR View

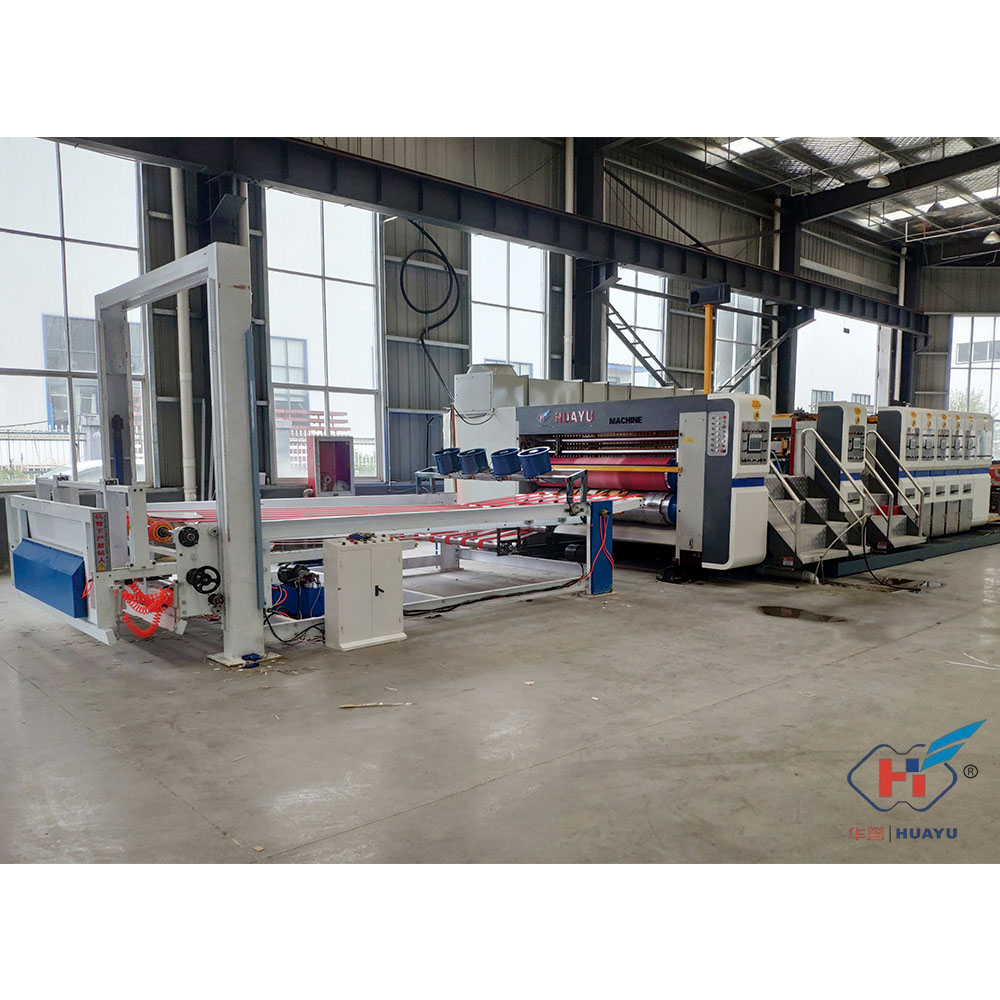

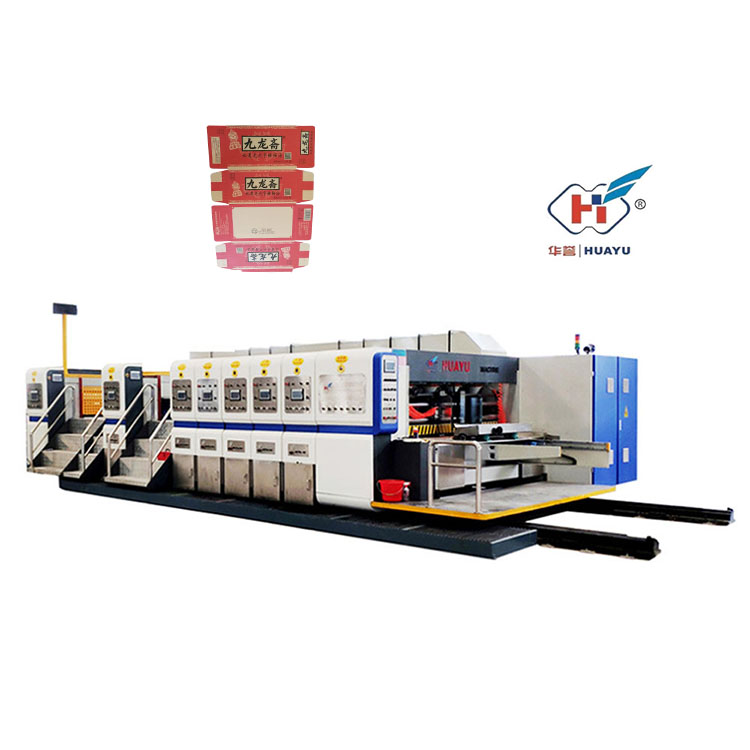

Automatic Feeding Type Printing Machine corrugated carton flexo printing machine carton box printing machine
Flexo Printing Machine Detail
Products Description
Product Banner

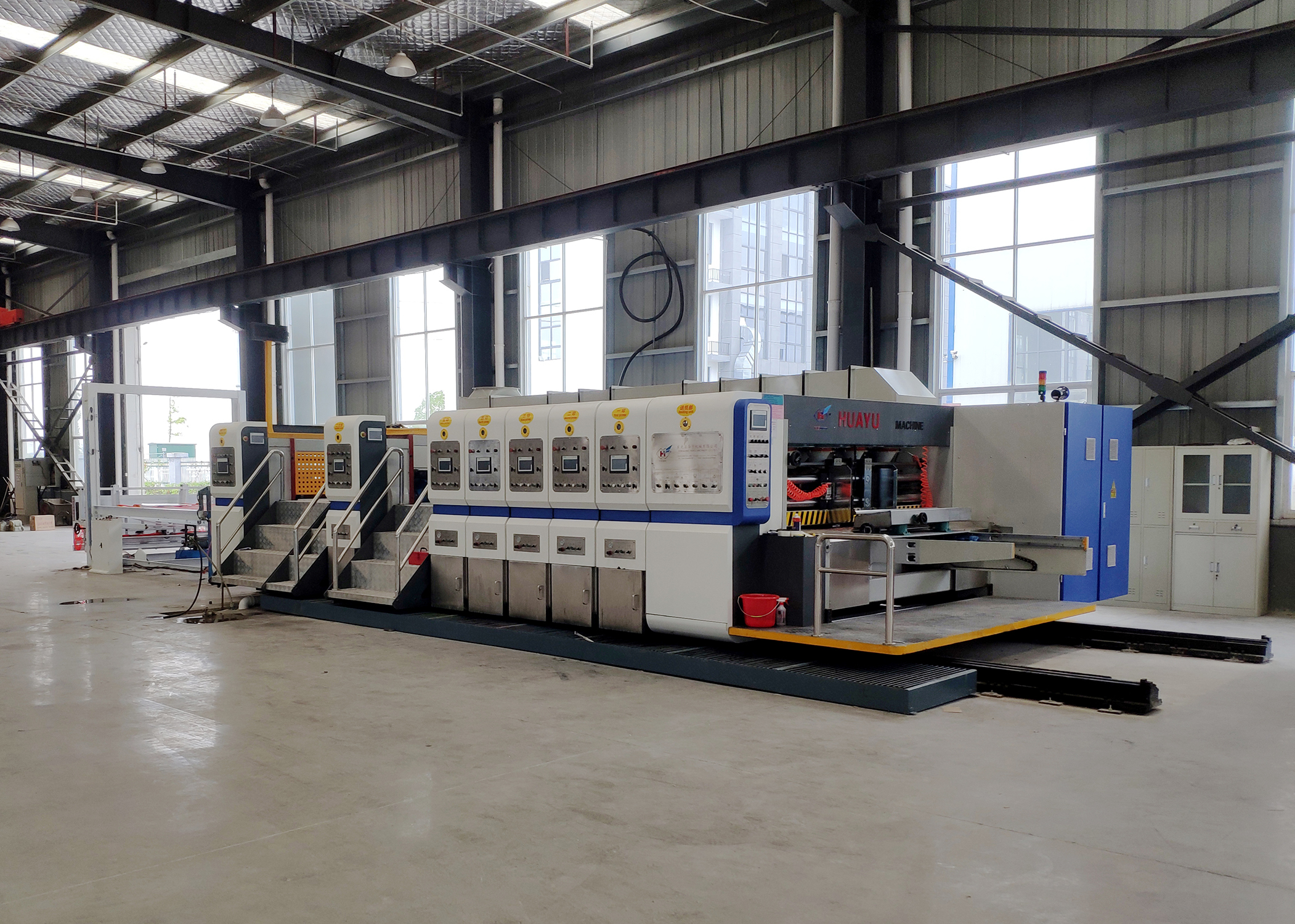

Machine Part 1

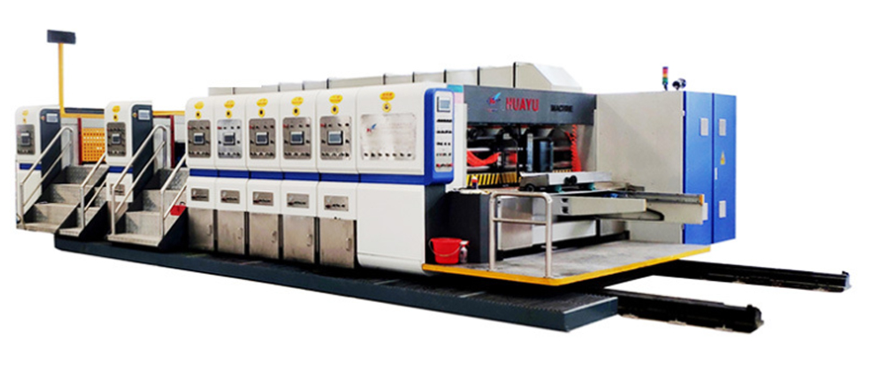

Machine Part 2
Main Features
This machine is a collection of paper feeding, printing, drying, slotting, die cutting, and other functions in one of the automatic carton production equipment, mainly for corrugated board HD printing, used to replace part of offset printing design, printing, glazing, drying, die cutting, one-time molding, overprinting precision, high efficiency. The machine adopts man-machine interface, which is labor saving, but also highlights the high definition, high speed, easy to operate, low consumption of work concept.
Automatic Production Control System
Automatic production control system, only in the operation console in the touch screen input size information of the order, paper feeding department, printing department, die cutting department automatically adjust all the clearance, axis, circumference and other parameters, accurate and reliable, no manual intervention, improve enterprise production efficiency.

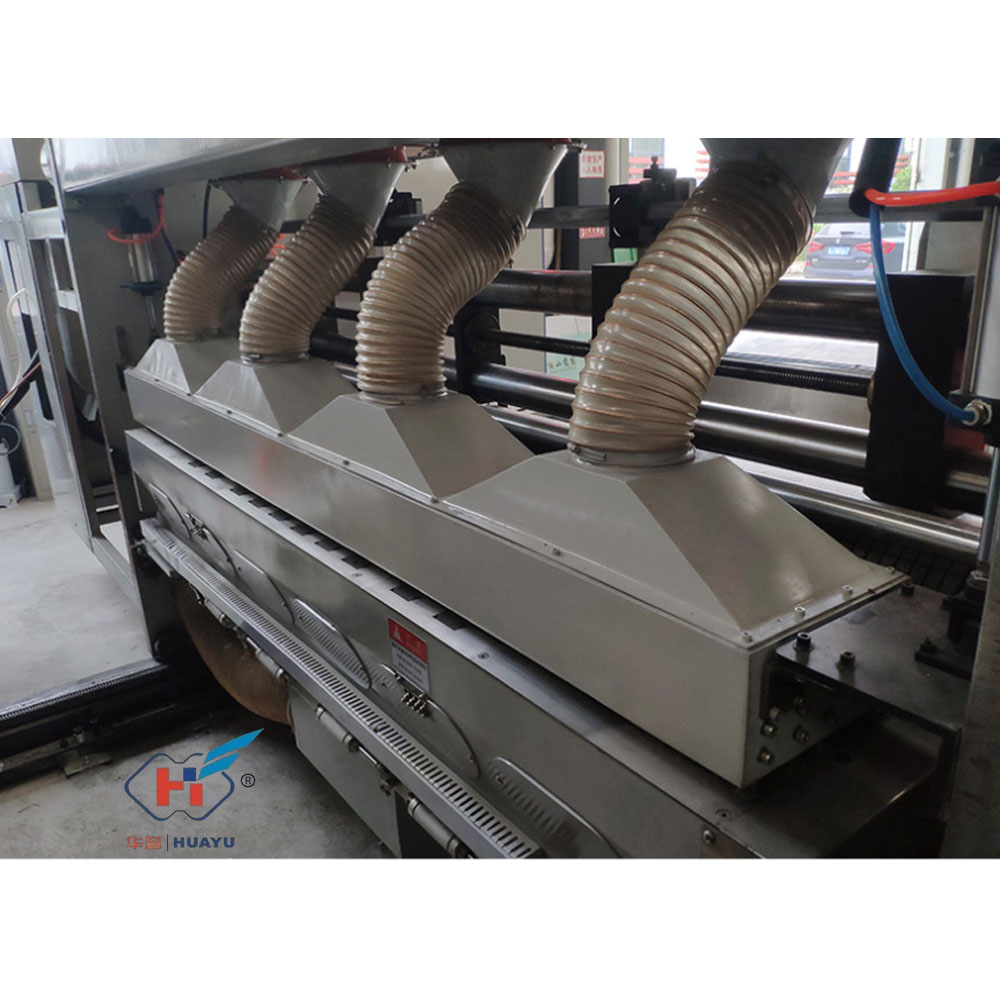

Vacuum Adsorption System
The vacuum adsorption system adopts advanced technology, and the conveying row roller shaft supporting bearing is loaded with oil filling cup and adopts centralized oil supply mode to ensure the high-speed operation of the machine.
Coated System
In order to ensure the clarity of printing, the machine is equipped with a glazing part, for the products of the printing part of the synchronous glazing, so that the printing products more exquisite, comparable to offset printing effect.
Dryer System
In order to ensure the printing quality and improve the printing speed, the machine is specially equipped with infrared drying system. Ensure the high quality of the equipment in high speed printing.
Parameter Unit Model
920 1224 1628
Max. feeding size mm 900*2400 1200*2600 1600*2800
Skip feeding size mm 1100*2400 1500*2600 2000*2800
Max. printing size mm 860*2200 1200*2400 1600*2600
Max. speed (sheet/min) 300 250 180
Standard plate thickness mm 7.2 7.2 7.2
Min. slotting interval mm Front knife 150*150 Front knife 160*160 Front knife 160*160
Reverse knife 240*65 Reverse knife 250*70 Reverse knife 250*70
Min. paper size mm 350*650 350*690 450*690
Technical Layout

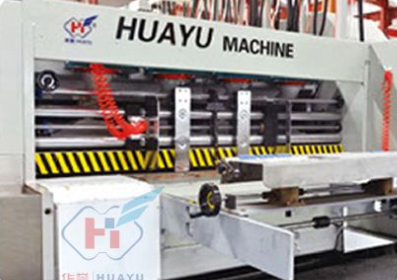

Feeding Unit
Feeding Unit
Can be continuous or separate sheet feeding paper. Extended paper feeder, the length of paper feeding can be adjusted. Frequency conversion to adjust airflow and pressure to adapt to different cardboard sizes and bending cardboard. In addition to static electricity, multi-row brush, multiple suction fans to remove the surface dust of cardboard.

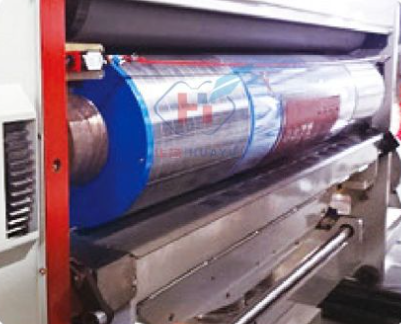

Printing Unit
Printing Unit
Vacuum adsorption box adopts advanced technology to ensure the smooth transmission of thin and curved cardboard plate tilt correction: when pasting the tilt error can be quickly corrected. High efficiency and environmental protection: The bidirectional diaphragm ink pump scraper ink supply recovery cycle system, and can be in a short time to recover and clean the scraper cavity ink, save water resources, each group of printing is equipped with a small drying system to improve the printing quality and speed. Automatic reset system after cleaning printing plate.

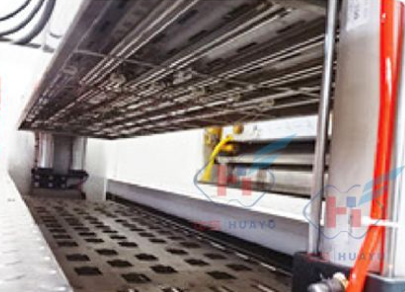

Drying Unit
Drying Unit
Infrared drying method is used to dry ink printing quickly to ensure the quality of polishing. According to the width of the board, the infrared lamp can be controlled by sections to save energy. It is equipped with paper plug sensor to avoid paper plug fire accident, safe and reliable.

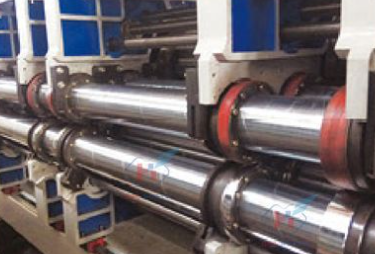

Slotting Unit
Slotting Unit
Master computer and unit man-machine interface control. Precision linear guide rail and cross axis linkage displacement system, stable and accurate. Precision ball screw displacement system, high rigidity guide seat, ensure precision life. Slotted box height adjustment using internal gear mechanism, independent drive box control. Shaping wheel, slotted cutter head, automatic clearance adjustment, medium tool large displacement mechanism.

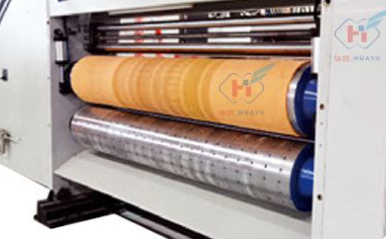

Die Cutting Unit
Die Cutting Unit
Germany Rexroth servo system independent drive, die-cutting precision is high. The rubber pad roller is mechanically helical reversing 40mm moving transverse structure, so that the die cutter does not repeat cutting a position to improve the service life of the rubber pad. The rubber pad adopts imported quick change rubber pad. And with a rubber pad repair system, the rubber pad can be repaired for 2 times, maximize the service life of the rubber pad, reduce the cost.
Production Line Layout

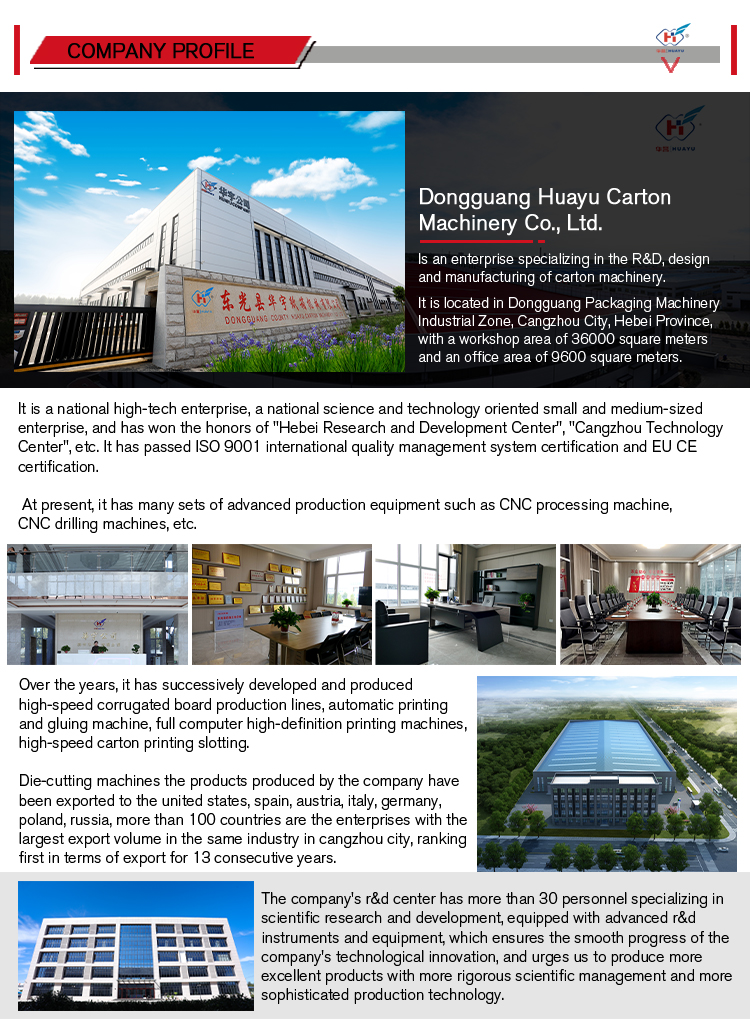

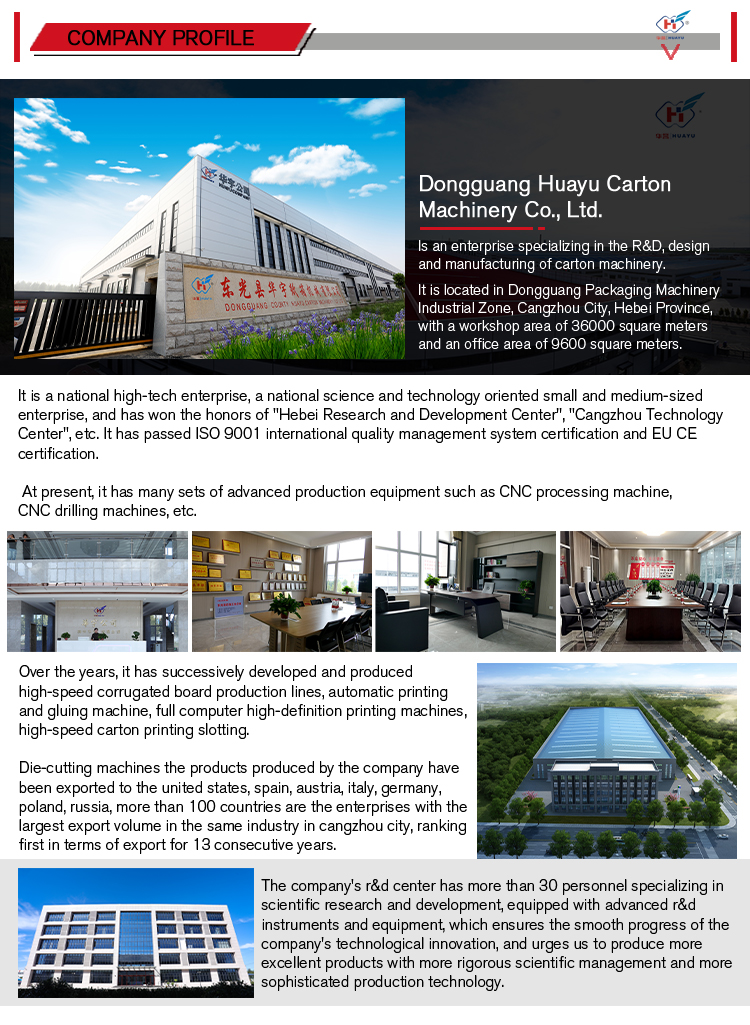

Company Profile
Company Banner

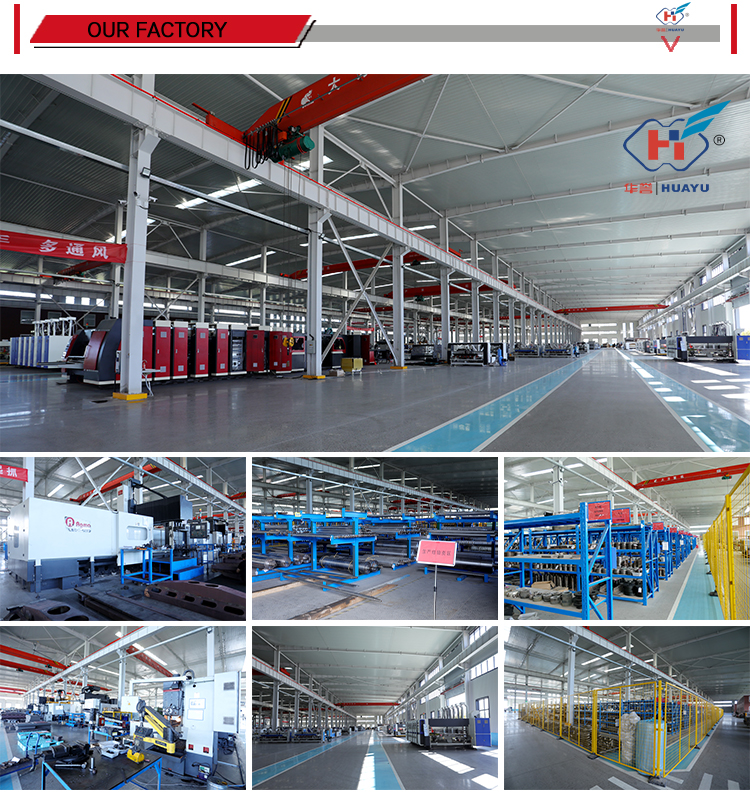

Workshop
We are an enterprise specializing in the R&D, design and manufacturing of carton machinery. Equipped with a modern workshop and advanced production equipment.
As a national high-tech enterprise and a science and technology oriented small and medium-sized enterprise, we have passed ISO 9001 international quality management system certification and EU CE certification. At present, we utilize many sets of advanced production equipment such as CNC processing machines, CNC drilling machines, etc.

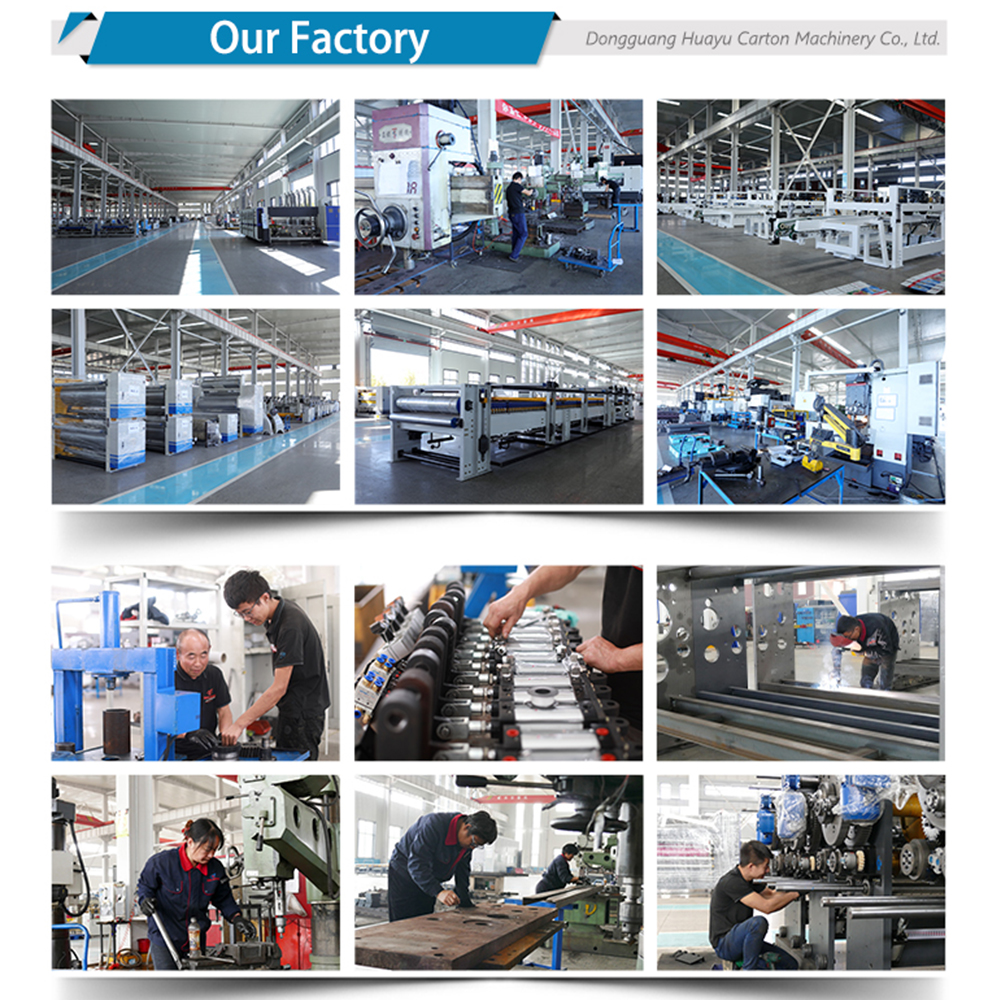

Advanced Equipment
CNC Processing Area
Over the years, we have successively developed and produced high-speed corrugated board production lines, automatic printing and gluing machines, full computer high-definition printing machines, and high-speed carton printing slotting die-cutting machines.
Our products have been exported to the United States, Spain, Austria, Italy, Germany, Poland, Russia, and more than 100 countries. We are one of the leading exporters in the industry, ranking first in terms of export volume for 13 consecutive years.
R&D Center
Our R&D center has more than 30 personnel specializing in scientific research and development, equipped with advanced R&D instruments and equipment. This ensures the smooth progress of our technological innovation, and urges us to produce more excellent products with more rigorous scientific management and more sophisticated production technology.
Certification 1
Certification 2
Our Advantages
Advantages Overview
Rich Experience
Engaged in carton machinery manufacturing industry for 25 years, foreign trade exports for 14 years, with rich experience. We maintain a number of high-precision processing equipment to ensure product quality.
Expert Team
We have a research and development team of more than 20 people, including 5 postgraduate students. The company holds a number of patent certificates and product quality certifications.
Global Export
We currently export to more than 120 countries, leading the industry in exports for 14 consecutive years. We provide customers with high quality products, excellent service, and the most competitive prices.
Support Banner
QUALITY/QUANTITY DISCREPANCY AND CLAIM
* In case the quality and/or quantity are found by the user to be not in conformity with the contract after arrival of the goods at the port of destination, the user may lodge a claim with the seller supported by a survey report issued by an inspection organization agreed upon by both parties, with the exception, however, of those claims for which the insurance company and/or the shipping company are to be held responsible.
* The claims should be filed by the user within 30 days after the arrival of the goods at the port of destination.
WARRANTIES
1. All the equipment supplied by the seller shall be of good quality, brand new and free of defect, in accordance with design and specification.
2. The warranty period is 1 year after signing the act of acceptance between the seller and user.
3. Duration of warranty: Seller's obligation shall commence on the effective date and continue through the period ending 1 year after signing the act of acceptance. Within the indicated time, the seller shall make good or replace by his force and on his account defective/worn blocks, parts, or any parts thereof, and spare parts which do not allow normal utilization of the equipment.
4. Installation services: After the customer receives all machines, we will arrange engineers to go overseas to install the machine (the specific installation time depends on local conditions).
5. When there is a problem with the machine or the customer cannot operate the machine, we will immediately provide the customer's solution and video to help run the machine.
Packaging Detail
Shipment Preparation
Container Loading

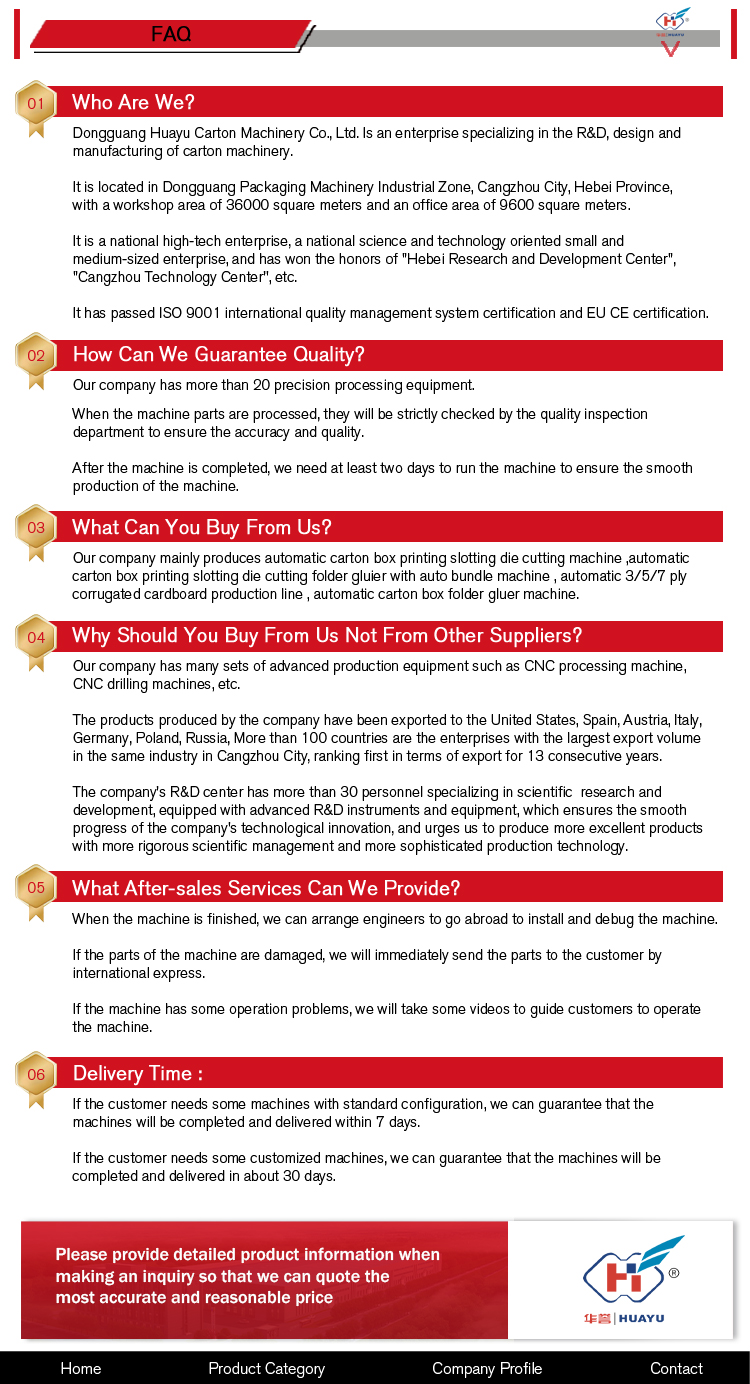

FAQ Section Header
Who Are We?
We are an enterprise specializing in the R&D, design, and manufacturing of carton machinery. We are a national high-tech enterprise, certified by ISO 9001 quality management system and EU CE standards, possessing a large-scale workshop and advanced CNC processing equipment.
How Can We Guarantee Quality?
We utilize over 20 precision processing units. During manufacturing, components are rigorously inspected by our quality inspection division to ensure high accuracy. Post-assembly, all machines undergo at least two days of trial operations to guarantee flawless performance.
What Can You Buy From Us?
Our product line includes automatic carton box printing slotting die cutting machines, automatic carton box printing slotting die cutting folder gluers with automatic bundle machines, automatic 3/5/7 ply corrugated cardboard production lines, and automatic carton box folder gluer machines.
Why Should You Buy From Us and Not Other Suppliers?
We host advanced production equipment like CNC processing and drilling machinery. Our products are exported to over 100 countries (including the US, Germany, Russia, Spain), and we have ranked first in exports in the region for 13 consecutive years. Furthermore, our dedicated R&D center is run by 30+ scientific research specialists.
What After-sales Services Can We Provide?
We arrange engineers to travel abroad for machine installation and calibration. In the event of part damage, replacements are sent immediately via international express. For operation troubleshooting, we supply detailed step-by-step video guides.
What is the Delivery Time?
For standard configurations, we guarantee completion and delivery within 7 days. For customized machinery, the production and delivery process takes approximately 30 days.
