| Machine Model | QTH-CI6600 | QTH-CI 6800 | QTH-CI 61000 | QTH-CI 61200 |
|---|---|---|---|---|
| Max. material width | 600mm | 800mm | 1000mm | 1200mm |
| Max. printing width | 550mm | 750mm | 950mm | 1150mm |
| Suitable for material | PAPER: 15~300g/m² | NONWOVEN: 15-120g | PVC: 10~120μm | OPP: 10~100μm | BOPP: 10~100μm | PE: 15~150μm | NY: 10~120μm | PET: 10~100μm | CPP: 10~100μm | |||
| Colors | 6 colors | |||
| Printing repeat length | 380-1000mm | |||
| Central drum dia. | 1200mm | |||
| Machine speed | 200m/min | |||
| Printing speed | 10-180m/min | |||
| Printing precision | ±0.1mm | |||
| Adjusting of register | Electric motor control (vertical and horizontal) | |||
| Camera | 1 pc | |||
| Plate thickness | 1.7mm (if different thickness, please note us) | |||
This central drum flexo press is compatible with a wide range of flexible materials, including Paper (15–300g/m²), Non-woven fabrics (15–120g), PVC (10–120μm), OPP/BOPP (10–100μm), PE (15–150μm), Nylon (10–120μm), PET (10–100μm), and CPP (10–100μm).
The machine features a structural design speed of up to 200 meters per minute, with standard printing operations stably running at speeds between 10 and 180 meters per minute depending on the material and ink properties.

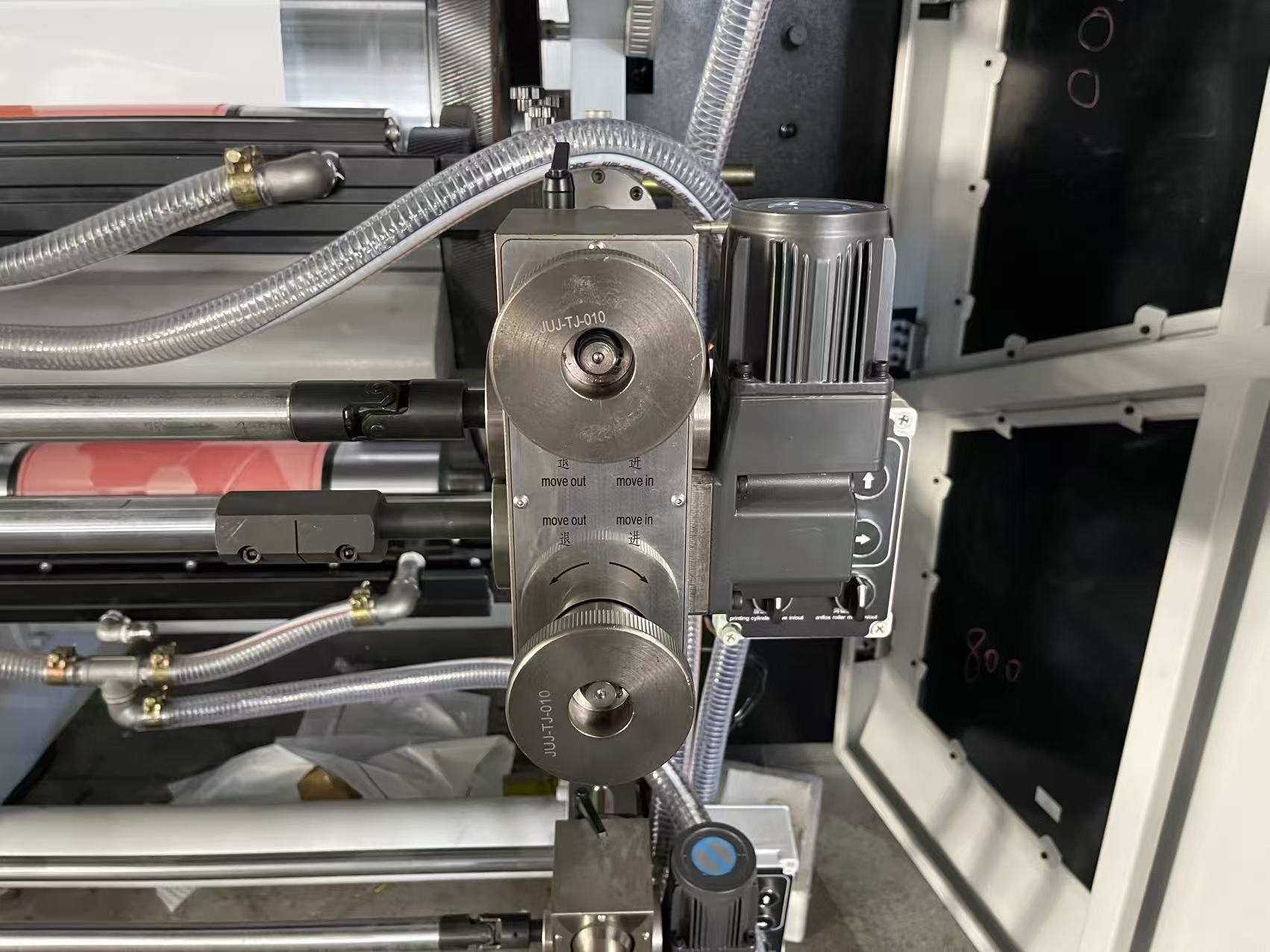

Thanks to the central impression drum architecture, the machine prevents material stretching. Registration is controlled via an electric motor system in both vertical and horizontal directions, keeping the printing precision within an exceptional tolerance of ±0.1mm.
Yes, the machine comes standard with one web inspection camera system, allowing operators to monitor the high-speed printing quality on the control interface in real-time.
The default configuration is optimized for a plate thickness of 1.7mm. However, if your production requires a different plate thickness, please notify us during the inquiry phase for tailor-made adjustments.
