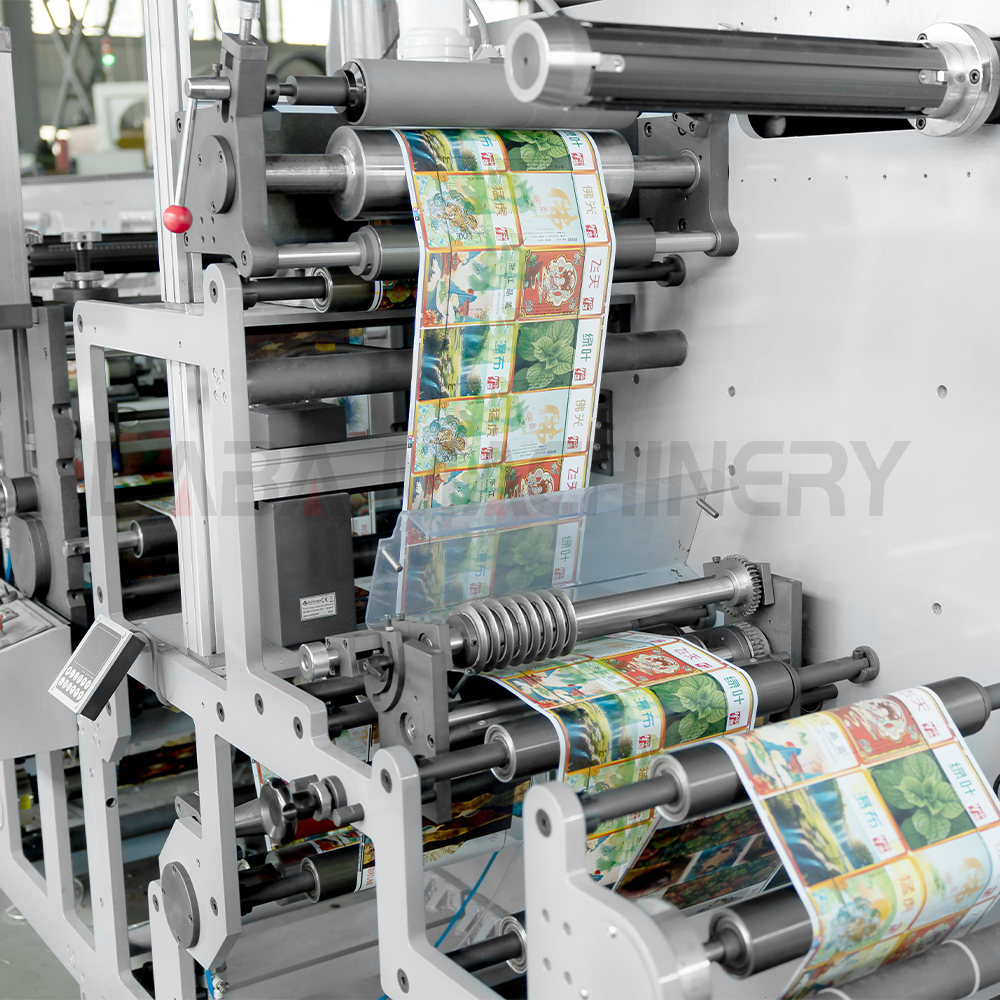

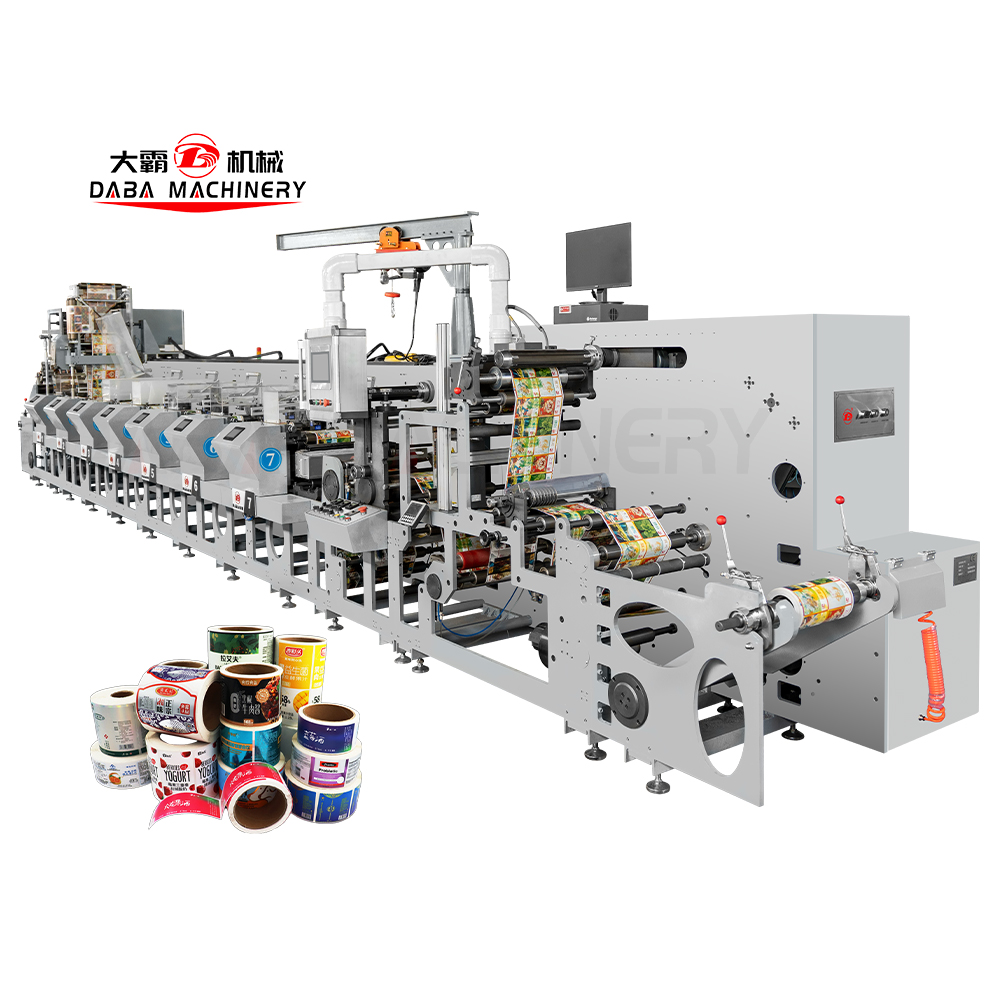

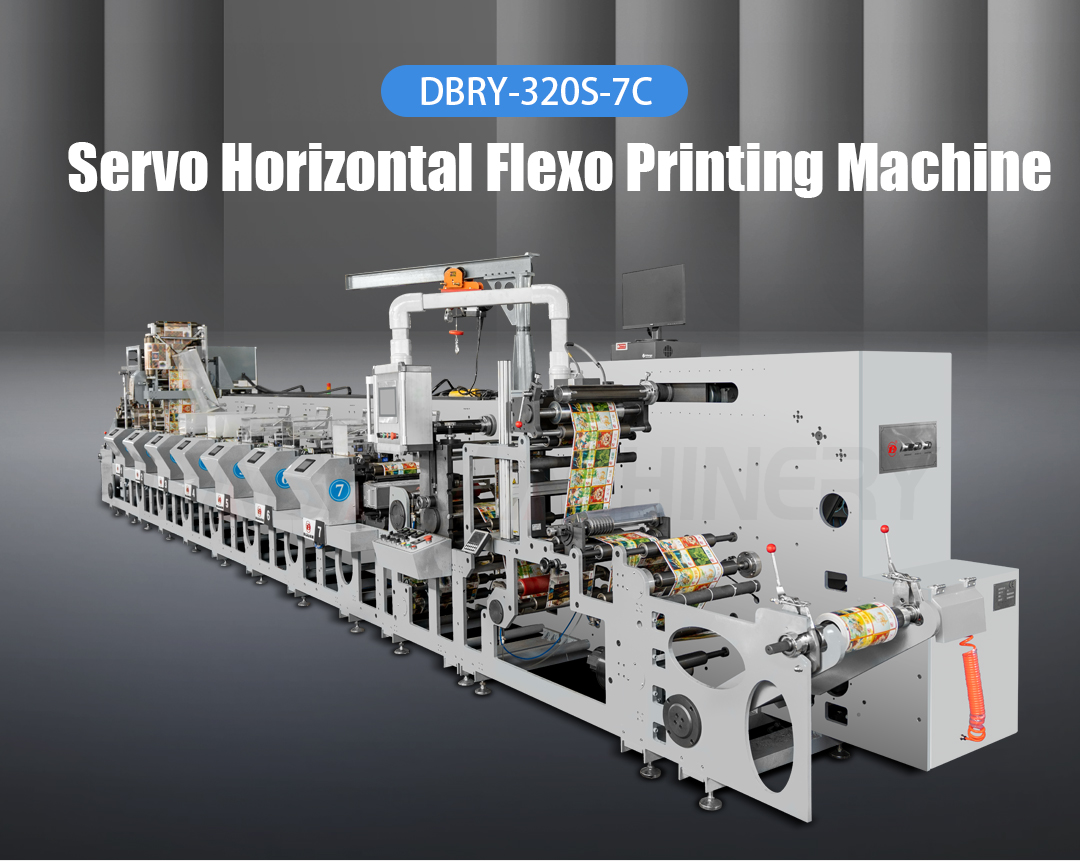

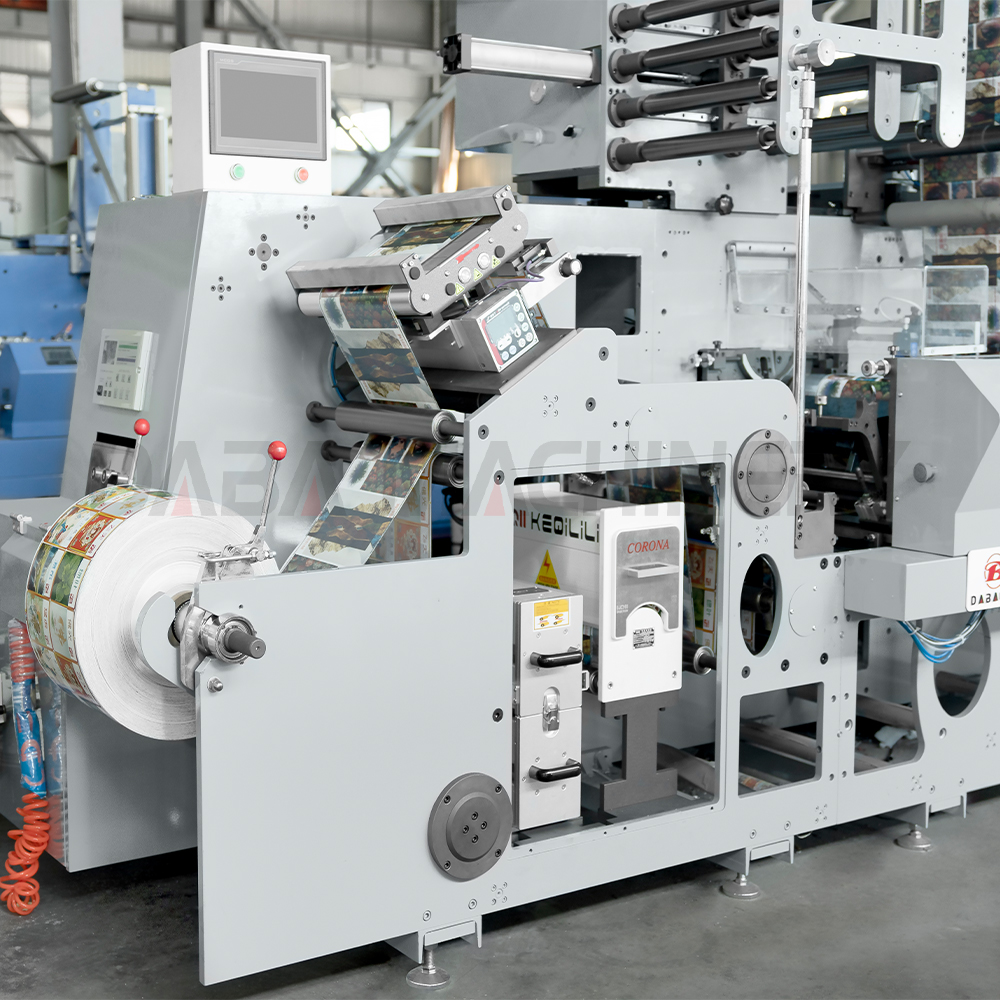

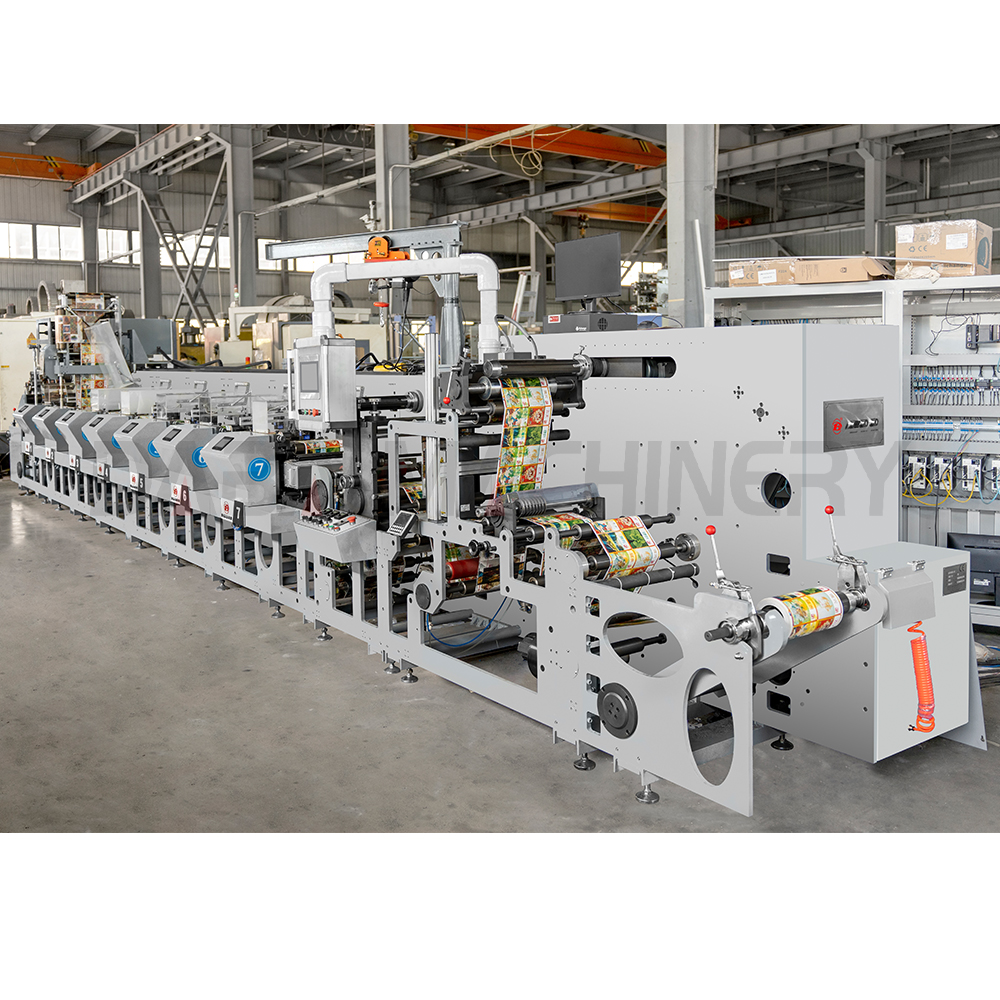

The machine can finish material-feeding, printing, varnish, drying, laminating, rewinding and die-cutting in one process is an ideal machine for printing note and top-grade adhesive label.
✔
Self-adhesive paper, Self-adhesive thermal paper, thermal paper ATM etc.
✔
Self-adhesive film: Self-adhesive PE film, Self-adhesive PET film, Self-adhesive PVC film, etc.
✔
plastic film: Cpp film, PET film, PVC film, PE film, etc.
✔
Laminating Film.
✔
Paper material: kraft paper, paper cup paper, etc.
✦
From the discharge to the receipt of the short distance.
✦
The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
✦
The structure of printing station adopt petal type, one servo motor driven each printing color station.
✦
Using servo motor control automatic registration system.
✦
PLC controller operating.
✦
Water-based ink (UV ink) printing, pollution-free, environmentally friendly. Printing speed varies according to the network cable; the fastest speed of printing labels is 150 meters per minute.
✦
Ideal for printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
✦
Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
✦

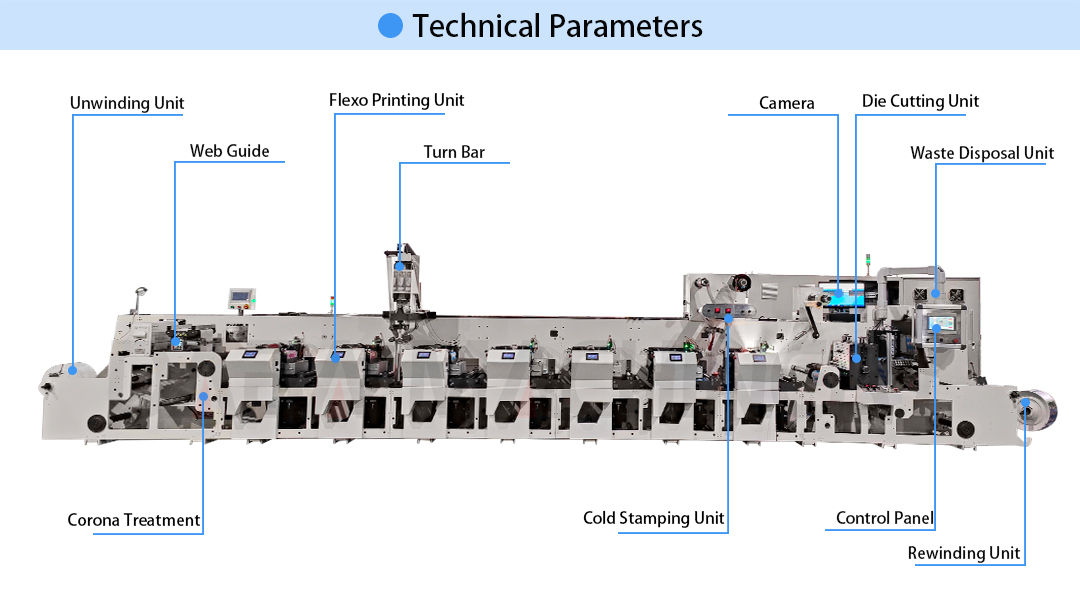

Process Steps: 1. discharging > 2. automatic constant tension > 3. scraper > 4. printing unit > 5. traction > 6. automatic constant tension > 7. center receiving.

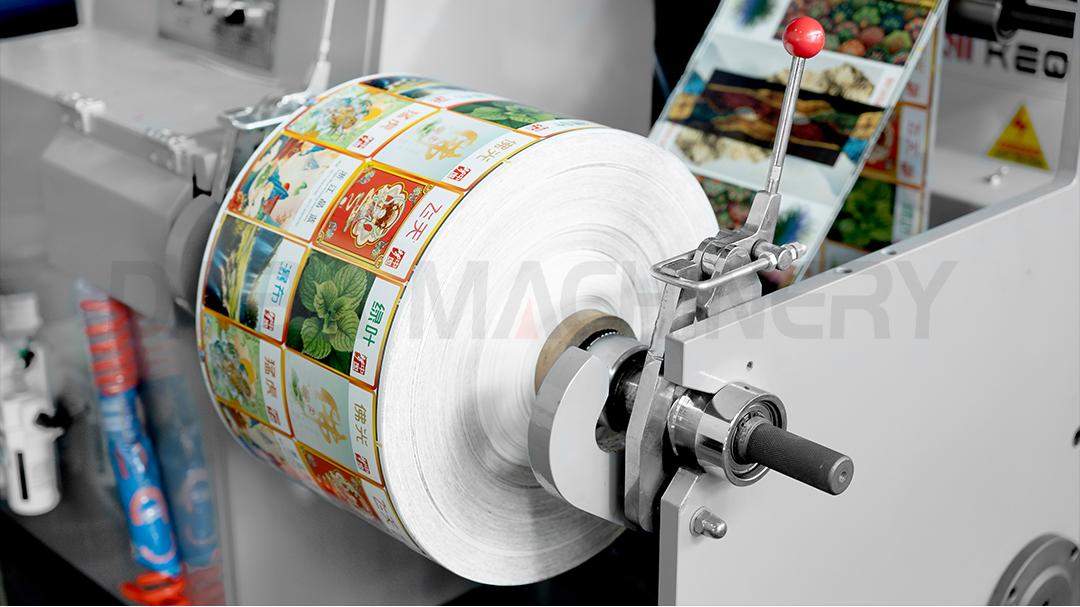

1. Unwinding Unit
- 1 set servo motor
- Magnetic Powder Brake --- cooperated with Tension Control System
- Max unwinding and rewind material diameter: 600mm
- 3inch Air shaft (can change to other size Air shaft: 1inch, 1.5inch, 2inch)
- Fast inflating air gun (customizable automatic air inflating function available)
- Unwinding vector motor tension control system
- Optional: separate unwinding rack with pneumatic feed

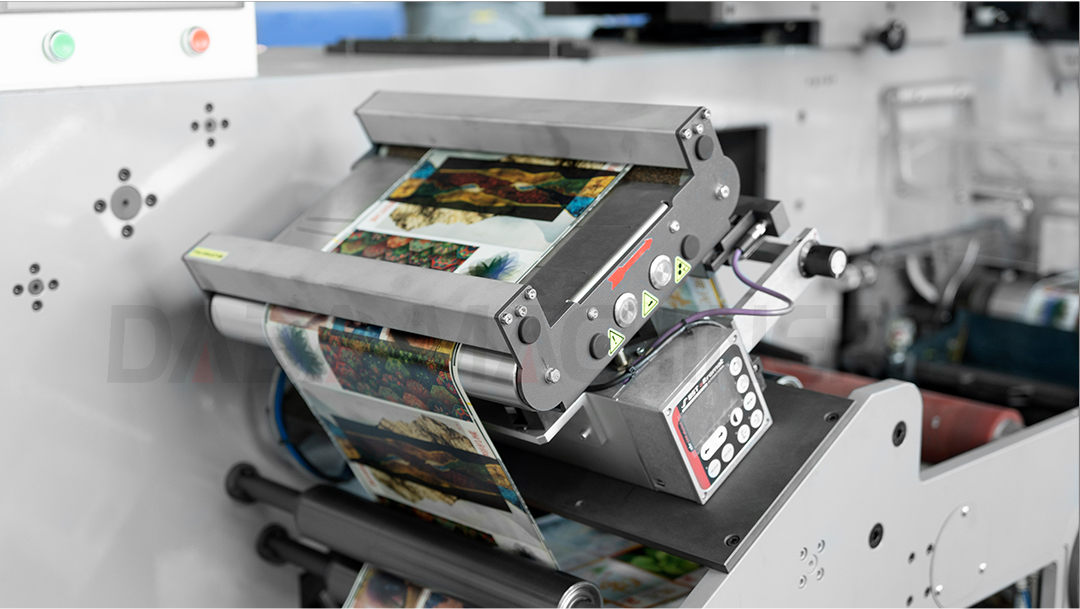

2. Auto Web Guide System
- 1 set of paper splice table, With Pneumatic Holders
- Detection mode: Ultrasonic Sensor
- Precision: ±0.1mm
- Closed-loop control system
- Test method: Edge
- Electronic paper web guide traction device, correcting small offsets on the fly.

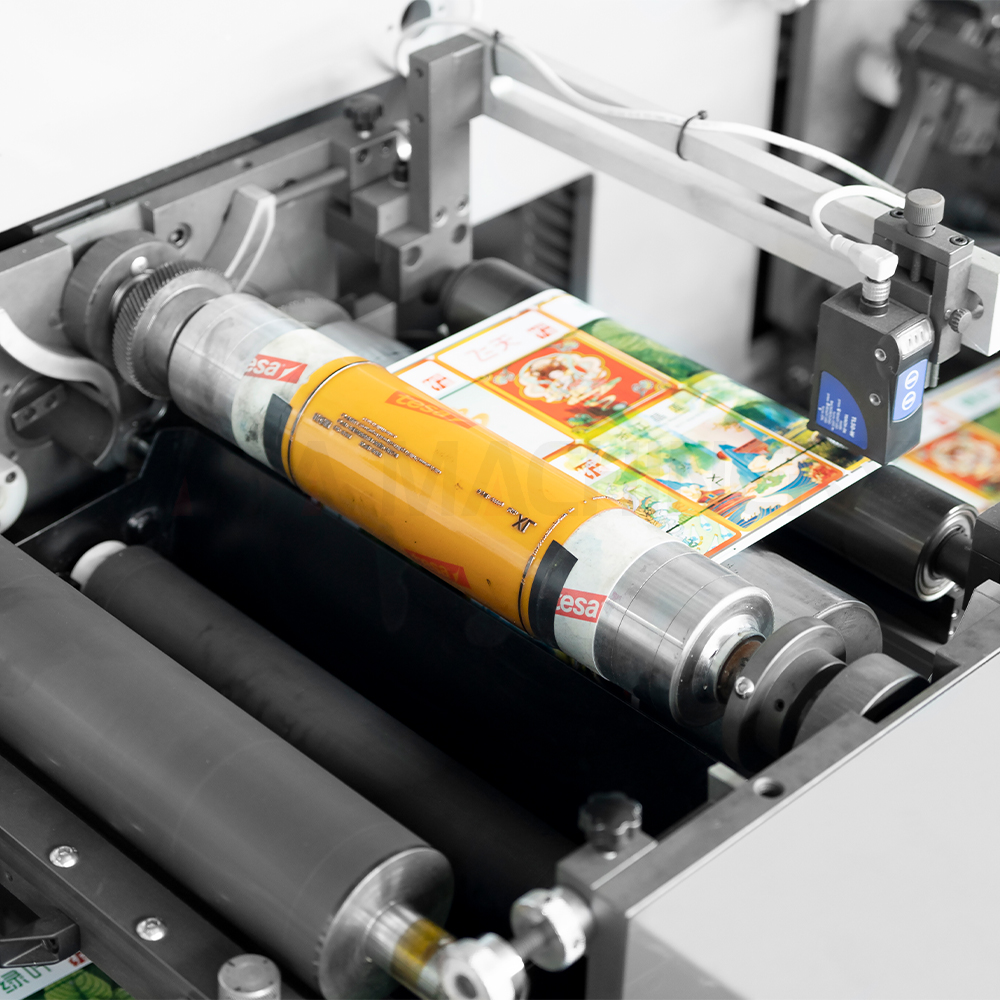

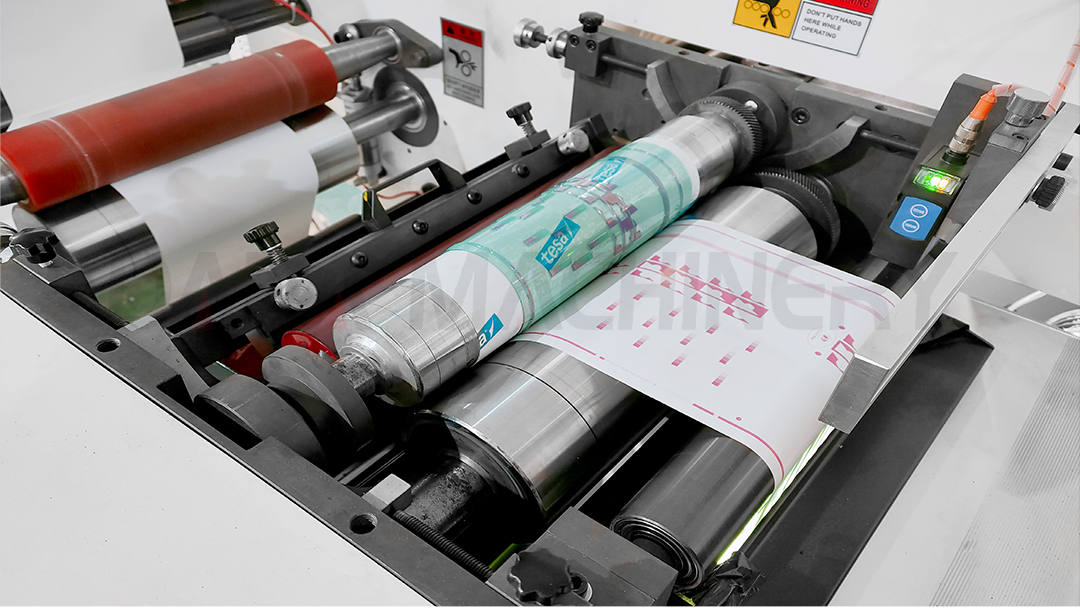

3. Printing Color Unit (7 Units)
- 7 Set Servo Motor (1 set per Unit)
- Station comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scraper Blade and Ink container
- Helical Gear design
- Printing cylinder --- 1 set (7pcs) included
- Doctor blade setup
- Gear: 1/8 inch
- Automatic printing plate cleaning function
- Full runout of anilox, plate, and bottom rollers: ≤0.003mm

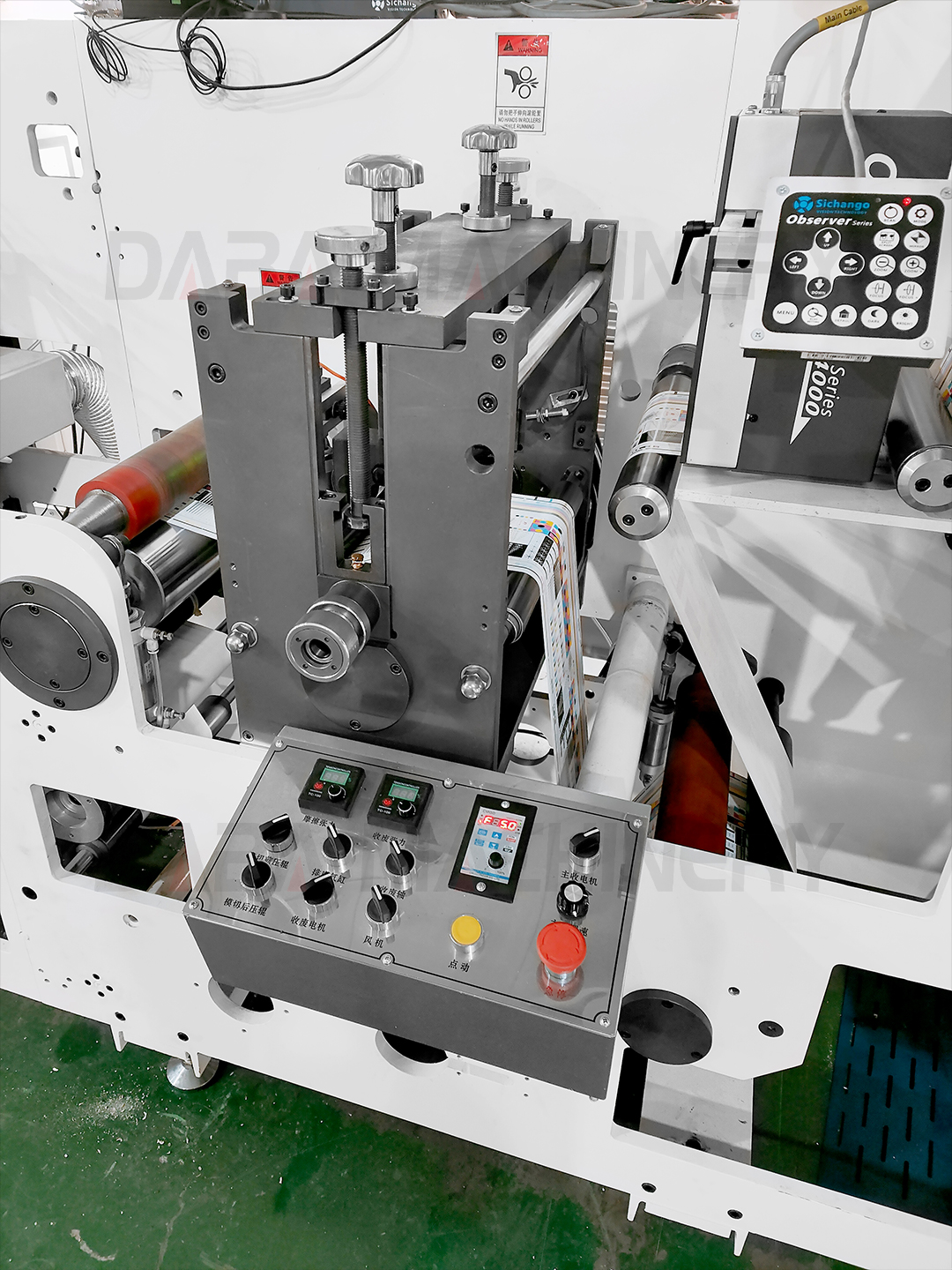

4. Die Cutting Unit (1 Unit)
- Gear: CP 1/8 inch
- 1 set servo motor per die cutting station
- Compatible with magnetic cylinder and flexible dies sheet (Customization based on label size required)
- 3inch air shaft for waste matrix rewind (optional 1inch, 1.5inch, 2inch)

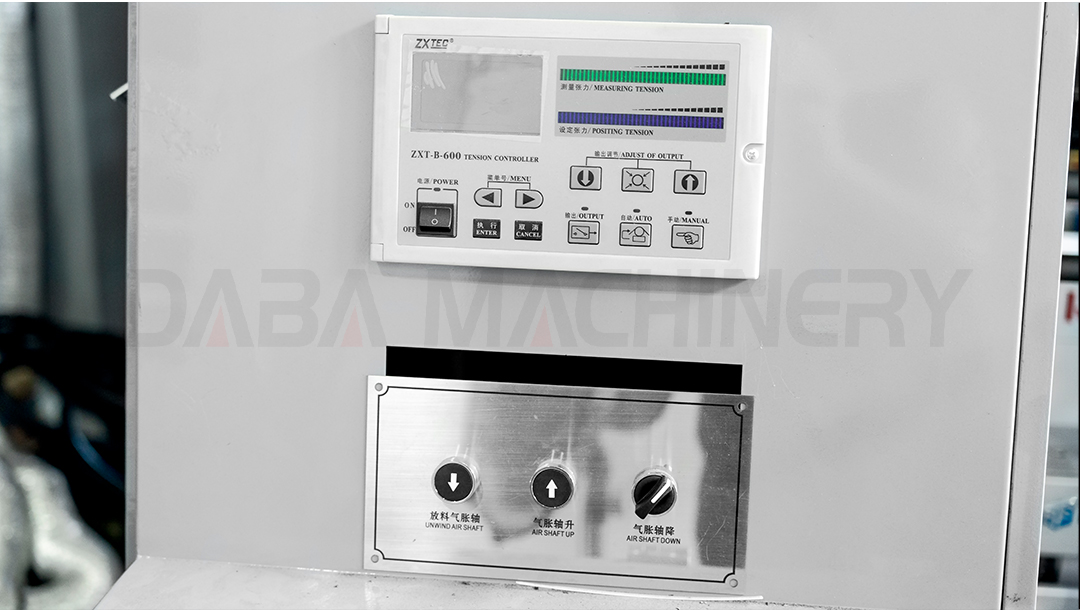

5. Tension Control System
- Rubber rollers for feeding
- Auto Constant Tension Controller - 2 sets (one for unwinding, one for rewinding)
- Magnetic Powder Brake & Clutch
- Dual pressure roller pressure feeding together

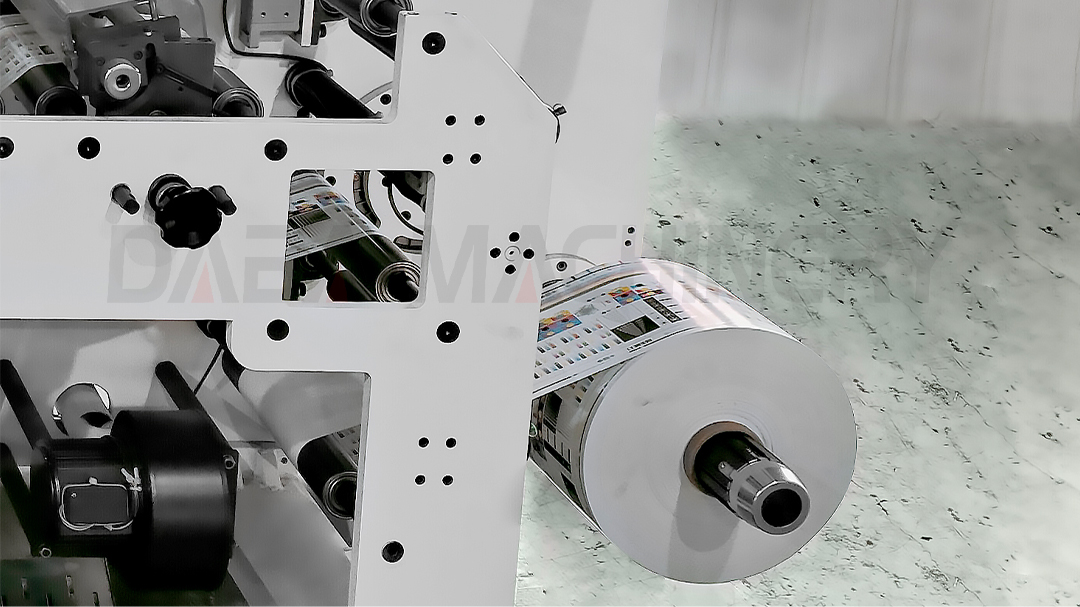

6. Rewinding Unit
- 1 set servo motor
- Magnetic Powder Clutch -- cooperated with tension control system
- Max unwind material diameter: 600mm
- 3inch air shaft (optional: 1inch, 1.5inch, 2inch)
- Fast inflating air gun (customizable automatic air inflating function available)
- Rewinding vector motor tension control system

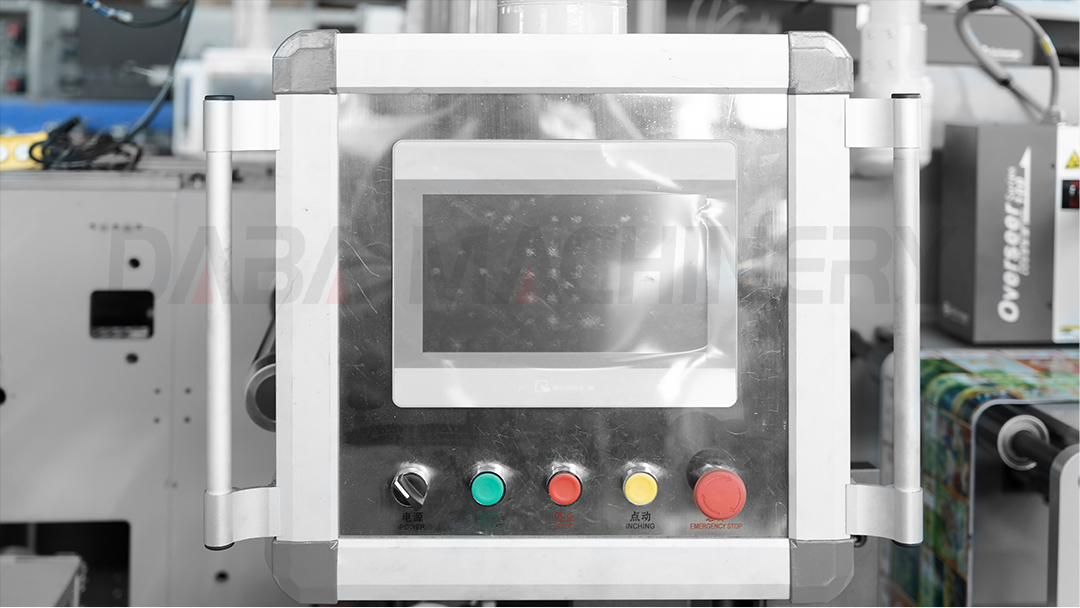

7. Control Panel
- Power Supply, Stop Button, Start Button and Emergency Stop
- PLC controller and touch screen operations
- Anilox Roller Rotation Button for each Printing Station
- Length Counter and Speed Controller integration

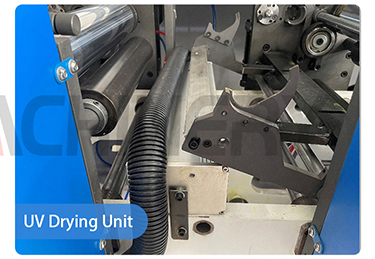

8. IR Drying Unit / UV Drying Unit
- Each Printing Unit comes with 1 unit Infrared Heating Drying Oven (standard)
- Oven is placed on material and after each printing station
- Imported Heating Lamp fixed in each Infrared Heating Drying Oven
- Optional: UV / LED UV Drying Oven upgrades

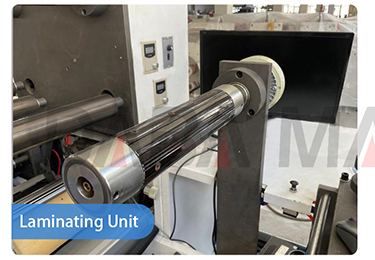

9. Laminating Unit
- 3inch air shaft
- Feed by motor

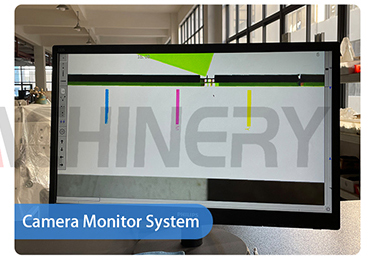

10. Camera Monitor System
- Standard with Chinese Kesai Brand
- Optional: BST Brand from Germany
■
1. Purchase Service
We have a specialized and efficient working team. If you are new to the printing and packing area, some samples of your products could be shown to us and we will give you specialized suggestions for the whole work.
■
2. Shipping Service
We have a specialized and independent department which is dedicated to shipping the buyer's goods. The workers are highly familiar with T/T and L/C payment items. All export documents can be prepared perfectly. We also cooperate with major shipping companies in China to provide the best and most economical shipping methods to the buyer's port.
■
3. Installation Services
Installation services are available for all of our machines. We will dispatch technicians to the buyer's factory for machine installation and pre-operation training. The buyer is expected to supply round-trip tickets, food, and hotel accommodations.
■
4. Clients Training Services
We advise that the buyer send their own technicians to our factory to learn how to operate the machines. Our technicians will teach and train the learners step-by-step until they can operate the machine independently. Training within the installation period is also acceptable.
■
5. After Sales Service
The guarantee time of our machines is one year. Many easily broken spare parts will be prepared in the tool box together with the machines. For any damaged parts, simply send a photo or video. The new free replacement parts will reach you within 3-7 express working days.
Frequently Asked Questions (FAQ)
What materials can this flexographic printing machine run?
This machine supports self-adhesive paper, thermal paper (like ATM rolls), plastic films (such as CPP, PET, PVC, PE), laminating films, and standard paper materials ranging from 20g/m² to 250g/m².
What operations can this machine finish in a single pass?
The machine integrates material-feeding, printing, varnishing, drying, laminating, die-cutting, and rewinding continuously in one process, making it highly efficient for high-grade adhesive labels.
What options are available for the ink drying system?
Each printing unit comes standard with one Infrared (IR) heating drying oven. For specialized applications, you can optionally configure the machine with a UV or LED UV drying oven.
How is the tension managed during operation?
The machine uses auto-constant tension controllers (cooperated with magnetic powder brakes and clutches) for both the unwinding and rewinding stations, ensuring precise materials tension control.
What is the standard warranty and after-sales service policy?
The machine comes with a 1-year guarantee. Essential spare parts are provided in the machine toolbox. If any parts fail, simply send a photo or video, and free replacements will be shipped via express within 3-7 working days.
Do you offer on-site machine setup and operator training?
Yes, we can dispatch technical engineers to the buyer's site for machine installation and pre-operation training. Alternatively, buyers can send their technicians to our factory for hand-in-hand operator training.
