Product Description

Model DS-0920 DS-1224 DS-1425 DS-1628
Max Paper Feeding Size(mm) 900*2100 1200*2500 1400*2600 1600*2900
Min Paper Feeding Size(mm) 240*430 300*430 350*500 400*500
Max Printing Area 900*2000 1200*2400 1400*2500 1600*2800
Designed Speed(pcs/m) 350 260 240 200
Min. Slotting Width -Positive(mm) 250*60 250*60 250*60 250*60
Min. Slotting Width -Negative(mm) 190*60 190*60 190*60 190*60
Divider Graphic

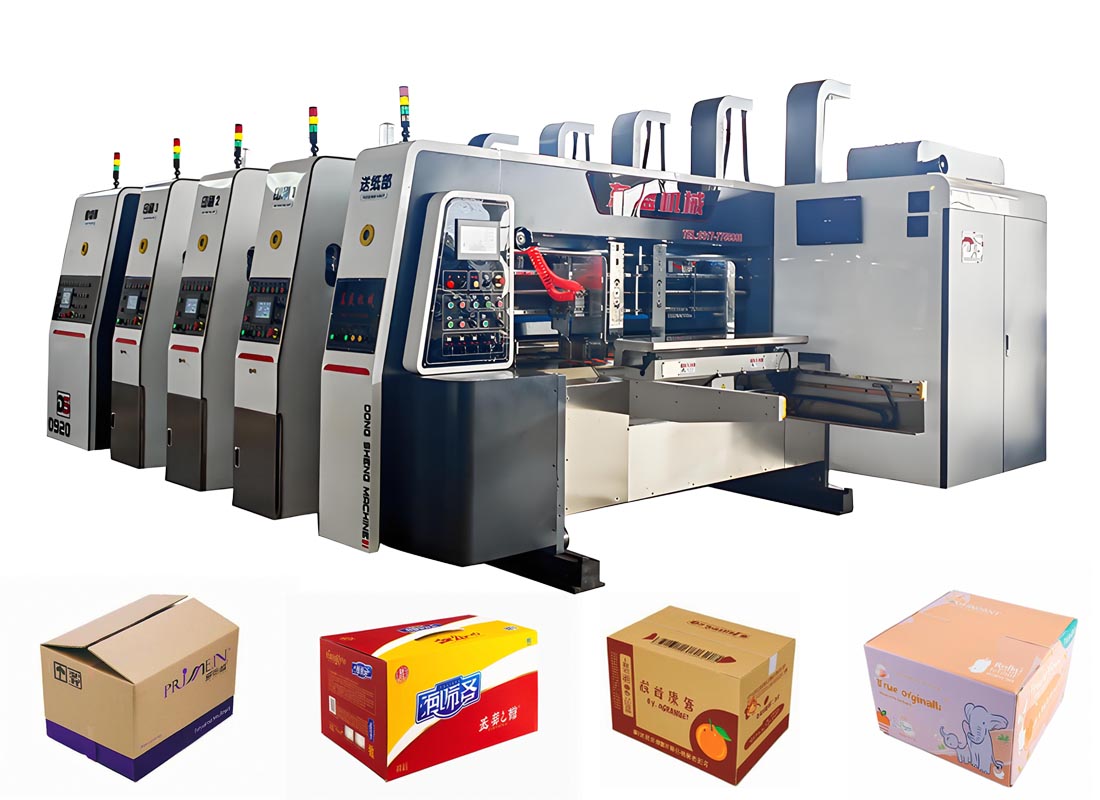

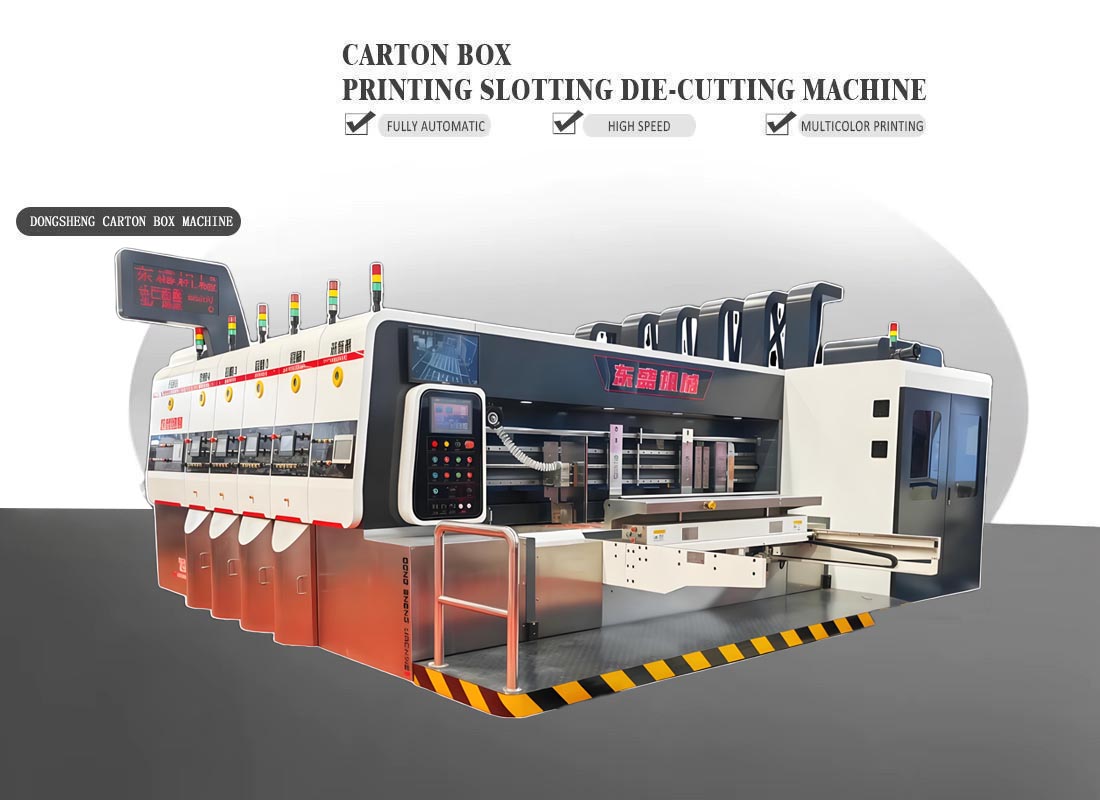

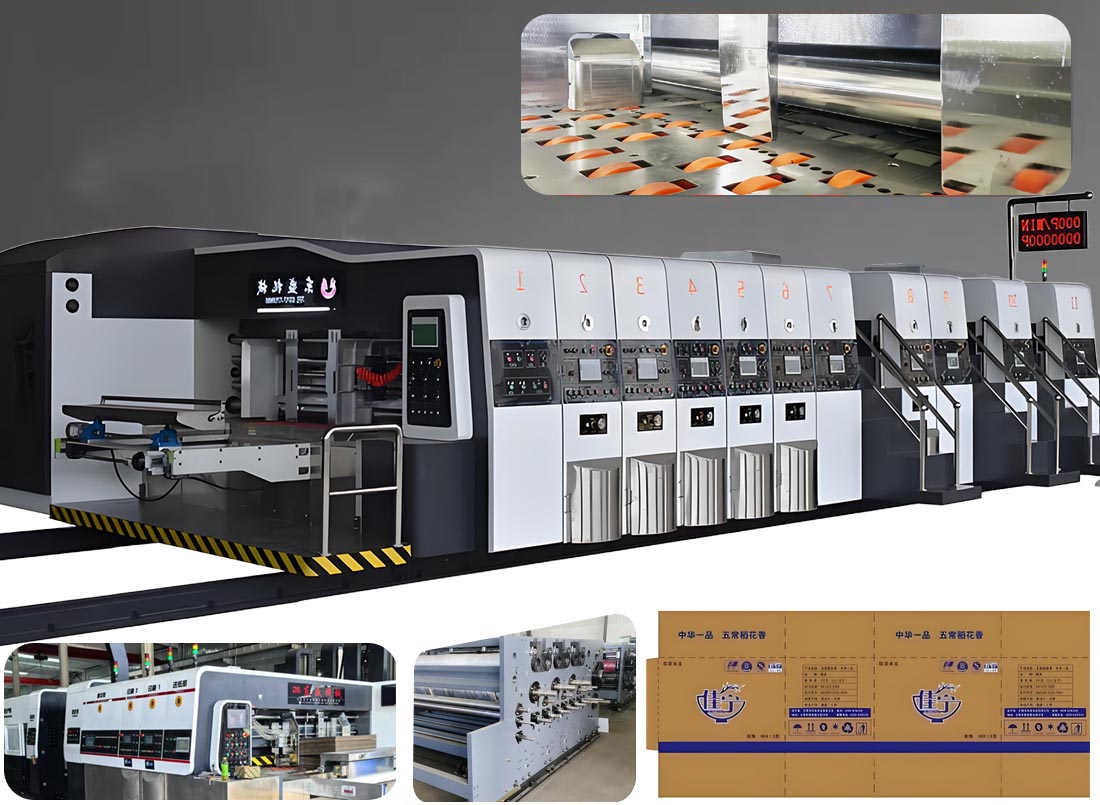

Machine Overview Left Machine Overview Center Machine Overview Right

This high-performance printer features an optional slotting/die-cutting unit for versatile production. Equipped with an advanced PLC control system, it ensures fast and precise size adjustment to meet various corrugated board specifications. Built with top-tier electrical components and premium materials, it offers user-friendly operation, high efficiency, and consistent quality. Renowned for reliability and excellent after-sales support, it is the preferred choice for global cardboard and box manufacturers.

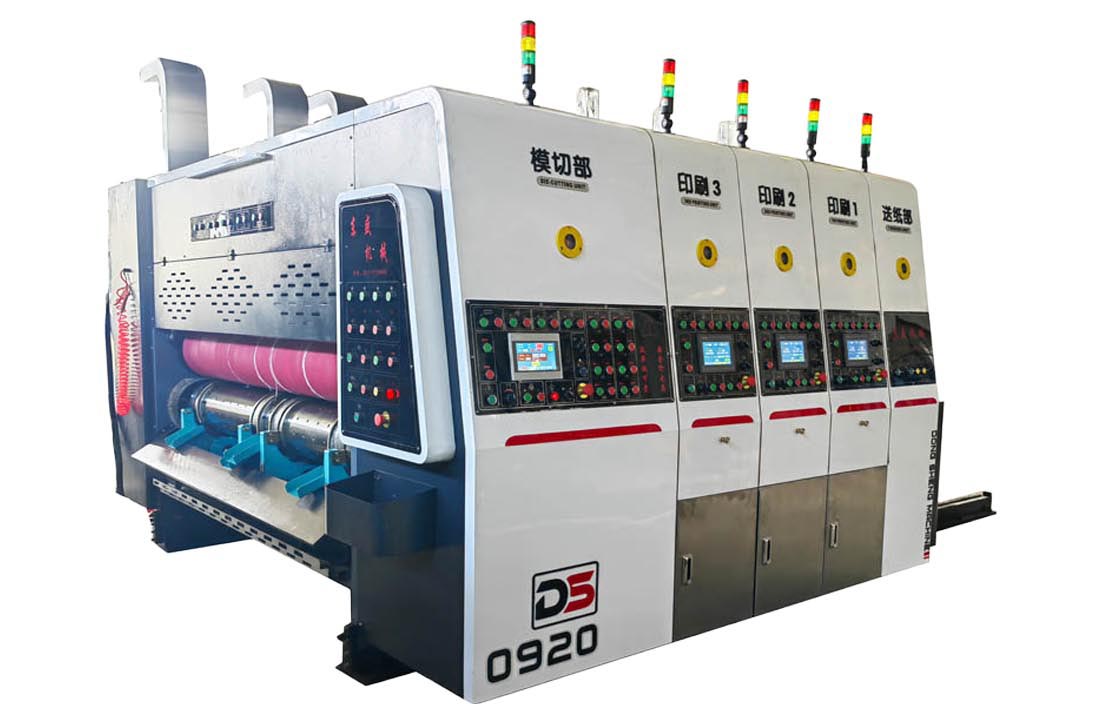

Component Diagram
Technical Units & Specifications

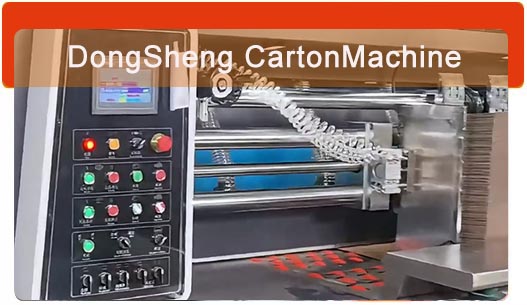

Lead Edge Feeding
Lead Edge Feeding
1. Electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.
2. Drive shaft with friction clutch, to avoid misuse and damage to the machine.
3. Pneumatic interlock device.
4. The host motor starts the protection device (The machine is not locked, the host cannot start running).

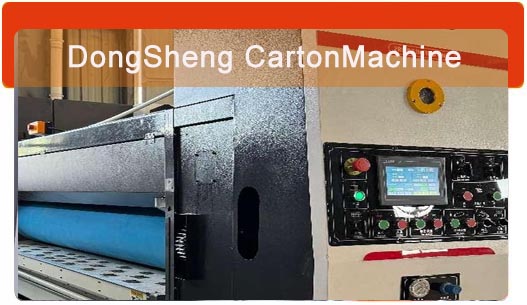

Printing department
Printing Department
1. High-quality steel surface grinding, axial reference scale, hard chrome plating.
2. Do the balance correction, smooth operation, to adapt to high-speed operation.
3. Ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
4. Full version of hanging slot, for 10 mm hanging version of the article.

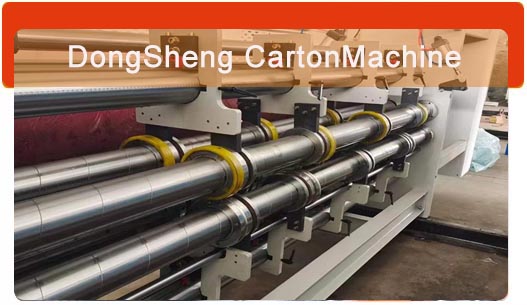

Slotting unit
Slotting Unit
1. Slot knives 7 mm use alloy steel material after heat treatment, grinding, teeth model knives. Slotknife has high strength, abrasion resistance, long service life, accurate size.
2. Slot phase adopt the gear structure 360 degree electrical digital number adjustable, running and stop all can adjust.
3. Slot seat and creasing wheel and pre-creasing wheel transverse all PLC control, adjust left or right movement, adjust easily and accurately!
4. Can choose 4/6/8 anix, for different requirements.

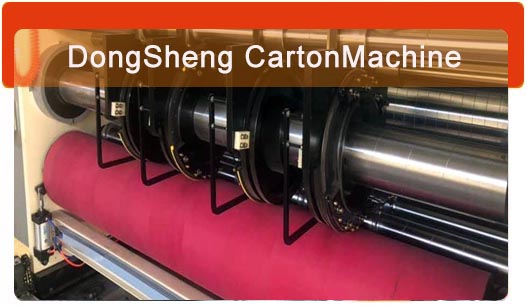

Die-cutting unit
Die-cutting Unit
1. Die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.
2. Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard).
3. Quick change type pad, wear resistance, long life.
4. Cast iron surface grinding, hard chrome plated.
5. Balance correction, increase operational stability.
6. Pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm swimming device.

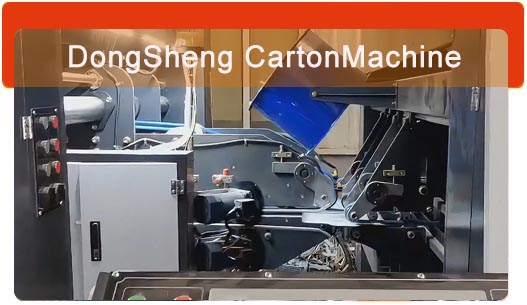

Vibrator unit
Vibrator Unit
Paper feed part: Transmit roller with PU round belt made of the paper feeding. During the paper feeding, two vibration rods let the board vibrate on the belt to clear the waste paper.
Waste paper collect part: Feeds the waste paper out on a belt, then uses another belt to feed the paper to the side of the machine, completing the collection.
Walk locking part: Includes four guide wheels to let the machine depart and lock with the rotary die cutter. Simple operation, using pneumatic and lock cylinder setup.

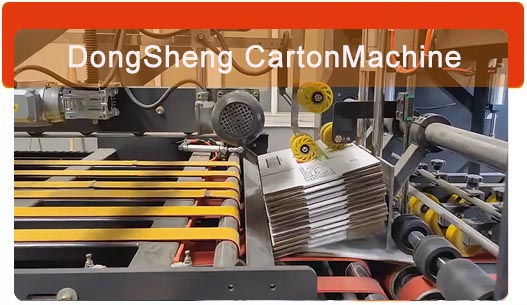

Auto stacker unit
Auto Stacker Unit
1. The paper taking arm is manual operation. The paper stacking height can be chosen freely.
2. Adjustment is available for each belt.
3. The paper feeding platform transmitted up and down by chain.
4. The inclination of paper taking platform changes with the height of the paper. Brake is installed to fix the platform's position.
5. When the paper stacking height reaches the set point, the paper taking platform will hold the paperboard pneumatically.
6. Maximum stacking height: 1600mm.
Corrugated box applications

Applicable Packaging: Suitable for making any type of corrugated carton box, such as: pizza box, shipping box, fruit box, beer box, wine box, milk box, computer box.

Configuration List
Pos Name Description Unit Quantity
1 Paper feeding unit Servo motor (optional) Pressure free (double air box) (optional)
No lifting plate front edge paper feeding, the main power is driven by frequency conversion, the operating side is automatically aligned, the rear and left/right side panels are electrically adjusted, the gap of the front panel is synchronized, features a brush + dust removal system, and the paper feeding part is centrally controlled by a touch screen. 		group 1
2 Printing unit Paper wheel / Full suction (optional) transmission, ink shortage alarm system, squeeze ink system (optional). Gap electric adjustment. group 1-6
3 Slotting unit Six-axis structure, computer knife adjustment, gap electric adjustment. group 1
4 Die-cutting unit Automatic shaft shift of rubber pad roller, rubber pad grinding device. Pressure is adjusted by electric motor. group 1
Factory Machine Banner

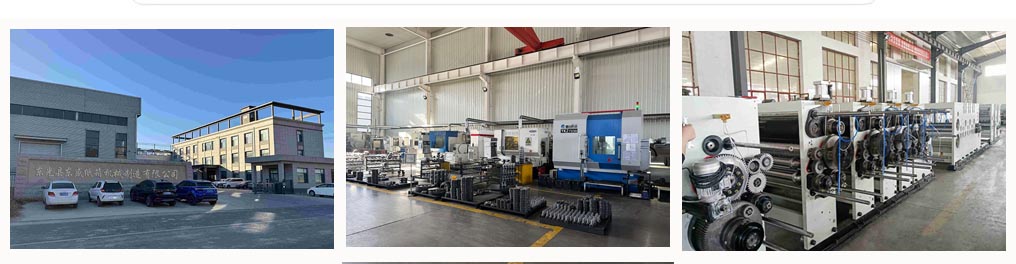

Production Detail 1 Production Detail 2 Production Detail 3 Production Detail 4 System Interface Diagram Packaging Line Overview
Payment & Logistics Graph
Frequently Asked Questions
Are you a factory or a trading company?
We are a factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Can you send me the video to show how the machine works?
Certainly, we have made videos of every machine and can send you the one you want to see.
How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.
How can I pay my order?
We accept T/T, L/C paying methods. For those orders less than 5000 USD, we accept Trade Assurance to pay.
What kinds of boxes is this machine suitable for producing?
This machine is highly suitable for any type of corrugated carton box making, including pizza boxes, shipping boxes, fruit boxes, beer boxes, wine boxes, milk boxes, and computer boxes.
What are the control and design advantages of this machine?
It features an advanced PLC control system for fast, precise size adjustment, top-tier electrical components, premium materials, high efficiency, and user-friendly operation.
