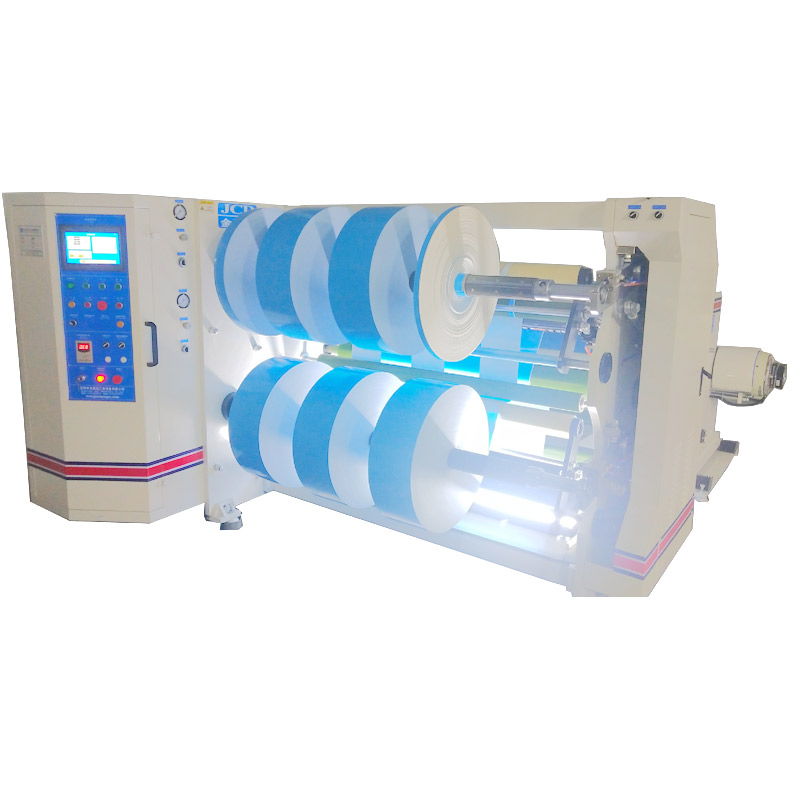

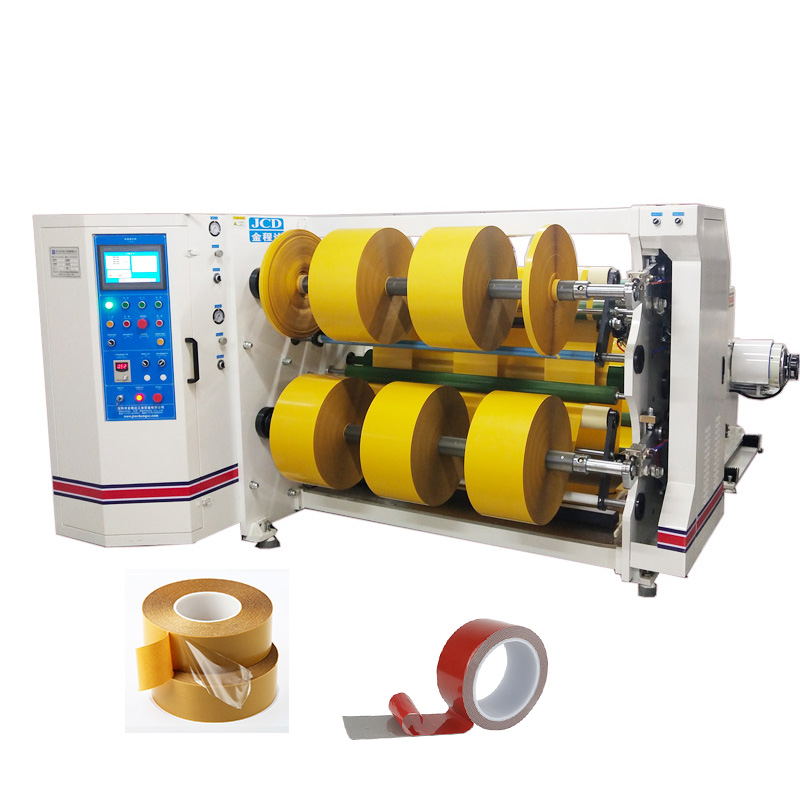

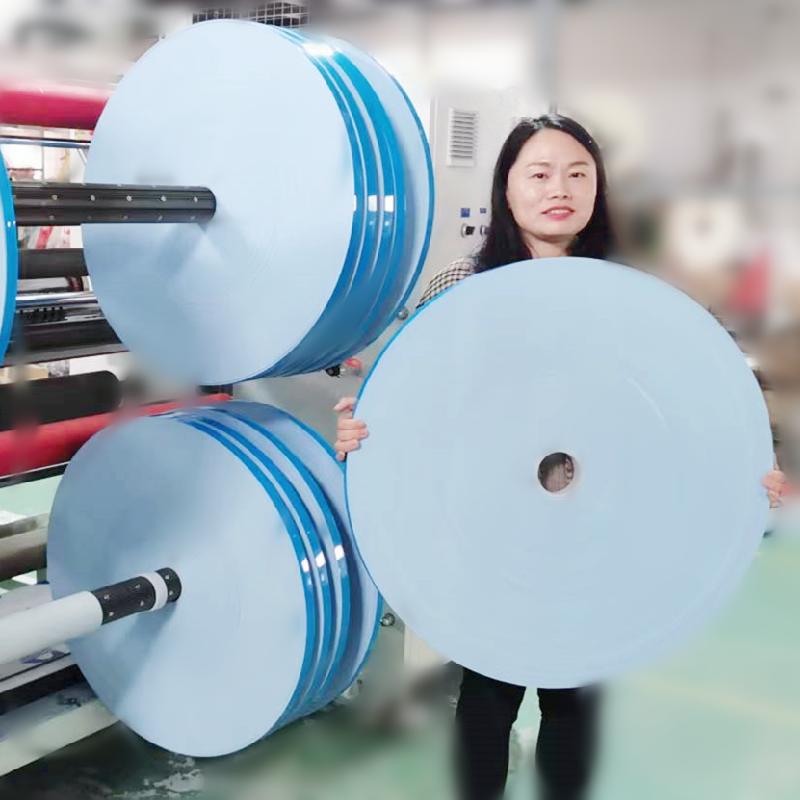

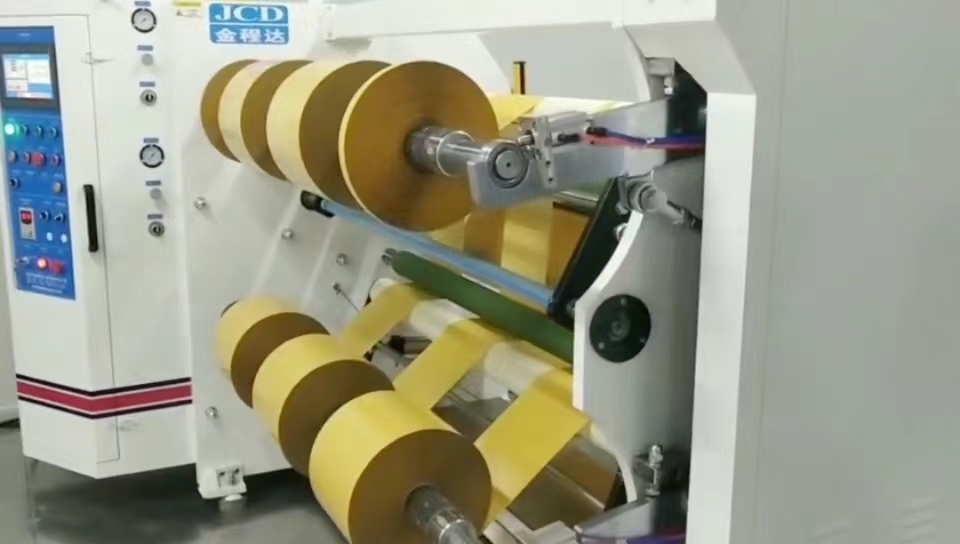

1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1 / 5
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine
1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine

1300mm VHB Double Side Tape 500M Roll Cutting Slit Rewind Machine

Send Inquiry

Product Description

Adhesive Tape Jumbo Roll Cutting and Rewinding Machine
Function

This machine is suitable for slitting and rewinding the foam tape, double sides tape, masking tape and so on. Especial for the large diameter roll adhesive tape making.

Cutting rewinding machine details
Rewinding section detail

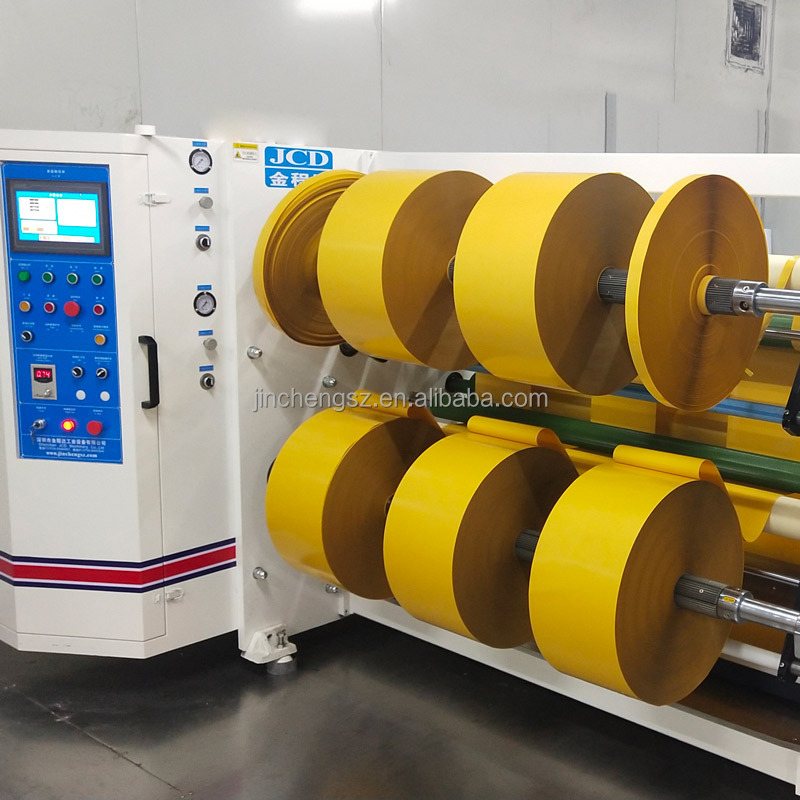

Unwinding system detail

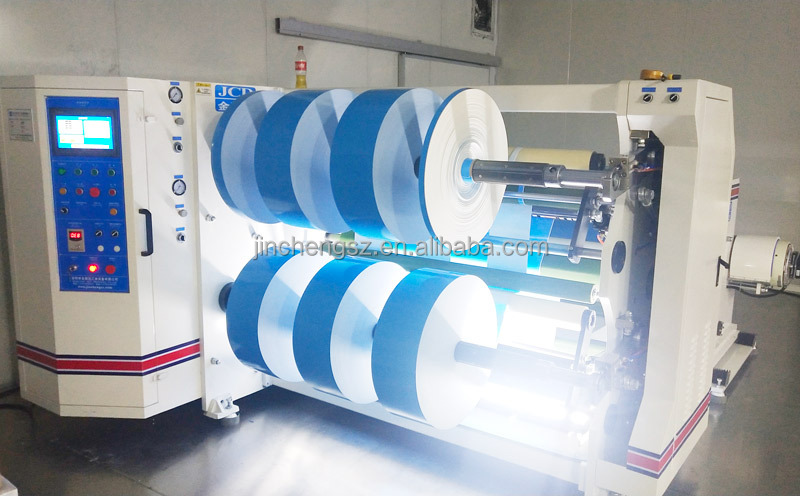

Cutting section detail

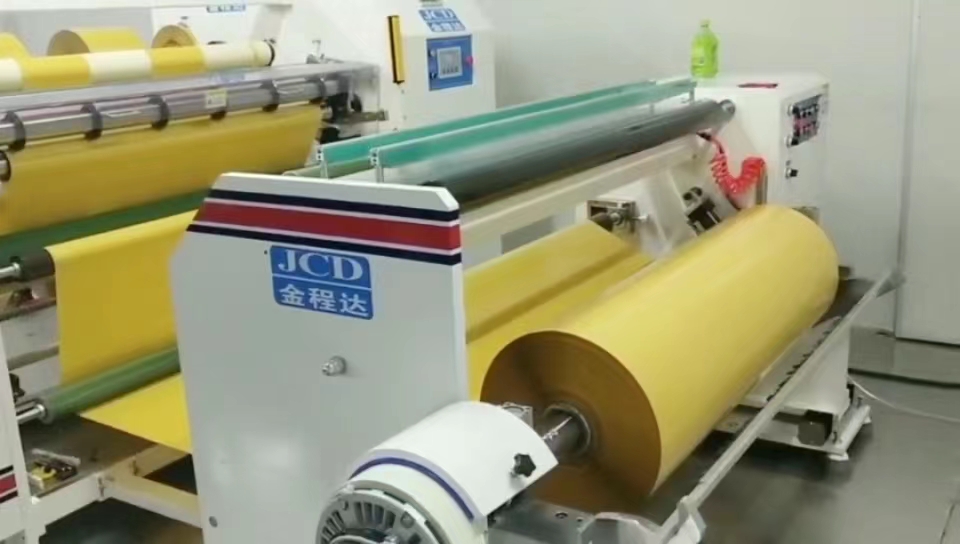

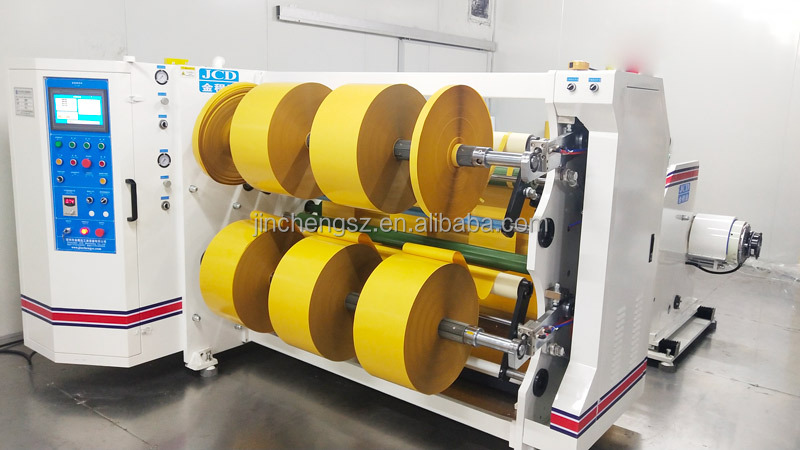

Adhesive tape slitter full display
Specifications
Type JC-S02-1000 JC-S02-1300 JC-S02-1600
Valid width 1000mm 1300mm 1600mm
Max mother roll unwinding diameter 800-1000-1200mm 800-1000-1200mm 800-1000-1200mm
Max Rewinding diameter 600mm/800mm 600mm/800mm 600mm/800mm
Mini slitting width 30mm 30mm 30mm
Inner tube diameter 3'' or 6'' 3'' or 6'' 3'' or 6''
Speed 0-120m/min adjustable 0-120m/min adjustable 0-120m/min adjustable
Size 2500*2800*1600mm 2800*2800*1600mm 3000*2800*1600mm
Weight 2800KG 3000KG 3200KG

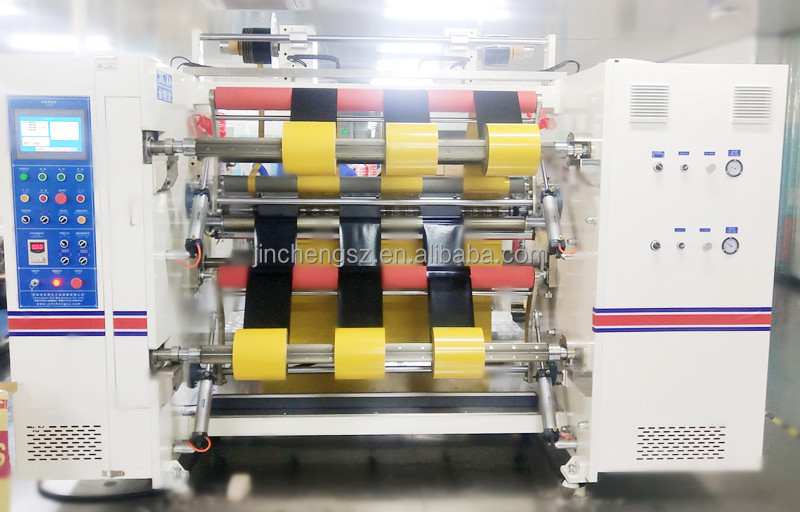

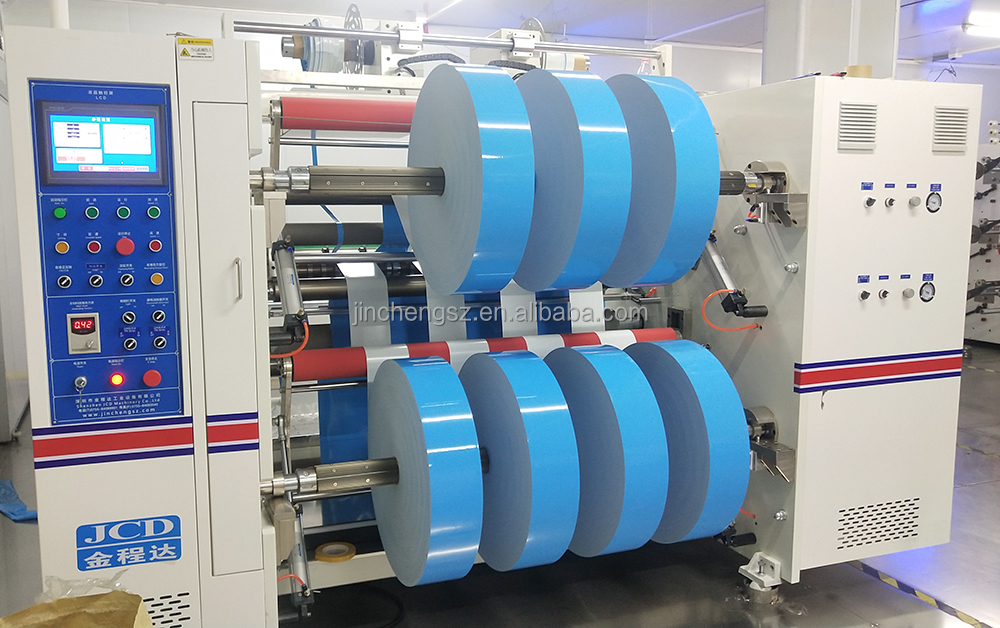

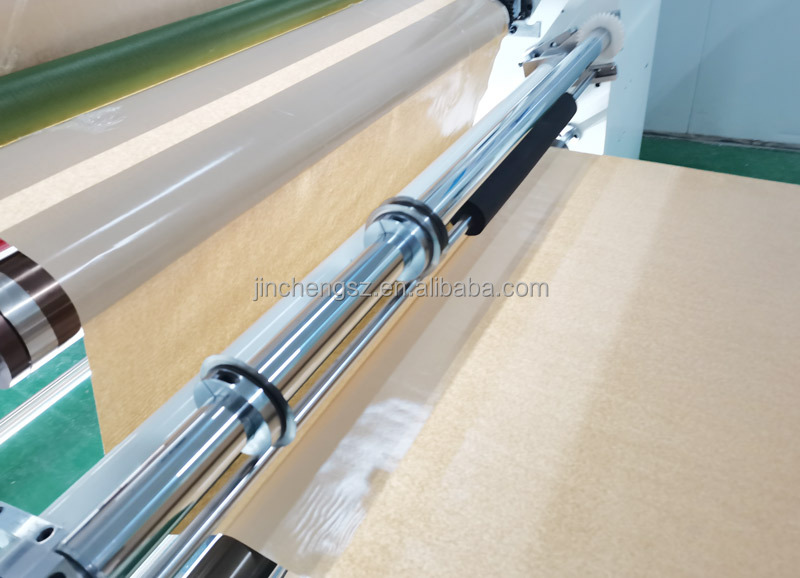

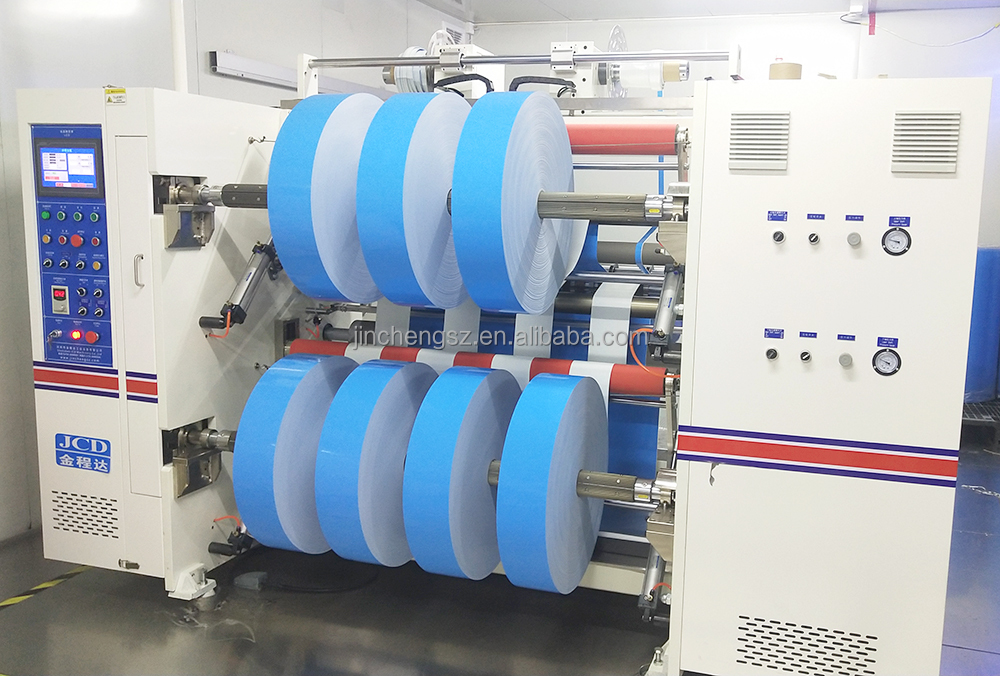

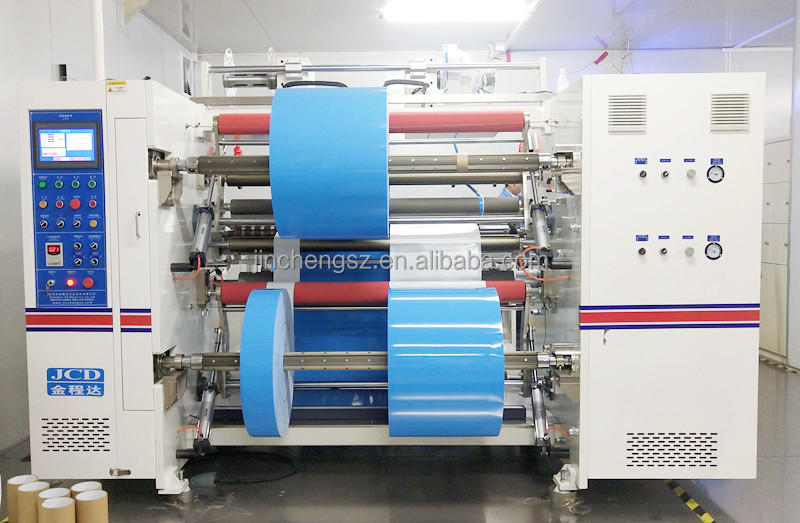

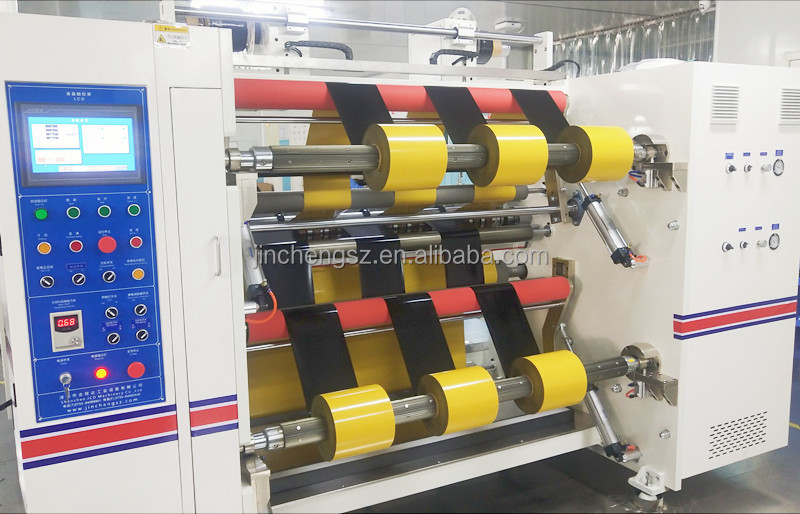

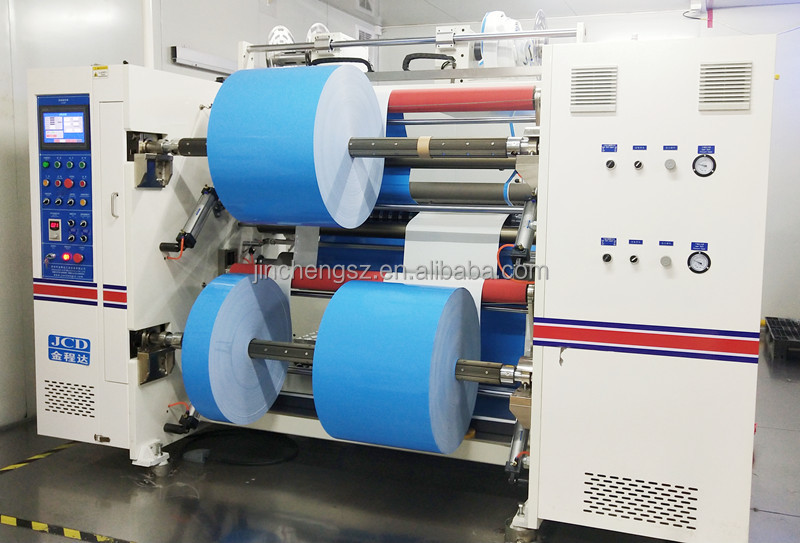

Component details
Component details
Component details
Component details
Component details
Component details
Component details
Component details
Component details
Final Cutting Effect

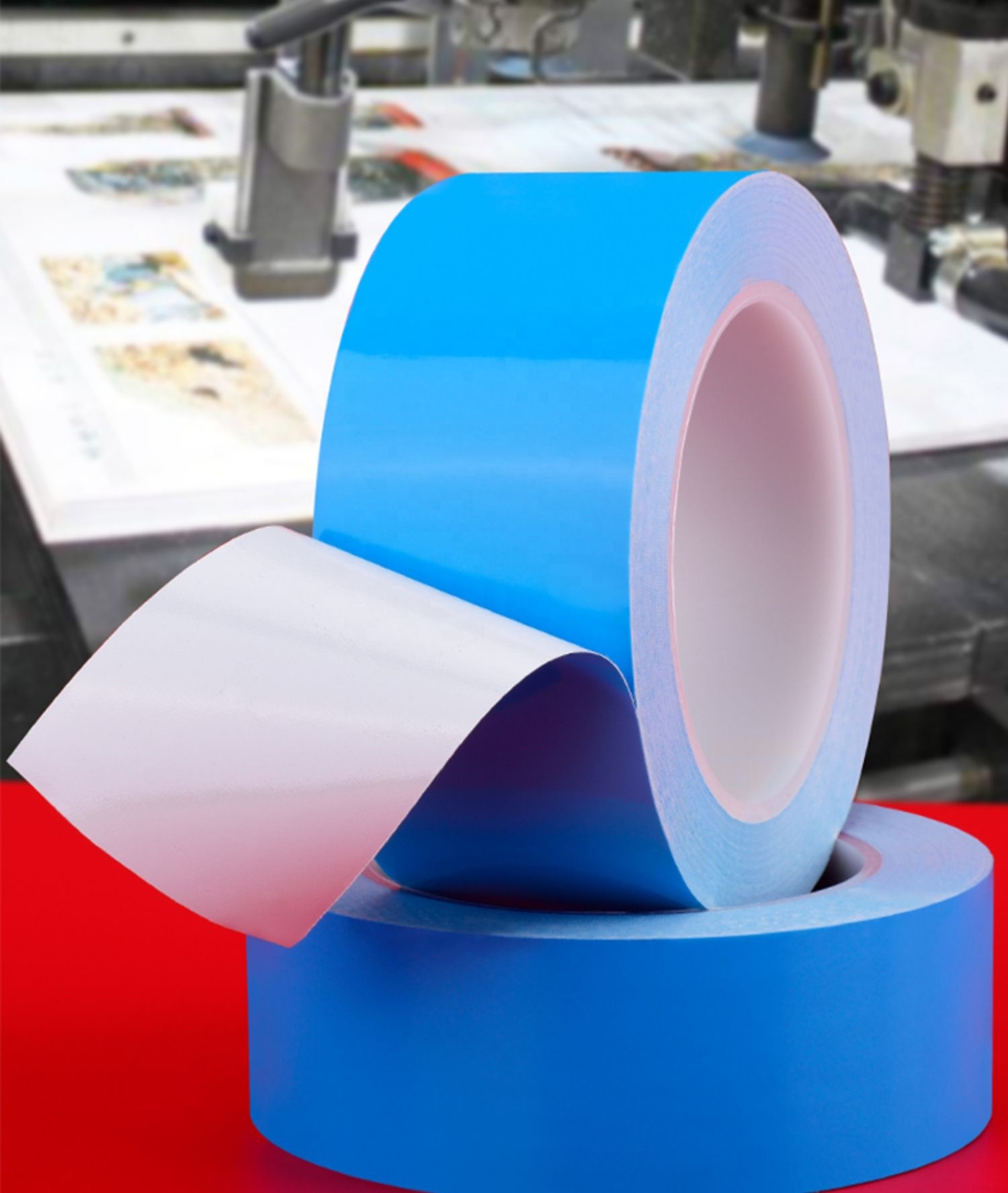

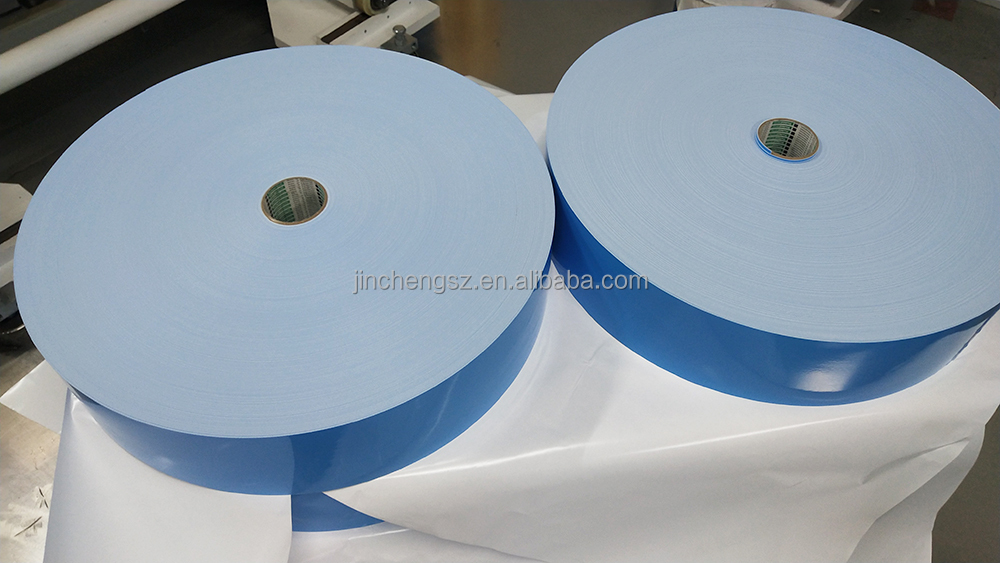

Final cutting rolls display

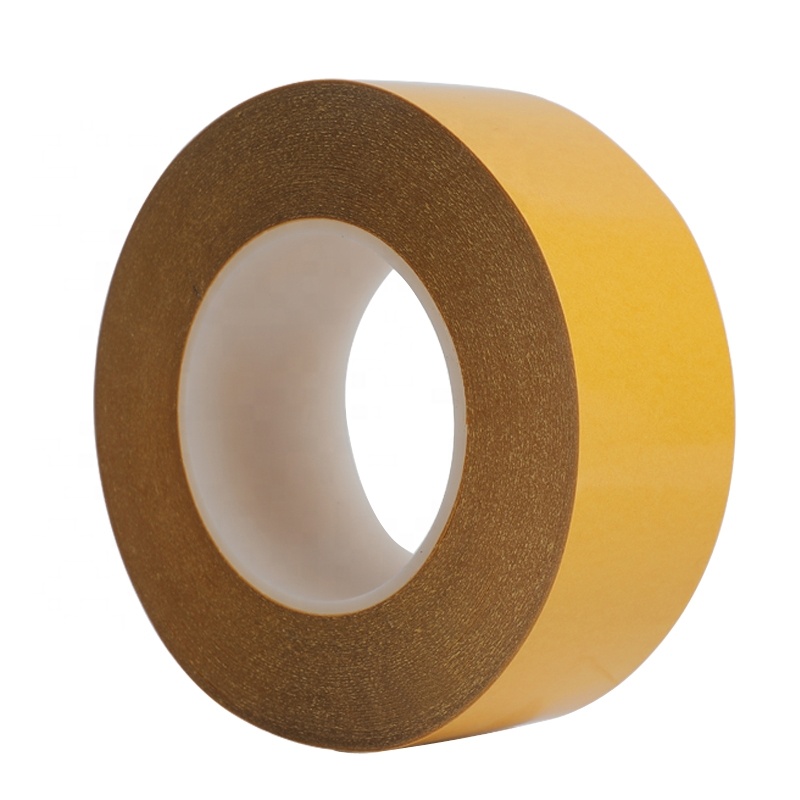

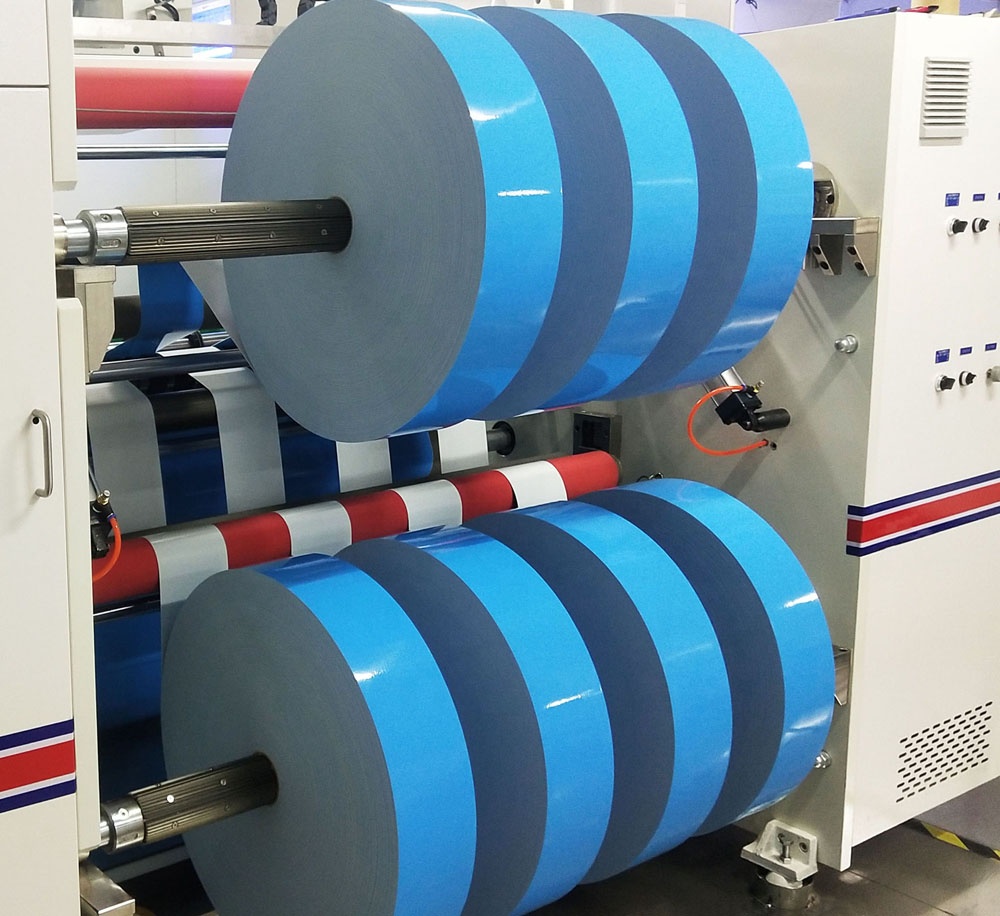

Finished rolls close up
Detailed Specification

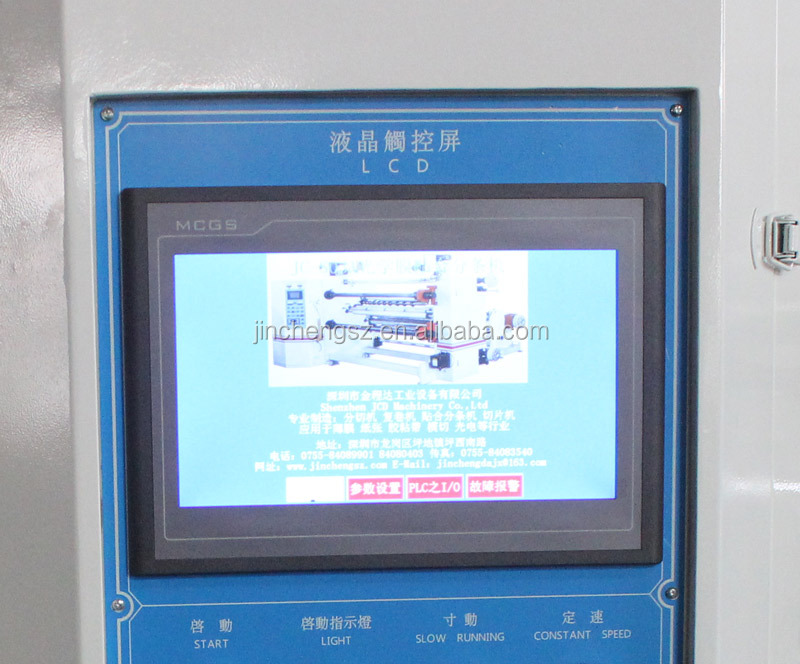

Tension control system
1 Automatic Tension Control System

Equipped with automatic tension control system for both unwinding and rewinding operations.

  • Touch screen size: 10''
  • Tension control: Automatic
  • Control system: PLC
  • Languages: English and Chinese, or customized
  • Length measuring functions: Included
  • Automatic stop by set length: Supported

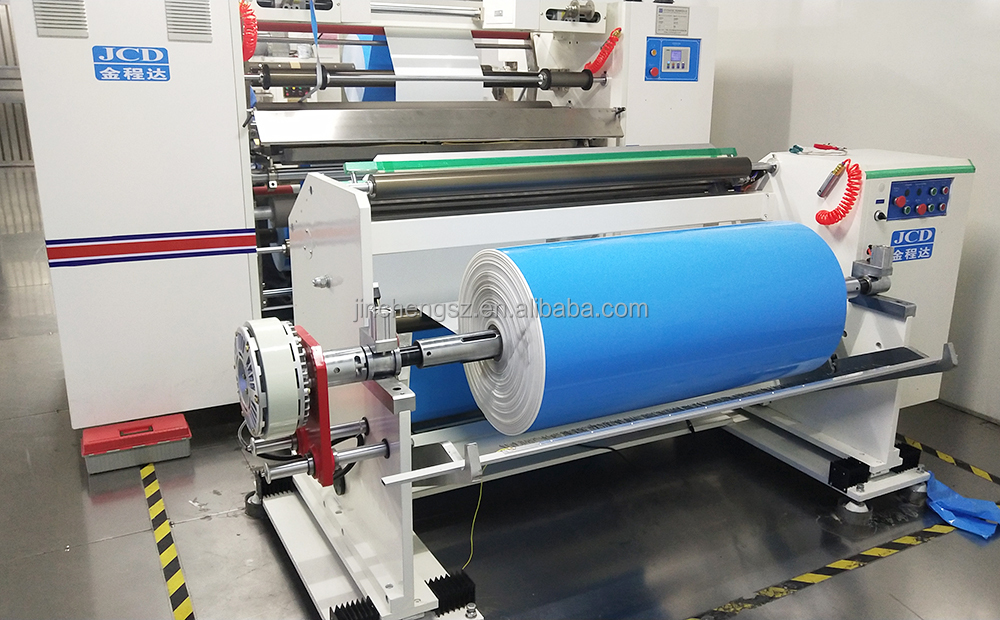

Hydraulic loading system
2 Hydraulic Loading System

Automatic oil hydraulic loading system handles jumbo rolls efficiently. Fits large diameter foam tapes and double sided tape jumbo rolls.

  • Max weight charge: 2000KG
  • Max diameter: 800mm

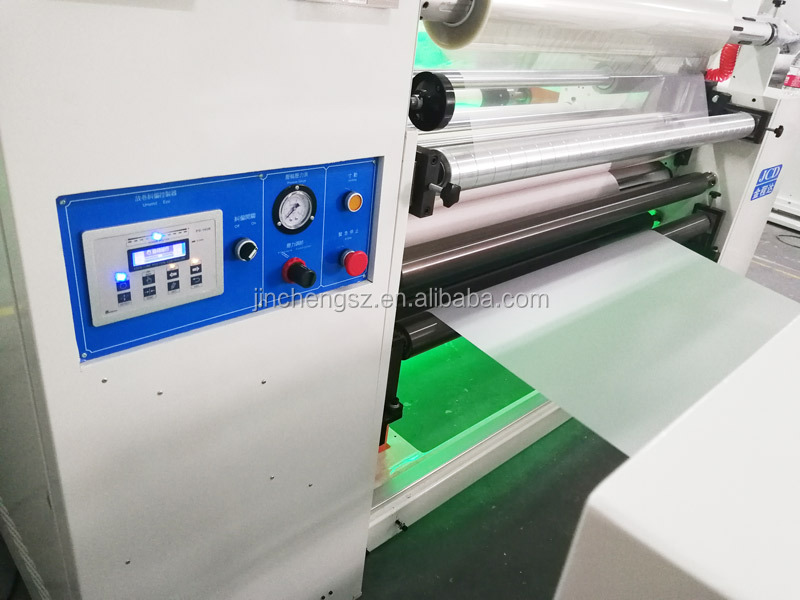

Ultrasonic EPC system
3 Ultrasonic EPC System

Automatic ultrasonic Edge Position Control system ensures the slitting surface is completely straight. Suitable for transparent and non-transparent raw materials.

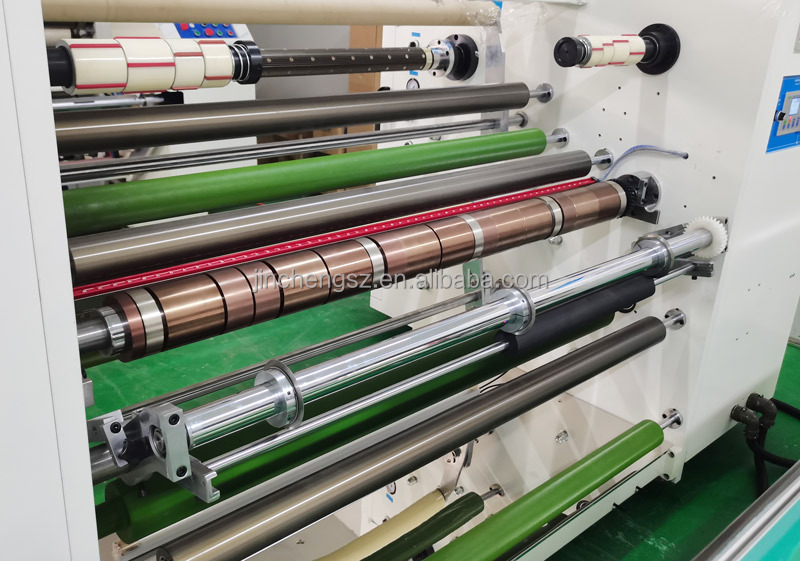

Blade alignment display
4 Multi-blade Configuration

Adjustable width top and down blades. Razor blade option is available according to material needs.

  • Adjustable blade layout
  • No need to remove the blade shaft to confirm cutting width
  • Easy operations and quick setup
Optional Devices

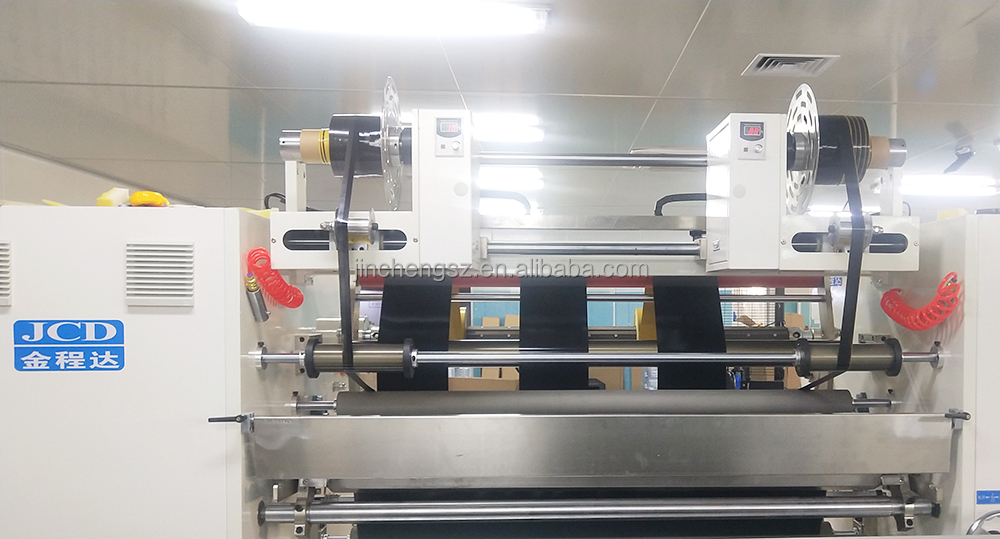

Trim waste collector option
Option 1 Edge Trim Collector

Suitable for collecting the cutting edge trim systematically during continuous high-speed rewinding operations.

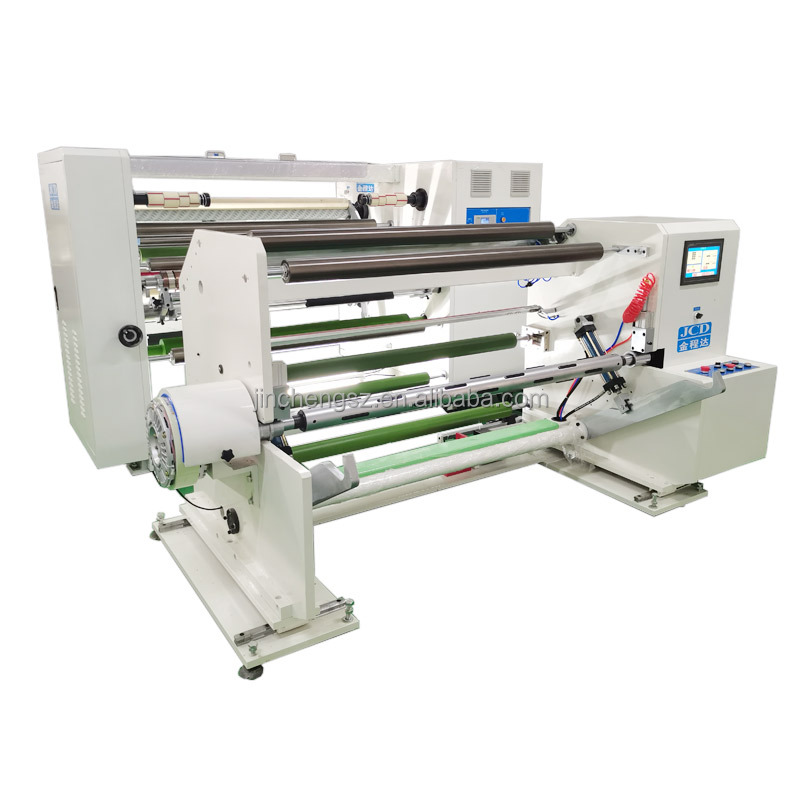

Auxiliary control screen option
Option 2 Auxiliary Loading Touch Screen

Provides an additional control interface at the loading station. Helps operators control process parameter settings fast and conveniently.

CE Certification
CE Certificate documentation
Wooden Package
Packaging wooden box
User Feedback
User feedback photo 1
User feedback photo 2
User feedback photo 3
User feedback photo 4
User feedback review score chart
Manufacturing Team
Electrical Engineering Team
Electrical Team
2 electricians with 8 years of practical experience.
Assembling Line Workers
Assembly Team
3 production lines with workers holding over 5 years of assembly experience.

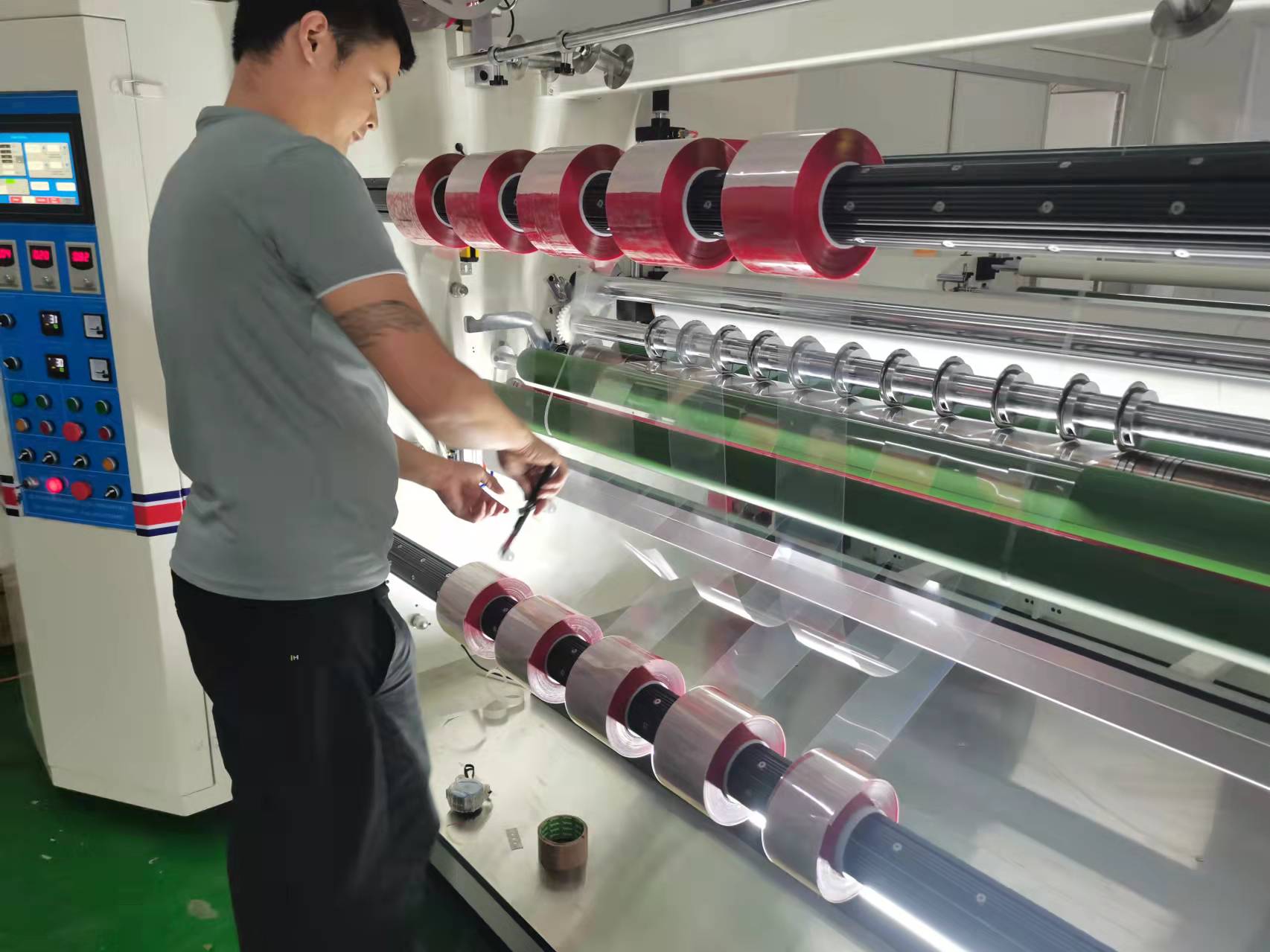

Quality Control Staff
QC Team
2 inspectors holding over 10 years experience in the mold cutting & slitting field.
Service & Support
Customer pre-sale consulting
Pre-Service
  • Inquiry and consulting support.
  • Sample testing support.
  • Factory tour availability.
After sale service and maintenance support
After-Sales Service
  • Training on how to install and use the machine.
  • 12 months warranty with lifetime maintenance support.
  • Engineers available to service machinery overseas.
Logistics Delivery
Packaging box loading on truck
Kindly send the inquiry to us
We will offer the best price for you.
Frequently Asked Questions
Are you a factory or trading company?
We are a professional factory and we have years of experience of manufacturing rewinding, cutting machines and slitting machines.
Does the machine have the capability to cut different sizes of tapes?
Yes absolutely, you can set any width you require through the PLC controller screen panel.
Do you customize and make machines according to client specifications?
Yes, we design and manufacture different customized machines according to special purposes.
Do you provide the manual book with the equipment shipment?
Yes. Also, if necessary, our engineers are available to support overseas. Our machines are highly automated and easy to operate.
The electricity voltage in our country differs, can the machine be configured differently?
Yes, we can perform standard configuration changes to match our customers' local requirements.
What is the standard warranty period for this slitter machinery?
We provide one year warranty, excluding wearing parts from standard warranty coverage.
