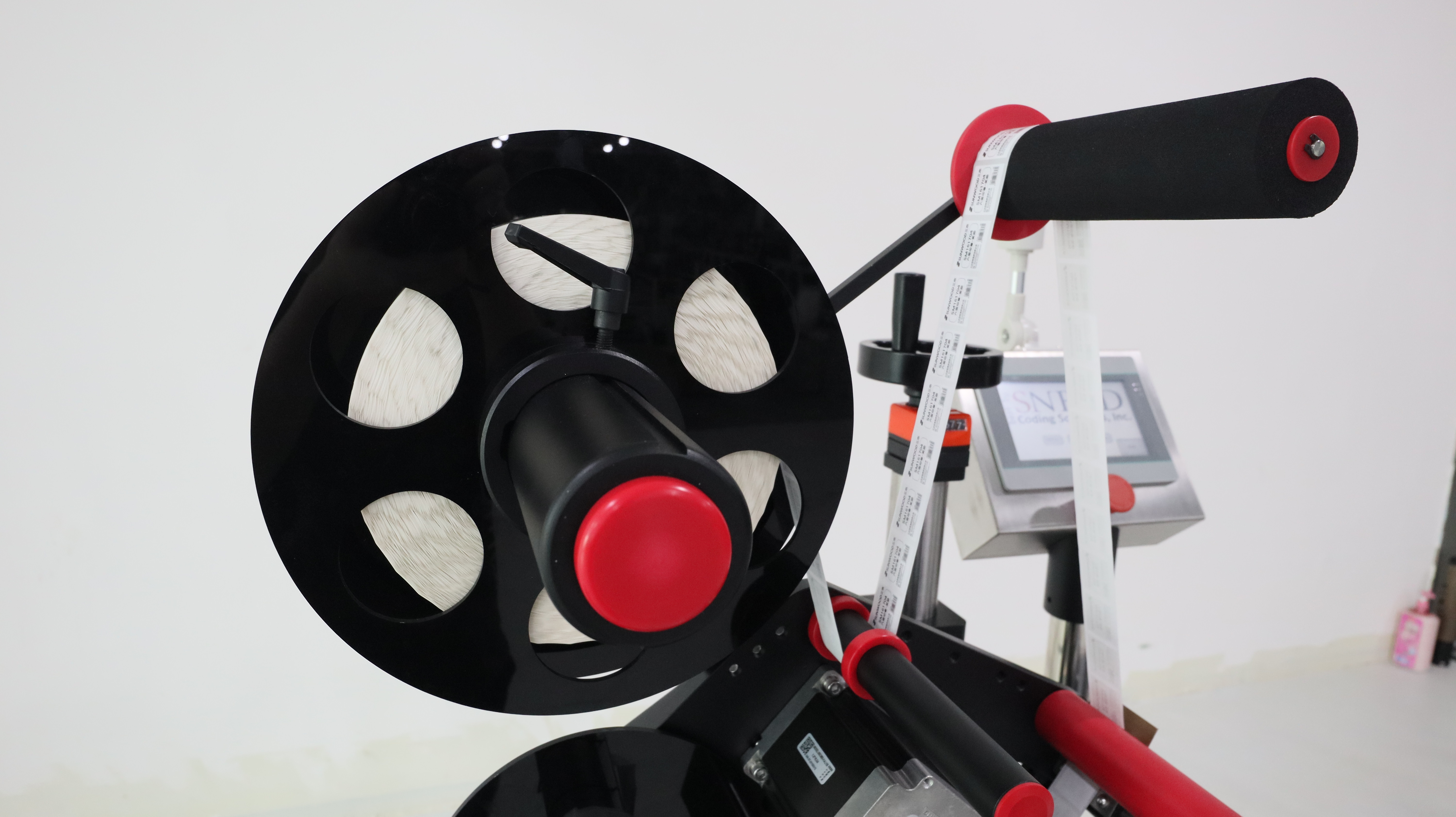

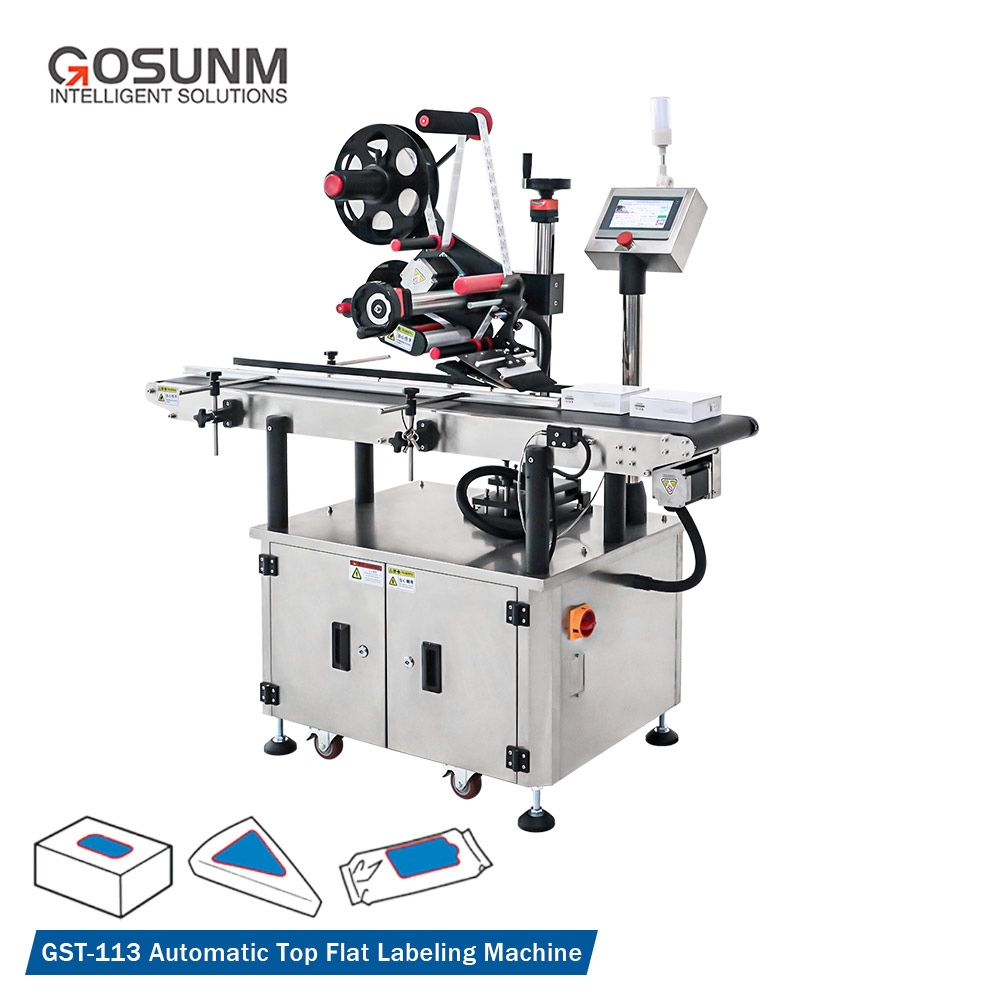

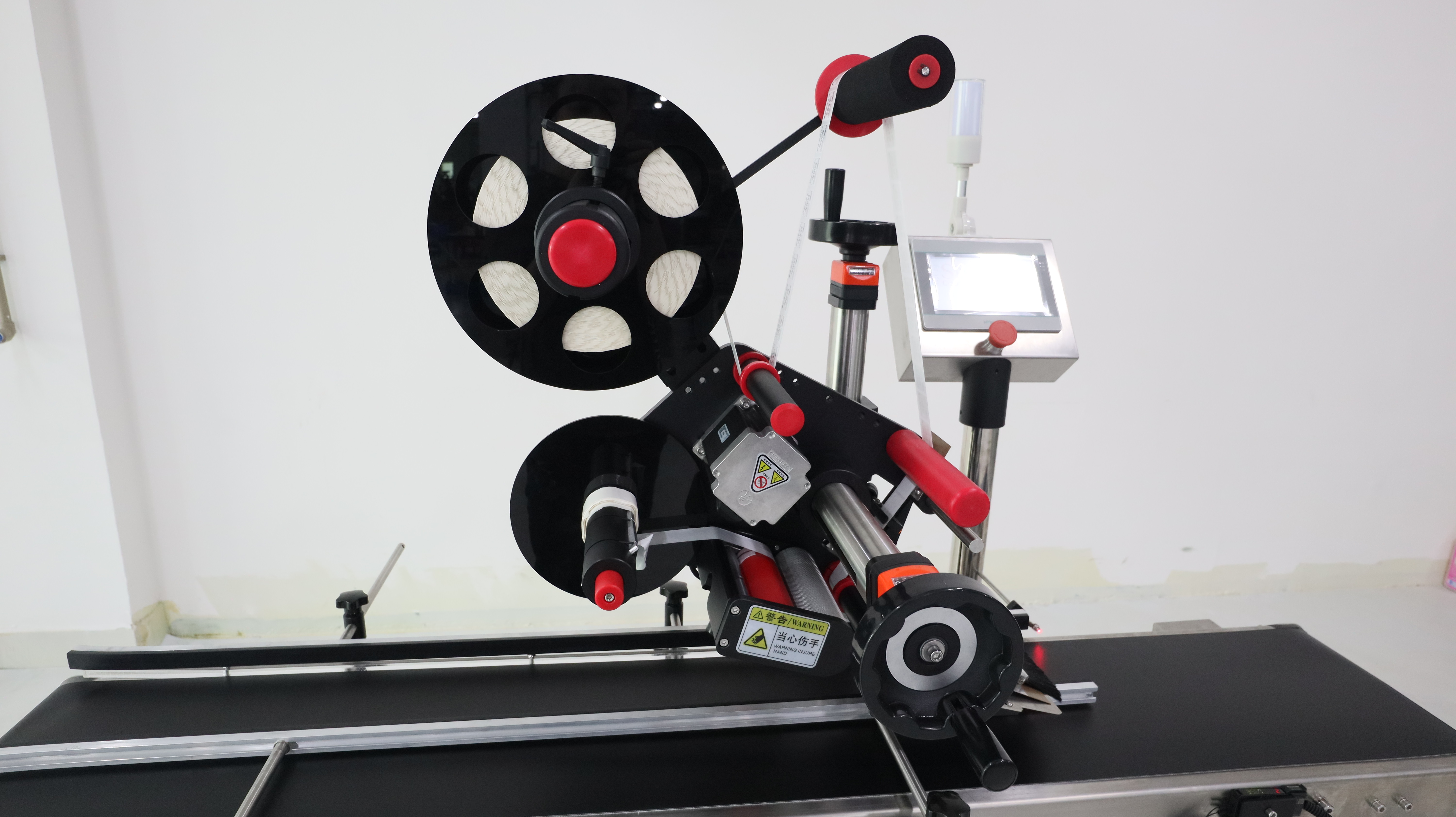

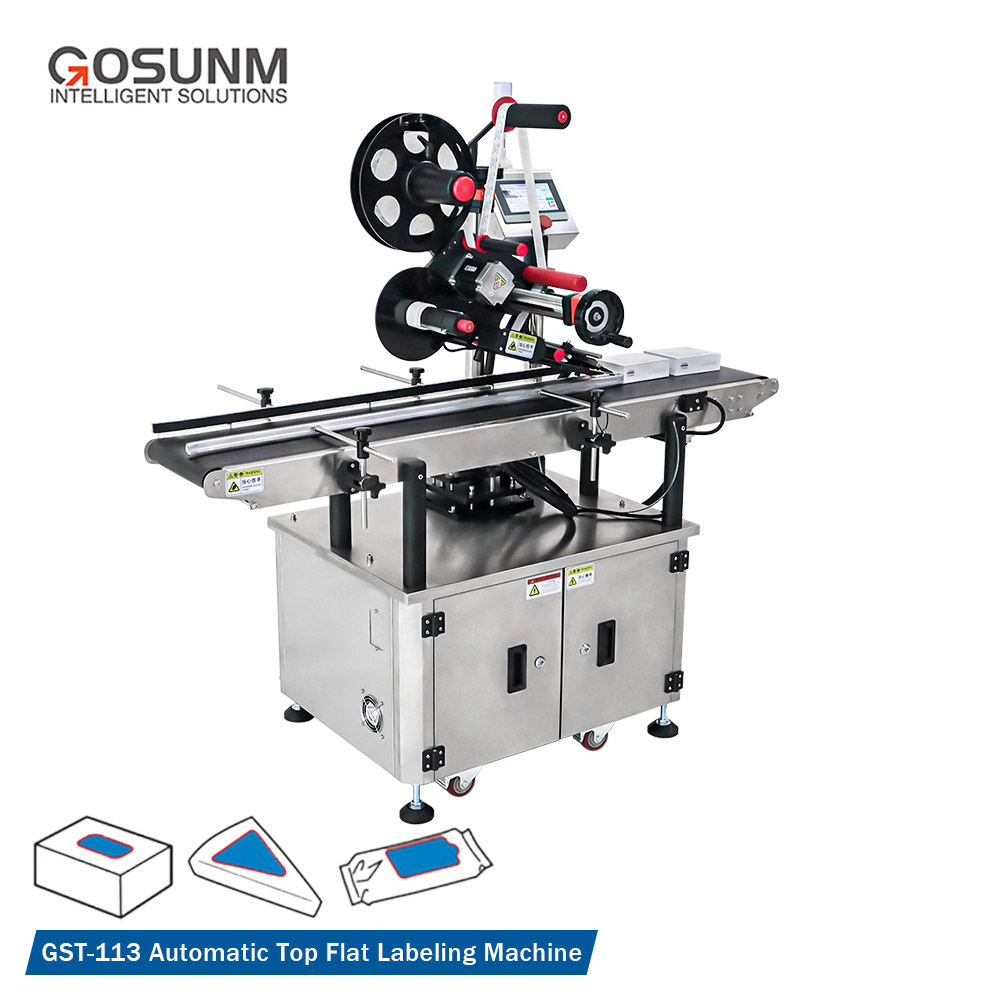

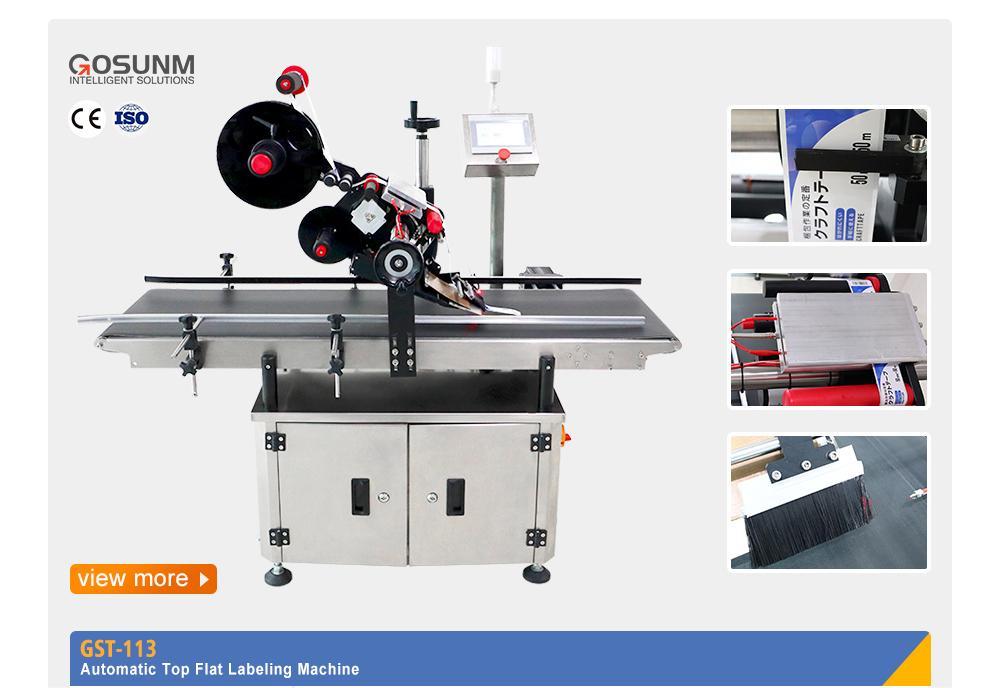

GST-113 series flat labeling machine is compact, versatile, easy to install and can be put into use quickly. No matter the product surfaces are smooth flat uneven or recessed, the GST-113 ensures a high throughput in all cases. The machine can be applied to different sizes of conveyor belts, which greatly increases the range of application of the machine.
| Labeling Accuracy | ±1mm |
| Labeling Speed | 20-120pcs/min (depends on the label size) |
| Product Size | Length 10-500mm, width 10-250mm, height 10-200mm |
| Label Size | Length 10-400mm, (Backing paper) width 10~170mm |
| Conveyor's Height | 700mm |
| Label Roll Diameter | Outer Max.300mm, inner 76mm |
| Power | 0.8kW |
| Power Supply | AC220V, 50Hz, single phase |
| Air Supply | No need |
| Ambient temperature | 10-40C |
| Surrounding Humidity | 15-85% |
| Machine Dimension | About 1600(L)*650(W)*1500(H)(mm) |
| Machine Net Weight | 150kg |
| Package Crate Dimension | About 1650(L)*810(W)*1600(H)(mm) |
| Machine Gross Weight | 240kg |

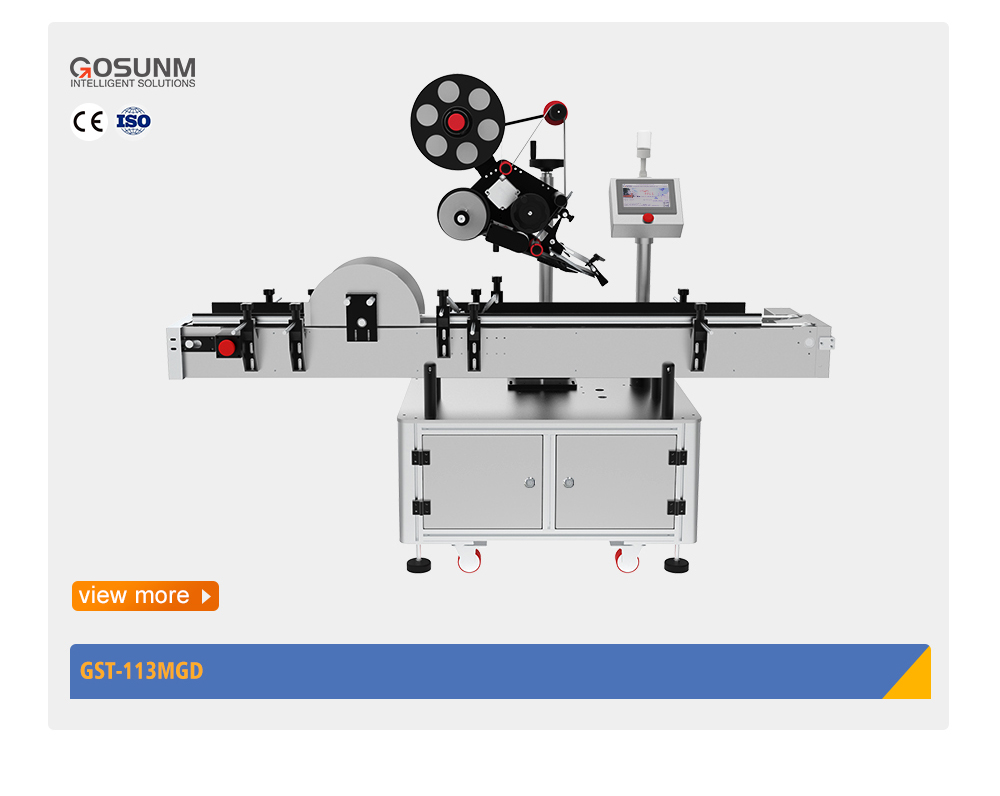

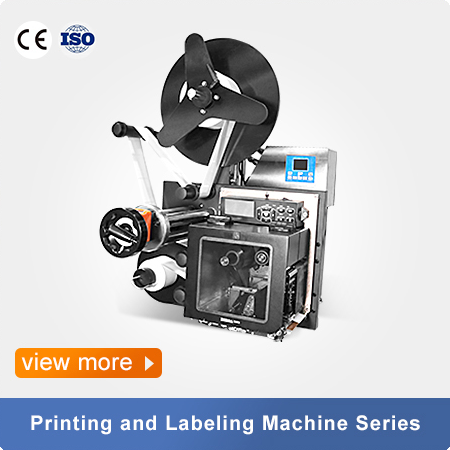

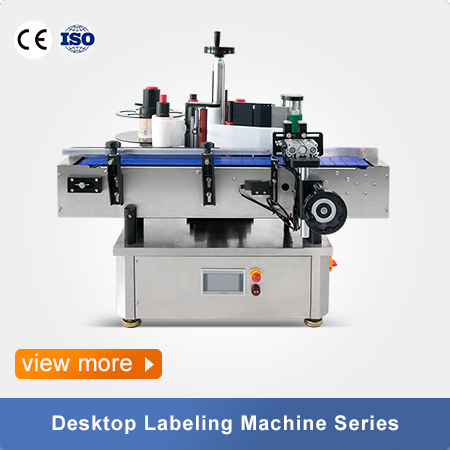

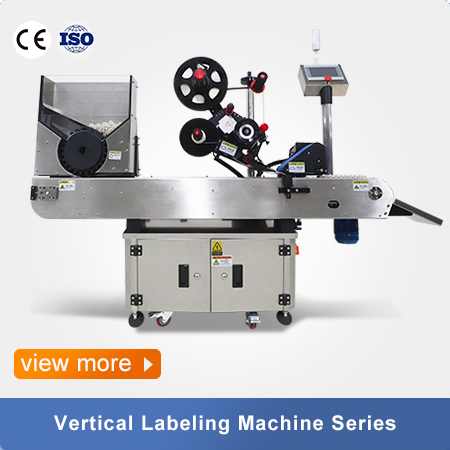

Our flat labeling machine series takes into account the needs of customers at different stages and introduces four series of products: desktop flat labeling machine, vertical flat labeling machine, high-speed flat labeling machine, and flat printing and labeling machine. For different scenarios and different products, we will recommend the most suitable labeling machine to our customers.

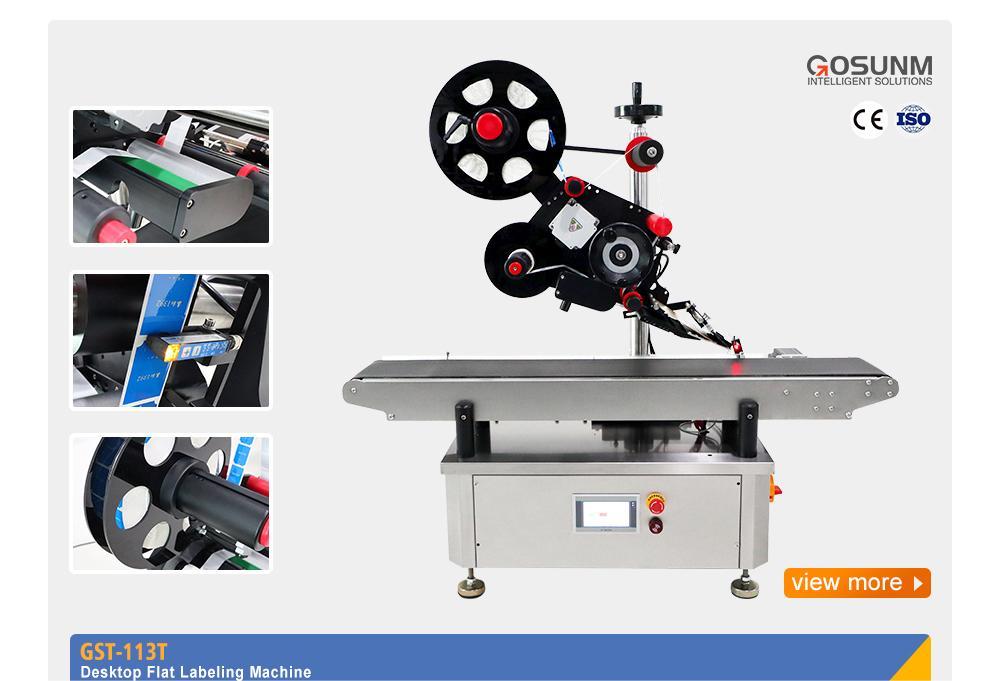

GST-113T is a flat labeling machine designed for warehouse, small size, light weight and easy to carry. It is suitable for labeling of different sizes, and the maximum range solves the problem of labeling many different products.
| Labeling Accuracy | ±1mm |
| Labeling Speed | 20-120pcs/min (depends on the label size) |
| Product Size | Length 30-400mm, width 10-200mm |
| Label Size | Length 10-150mm, (Backing paper) width 10~150mm |
| Conveyor's Height | 450±50mm |
| Label Roll Diameter | Outer Max.250mm, inner 76mm |
| Power | 0.8kW |
| Power Supply | AC220V, 50Hz, single phase |
| Air Supply | No need |
| Ambient temperature | -20~45°C |
| Surrounding Humidity | 15-85% |
| Machine Dimension | About 1156(L)*600(W)*1150(H)(mm) |
| Machine Net Weight | 100kg |
| Package Crate Dimension | About 1310(L)*810(W)*1360(H)(mm) |
| Machine Gross Weight | 195kg |

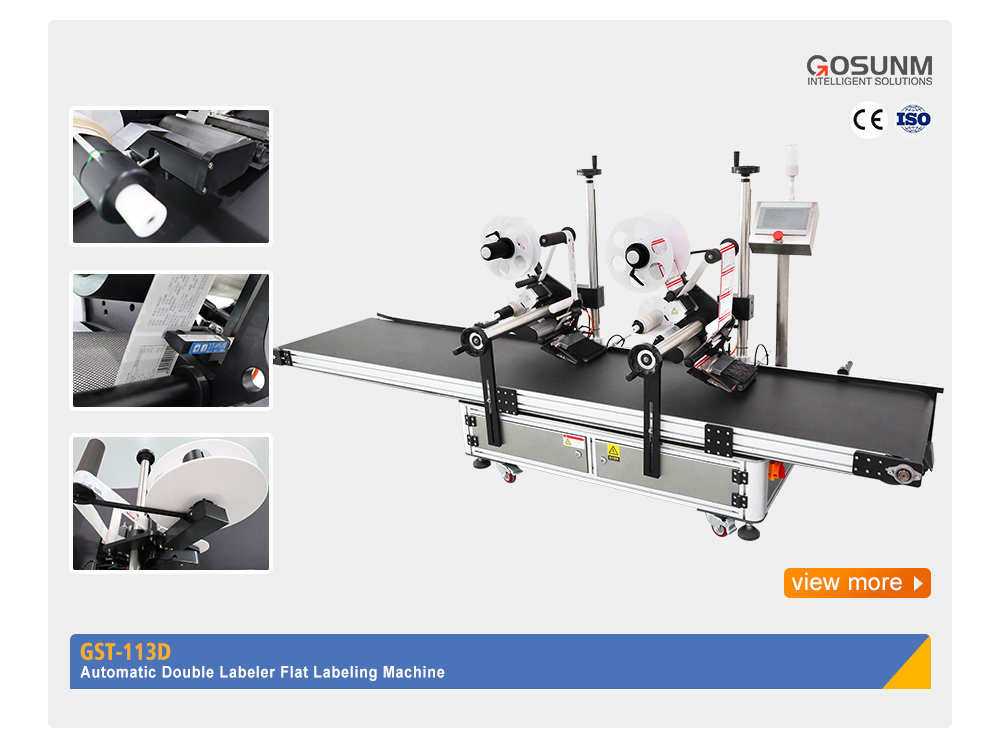

We have 15 years of experience in the development and manufacture of labeling machines. We have designed four series of flat labeling machines according to the different usage scenarios of our customers:

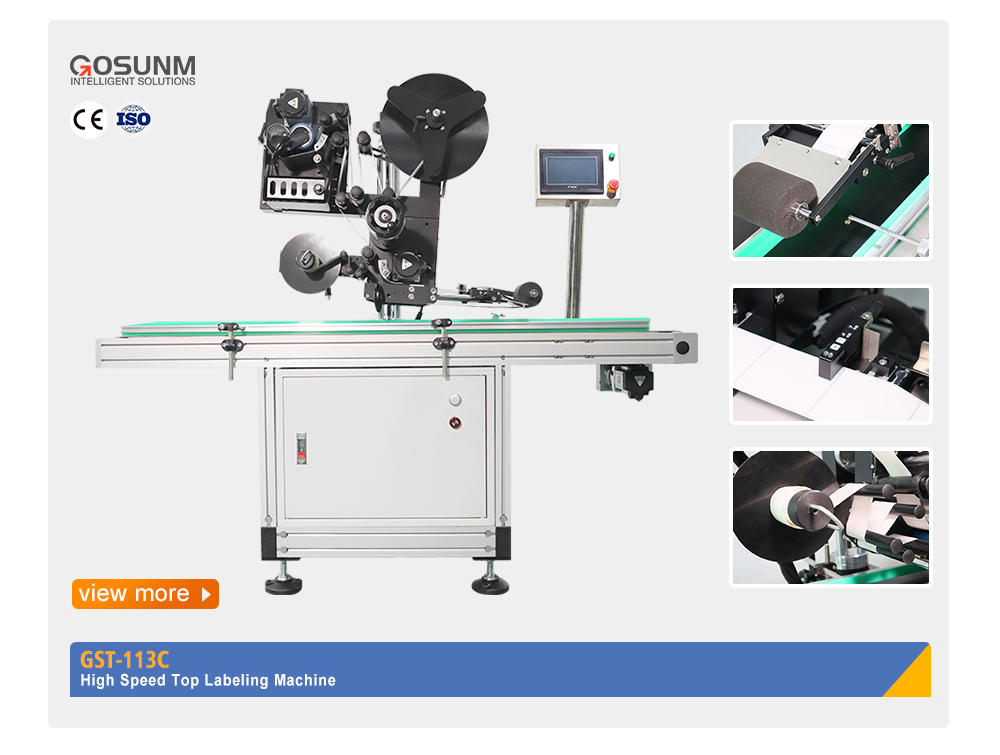

High-speed flat labeling machine GST-113C is suitable for high volume products and large production lines, and the labeling speed can be adjusted according to the product specifications and production speed. The standard version of GST-113C has a conveyor belt speed of up to 200 meters per minute, and the special customized model will have a faster speed.

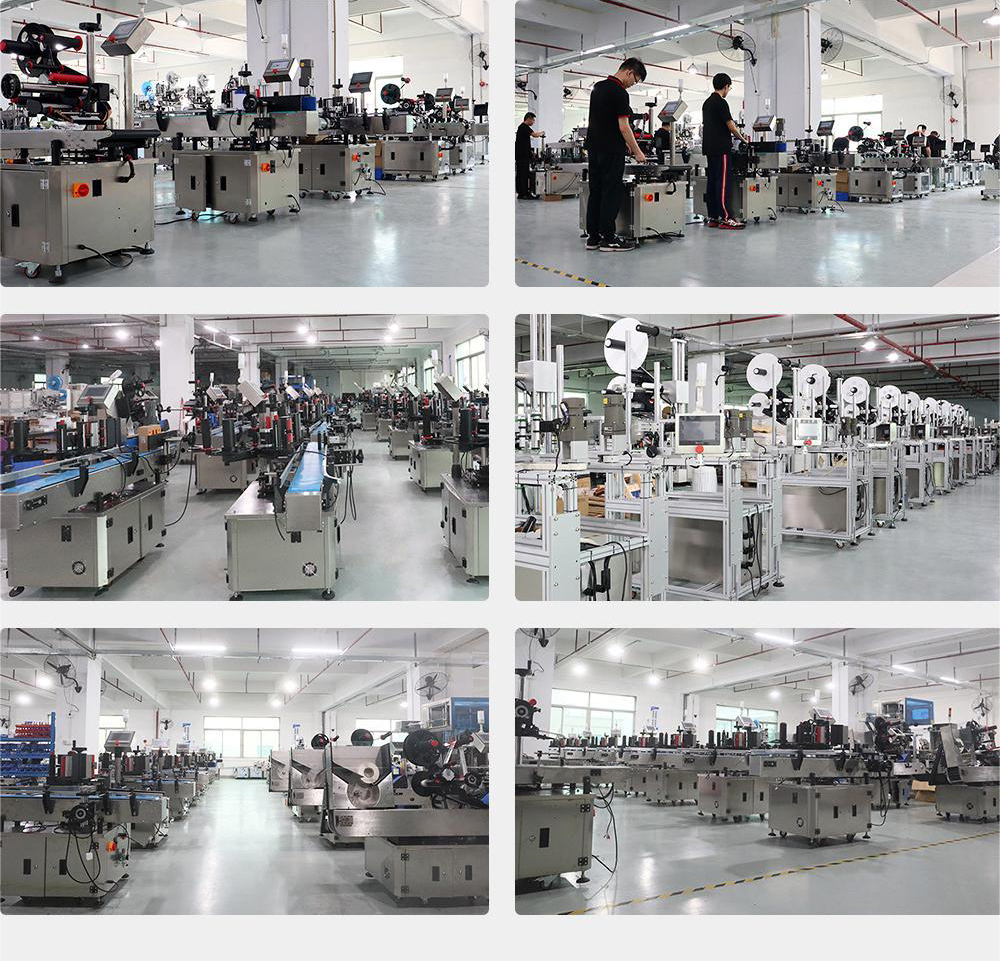

We have been developing and producing labeling machines since 2007. With 15 years of experience, serving more than 3,000 customers worldwide and accumulating a large number of labeling applications and experiences.

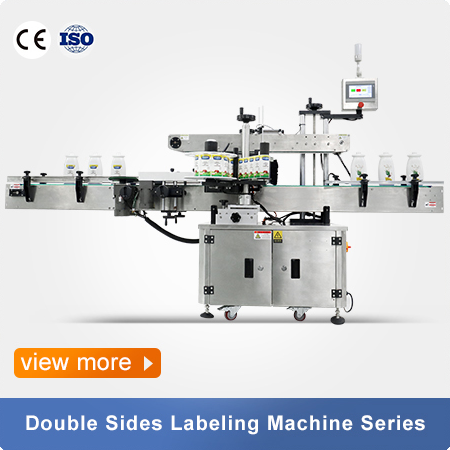

Our labeling machines are very popular among customers. Based on years of experience and the actual needs of customers, we have developed a variety of bottle labeling machines:
The above labeling machines can meet most customers' bottle/can/barrel labeling needs, and are suitable for daily chemical products, alcoholic beverages, pharmaceutical industry, e-commerce and many other industries.
These standard round bottle labeling machines, which have been verified by our customers for many years in practice, have good machine stability, easy installation and simple operation.
In addition to the above standard models of round bottle labeling machines, we can also customize them based on customer requirements. These machines can be used individually or connected to production lines.
