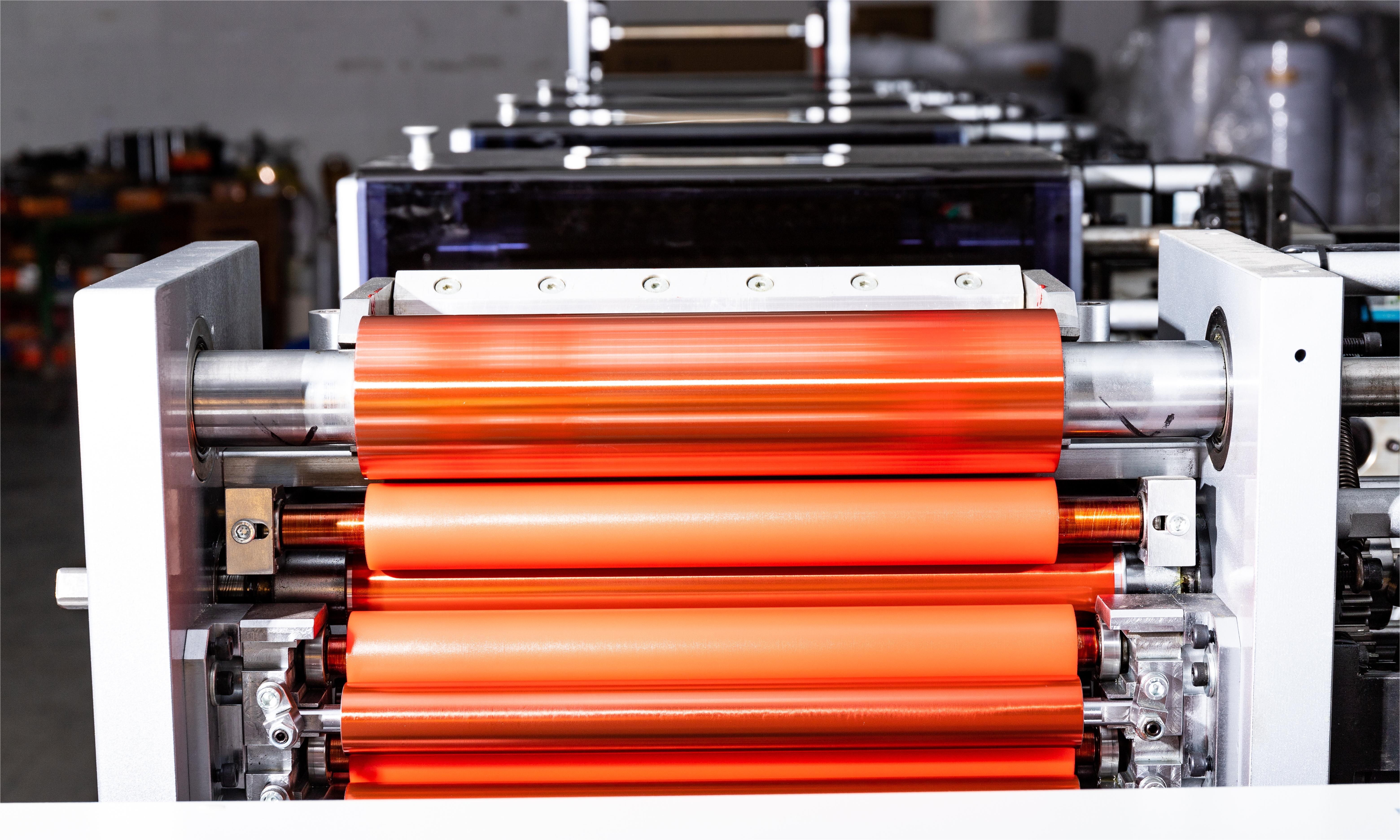

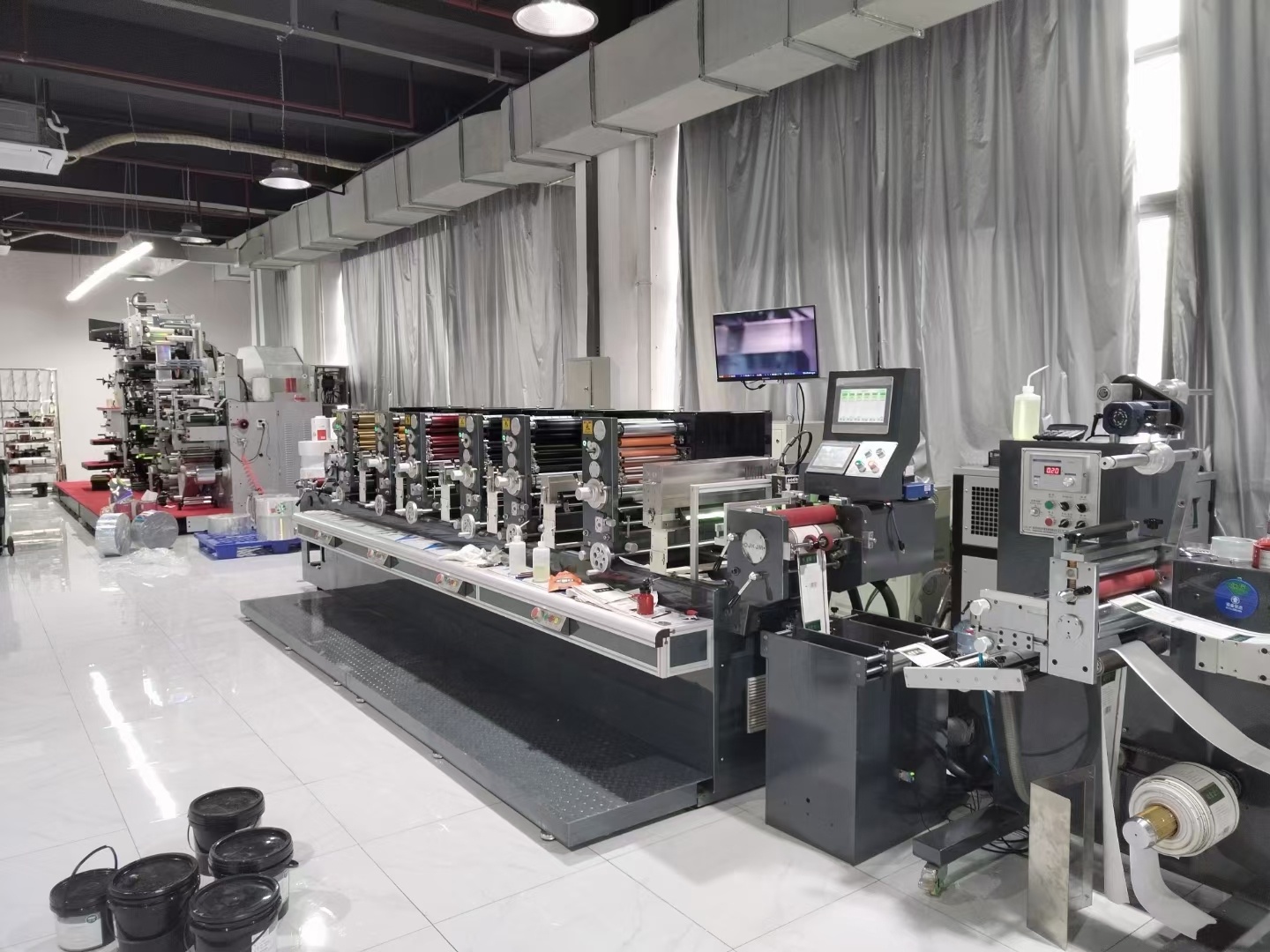

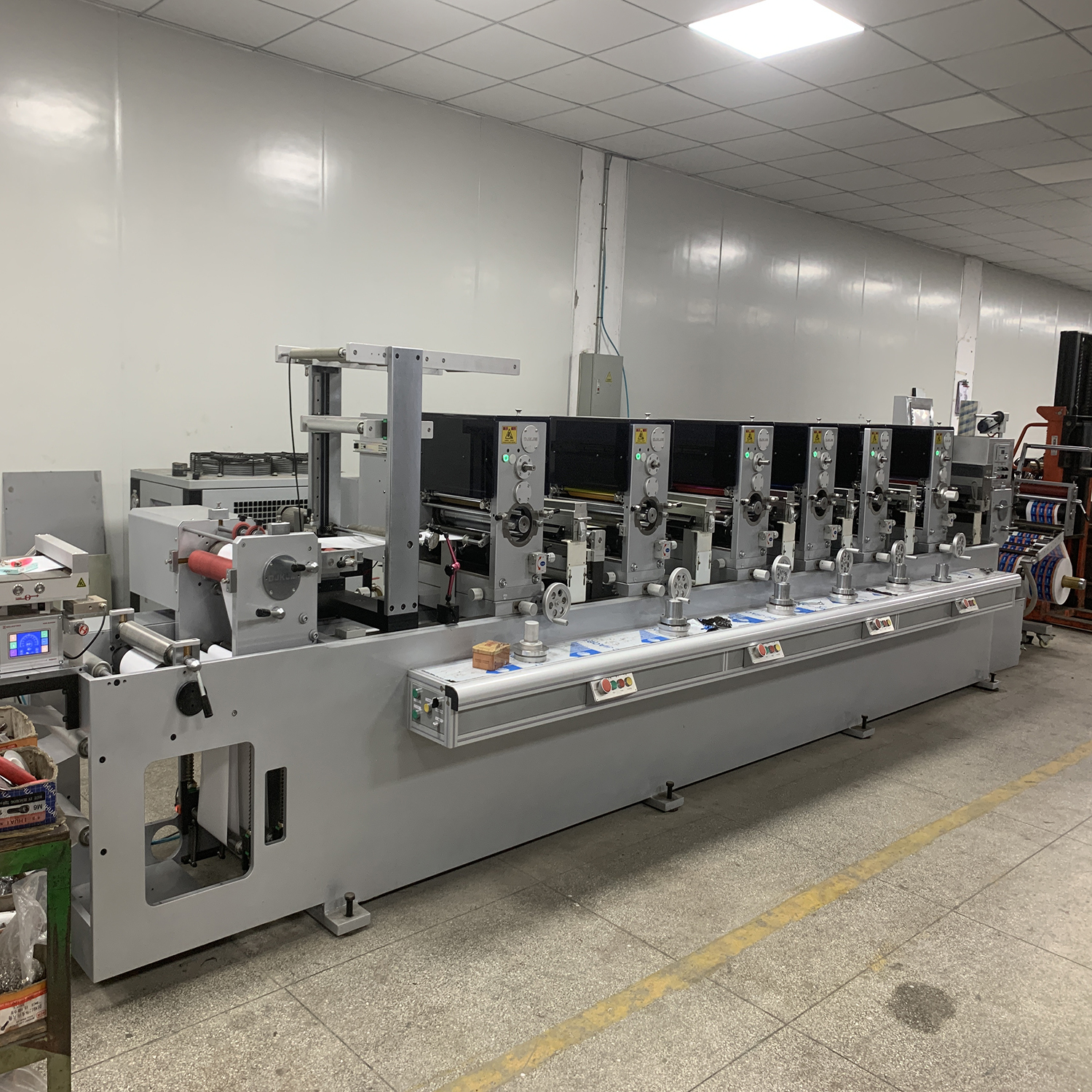

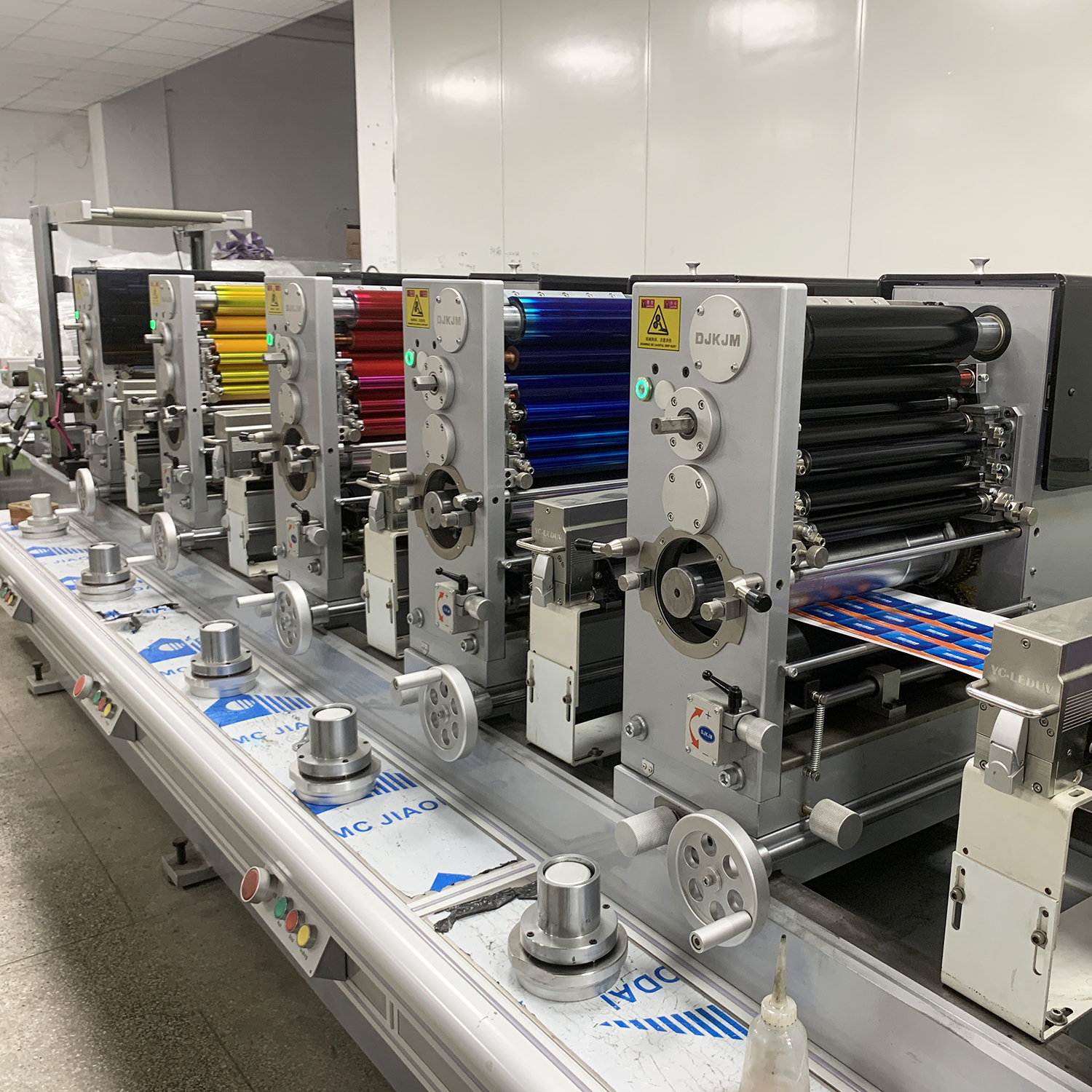

4-7 Colors Letterpress Intermittent Roll to Roll Rotary Printing Machine High Speed Gloss Oil Cold Foil

Product Description

Product Overview

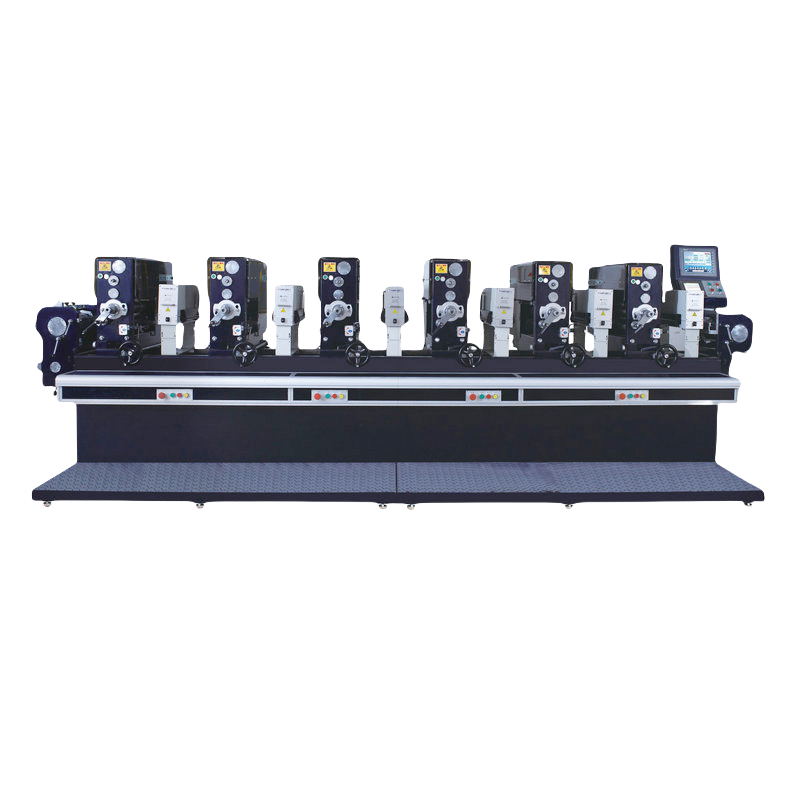

DJKJM (HD-300)
Master control system
Ink blending system
Ingenious combination of constant tension correction system and suspended paper return system
DJKJM (HD-300)

Features

  • Adopted import servo system, controlled by flexible movement system.
  • Ink supply system controlled by computer, ink transferring is stable and precise.
  • Maximum printing area of intermittent type is 305mm*280mm.
  • High speed and precise alignment, keep precise alignment when accelerating and decelerating, ensure stable performance.
  • With low back clearance and high precision gear, running smoothly at high speed, low noise.
  • Each lamp holder of UV drier can be automatically switch power, achieves the result of low temperature paper no deformation and ink completely dry.
  • Equipped with electronic eye sensor, to ensure the high quality of the secondary overprint and reduce material wastes.
  • Adjusting the settings of overprinting by man-machine interface directly, the operation is more simple and accurate.
  • Printing tension can be adjusted freely according to the needs of different printed materials.
  • Adopted isolated type of power supply mode, saving more power under the same condition.
  • Introduced the foreign advanced shaftless printing control technology.
  • Can be equipped with flexo UV varnishing unit and magnetic rotary die-cutting unit, widely used in food industry, cosmetic industry, pharmaceutical industry, electronics industry, mobile phone sticker industry, hardware industry, gifts and toys industry, etc.
Features Detail

Features at a Glance

High speed and precise alignment, keep precise alignment when accelerating and decelerating, ensure stable performance.
Introduced the foreign advanced shaftless printing control technology.
Can be equipped with flexo UV varnishing unit and magnetic rotary die-cutting unit, widely used in food industry, cosmetic industry, pharmaceutical industry, electronics industry, mobile phone sticker industry, hardware industry, gifts and toys industry, etc.
Ink supply system controlled by computer, ink transferring is stable and precise.
Features Overview

Key Highlights

Printing Area
Maximum printing area of intermittent type is 305mm*280mm
Ink Supply System
Ink supply system controlled by computer
Drying Performance
The label does not deform and the ink is completely dry. Perfect printing

Product Detail Views

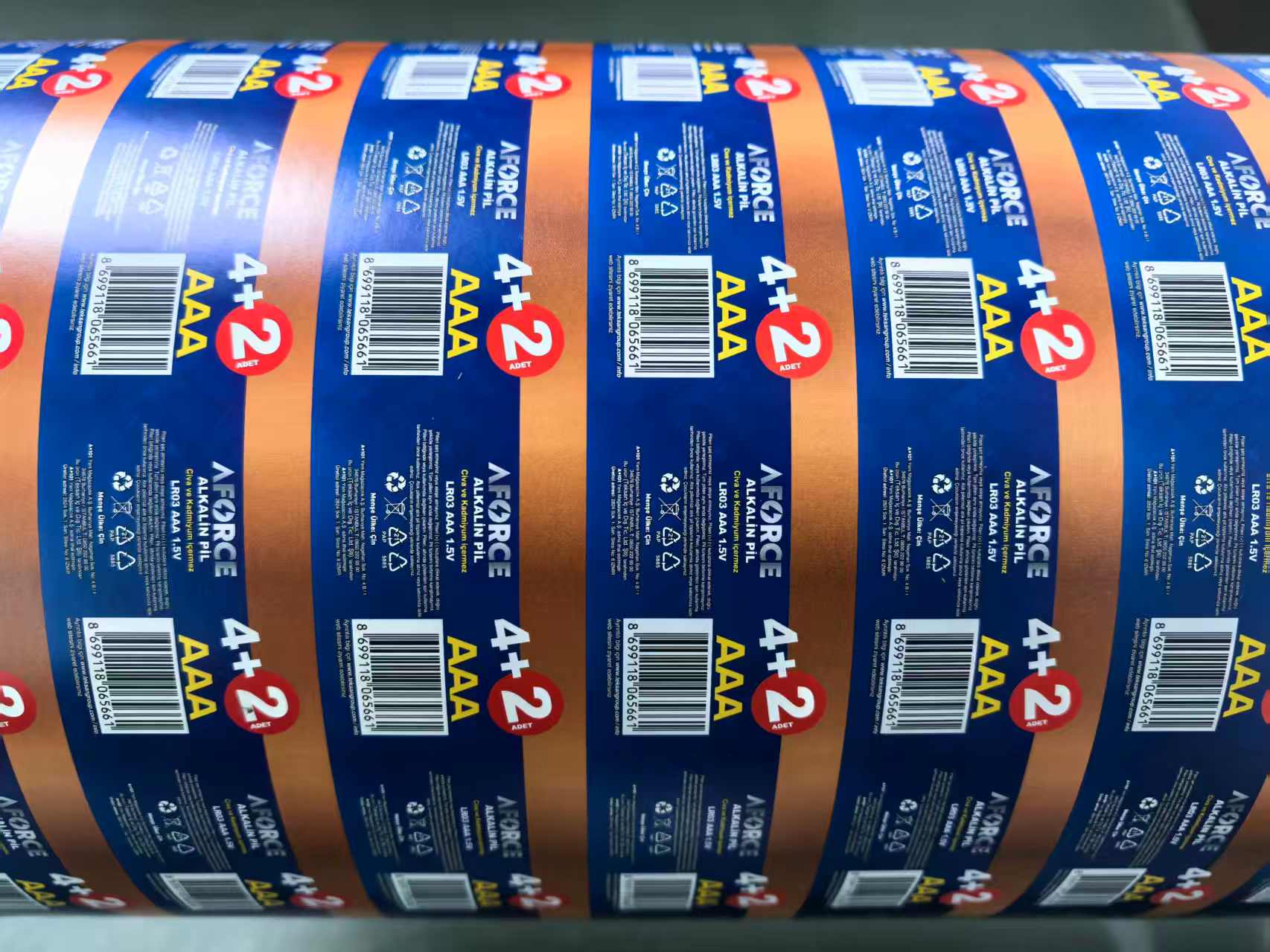

Detail View 1
Detail View 2

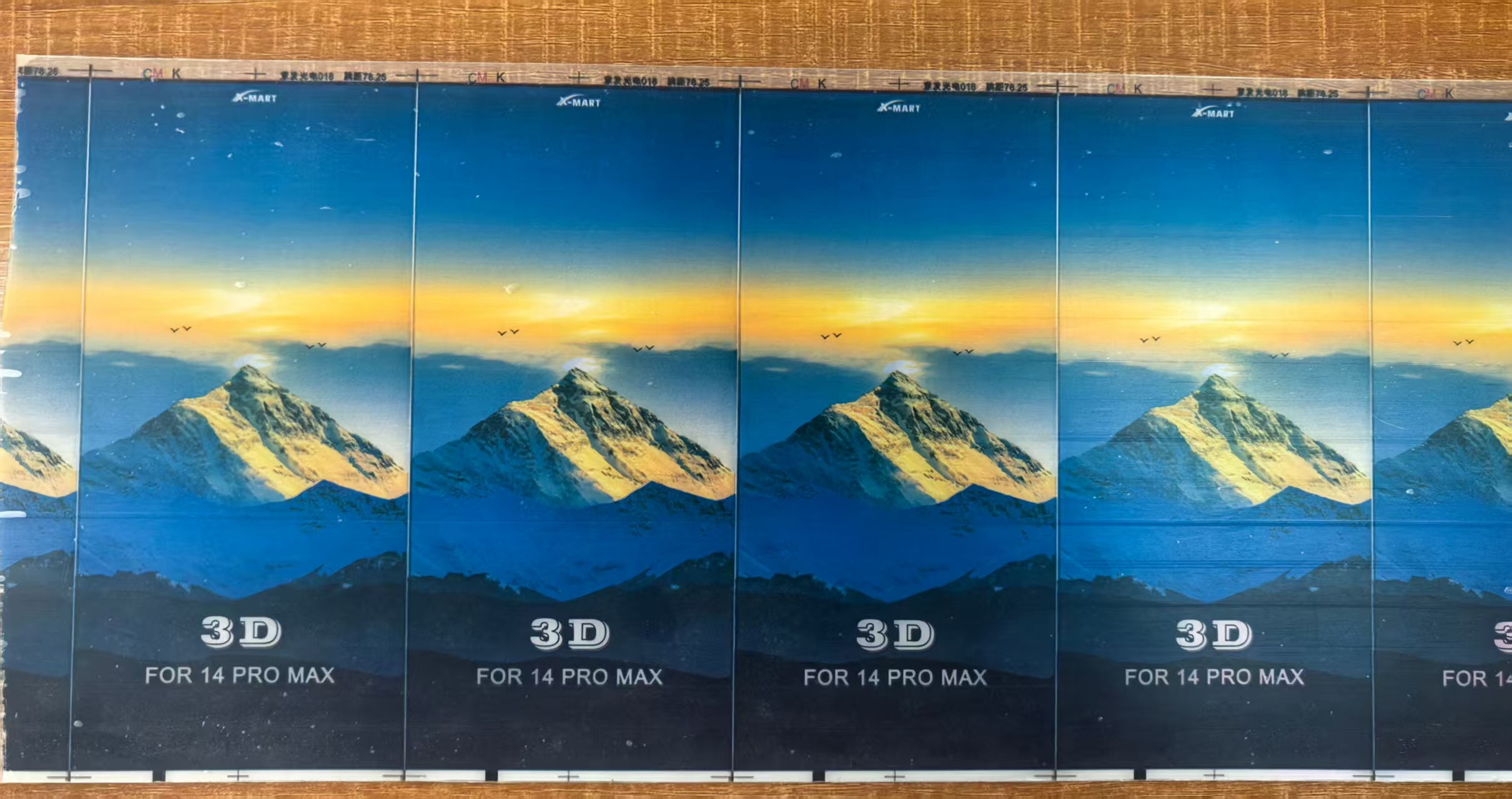

Detail View 3
Detail View 4

Additional Machine Parts

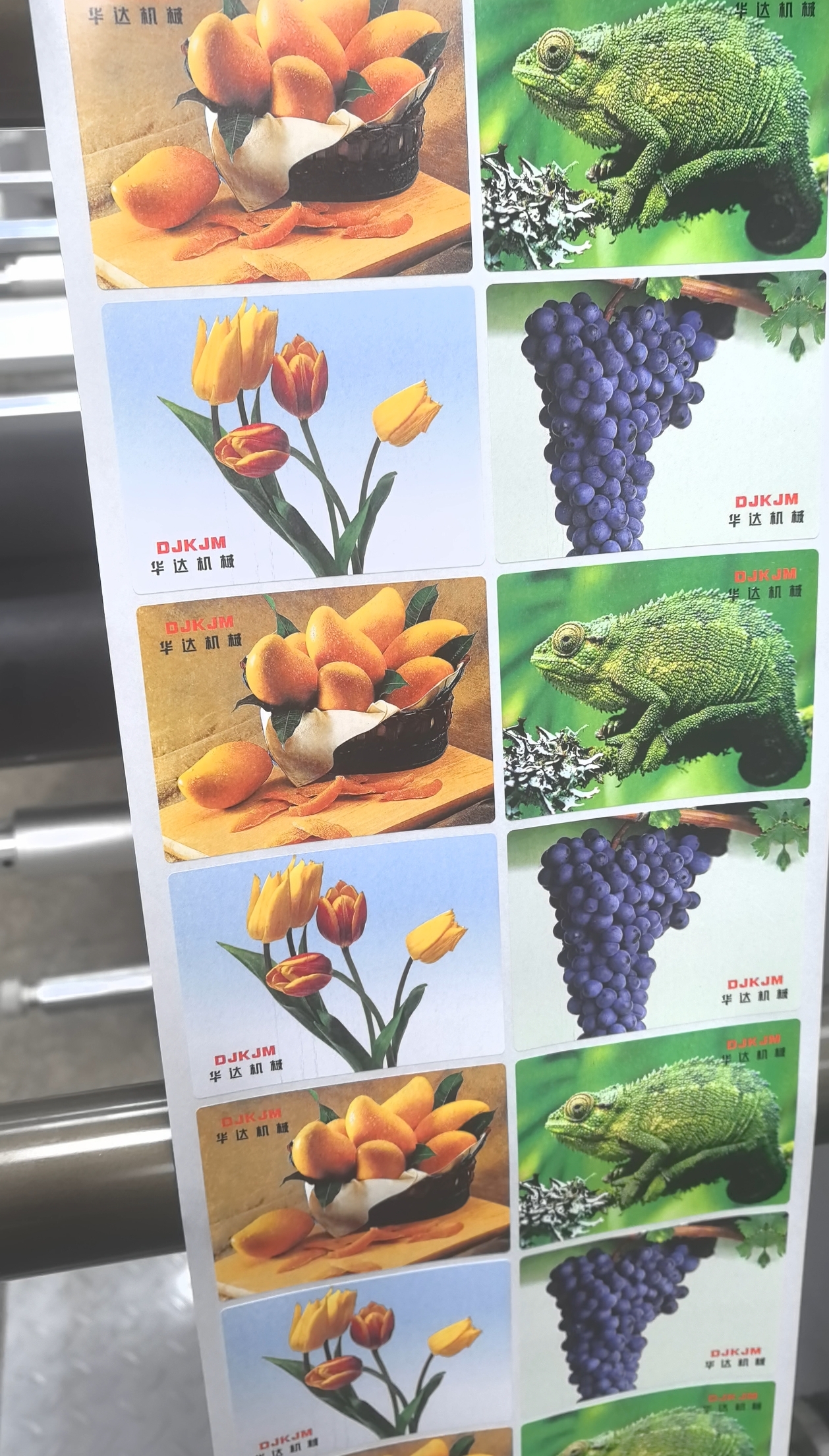

Part view 1

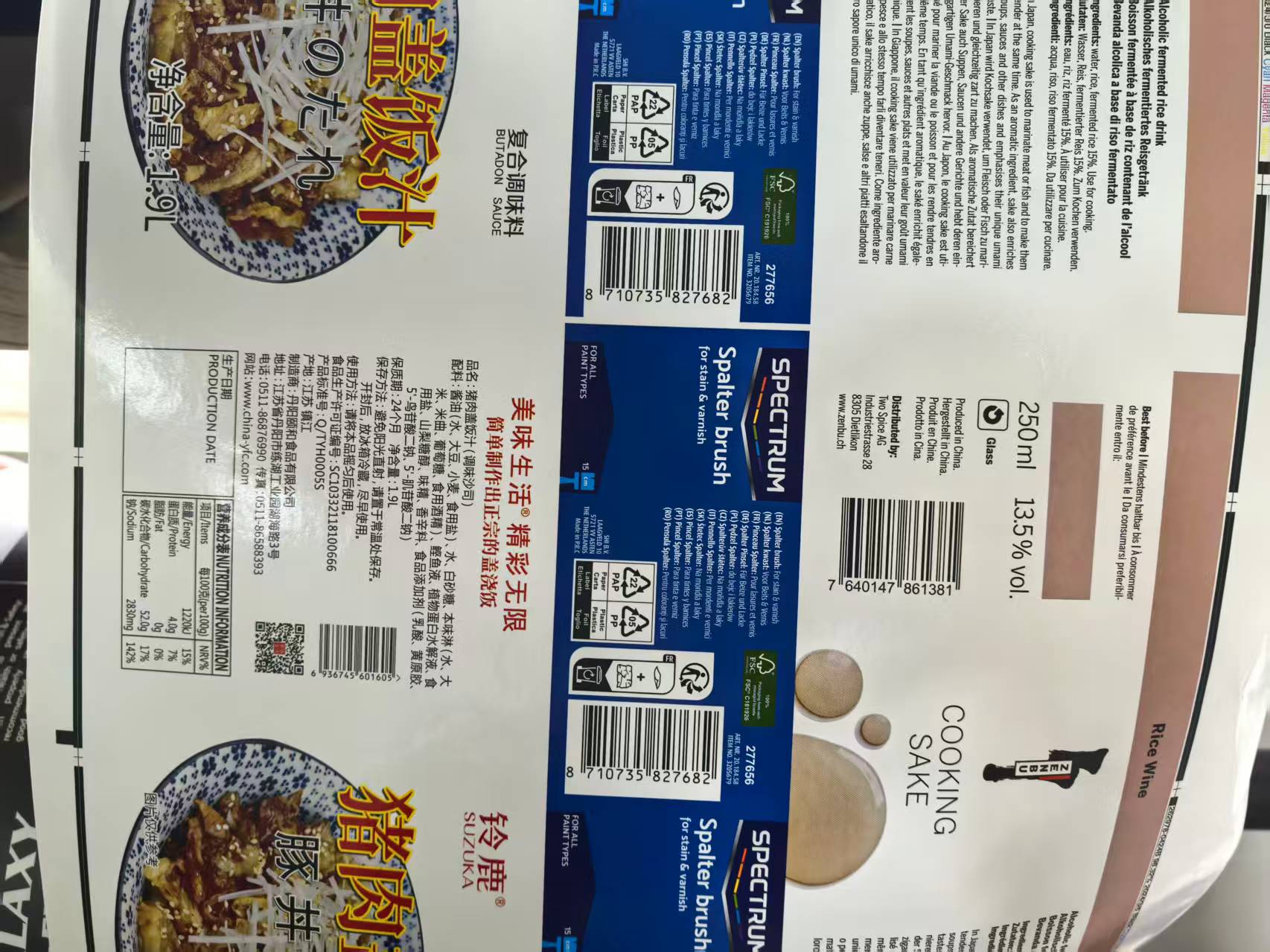

Part view 2

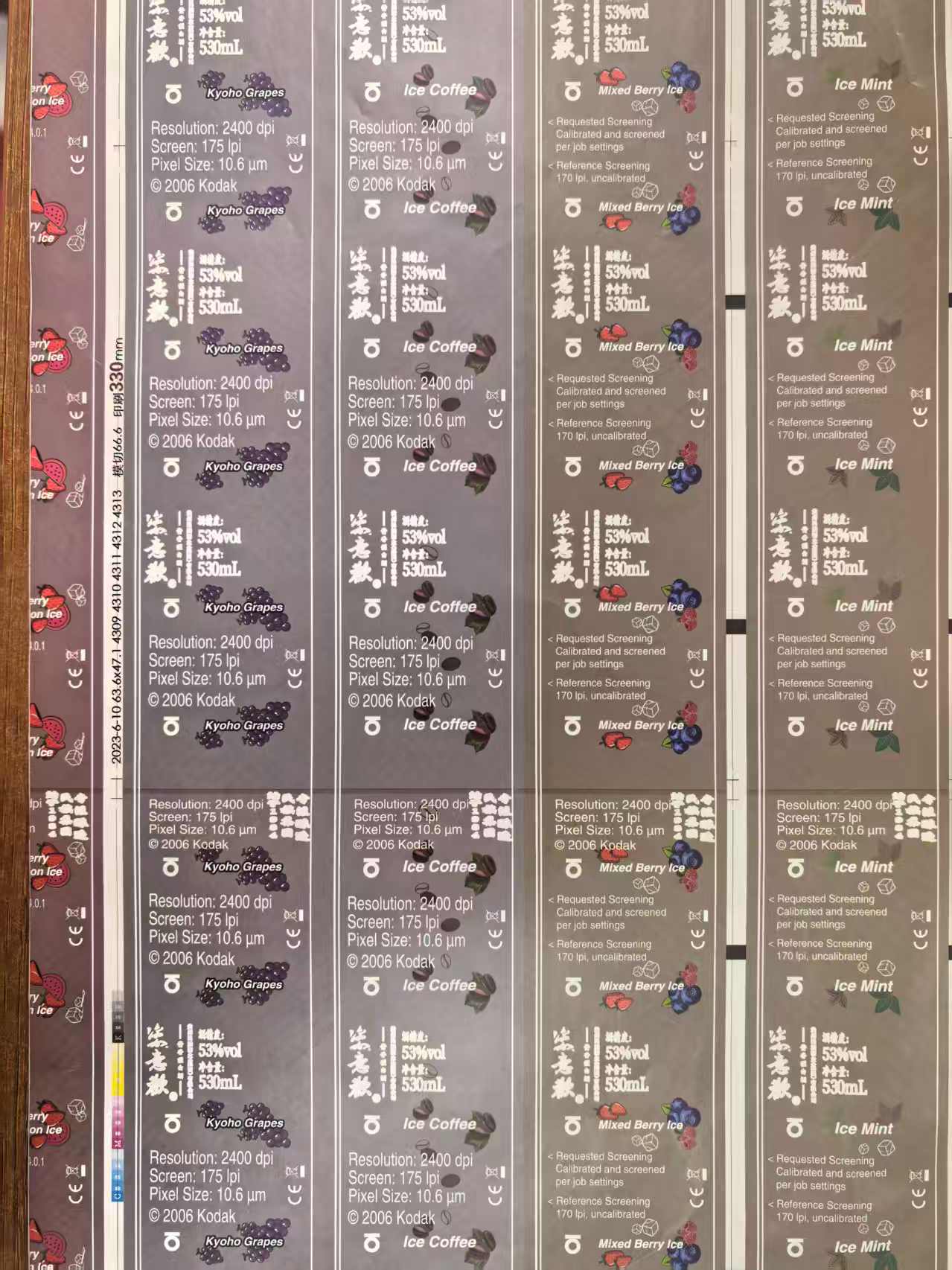

Part view 3

Specification

Products Name HD-300 Full Automatic Rotary Label Printing Machine
Model HD-300
Maximum material width 300MM
Maximum printing area 290*290MM
Printing length range 70-290MM
Printing thickness 0.1-0.3MM
Machine speed 20000rp
Maximum unwinding diameter 700MM
Maximum winding diameter 700MM
Air pressure 7KG/CM²
Host power 23KW
UV system power 16KW
Power Supply 3phases 220v
Outline size 6300*1620*1480MM
Machine weight About 5.6tonne/6colors

Company Profile

Established in 1988, we are professionally specialized in the research and development, production and sales of high-quality label rotary printing machines, integrating R&D, design, manufacturing, installation, and commissioning. We have our own processing and production center, equipped with CNC lathes, CNC milling machines, high-precision grinding machines, detection projectors, and wire cutting machines, strictly controlling the precision of each process and parts to ensure the high quality of machinery and equipment and printing precision. We have absorbed a large number of professionals and have a number of invention patents. At the same time, we introduce foreign advanced shaftless printing control technology, in the original technology of continuous innovation, so that the product is more sophisticated, more stable, and more convenient to operate.
Our main products include the Intermittent Rotary Label Printing Machine, NC Oblique Type Adhesive Label Printing Machine, High-speed Single-seat Die-cutting Machine, Magnetic Circular Knife Die-cutting Machine, Quality Inspection Machine, Plate Copying Machine, Slitting Machine, Paper Feeder, and Rewinding Machine, along with other supporting equipment. Products are not only sold well domestically but also exported to Iran, India, Brazil, Malaysia, Indonesia, Turkey, and other countries and regions, earning the praise of many customers. For 16 years, we have been adhering to the "Strive for excellence, stand higher and aim far, pragmatic and innovation, integrity and dedication" concept, and the "quality first, customer supreme, service for this" values. We are committed to our enterprise development strategy, strengthening enterprise management, and developing technology to improve customer service, striving to become a leading international high-tech enterprise. We are looking forward to sincere cooperation to create a brilliant future together.
Production Facility
Engineering Center
Workshop

Exhibition

Exhibition Show

Product Configuration

6 Colors
6 colors available
Ink Blending
Ink blending system
Varnishing & Die Cutting
Flexo UV varnishing unit and magnetic rotary die-cutting unit available

Sales and Service Network

Global Network Map

Successful Projects

Project in China
Project in China
Project in India
Project in India
Project in Türkiye
Project in Türkiye

Similar Products in Our Factory

HD-300A 6 Colors

HD-300A(6-C)

Full Automatic Rotary Label Printing Machine-6 Colors
HD-320A 4 Colors

HD-320A(4-C)

Full Automatic Rotary Label Printing Machine-4 Colors
HD-300A 7 Colors

HD-300A(7-C)

Full Automatic Rotary Label Printing Machine-7 Colors

Packing

Packaging Case
Shipping Preparation

FAQ

1. Q: How about the after service?
A: We have a strong team, special for after service, we can arrange engineers to do service for you.
2. Q: Are you a factory or a trading company?
A: We are a factory in this field with nearly 20 years of experience.
3. Q: Where is your factory located? How can I visit?
A: Our factory is located near the airport. You can fly to the nearest airport directly, and we can arrange to pick you up.
4. Q: How does your factory do quality control?
A: Quality is our priority, and we always attach great importance to quality control from the very beginning.
5. Q: Why choose our machinery?
A: We are one of the leaders in this field. Our quality products and reliable services have enabled us to expand our market to more than 30 countries.
6. Q: What industries are these rotary label printing machines widely used in?
A: These machines are widely used in the food industry, cosmetic industry, pharmaceutical industry, electronics industry, mobile phone sticker industry, hardware industry, gifts and toys industry, etc.
