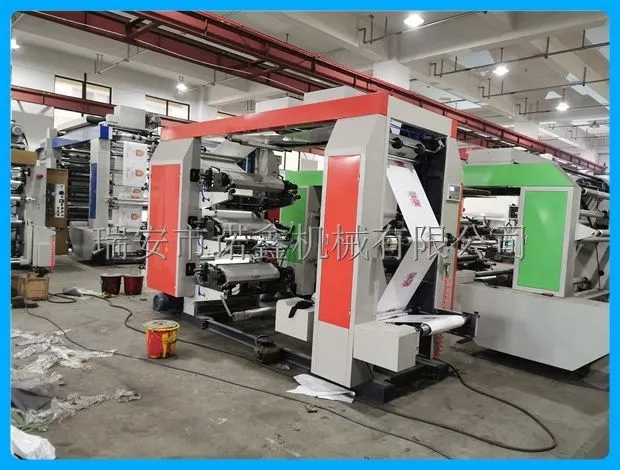

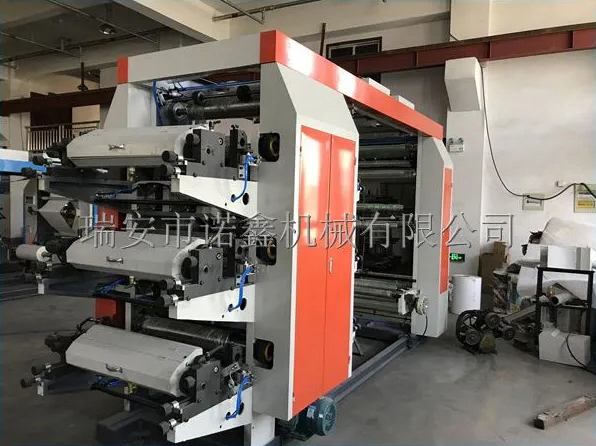

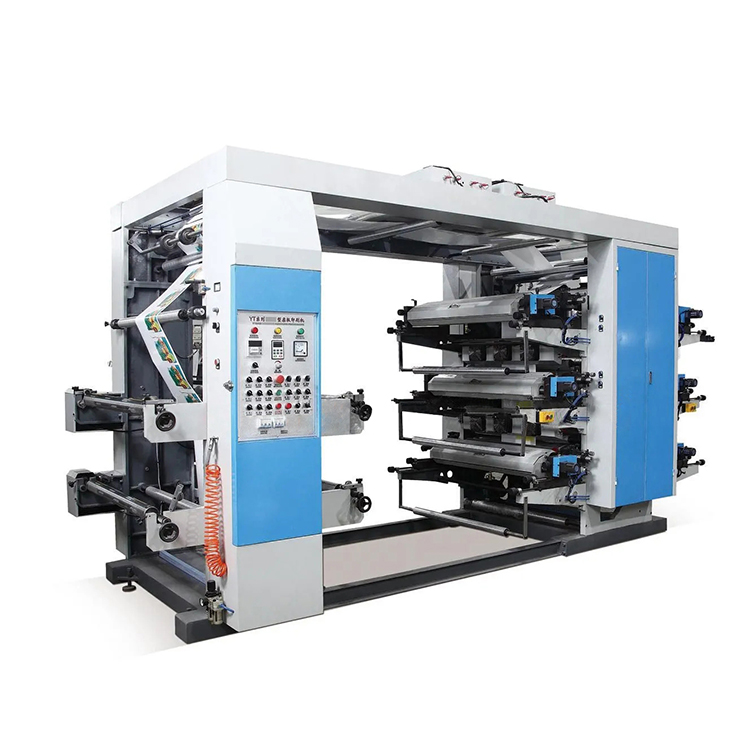

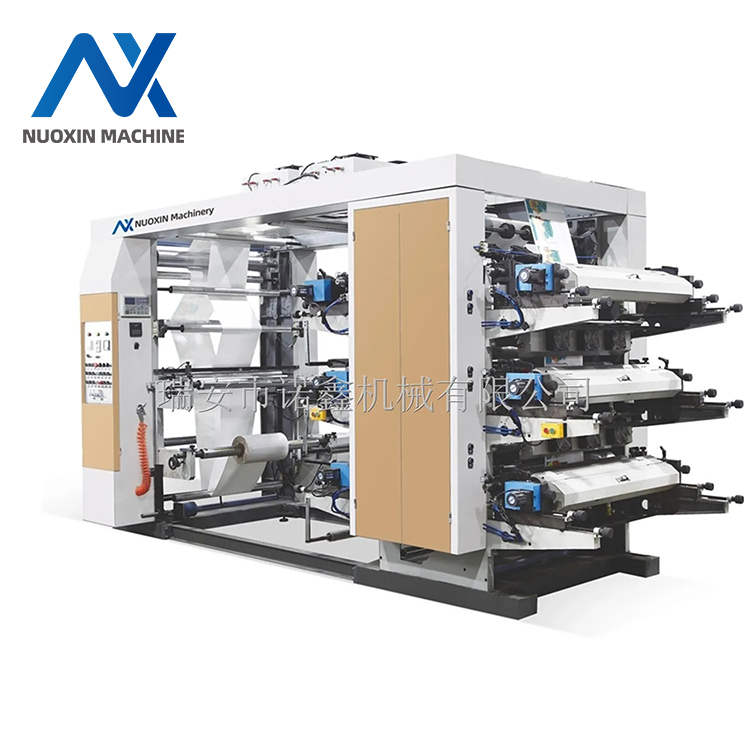

Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Note: Different printing material, machine some parts design different. Pls kindly show Printing material when inquiry.
| Model | NXZ6-600 | NXZ6-800 | NXZ6-1000 | NXZ6-1200 | NXZ6-1400 | NXZ6-1600 |
|---|---|---|---|---|---|---|
| Max. Material width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm |
| Max. Printing width | 560mm | 760mm | 960mm | 1160mm | 1360mm | 1560mm |
| Printing length | 190-1060mm | |||||
| Drive type | Straight gear drive | |||||
| Printing cylinder lift | Pneumatic control up and down | |||||
| Mechanical speed | 80m/min (without material) | |||||
| Max. running speed | 60m/min | |||||
| Plate Thickness | 2.38mm (Both side adhesive tape included) | |||||
| Anilox roller | Metal anilox roller: 100-300LPI | |||||
| Unwind/rewind Dia. | Φ600mm | |||||
| Drying way | Electric heating | |||||
| Machine power | 20kw | 22kw | 24kw | 25kw | 26Kw | 28kw |
| Overall Dimension | 4.5×1.8×2.8m | 4.5×1.9×2.8m | 4.5×2.1×2.8m | 4.5×2.3×2.8m | 4.5×2.5×2.8m | 4.5×2.7×2.8m |
|
Machine also can be made as client requirement. If you need other width size or high speed machine, pls kindly contact us directly. |
||||||

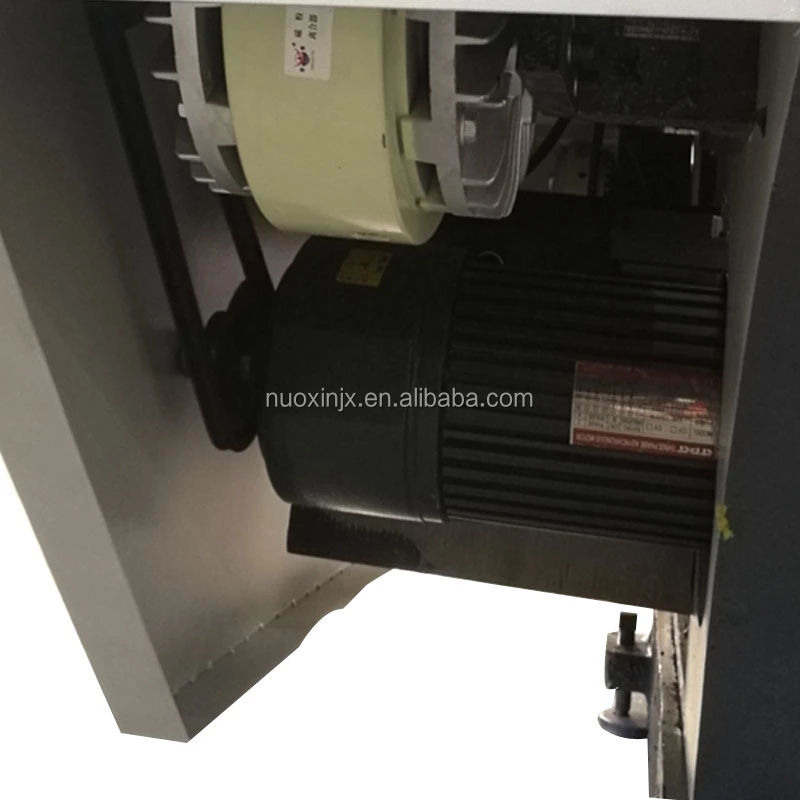

Manual single Unwinder and rewinder, with 76 mm air shaft.
Auto magnetic brake 5 kg for both unwinder and rewinder.

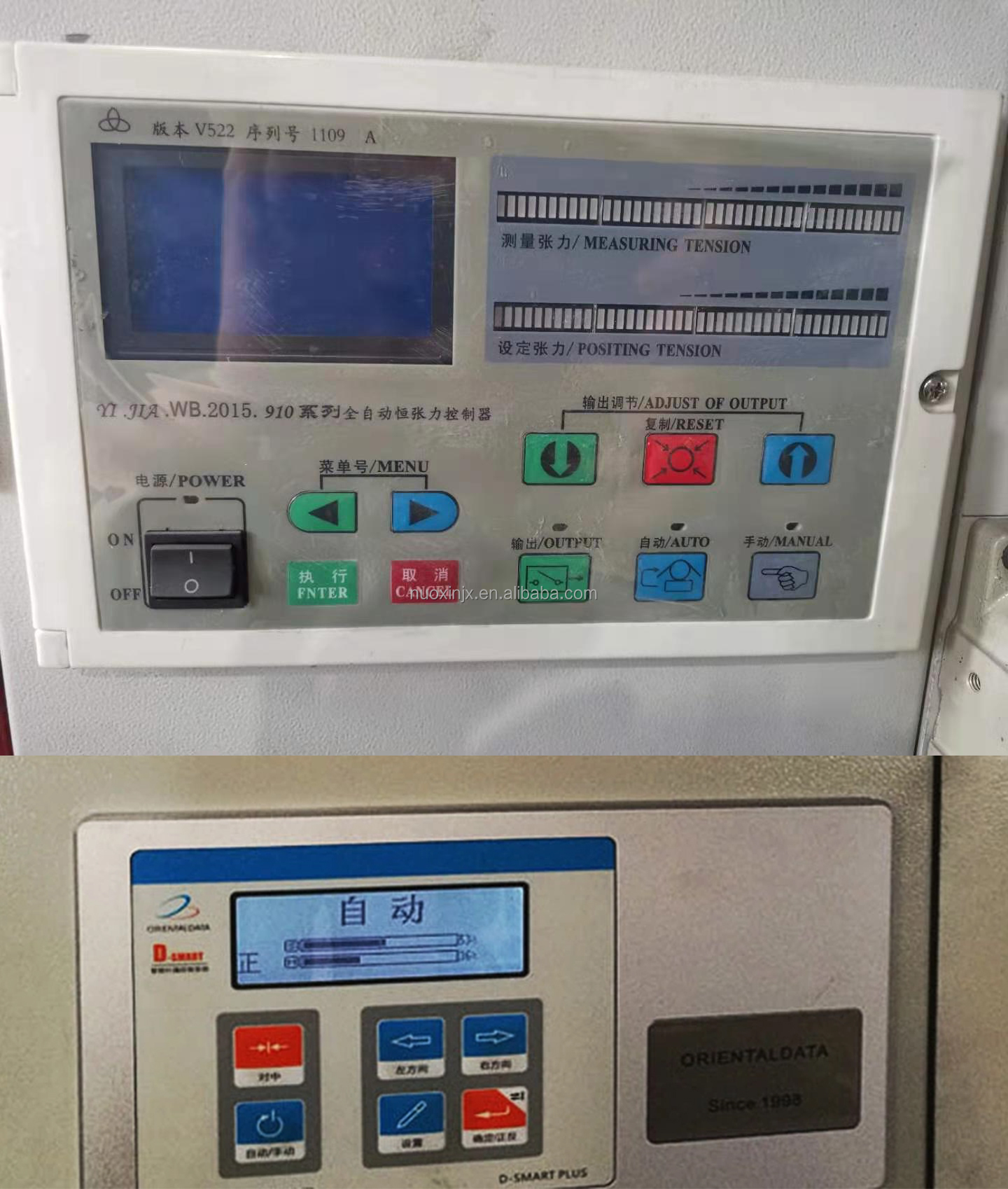

With auto tension and EPC for unwinder. With auto tension for rewinder.

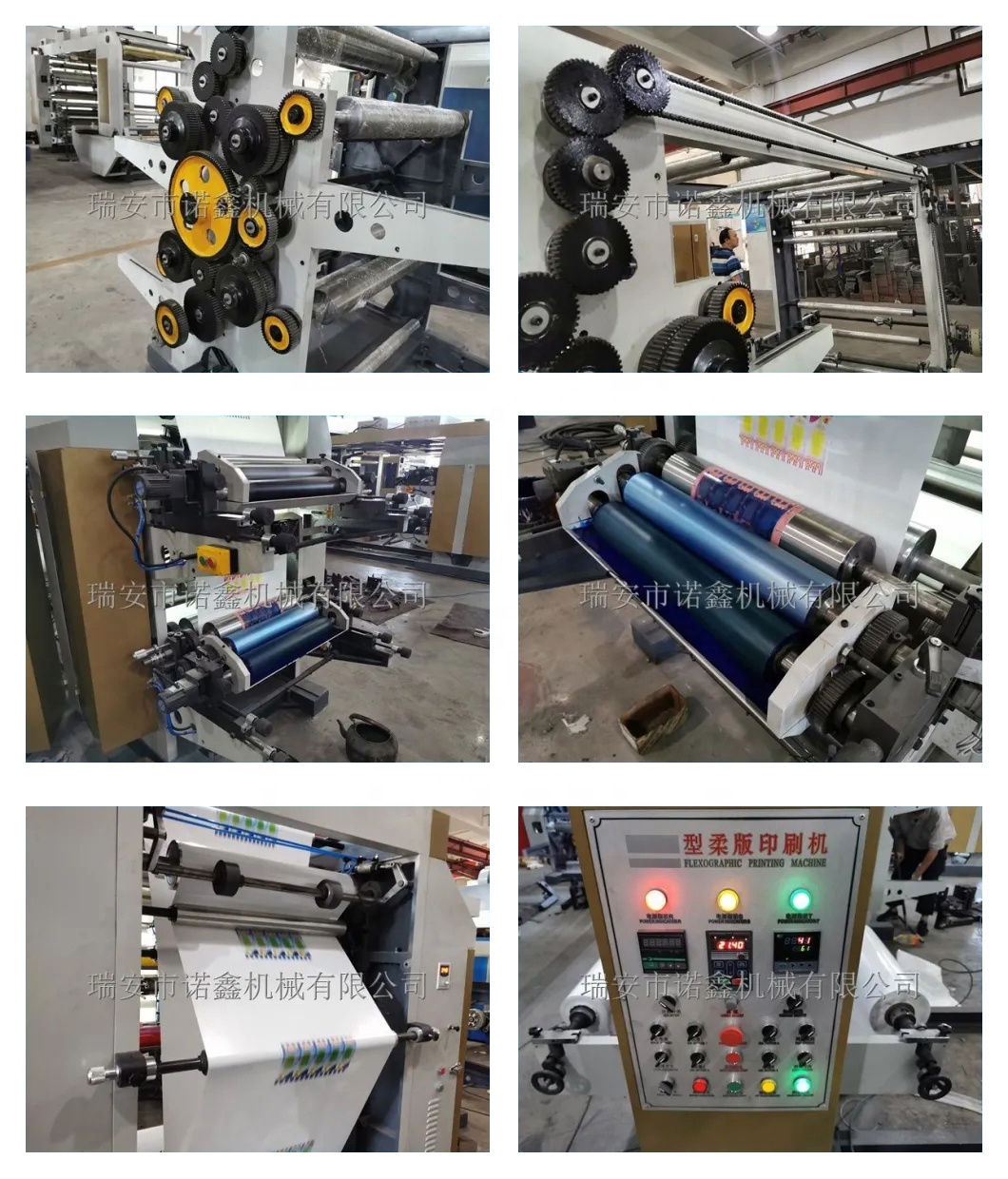

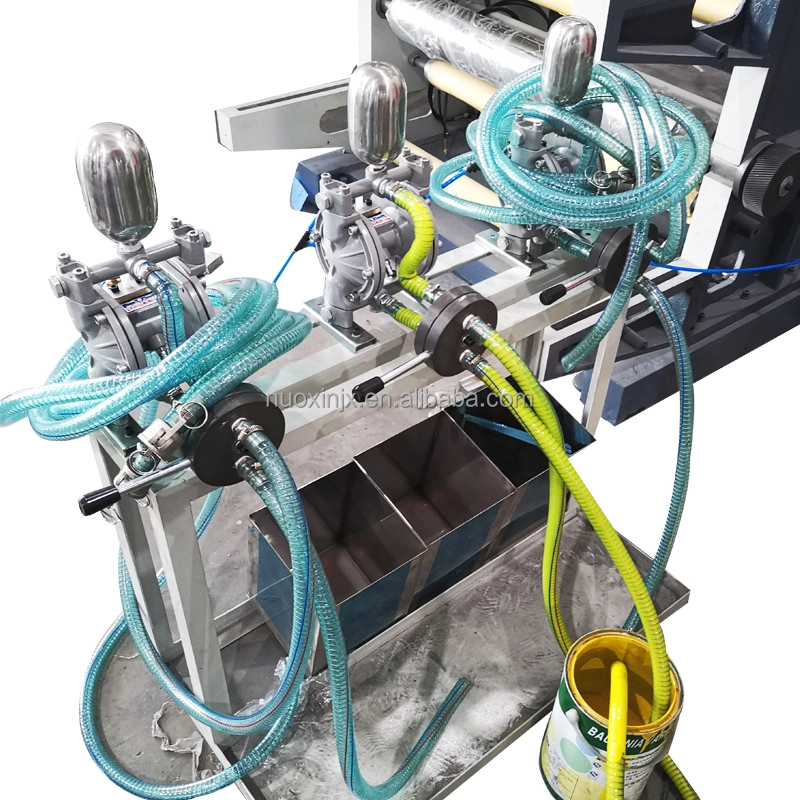

Four sets ink pumps, controlled by ink motor, the ink is circulating, it will never dry.

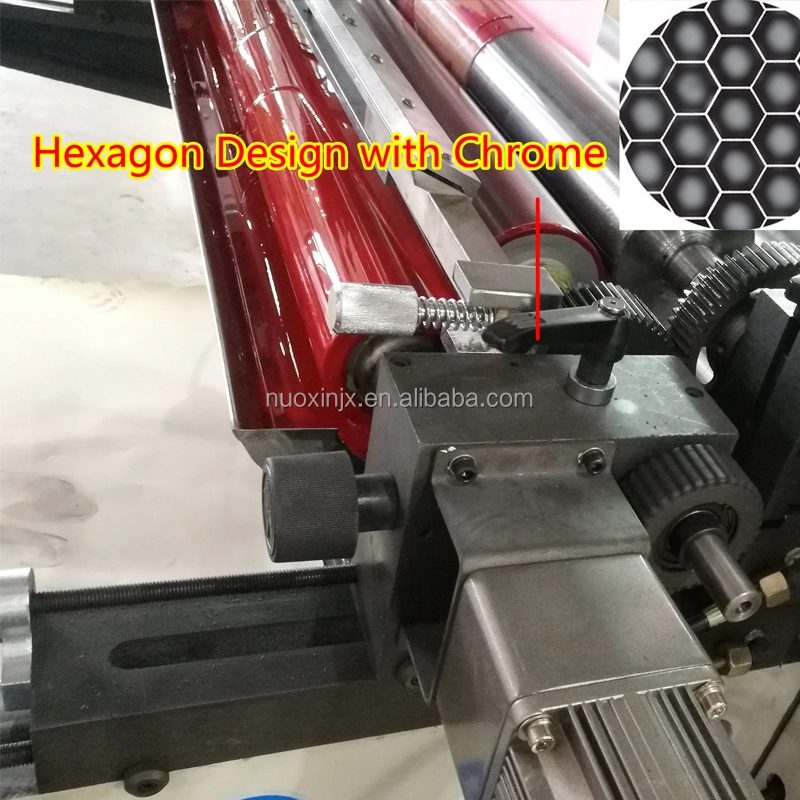

With single doctor blade and metal anilox roller. *Anilox roller is Hexagon design with Chrome.
The oven is heat air circulating and all printing groups are heat air circulating.
This machine is ideal for printing on Polyethylene (PE) plastic film, PP woven bags, PVC film, BOPP film, laminated bags, non-woven rolling materials, roller paper, and craft paper.
Yes. Different printing materials require different machine part designs. We can adjust the configurations to suit your specific requirements. Please inform us of your printing materials and size specifications when inquiring.
The machine uses sensitization resin as a flexible printing plate, making it highly efficient for various flexible packaging products.

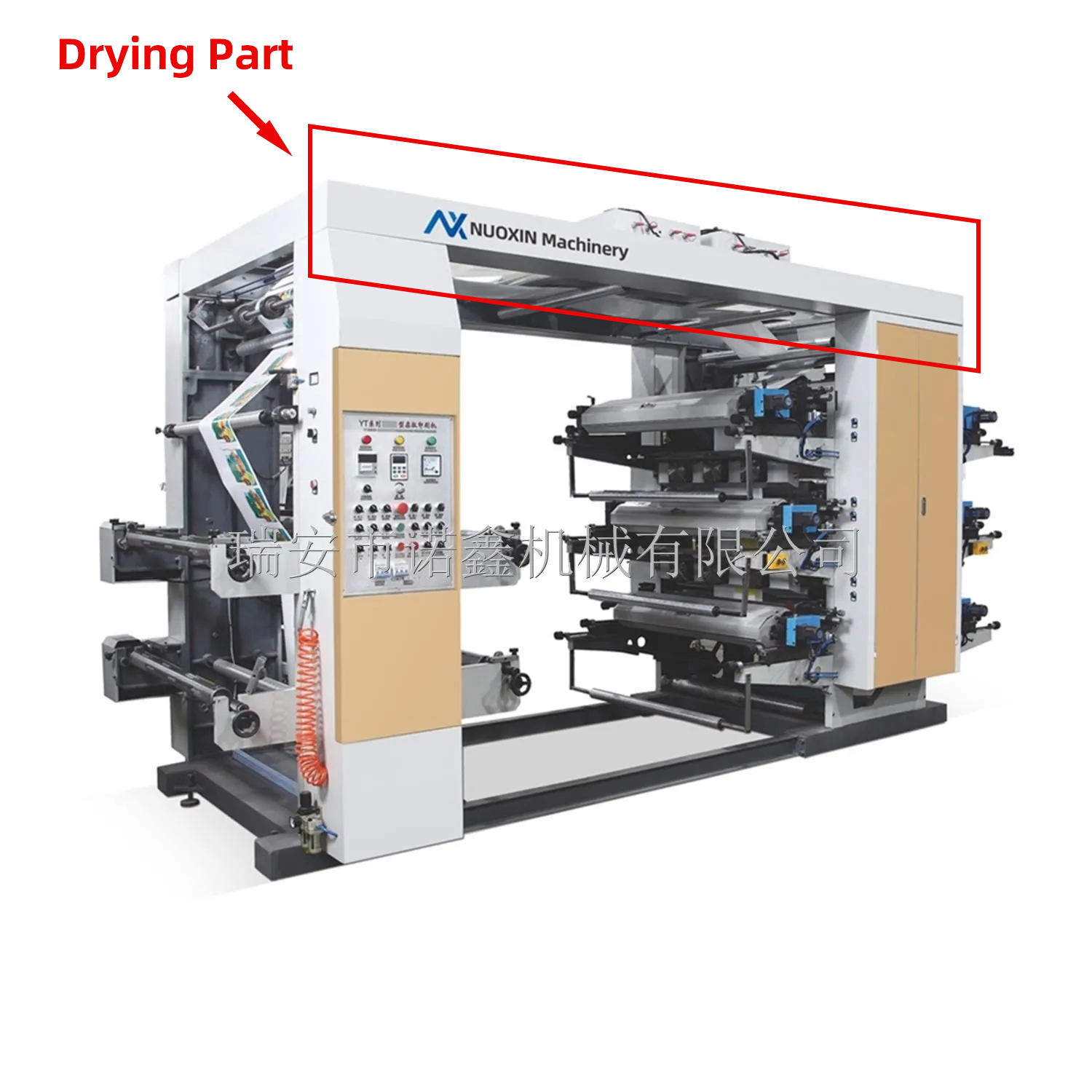

The machine features an electric heating drying system with hot air circulation. All printing groups utilize hot air circulation to ensure reliable, high-speed ink drying.
The printing ink is distributed via a metal anilox roller (available in 100-300 LPI) designed with a hexagon chrome finish, ensuring highly uniform color delivery.
The machine includes a meter counter that stops operations automatically when reaching the pre-set quantity or if material is cut off. It also features a continuous 360° longitudinal register device and automatic safety shutdown functions.
