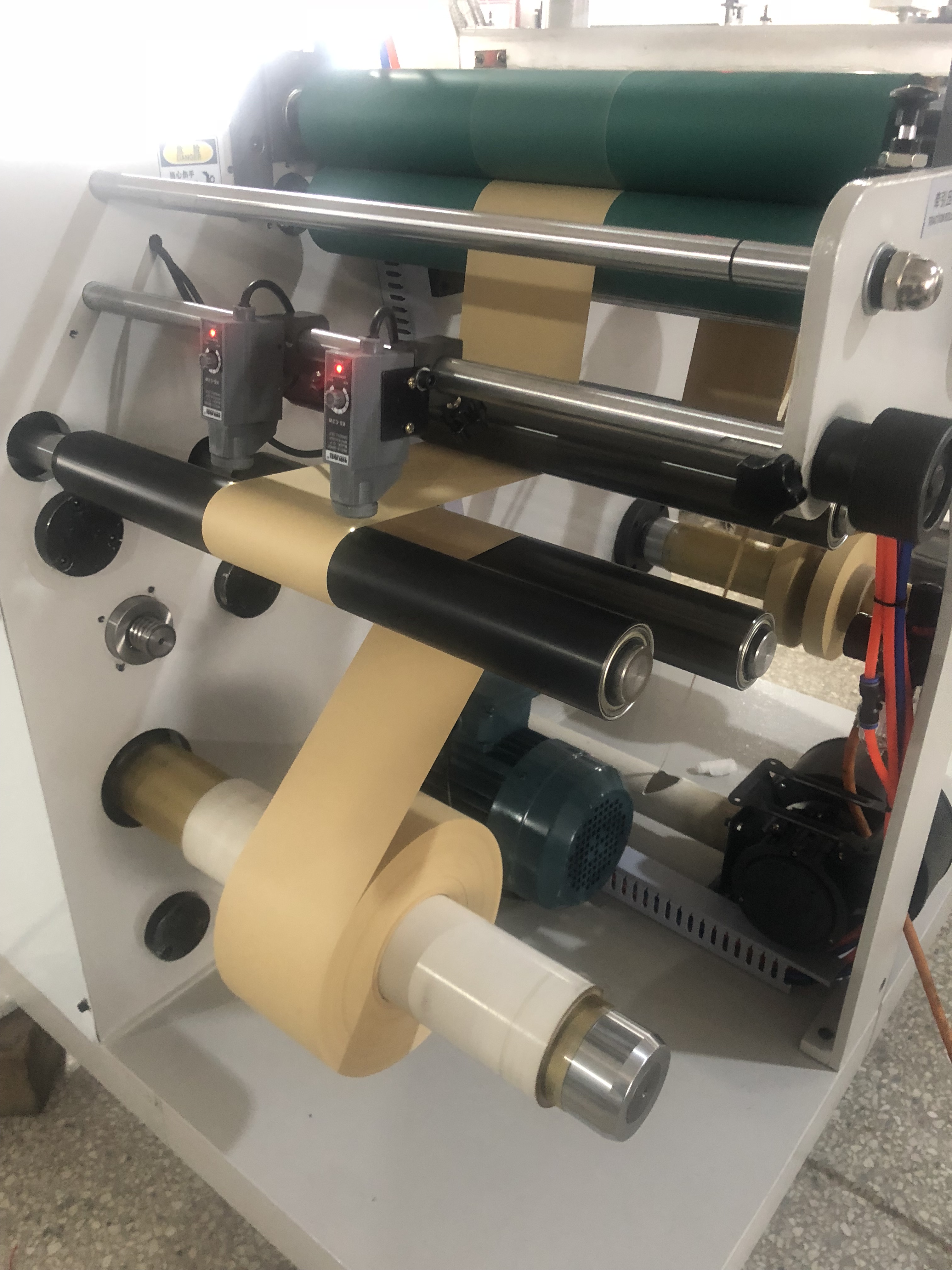

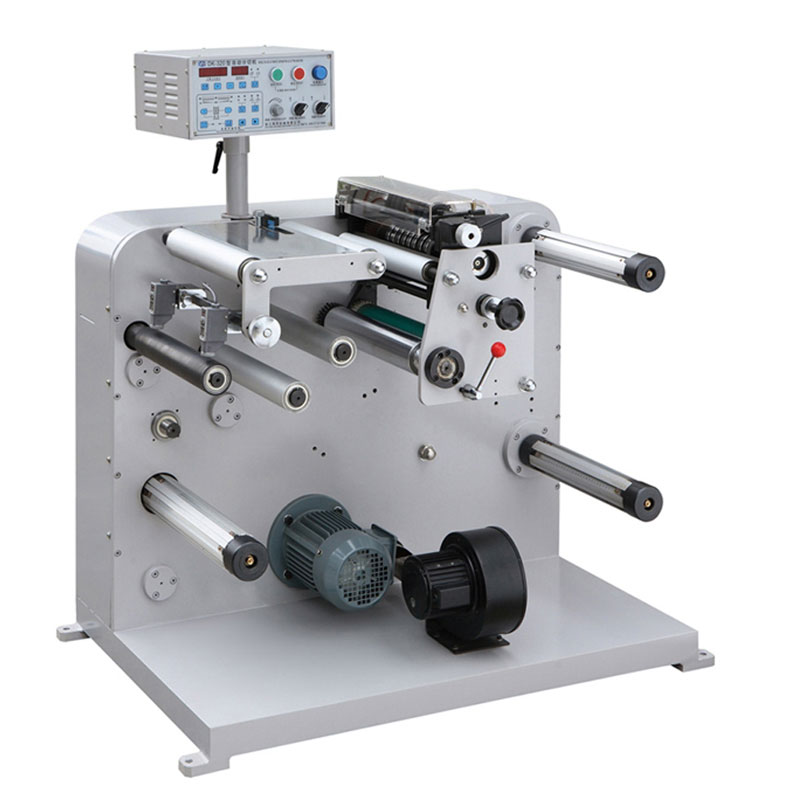

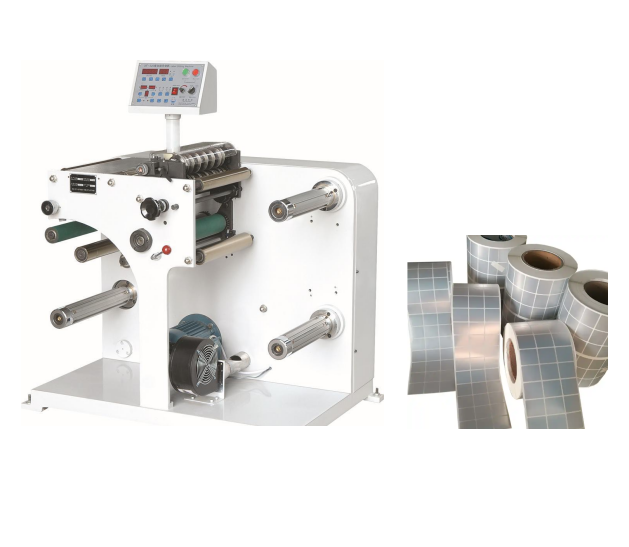

Adhesive Paper Label Roll Slitting and Rewinding Machine
Application:
This machine is suitable for slitting narrow width plastic film, paper, paper adhesive label etc.
Feature:
- Unwind air shaft is controlled by magnetic powder brake
- Two rewind air shafts is controlled by two brake clutch
- Unwind EPC device to prevent the material moving left or right
- Main motor inverter motor
- Equipped with rotary blade
- The machine is installed with a blower to blow the waste edge away.
- Rewind automatic roll change is optional
Specification:
| Model |
FQ320 |
FQ420 |
| Width |
320mm |
420mm |
| Speed |
120 m/min |
120 m/min |
| Unwind diameter |
500mm |
500mm |
| Rewind diameter |
400mm |
400mm |
| Paper core diameter |
38 or 76mm |
38 or 76mm |
| Slitting width |
10-320mm |
10-420mm |
| Power |
1.1kw |
2.2kw |
| Voltage |
220V 1 phase |
220V 1 phase |
| Dimension |
1200*800*1200mm |
1200*900*1200mm |
| Weight |
400kg |
500kg |

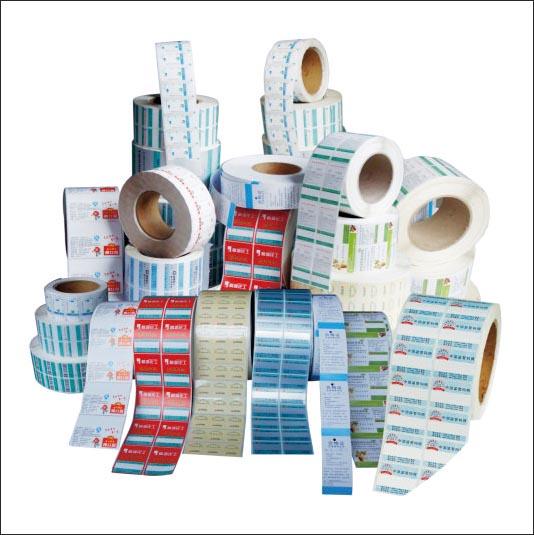

Slitting Sample:
Certification:

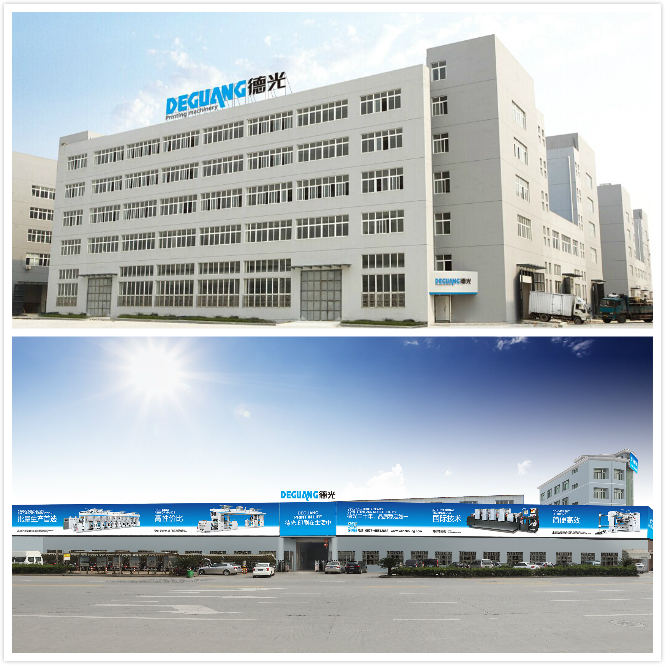

Our company:

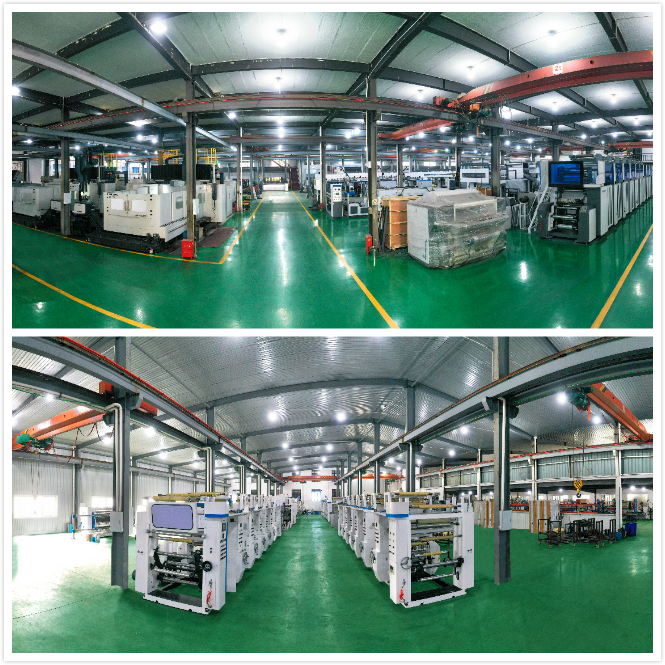

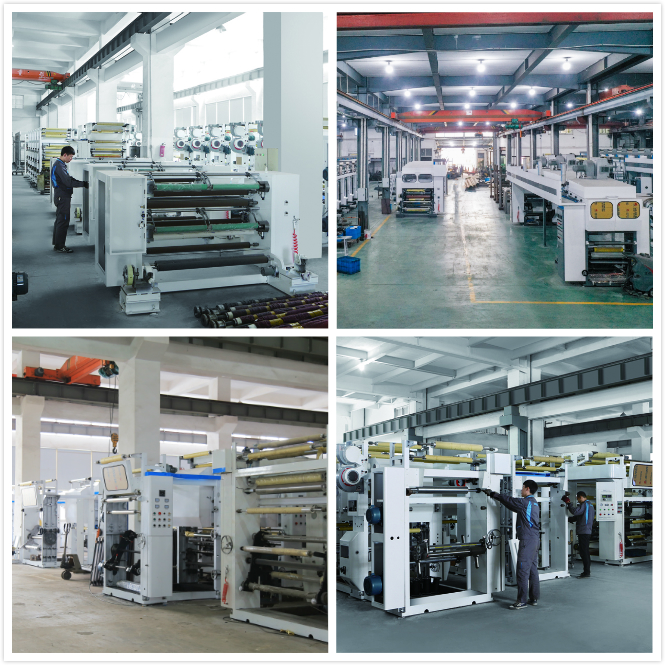

Workshop:

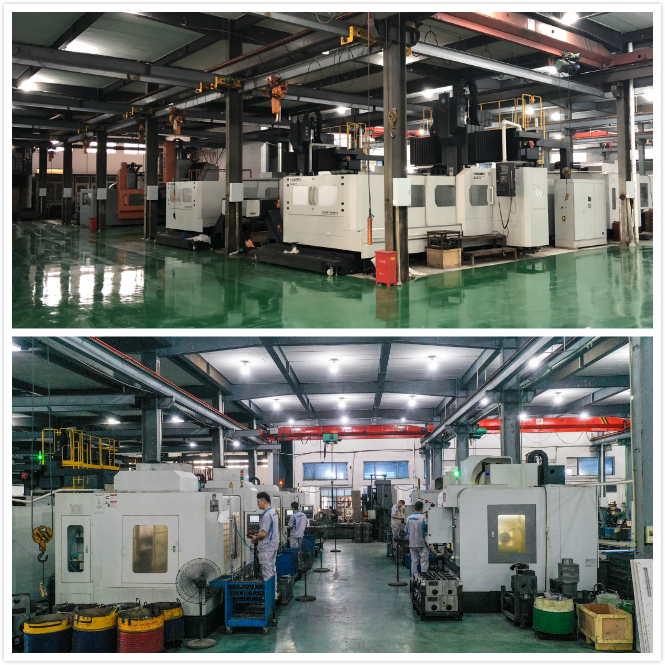

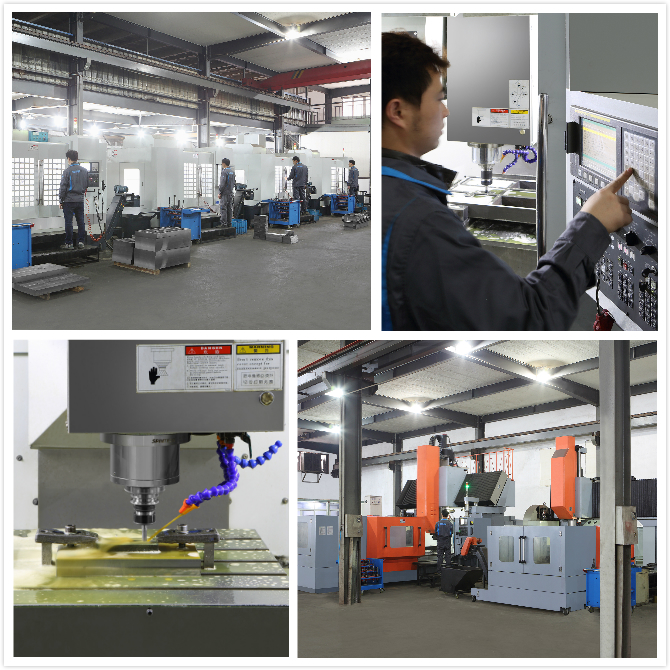

CNC facility:

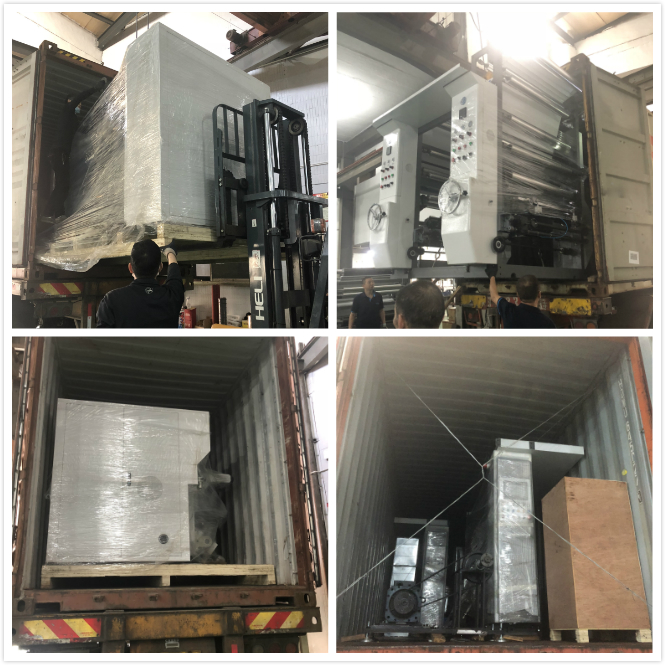

Packing and shipping:
Exhibition:
Frequently Asked Questions (FAQ)
What materials can this slitting and rewinding machine process?
This machine is highly suitable for processing narrow width plastic films, paper roll stock, and paper adhesive labels, among other similar roll materials.
What is the difference between the FQ320 and FQ420 models?
The main differences lie in the maximum slitting width (320mm for FQ320 vs. 420mm for FQ420), power configuration (1.1kw vs. 2.2kw), and overall machine dimensions and weight.
How is the tension controlled during the unwind and rewind process?
The unwind air shaft utilizes a magnetic powder brake for tension control, while the two rewind air shafts are independently controlled by two clutch systems to ensure precise and uniform rewinding tension.
Does the machine feature automatic edge guiding?
Yes, it is equipped with an Unwind EPC (Edge Position Control) device, which prevents the raw material from moving left or right, ensuring straight and accurate slitting.
How is waste material managed during operation?
The machine is integrated with a dedicated air blower system that automatically blows the slit waste edges away from the cutting area to maintain continuous production.
Is the automatic roll changing option available?
Yes, a rewind automatic roll change feature is optional and can be configured based on your specific production line requirements.
