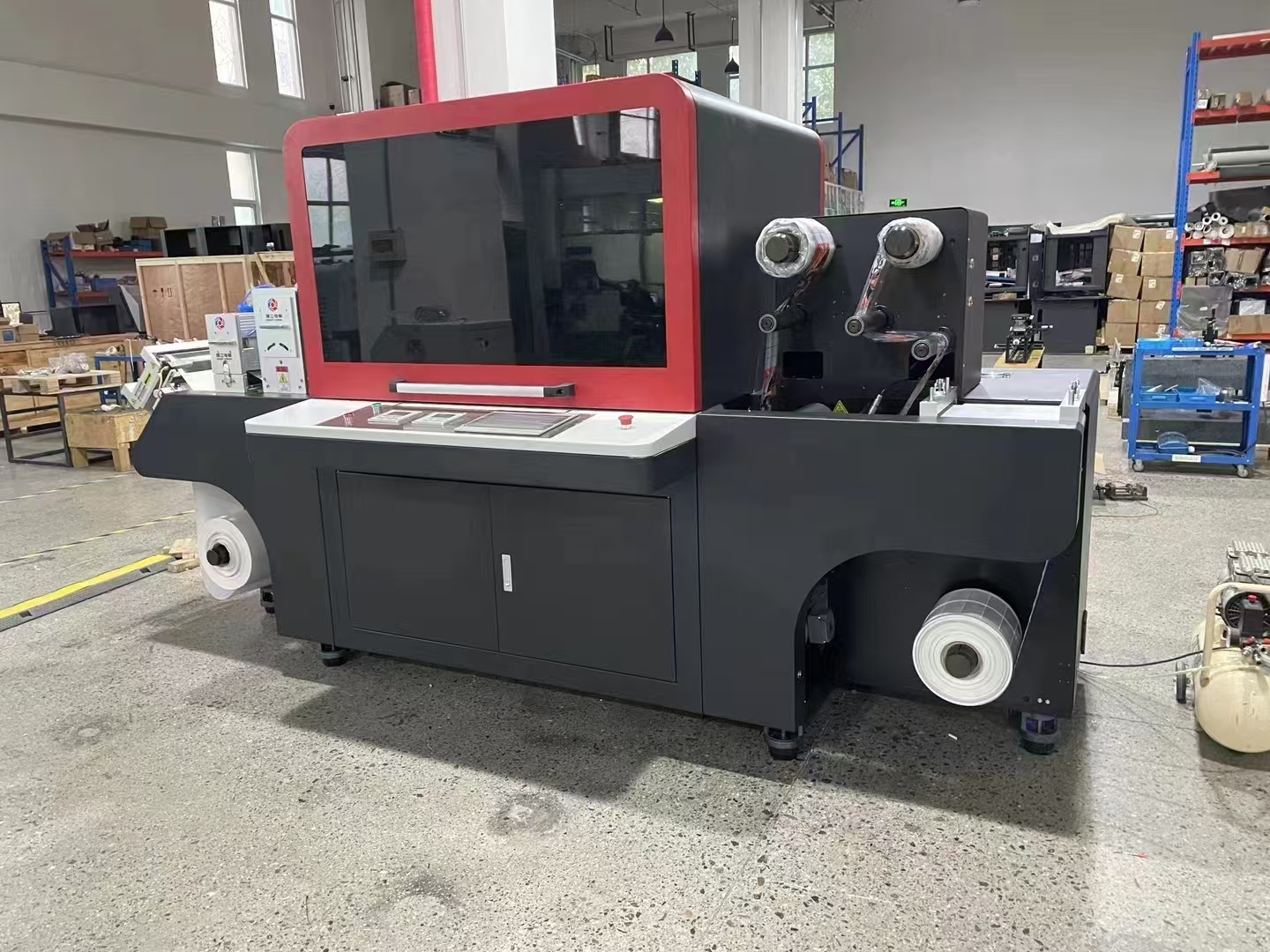

Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
1 / 5
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine
Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine

Automatic PET PVC PP PE BOPP Films Sticker Label Printer UV Varnish Machine CMYKW Digital Roll To Roll Label Printing Machine

Send Inquiry

Product Description

Digital UV Label Printer
Products Description
Product View
Parameters of CMYK Colour Label Banner UV Printers Roll to Roll Digital Printing Machine Price Coated Paper Film Inkjet Printer
This digital uv label printer is a printing equipment that can be digital + traditional printing mixed. The complete system is very cost-effective, which can be said to be suitable for printing companies that are expanding production capacity and those looking to exist. CMYK ink is the basic configuration, with optional white ink, varnishing, and cold stamping devices to address the growing demand for personalized and customized printing. This label printer will help you gain a competitive edge in the market, leading to a surge in orders and profits.
Detailed Parameters
Model ZM-X108 ZM-X216
Printing technology Kyocera DOD piezoelectric inkjet Kyocera Head
Print width 108mm 216mm
Media Width Max.230mm Max.250mm
Media Type Coated paper, synthetic paper, self-adhesive paper, PP, PVC, BOPP, etc.
Material Thickness 0.08-0.5mm (0.003-0.02")
Ink LED-UV curable ink
Print Resolution 600X600dpi 600X1200dpi
Number of Print Heads 5 pcs (or more) 10 pcs (or more)
Print Speed 50 m/min
Color CMYK, White is optional (4 Ink channels + spot color)
Ink Tank Volume 3L
Connectivity Fast Ethernet
Rip Software Print Factory, MainTop, Onyx
Core Diameter 3 inch
Unwinding diameter Max.500mm
Rewinding diameter Max.500mm
Pre-Curing Air cooling LED
Final Curing Water cooling LED
Power Supply 220V, AC 30A
Air Supply 6-8bar
Working Environment Temperature: 15-30℃, Relative humidity: 25%-80%, low dust, low light
Dimensions 2000x1300x1850mm 2000x1430x1850mm
Machine Weight 1430kg 1700kg
Auxiliary Devices Air-pressure utilities such as compressor; Connection to exhaust duct

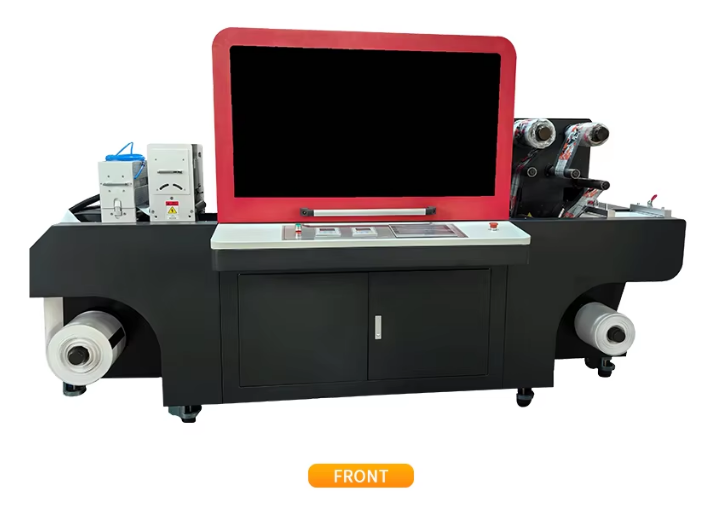

Detail Image 1

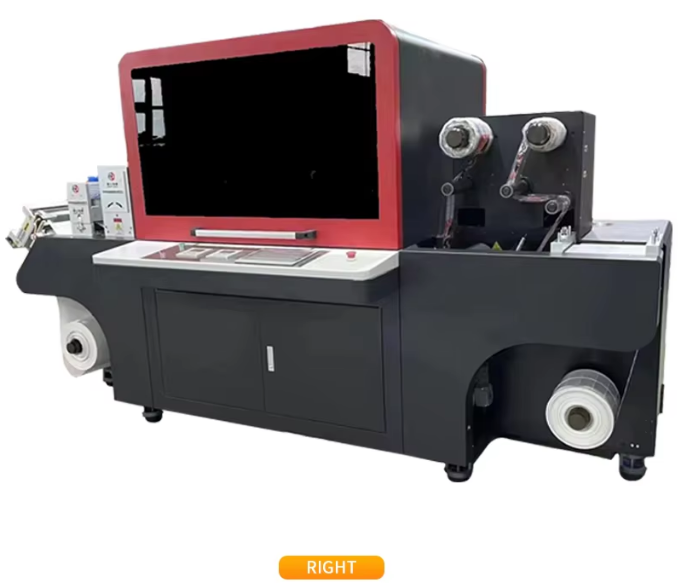

Detail Image 2
Detail Image 3

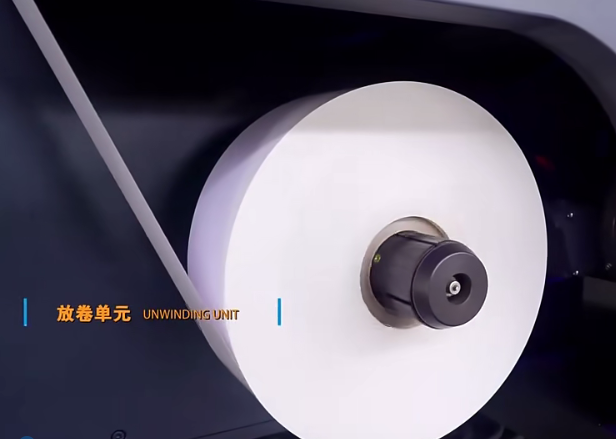

Unwinding Unit
Unwinding Unit
A 76.3mm(3") servo-driven unwind spindle with magnetic particle clutch.

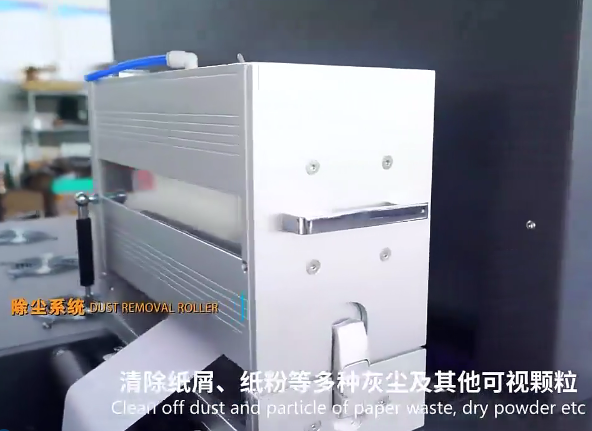

Dust Removal Roller
Dust Removal Roller
Clean off dust and particle of paper waster, dry powder and other visible particles.

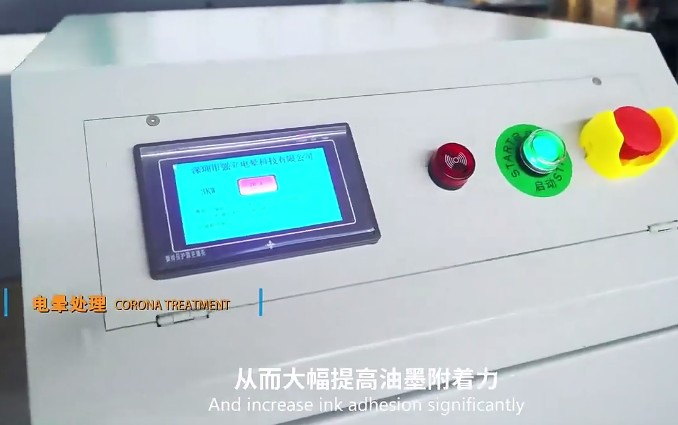

Corona Treatment System
Corona Treatment System
Effectively pretreats the surface of substrates to increase the adhesion of inks.
Rewinder
Utilizes a 76.2(3") servo-driven rewind spindle with magnetic particle clutch and closed-loop tension control system supporting rewind diameter up to 500mm(19.7").
Roll-back system
Double driver motor and accurate tension control system make sure the media can be roll back neatly.
Print position fine-tuning
Position of the print module can be adjusted within full media region(230mm). It can be fine-tuned from control software with no need to adjust media.
Variable Date Printing
Machine supports variable date printing, specifically designed for industrial short-run narrow-format production. Integrated with advanced UV inkjet printing technology, it can be applied as labels, hangtags, tickets, RFID, foil packaging, etc.
Media Buffer module (Option)
Cooperates with other processing machines, such as detection systems, cutters, etc.
Varnish/Foil module (Option)
Varnish ink printing provides versatile surface finishes with amazing tactile and visual effects to beautify the appearance of labels and grasp viewers’ attention.

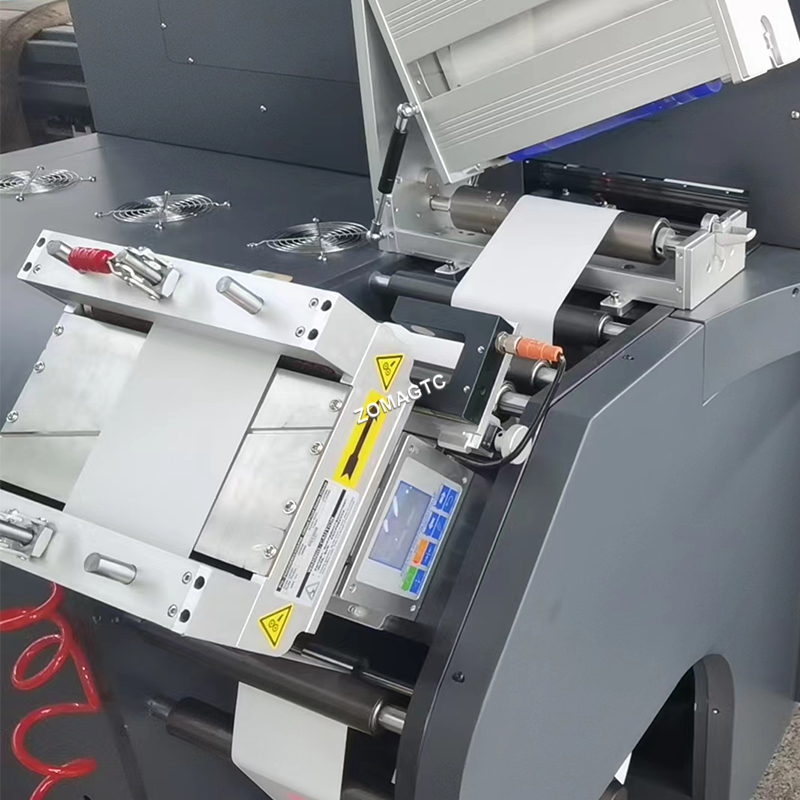

Print Sample 1
Print Sample 2
Digital label printers are widely used to print barcodes, QR codes, price tags, serial numbers and variable data labels. They serve retail, logistics, manufacturing, food, electronics, apparel and office fields, suitable for packaging factories, stores, warehouses and production lines.

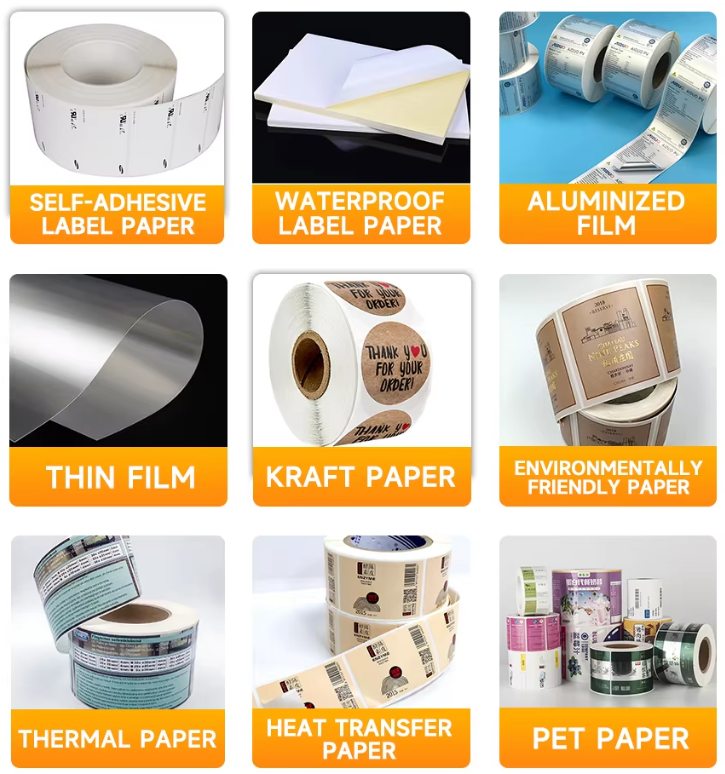

Application Fields
Company Profile
Profile Image 1
Profile Image 2
Profile Image 3
Packaging & Shipping
Packaging 1
Packaging 2
Packaging 3
Shipping 1
Shipping 2
Shipping 3
FAQ
Q1: Are you a manufacturer?
Yes. We are a professional manufacturer of machines for more than 15 years.
Q2: Can your machine be customized?
Yes, almost all of our products can be customized, including sizes, colors, logos, packages and so on.
Q3: How about your package?
Our machines are first wrapped securely with plastic film for waterproofing, then loaded and fixed in a plywood case. If utilizing FCL (Full Container Loading), we might use a robust wooden case.
Q4: How do you ship the finished products?
We can ship by sea, by plane, or through couriers such as TNT, DHL, FedEx, UPS, etc.
Q5: What's the delivery time?
Within 15-35 days after receiving payment.
Q6: What is your after-sale service?
Any questions will be responded to within 24 hours via communication channels. In addition, we have professional engineers available for overseas service.
