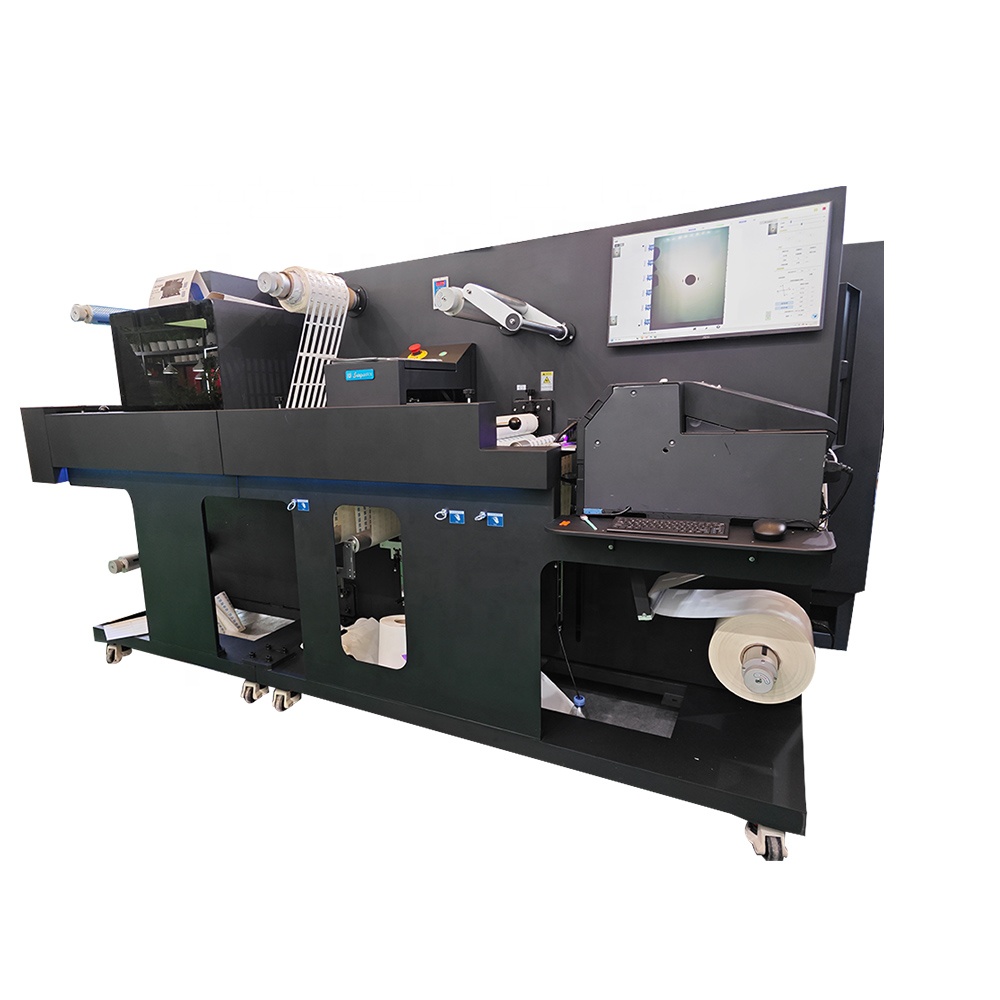

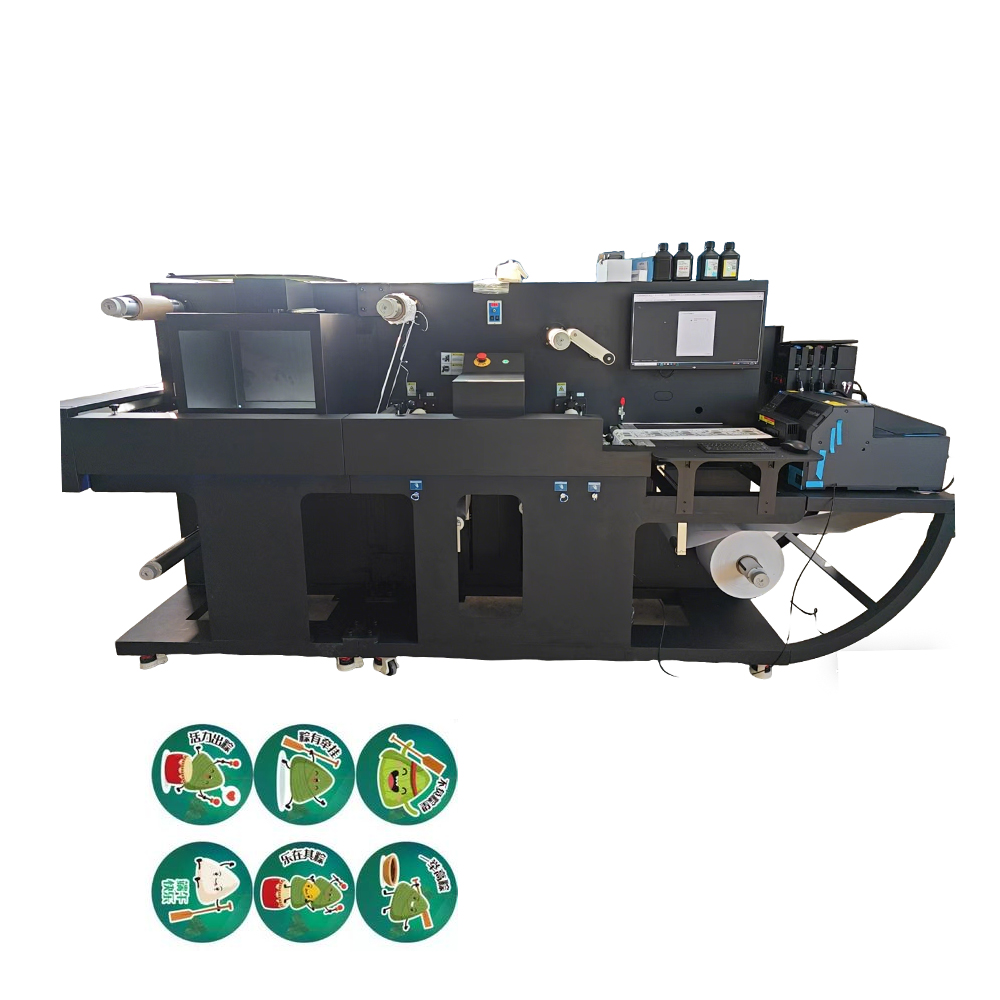

Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
1 / 5
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine
Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine

Roll to Roll Digital Label Printing Machine Food Cosmetic Wine Barcode Sticker Integrated Printer Laminating Die Cutting Machine

Send Inquiry

Product Description

Digital Printing Machine Banner
Products Description
High Accuracy Printing And Die Cutting Roll To Roll Digital Printing Machine
Product Image
Model : OR-C6530A
Ink Color CMYK Four-Color Separate Cartridges (Black, Cyan, Magenta, Yellow)
Recommended Media Matte Paper, Synthetic Paper, Glossy Paper, High-Gloss Paper, PET, PE and other films
Maximum Printing Resolution 1200x1200dpi
Printing Interface USB, Ethernet and External I/O Interface
Maximum Printing Speed 3m/min
Maximum Effective Printing Width 212mm
Paper Thickness <300g
Optional Function Cutting Device
Die-Cutting Mark Type Single Mark, Four Marks or QR Code
Scanning Speed Approximately 5s
Working Speed 10-1200mm/s
Cutting Pressure 0-750gf
Minimum Cutting Character Size Approximately 5mm² (varies by font, graphic and cutting material)
Maximum Paper Range for Defect Detection Length 330mm * Width 330mm

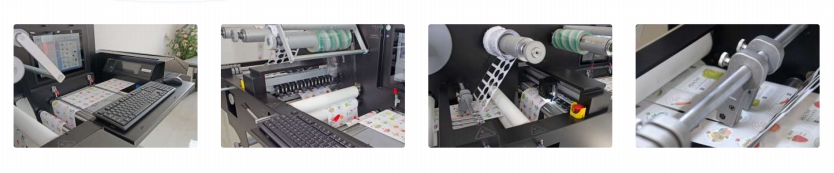

Details 1 Details 2

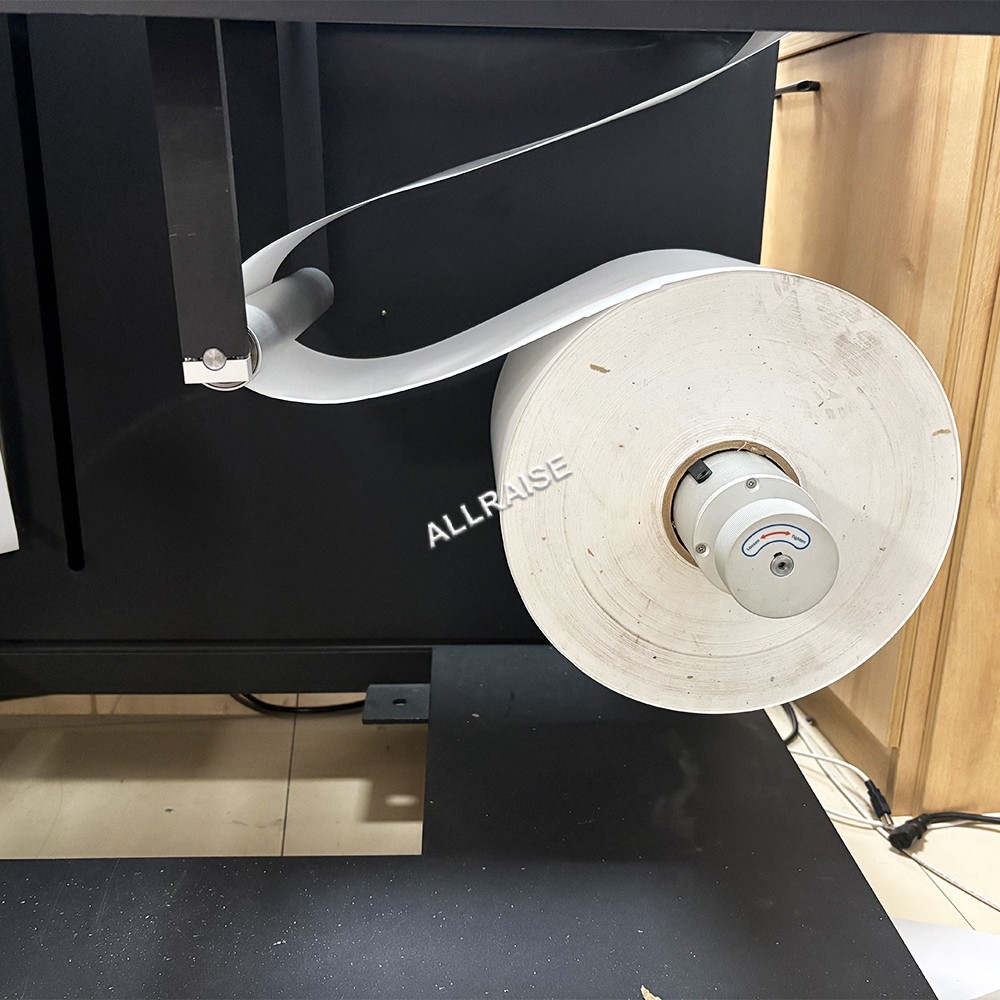

Feature 1
End-to-End Integrated Process
A single machine completes the entire process from printing to lamination, die-cutting, quality inspection, waste removal, and slitting, eliminating the need for multiple machines and significantly improving production efficiency while reducing manual intervention.

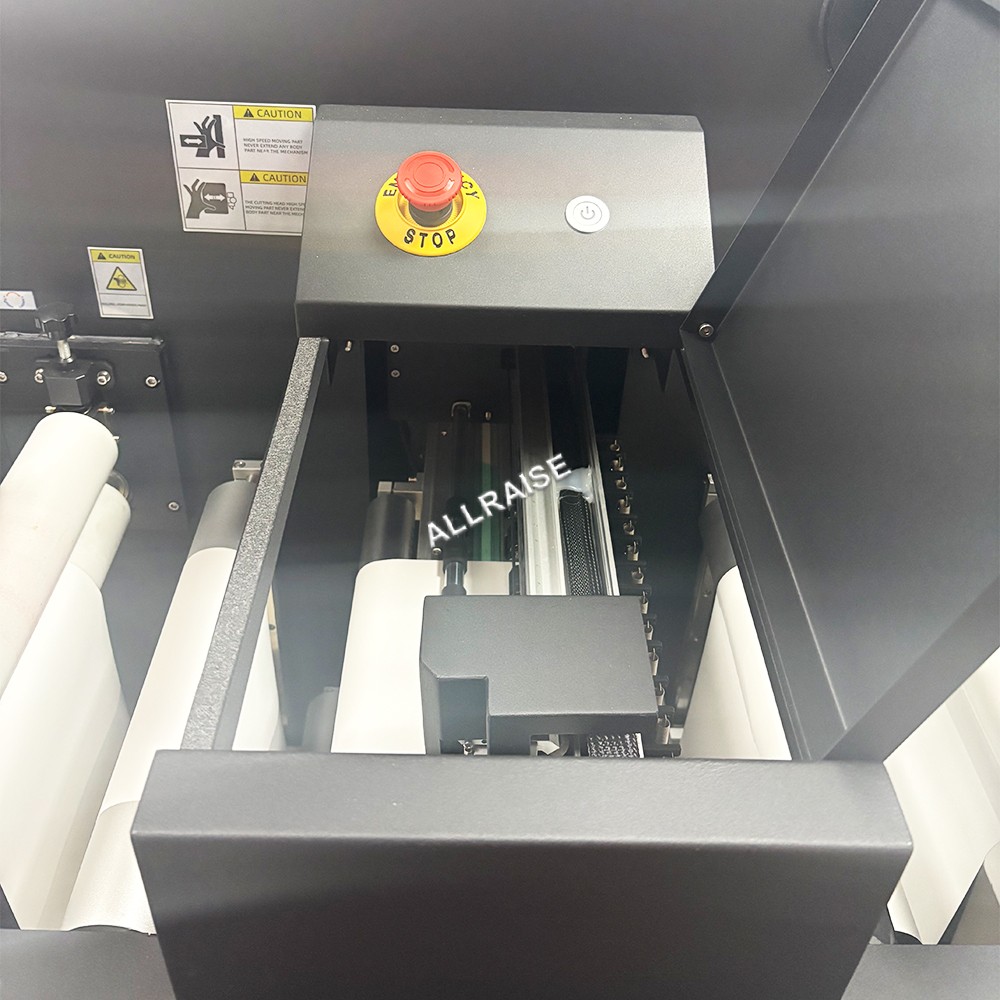

Feature 2
High Precision and High Stability
Utilizing a DC servo motor and CCD digital camera for positioning, the machine achieves a mechanical resolution of 0.02mm and a repeatability of ≤0.05mm, ensuring accurate label registration and cutting.

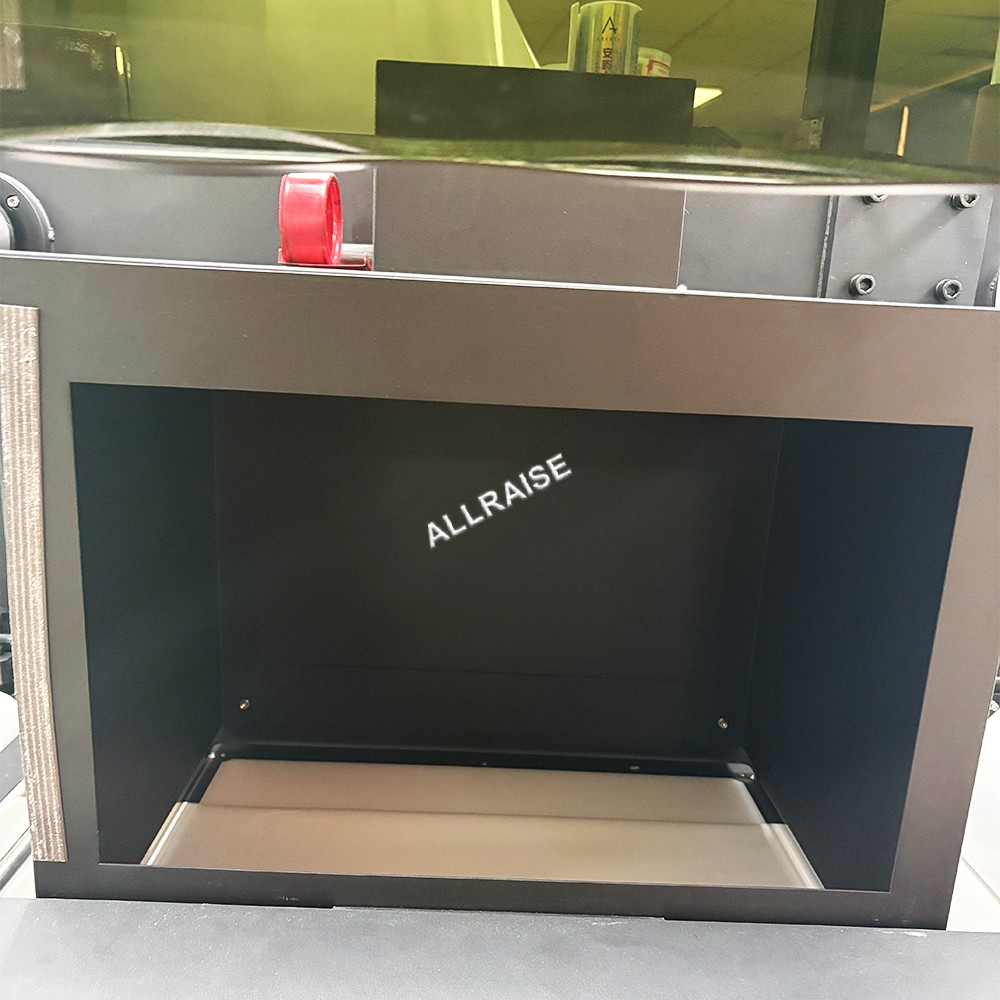

Feature 3
Intelligent and Compatible
Equipped with an AI vision inspection unit, it automatically identifies printing defects and die-cutting errors, enabling unmanned quality control.
High-efficiency production capacity and flexible configuration: Adjustable working speed from 10-1200mm/s, slitting speed of 3m/min, balancing accuracy and efficiency.

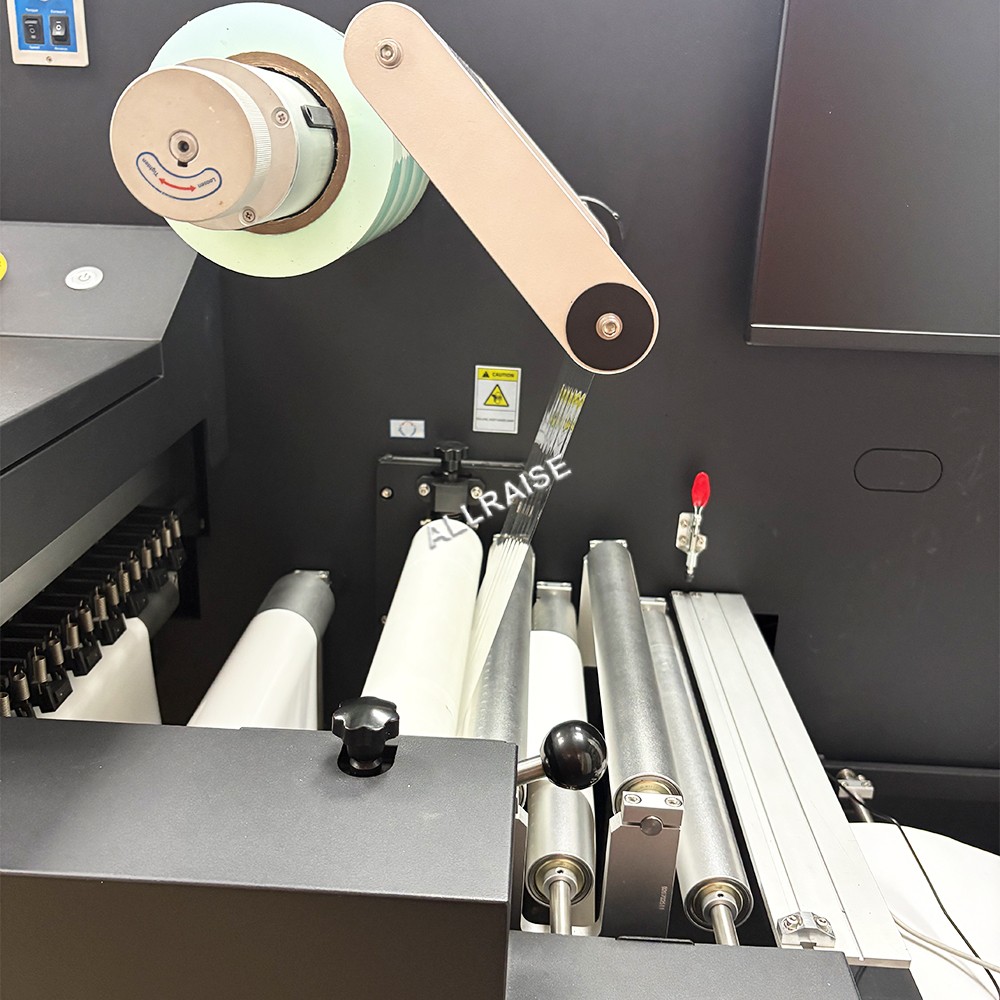

Feature 4
Stable and reliable operation
Maximum power 757W (excluding computer and printer), 220VAC power supply, suitable for conventional industrial power environments.

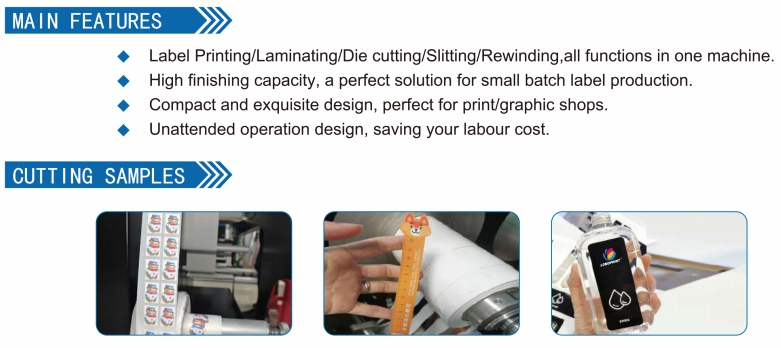

Machine Overview 1 Machine Overview 2

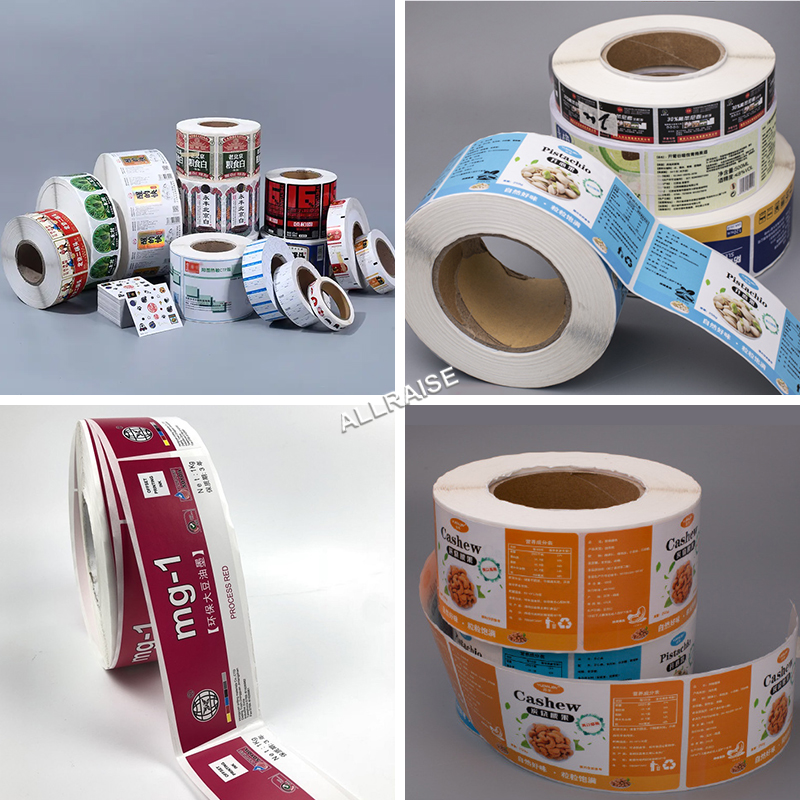

Application Scenarios
  • Self-adhesive labels: Food and beverage labels, pharmaceutical and health product labels, cosmetic and daily chemical product labels, alcoholic beverage labels, electronic and electrical appliance labels, etc.
  • Food and Beverage: Packaging and labeling for snacks, fresh produce, and condiments; small-batch customized production.
  • Packaging and Printing: Small and medium batch packaging sampling and short-run order production, replacing traditional plate making and printing.
Application Scenarios
Related Products
Related Showcase
Package & Shipping
Packaging By container or standard export packing per machine
Delivery time 15-30 days after payment received
Packaging & Shipping Detail
Production Facility & Certification
Facility 1 Facility 2
Facility 3 Facility 4
Product Showcase Line
Certifications
Certifications Proof
Our Services
Our Services Workflow
Frequently Asked Questions
Why don't person reply to me?
Our team is online 24 hours. When nobody replies to you immediately, please leave your requirements via email or the chat tool, and we will get back to you as soon as possible.
Can you guarantee your quality?
Of course. We are the manufacturing factory. More importantly, we place a high value on our reputation. Best quality is our principle at all times. You can be assured of our production quality completely.
How do you make your price?
We calculate our pricing according to our comprehensive costing. Our price will be lower than trading companies because we are the manufacturer. You will get a highly competitive price and superior quality.
What kinds of materials can this machine print on?
The machine supports a wide variety of media including Matte Paper, Synthetic Paper, Glossy Paper, High-Gloss Paper, PET, PE, and other films under 300g in thickness.
What are the precision capabilities of this digital printing machine?
Equipped with a DC servo motor and CCD digital camera for positioning, the machine offers a mechanical resolution of 0.02mm and a repeatability of ≤0.05mm, ensuring highly accurate register and cutting.
What functions does the machine integrate into a single process?
This roll-to-roll machine is an end-to-end integrated solution that completes printing, lamination, die-cutting, quality inspection, waste removal, and slitting in one seamless cycle.
