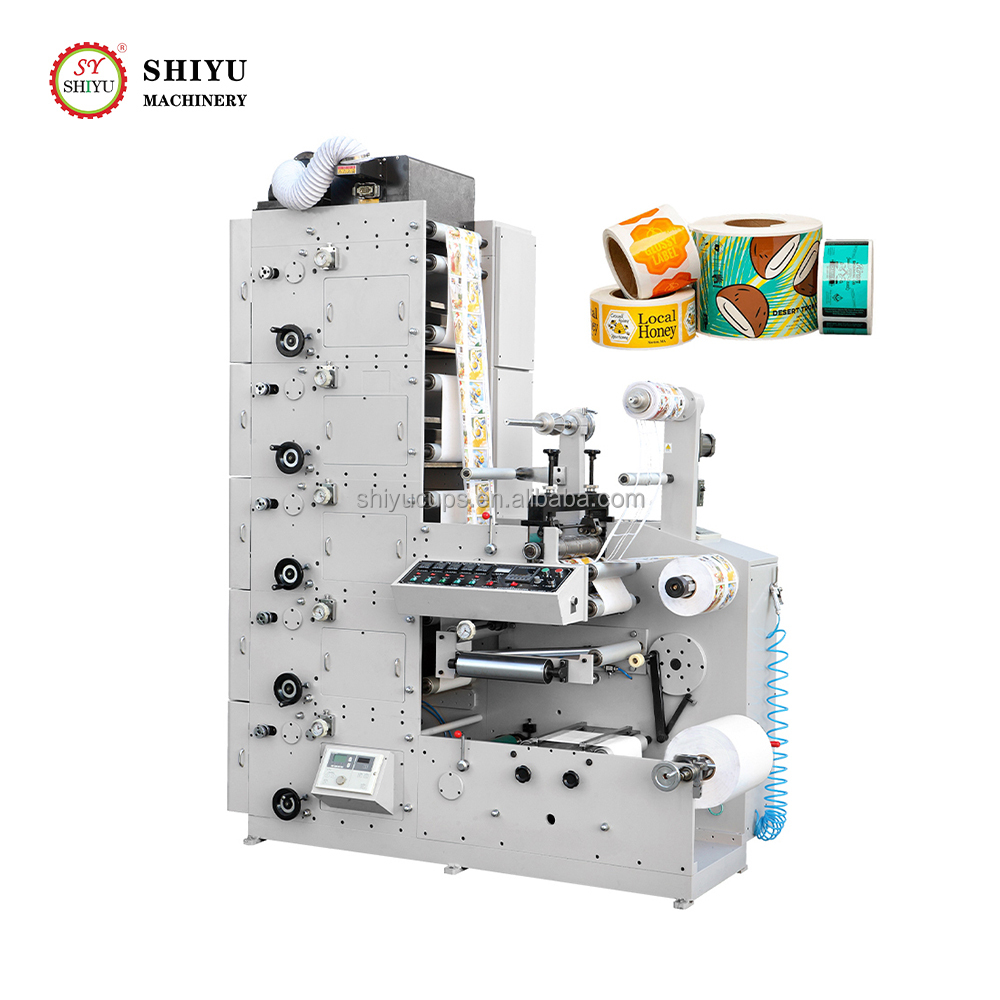

An ideal machine to print different label materials such as plastic films, aluminum foil, tissue paper, self adhesive stickers, vinyl, pvc and carton weight boards etc.
| Parameter | Specification Details (SY-320) |
|---|---|
| Model | SY-320 |
| Printing Speed | 10-100m/min |
| Printing Color | 5 colors |
| Max. Web Width | 320mm |
| Max. Printing Width | 310mm |
| Max. Feeding Diameter | 600mm |
| Max. Rewinder Diameter | 600mm |
| Printing Perimeter | Between 175~355mm |
| Registration Accuracy | ±0.1mm |
| Voltage | 380V/220V 50HZ |
| Total Power | 25kw |
| Weight of Machine | About 2200kg |

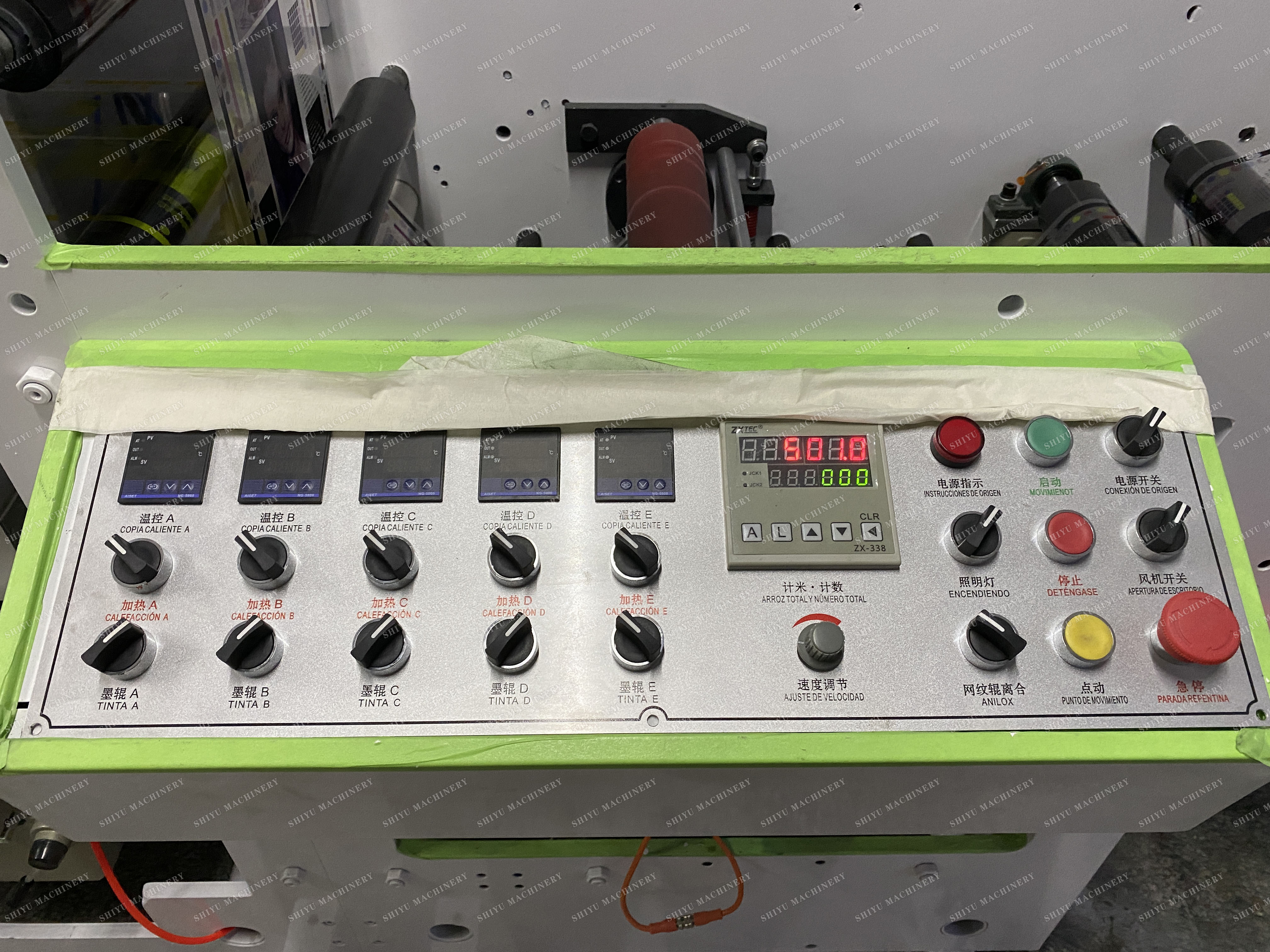

Power Supply, Stop Button, Start Button and Emergency Stop.Temperature Controller for each Heating Oven.and bottom roller tension control

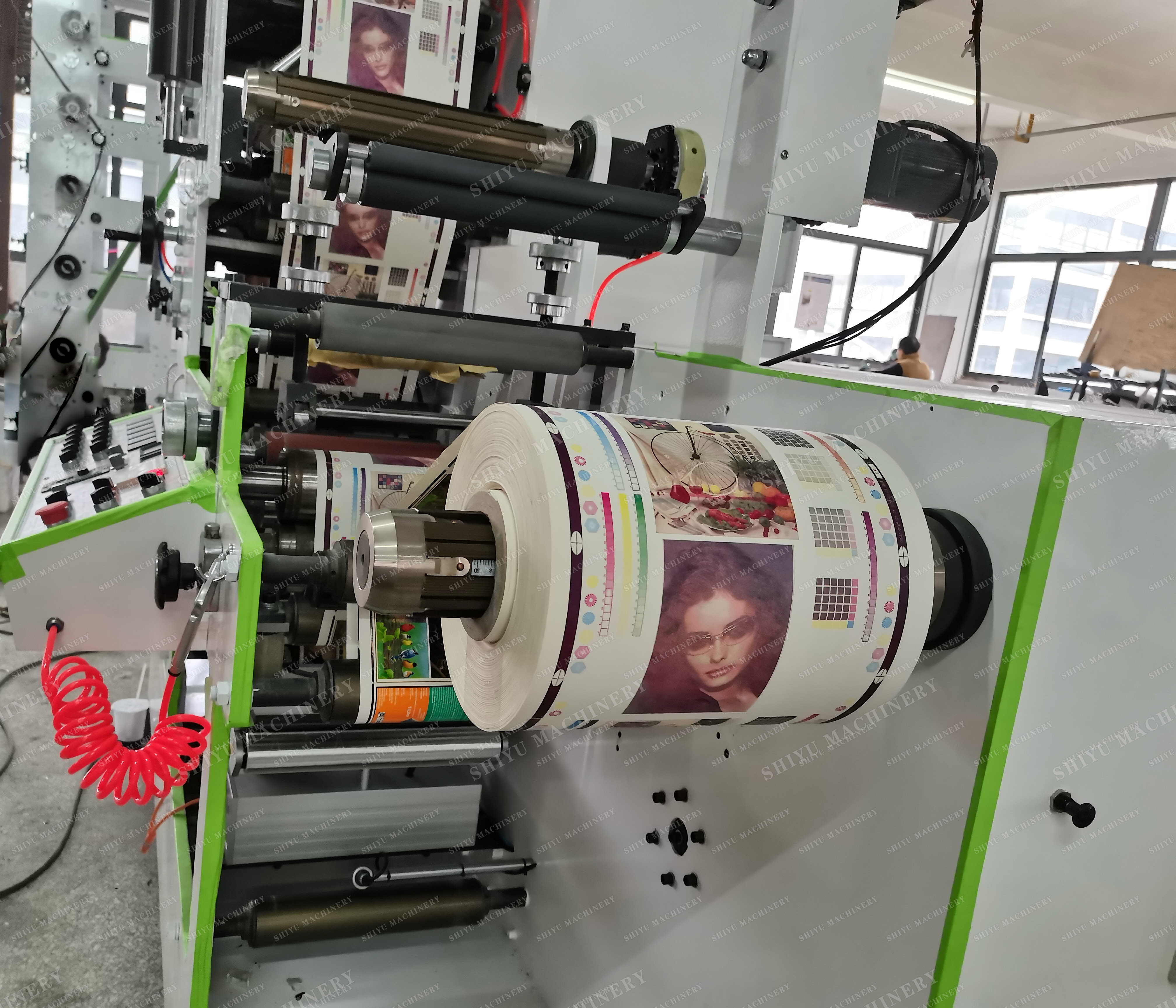

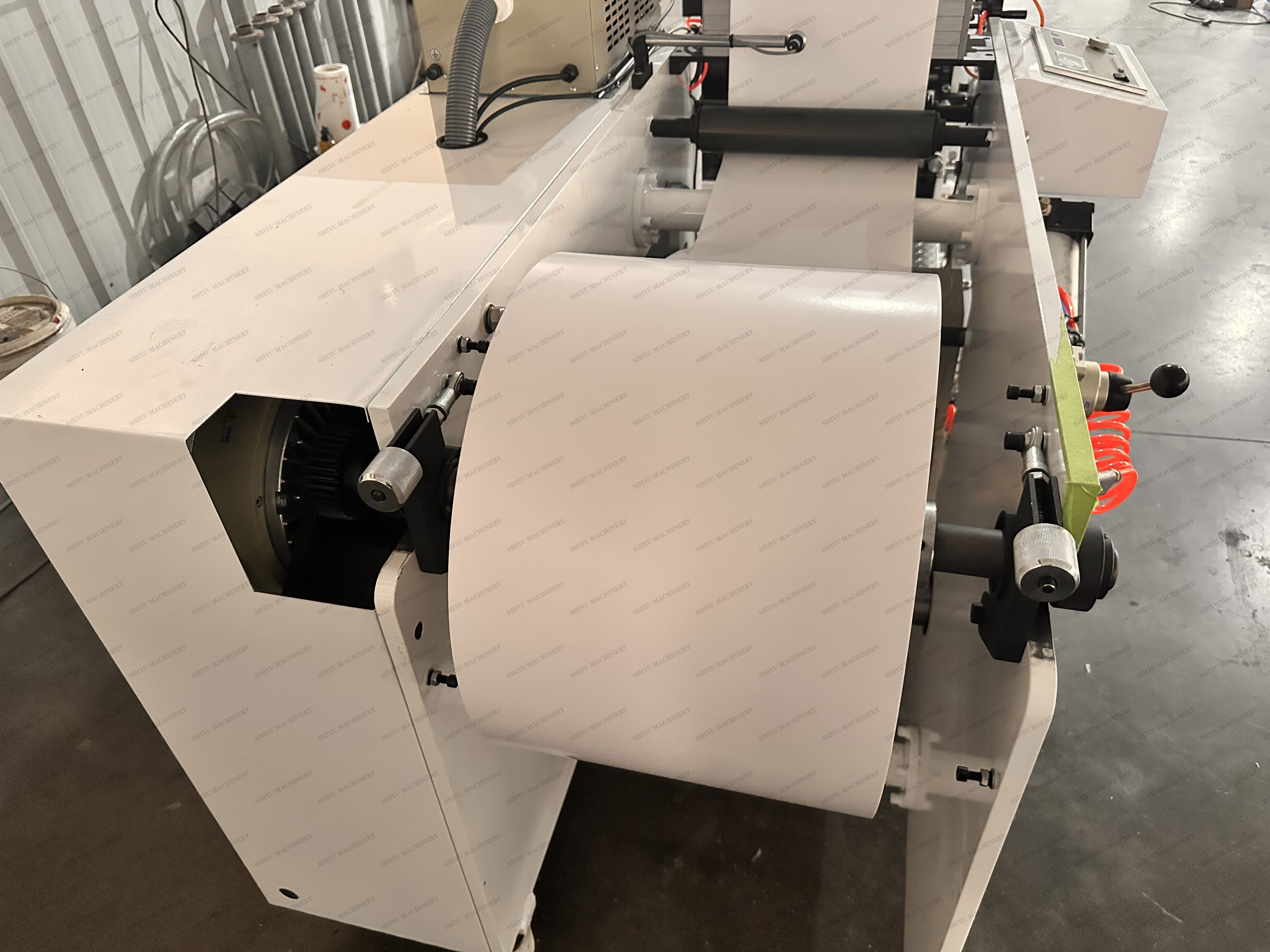

Standard Cantilever unwinding station,maximum unwind diameter: 600mm air shaft roller.Electromagnetic power brake.
The supporting equipment of the printing equipment can provide the efficiency and effect of the finished printing products.

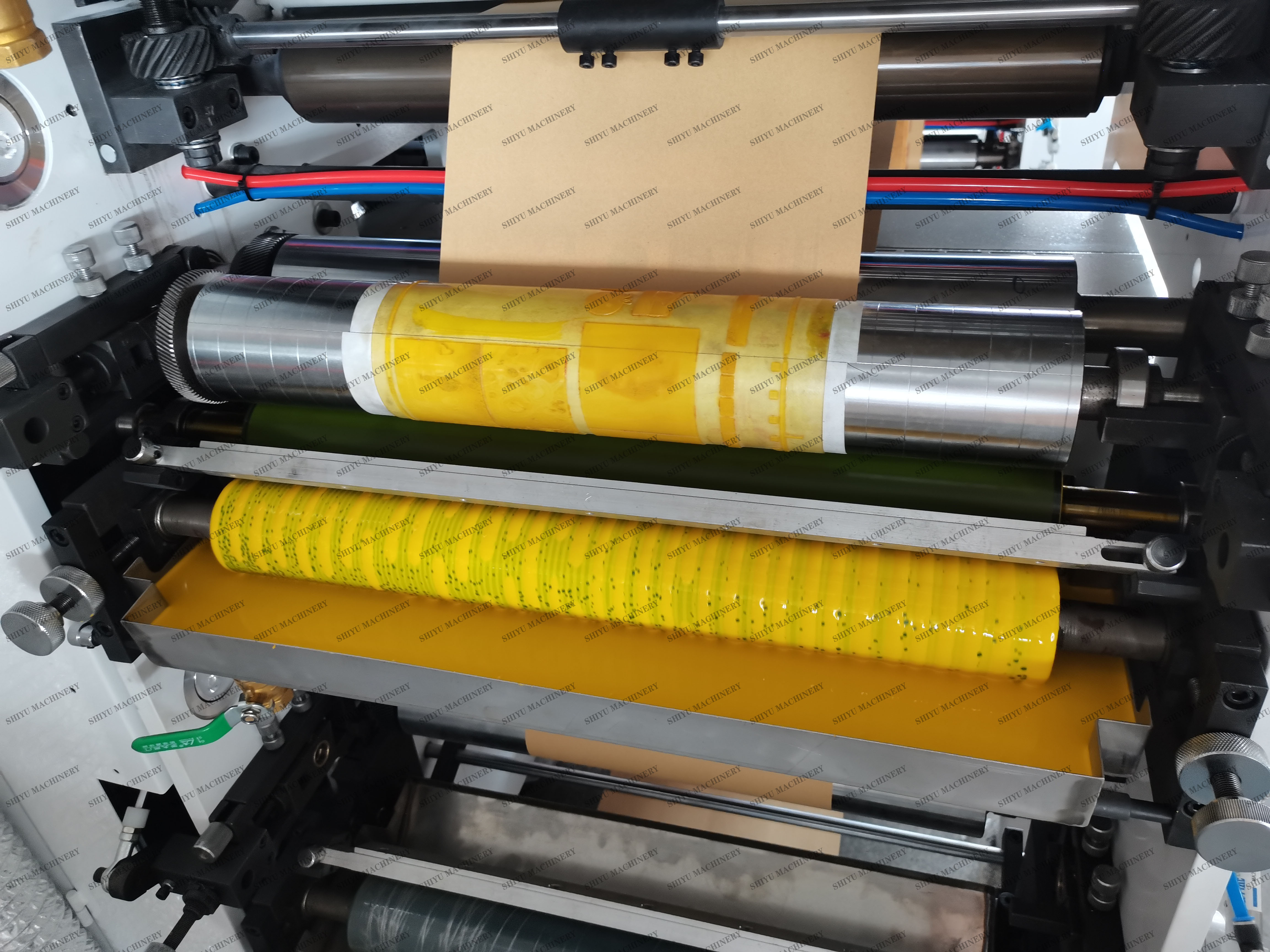

Printing station comes with ink rubber roller, ceramic anilox cylinder, printing plate cylinder, scrapper blade and ink container.helical gear
Detection mode: Edge checking, Control paper move straightly. can control material go straightly,then output final product with good edge.
Rotary die cutting. Magnetic cylinder need to be customized according to your label size Flexible dies can be customized according to your demand

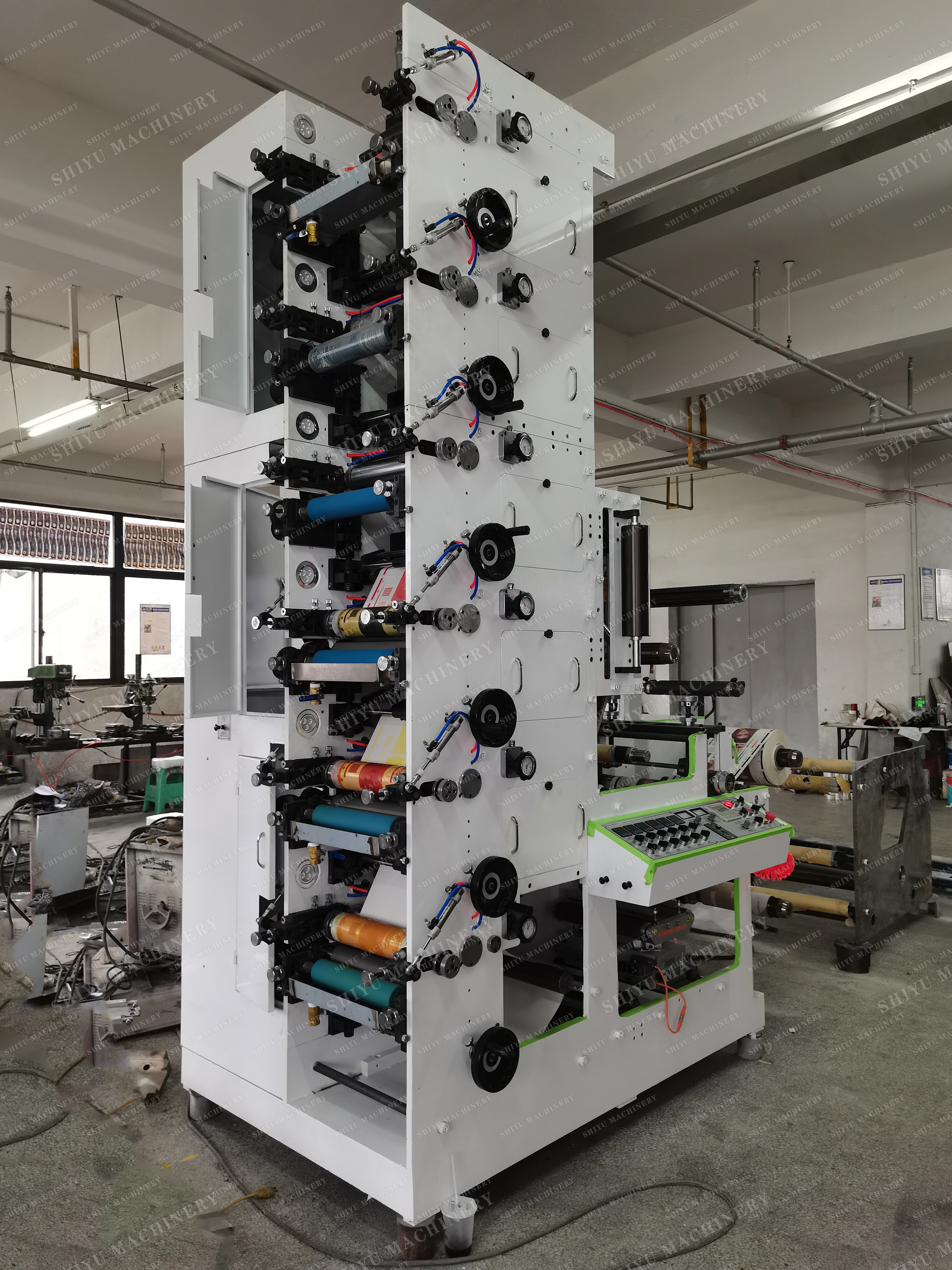

The SY-320 flexo printing machine is highly versatile and ideal for printing on various substrates, including plastic films, aluminum foil, tissue paper, self-adhesive stickers, vinyl, PVC, and carton weight boards.
This machine offers a printing speed range of 10 to 100 meters per minute with an impressive registration accuracy of ±0.1mm, ensuring stable and high-speed precision output.
Winding and unwinding tension are controlled via a magnetic brake and clutch system integrated with a Mitsubishi automatic tension controller, providing stable and reliable material feed control.
Yes, each printing unit supports 360-degree circular register regulation. Each unit can be disassembled and used independently according to the project's color and process requirements.

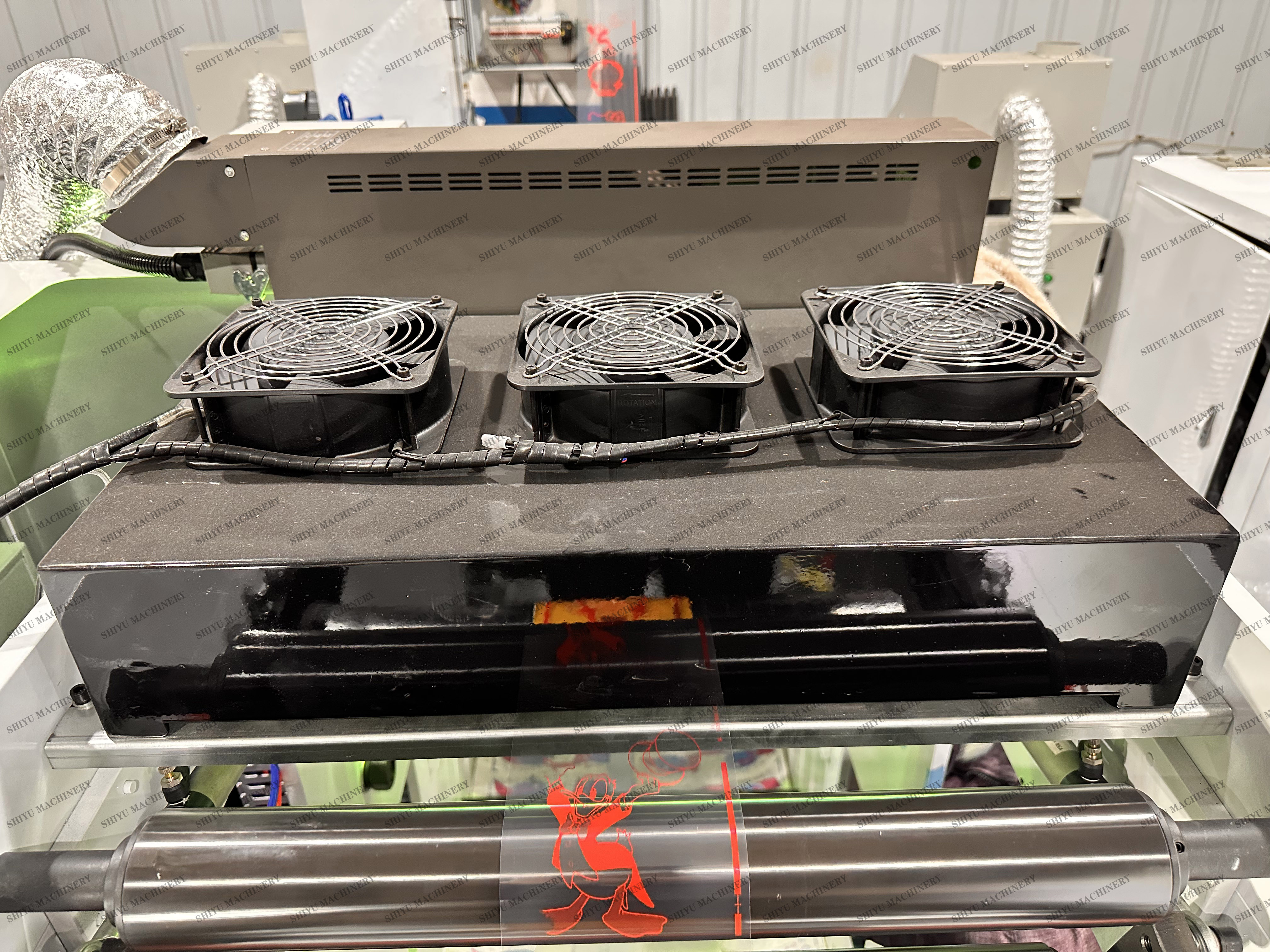

The machine comes with standard drying equipment to facilitate quick ink condensation. Customers have the flexibility to install either an infrared (IR) or UV drying device system based on their ink types.
Yes, the die-cutting unit features rotary die cutting. Magnetic cylinders and flexible dies can be customized specifically according to your label dimensions and layout demands.
