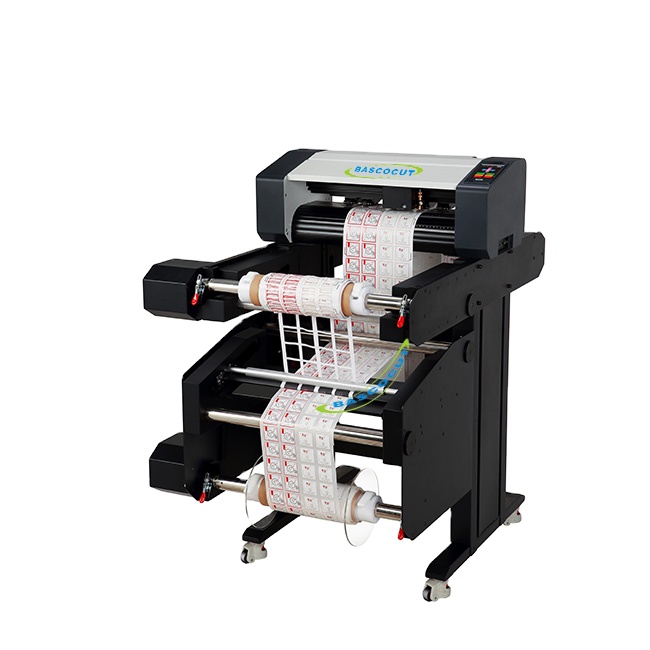

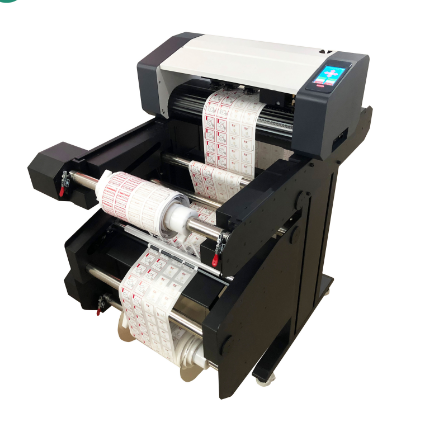

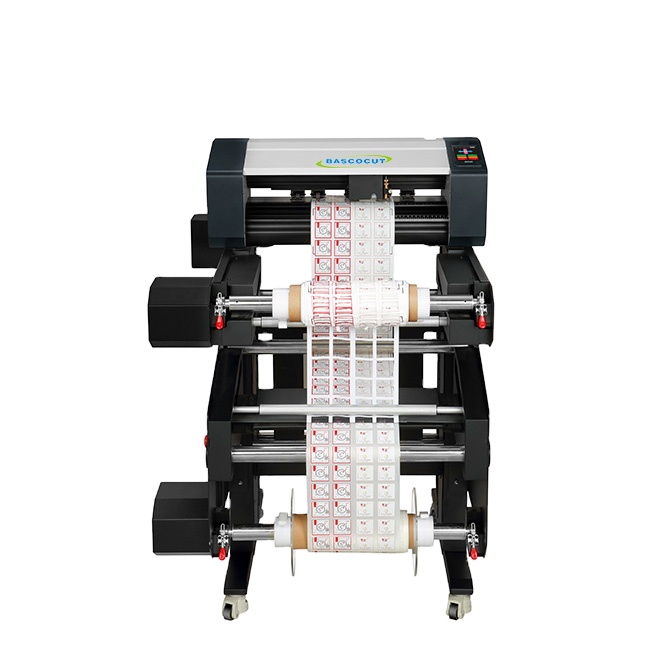

Automatic Self Adhesive Paper Sticker Roll Cutting Slitting Rewinding Machine PVC Epoxy Label Cutter Slitter Rewinder

Product Description

Rotary Label Cutter / Professional Sticker Label Die Cutting Machine with Rewinder

  • Touch Screen Interface
  • Faster Cutting Speed

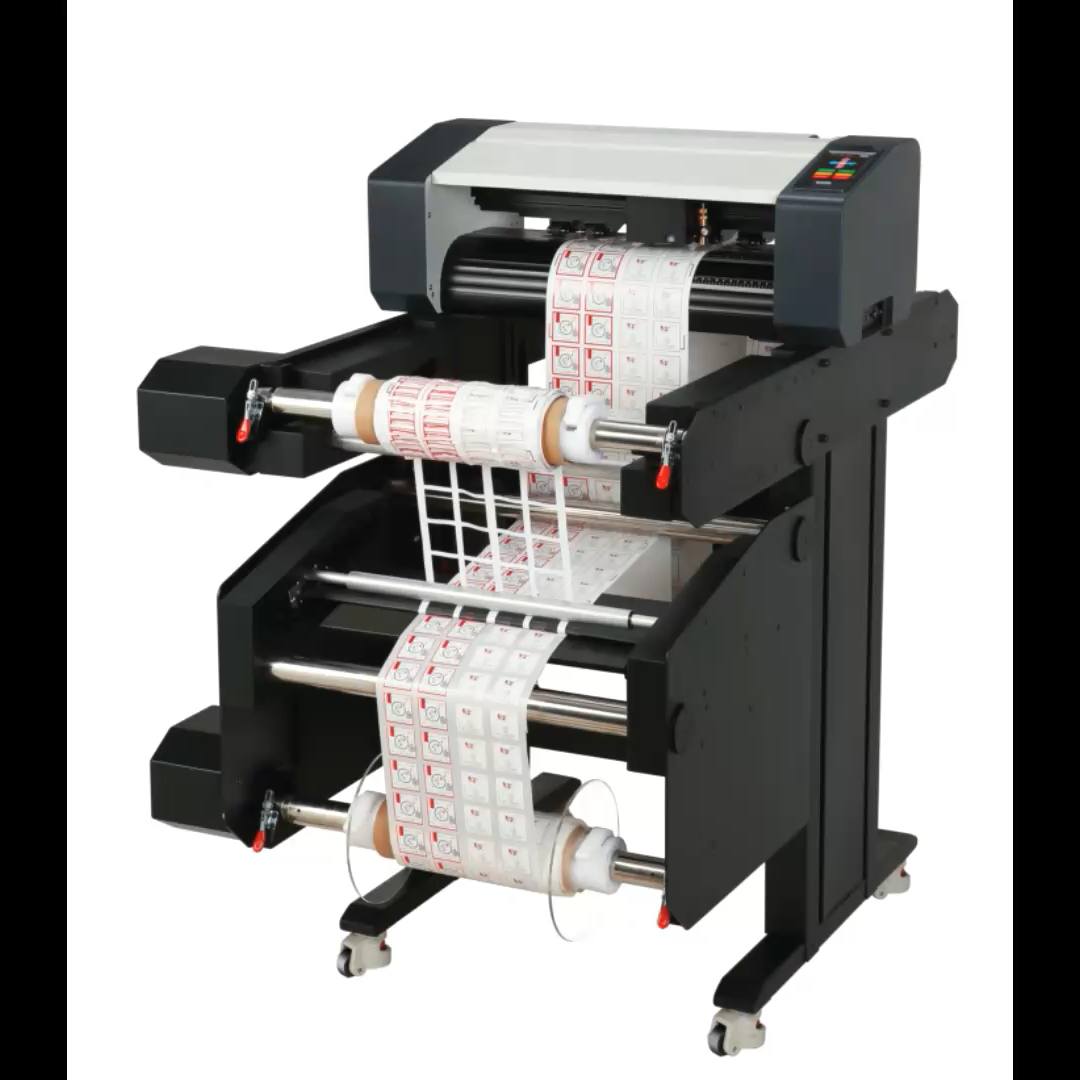

Rotary Label Cutter

Technical Specifications

Model RN3
Media way Auto feeding sheet from back tray
Main board 32-bit ARM7 CPU 168 MHZ, 128MB, High-speed CACHE memory
Control panel Touch screen
Driver High speed, big power step motor, micro-step motor
Maximum paper feed width 330mm
Maximum cutting width 329mm
Maximum cutting speed 1000mm/s
Cutting force 10-1000g (digital adjustment)
Mechanical precision 0.025mm
Repeatable precision <0.025mm
Type of plotter pen All types diameter 11.4mm plotter pen
Plotter instruction Compatible DM/PL, HP/GL
Interface USB / U-disk / Serial port, WiFi (optional)
Power supply AC220V/110V, 50HZ
Power consumption <80w
Knife/blade Imported hardness alloy steel blade
Operating environment Temperature: 5-35 degrees, relative humidity: 30%-70%
Package size 1160*890*1260mm
Gross weight 138kg

Key Features & Benefits

  • Precision Label Cutting: Capable of cutting any special shape label design.
  • Fully Automated: Continuous cutting of the whole roll, eliminating manual operations and freeing up labor.
  • Flexible Mobility: The machine is designed to move and operate without strict space limitations.
  • Integrated Waste Management: Automatic waste disposal function that separates waste materials from the finished roll labels.
  • Multi-interface Support: Supports offline work directly from a Flash drive. No need to connect a computer or use long USB cables.

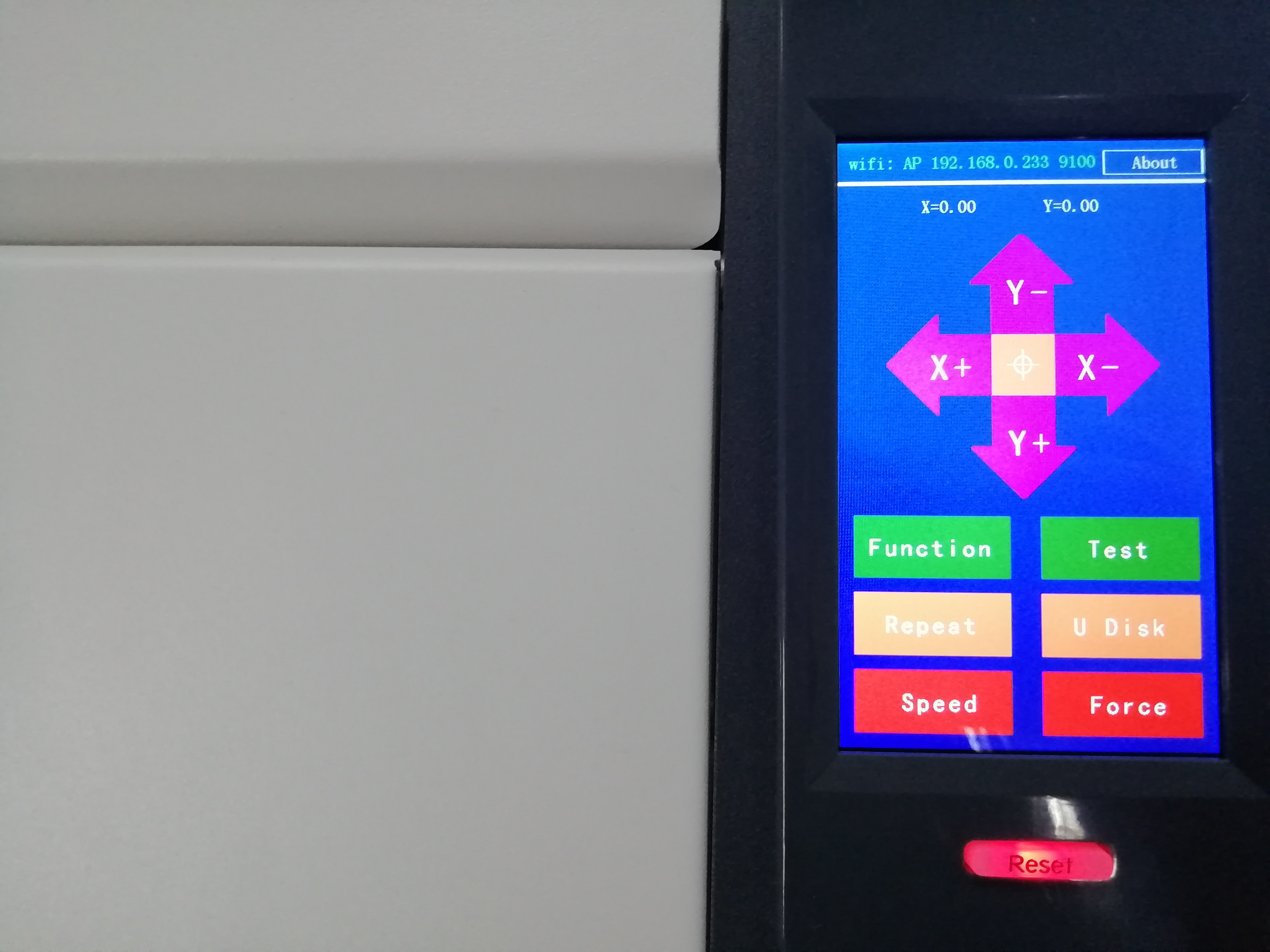

Touch Screen Version Detail

Differences Compared to Button Type Versions:

  • Touch screen interface
  • Faster cutting speeds
  • Simplified operation process

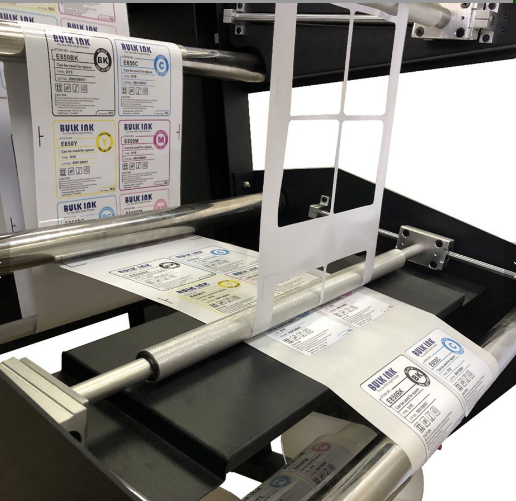

Automatic Waste Disposal Device

Rolls the cut labels directly into a neat roll while extracting waste automatically.

Automatic Waste Disposal

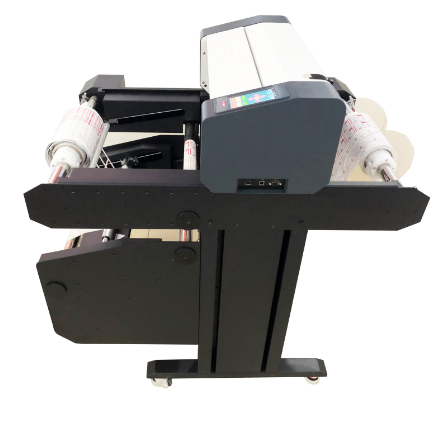

Auto Feeding Machine

Automated Feeding and Continuous Cutting

  • Saves raw material
  • Saves processing time
  • Saves human labor

Factory Profile

Production Workshop 1 Production Workshop 2 Production Workshop 3

Certifications

Certifications Certificate

Packing & Delivery

Packaging Box Processing Packaging Dimensions
Packaged Machine

Packaging Specifications:

Standard exporting wooden package. The inside is wound with a protective film to shield the machine's surface, and the outside consists of a solid wooden box. The machine is fully assembled inside, allowing instant usage after unboxing.

Delivery Options:

  • By Air
  • By Sea
  • By International Express (DHL, UPS, TNT, etc.)

Our Service

One-year guarantee and lifelong after-sales service support.

Support Services Team

Related Products

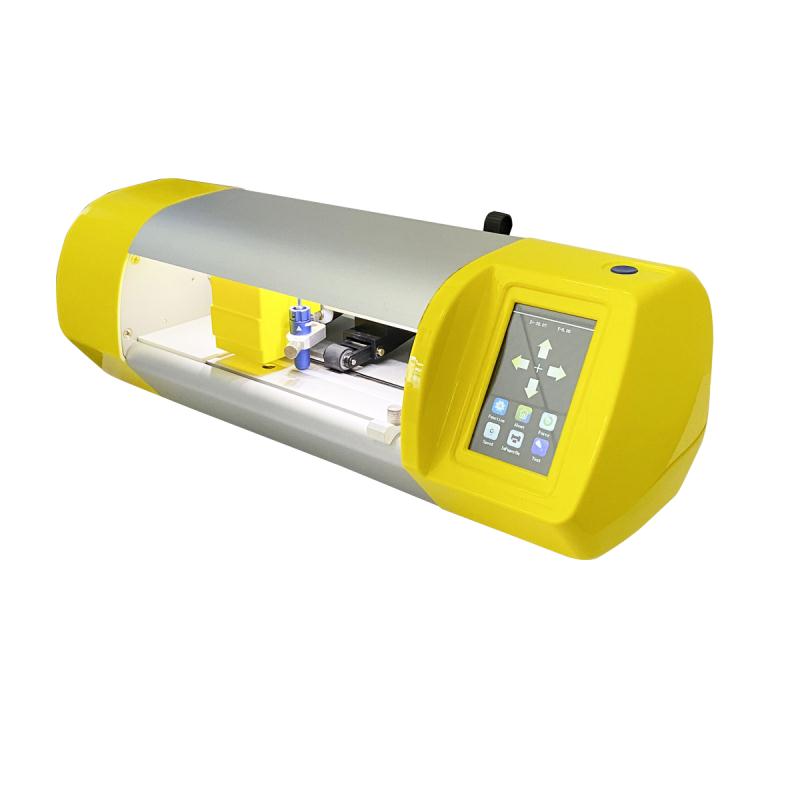

Phone Film Cutter

Phone Film Cutter

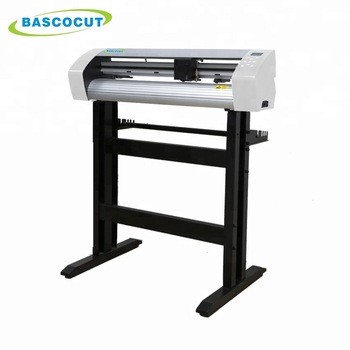

24 Inch automatic cutting plotter

24 Inch Automatic Cutting Plotter

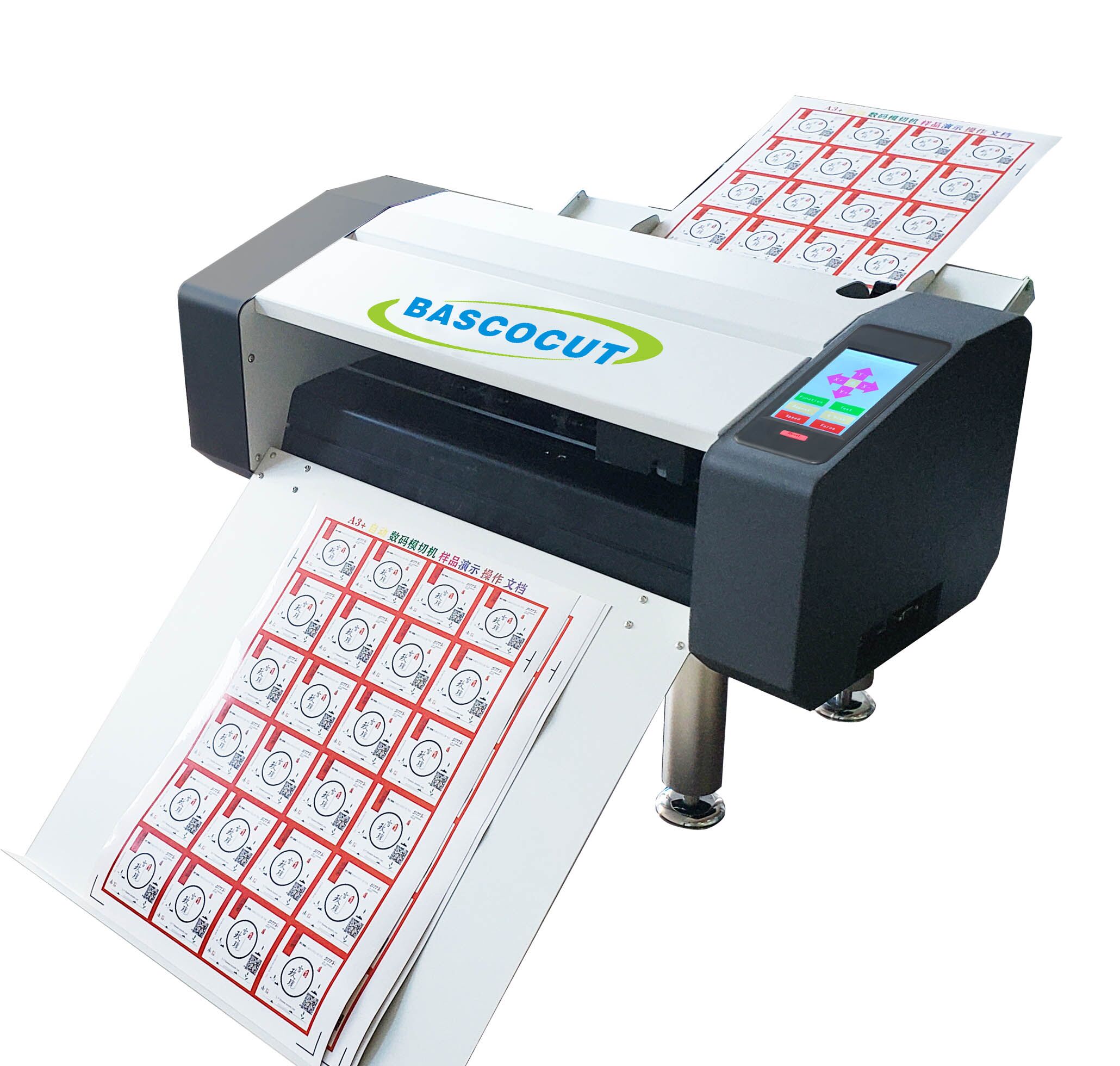

Multi sheet Label cutter

Multi Sheet Label Cutter

Frequently Asked Questions

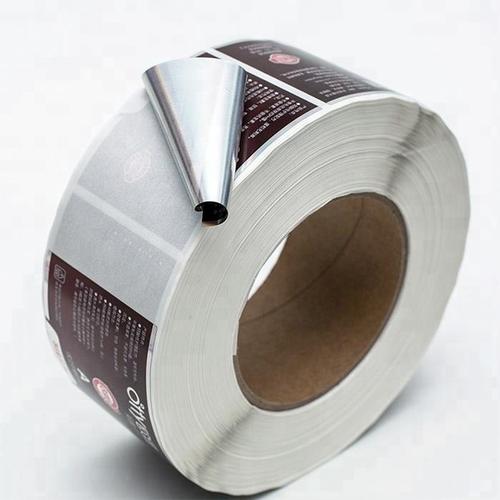

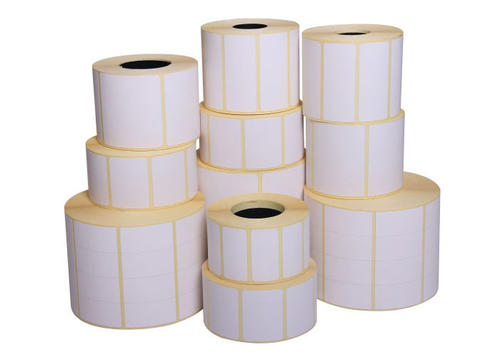

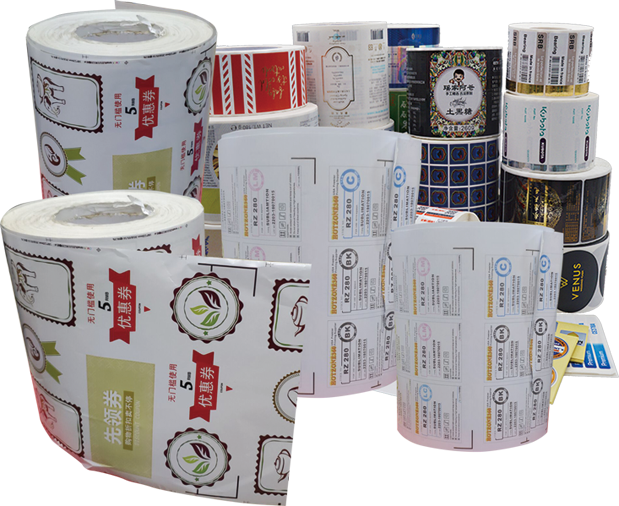

Label Production Sample 1 Label Production Sample 2 Label Production Sample 3
Application Sample
Q1. What payment terms do you accept?
We accept PayPal, Western Union, or Bank T/T in advance. After confirming receipt of your payment, we will arrange shipping or production as soon as possible. Generally, shipment is arranged within 2-8 days after receiving full payment.
Q2. How about your after-sales service?
We provide online and offline technical support and service to ensure you can operate our machines with ease. Additionally, our machines come with a one-year warranty, during which we provide free repairs or replacement services for failures not caused by human error or natural disasters.
Q3. Are you a factory or a trading company?
We are a professional cutting plotter manufacturer with an independent sales department and R&D department.
Q4. What applications can your machines be used for?
Our machines have a wide range of applications, such as advertising production, car decoration, artificial grass, wedding celebrations, die cutting industries, traffic signs, clothing heat transfer printing, wall and car stickers, phone decoration, leather DIY, and more.
Q5. What kind of materials can your machines cut?
Our machines cut many kinds of two-layer type label materials. They are built for cutting labels in bulk without manual operation at high speeds to save time and labor.
Q6. How are the machines packaged for safe delivery?
The machine is wrapped in a protective film and shipped inside an export-grade wooden box. It is shipped fully set up, so no installation is required; you can start using it immediately upon opening the wooden crate.
