THIS SYSTEM IS WIDELY USED FOR ALL KINDS OF PRINTING MACHINE TO CHECK THE PRINTING QUALITY, IMPROVE YOUR PRINTING QUALITY AND SAVE MATERIAL WASTE. EASY OPERATION, GOOD QUALITY.

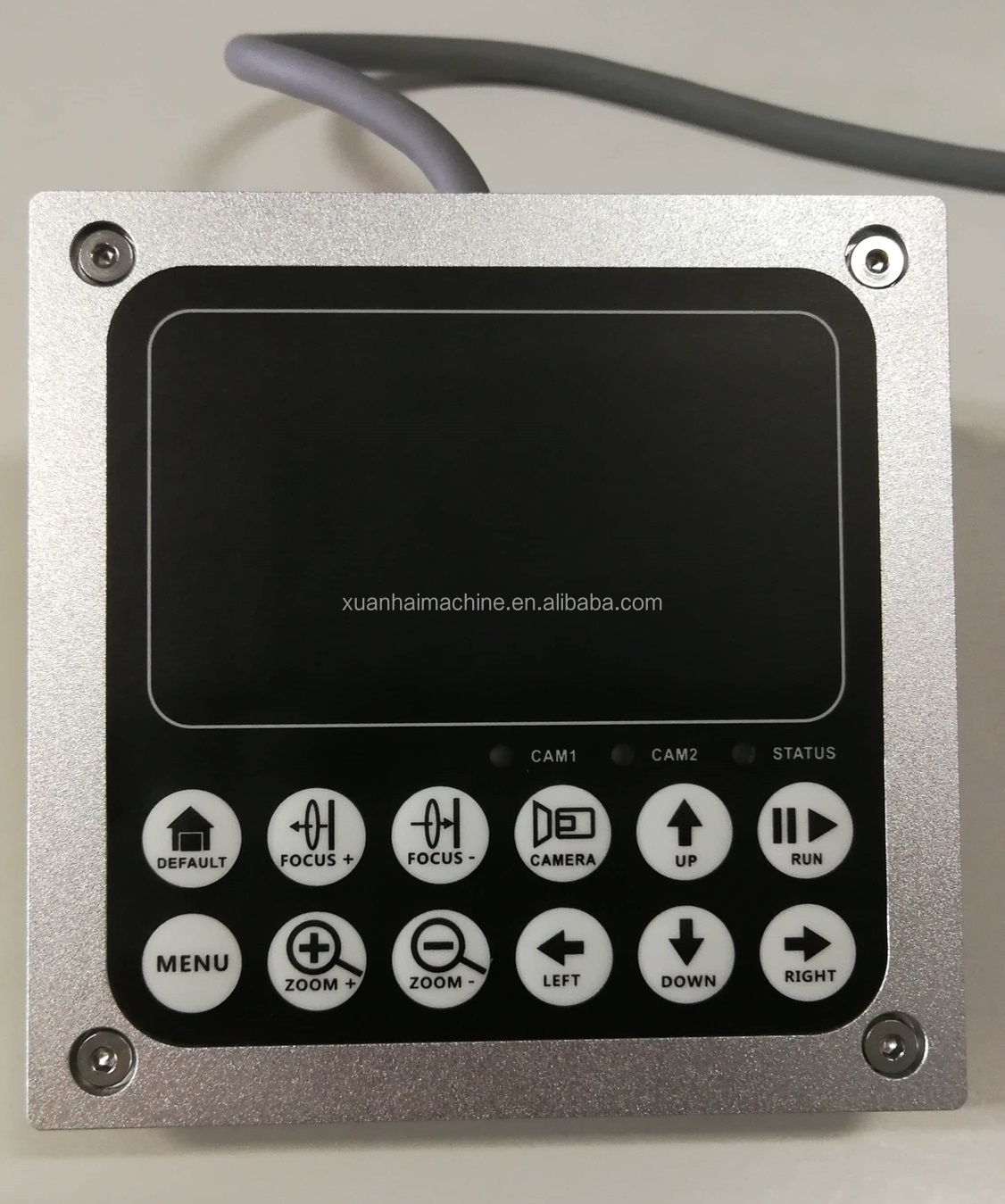

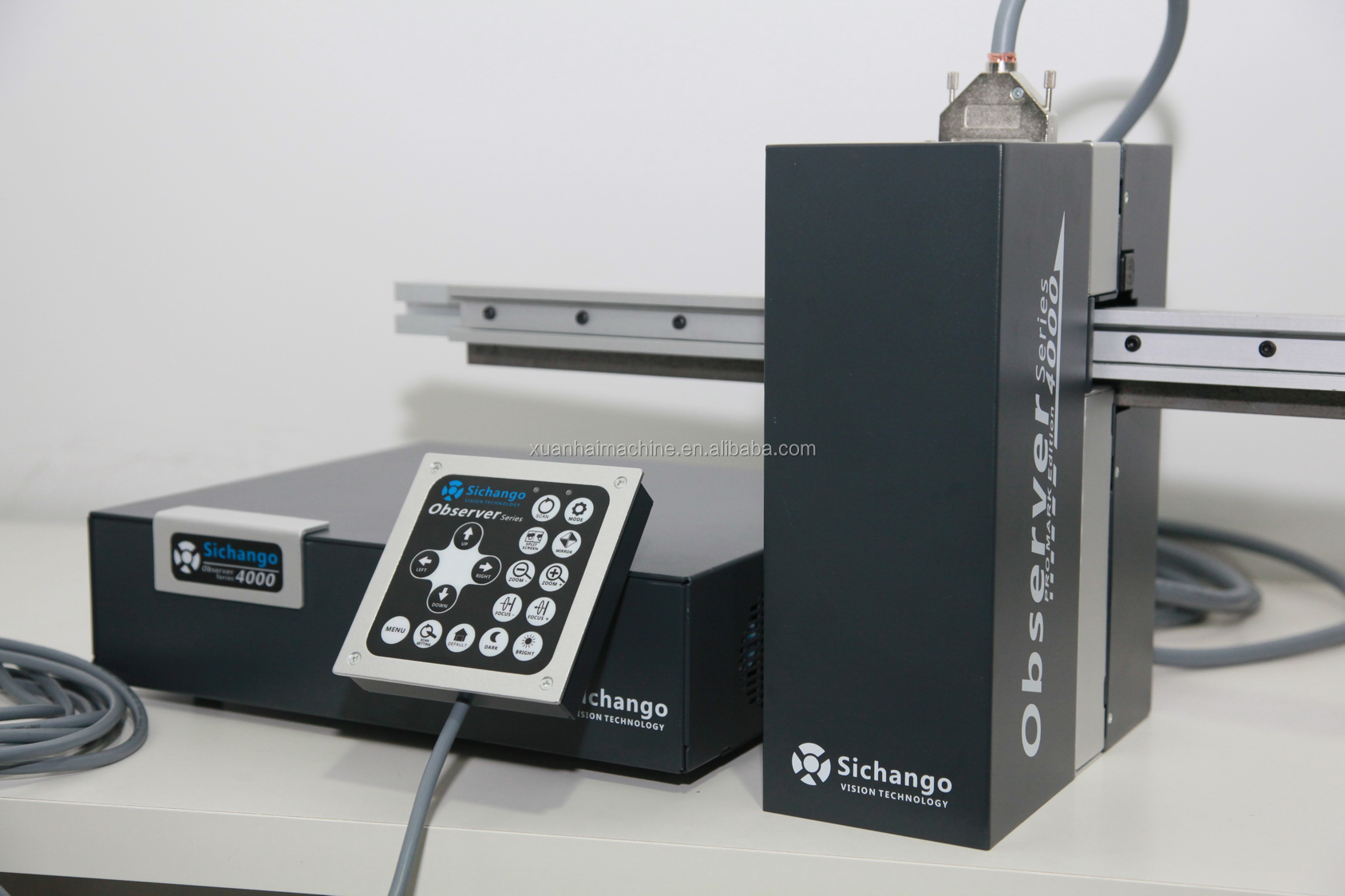

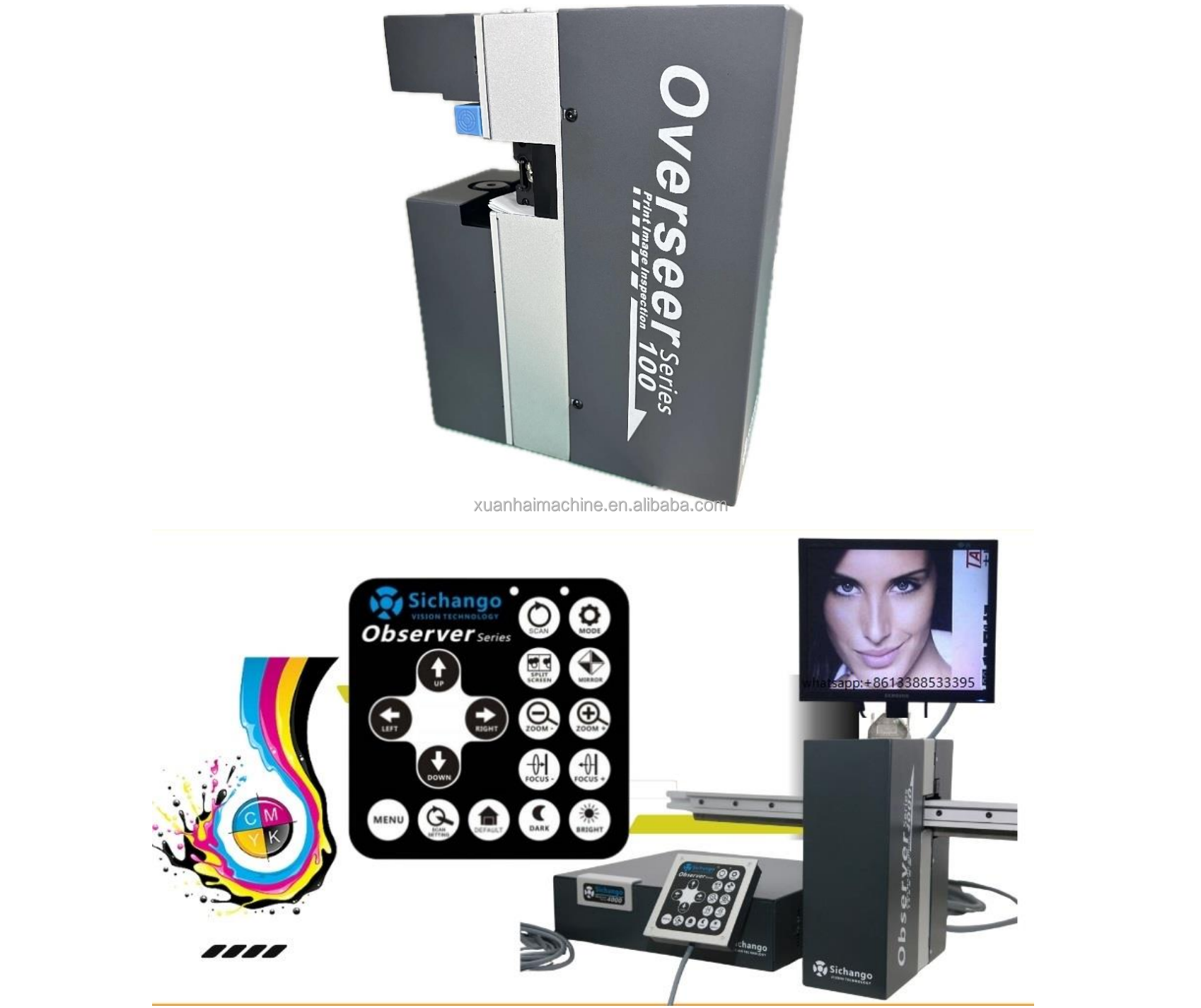

Observer series provide camera keyboard and remote keyboard for various rotary presses. Remote keyboard can be installed on camera unit, controller cabinet, or control panel of rotary press. Dual display is also provided. All these can make operation easier than before.

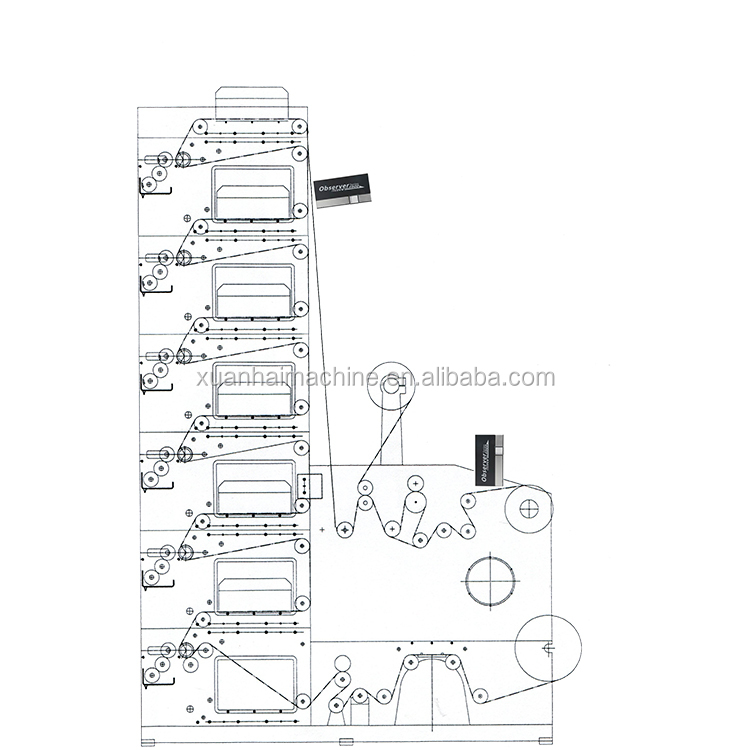

It is suit for all kind of printing press with wide press material, or high position, and need camera to move frequently. Motor drive series had been installed and applied on flexo and gravure press worldwide with hundreds sets.
Observer series is using high-speed CMOS industrial camera as the core unit with advanced own intellectual property. It's small and stable with VLSI chip and provide clear, sharp and high-definition image.

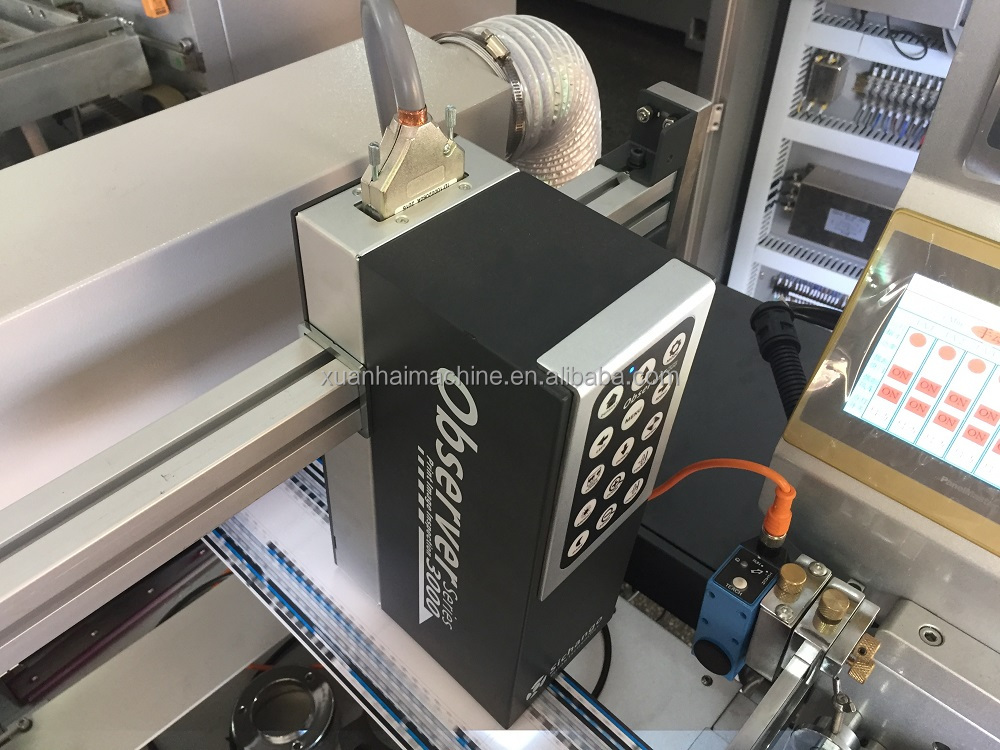

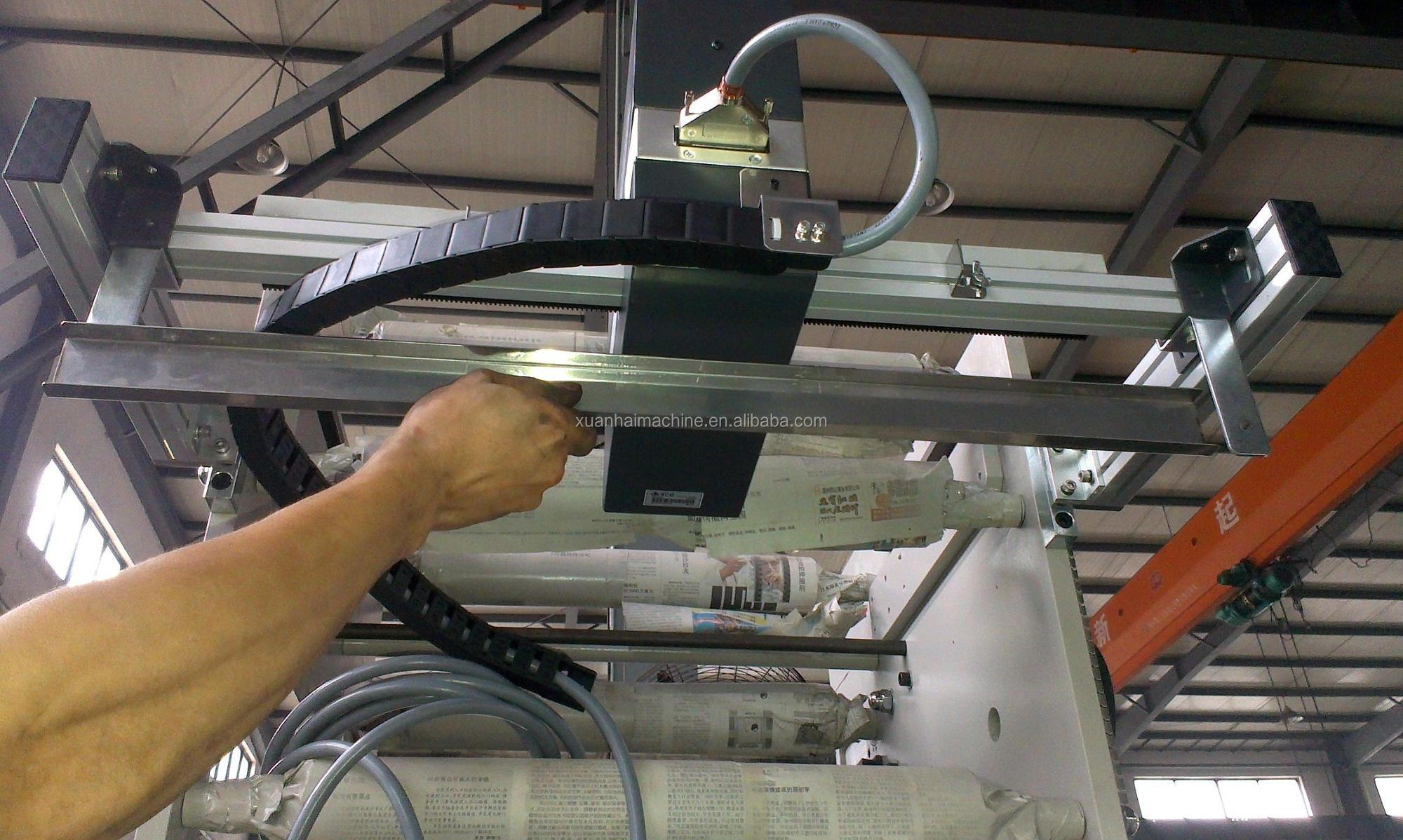

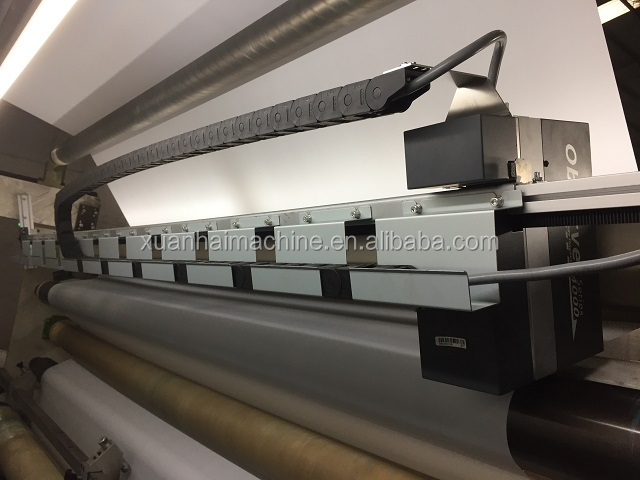

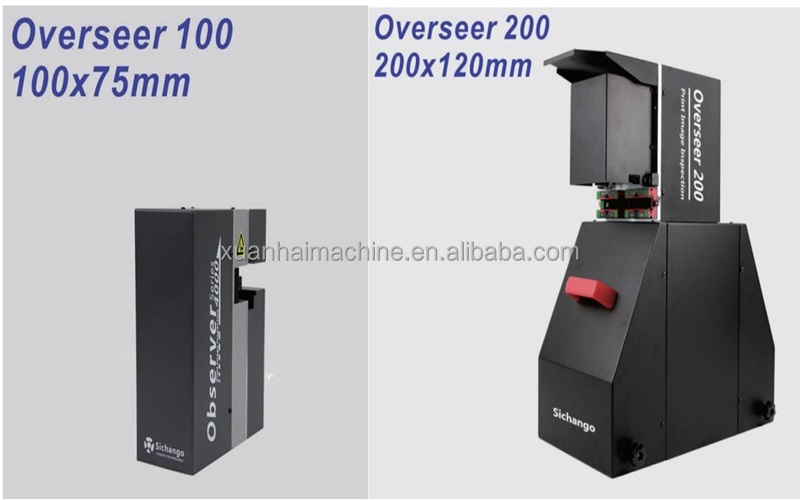

Overseer 100 (Motor drive) provides patrol shooting function which can shoot image while camera loops moving on traverse automatically to detect print quality easily. Traverse length up to 3 meters maximum.

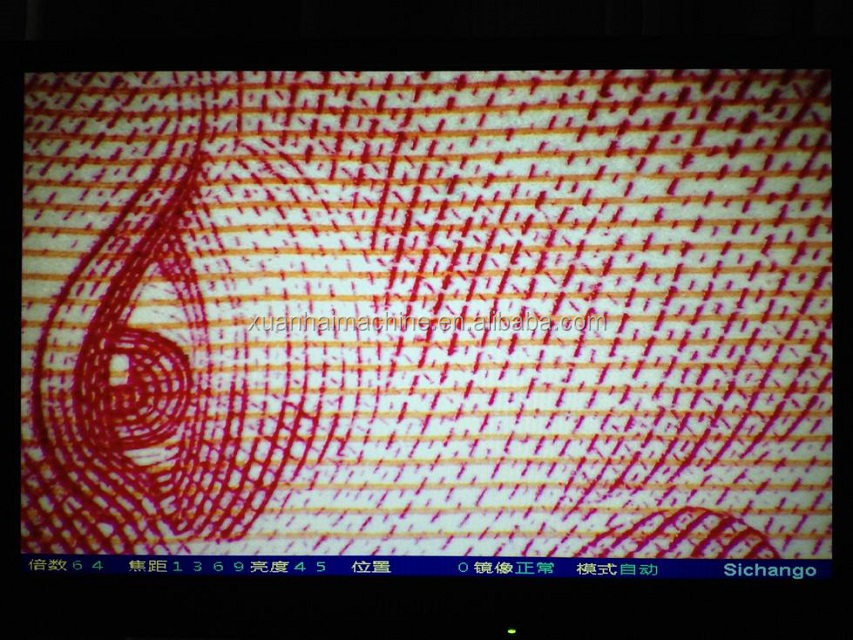

Observer series are all with 30X optical zoom. It providing fine adjustment from 1X to 64X with advanced digital image algorithms and give clearer image and detail than before.
It refines various functions on market and requirements from end users, providing most simple and practical functions in Observer series with new features as CMYK value detect, strobo life protect, auto scan and give end user more ROI in one time purchase.

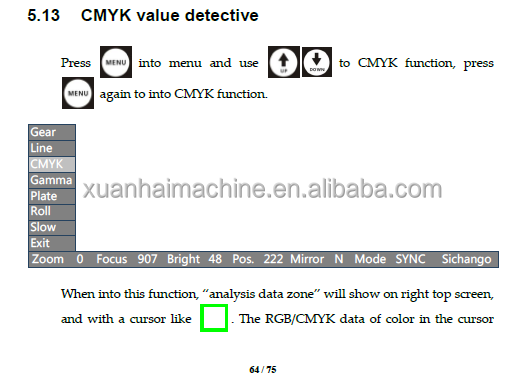

Observer series innovative integrating CMYK value detecting as standard function which can measure RGB and CMYK value and display on screen in real-time value and help user to find color change caused by ink consistency.
Observer series provide sensitive features up to 10 pics shoot speed per sec and maximum 400m/min defect running speed beyond other systems on market.
Providing image freeze and free rotate by X, Y and XY axis. Camera unit can rotate with customer requirements to fulfill web inspection in different angle.

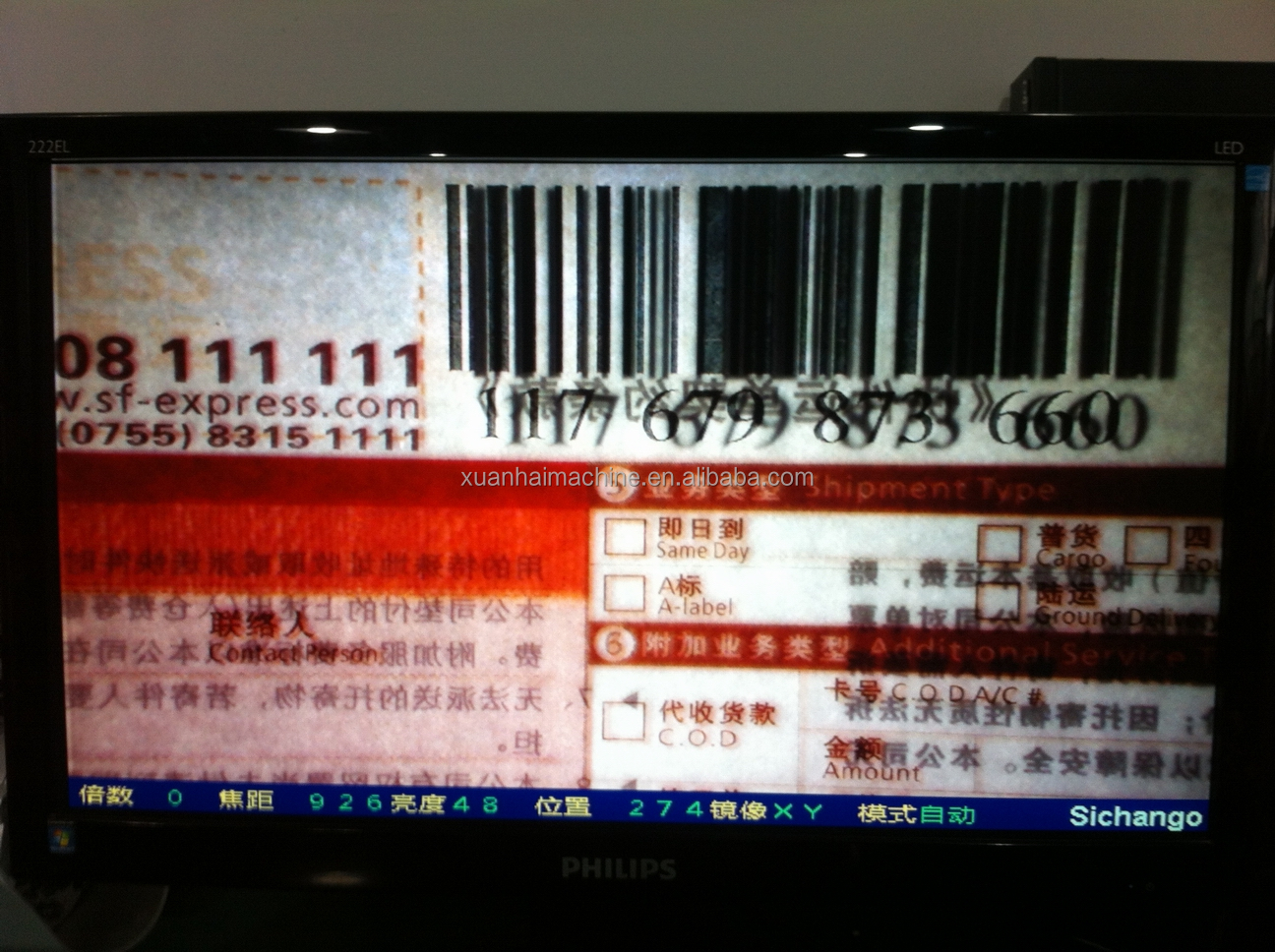

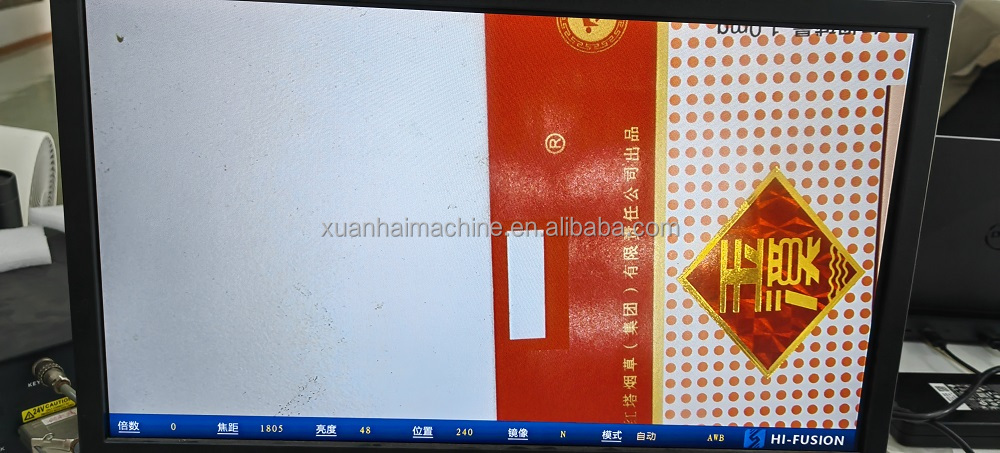

Image can be split by left freezing one with right updating one in real time to help user to contrast printing result. We introducing Gamma correct in image process to adjust color display in different monitor effectively, especially when printing business forms.
| Specification | Details (OVERSEER 100) |
|---|---|
| COSMOS SENSOR | 2M pixels |
| OUTPUT RESOLUTION | 1280x1024 pixels |
| IMAGE VIEW | 100mm x 75mm |
| MAX OPTICAL ZOOM | 30X |
| MAX. SHOOT SPEED | 10 pics/sec |
| MAX RUNNING SPEED | 400m/min |
| MOTORIZED | Available |
| CAMERA MOVE SPEED | 52mm/sec |
| VOLTAGE | 110V-240V, 50-60Hz |
| HUMIDITY | 20%-80% |
| SIZE (LxWxH) | 110x238x290mm |
| WEIGHT (Total / Camera / Controller) | 9kg / 3kg / 6kg |
| Printing Registration Inspection | Supported |
| Printing Quality Inspection | Supported |

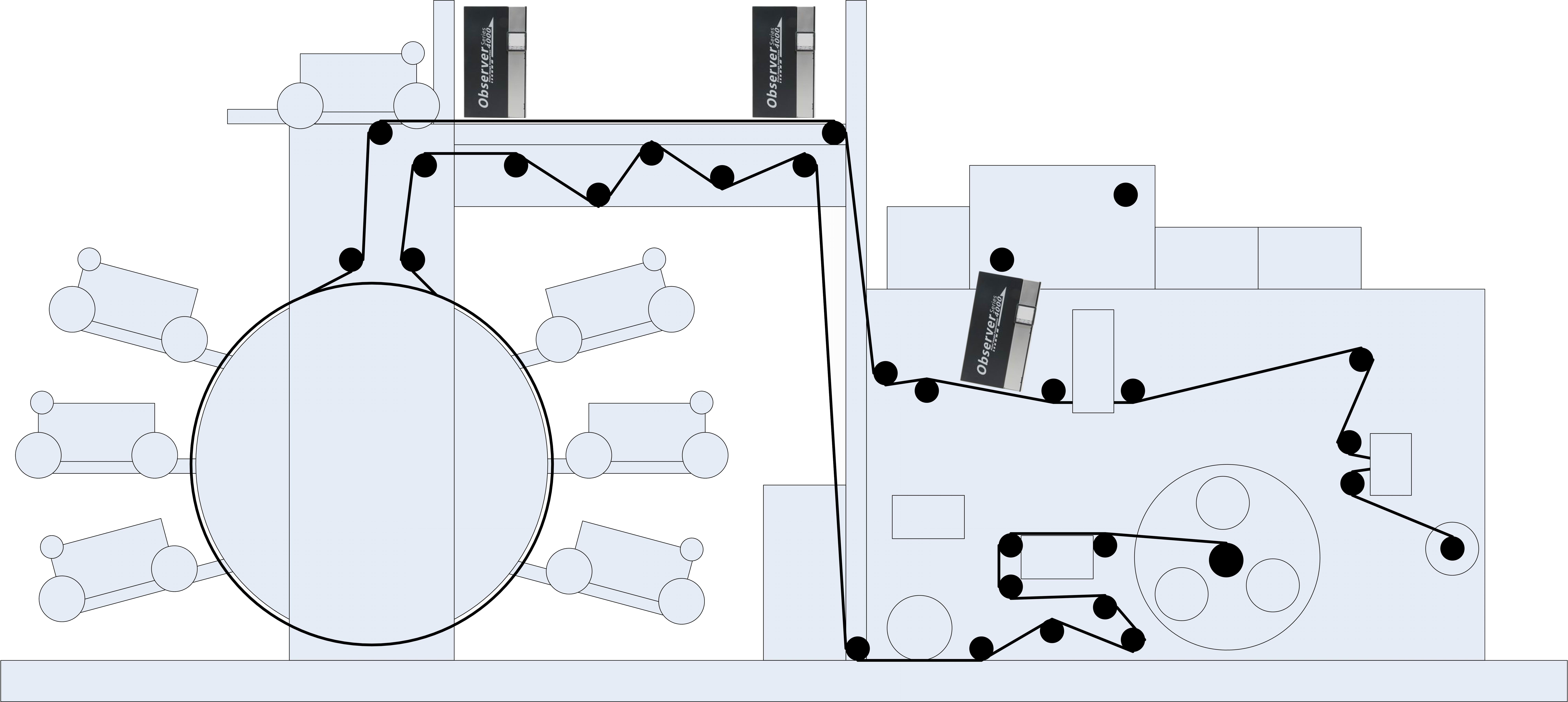

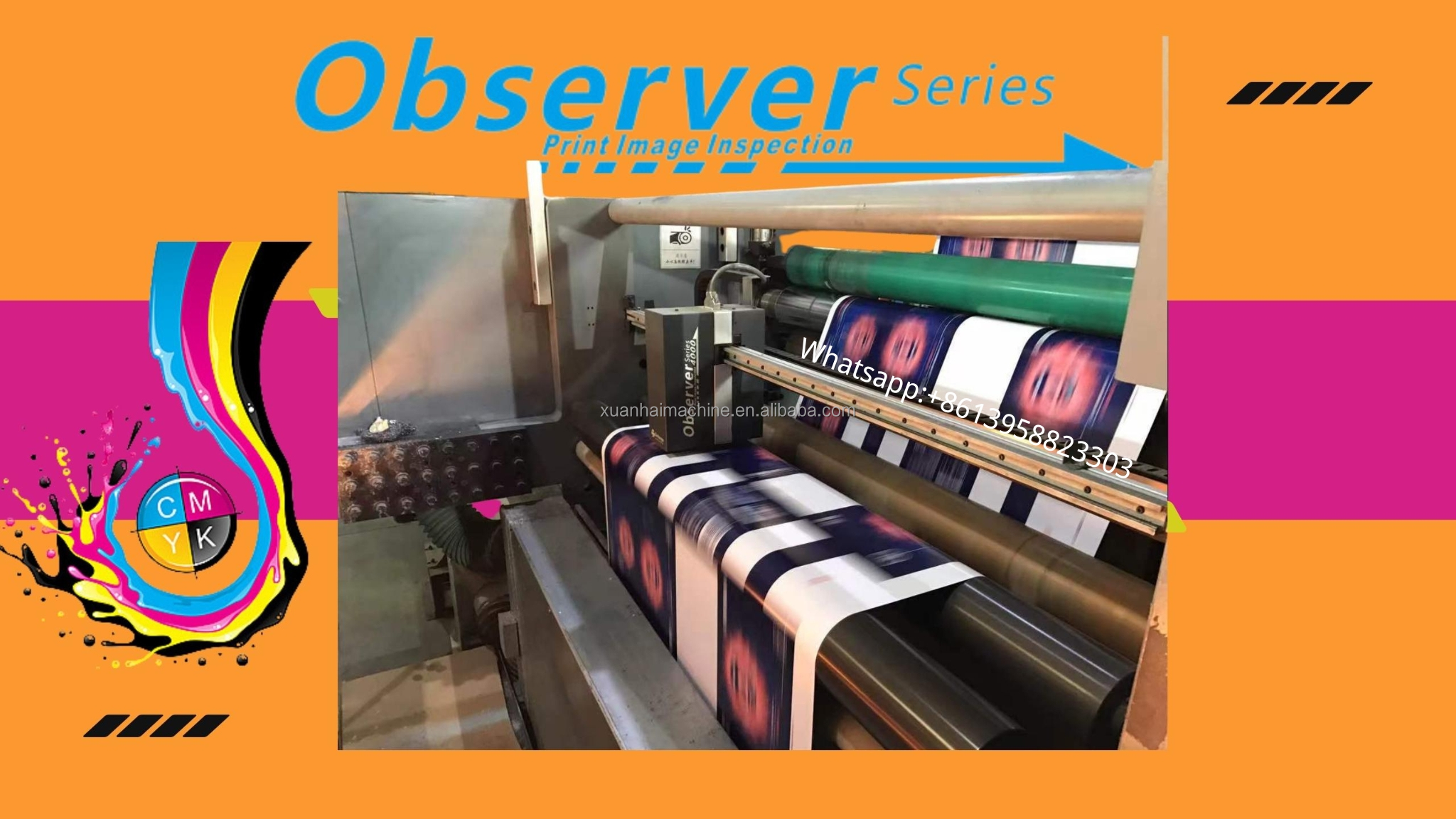

This system is widely used on various rotary presses (including drum, combination, and gravure presses) to check printing quality, reduce material waste, and improve production efficiency through easy operations.
The system provides industry-leading response times, offering up to 10 pictures per second camera shooting speed and supporting maximum web running speeds of up to 400m/min.
The system integrates CMYK and RGB value detection as a standard function. It measures values in real-time and displays them on screen, helping operators detect and control color changes caused by changes in ink consistency.
Yes. The motorized traverse version (such as Overseer 100) automatically loops and scans across traverse lengths of up to 3 meters, making it easy to patrol and shoot images for complete web monitoring.
Yes, the system is highly configurable. You can request double cameras for double-sided inspection, and optional UV light checking is also supported for specialized printing applications.
