Product Description

Product Description

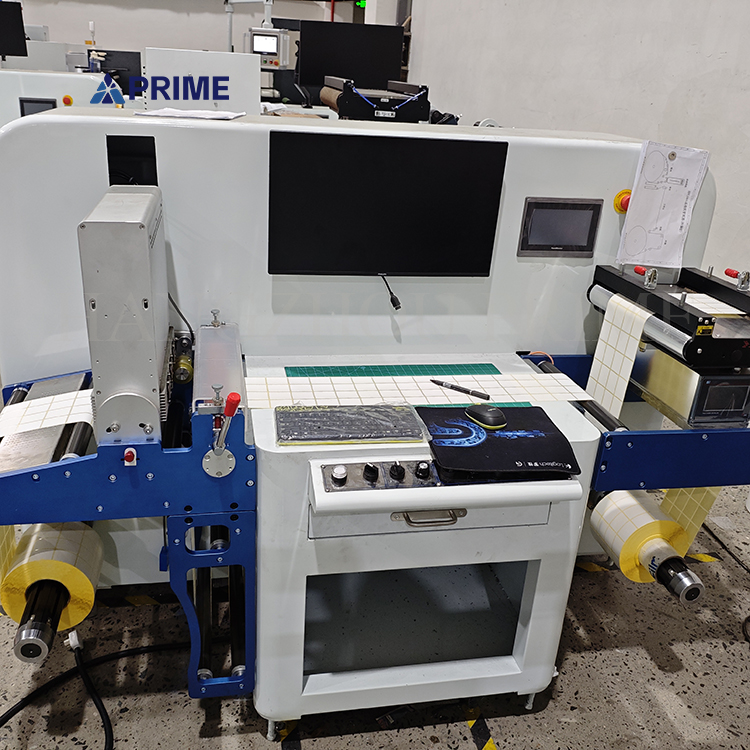

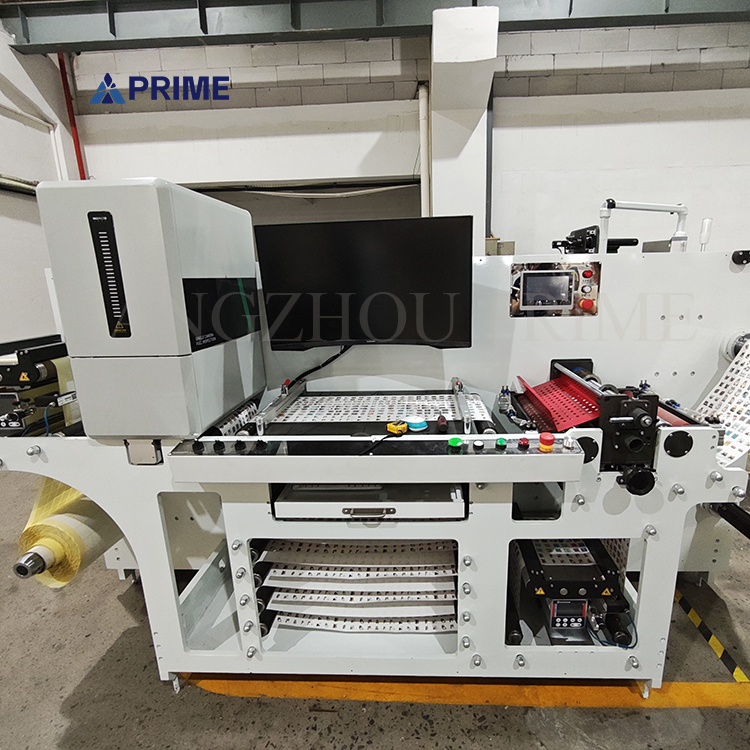

High Precision Narrow Web Flexo Rotary Label Inspecting Machine with Slitting for Self Adhesive Labels Stickers Paper

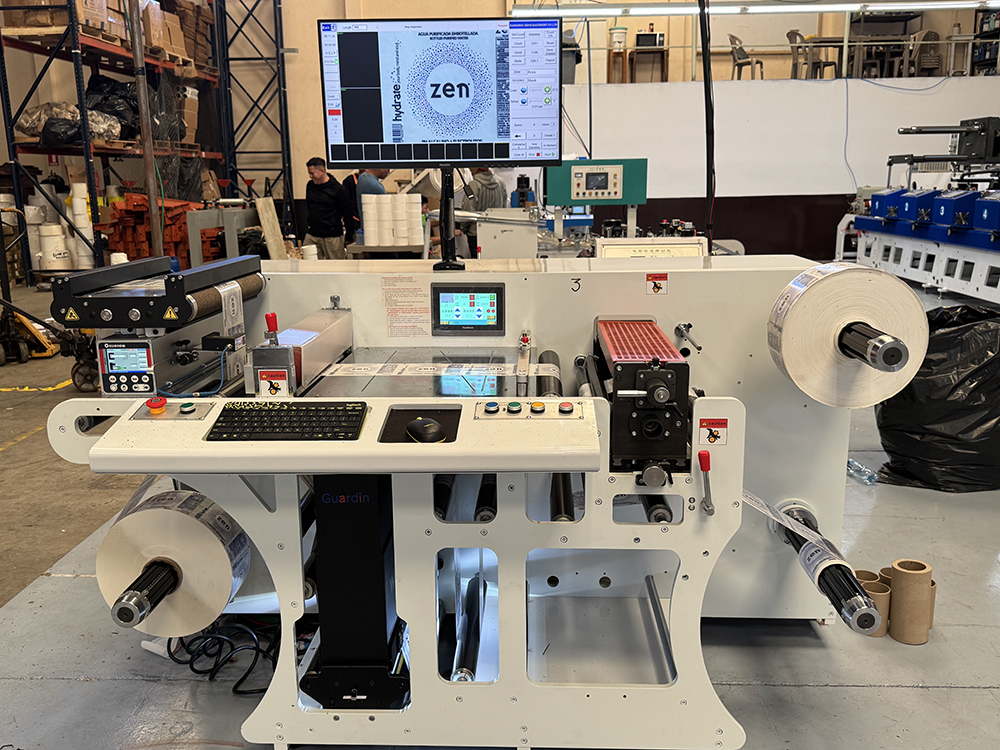

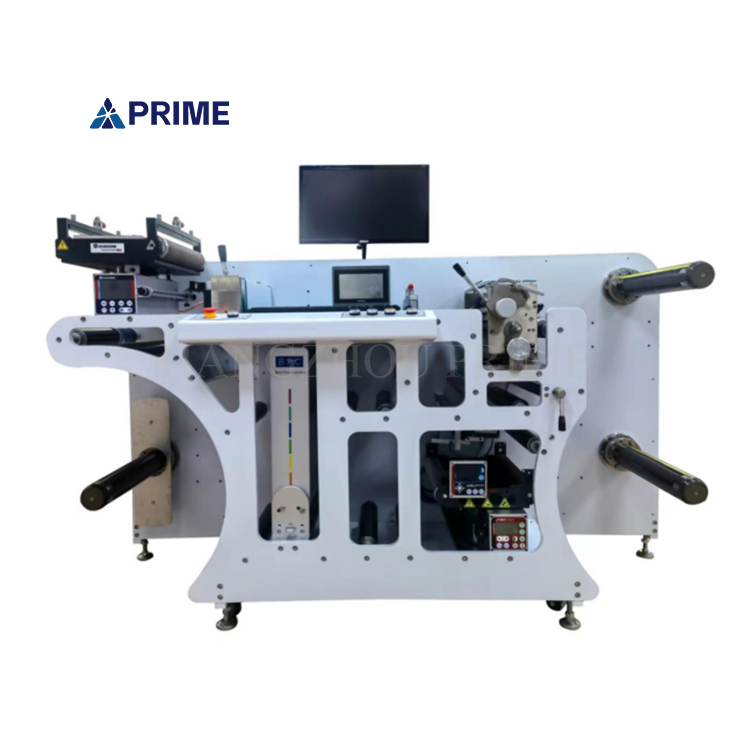

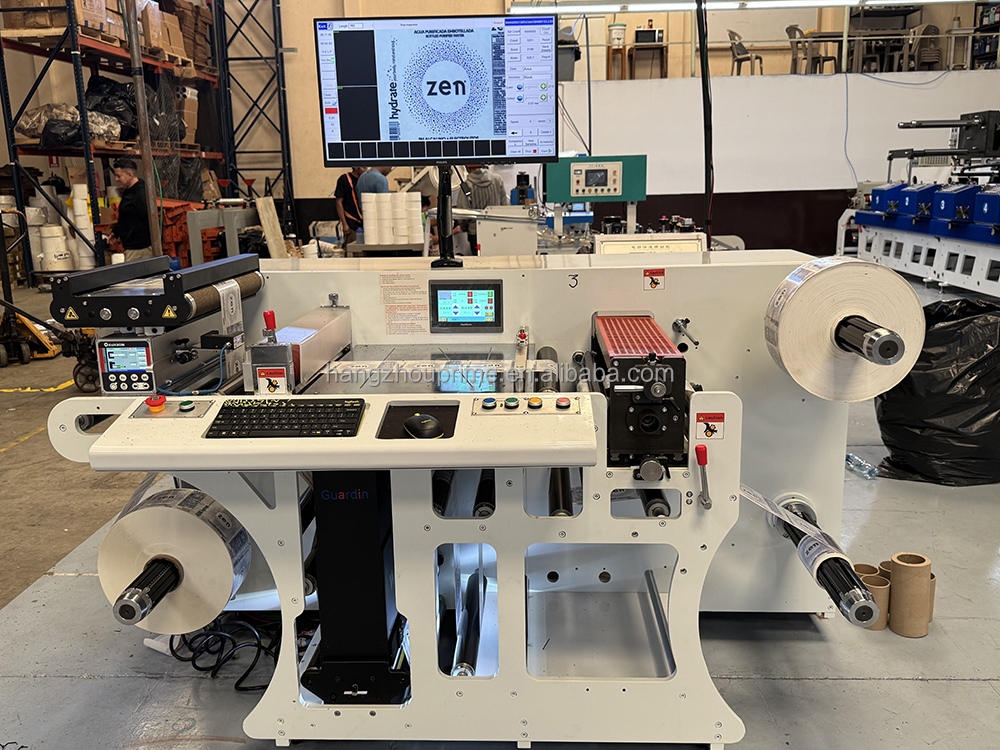

Flexo Rotary Label Inspecting Machine
The traditional slitting and quality inspection must be completed in two operations. Using this machine, it can be manually operated in one step, and the slitting and quality inspection work can be completed simultaneously, which can greatly save labor time and production equipment costs. Greatly improve efficiency, reduce waste of personnel costs and waste of material costs, the device is simple to operate, efficient, and low-cost, so that your company can better enhance its competitiveness and product quality assurance.
Specification
Model PM-JBJ-350/450
Power supply 220V 50/60HZ
Power 8KW
Max. Unwinding Width 330mm
Max. Detection Size 320*300mm
Mini. Detection Size 50*30mm
Max. Unwinding Diameter 700mm
Max. Rewinding Diameter 600mm
Detection Speed 120 meters/minute (depending on label size, detection content, and detection accuracy, The speed varies, the minimum detection defect is 1mm square)
High Precision Detection Speed 50 meters/minute (speed varies according to label size, detection content, detection accuracy)
Individual Striping Speed 160 meters/minute
Defect Detection Pasted characters, missing printing, dirty spots, overprint deviation, color difference, hot stamping, defects
Barcode Detection One-dimensional code, EN8, EN13, EN39, EN128, (line spacing ≥ 1.5mm) QR code (size > 10*10mm) The barcode must be clear and will vary according to the label content), and does not contain deformable codes.
Barcode Detection Speed 80 pieces/second (varies according to different printing conditions)
Weight 1600kg
Machine size 1900* 1160*1680mm
Details Images

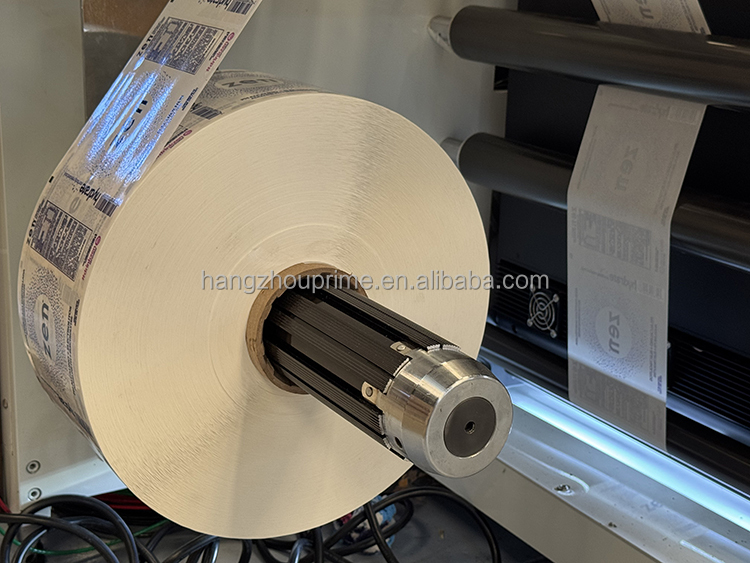

Unwinding Unit
Unwinding Unit

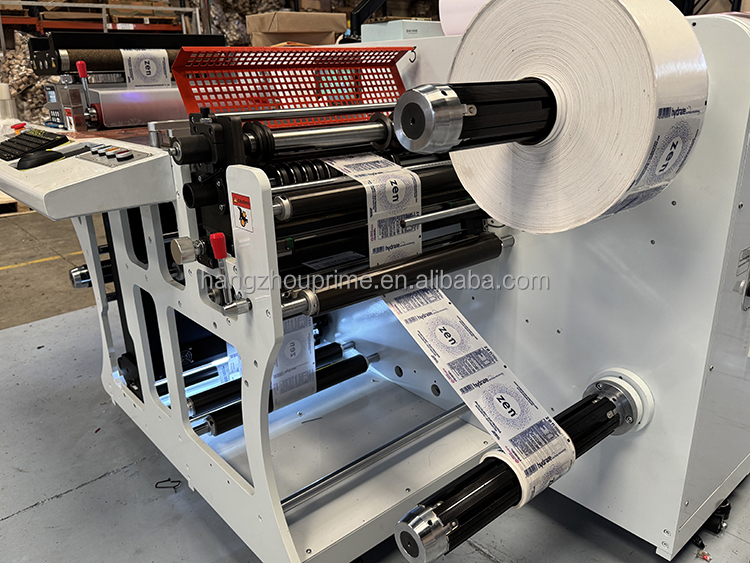

Rewinding Unit
Rewinding Unit

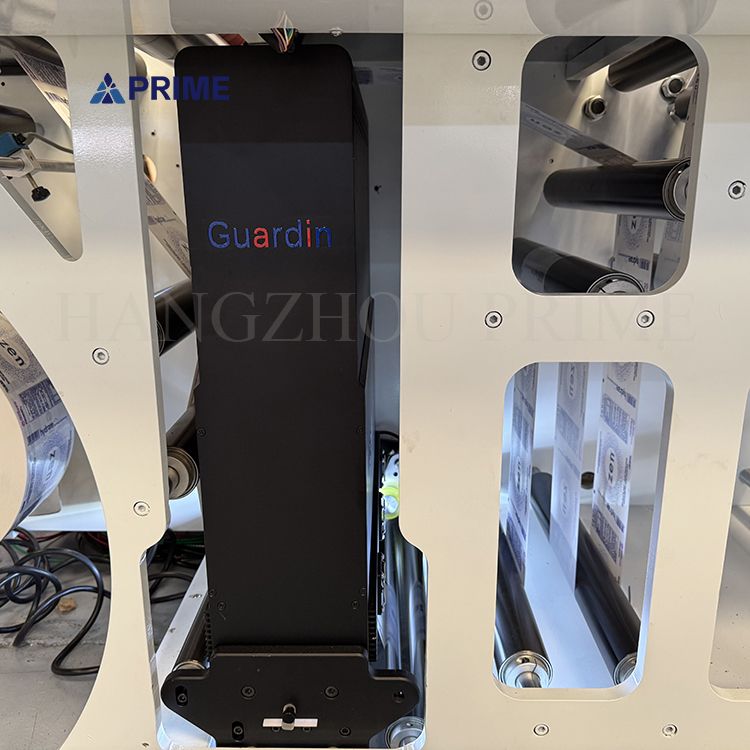

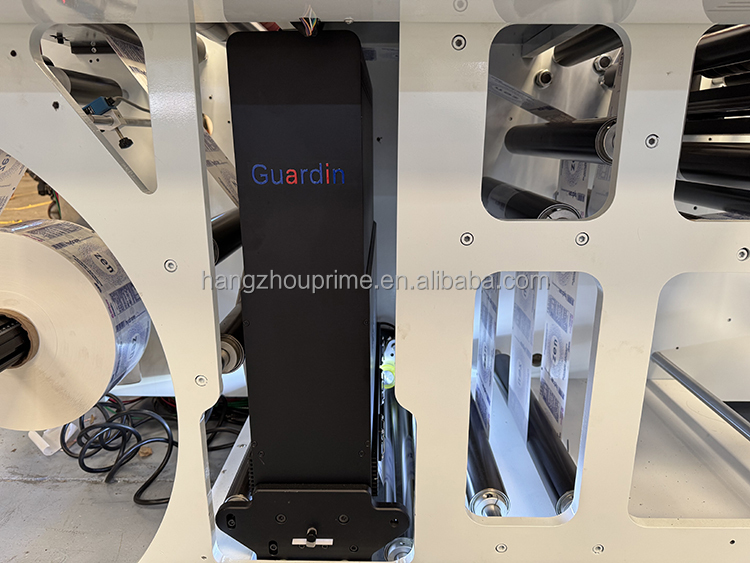

Detection Camera
Detection Camera

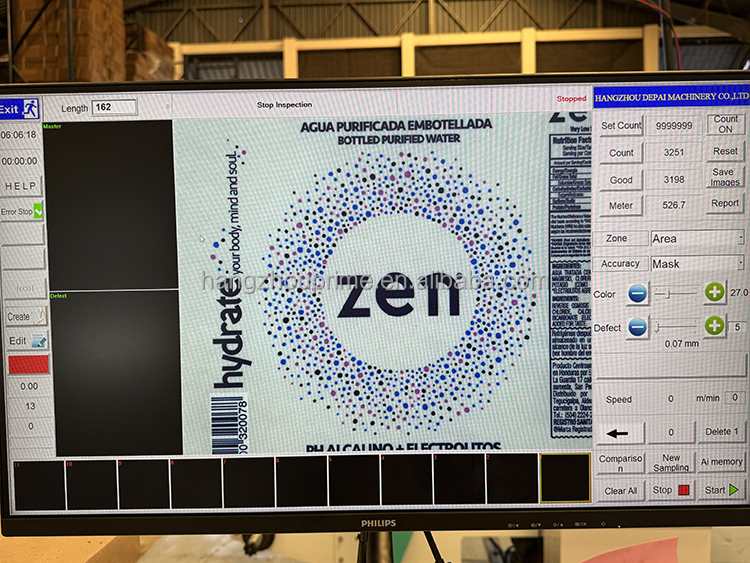

Detection Screen
Detection Screen

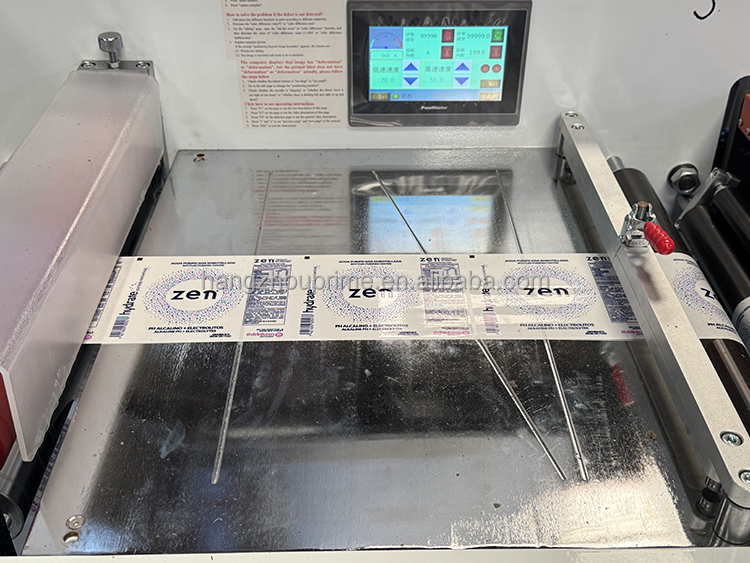

Detection Work Table
Detection Work Table

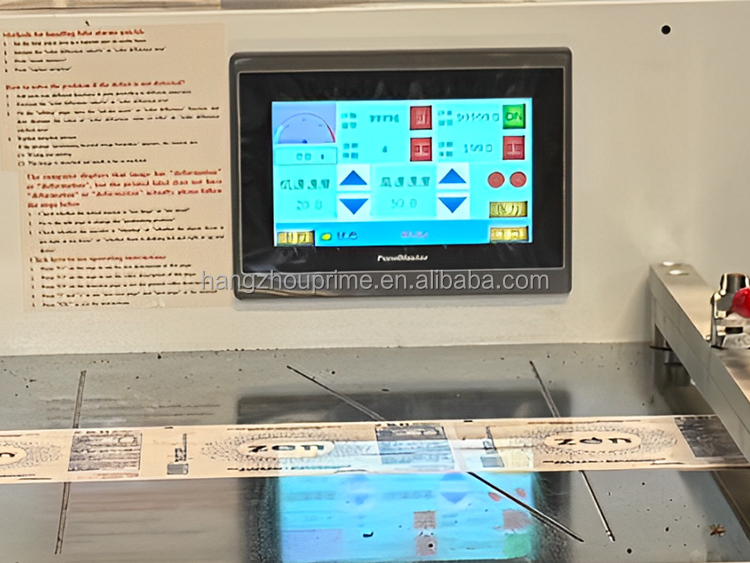

PLC Control Panel
PLC Control Panel
Can detect variable code, QR code

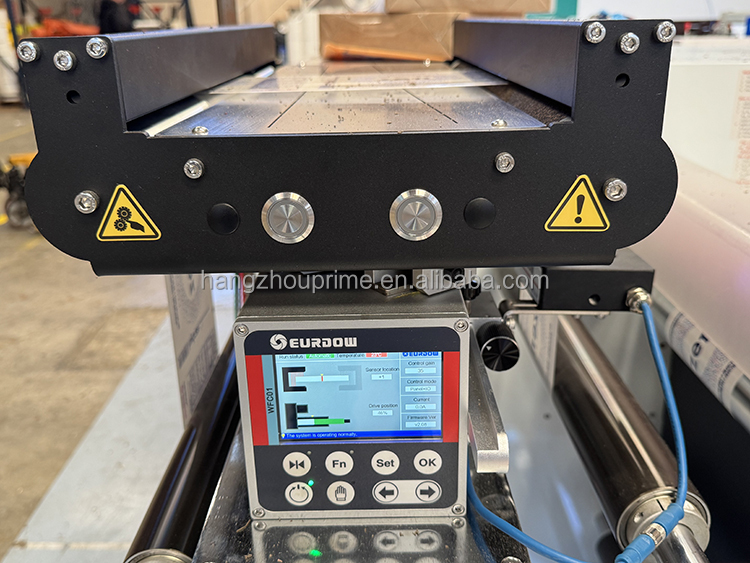

Web Guide System
Web Guide System

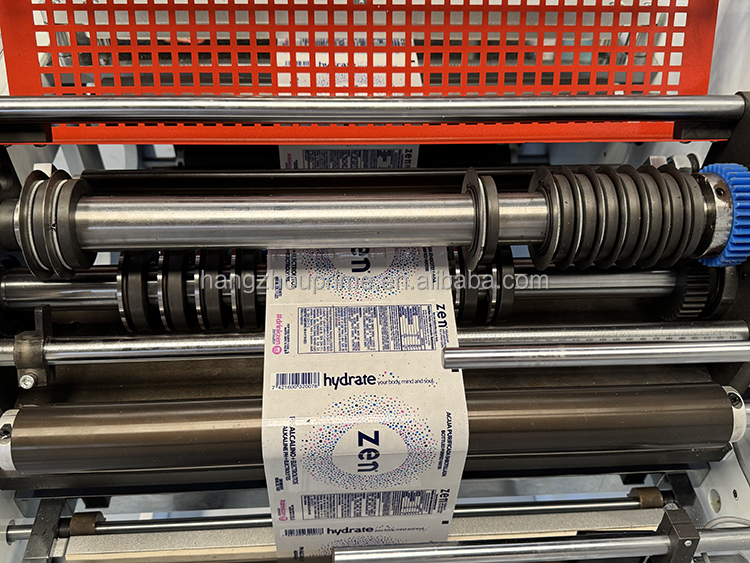

Slitting Unit
Slitting Unit

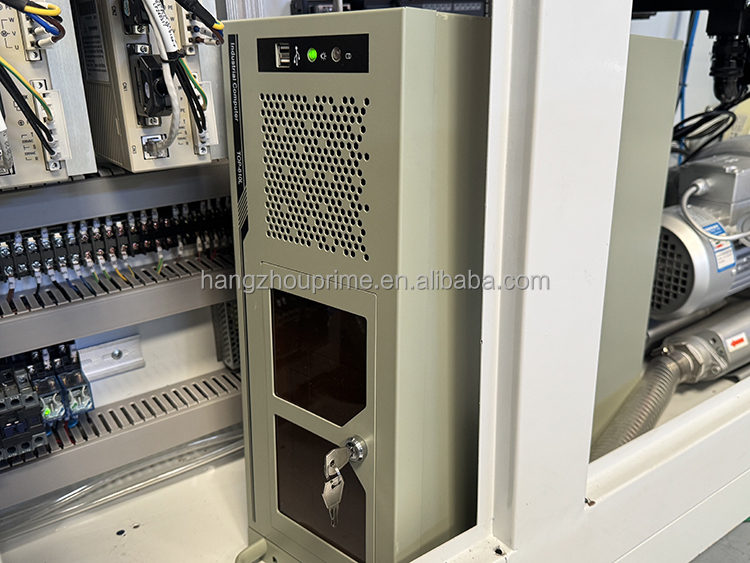

Program Storage
Program Storage

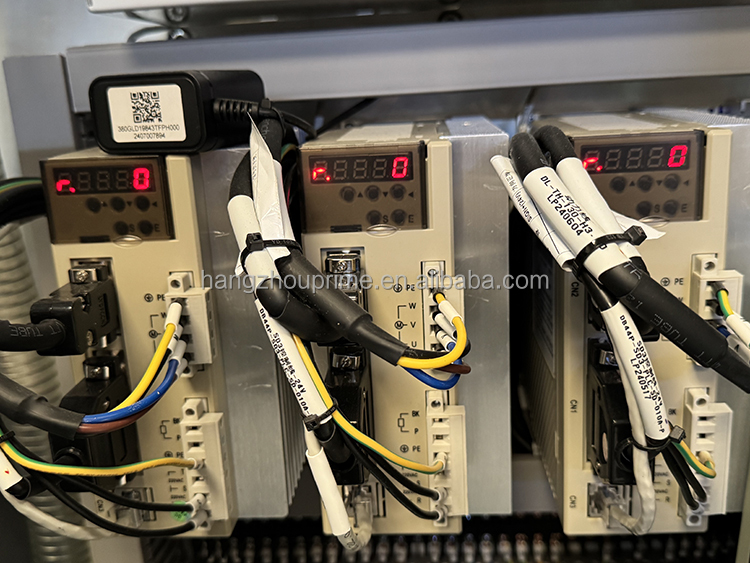

Electrical box
Electrical box
Samples
Sample 1
Sample 2

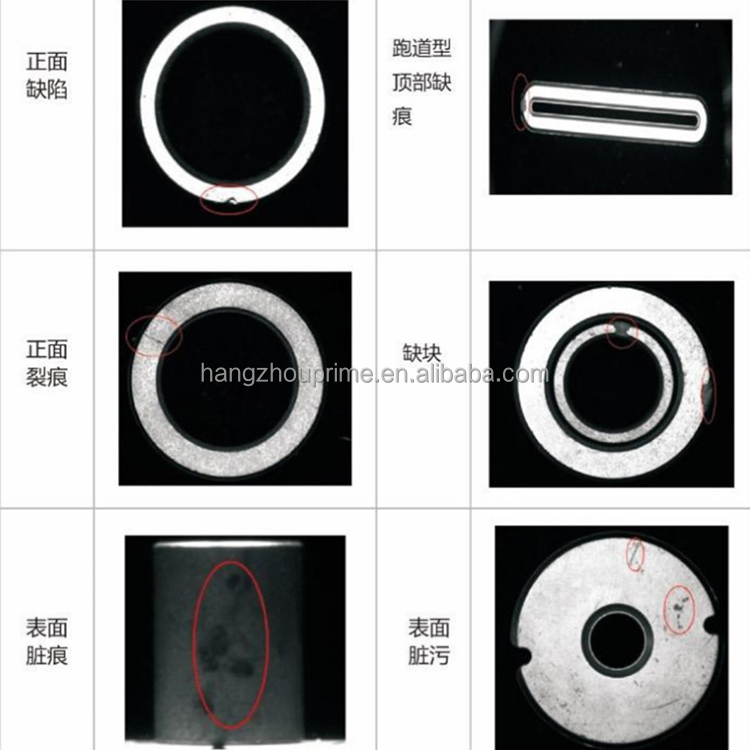

Sample 3
Our Factory
Factory Area 1

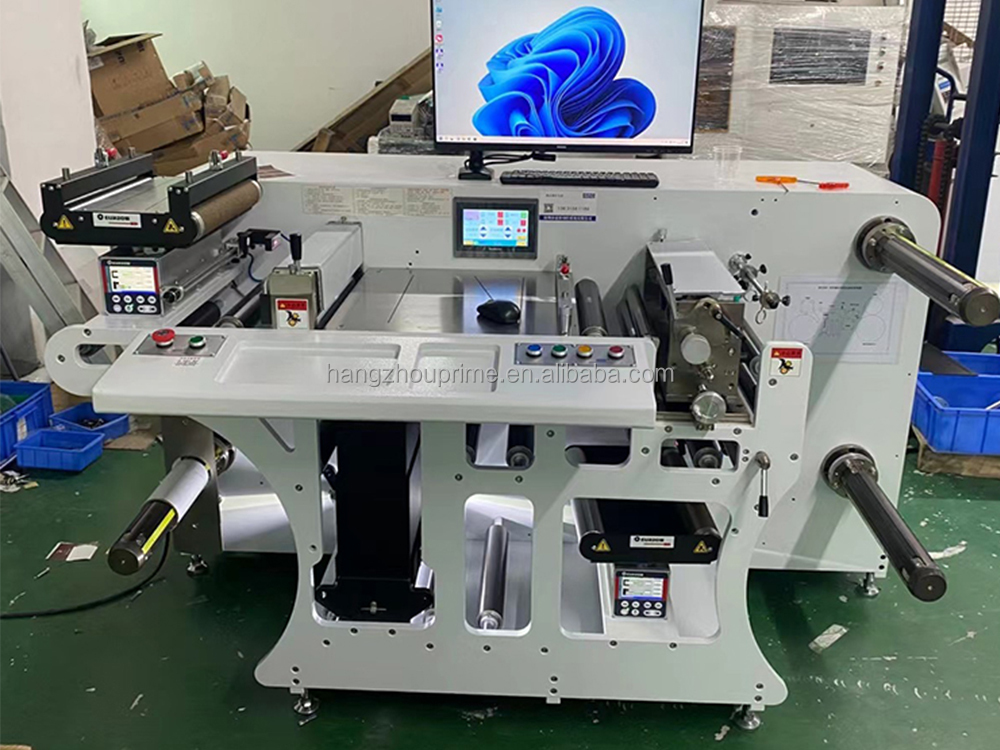

Factory Area 2

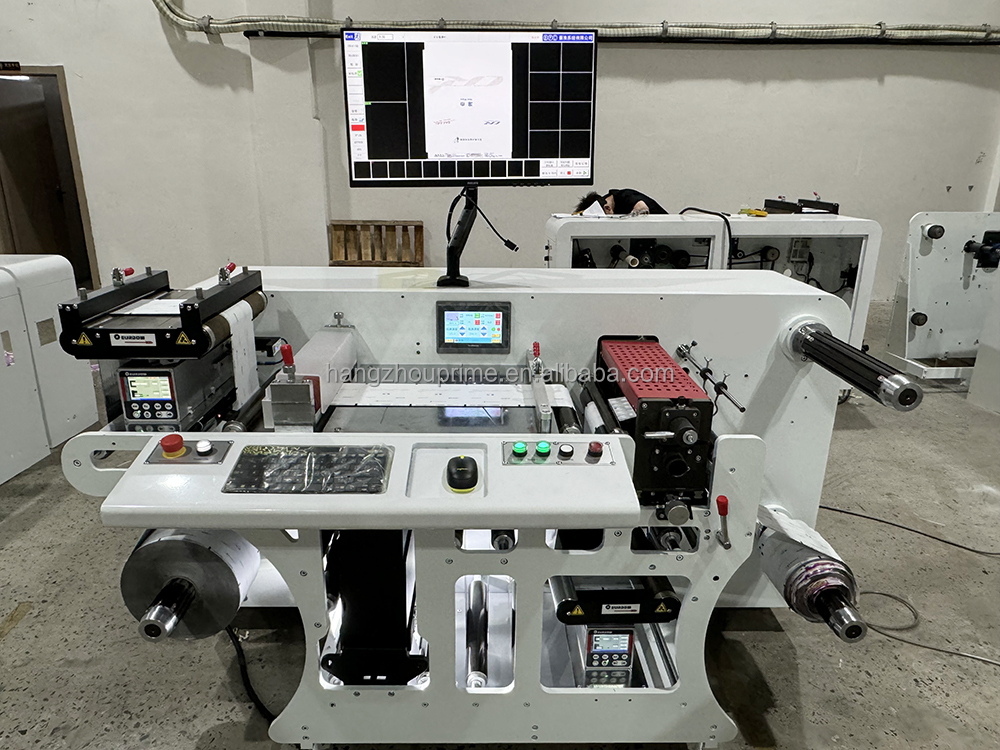

Factory Area 3

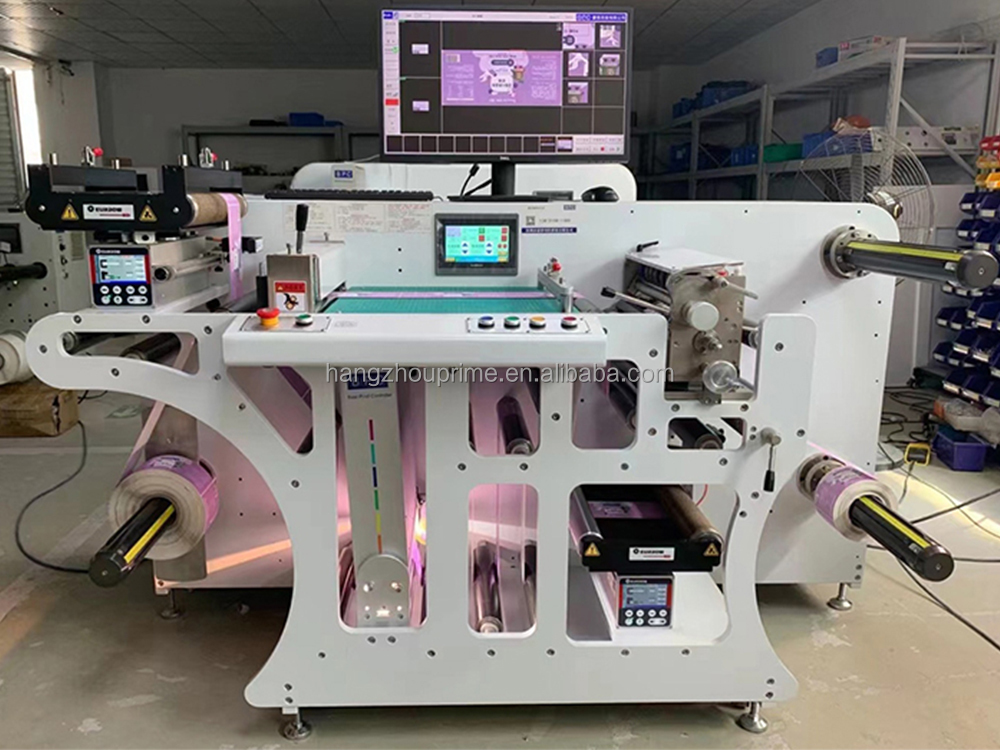

Factory Area 4
Packing & Delivery
Packing 1
Packing 2
FAQ
Are you trading company?
We are the professional manufacture for printing machines.
How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
What is your after-sales service?
Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
What is the terms of payment you accept?
30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
Can this machine handle inspection and slitting simultaneously?
Yes, the machine integrates slitting and inspection functions, allowing you to complete both processes in a single operation, saving significant production time.
What kind of defects can the optical detection camera detect?
The system detects missing printing, dirty spots, overprint deviation, color differences, hot stamping defects, and can inspect various barcode and QR code formats.
