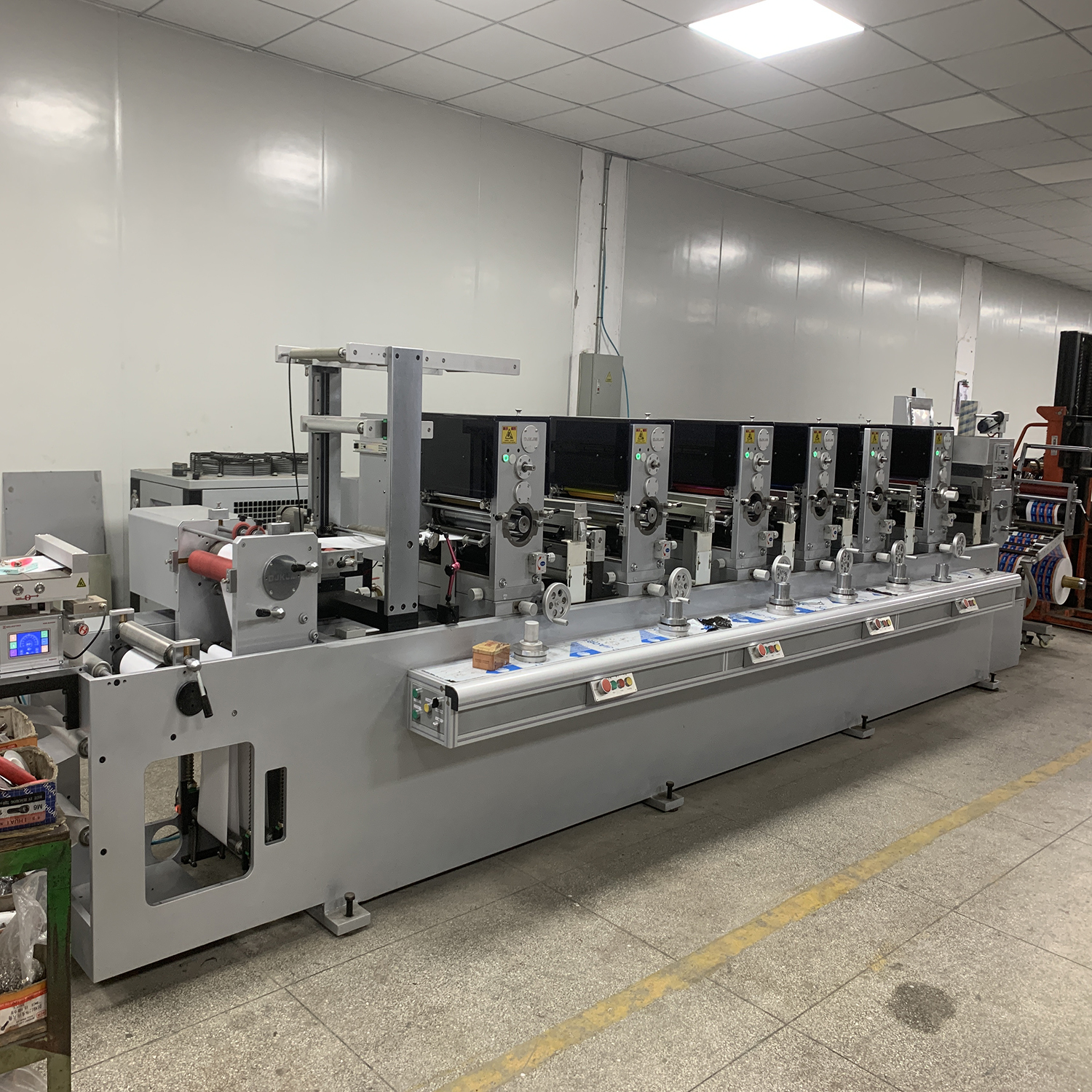

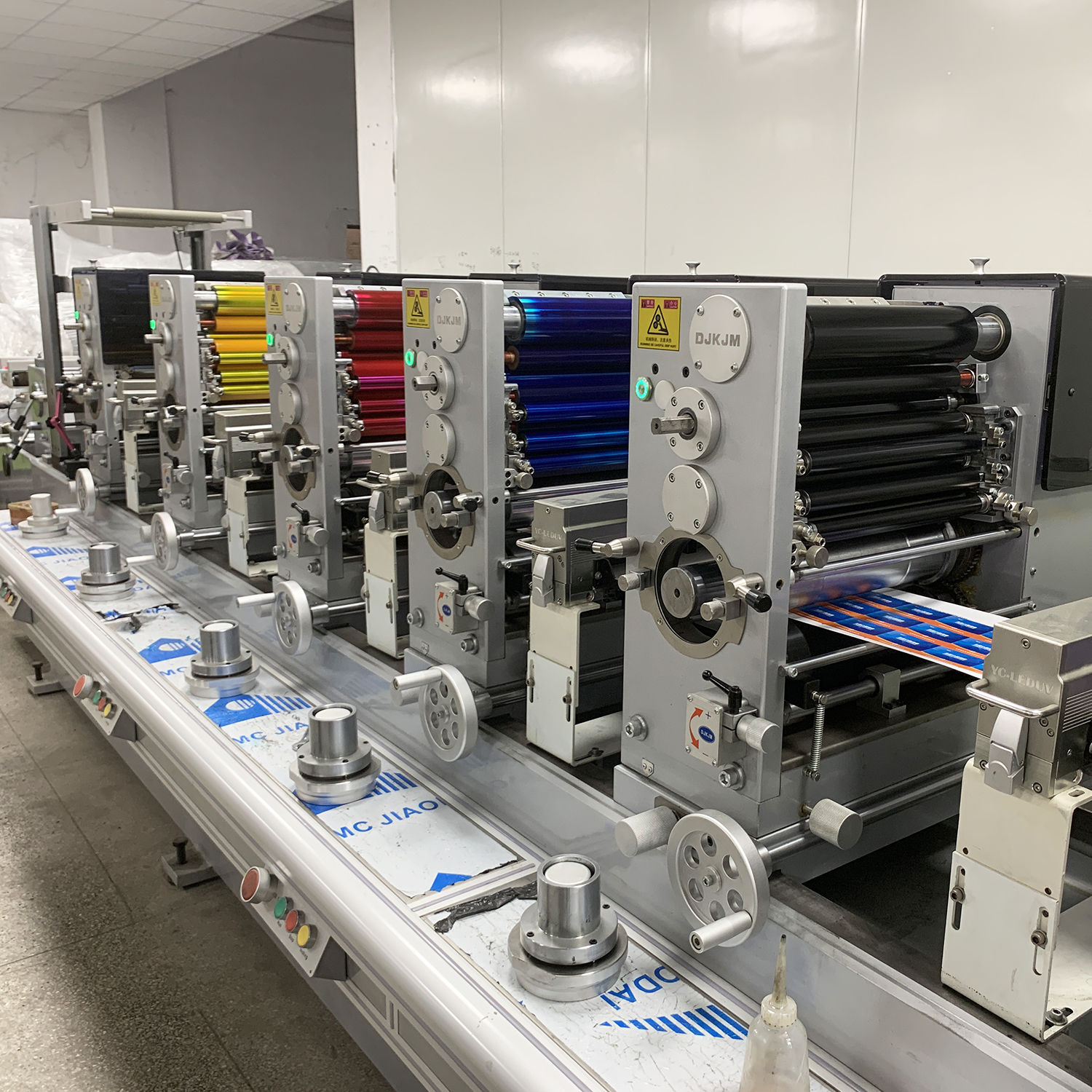

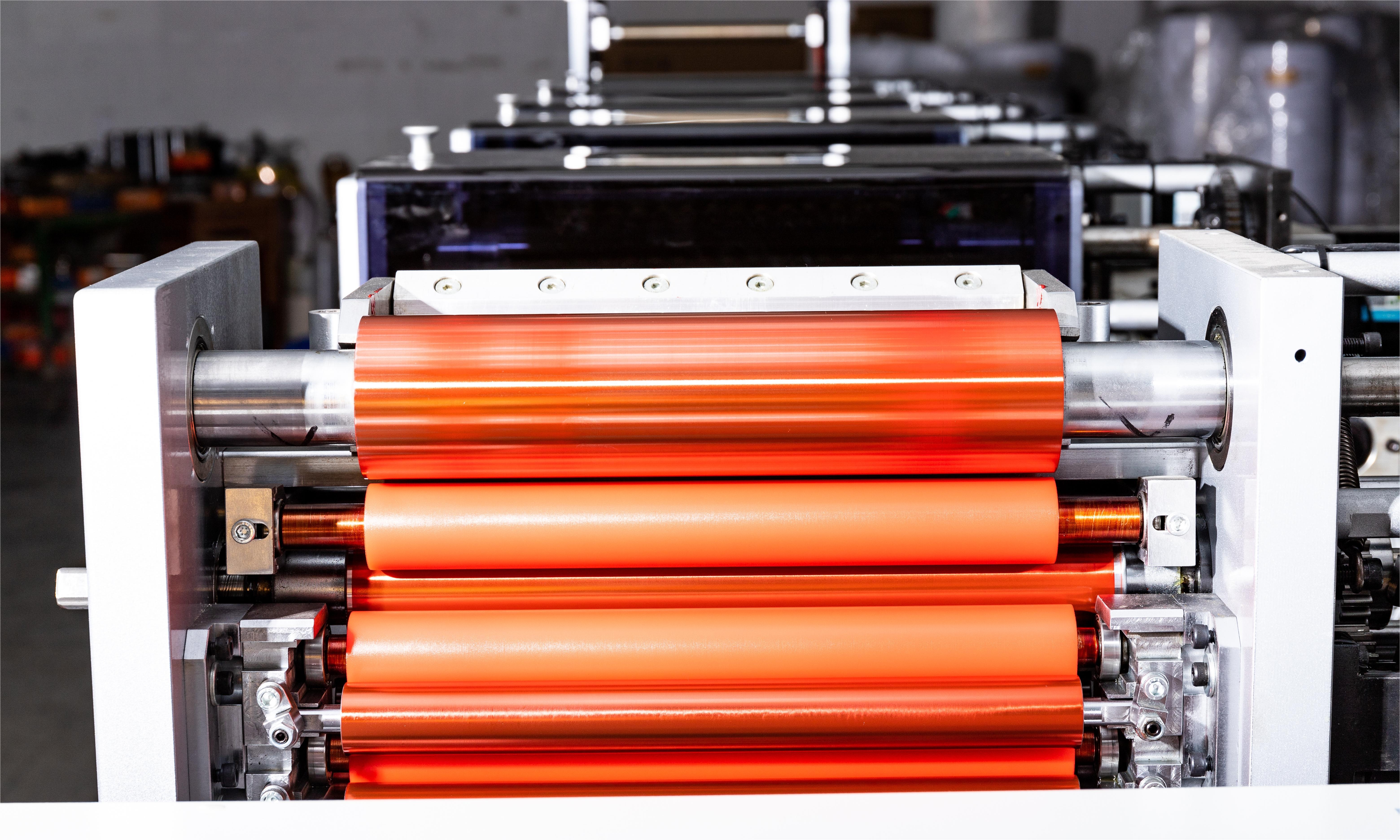

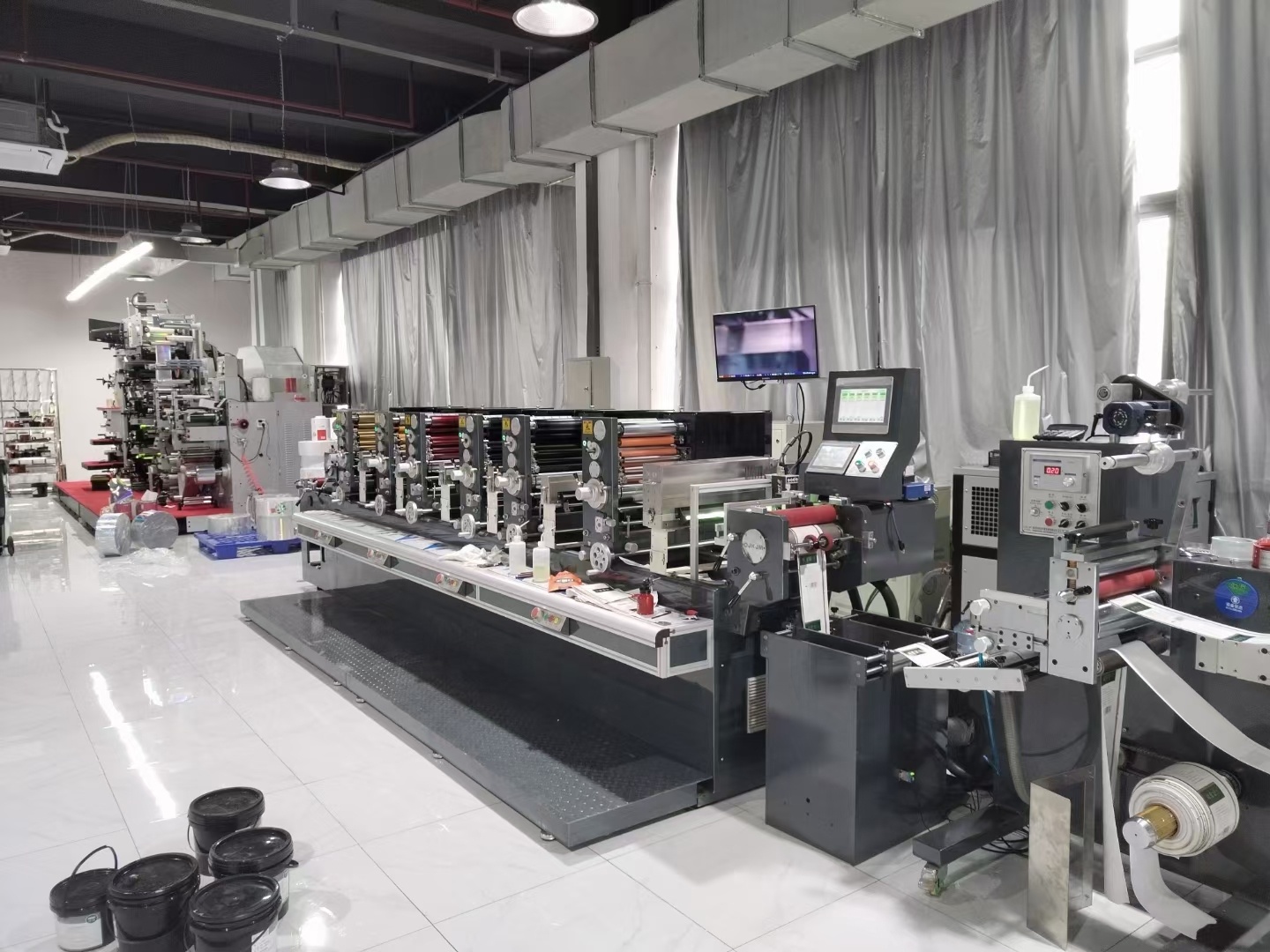

DJKJM Brand High Speed Customized 320 300 mm Intermittent Semi Rotary Label Offset Printing Machine Roll to Roll

Product Description

Product Overview

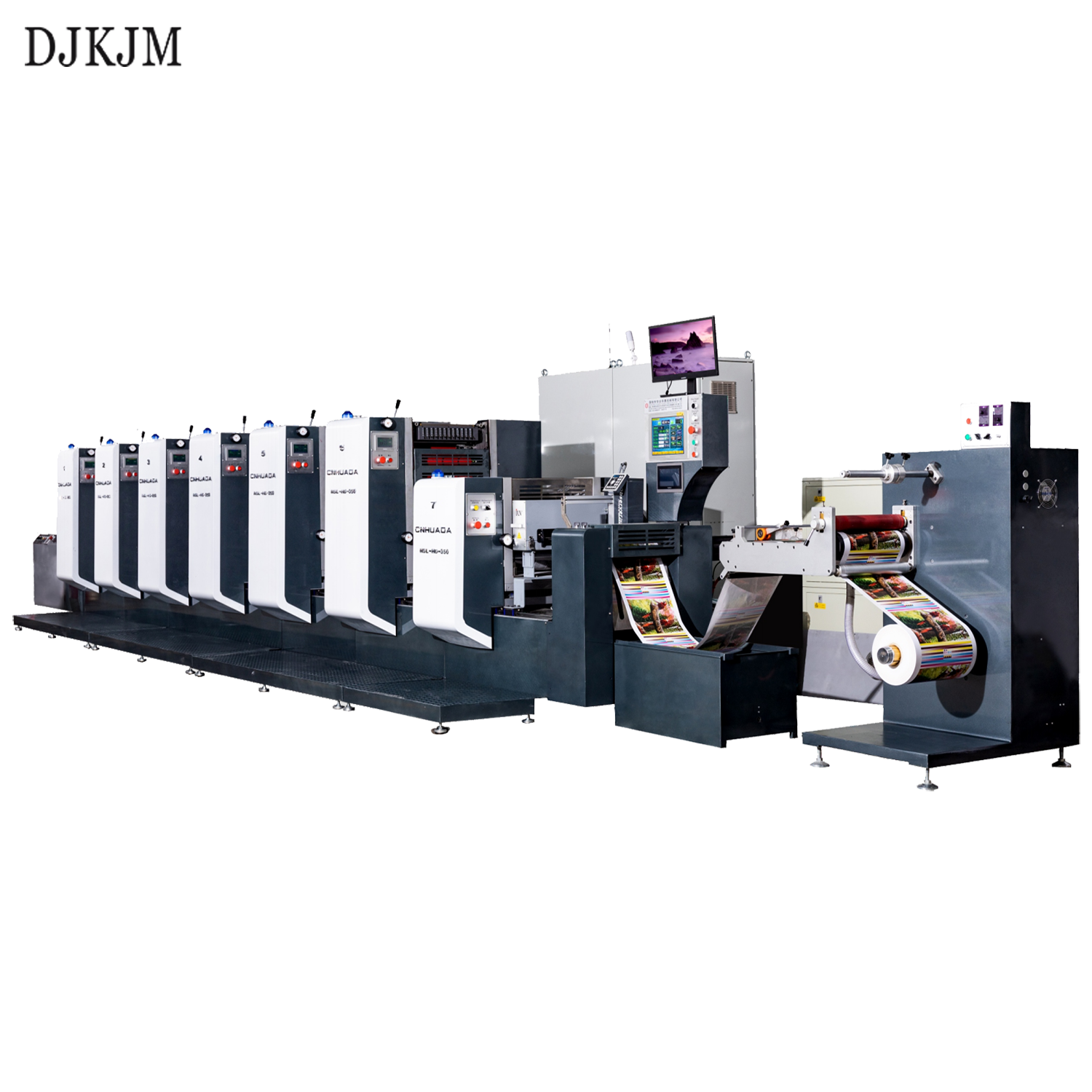

DJKJM (HDPS-350)

  • Master control system
  • Ink blending system
  • Ingenious combination of constant tension correction system and suspended paper return system
DJKJM (HDPS-350)
Features

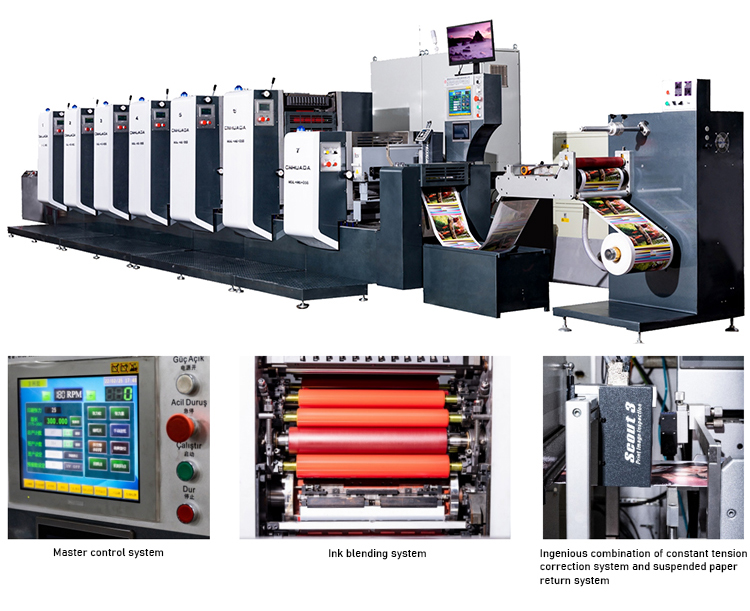

Features image
  • Adopted import servo system, controlled by flexible movement system.
  • Ink supply system controlled by computer, ink transferring is stable and precise.
  • Maximum printing area of intermittent type is 305mm*280mm.
  • High speed and precise alignment, keep precise alignment when accelerating and decelerating, ensure stable performance.
  • With low back clearance and high precision gear, running smoothly at high speed, low noise.
  • Each lamp holder of UV drier can be automatically switch power, achieves the result of low temperature paper no deformation and ink completely dry.
  • Equipped with electronic eye sensor, to ensure the high quality of the secondary overprint and reduce material wastes.
  • Adjusting the settings of overprinting by man-machine interface directly, the operation is more simple and accurate.
  • Printing tension can be adjusted freely according to the needs of different printed materials.
  • Adopted isolated type of power supply mode, saving more power under the same condition.
  • Introduced the foreign advanced shaftless printing control technology.
  • Can be equipped with flexo UV varnishing unit and magnetic rotary die-cutting unit, widely used in food industry, cosmetic industry, pharmaceutical industry, electronics industry, mobile phone sticker industry, hardware industry, gifts and toys industry, etc.
Features at a Glance
  • High speed and precise alignment, keep precise alignment when accelerating and decelerating, ensure stable performance.
  • Introduced the foreign advanced shaftless printing control technology.
  • Can be equipped with flexo UV varnishing unit and magnetic rotary die-cutting unit, widely used in food industry, cosmetic industry, pharmaceutical industry, electronics industry, mobile phone sticker industry, hardware industry, gifts and toys industry, etc.
  • Ink supply system controlled by computer, ink transferring is stable and precise.

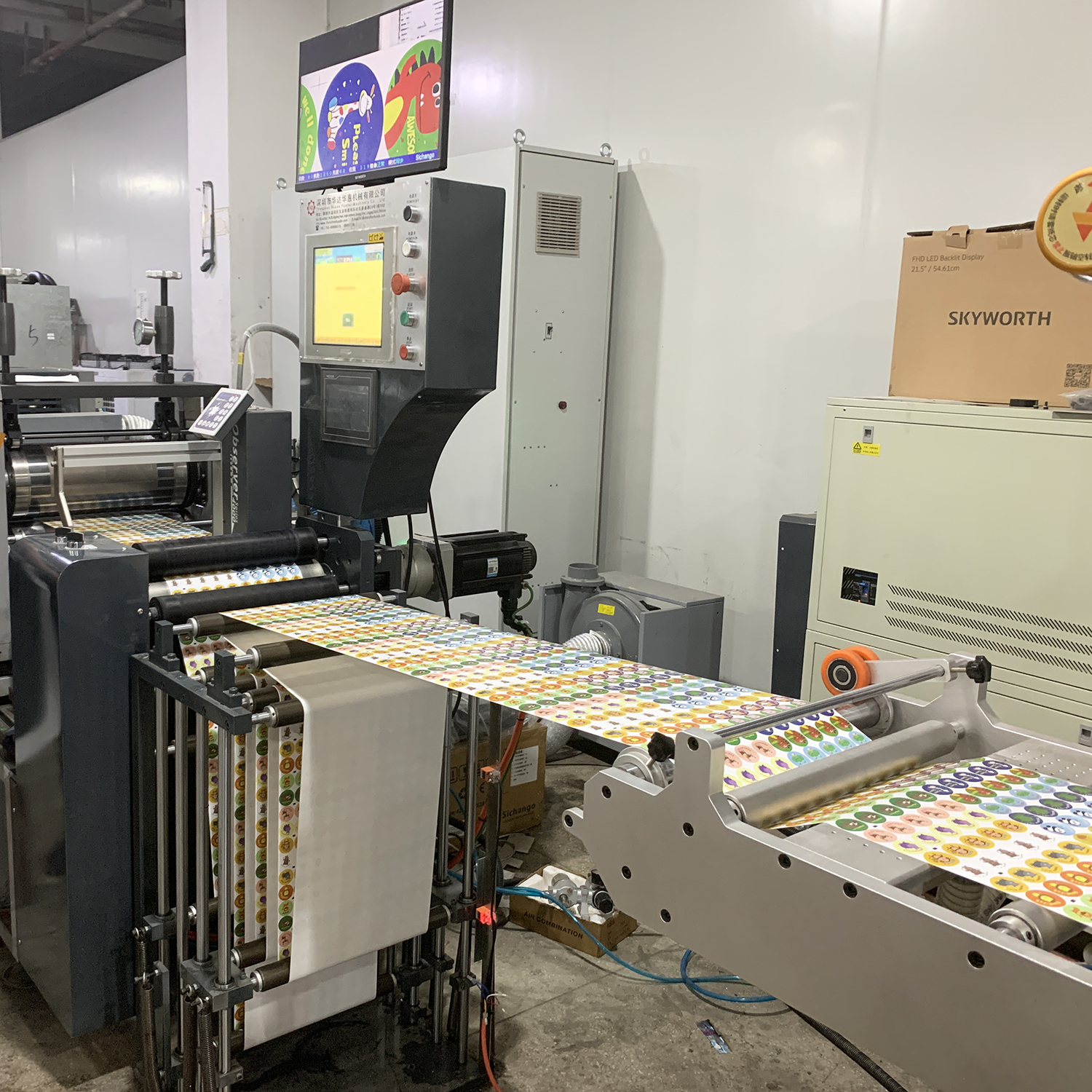

Features overview

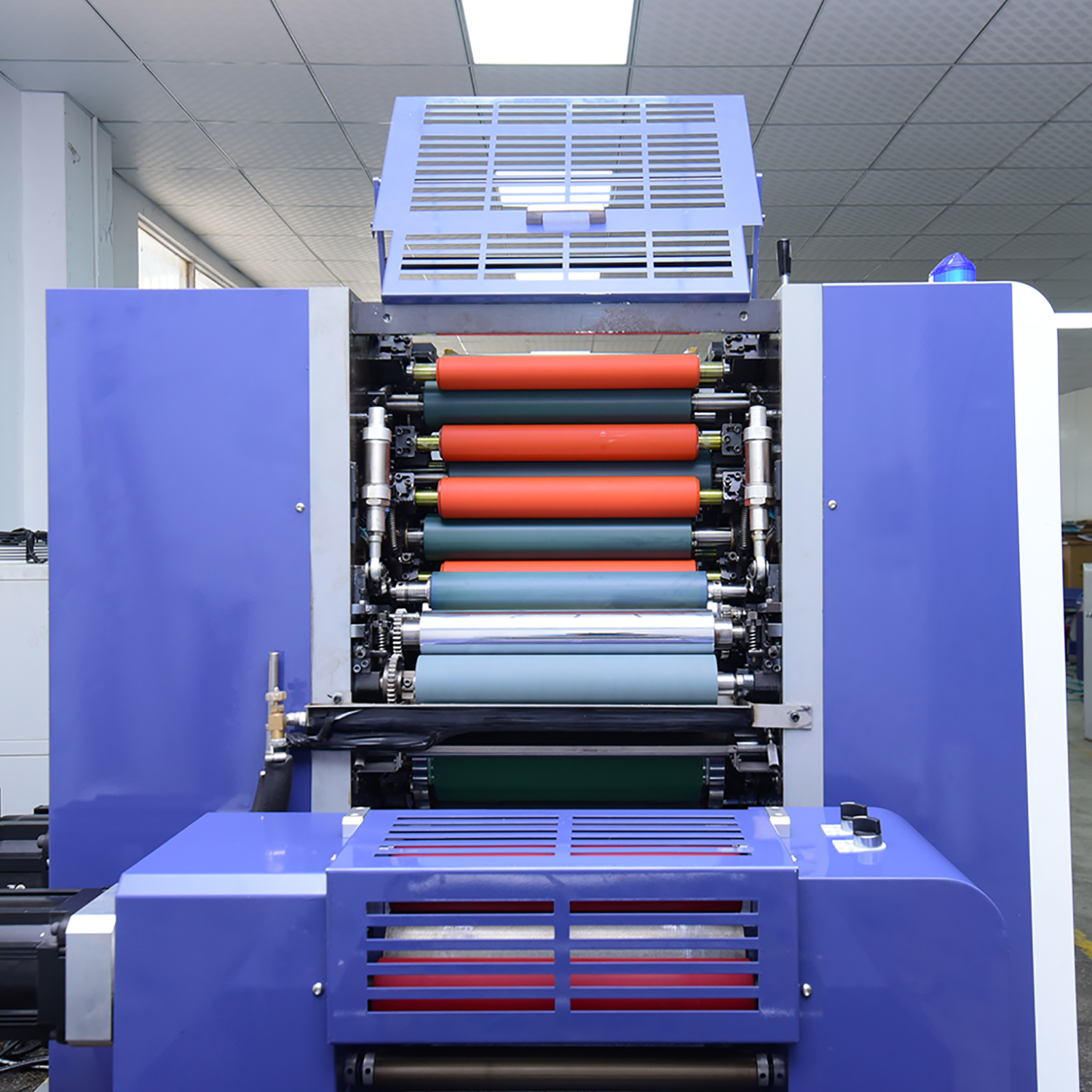

Printing area detail
Maximum printing area of intermittent type is 305mm*280mm

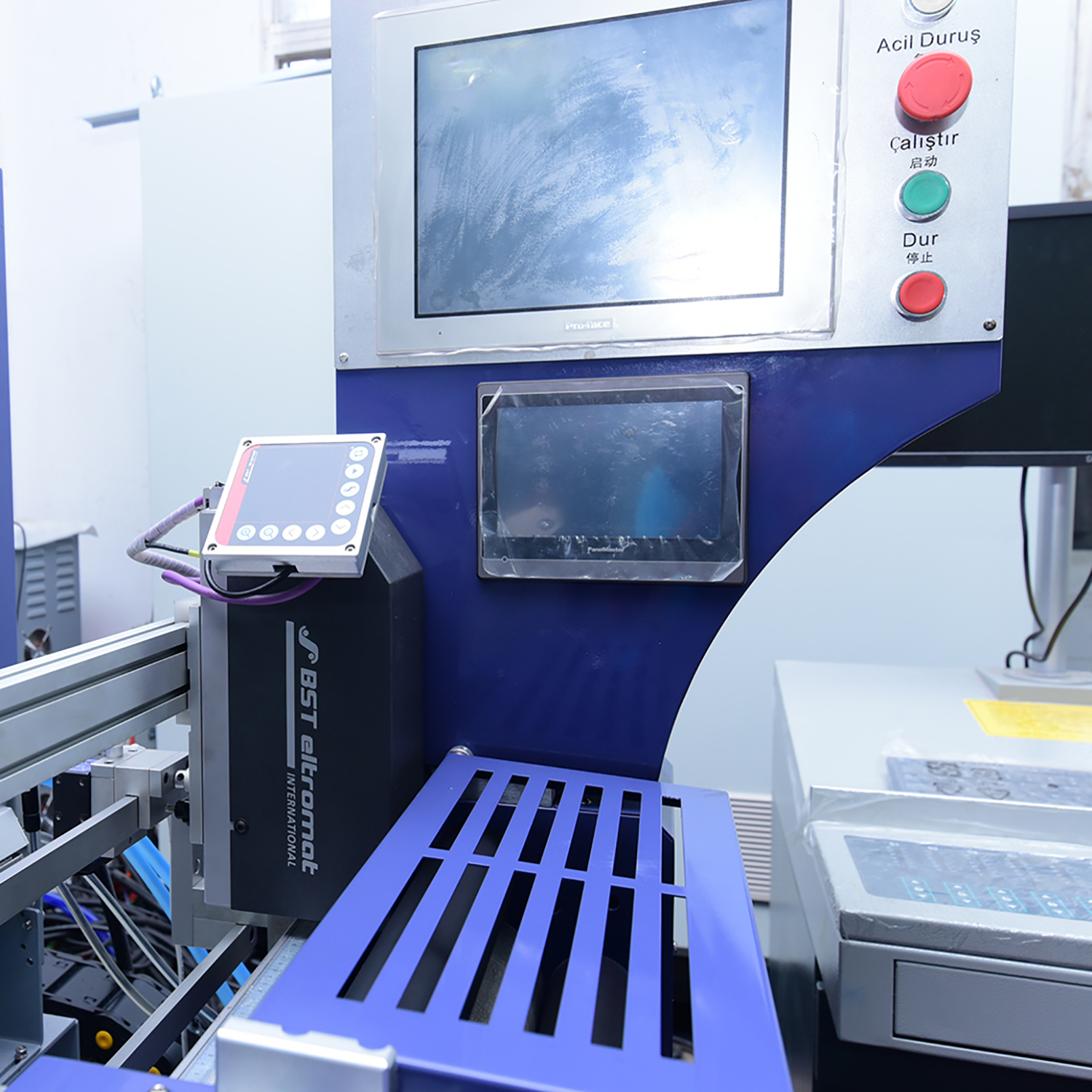

Computer controlled ink system
Ink supply system controlled by computer

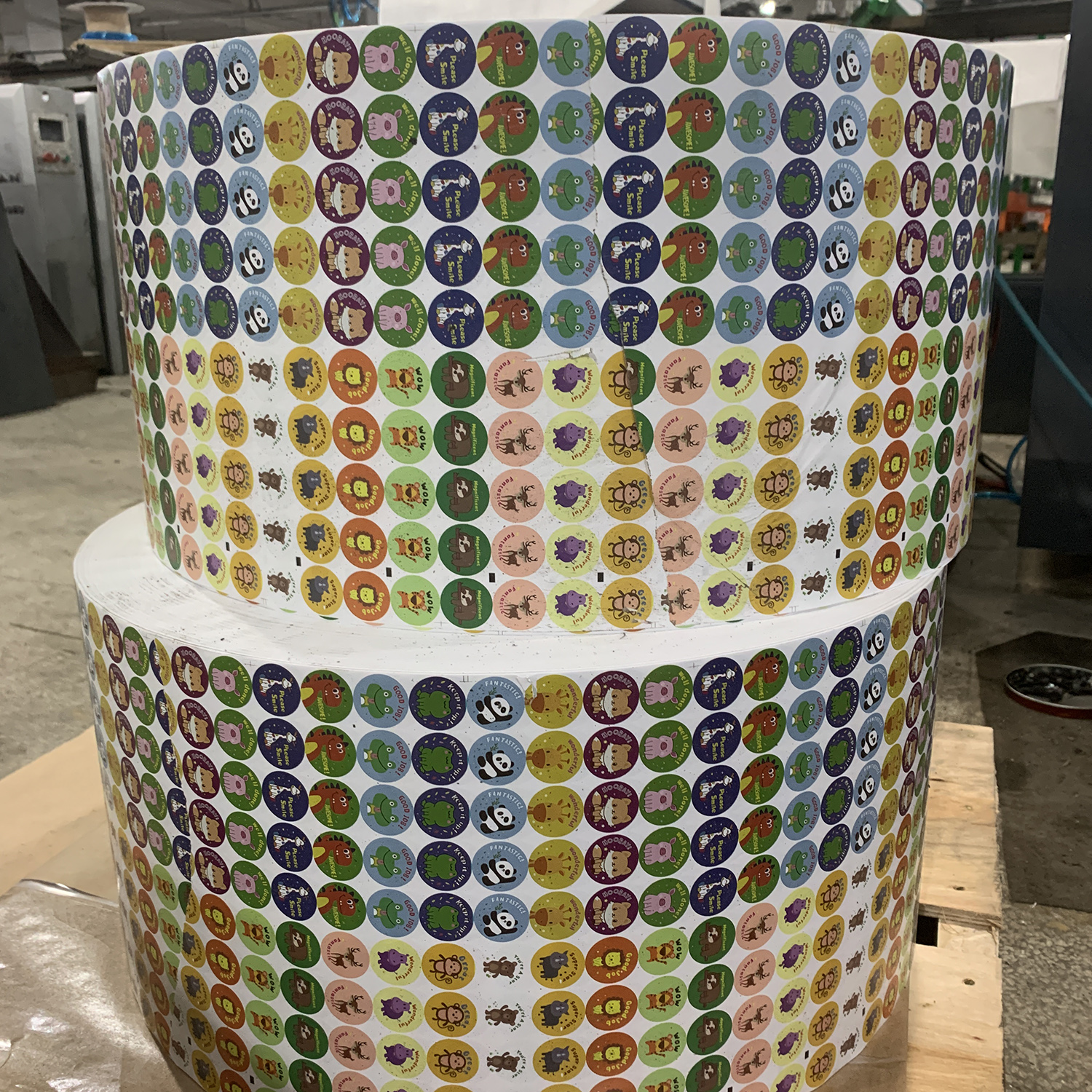

Perfect printing result
The label does not deform and the ink is completely dry. Perfect printing
Specification
Products Name HD-350PS Full Automatic Rotary Label Printing Machine
Model HDPS-350
Maximun material width 350MM
Maximum printing width Operating weight
Printing length range 175-350MM
Printing thickness 0.1-0.3MM
Machine speed 50-200rp(50M/min)
Maximun unwinding diameter 700MM
Maxmum winding diameter 700MM
Air pressure 7KG/CM²
Host power 30KW/6 colors(Not including UV)
UV system power 4.8KW/color
Power Supply 3phases 380v
Outline size 9500*1700*1600MM
Machine weight About 13tonne/6colors
Company Profile

Our factory was established in 1988. We professionally specialize in the research and development, production and sales of high-quality label rotary printing machines, integrating design, manufacturing, installation, and commissioning. We have our own processing and production center, equipped with CNC lathes, CNC milling machines, high-precision grinding machines, detection projectors, and wire cutting machines, strictly controlling the precision of each process and parts, to ensure the high quality of machinery and equipment and printing precision. We have absorbed a large number of professionals and hold a number of invention patents. At the same time, we introduce foreign advanced shaftless printing control technology, in the original technology of continuous innovation, so that the product is more sophisticated, more stable, and more convenient in operation.

Our main products are Intermittent Rotary Label Printing Machine, NC Oblique Type Adhesive Label Printing Machine, High-speed Single-seat Die-cutting Machine, Magnetic Circular Knife Die-cutting Machine, Quality Inspection Machine, Plate Copying Machine, Slitting Machine, Paper Feeder and Rewinding Machine and other supporting equipment. Products are not only sold well in the country, but also exported to India, Brazil, Malaysia, Indonesia, Turkey and other countries and regions, and won the praise of many customers. For years, we have been adhering to the "Strive to excellent, stand higher and aim far, pragmatic and innovation, integrity and dedication" concept, adhering to the "quality first, customer supreme, service for this" values, committed to enterprise development strategy, strengthen enterprise management, the development of enterprise culture, encourage technological innovation, improve the quality of customer service, strive to become a big international first-class high-tech enterprise. We are your ideal choice, looking forward to sincere cooperation with colleagues from all walks of life to create a brilliant future.

Factory Facility
Quality Standard Certificate

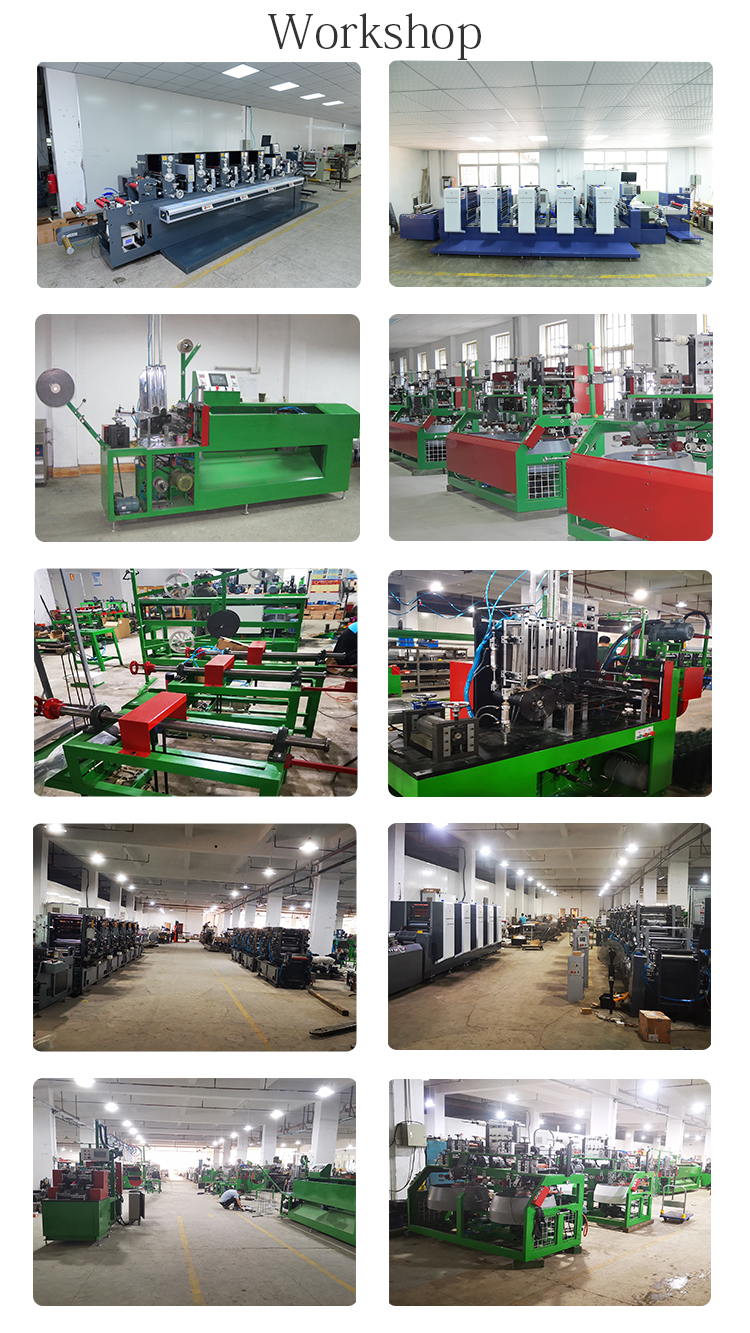

Manufacturing Workshop

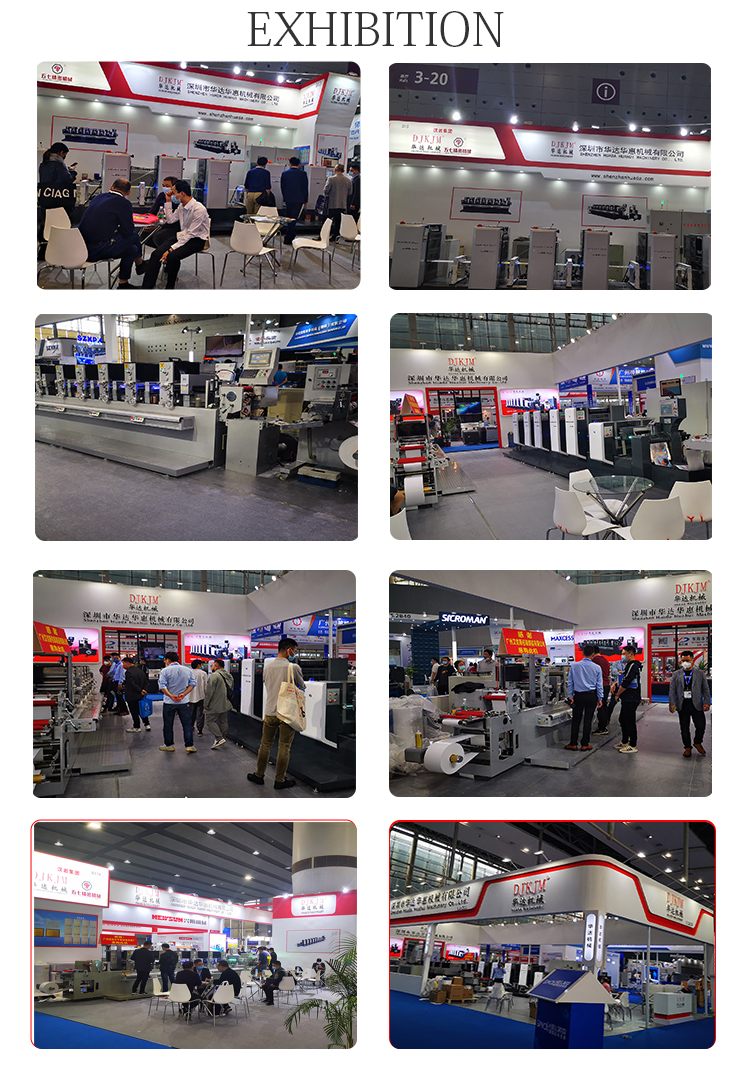

Exhibition
Exhibition event
Product Configuration

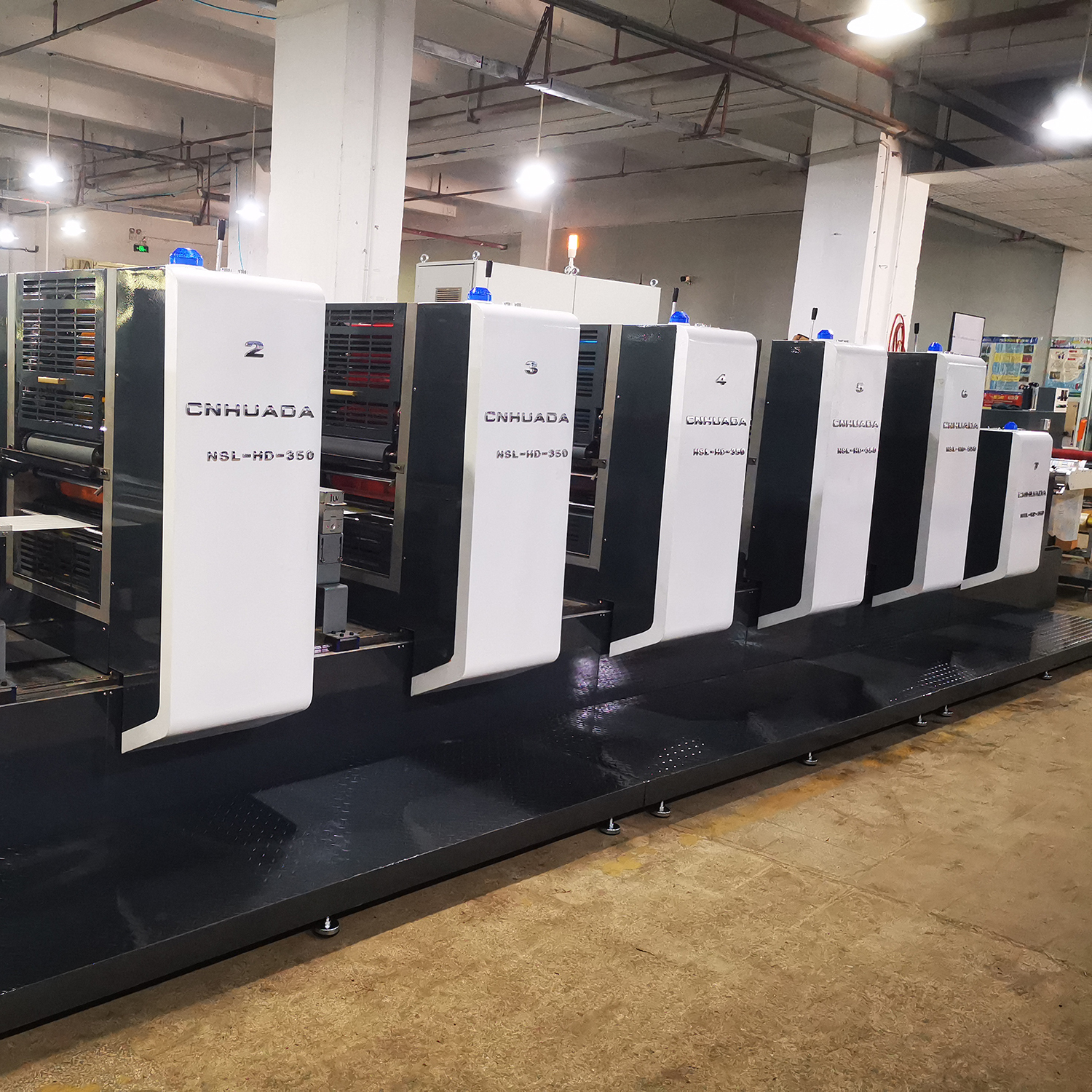

Configuration - 6 Colors
6 colors available

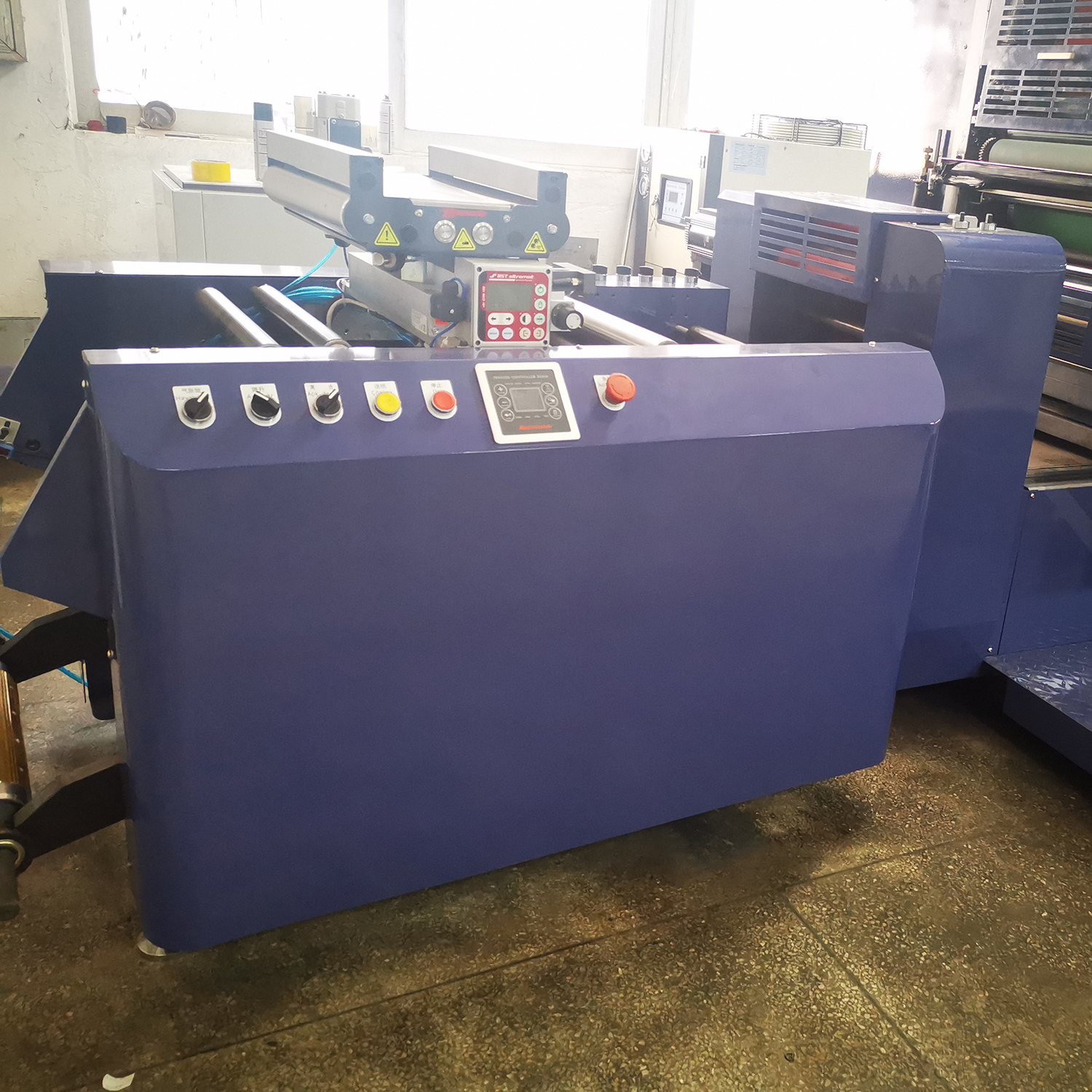

Configuration - Ink Blending
Ink blending system

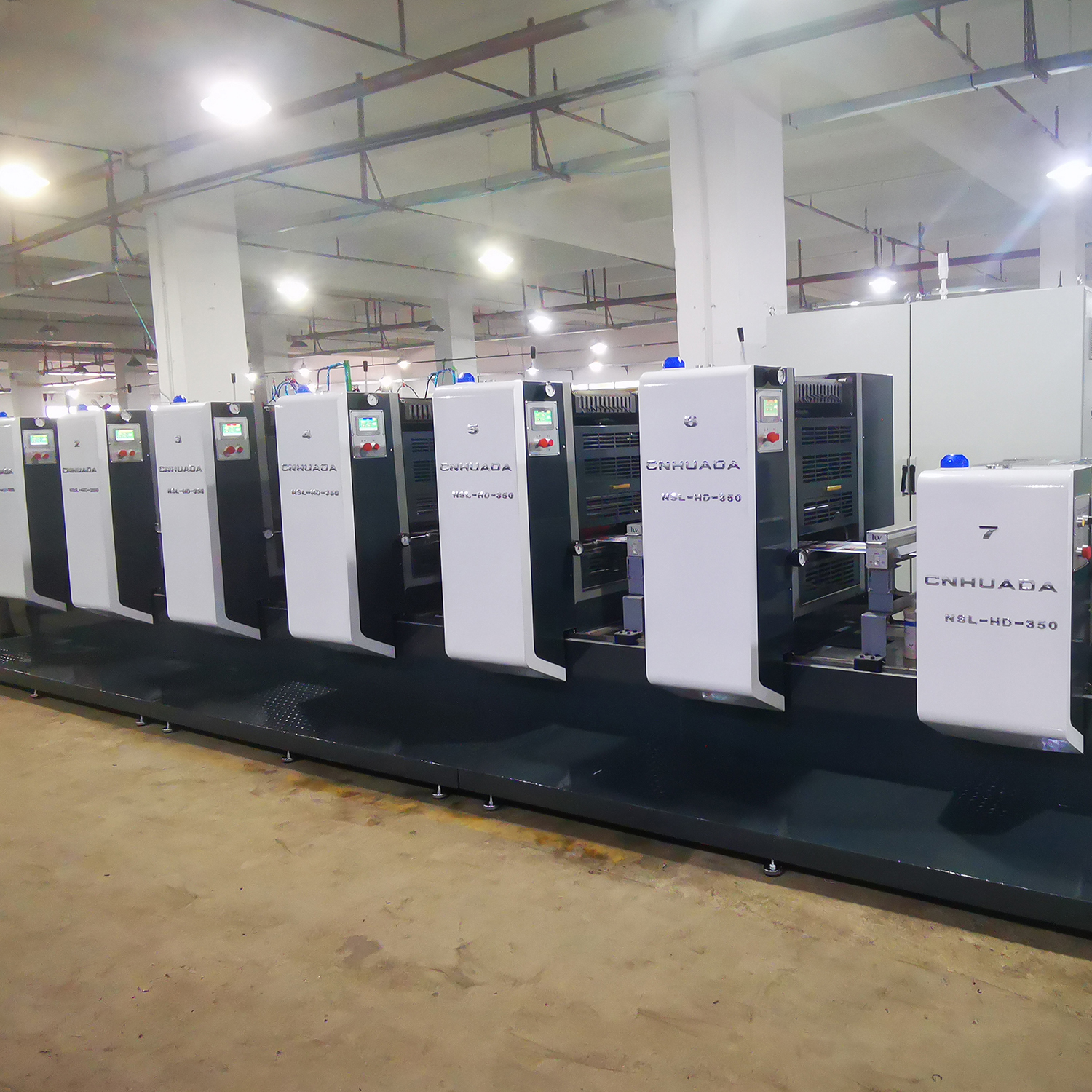

Configuration - Flexo UV & Die-cutting
Flexo UV varnishing unit and magnetic rotary die-cutting unit available
Sales and Service Network
Sales and service map
Successful Project
Successful project in China
Project in China
Successful project in India
Project in India
Successful project in Türkiye
Project in Türkiye
Similar Products in Our Factory

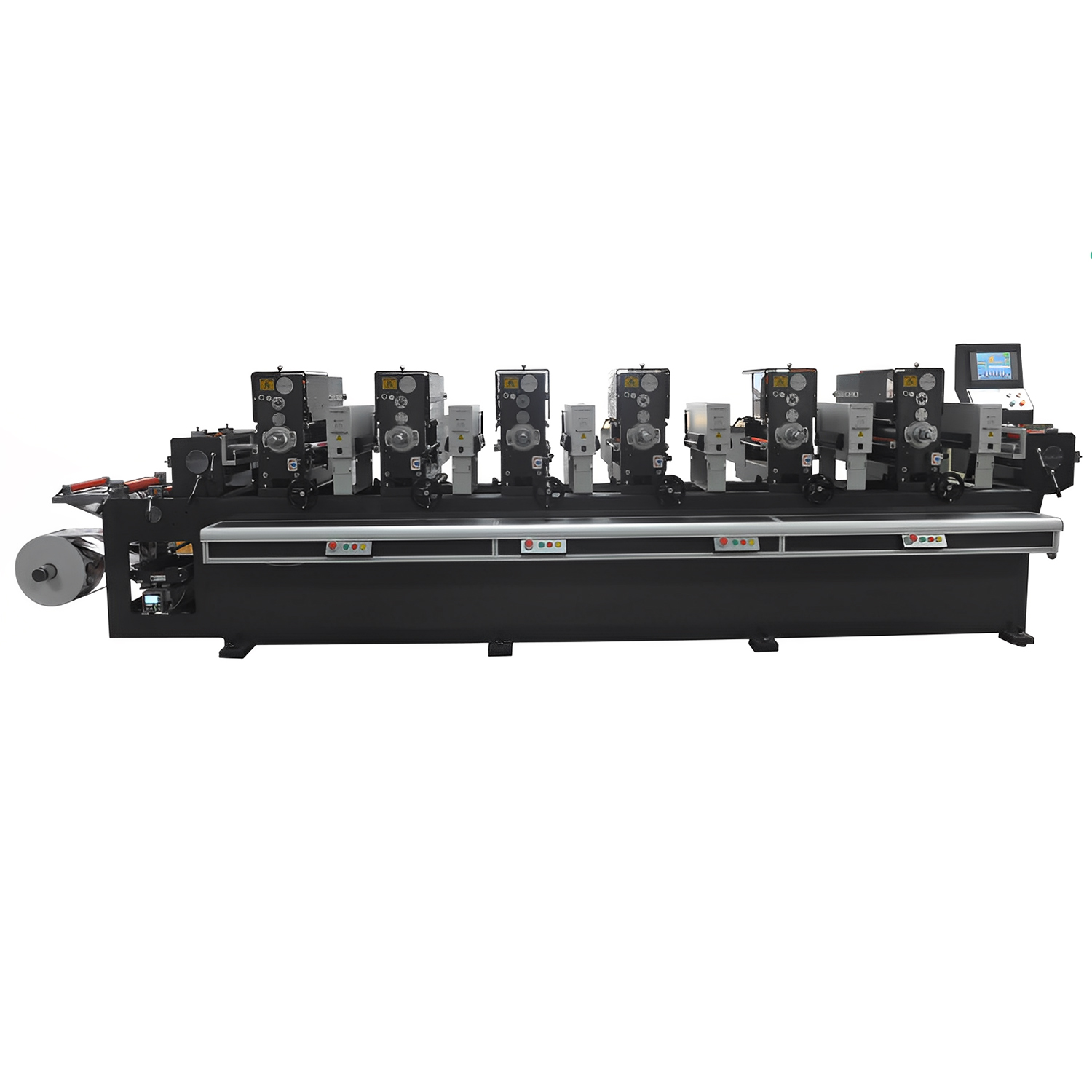

HD-300A (6-C)
HD-300A(6-C)
Full Automatic Rotary Label Printing Machine-6 Colors

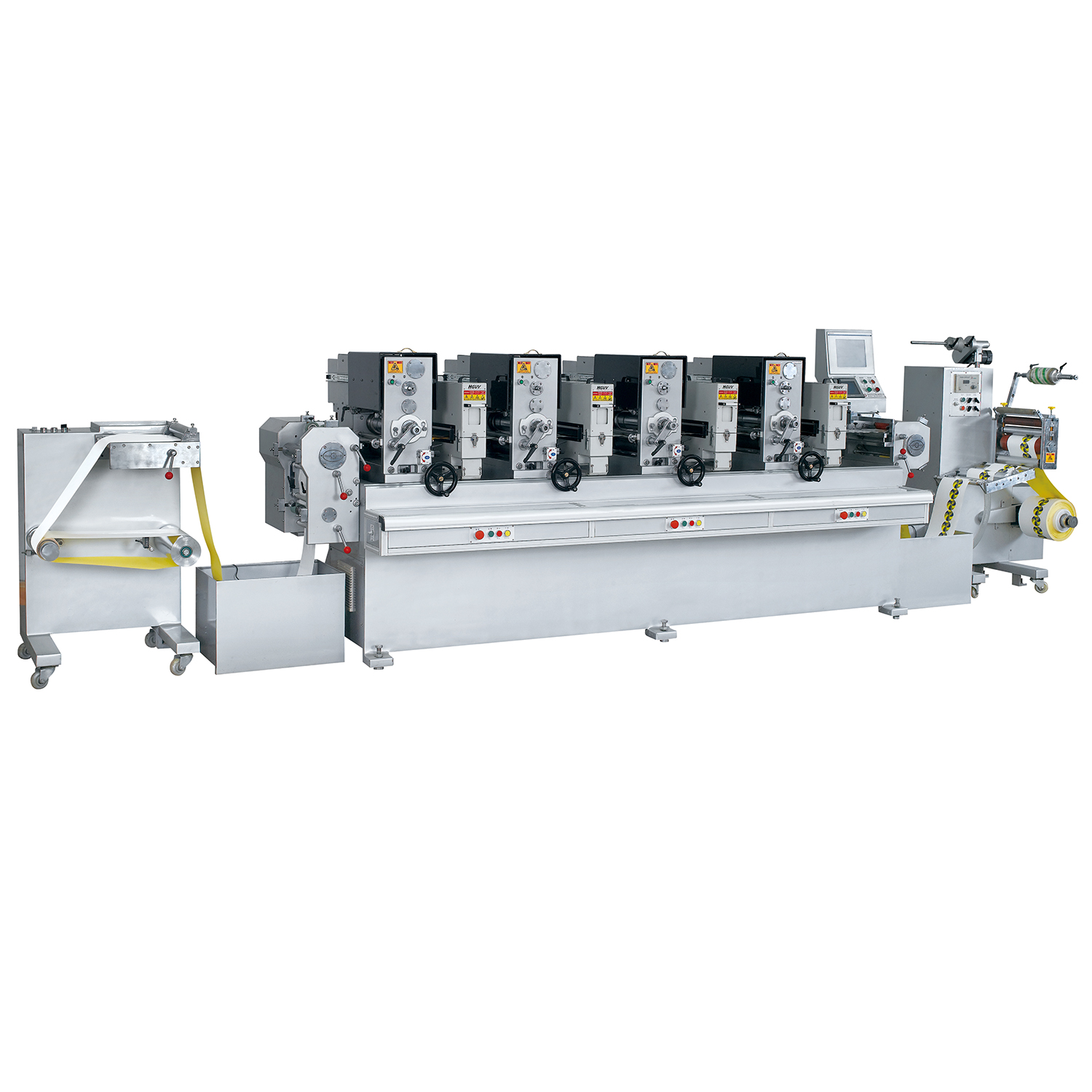

HD-320A (4-C)
HD-320A(4-C)
Full Automatic Rotary Label Printing Machine-4 Colors

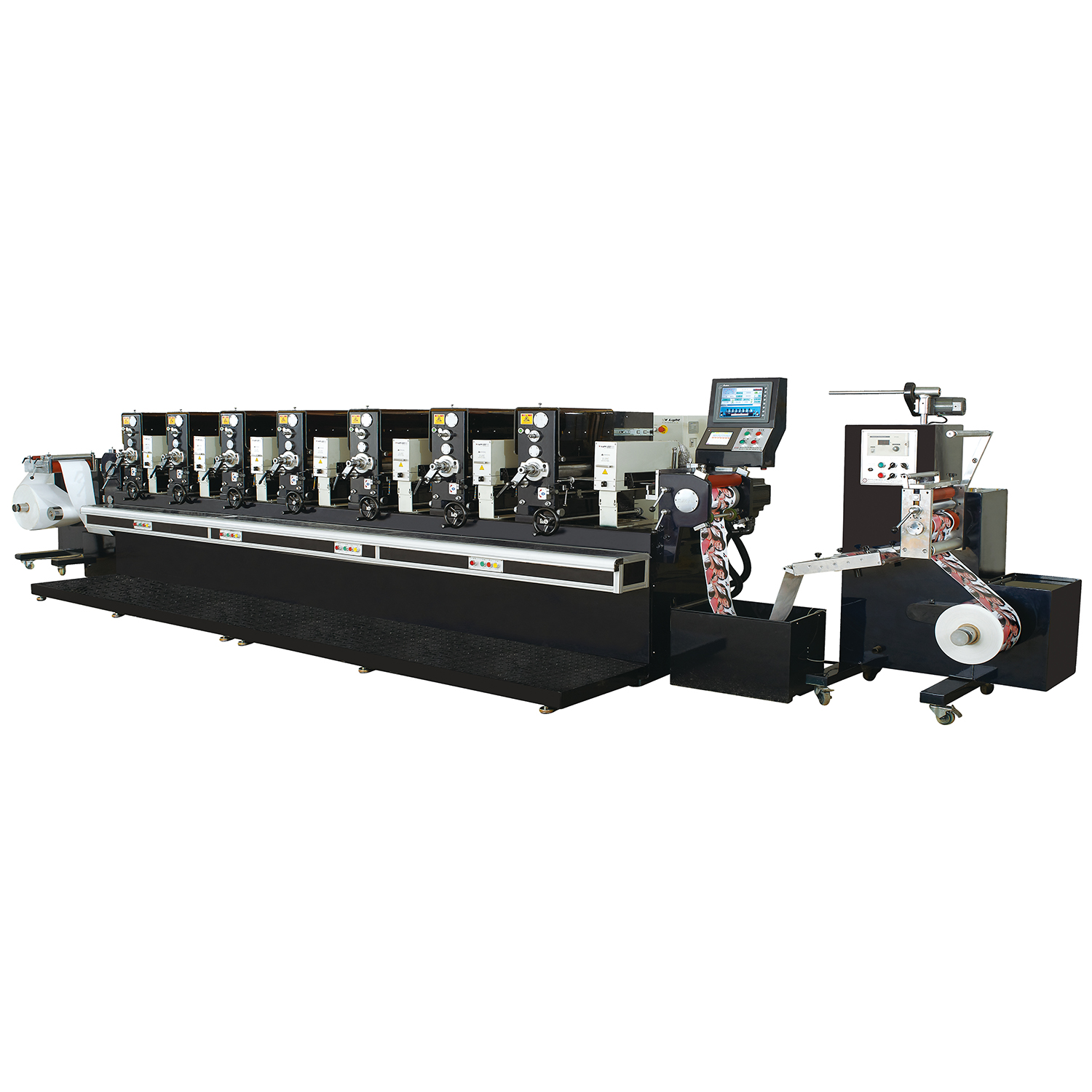

HD-300A (7-C)
HD-300A(7-C)
Full Automatic Rotary Label Printing Machine-7 Colors
Packing
Machine packing process 1
Machine packing process 2
FAQ
How about the after-sales service?
We have a strong team dedicated to after-sales service. We can arrange qualified engineers to install, commission and provide ongoing support services for you.
Are you a factory or a trading company?
We are a specialized manufacturing factory in this field with nearly 20 years of experience.
Where is your factory located? How can I visit?
Our factory is located in China, close to the regional airport. You can fly to the airport directly, and we can arrange to pick you up.
How does your factory do the quality control?
Quality is our absolute priority. We always attach great importance to strict quality control processes from the initial material selections to the final machine test runs.
Why choose our machinery?
We are one of the industry leaders. Our high-standard machinery products and services have enabled us to expand our market to more than 30 countries.
What configurations can be equipped on this series?
This label printing machine can be customized and equipped with a flexo UV varnishing unit, magnetic rotary die-cutting unit, and configured with 4 to 7 color choices according to your production requirements.
