Product Description

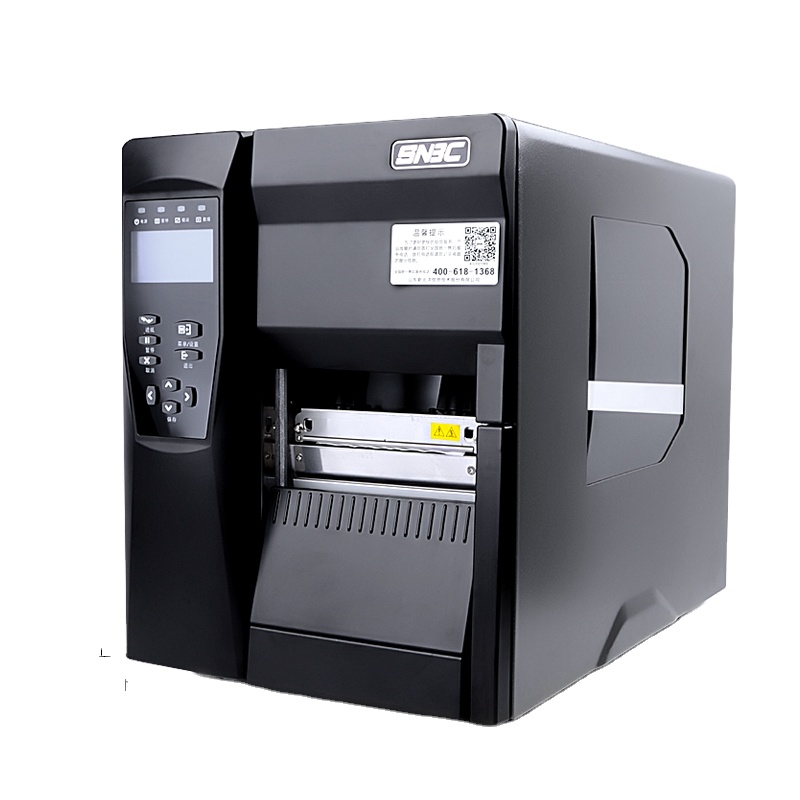

SNBC BTP-7410 Industrial Barcode Foil Label Sticker Printer Machine

Product Description

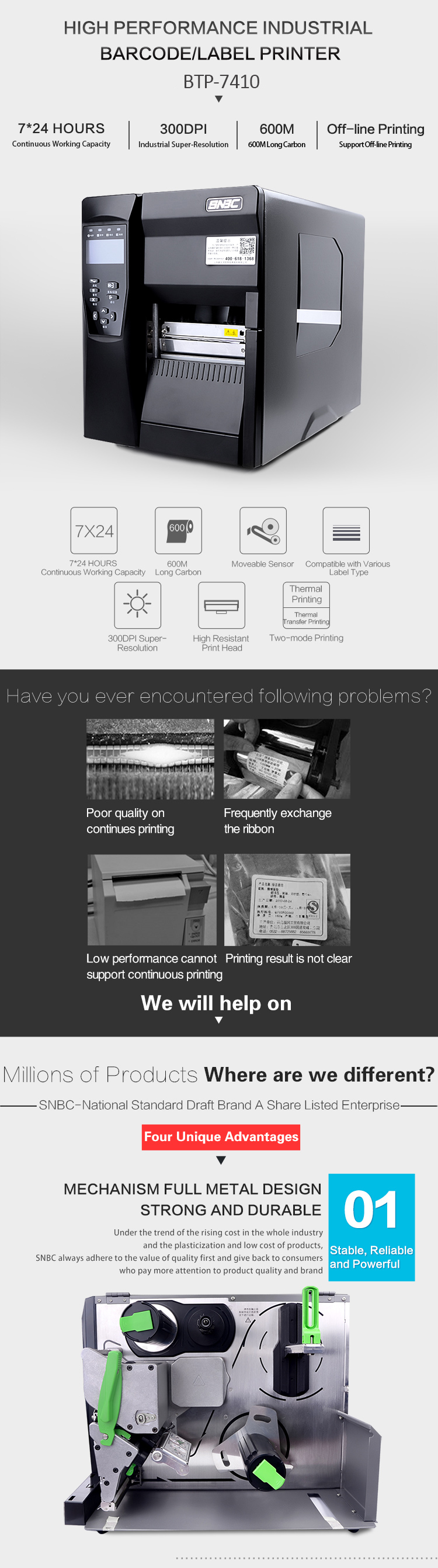

SNBC BTP-7410 Printing Technology Details SNBC BTP-7410 High Accuracy Performance SNBC BTP-7410 Structural Design SNBC BTP-7410 Functional Showcase
Item BTP-7410 Specification Details
Print Print method Thermal / Thermal Transfer
Resolution 300DPI
Print width (Max.) 106mm
Print speed (Max.) 254mm/s
Memory SDRAM: 256MB, FLASH: 256MB
Interface Serial + Parallel + U/B + U/A + Ethernet
Barcode 1D Barcode Code39, Code93, Codabar, CODE128 (Subsets A, B and C), UPC-A, UPC-E, EAN-8, EAN-13, UPC/EAN Extensions, Planet Code, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, GS1 Databar
2D Barcode PDF417, Micro PDF417, QR Code, DataMatrix, MaxiCode, GS1 Composite
Paper Paper type Label Paper, Continuous paper, Folded paper, Marked paper, Washing Label
Paper Roll width (Max.) 120mm
Paper thickness 0.0635 ~ 0.3mm
Paper roll OD Max. 203mm
Paper roll ID 38 ~ 76mm
Power Input 110 ~ 240V, 50/60Hz
Ribbon Ribbon Length 600m
Ribbon ID 25.4mm
Environment Operation condition +5 ºC ~ 45 ºC, 20% ~ 90% RH (40 ºC)
Storage condition -40 ~ 60 ºC, 20% ~ 93% RH (40 ºC)
Physics Spec. Dimensions 480(L) × 280(W) × 370(H)mm
Weight Approx. 19Kg

Product Accessories

SNBC BTP-7410 Standard and Optional Accessories

Related Products

Related Barcode and Label Printer Models

Packaging & Shipping

Packaging Standard and Shipping Details

Our Services

Customer Support and Services System

Facility & Production Information

Manufacturing Line Showcase Testing and Quality Assurance Facility

Frequently Asked Questions

1. What print methods does the BTP-7410 support?
The BTP-7410 supports both Thermal and Thermal Transfer printing methods, providing flexibility for different label stocks and durability requirements.
2. What is the print resolution and maximum speed?
This industrial-grade printer features a high-accuracy printhead with a resolution of 300 DPI, reaching maximum print speeds of up to 254 mm/s without skipping or missing labels.
3. What interface options are built into the printer?
The BTP-7410 offers multi-interface connectivity including Serial, Parallel, USB (U/B + U/A), and Ethernet as standard parameters to fit easily into diverse industrial environments.
4. What types of label media can be loaded?
It accommodates standard Label Paper, Continuous paper, Folded paper, Marked paper, and Washing Labels, supporting a paper roll outer diameter (OD) of up to 203mm.
5. Does it support long ribbon capacities for industrial runs?
Yes, the BTP-7410 is designed for heavy-duty production and supports ribbon lengths of up to 600 meters with an inner diameter (ID) of 25.4mm, reducing downtime for ribbon changes.
