Easy Operation: Gentle starting with accurate color print registration.

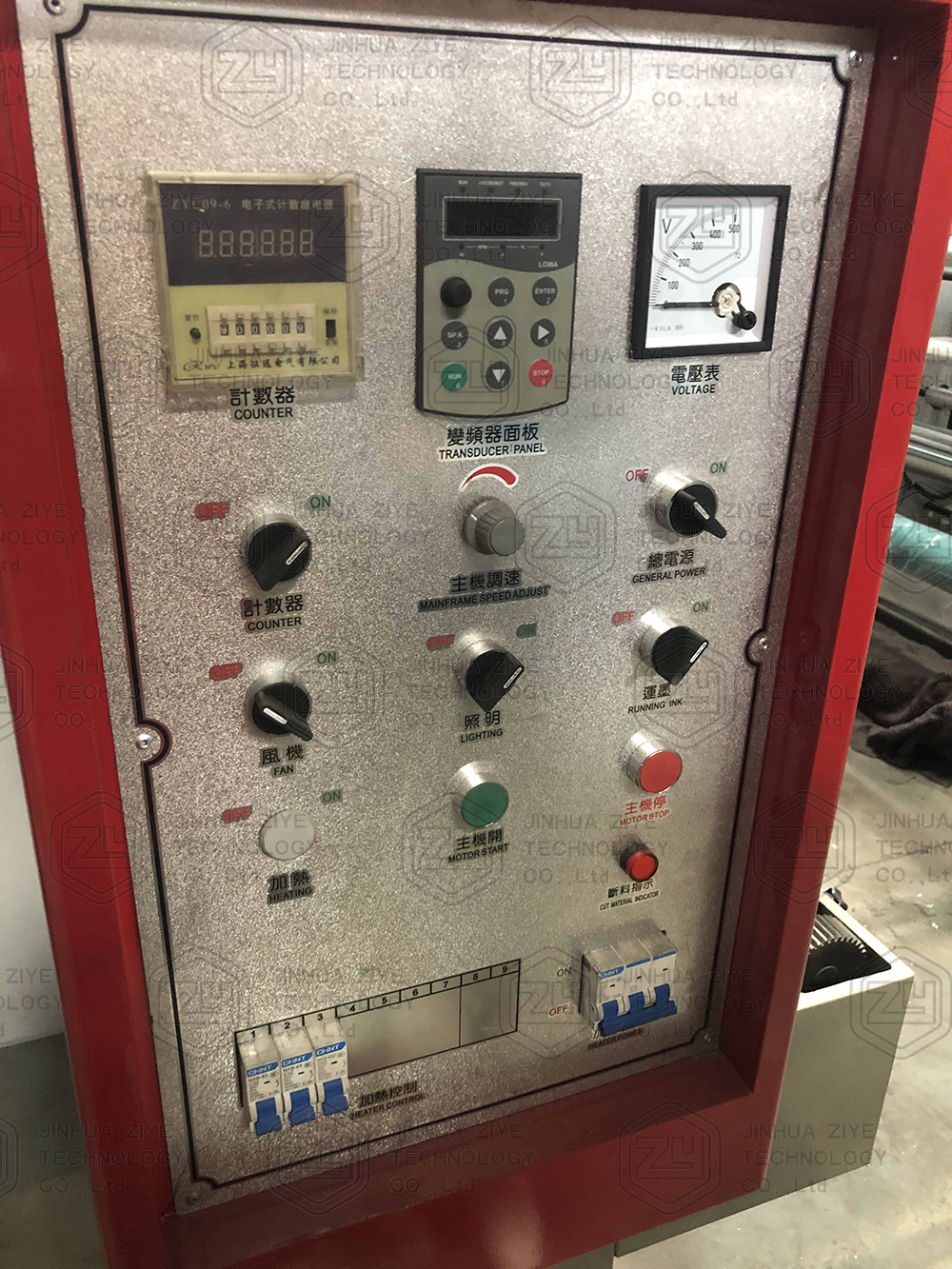

Auto Counter & Stop: Set print quantity requirements; automatically stops when reached or when material is cut off.
Auto Printing Stir: Automatically stirs the printing ink after manually lifting and lowering the printing plate cylinder.

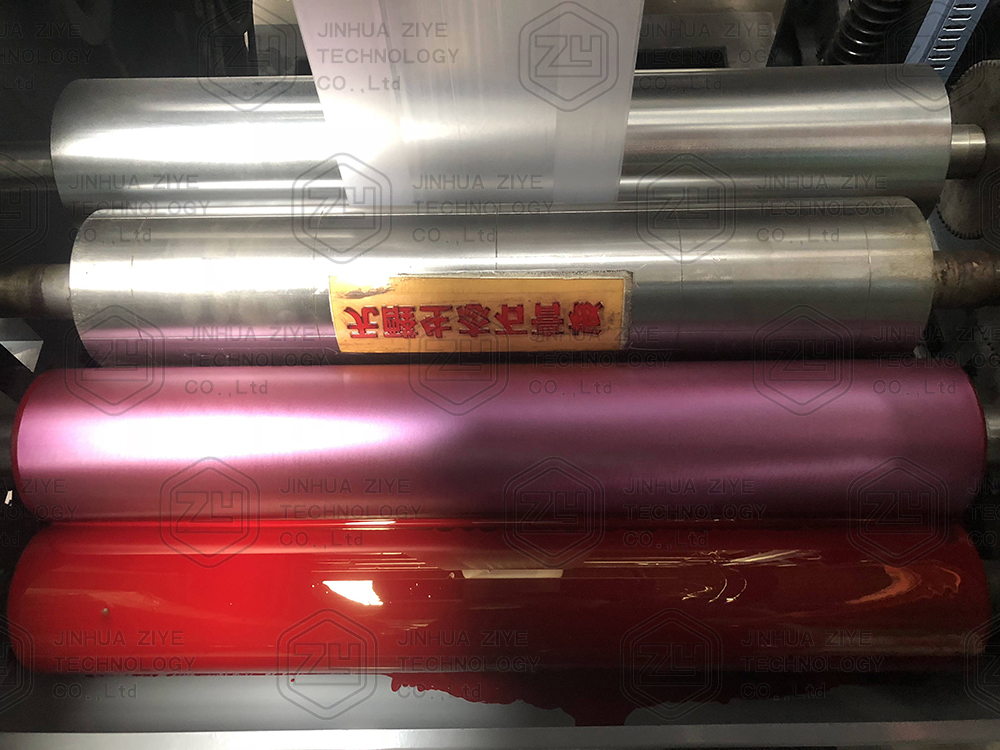

Even Ink Distribution: The printing ink is spread evenly by the anilox cylinder roller.
Reliable Dry System: Coordinates high-speed operation, featuring engine off automatic abruption.
360° Adjustability: Continuously adjustable longitudinal register device.

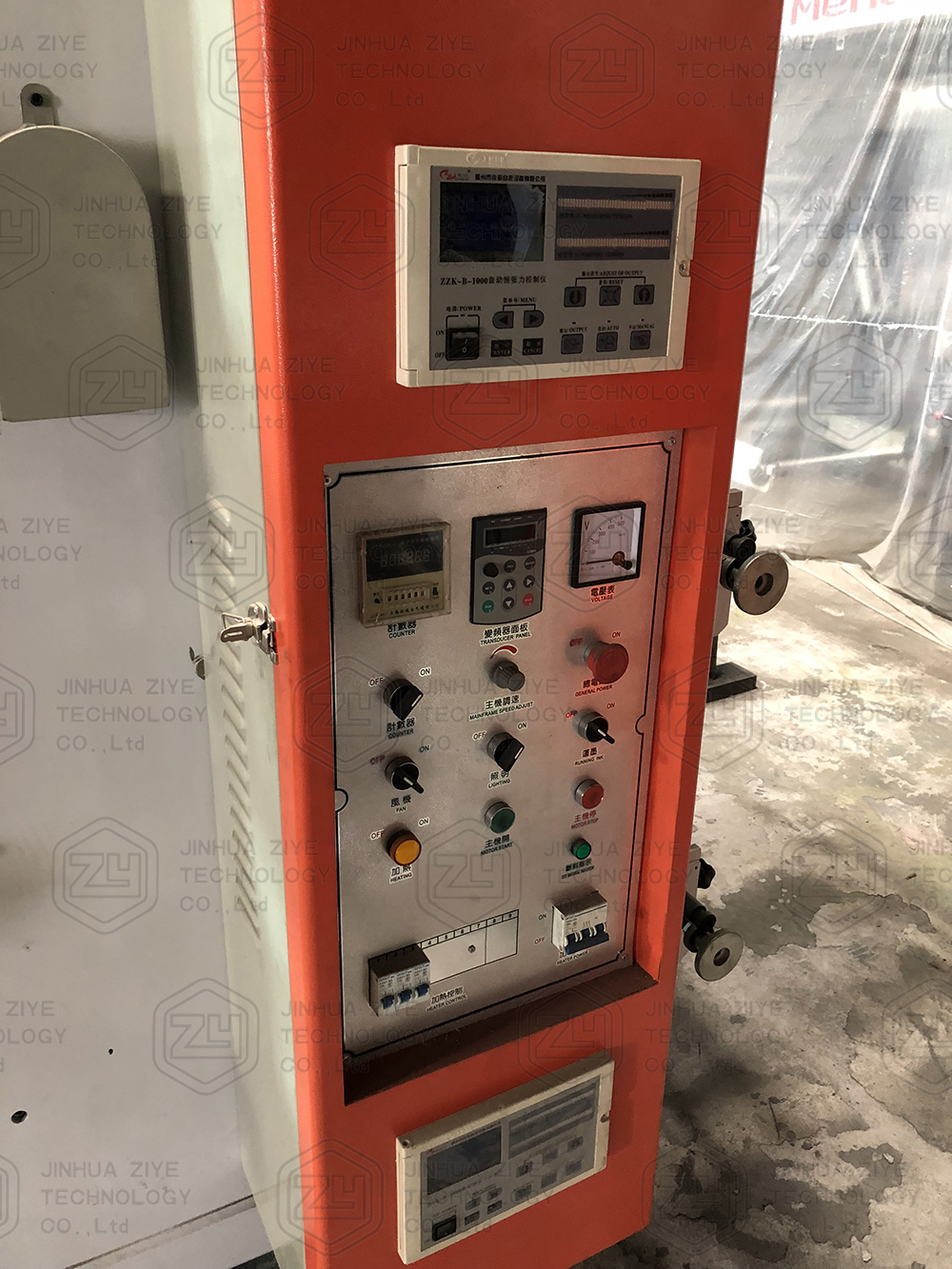

Frequency Control: Adaptable velocity modulation for different printing speed requirements.
Spot/Pause Controls: Easy version roller adjustments via spot and pause buttons during justification.

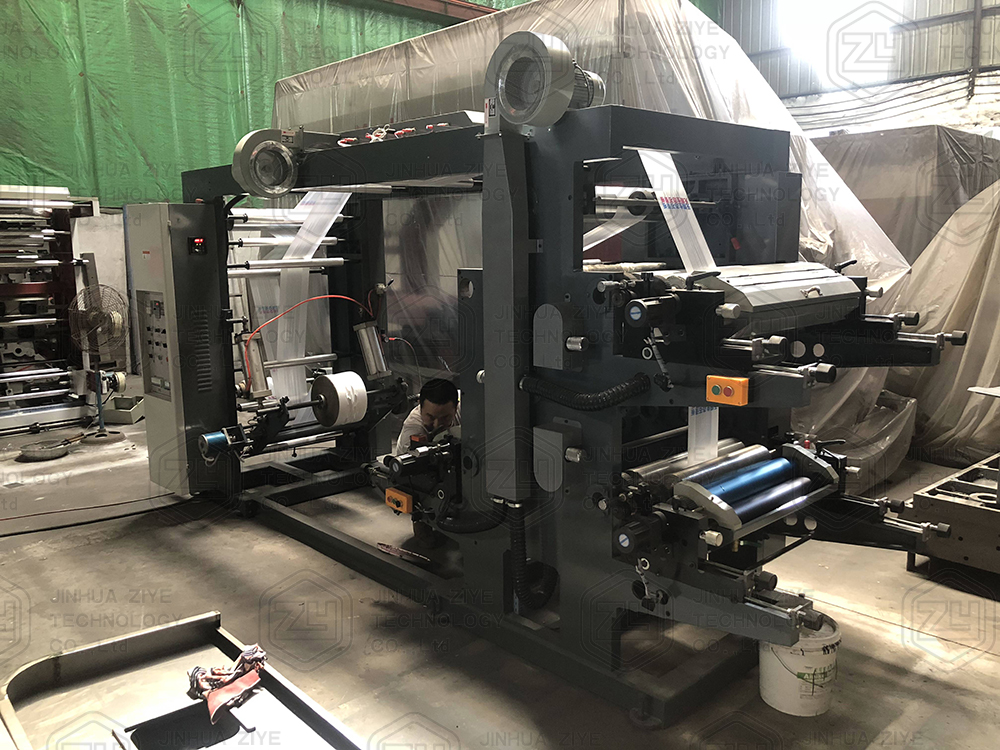

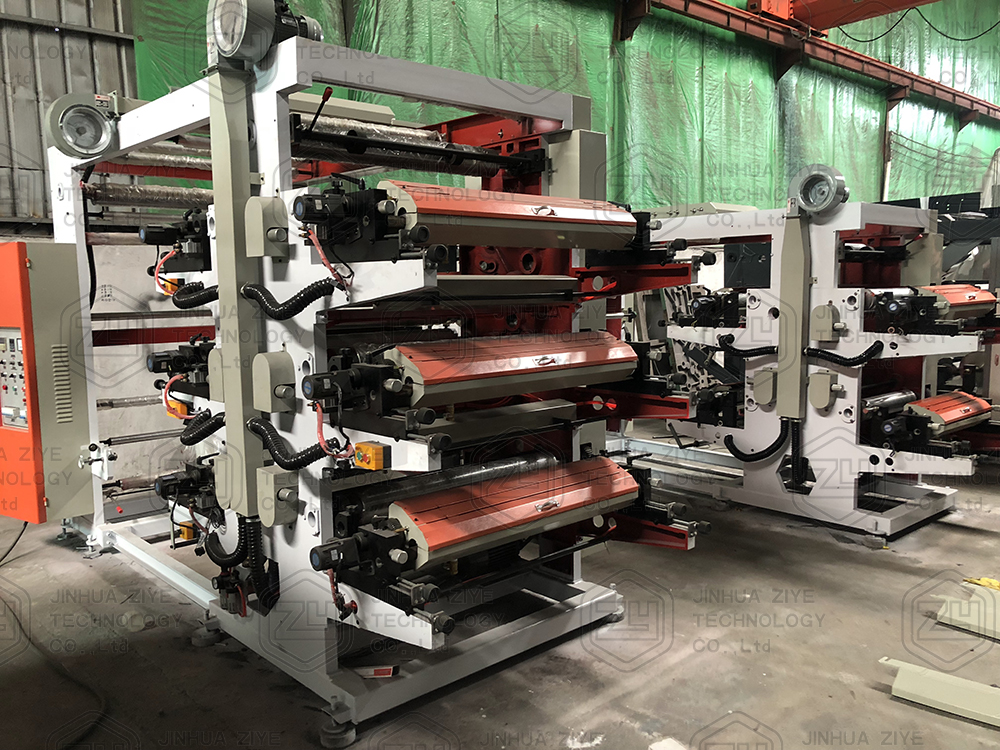

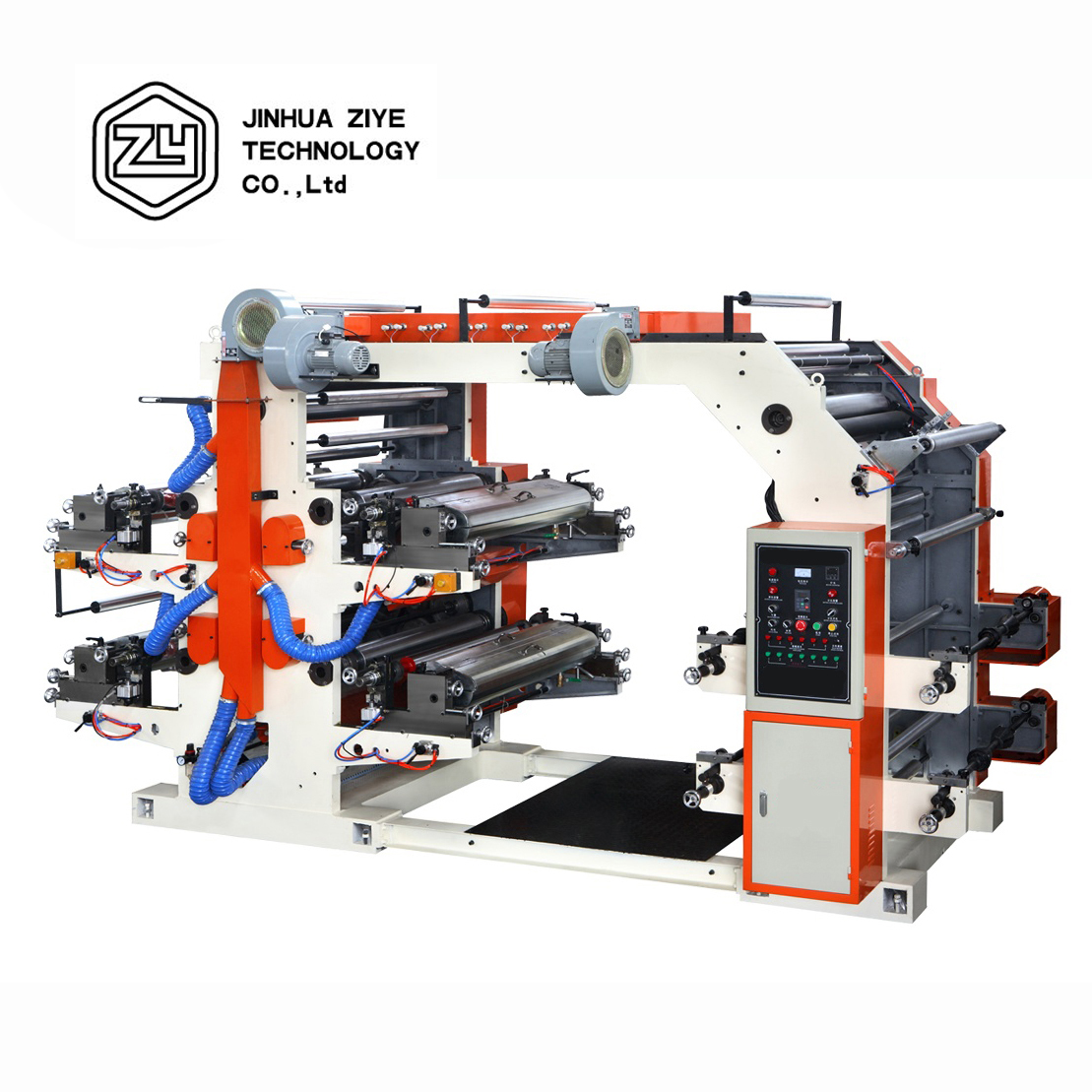

| Machine Model | FP4600 | FP4800 | FP41000 |
|---|---|---|---|
| Printing speed | 50m/min | 50m/min | 50m/min |
| Max. Web Width | 600mm | 800mm | 1000mm |
| Max. Unwinding/Rewind Diameter | 500mm | 500mm | 500mm |
| Printing Length | 191-1000mm | 191-1000mm | 191-1000mm |
| Color Quantity | 4 colors | 4 colors | 4 colors |
| Dimensions | 4300*1600*2445mm | 4300*1800*2445mm | 4300*2000*2445mm |
| Main motor | 15 KW | 15 KW | 15 KW |
| Voltage | 220V/380V | 220V/380V | 220V/380V |

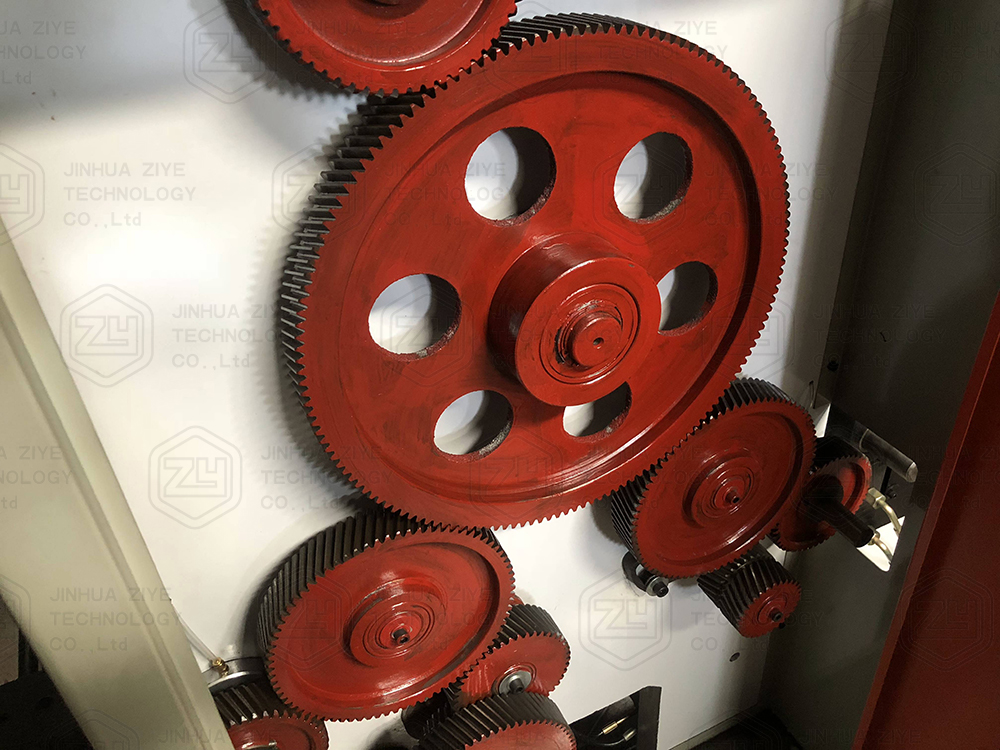

| Gear | Straight/Helical Gear | Straight/Helical Gear | Straight/Helical Gear |
| Machine weight | 2500 kgs | 3000 kgs | 3500 kgs |

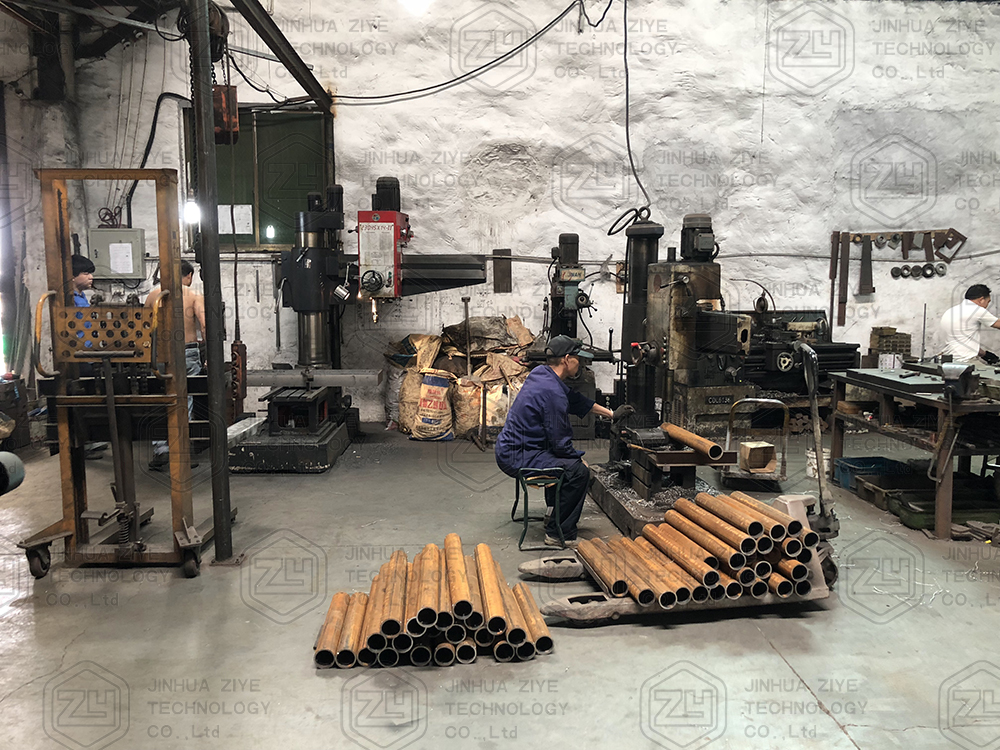

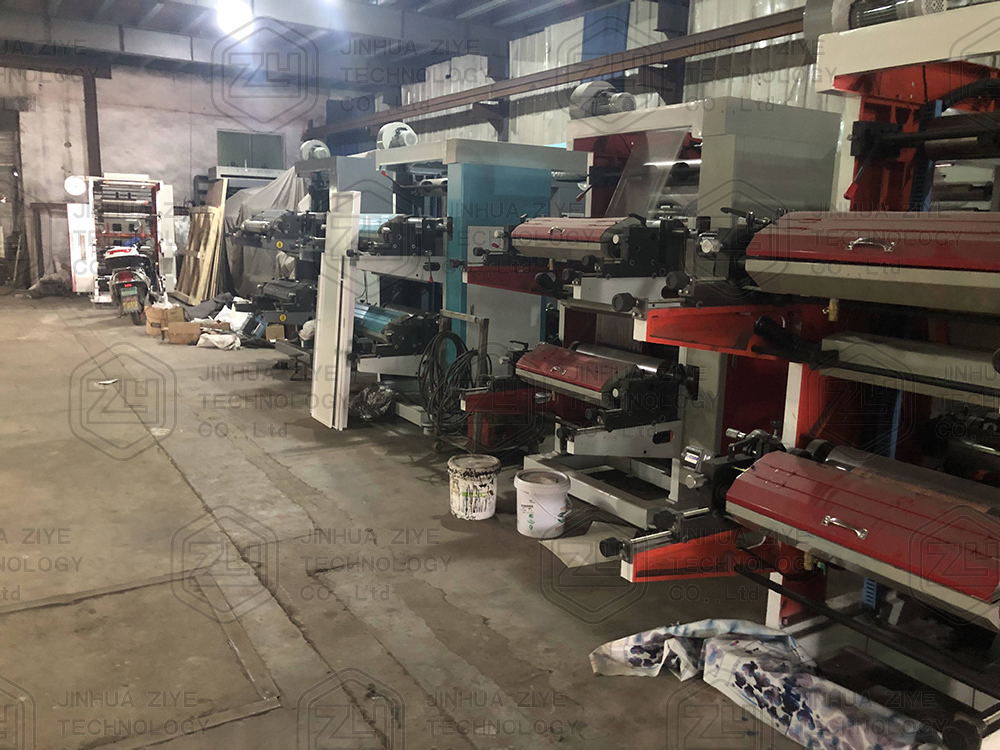

All parts in the machine are processed by our factory. It makes quality control significantly easier.

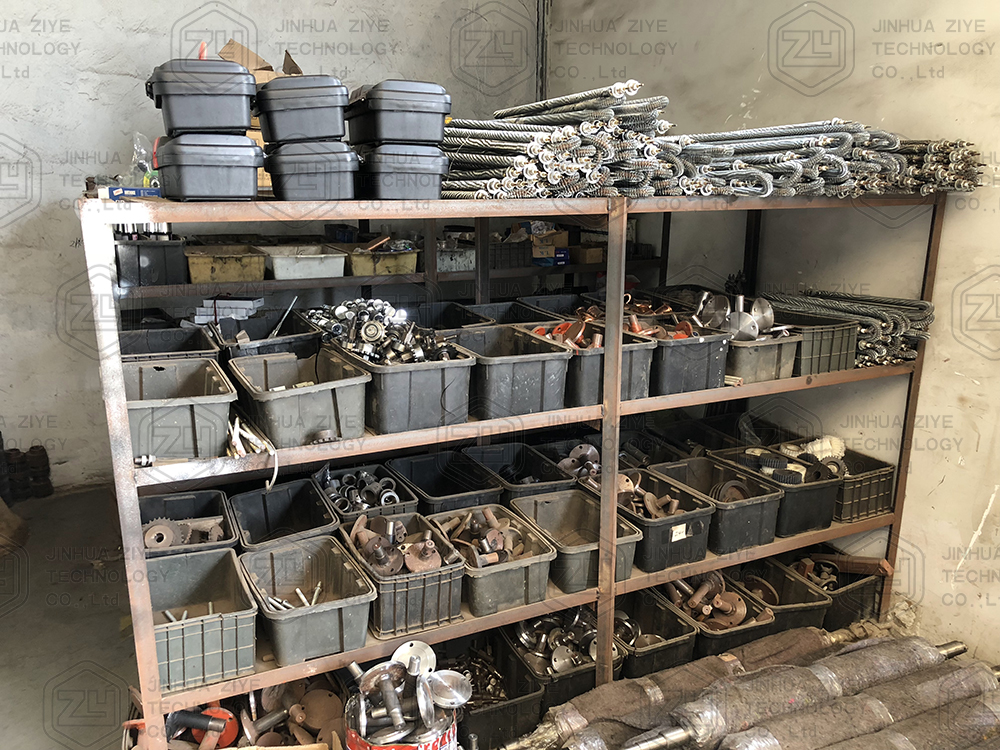

Good management ensures that we produce machines under strict quality standards and precise time planning.
After-sale support is just as important as price and quality. We have a professional support system providing timely feedback.
The machine is designed to print on various materials including plastic films (such as PVC, PP, PET), non-woven fabrics, and all types of paper below 250gsm.

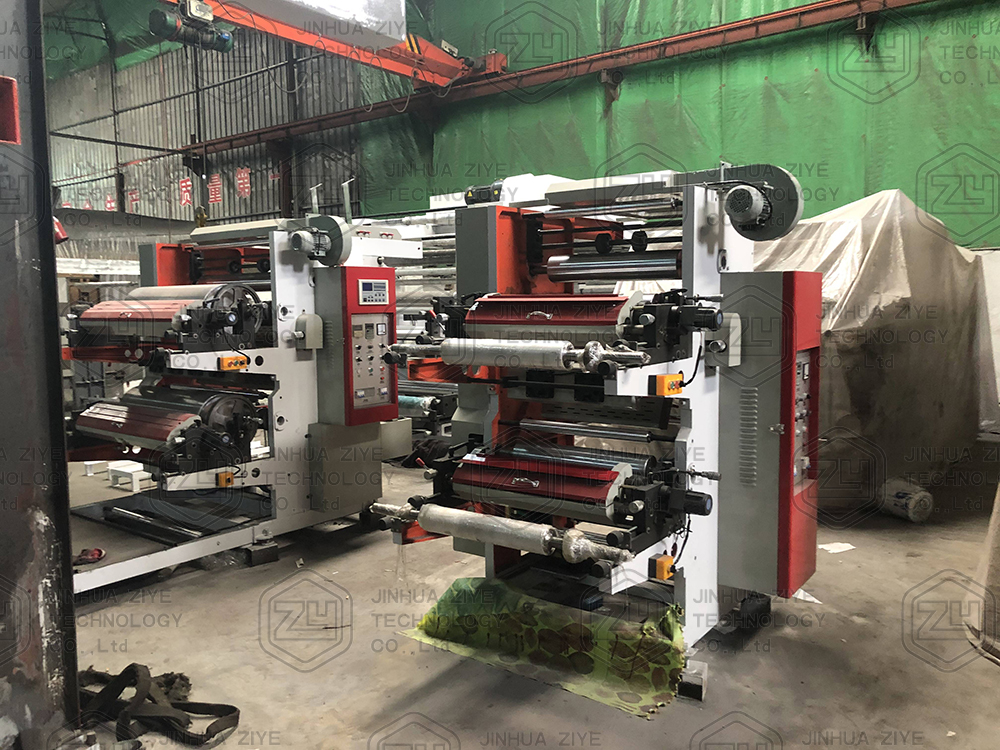

The FP4600, FP4800, and FP41000 models all feature a maximum printing speed of 50 meters per minute.

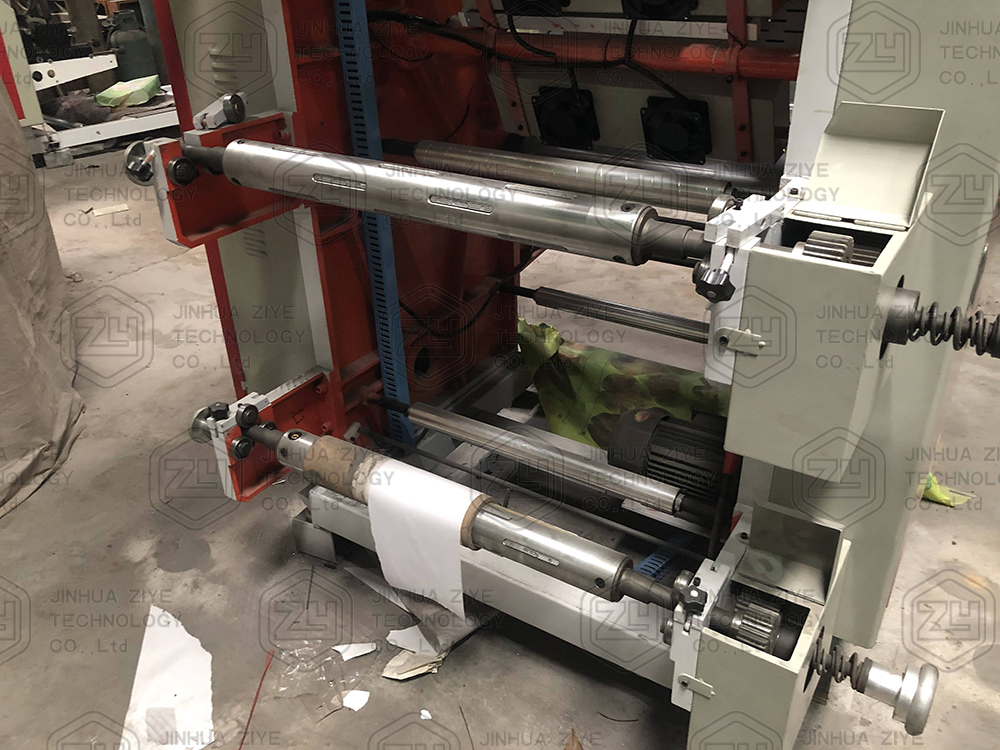

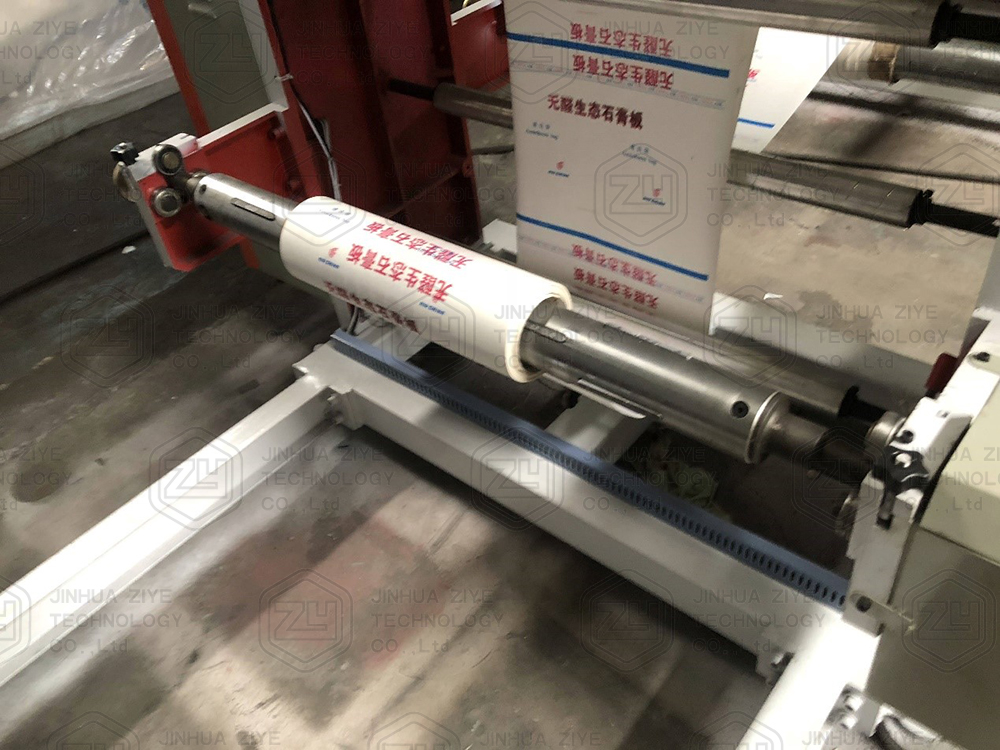

Yes. Standard models feature a 3-inch Air Expanding Shaft supporting a maximum jumbo roll diameter of 500mm, but these dimensions can be customized according to your specifications.

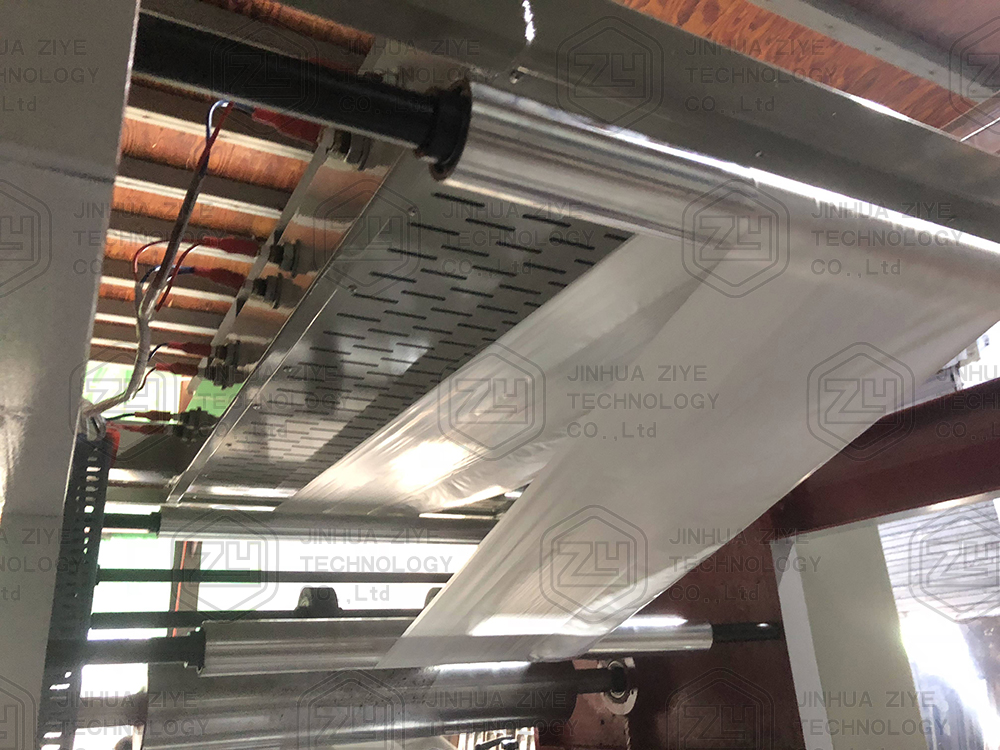

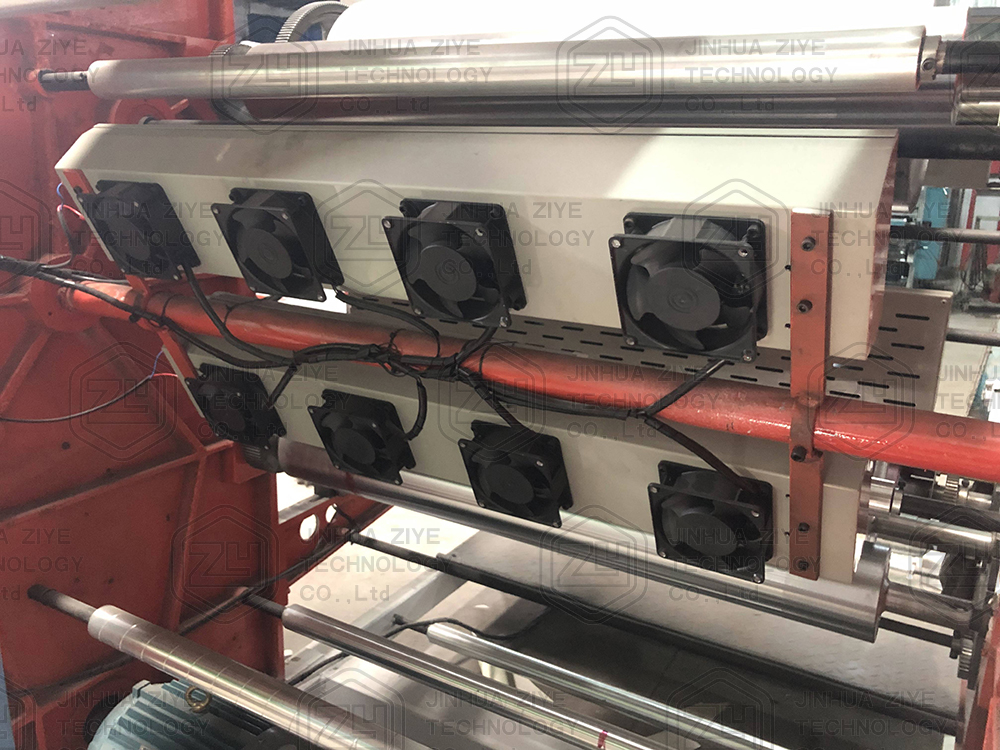

Each printing unit features its own heating drying oven. Infrared heating drying ovens are positioned directly over the material and after each printing station to allow for continuous, high-speed drying.

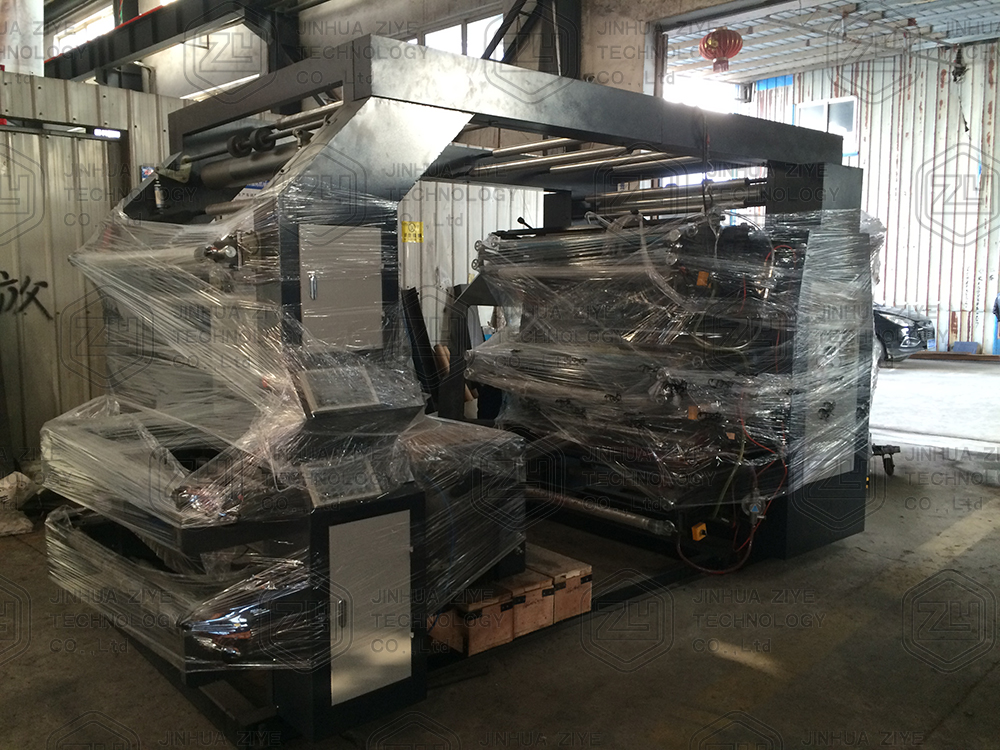

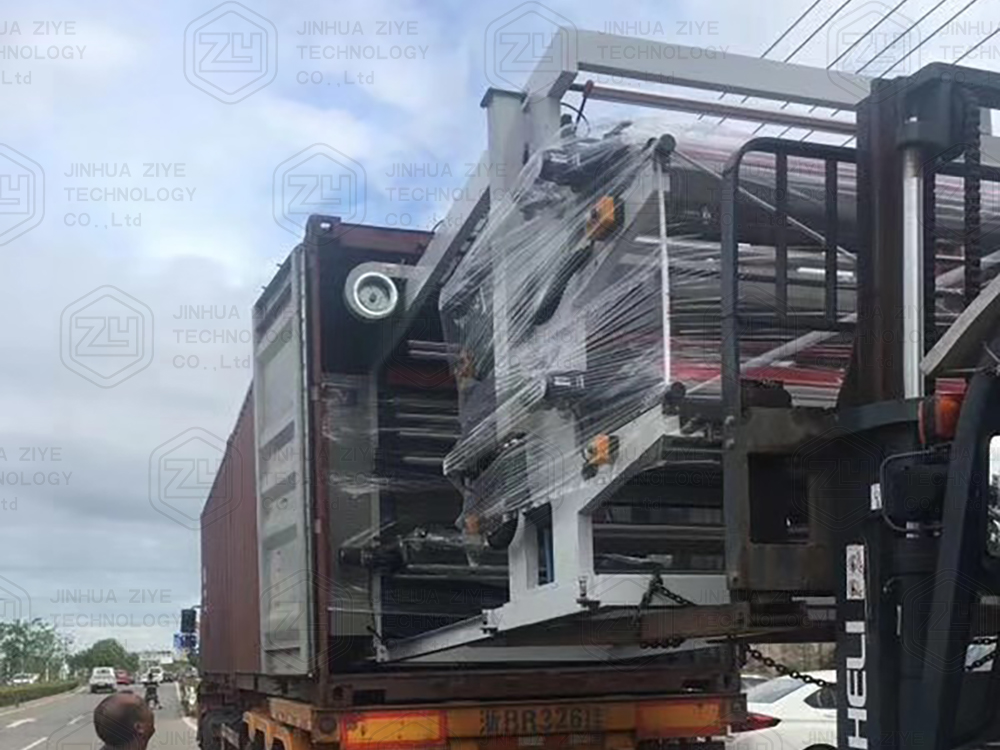

To prevent rust, the machine is coated in protective oil and wrapped in tight plastic film. For transport safety, the machine is shipped securely inside sea-worthy wooden cases.

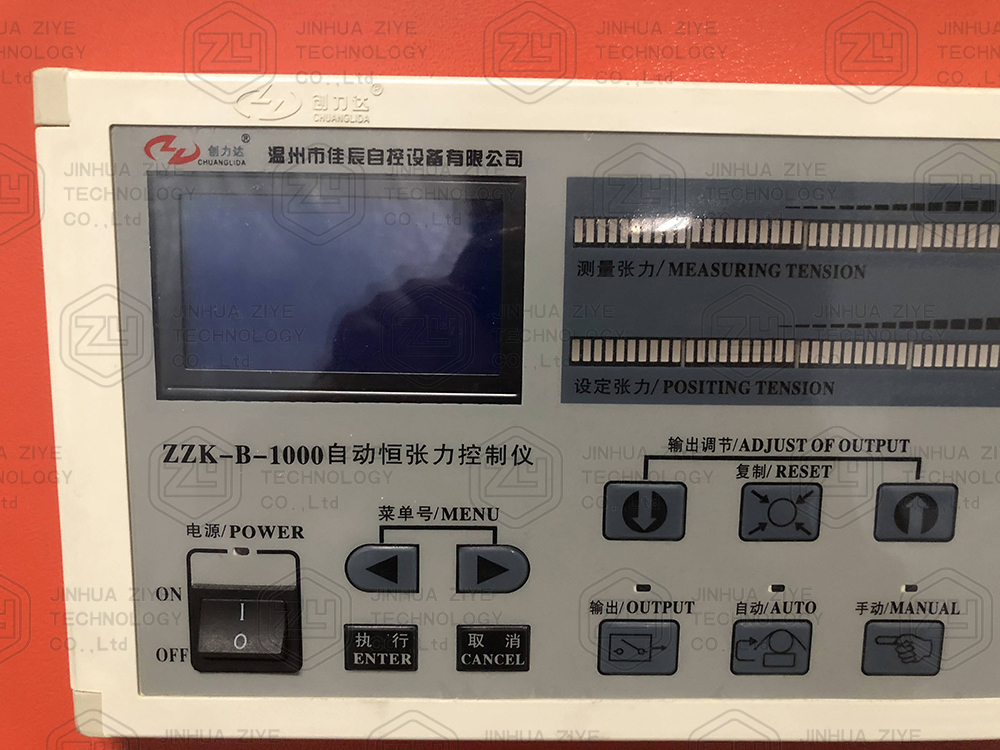

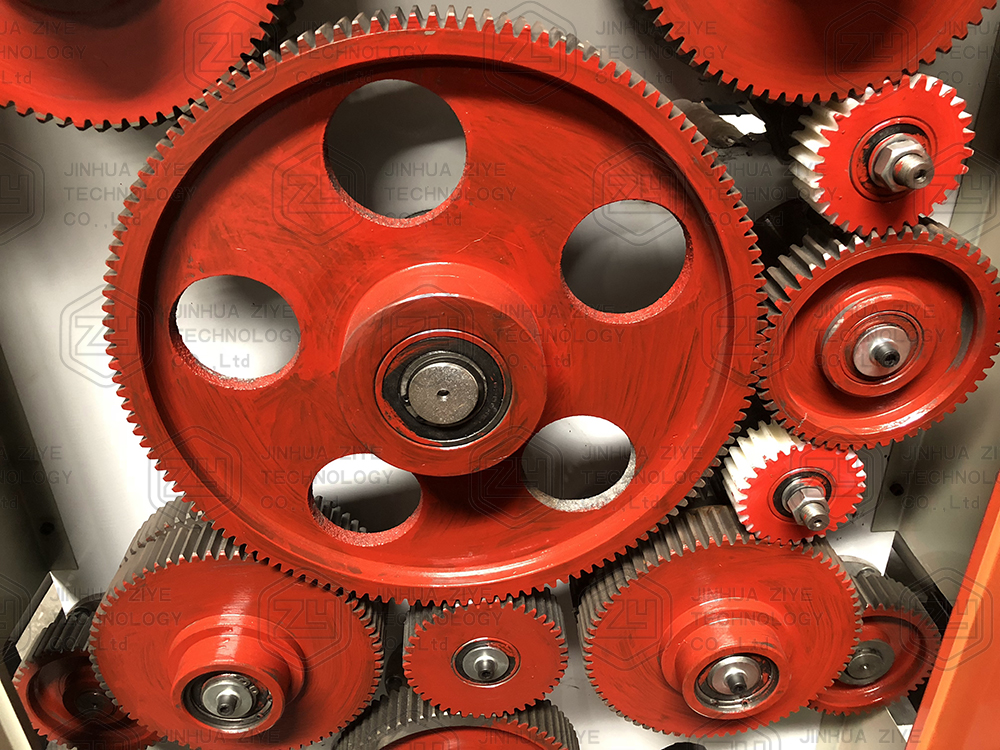

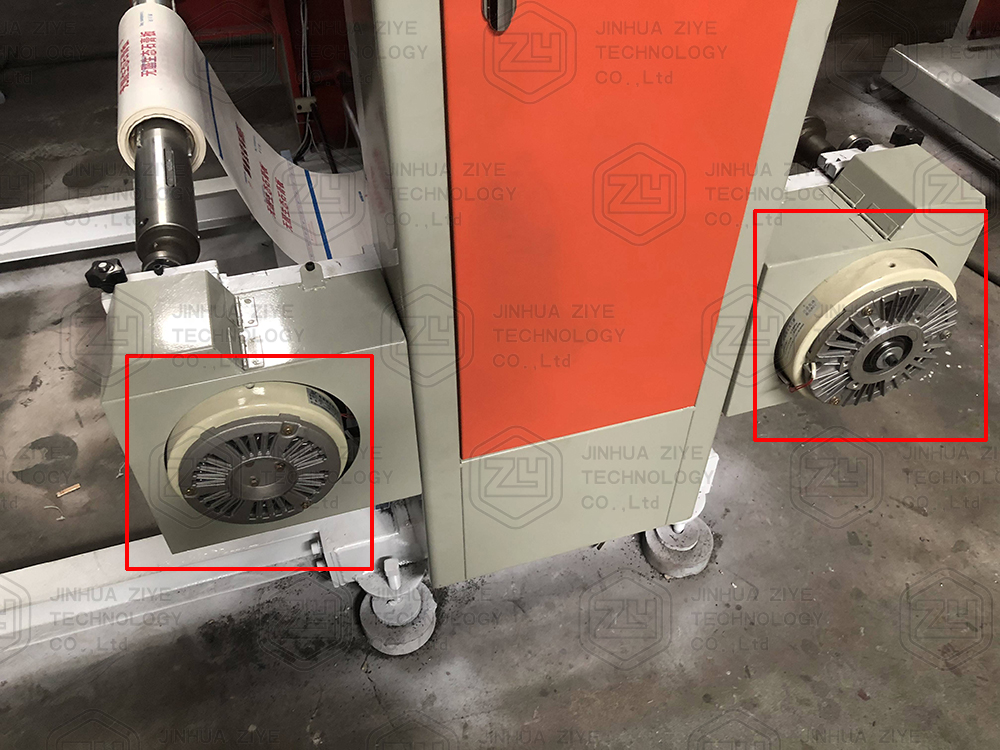

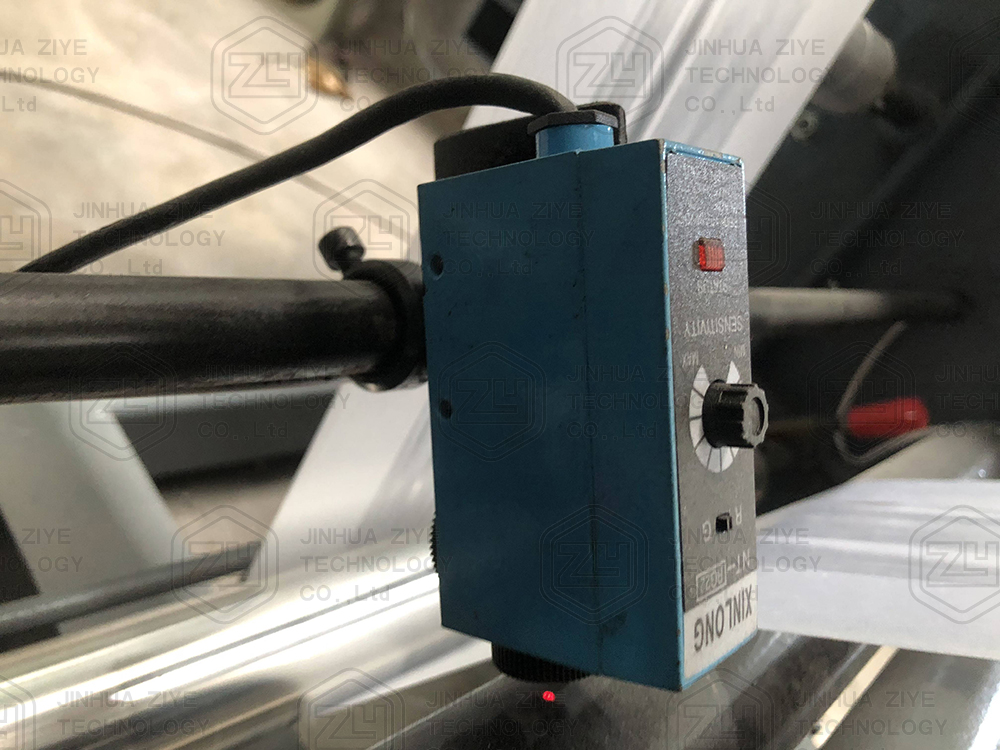

Yes, optional systems include the Web Guide System, Magnetic Brakes/Clutches, Auto Constant Tension Controllers, and special Straight or Helical Gear Driving Systems for reduced noise.
