| Technical Parameter | |
|---|---|
| Model: | XHYT-B41000mm |
| Printing Color: | 4 Colors |
| Max. Width of Material: | 1000mm |
| Max. Width of Printing: | 960mm |
| Length of Printing: | 200-1000mm |
| Machinery Speed: | 10-160m/min |
| Printing Speed: | 10-150m/min (according to the printing materials) |
| Register Precision: | Transverse: +-0.15 | Longitude: +-0.15 |
| Thickness of Plate: | 2.38mm, 1.7mm (including the glue, according to client requirements) |
| Anilox Roller: | Ceramic anilox roller |
| Heating Power: | 36KW |
| Total Power: | 48KW |
| Machine Weight: | 6900KG |
| Machine Dimension (L×W×H): | 5600*2500*3000mm |
| Power: | Voltage: 380V, 3PH, 50HZ |
Various kinds of soft packing materials such as roll paper, plastic film, non-woven, etc.

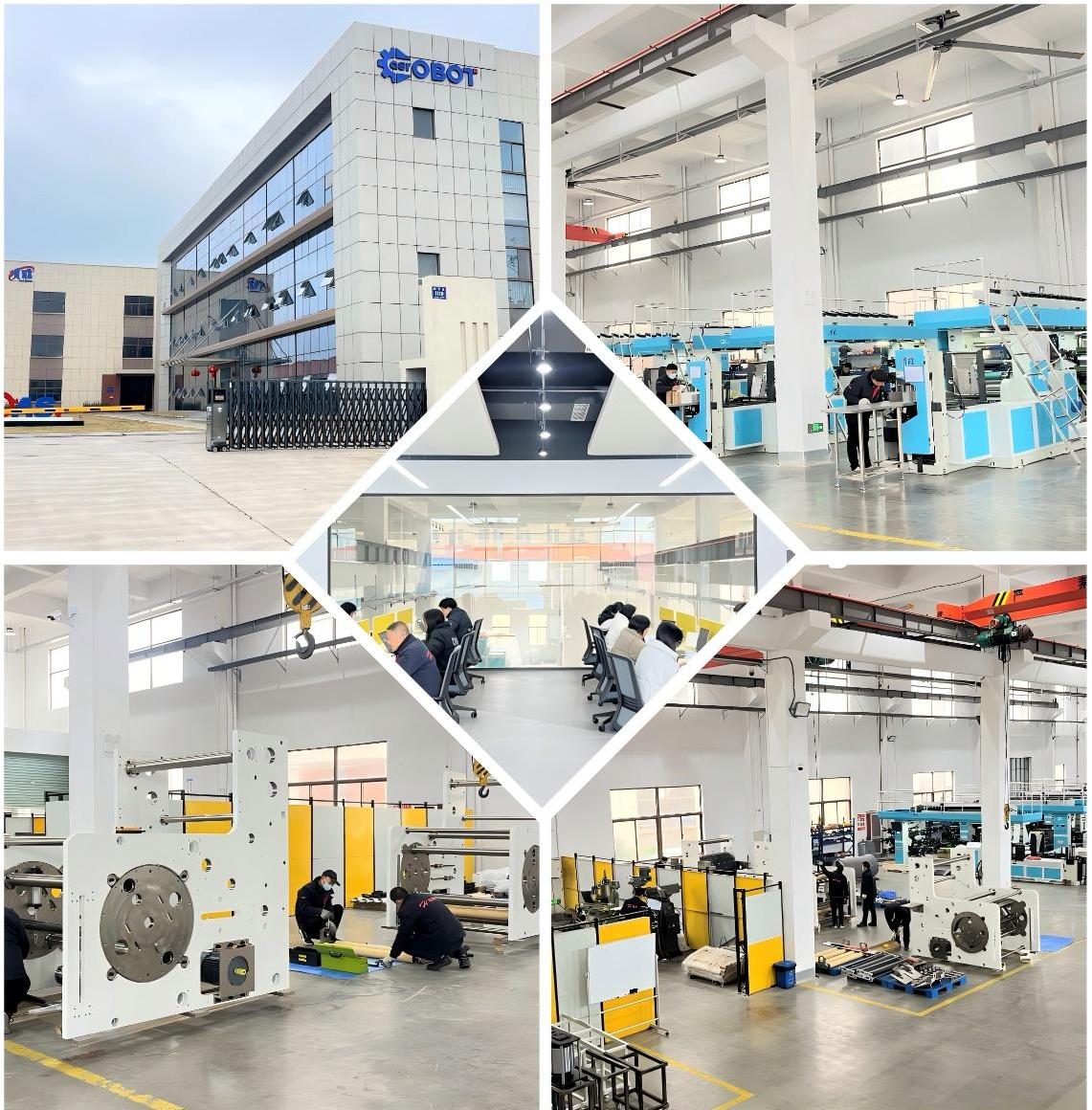

The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!

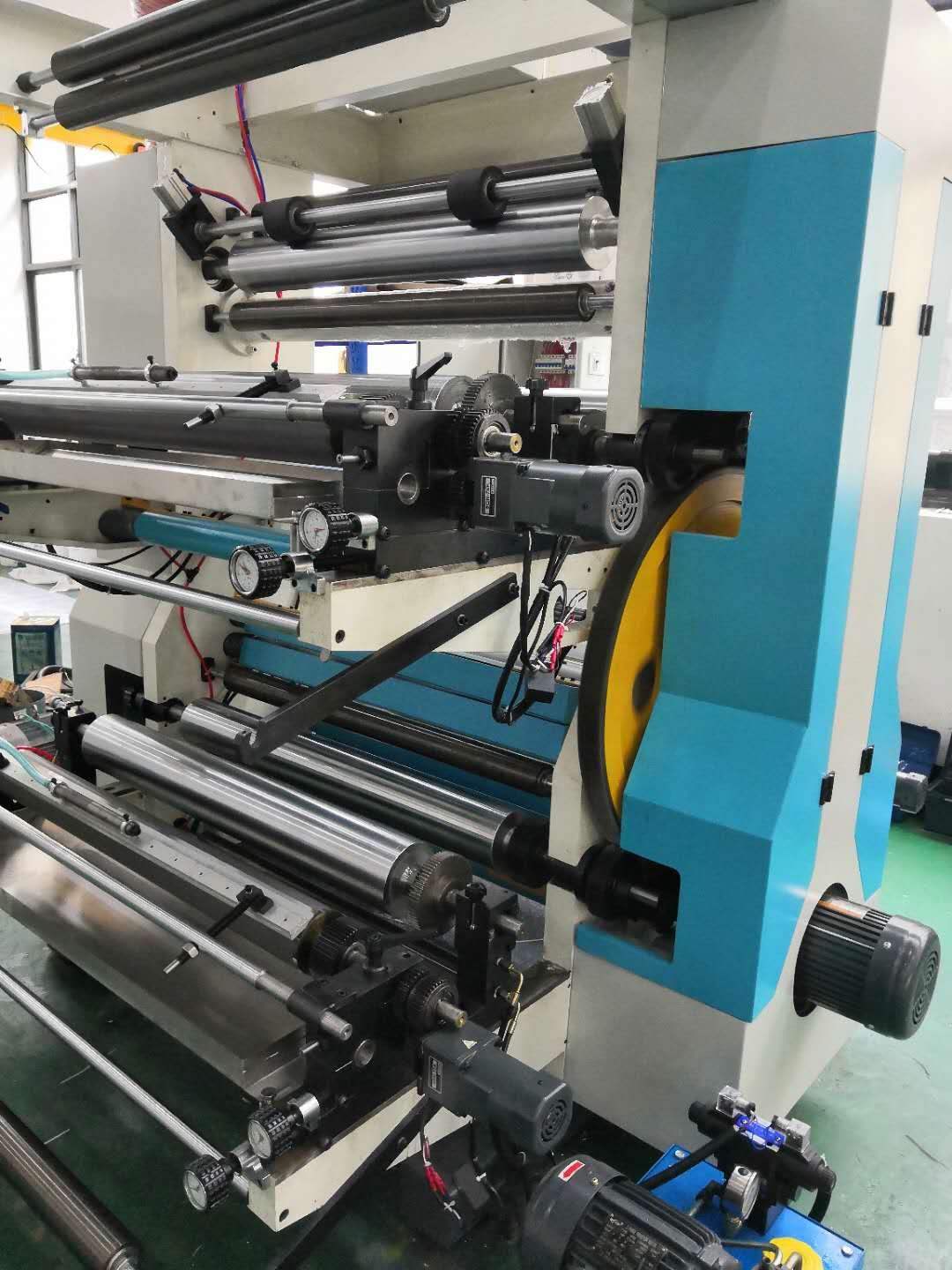

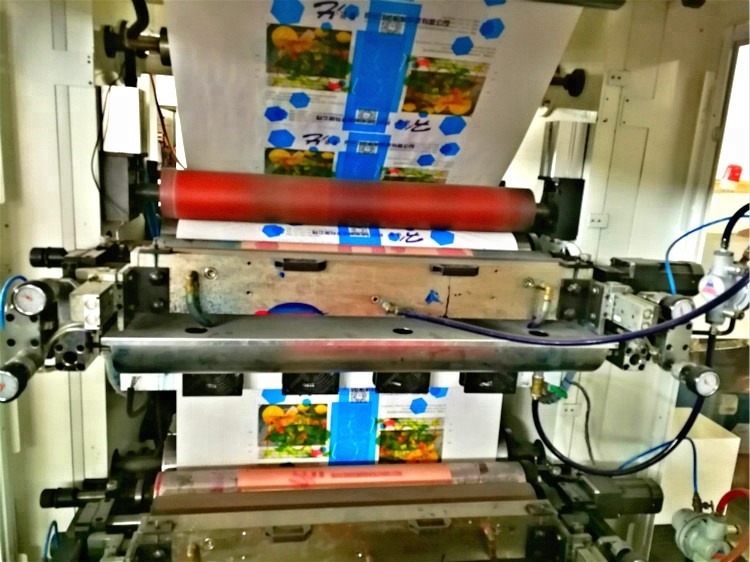

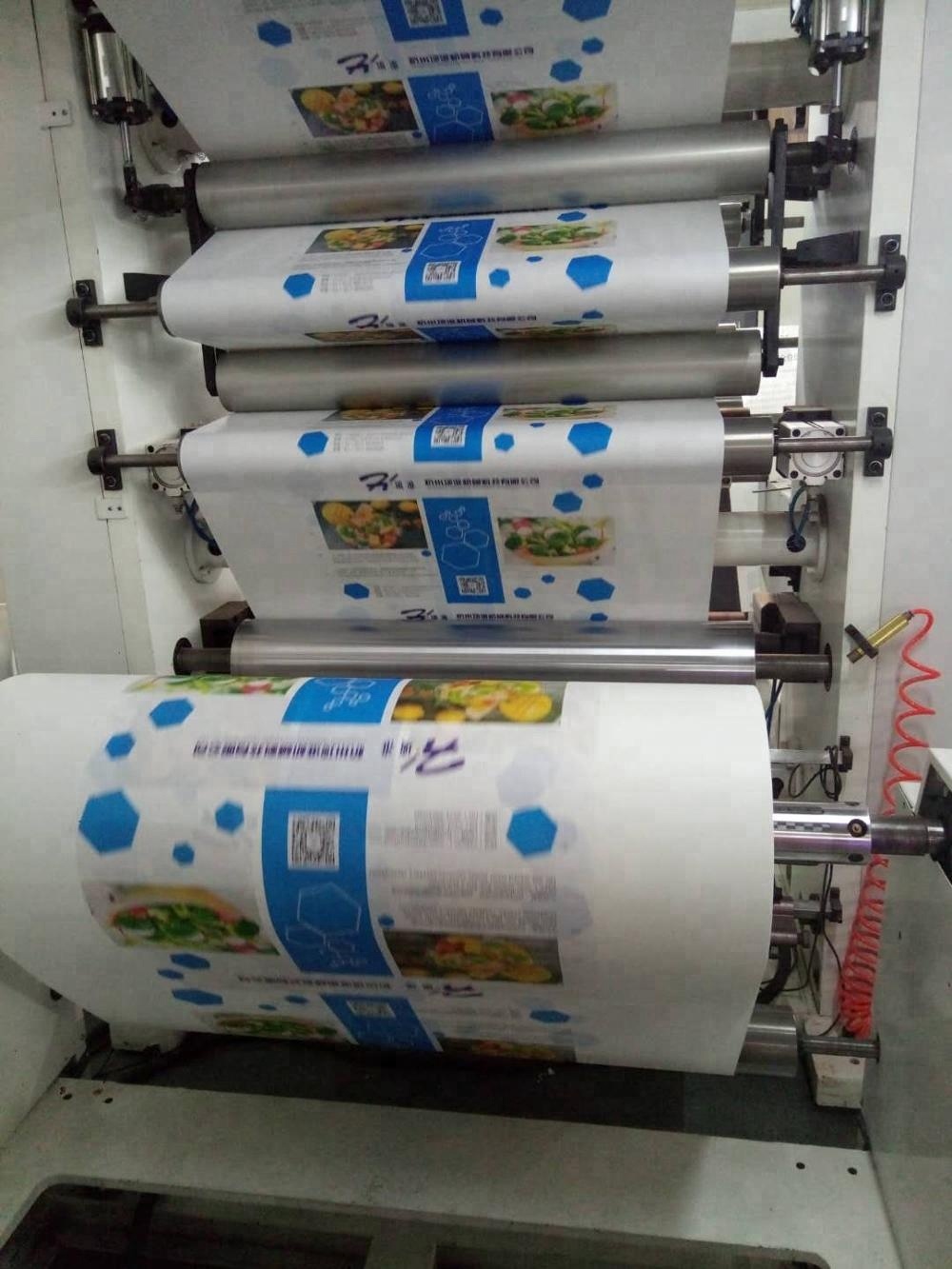

This machine is highly versatile and suitable for printing on various soft packing materials, including roll paper, plastic film, and non-woven fabric rolls.
The machine features a design speed of 10-160m/min and a functional printing speed of 10-150m/min. The final running speed is dependent on the characteristics of the specific printing material and ink used.
The register precision for both transverse and longitudinal alignments is ±0.15mm, ensuring clean and sharp printing outputs.
The machine supports plate thicknesses of 2.38mm and 1.7mm (including the mounting glue/tape). This configuration can be adjusted according to client requirements.

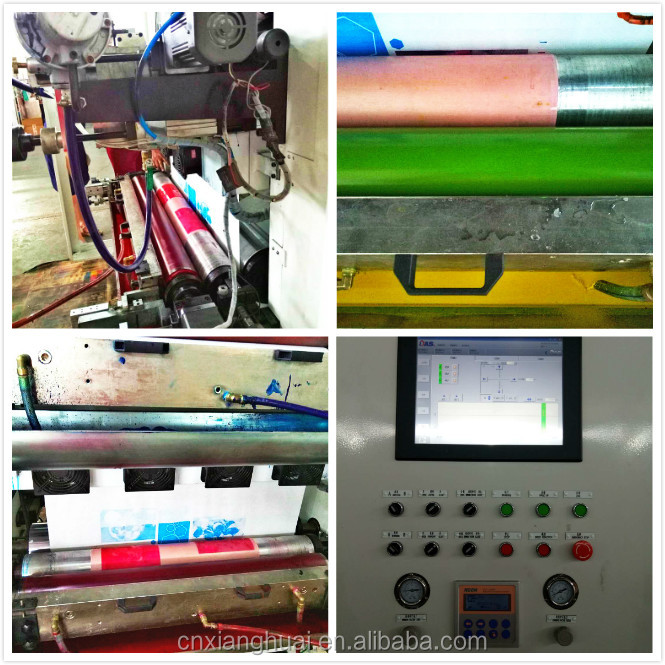

High-durability ceramic anilox rollers are utilized to ensure precise ink distribution, consistent print quality, and prolonged component lifetime.
The system operates on a standard voltage of 380V, 3 Phase, 50Hz. The total power is 48KW (with 36KW allocated for heating). The external machine dimensions are 5600*2500*3000mm.
