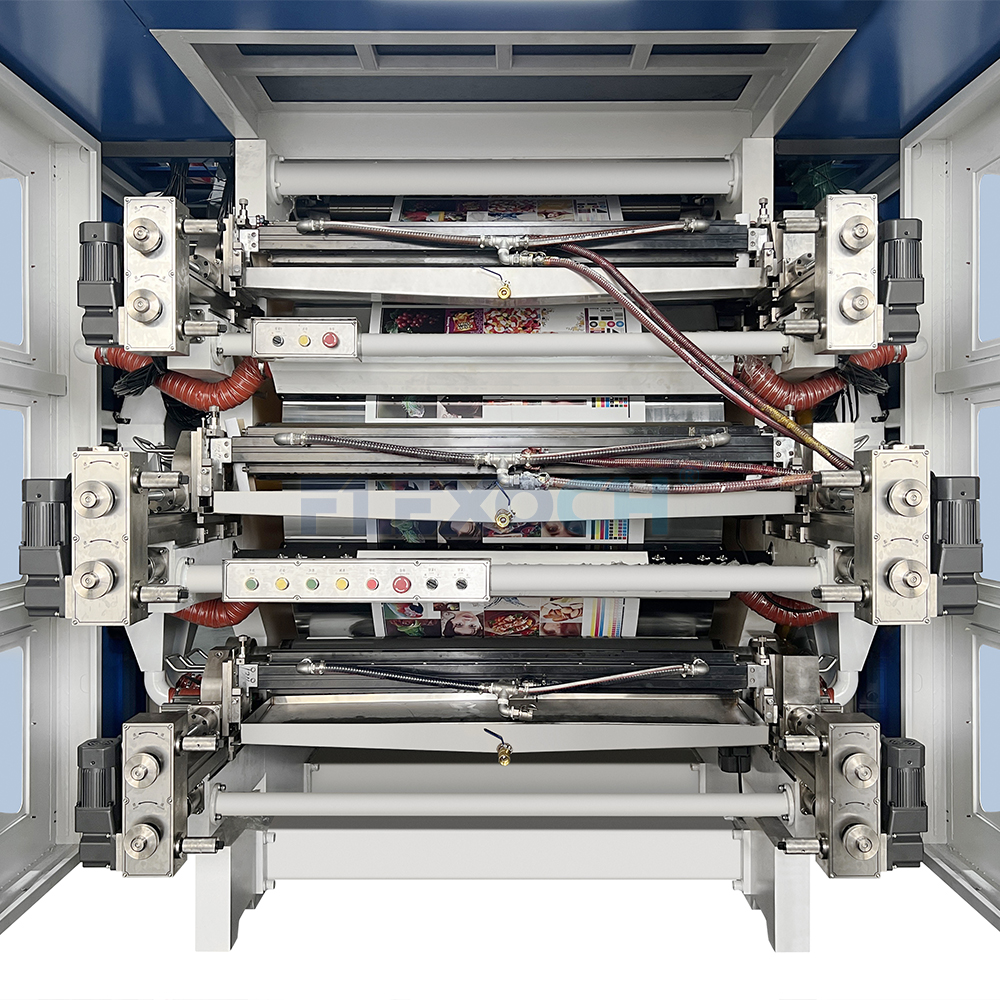

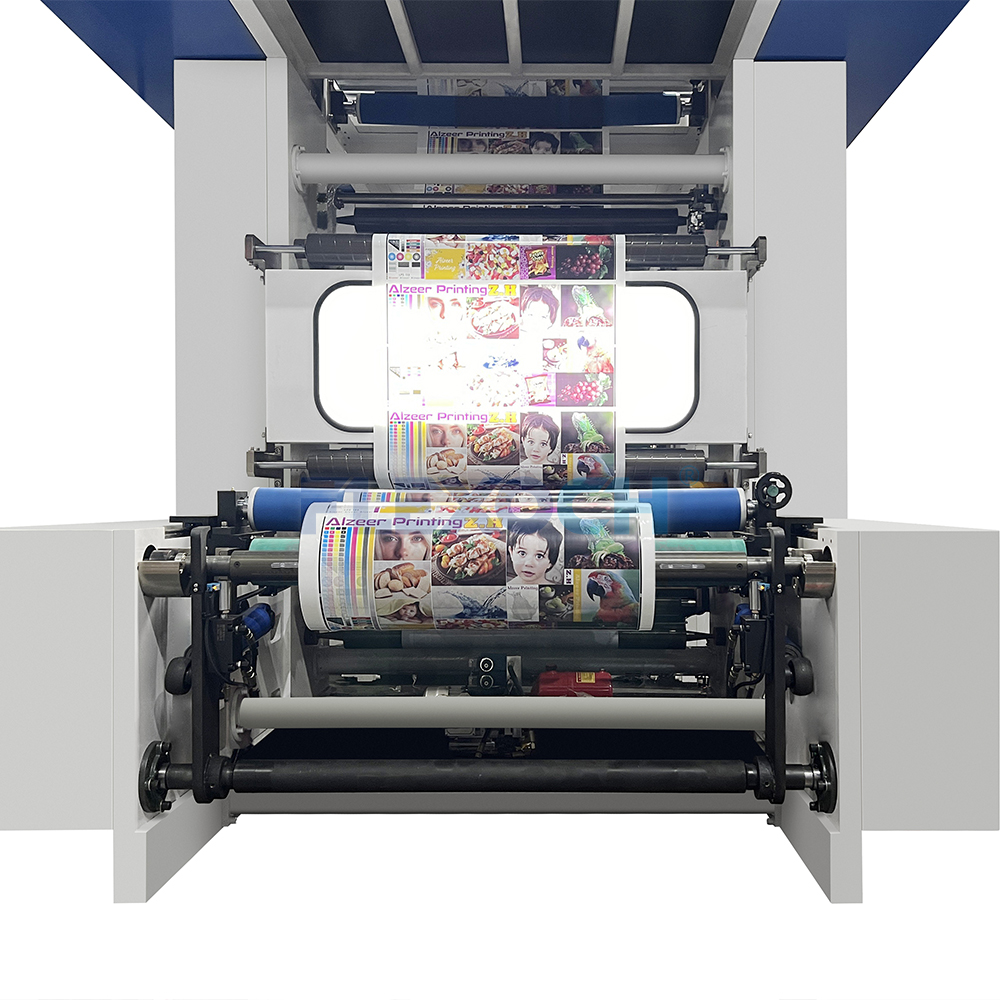

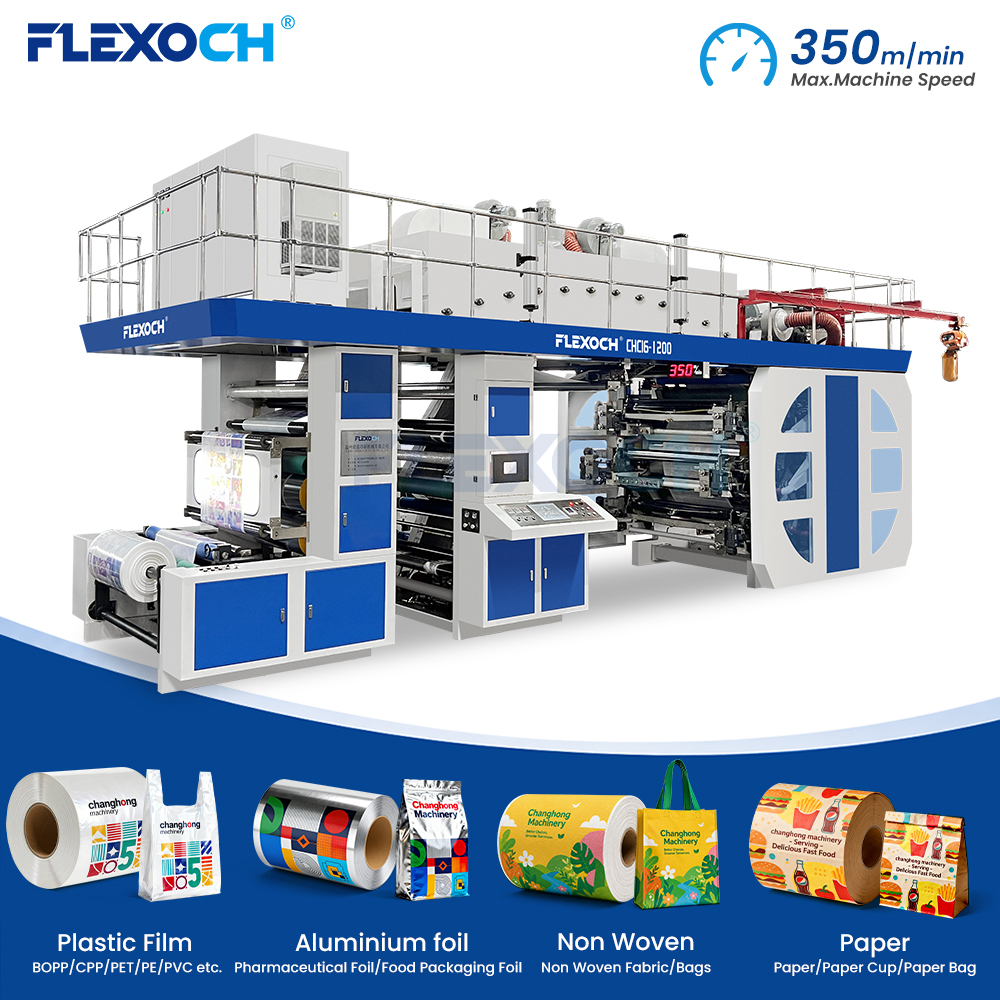

High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
1 / 5
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film
High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film

High Speed CI Roll To Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press For Plastic Packaging Film

Send Inquiry

Product Description

Product Highlights

High Efficiency Production Performance

Boasting a continuous operational speed of 250m/min and 0.1mm registration precision, this equipment ensures high-capacity manufacturing for premium commercial orders while drastically reducing material waste during color switching.

Versatile Packaging Film Applications

Seamlessly handles multi-spec substrates from 10 to 150 microns including BOPP, PET, PE, Nylon, and shrink films.

Advanced Automated Control System

Integrated with centralized PLC intelligence and automated tension regulation to stabilize thin film feeding, combined with real-time video inspection to monitor graphic quality on the fly without stopping the line.

CI Drum Printing Technology

The central impression cylinder provides stable web handling and precise color registration, while the quick sleeve change system shortens setup time and improves productivity for converters handling multiple packaging designs and SKU variations.

High Speed CI Roll to Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press for Plastic Packaging Film
High Speed CI Roll to Roll Flexographic Printing Machine 6 Color Central Drum Flexo Press for Plastic Packaging Film
Key Sub-systems & Features

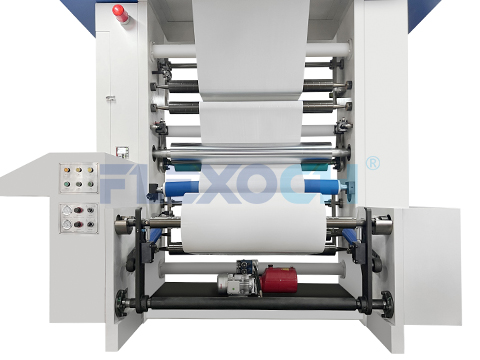

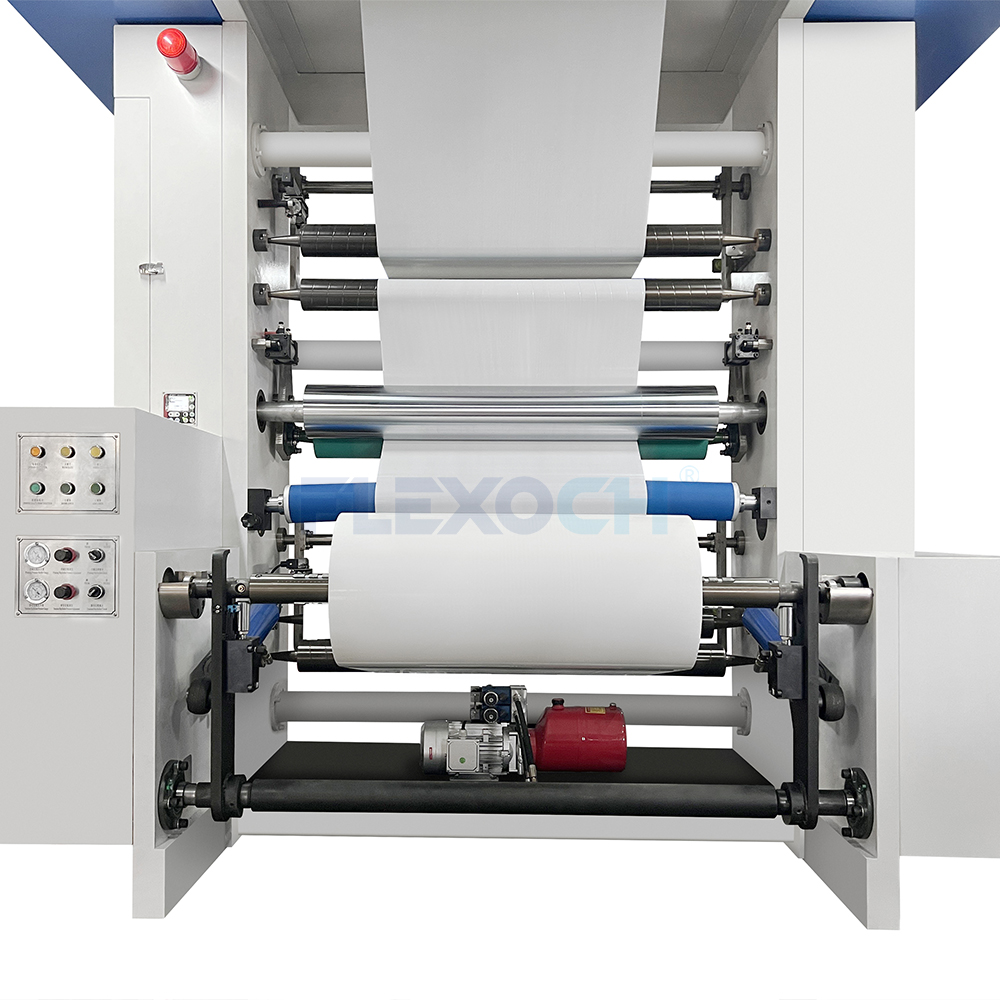

#01 Unwind System Features
Unwind & Tension Control
  • Servo Motor Driven
  • Hydraulic lifting for unwind
  • Center Driven Unwind System
  • Ultrasonic Web Guide System
  • Automatic Tension Control

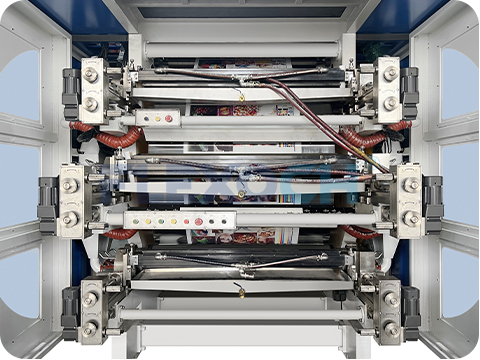

#02 CI Drum and Printing Unit
Printing Unit & Central Drum
  • Plate Self-Cleaning Function
  • Central Impression (CI) Drum
  • Hydraulic Position Printing
  • Ceramic Anilox Roller
  • Chambered Doctor Blade

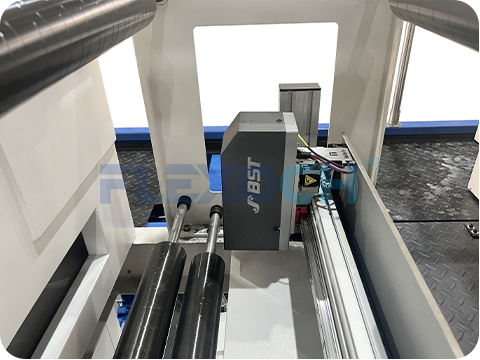

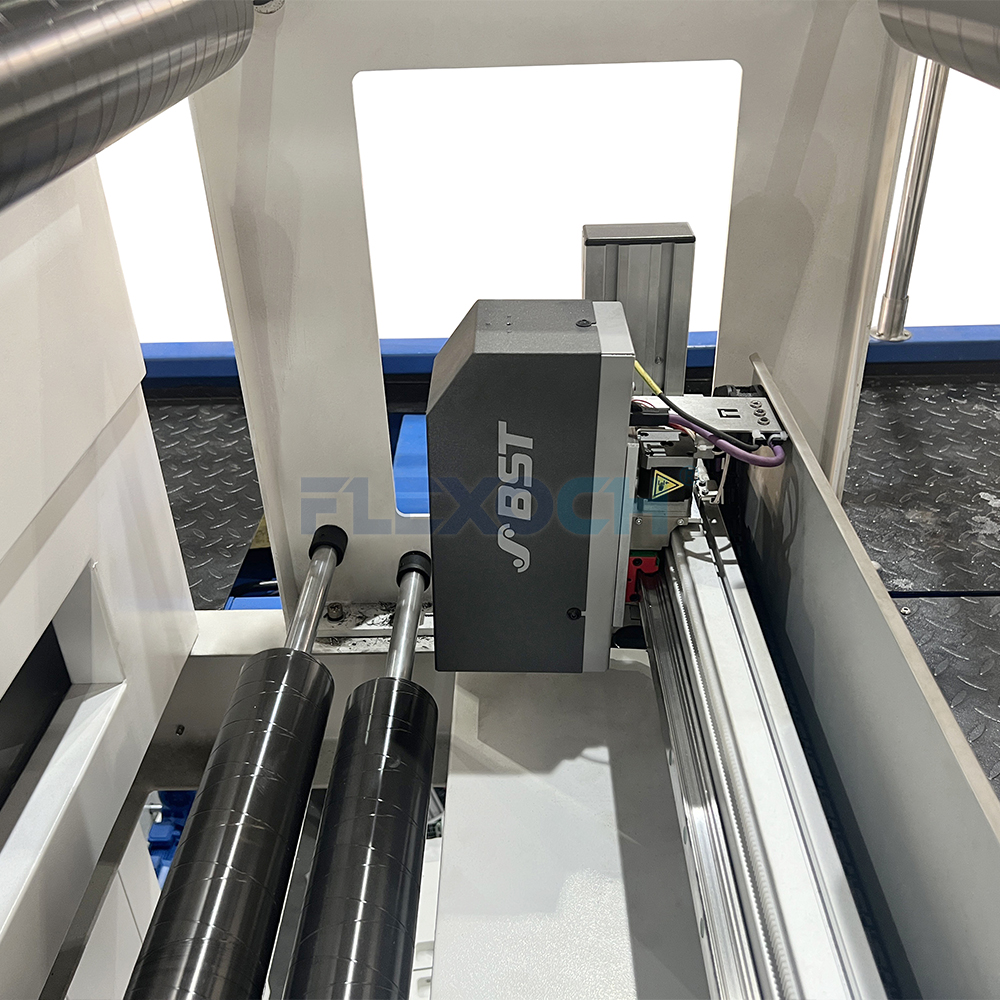

#03 Video Inspection System
Video Inspection System

High-speed cameras monitor the entire web width in real time, automatically detecting print defects such as color variation, missing print, and streaks.

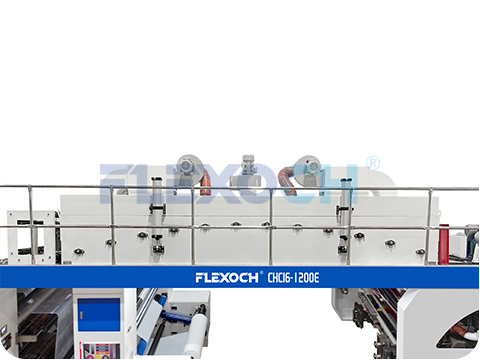

#04 Drying System
Drying & Airflow System
  • Electric Heating System
  • Variable Frequency Airflow Control
  • Intelligent Constant Temperature Control
  • Hot Air Circulation Drying System
  • Fully Enclosed Oven Structure

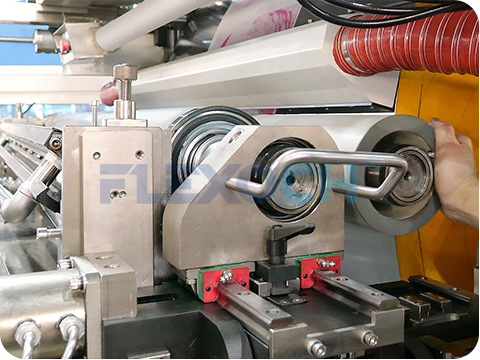

#05 Quick change sleeves
Sleeve & Mounting System
  • Quick-change sleeves
  • Air-assisted mounting
  • Lightweight construction
  • Multiple repeat lengths

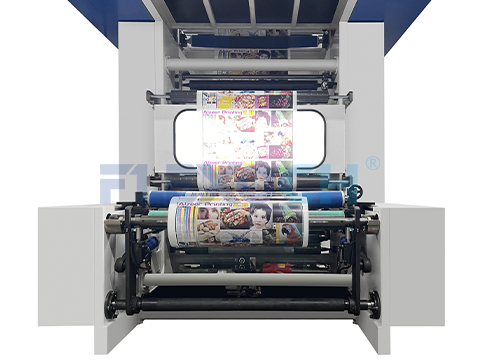

#06 Rewind System
Rewind & Fault Detection
  • Servo Motor Driven
  • Hydraulic lifting for rewind
  • Center Driven Rewind System
  • Automatic Tension Control
  • Automatic Fault Detection
High Speed CI Roll to Roll Flexographic Printing Machine Technical Layout

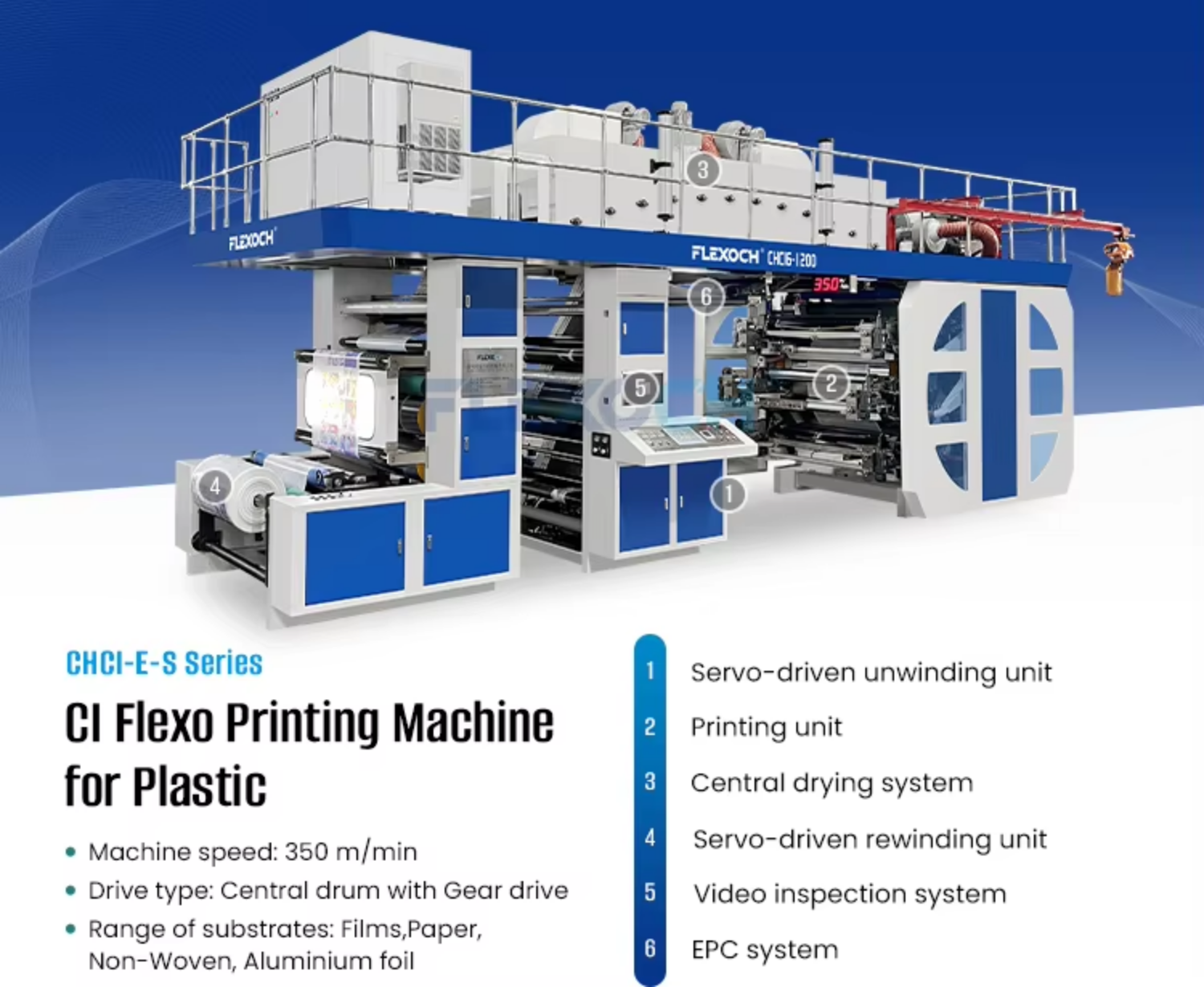

High Speed CI Roll to Roll Flexographic Printing Machine Dimensions
Technical Specifications
Model CHCI4-600E-S CHCI4-800E-S CHCI4-1000E-S CHCI4-1200E-S
Max. Web Width 700mm 900mm 1100mm 1300mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Mechanical Speed 350m/min
Max. Printing Speed 300m/min
Max. Unwind/Rewind Dia. φ 800mm / φ 1000mm / φ 1200mm
Drive Type Central drum with Gear drive
Printing Length (repeat) 350-900mm
Electrical Supply Voltage 380V, 50 HZ, 3PH or to be specified
Ink Water base ink or solvent ink
Range of Substrates LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon
Photopolymer Plate To be specified
CI Drum Flexo Press Frame Details
CI Drum Flexo Press Assembly
About The Supplier

We are a professional printing machinery manufacturer integrating research and development, manufacturing, sales, and service. We are a leading manufacturer of flexographic printing machines. Our main products include CI flexo printing machines, economical CI flexo presses, stack flexo printing machines, and other related equipment. Our products are widely sold across the domestic market and exported to Southeast Asia, the Middle East, Africa, Europe, and other regions.

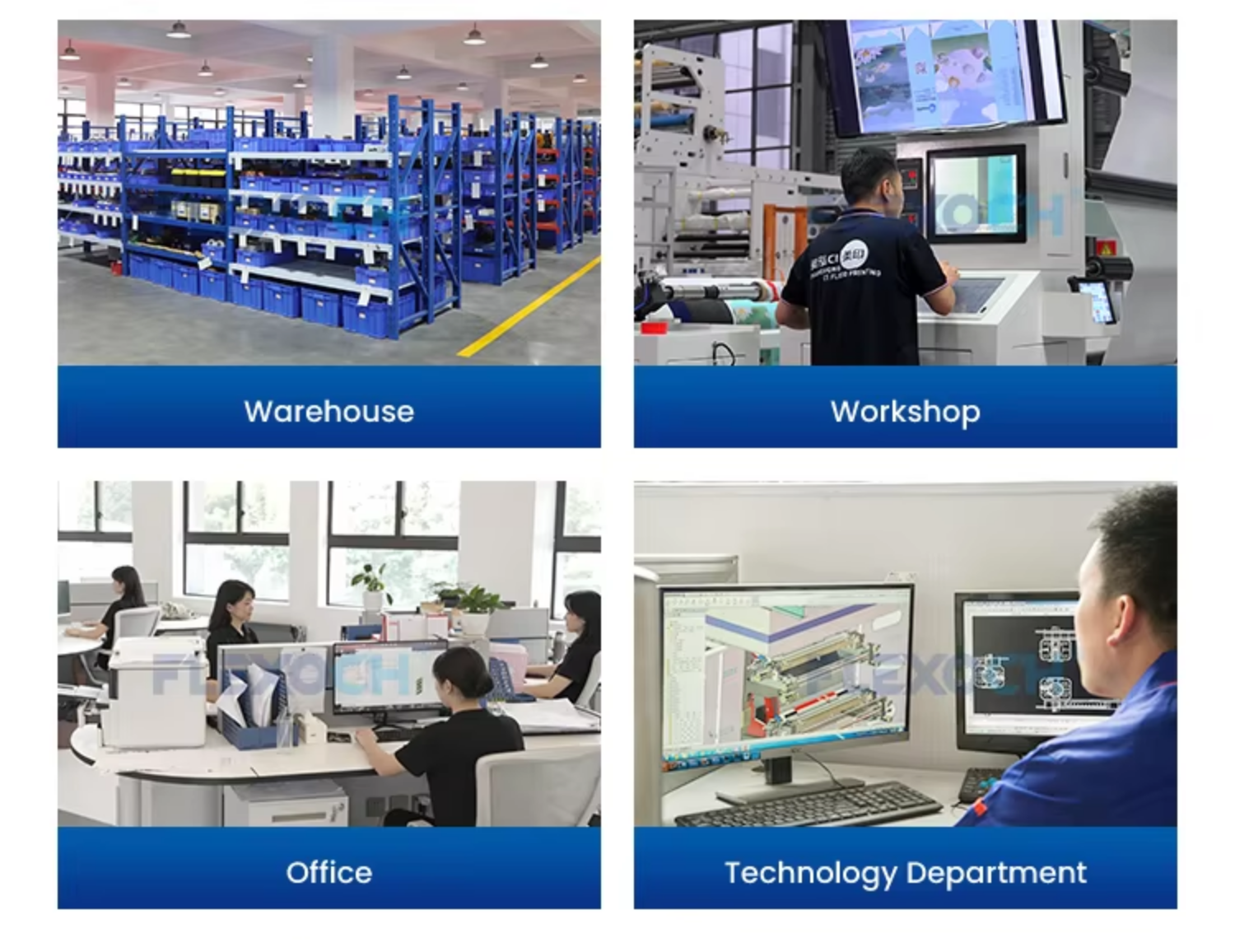

Flexographic Printing Machine Processing Plant
Flexo Press Manufacturing Assembly Line
CI Drum Manufacturing Facility
Precision Gear Inspection Unit
Finished Flexographic Printing Machine Inspection Area
Frequently Asked Questions (FAQ)
What makes this machine different from traditional flexographic presses?
The sleeve-type CI design enables quick sleeve exchange, faster setup, and more stable color registration during high-speed runs, significantly enhancing productivity and print accuracy.
What kind of printing applications is it suitable for?
This machine is ideal for plastic film packaging, laminated film, food wrapping, and other flexible materials.
How is tension control managed during operation?
A servo-driven center unwinding and rewinding system automatically adjusts web tension to maintain smooth, stable material flow throughout the printing process.
Does it support automatic detection?
Yes, it features a real-time video inspection system where high-speed cameras monitor the entire web width, automatically detecting print defects such as color variations, missing prints, and streaks without stopping the line.
What’s the maximum operating speed?
The sleeve type flexographic printing machine operates at mechanical speeds up to 350 meters per minute and standard printing speeds up to 300 meters per minute, maintaining exceptional color accuracy and stability even during continuous, high-speed runs.
