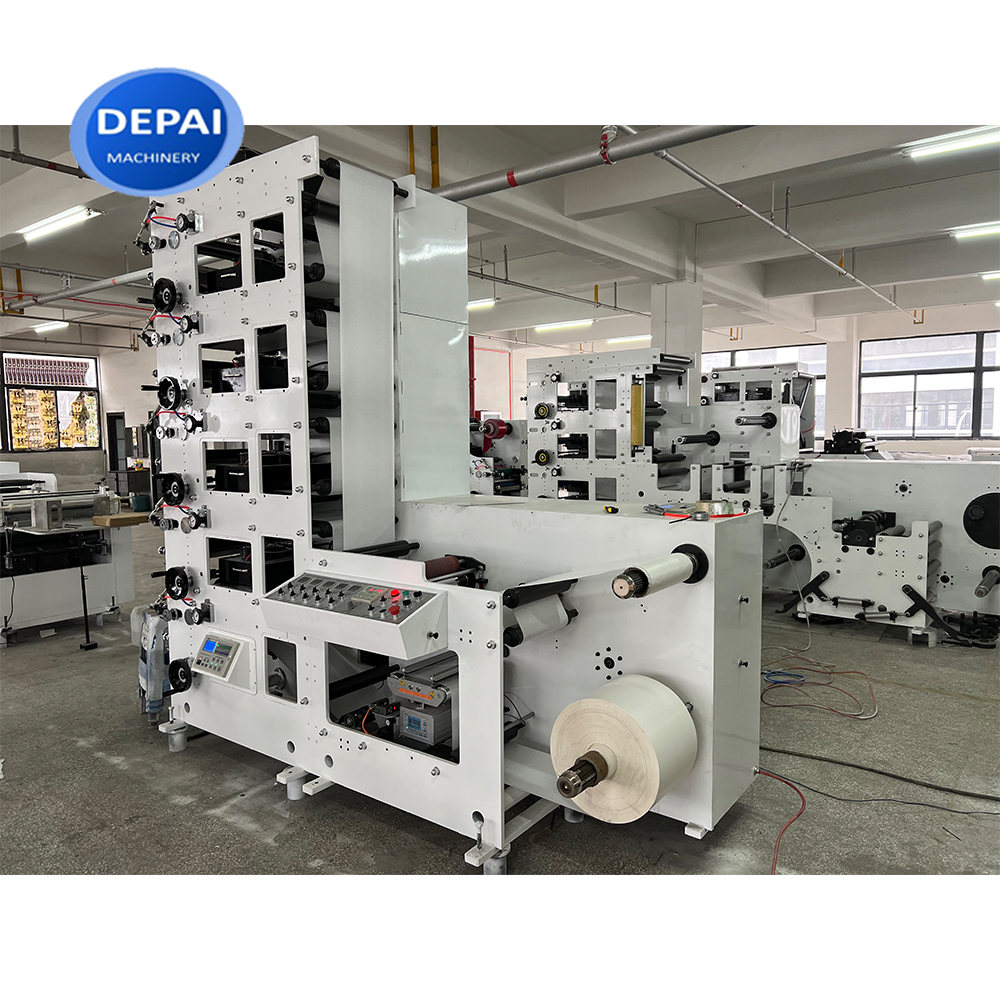

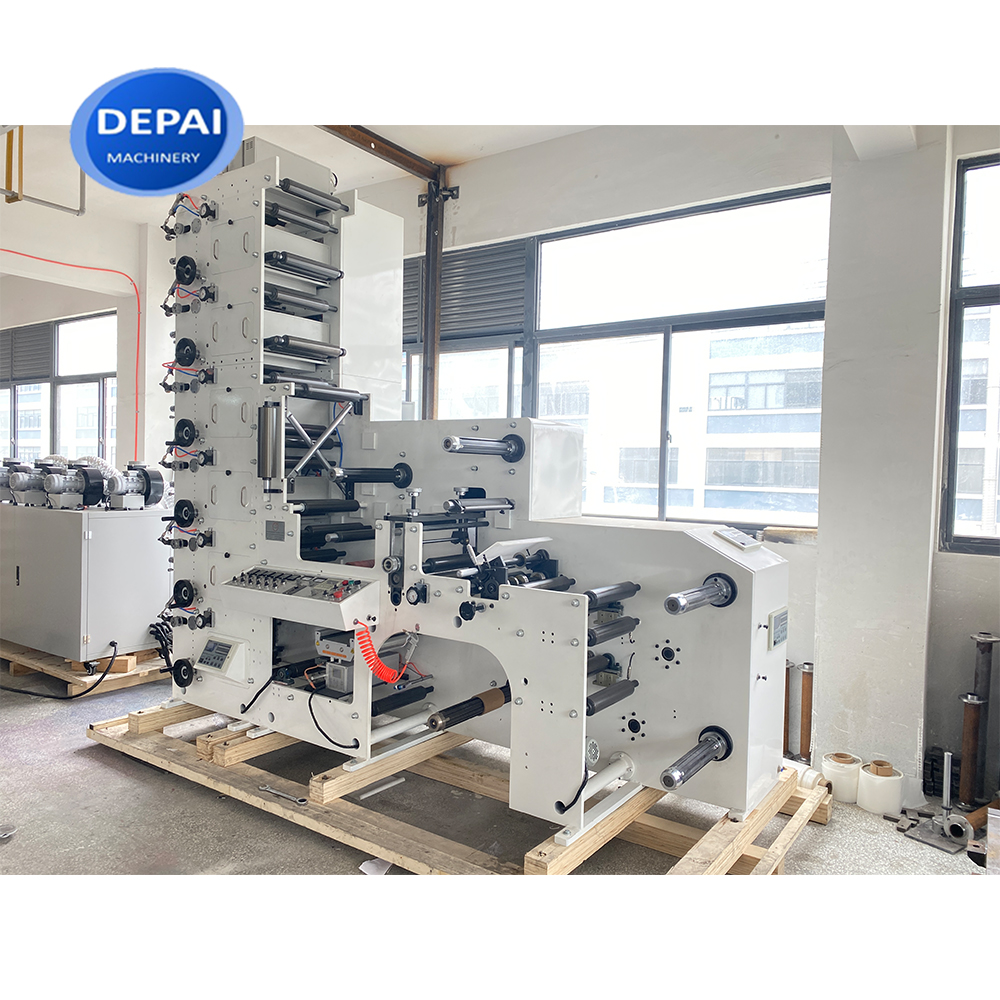

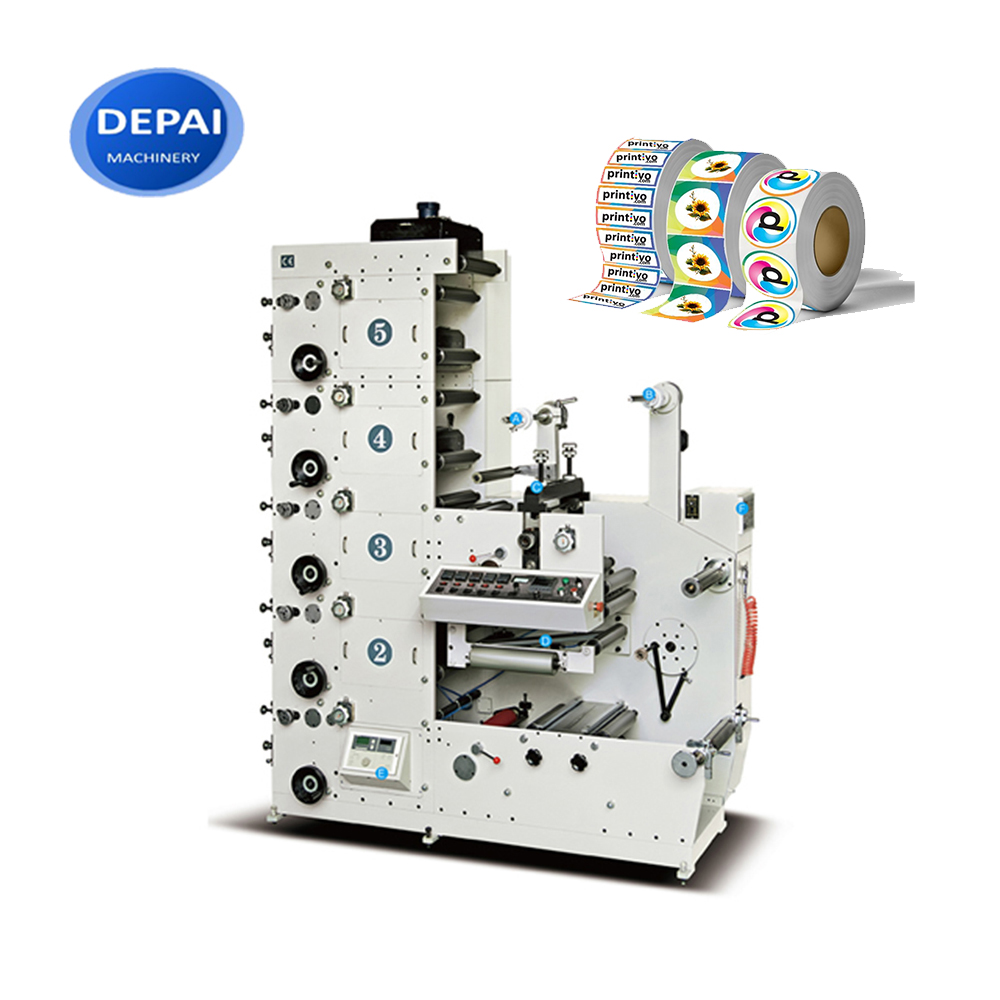

Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
1 / 5
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine
Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine

Small Multicolor Label Cutting Flexographic Printing Machine For Card Paper Bag Printing Machine

Send Inquiry

Product Description

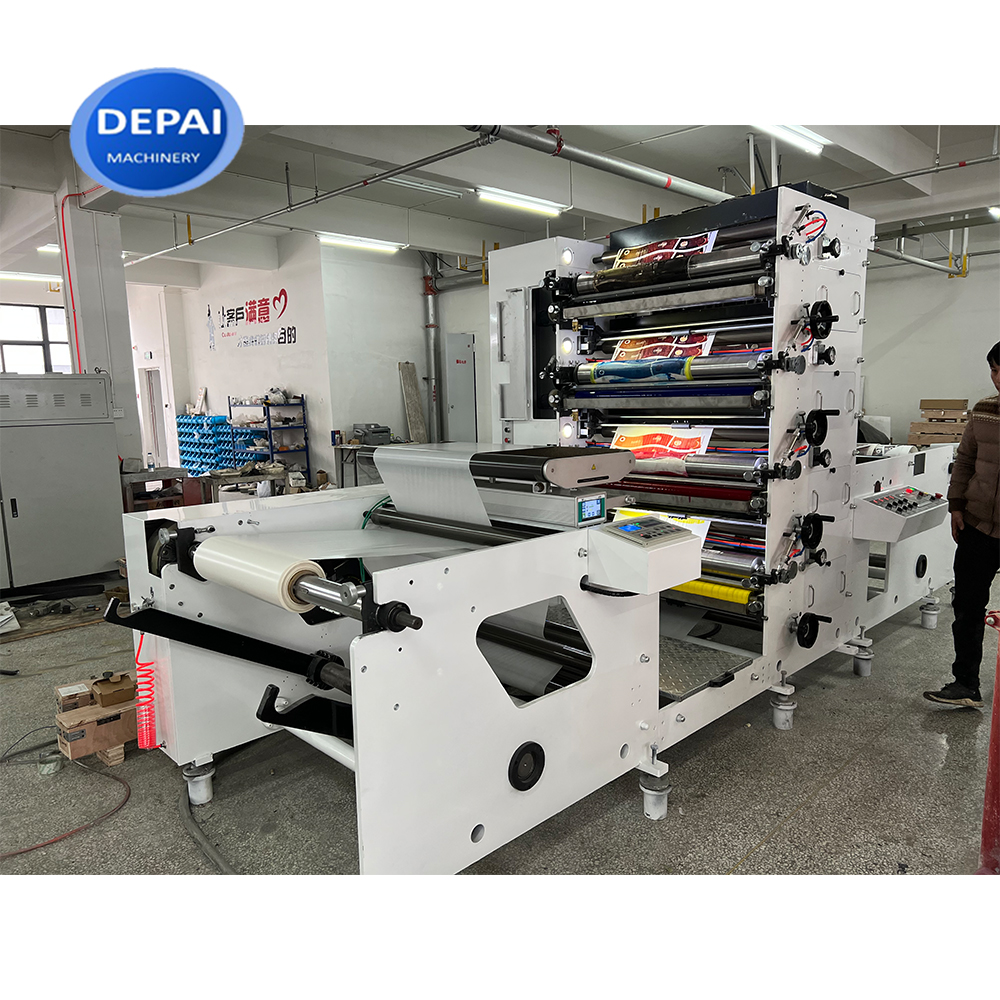

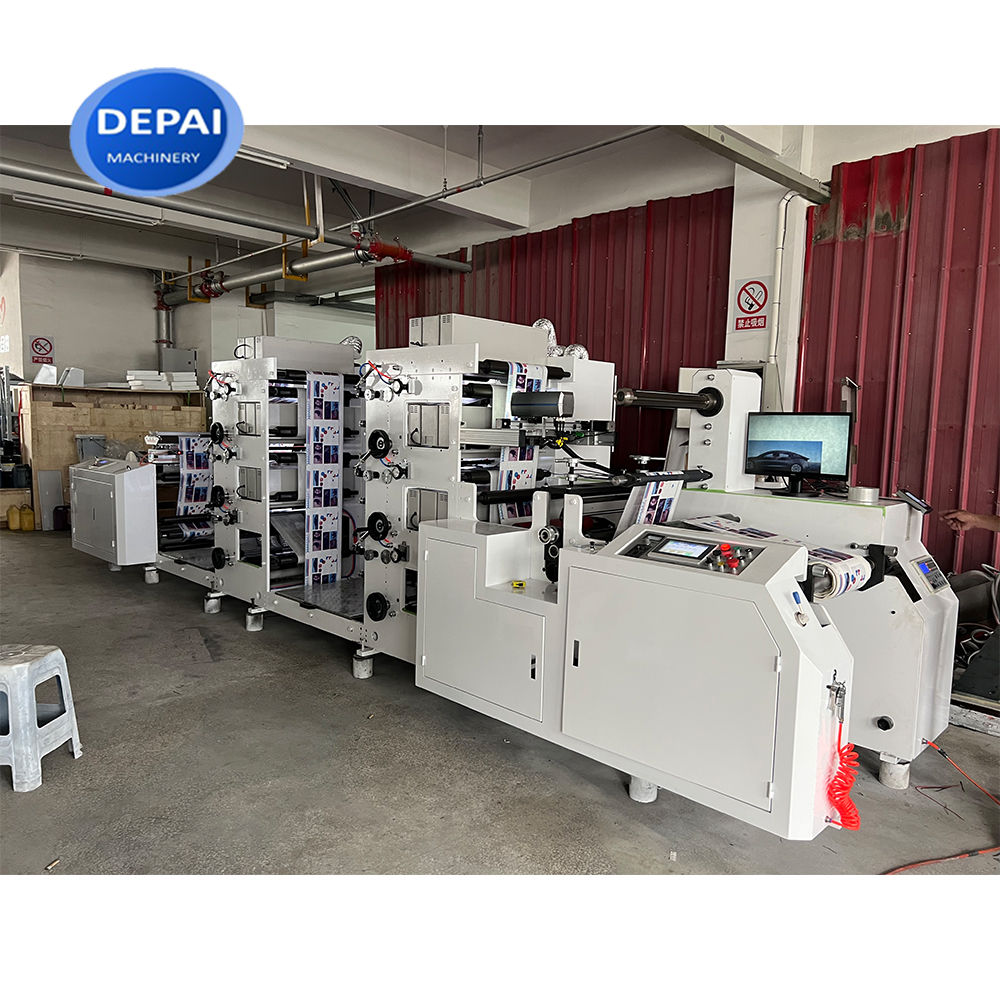

Small Multicolor Label Cutting Flexographic Printing Machine for Card Paper Bag Printing Machine
Flexographic printing machinery is a spectacular blend of letterpress and rotogravure printing, employing relief plates made up of flexible rubber or photo-polymer plates. Flexographic printing press comprises four rollers such as ink roller, meter roller, plate cylinder, and impression cylinder.

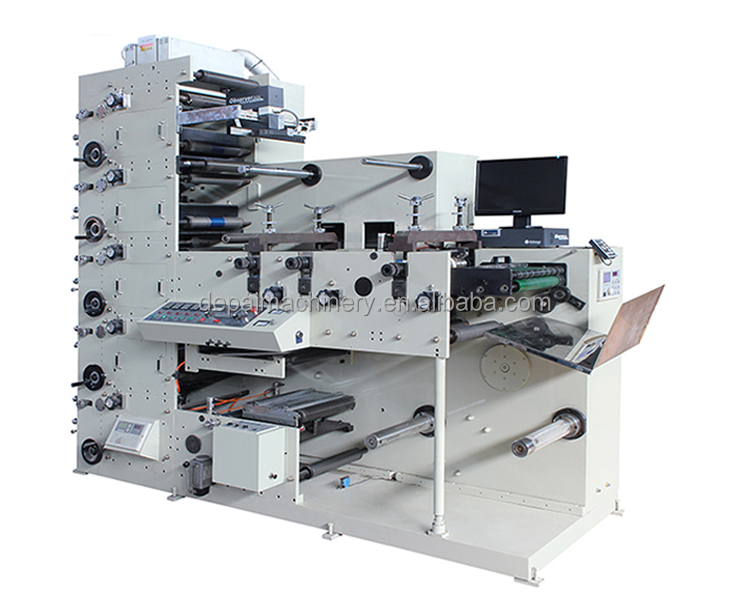

Small Multicolor Label Cutting Flexographic Printing Machine
Specification
Characteristics
  • Adopt the ceramic anilox cylinder to transfer the ink.
  • Each printing unit adopts 360° plate-adjustment.
  • Three die-cutting stations, the first and second die-cutting station can do double sides working, the third die-cutting station can be used of sheeter.
  • Computerized web-guiding system is installed in the front of printing unit, it ensures the material always in the right position. (standard configuration)
  • After sheeting in the third die-cutting station, conveyor belt can output the products orderly. (option)
  • Unwinding and rewinding tension are auto-controlled by magnetic powder, two rewinders is possible in this machine.
  • Video inspecting system is an option, it can watch the printing quality when in high speed.
  • The ink rollers will be separated from the printing roller, and keep running when the machine stops.
  • Main machine inverter is imported.
  • The machine can finish material-feeding, printing, varnishing, drying, laminating, die-cutting, rewinding and sheeter in one process. It is an ideal machine for printing note and top-grade adhesive label.
Model DP-FPST-320 DP-FPST-450
Printing speed 60m/min 60m/min
Printing colour 1-8 colors 1-8 colors
Max.Web width 320mm 450mm
Max.Printing width 320mm 450mm
Max.Unwinding diameter 800mm 800mm
Max.Rewinding diameter 600mm 600mm
Printing girth 175-380mm 175-380mm
Precision of overprint ±0.10mm ±0.10mm
Total power 10.5KW 15KW
Machine Details

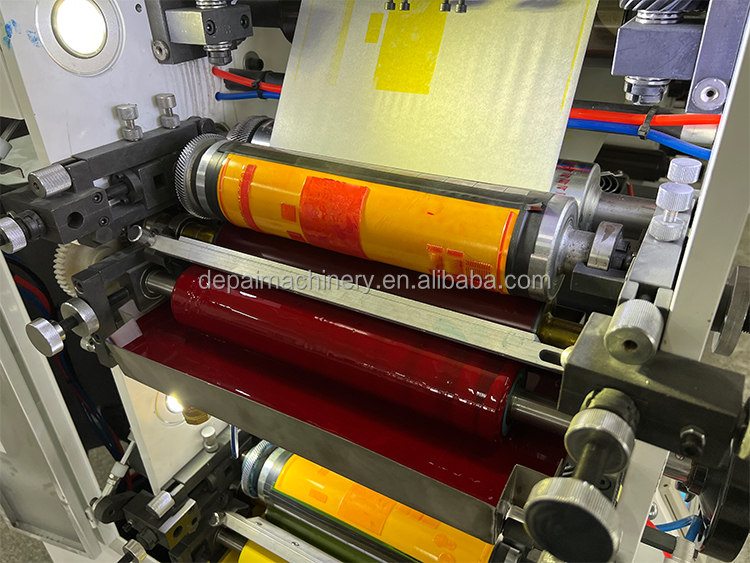

Machine Detail Inner Rollers

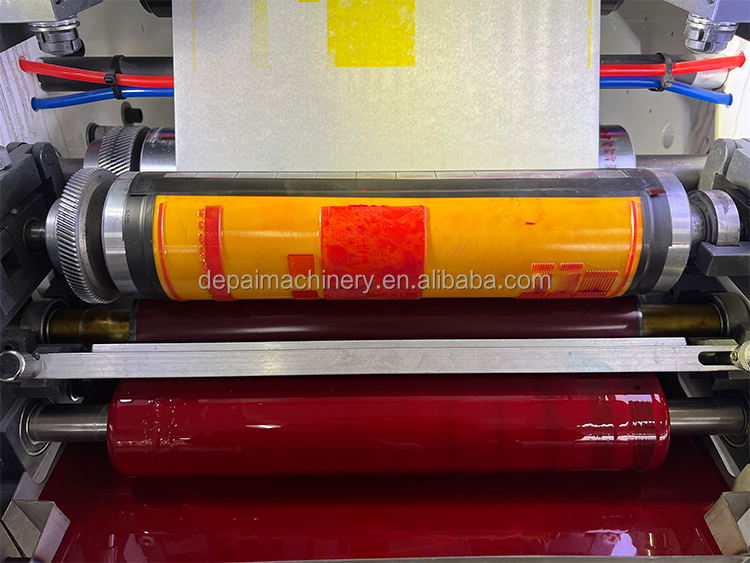

Machine Detail Cylinders
Printing color unit
  • Anilox cylinder pneumatic clutch
  • Ceramic anilox roller---one set (1 pcs) or as your require
  • Printing cylinder---one set (1 pcs) or as your require
  • Single side doctor blade
  • Manual vertical and horizontal roller controllers (details is in the following main part, printing device)

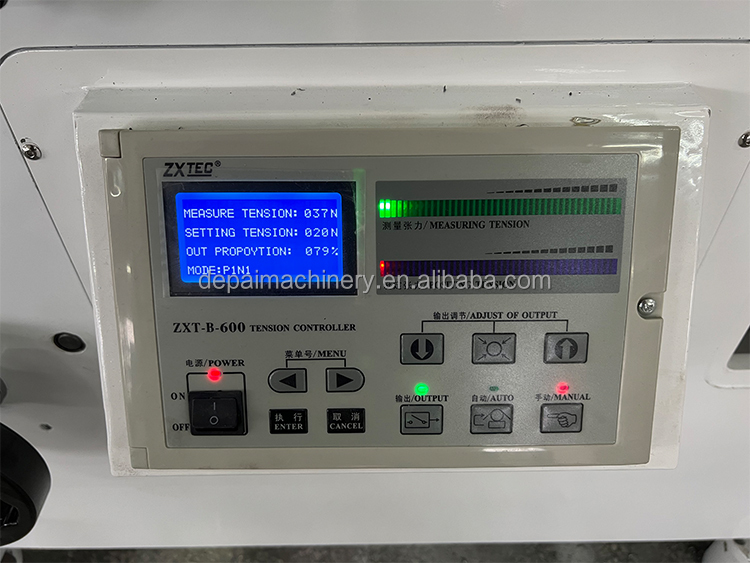

Automatic tension controller
Automatic tension controller

The tension controller is an automatic control system that realizes constant tension or taper tension control. Its function is mainly to realize the synchronization between the rollers and the uniform control of winding and unwinding.

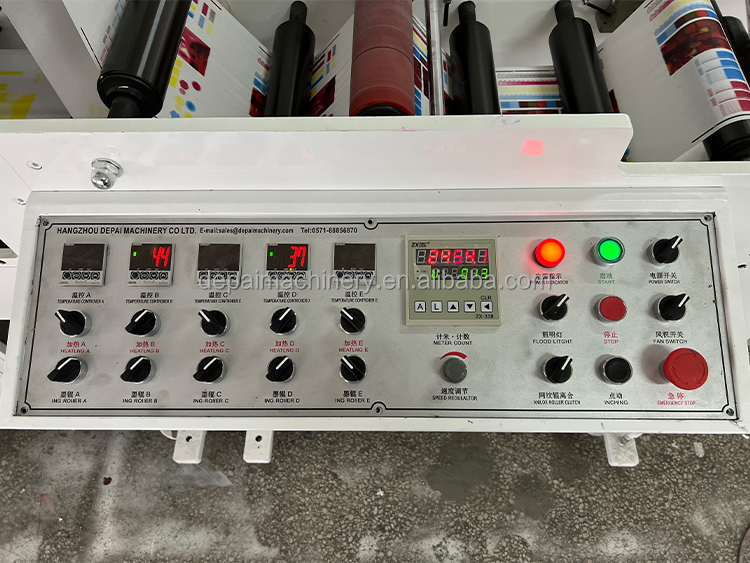

Control panel
Control panel

For operate the machine.

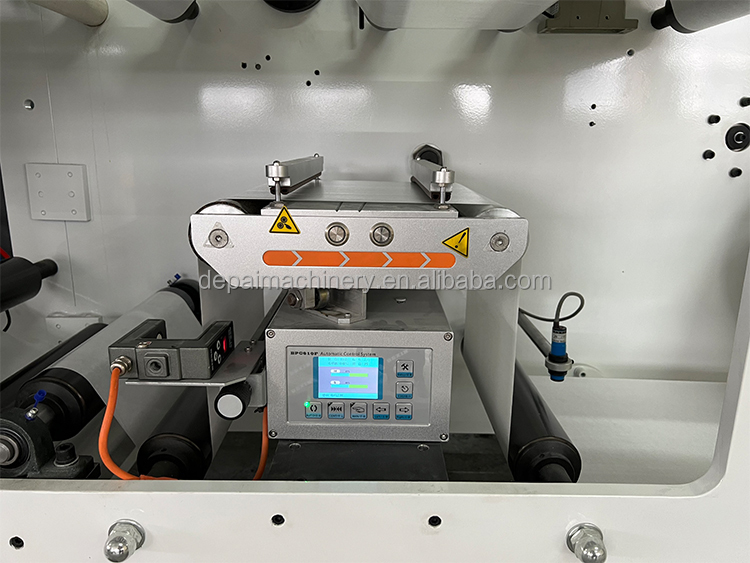

Auto web guiding system
Auto web guiding system
  • One set of paper binding table
  • Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised.

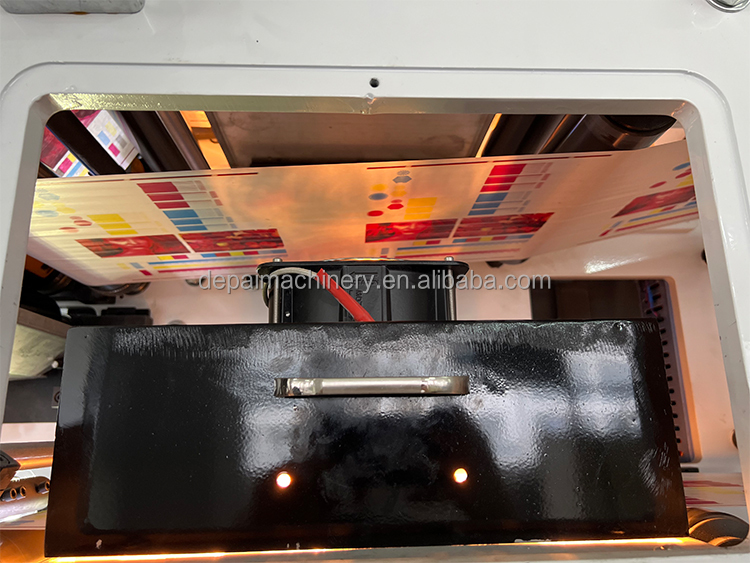

IR Drying system
IR Drying system
  • Infrared Heating Drying Unit--- 1 unit / each color station
  • 1 pcs IR lamp each IR heating unit
Optional Parts

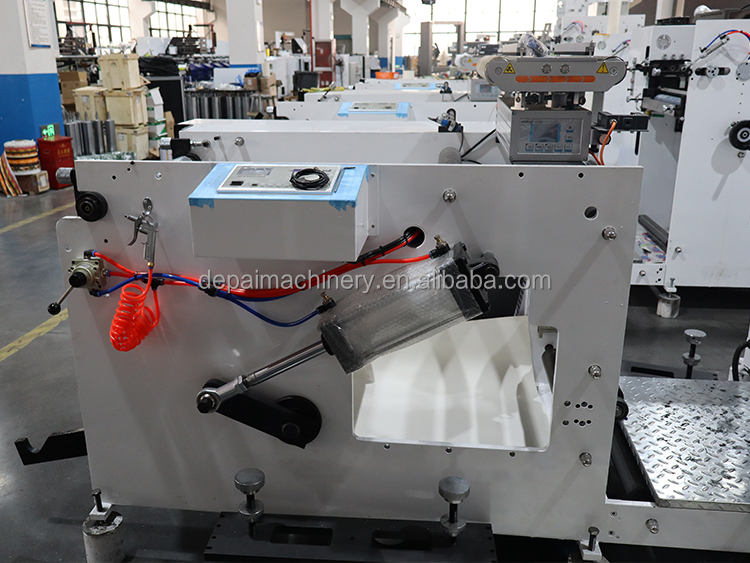

Independent unwinding track
Independent unwinding track

For loading jumbo rolls with large diameter size and weight.

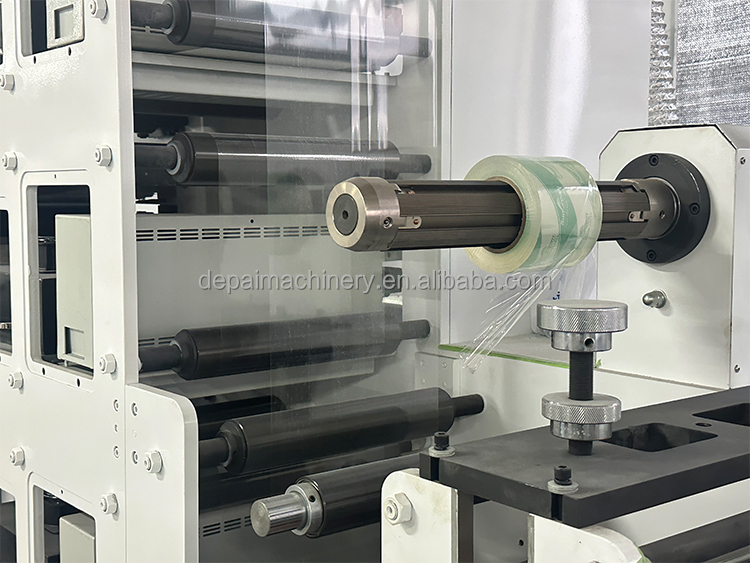

Laminating
Laminating

A transparent plastic film is applied to the surface of the printed matter through hot pressing to protect and increase gloss.

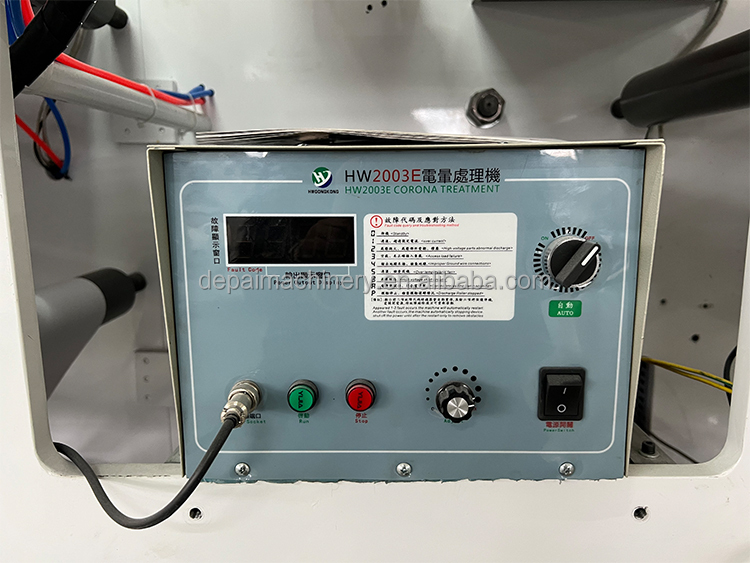

Corona Treater Unit

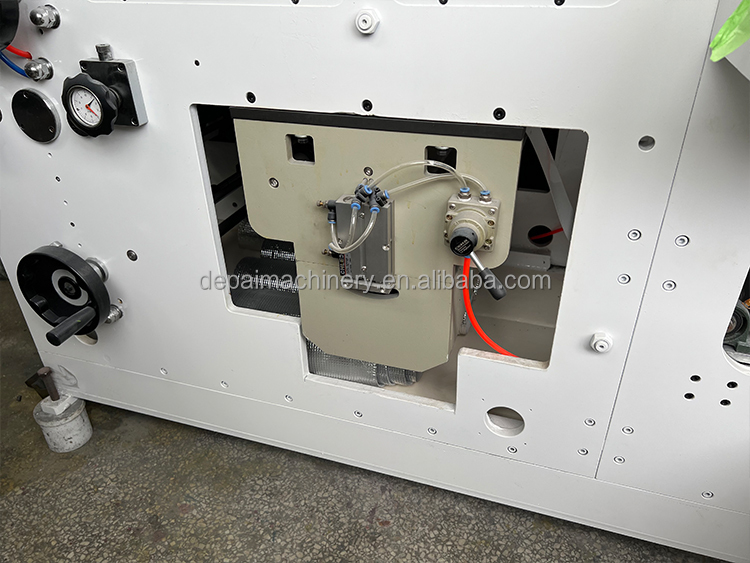

Corona Treater Installation
Corona Treater

When printing plastic film materials, static electricity can be eliminated and printing quality can be improved.

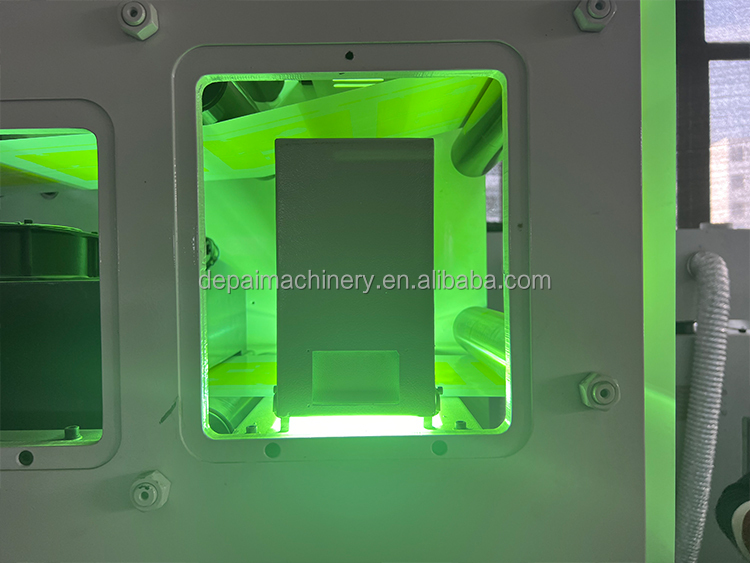

UV Dryer Installation

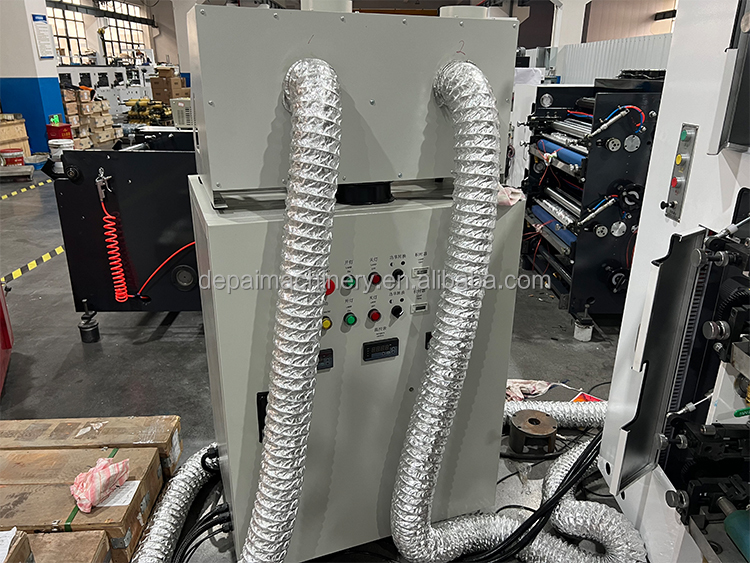

UV Dryer Unit
UV dryer

UV printing is a printing process that uses ultraviolet light to dry and cure inks. It is necessary to match the ink containing a photosensitizer with a UV curing lamp. Very high gloss effect, sometimes also has a comprehensive effect of anti-scratch and anti-scratch performance. It has high surface resistance (anti-friction and scratching), especially for packaging and publication covers.

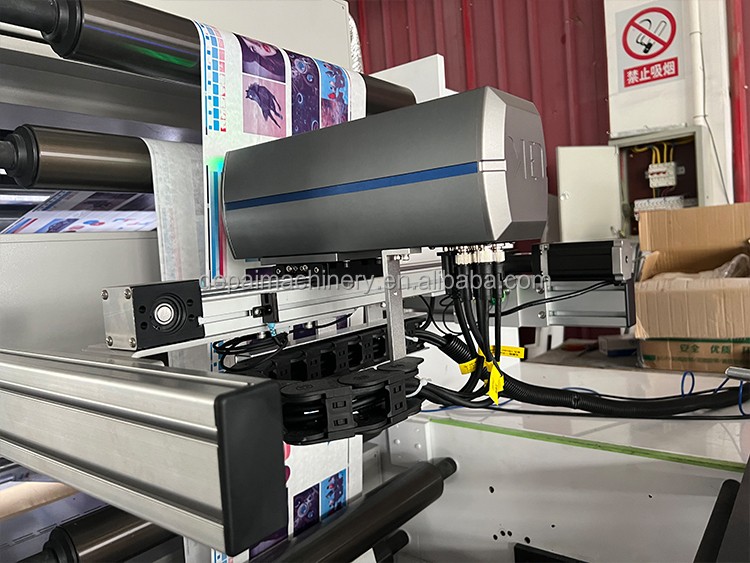

Video Inspecting Camera

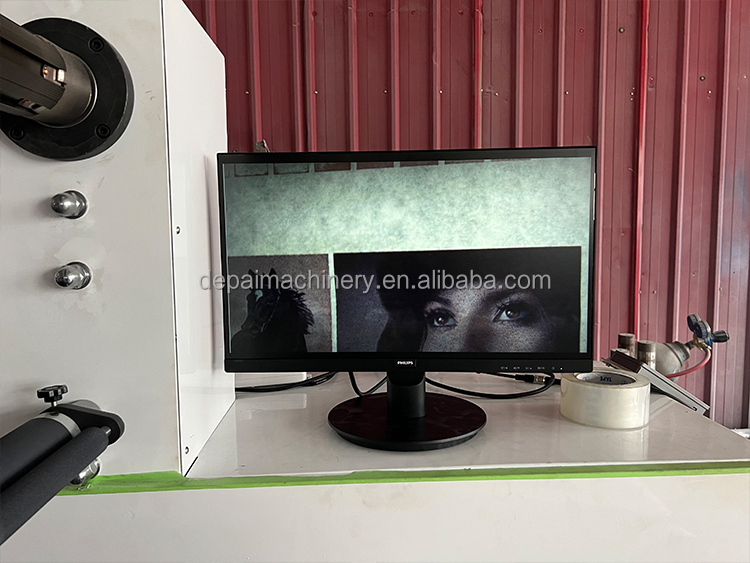

Video Inspecting Monitor
Video Inspecting System

By video inspecting system, the machine can regulate and horizontal register without stopping, it improves the printing quality and increases the producing capacity.

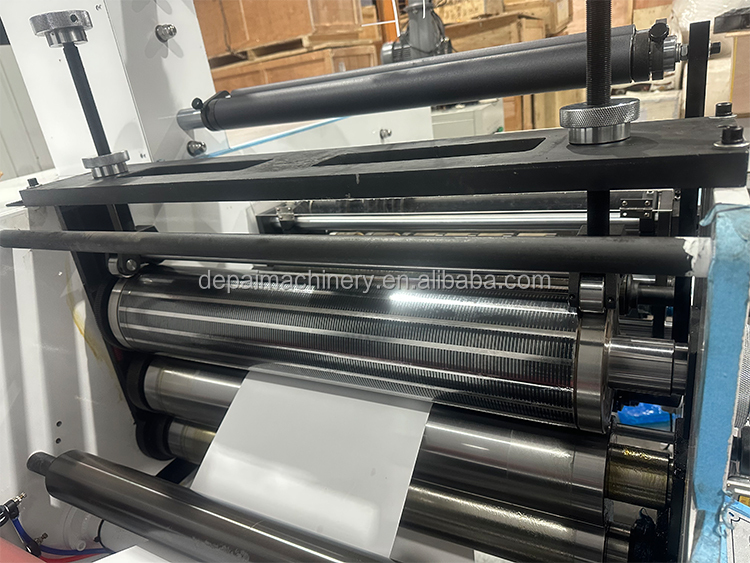

Rotary Cutting Station
Rotary Cutting Station

Can die cutting the labels into different shapes with customized cutters. 1-3 die cutting stations can be added.

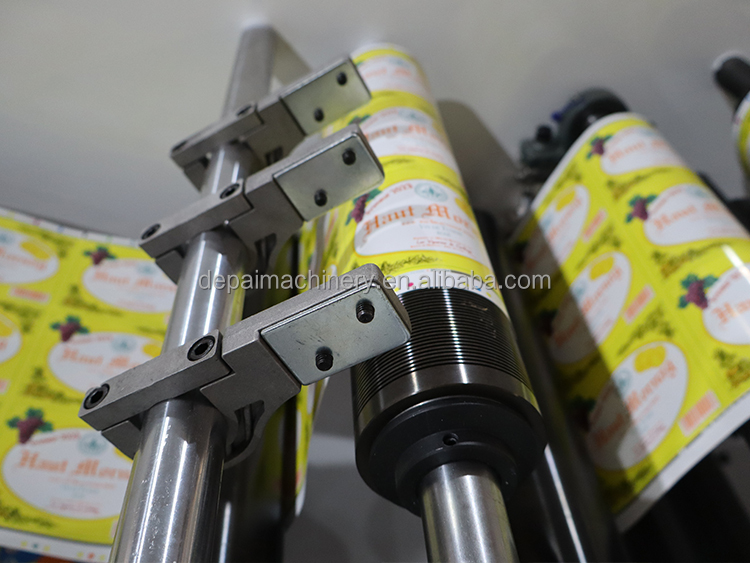

Slitting Unit
Slitting Unit

Cutting the large jumbo rolls into small width rolls.

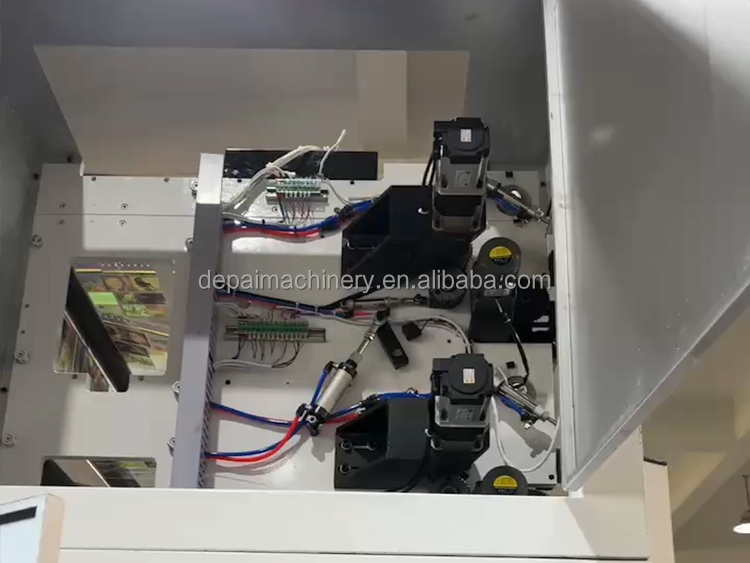

Servo Motors
Servo Motors

For semi automatic color register

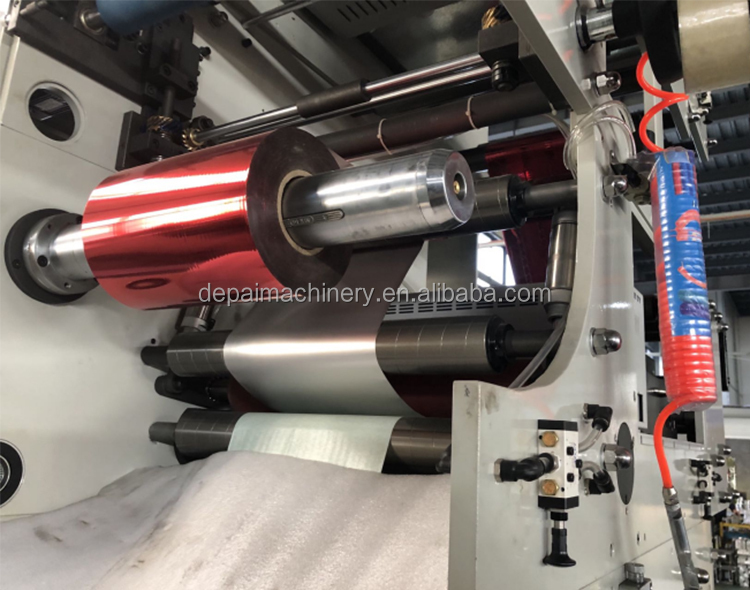

Cold Stamping
Cold Stamping
Samples

Suitable Material: Self Adhesive paper, Self -Adhesive Film , Laminating Film, Paper, Opp, Alumium, CPP, PET.

Adhesive label samples
Multi-color printed label samples
Foil and clear film label samples
Roll label samples
Die cut label samples
Finished label product rolls
Factory & Production
Manufacturing workshop overview
Precision lathe processing

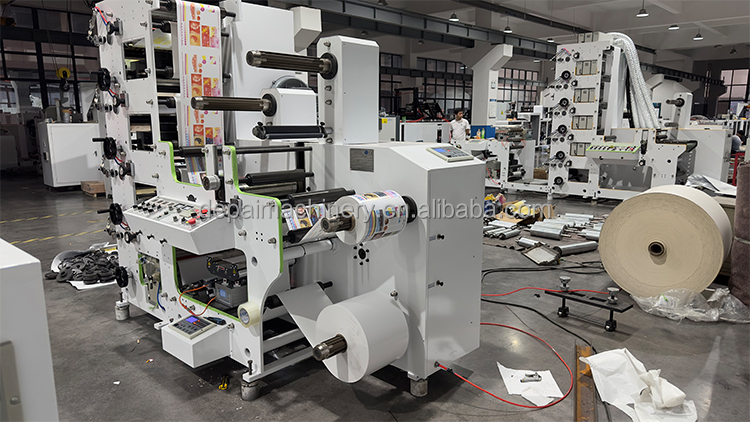

Machine assembly line

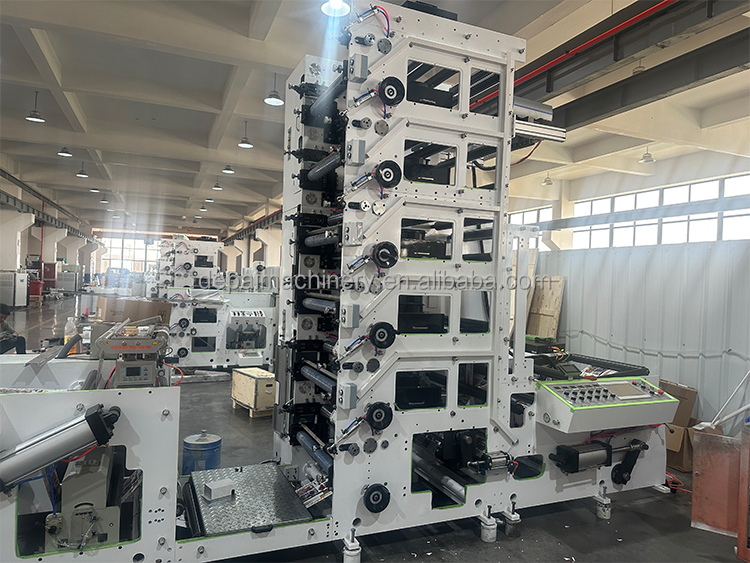

Machine testing area

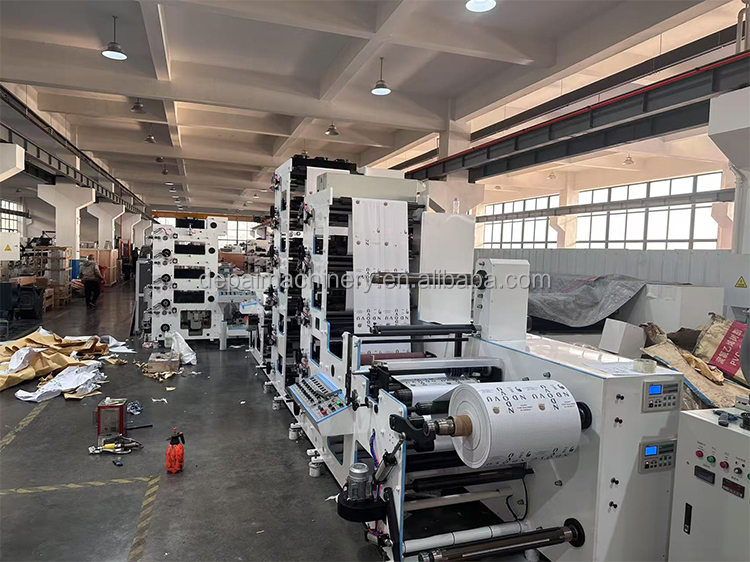

Warehouse and inventory
Machine Packaging

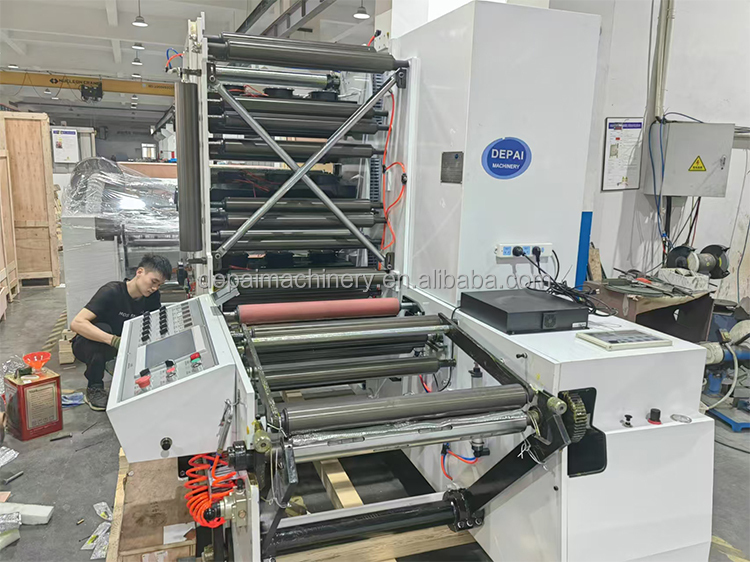

Machine wrapping process

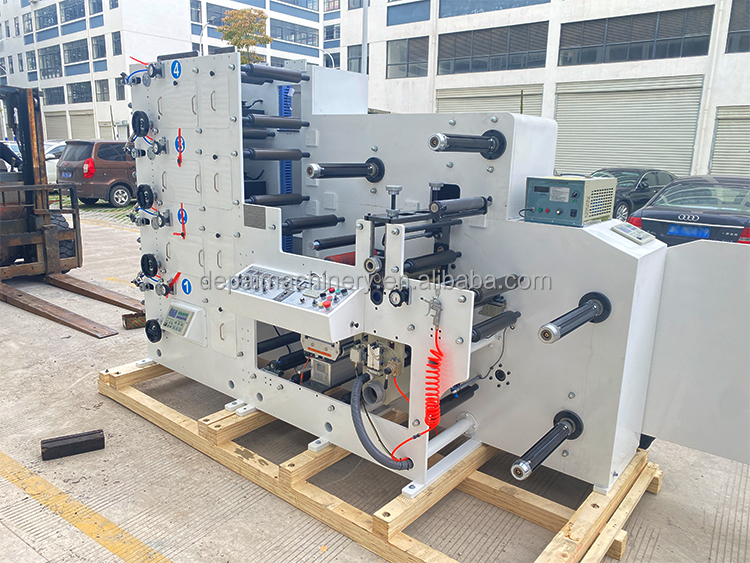

Wooden crate packaging base
Securing machine inside crate
Completed wooden crate packaging
FAQ
QAre you trading company?
We are the professional manufacture for printing machines.
QHow does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
QWhat is your after-sales service?
Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
QWhat is the terms of payment you accept?
30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
QWhat materials are suitable for this flexographic printing machine?
Suitable materials include Self Adhesive paper, Self-Adhesive Film, Laminating Film, Paper, Opp, Aluminum, CPP, and PET.
QWhat key characteristics define this label printing machine?
This machine features a ceramic anilox cylinder for ink transfer, 360-degree plate adjustment, three die-cutting stations, a computerized web-guiding system, and automatic tension control.
