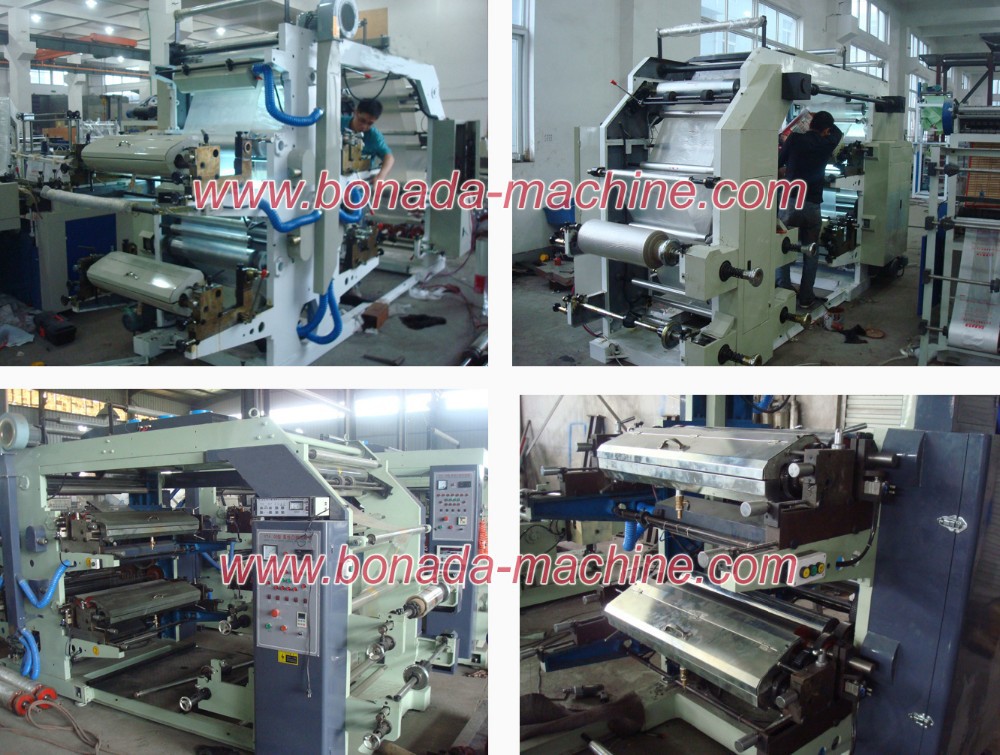

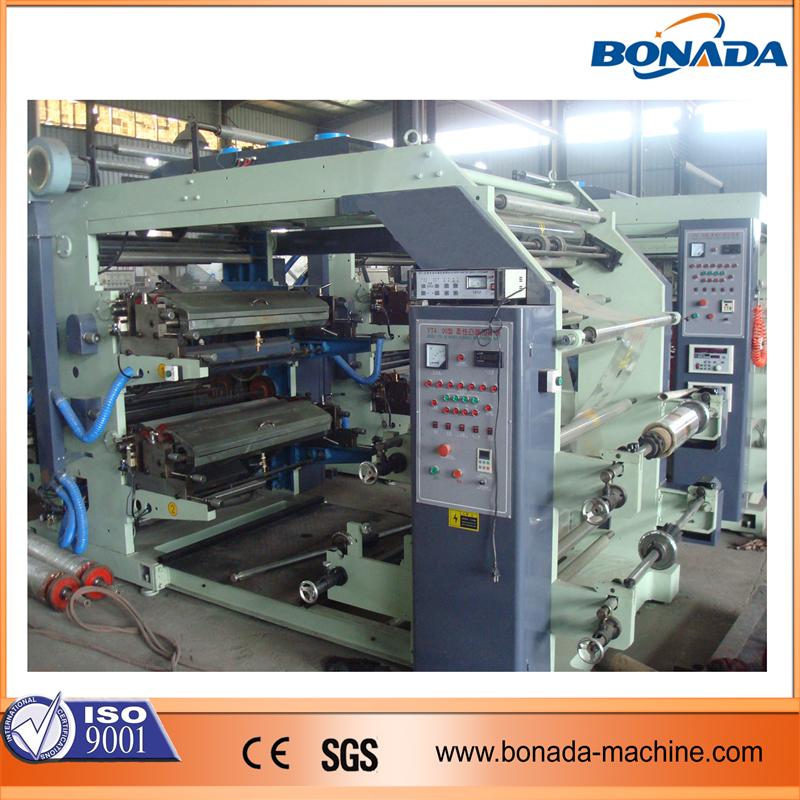

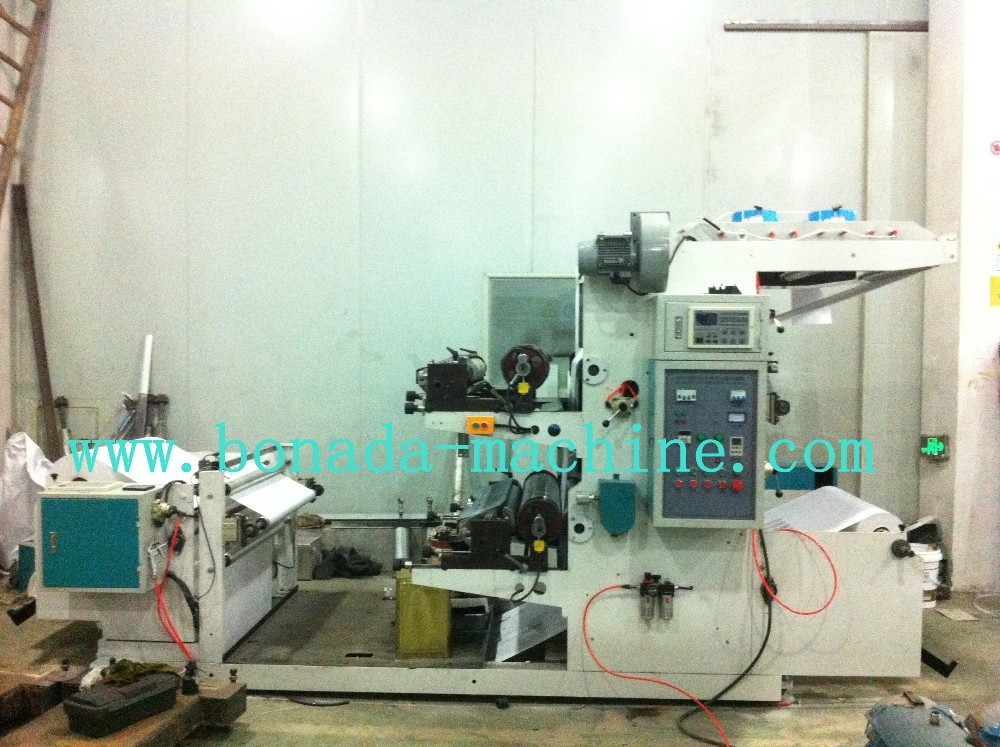

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
| Type | YT-4600 | YT-4800 | YT-41000 |
|---|---|---|---|
| Max. Effective Printing Width | 560mm | 760mm | 960mm |
| Max. Web Width | 600mm | 800mm | 1000mm |
| Max. Printing Speed | 50m/min | 50m/min | 50m/min |
| Max. Mechanical Speed | 60 m/min | 60 m/min | 60 m/min |
| Max. Diameter of Roll Material | 450mm | 450mm | 450mm |
| Internal Diameter of Roll Core | 76mm | 76mm | 76mm |
| Range of Repeat Printing Length | 191-914mm | 191-914mm | 191-914mm |
| Accuracy of Registration | ±0.5mm | ±0.5mm | ±0.5mm |
| Plate Thickness (two side adhesive included) | 2.38mm | 2.38mm | 2.38mm |
| Heating Power | 7Kw | 10.5Kw | 14Kw |
| Total Power | 11.5Kw | 15Kw | 18.5Kw |
| Weight of Machine | 3000kg | 3800kg | 4500kg |
| Overall Dimension (L*W*H) | 4500×1700×2500mm | 4500×1900×2500mm | 4500×2100×2500mm |
This roll-to-roll flexo printing machine is designed to handle flexible packaging materials, including plastic films such as polyethylene (PE), polypropylene (PP), cellophane, as well as roll paper and similar substrates.
The machine features a maximum effective printing speed of 50 meters per minute, with a maximum mechanical speed capacity of up to 60 meters per minute.
The machine utilizes high-precision anilox cylinders to spread the printing ink. This ensures an even, consistent ink coating and transfers the proper amount of ink to the printing plate for high-quality results.
Web tension is maintained accurately throughout production. The unwinding system uses a magnetic powder brake for tension control, while the rewinding system employs a magnetic powder clutch.
Yes, the machine supports a wide range of repeat printing lengths, adjustable from 191mm to 914mm, allowing you to print products of various dimensions efficiently.
Yes, the built-in meter counter allows operators to preset the desired printing quantity. The machine will shut down automatically once the target quantity is met or if the feeding material is cut off.
