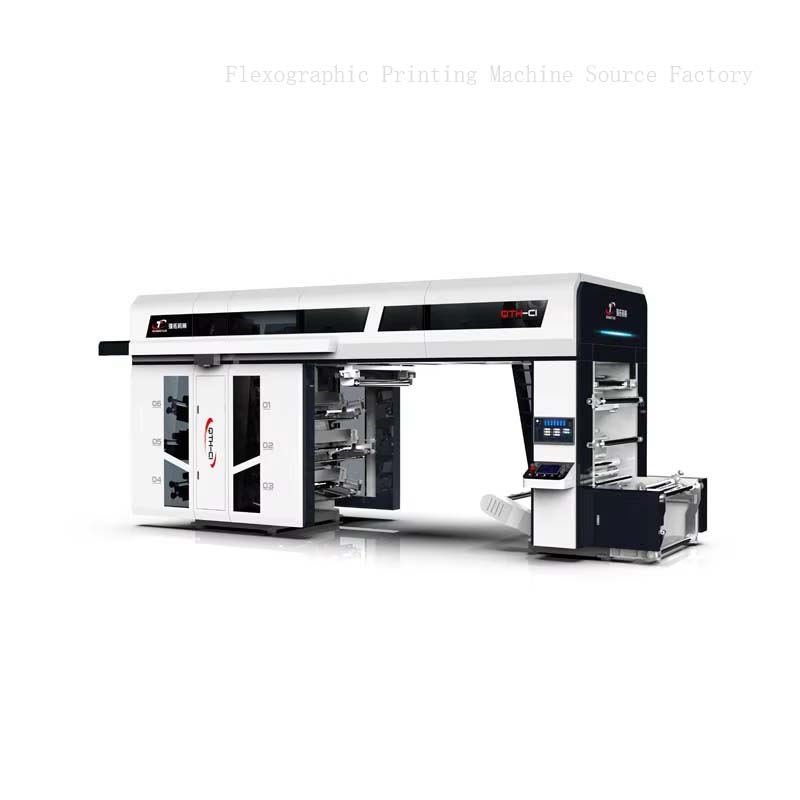

QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
1 / 5
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min
QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min

QIANGTUO SEMI SERVO Central Drum CI Type Roll to Roll Letterpress Flexo Printing Machine 6 Color Automatic Plastic Bag 260m/min

Send Inquiry

Product Description

■ VR

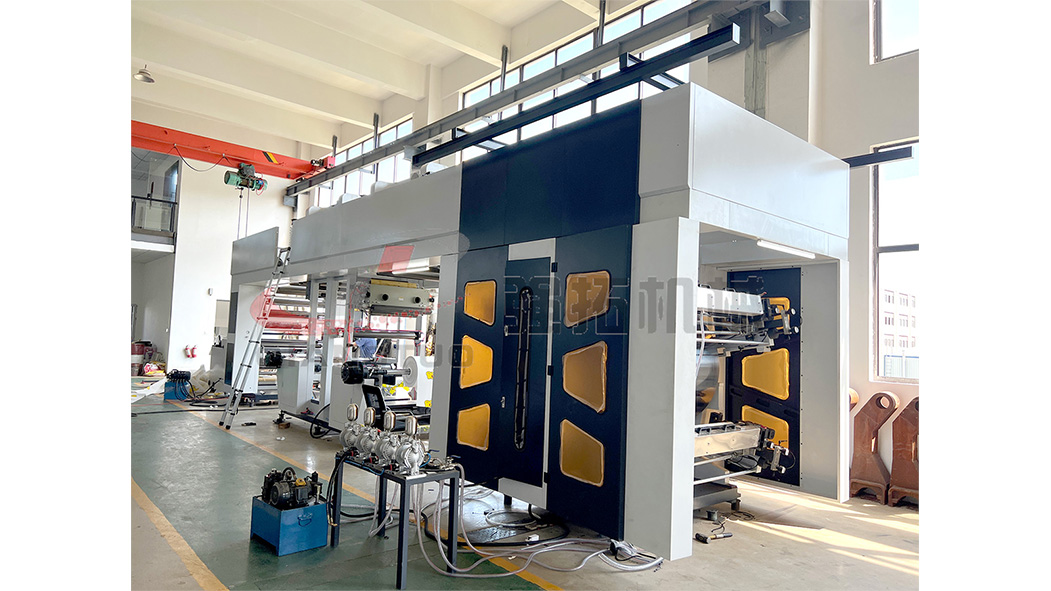

VR Showroom View
■ Products Description
Flexographic Printing Machine Overview
Central Drum Printing Process Structure

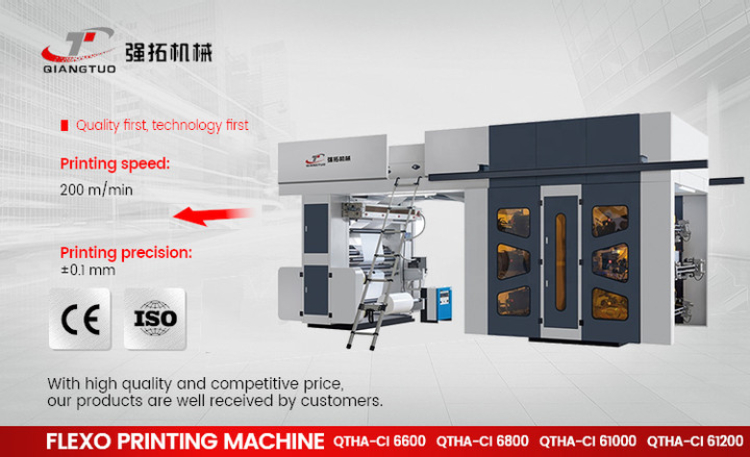

Printing Unit Technical Layout
■ Details Images
Machine model QTH-CI-6600  |  QTH-CI-6800  |  QTH-CI-61000  |  QTH-CI-61200
Max.material width 600mm  |  800mm  |  1000mm  |  1200mm
Max printing width 560mm  |  760mm  |  960mm  |  1160mm
Suitable for material PAPER: 15~300g/m² | NONWOVEN: 15-120g | PVC: 10~120μm | OPP: 10~100μm | BOPP: 10~100μm | PE: 15~150μm | NY: 10~120μm | PET: 10~100μm | CPP: 10~100μm
Colours 6 Colours
Printing length 300-1000mm
Machine speed 10-200m/min
printing speed 10-180m/min
printing precision ±0.1mm
Plate thickness 1.7mm (if different thickness, please note us)
Central drum diameter 1200mm

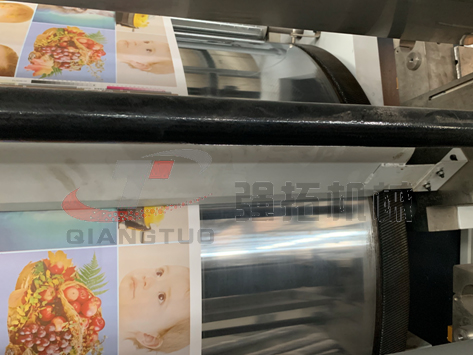

Central drum
Central drum

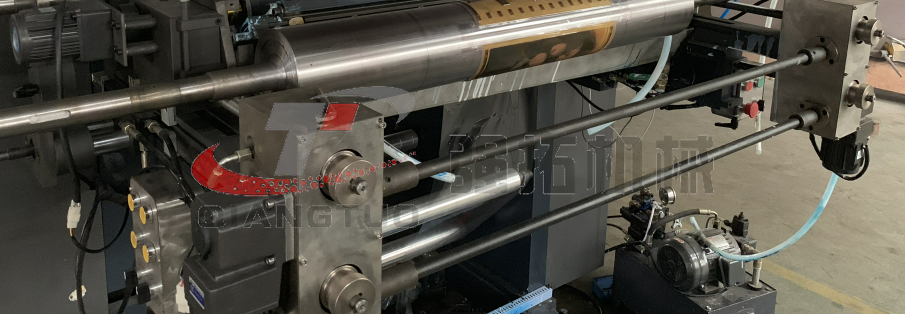

entry and exit synchro motor control
entry and exit synchro motor control

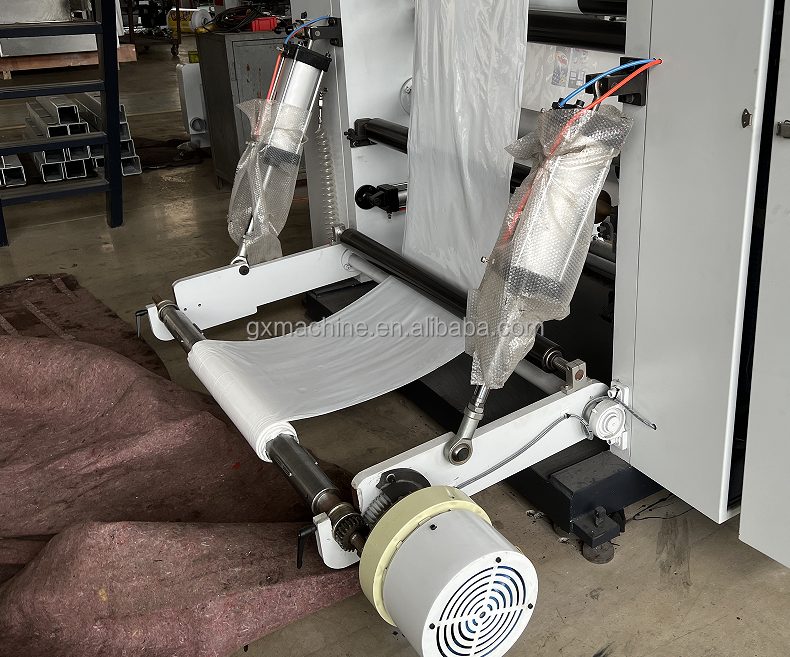

unwinder
unwinder

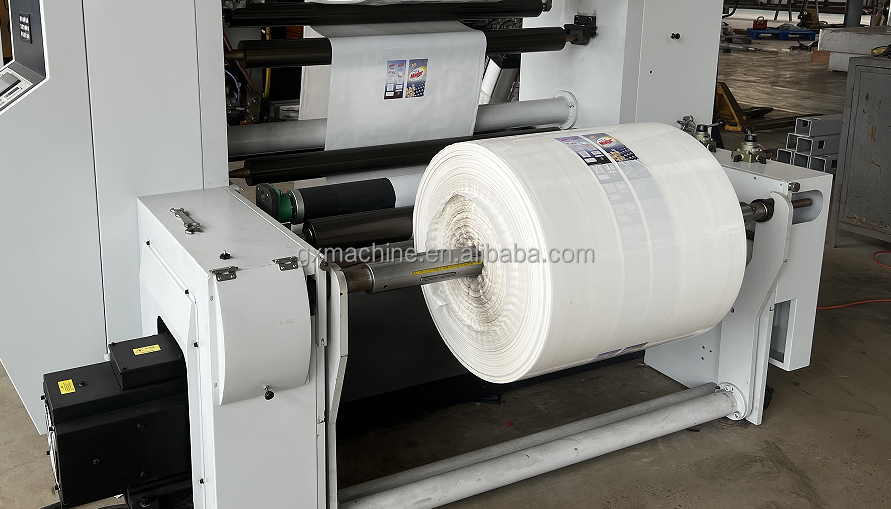

Central rewinder+servo motor
Central rewinder+servo motor

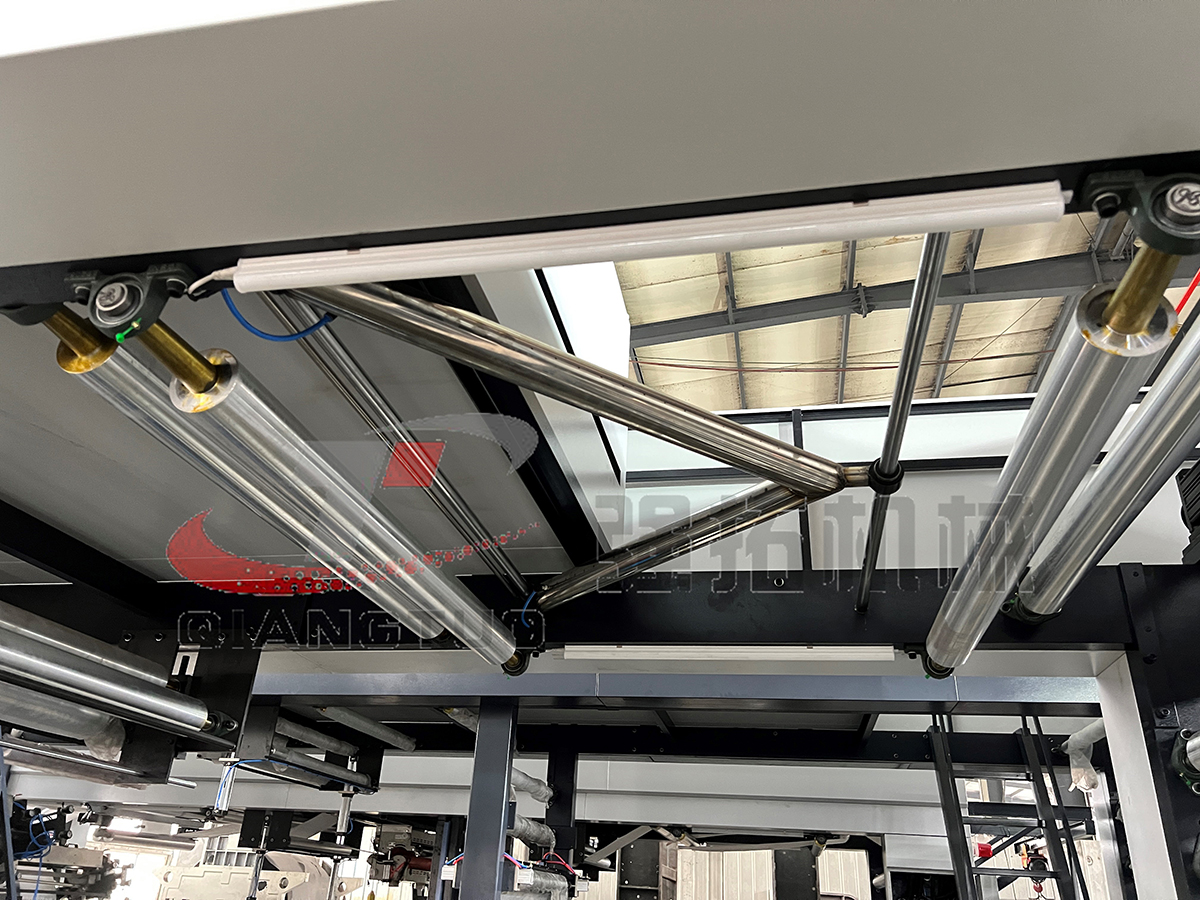

For 6+6 printing
For 6+6 printing

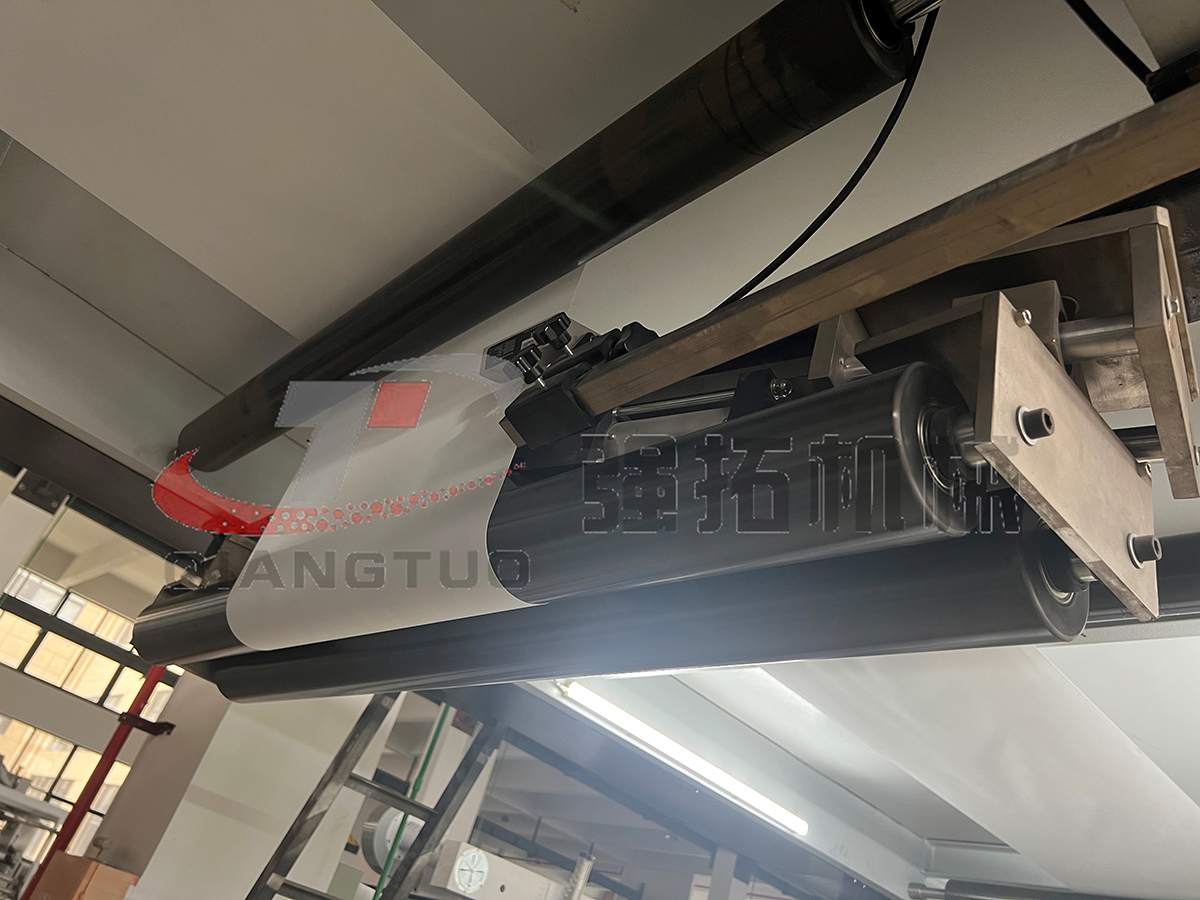

Servo EPC
Servo EPC

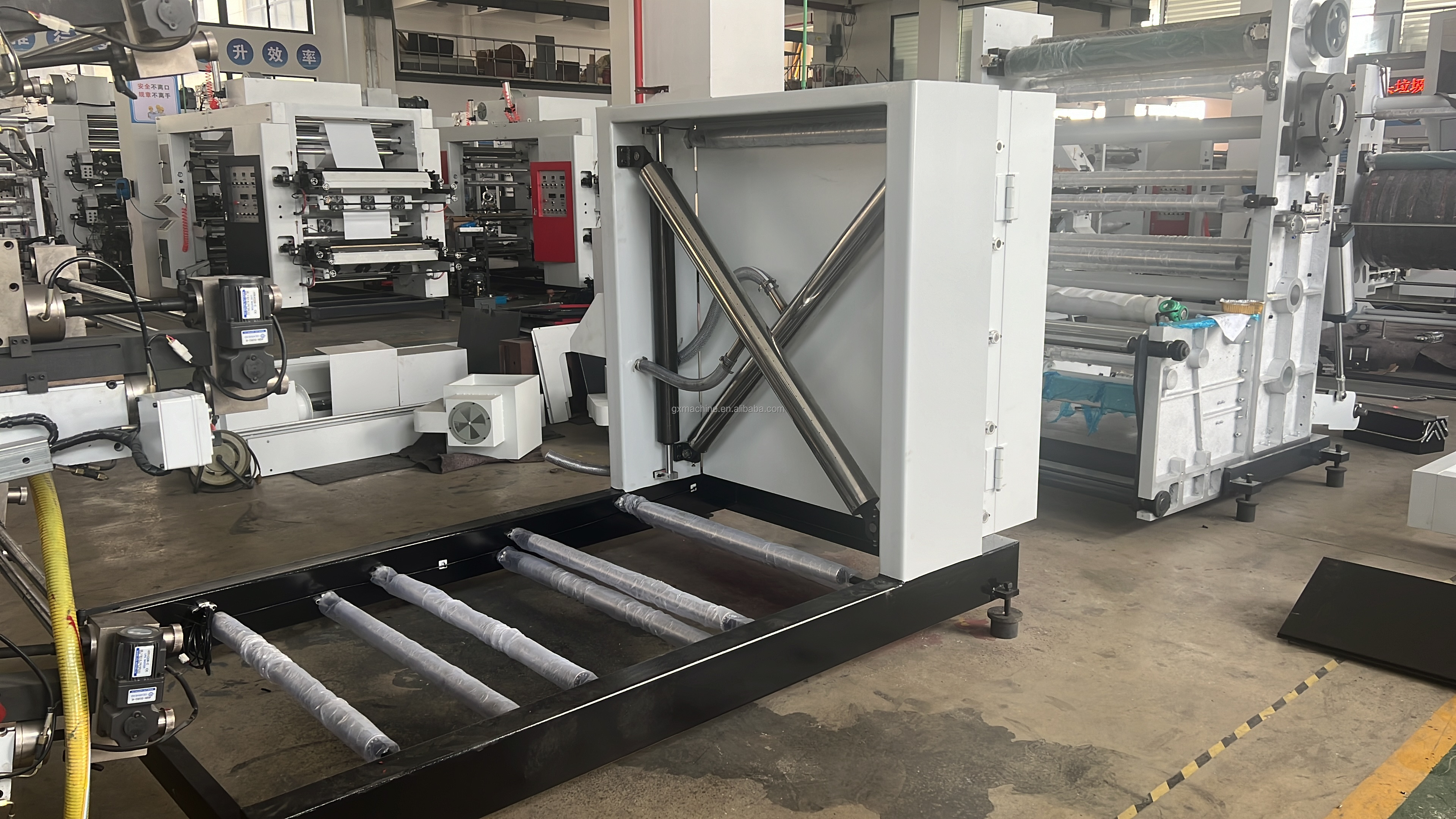

for 3+3 printing
for 3+3 printing

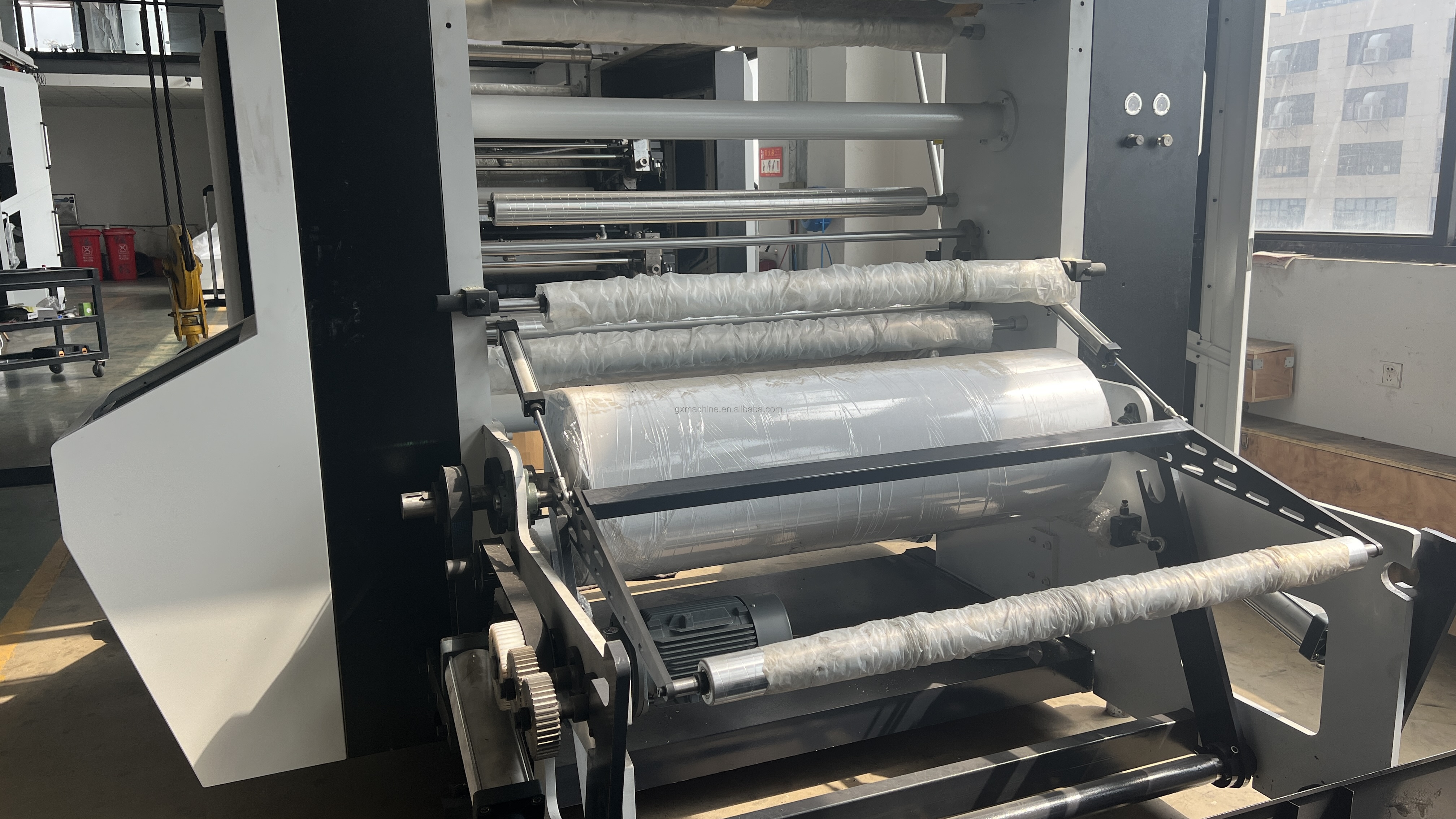

Rewinder-for film and paper design
Rewinder-for film and paper design

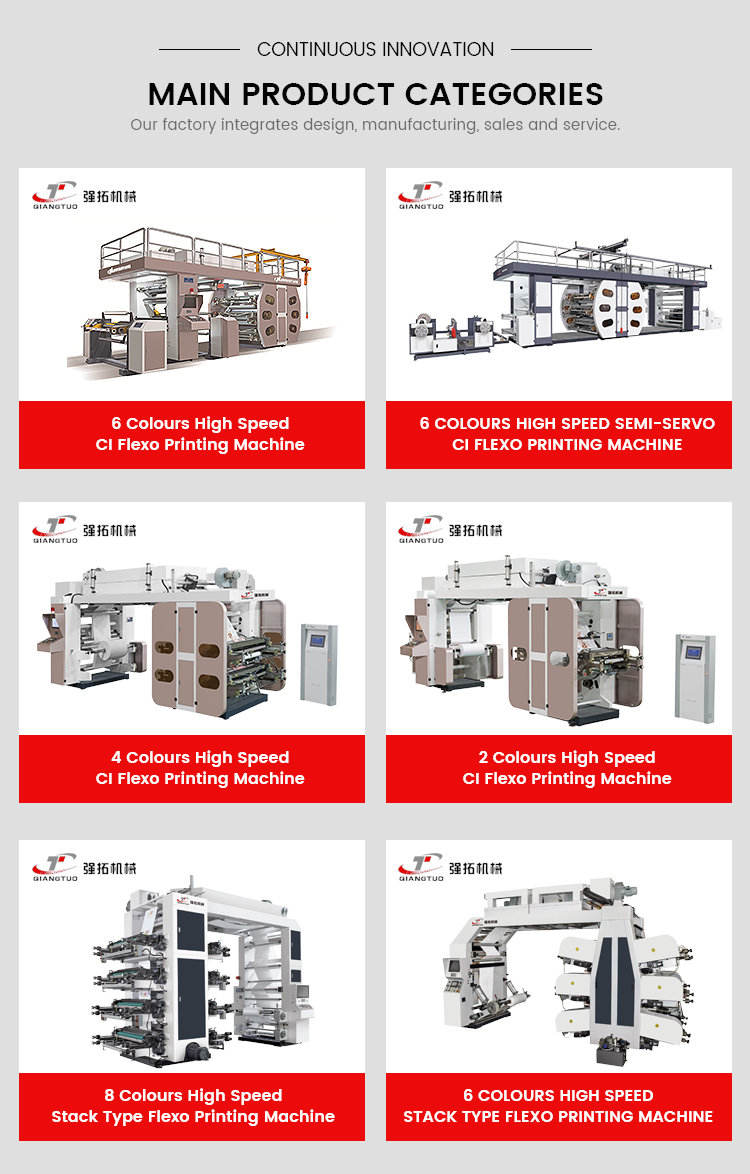

Related Machine Catalog 1

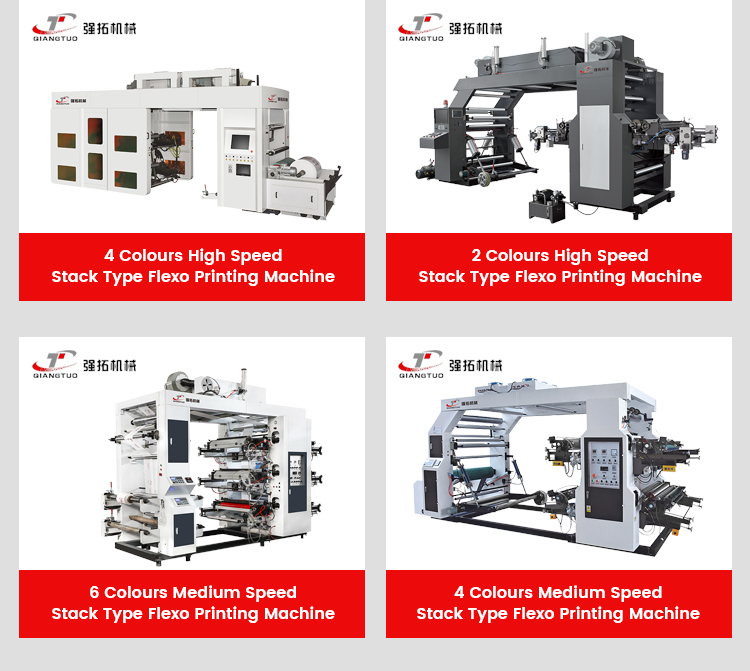

Related Machine Catalog 2
■ Why Choose Us
Why Choose Us Certificate and Production Strength

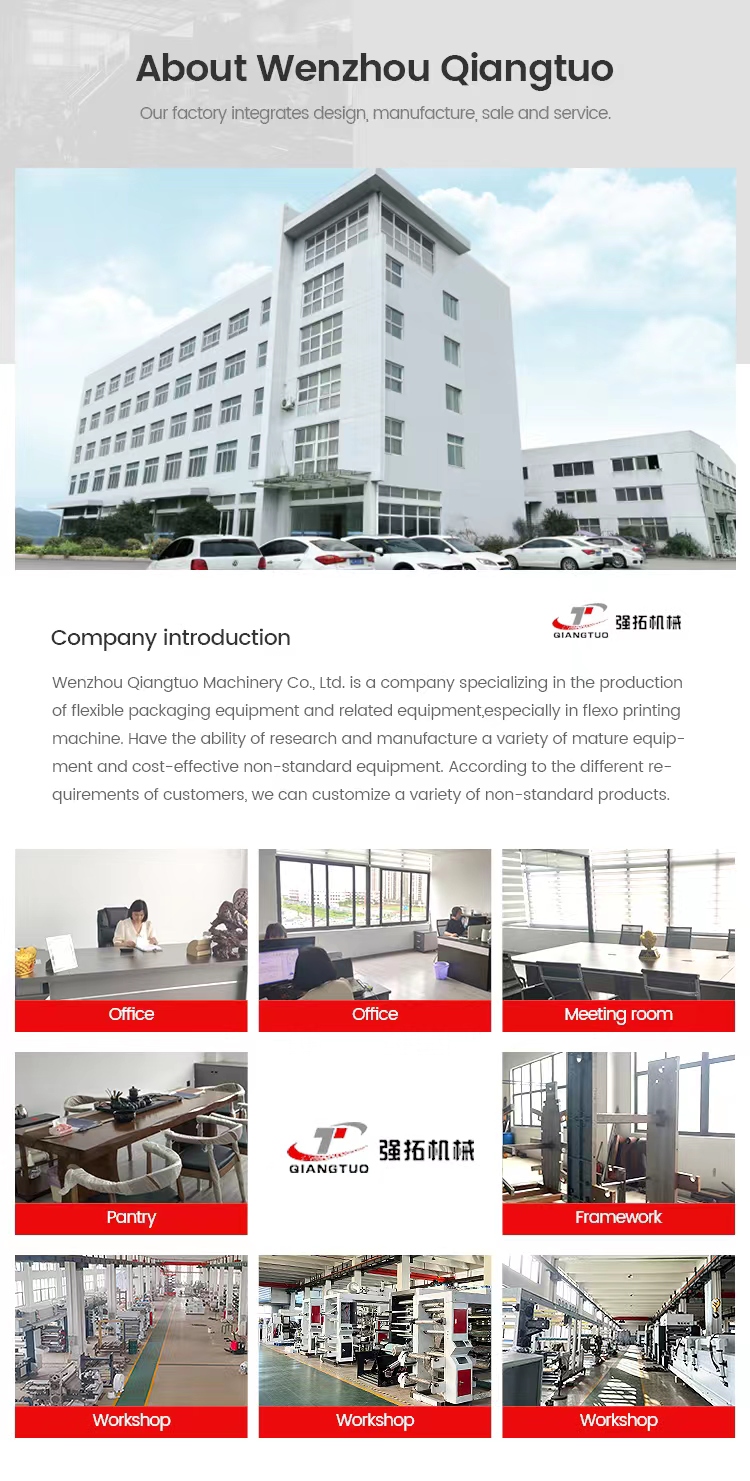

Enterprise Quality Control
■ Our Advantages

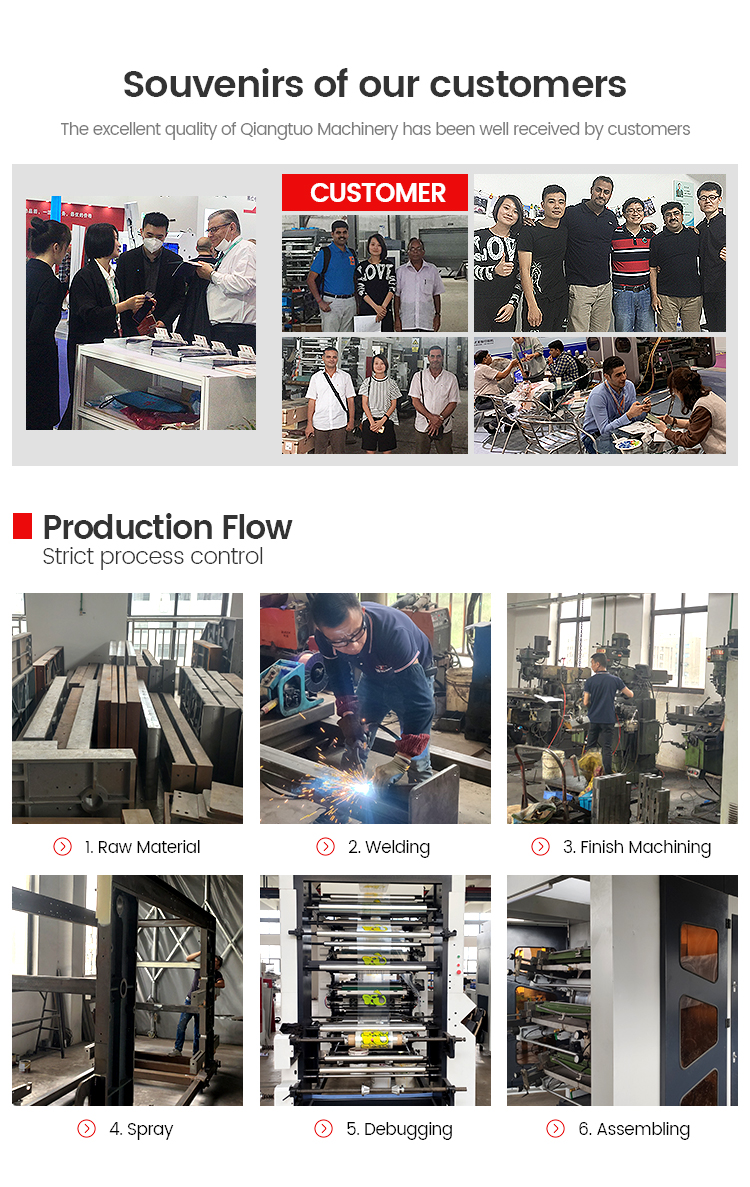

Advantage details
■ FAQ
FAQ Infographic
? What materials are suitable for this central drum flexo printing machine?
This machine is highly versatile and suitable for printing on a wide variety of substrates including Paper (15~300g/m²), Non-woven fabric (15-120g), PVC (10~120μm), OPP (10~100μm), BOPP (10~100μm), PE (15~150μm), NY (10~120μm), PET (10~100μm), and CPP (10~100μm).
? What is the maximum printing speed and precision of the machine?
The machine speed ranges from 10 to 200m/min, with a printing speed of 10 to 180m/min. It achieves a high printing precision of ±0.1mm.
? What is the standard plate thickness for this flexo press?
The standard plate thickness is 1.7mm. If your production requires a different plate thickness, please notify us in advance so we can customize it for your needs.
? What are the key features of the Central Drum (CI) design?
The central impression drum configuration provides excellent register accuracy because the substrate is locked to the single central drum, minimizing stretching. It is especially beneficial for thin, flexible, and stretchable packaging materials.
? Does the machine support customizable printing widths?
Yes, we offer multiple machine models configured for different maximum material widths, including 600mm, 800mm, 1000mm, and 1200mm to perfectly match your production requirements.
