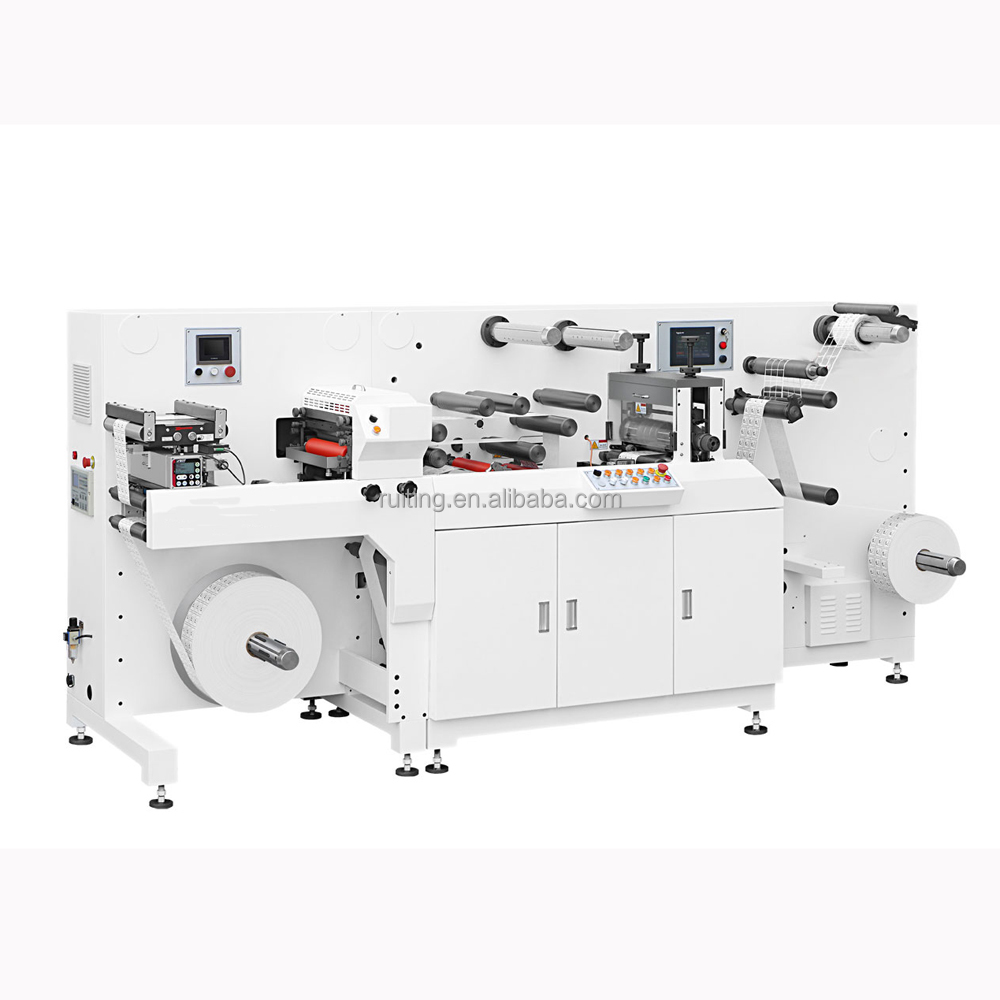

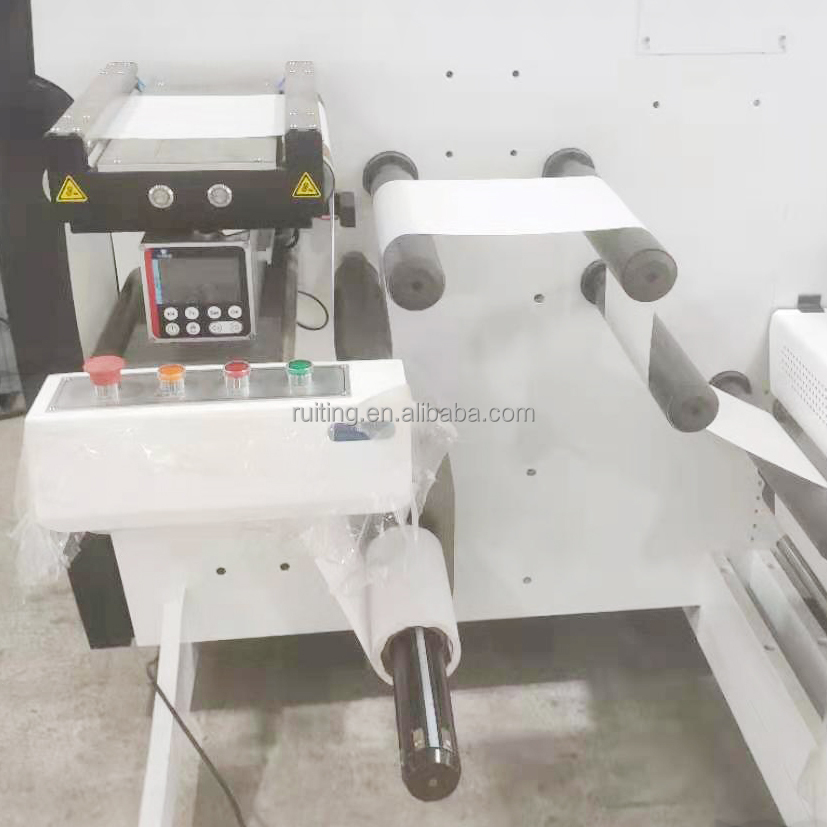

The machine is improved by intermittent die cutting machine which with the function as below: Flexographic printing system (For Cold stamping/UV coating/super varnishing/dot varnishing), intermittent die cutting system, sheeting or slitting and rewinding system.
| Max Speed | 200cycle/min |
| Accuracy of Cutting | ±0.15mm |
| Max Die Cutting Area | 310mm×320mm (L×W) |
| Paper Width | 100-330mm |
| Max Unwinding Dia. | Φ800mm(about 2000Meters) |
| Max Rewinding Dia. | Φ800mm(about 2000Meters) |
| Length of Die Cutting | 50mm~310mm |
| Overall Dimension (L×W×H) | 4060mm×1200mm×1500mm |
| Weight | 4000KG |
| Power Supply | AV,380V,50HZ |
The machine runs at a maximum speed of 200 cycles per minute with a high cutting accuracy of ±0.15mm.

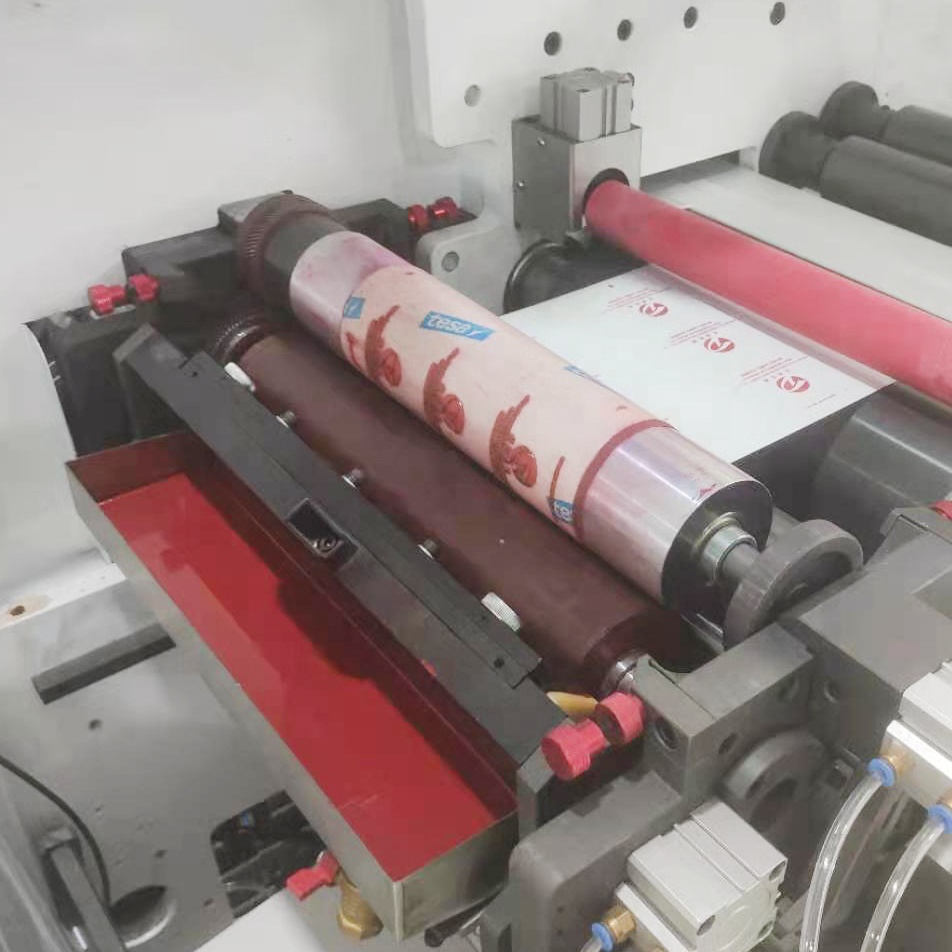

The flexographic printing system is designed for functions such as cold stamping, UV coating, super varnishing, and dot varnishing.

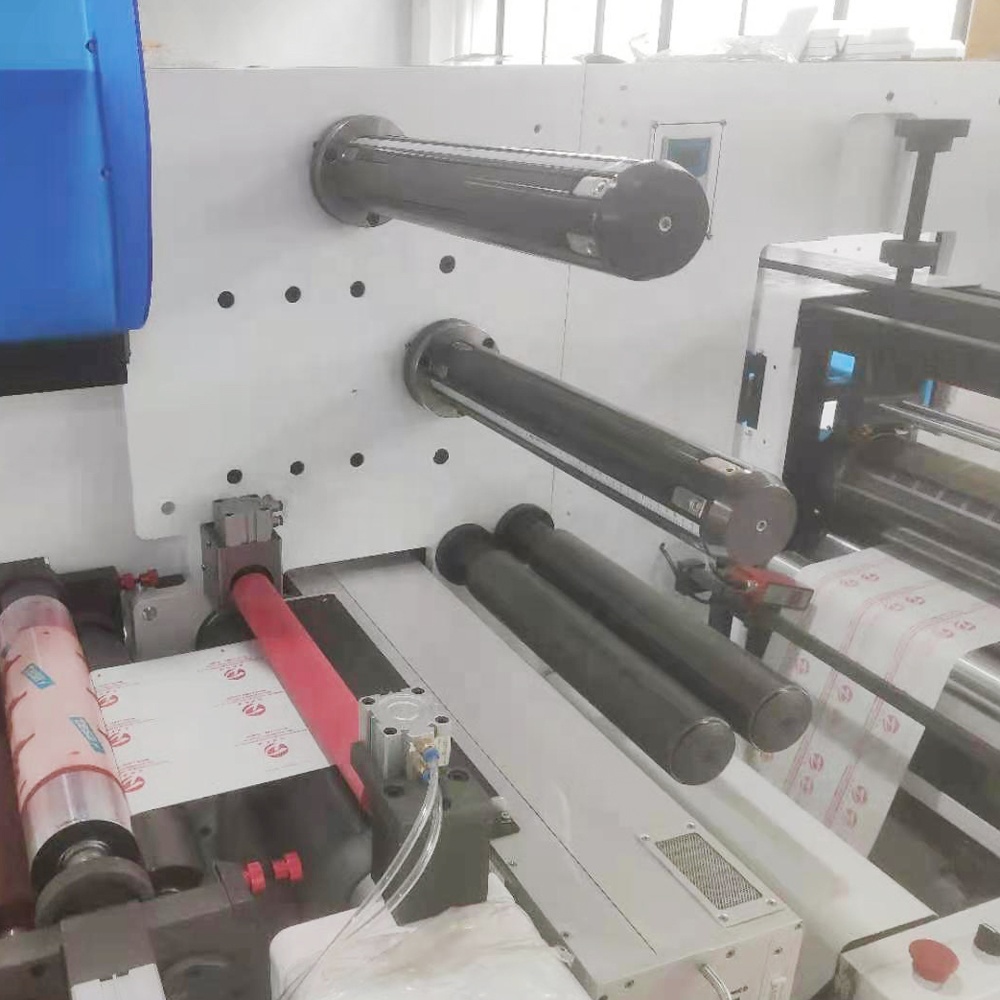

Both the maximum unwinding and rewinding diameters are Φ800mm, which supports rolls of approximately 2000 meters in length.
The machine supports paper widths ranging from 100mm up to 330mm.
The machine requires a power supply of AC 380V, 50HZ and has a total weight of 4000KG.

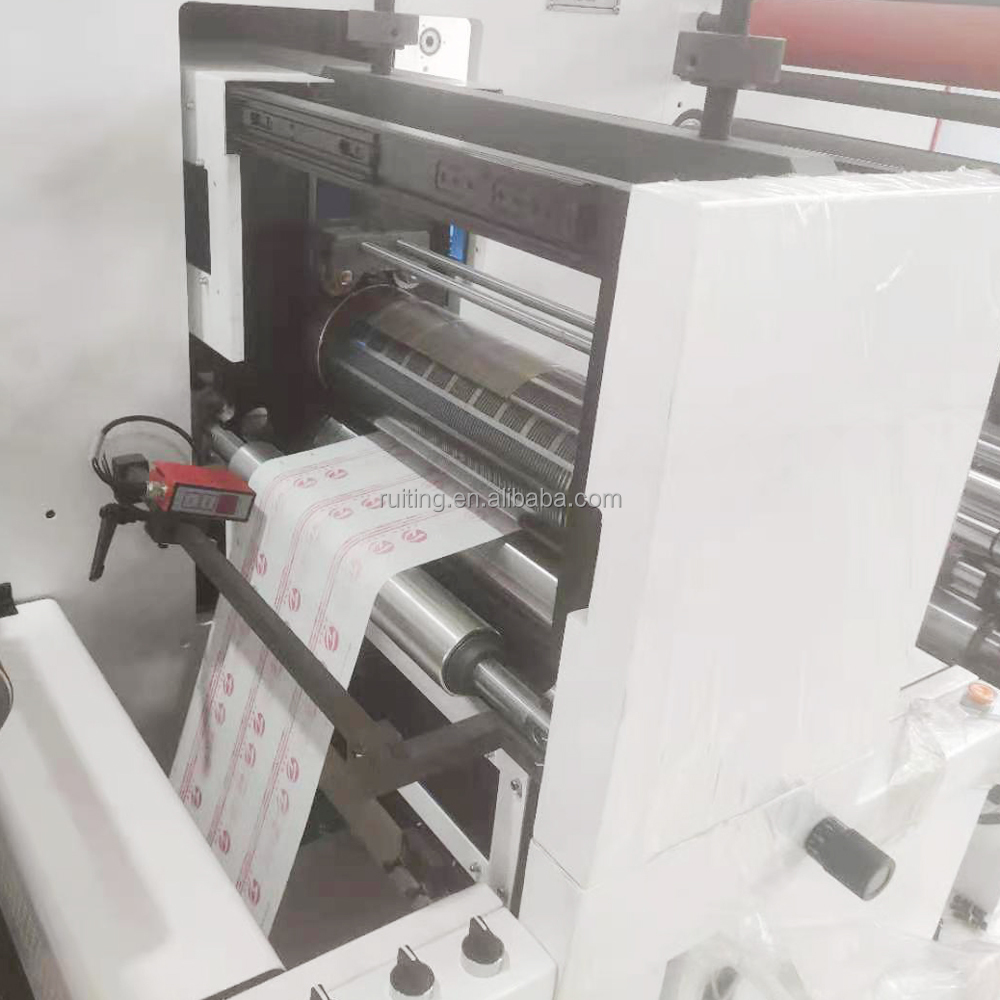

In addition to the intermittent die cutting system, it includes a flexographic printing system, alongside a sheeting or slitting and rewinding system.
