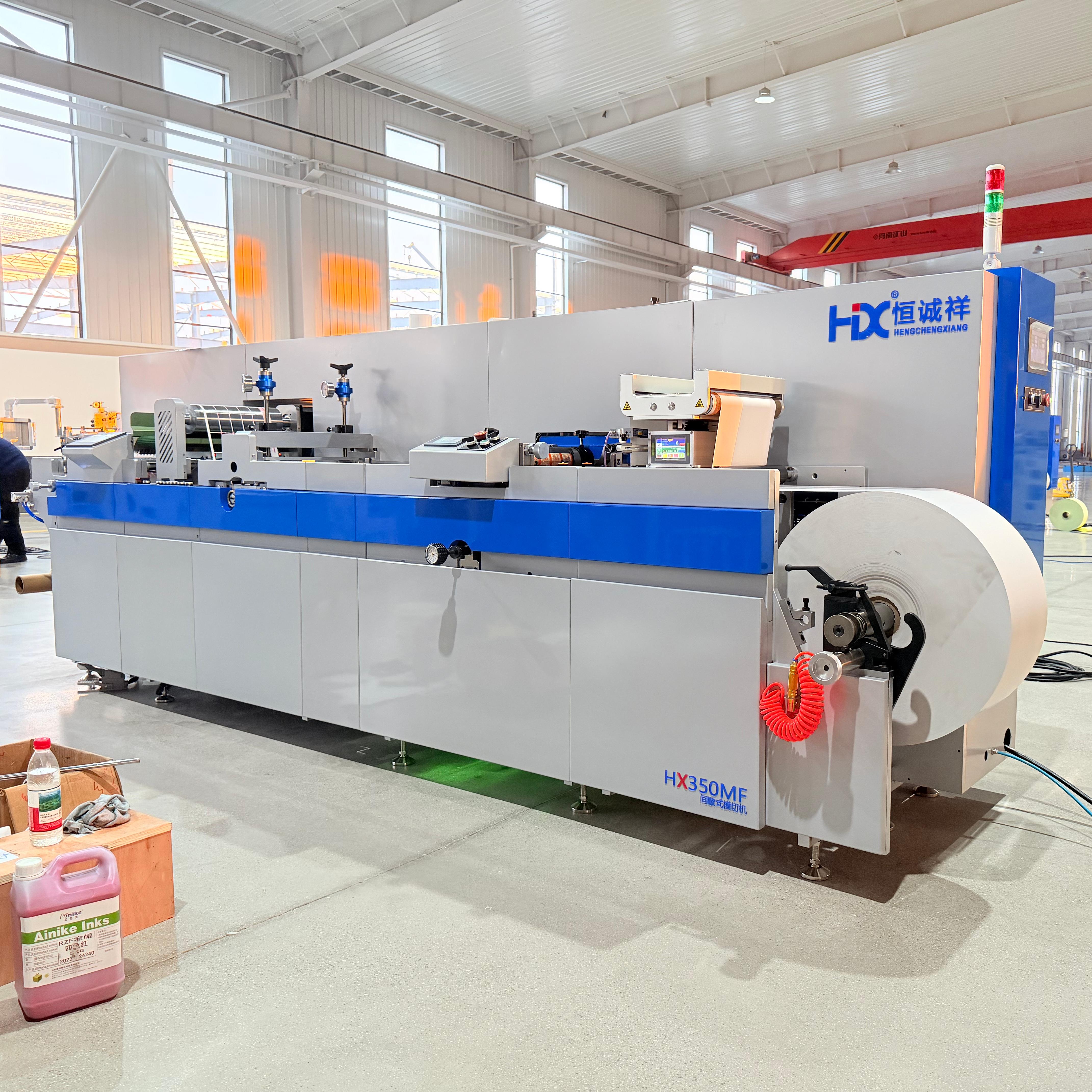

Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
1 / 5
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.
Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.

Semi-automatic Intermittent Rotary Label Printing and Die-cutting Machine for Self-adhesive Labels.

Send Inquiry

Product Description

Die Cutting Machine Header Banner
Products Description

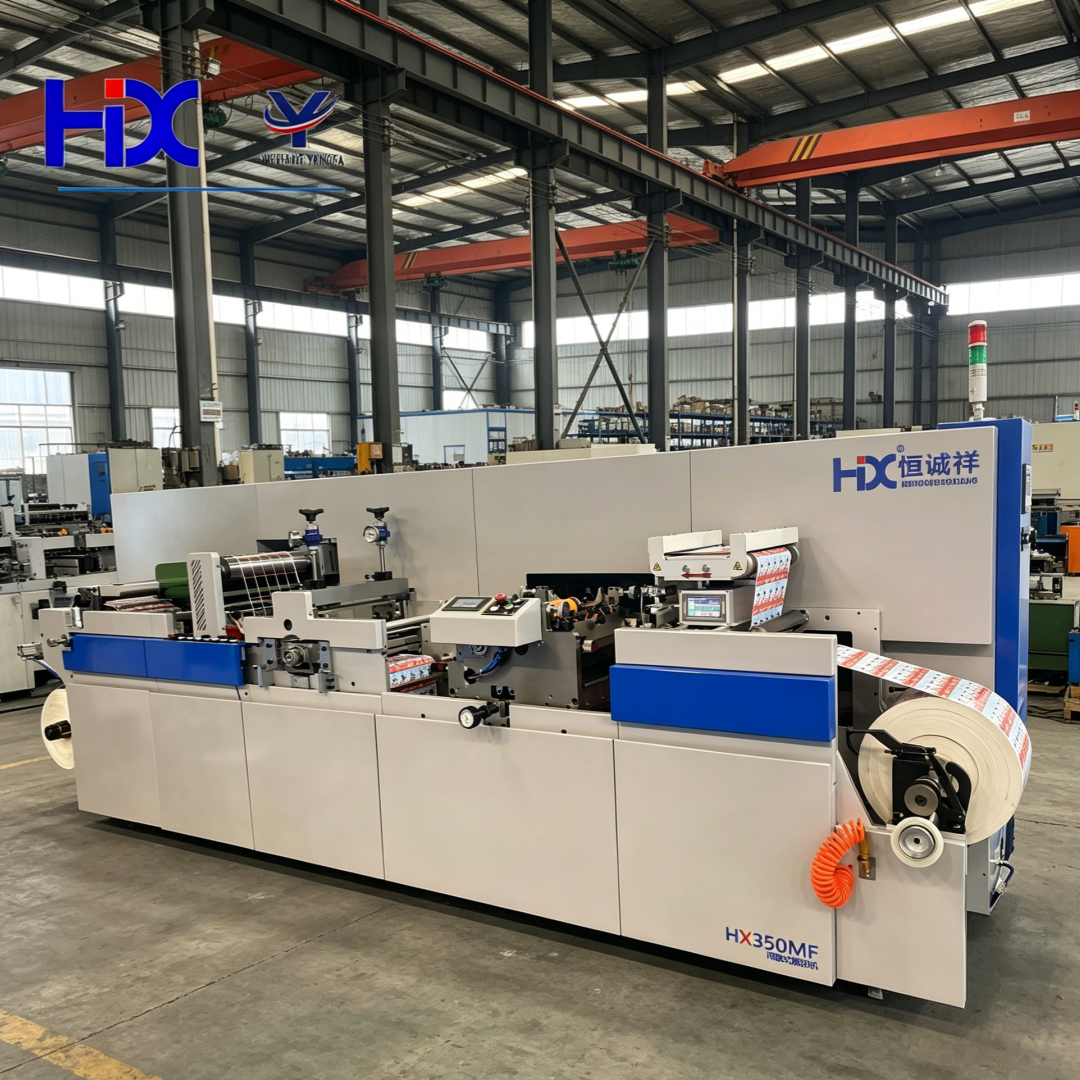

HX350MF-JY Intermittent Die Cutting Machine is a wide-width die-cutting product developed to meet the demands of international markets. This integrated machine is designed for optimized efficiency with multiple key operation stations.

This high-performance equipment features functions such as paper loading, web guide system, die cutting, waste discharge, rewinding of big and small rolls, and optional slitting. It supports both full rotary and intermittent die-cutting modes, delivering fast working speeds and excellent run stability, making it the ideal self-adhesive label conversion equipment.

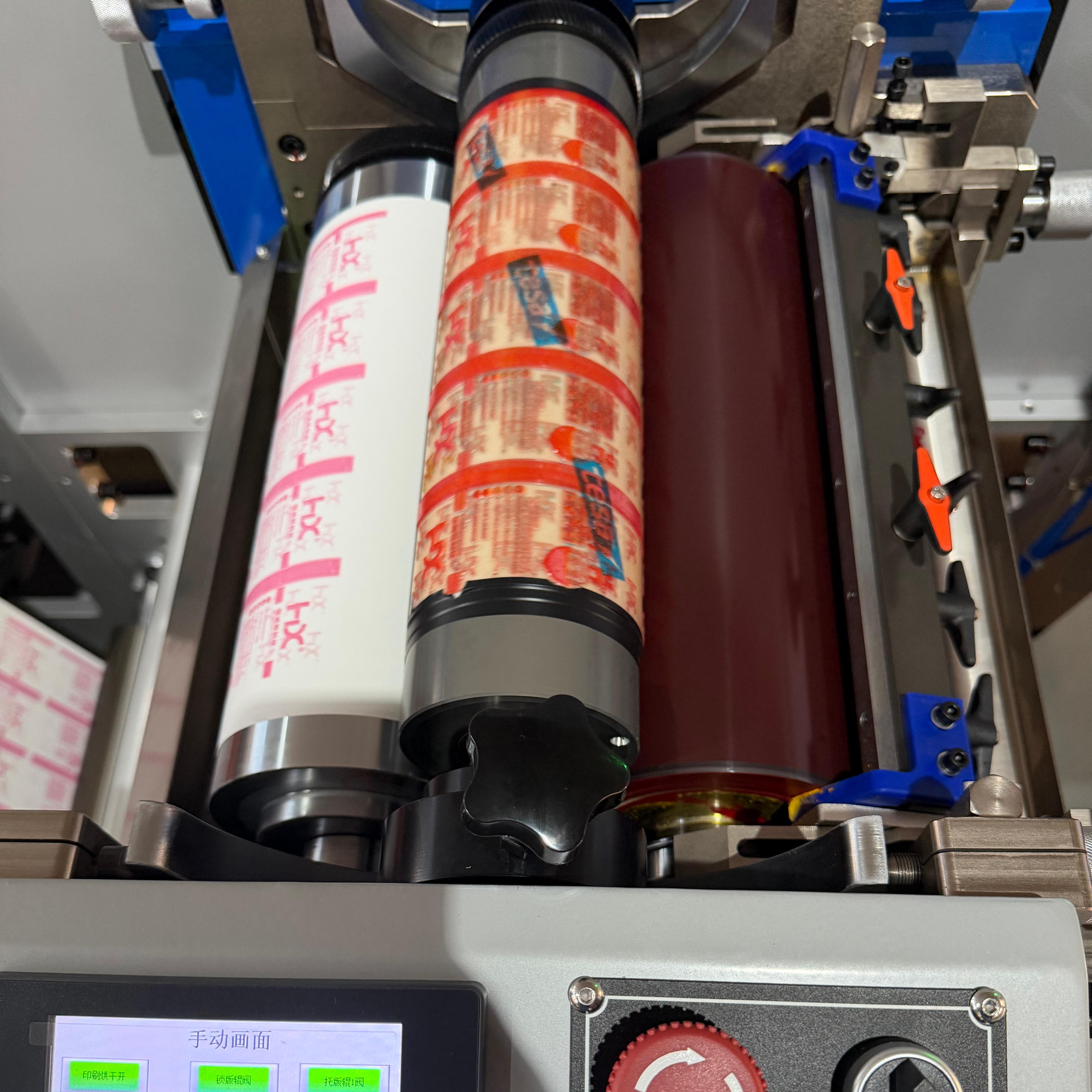

Single-Color Printing & Coating Unit: This machine is equipped with an additional printing unit for single-color printing or varnish coating, enhancing label appearance and enabling integrated label printing and die-cutting production.

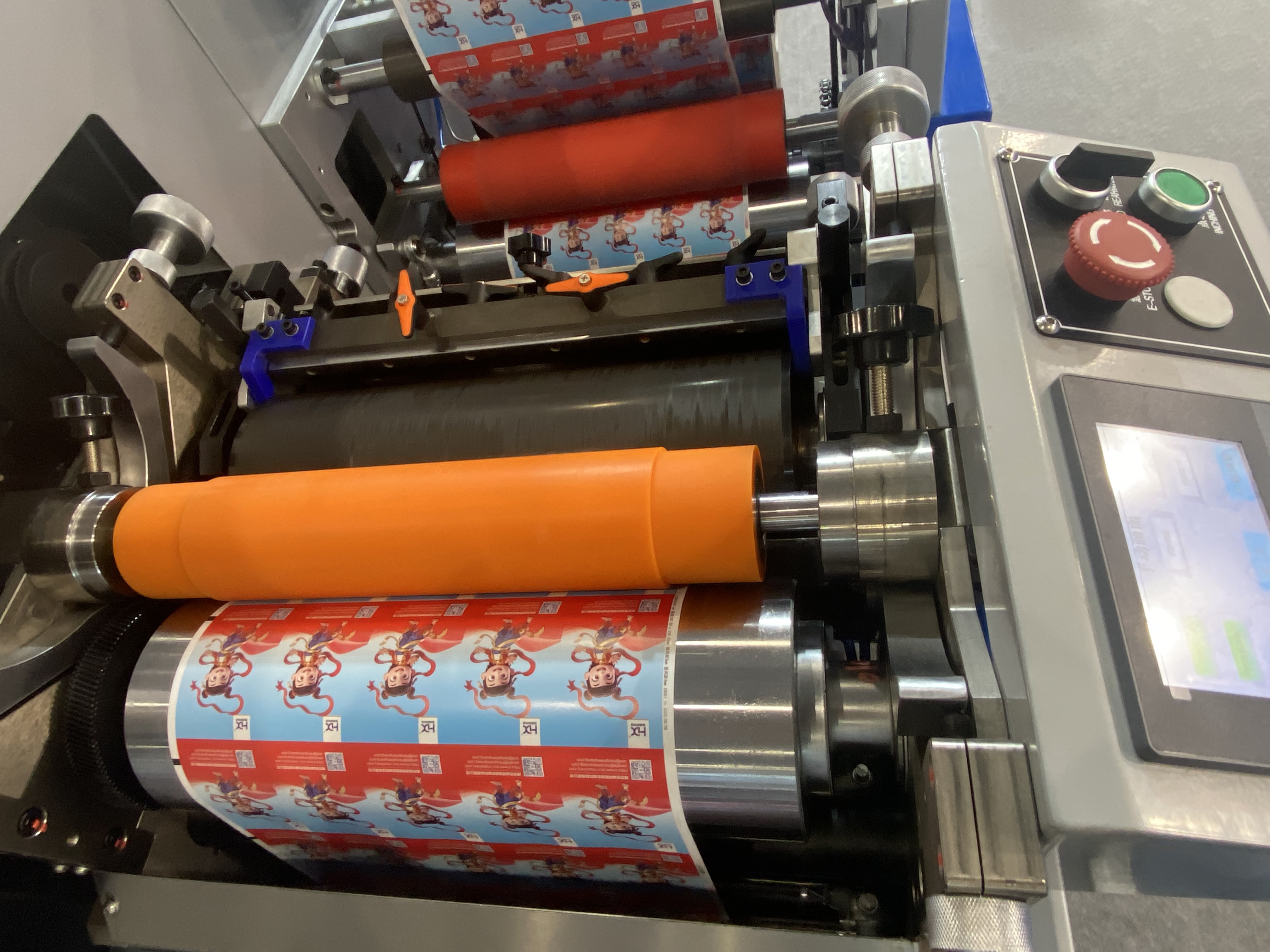

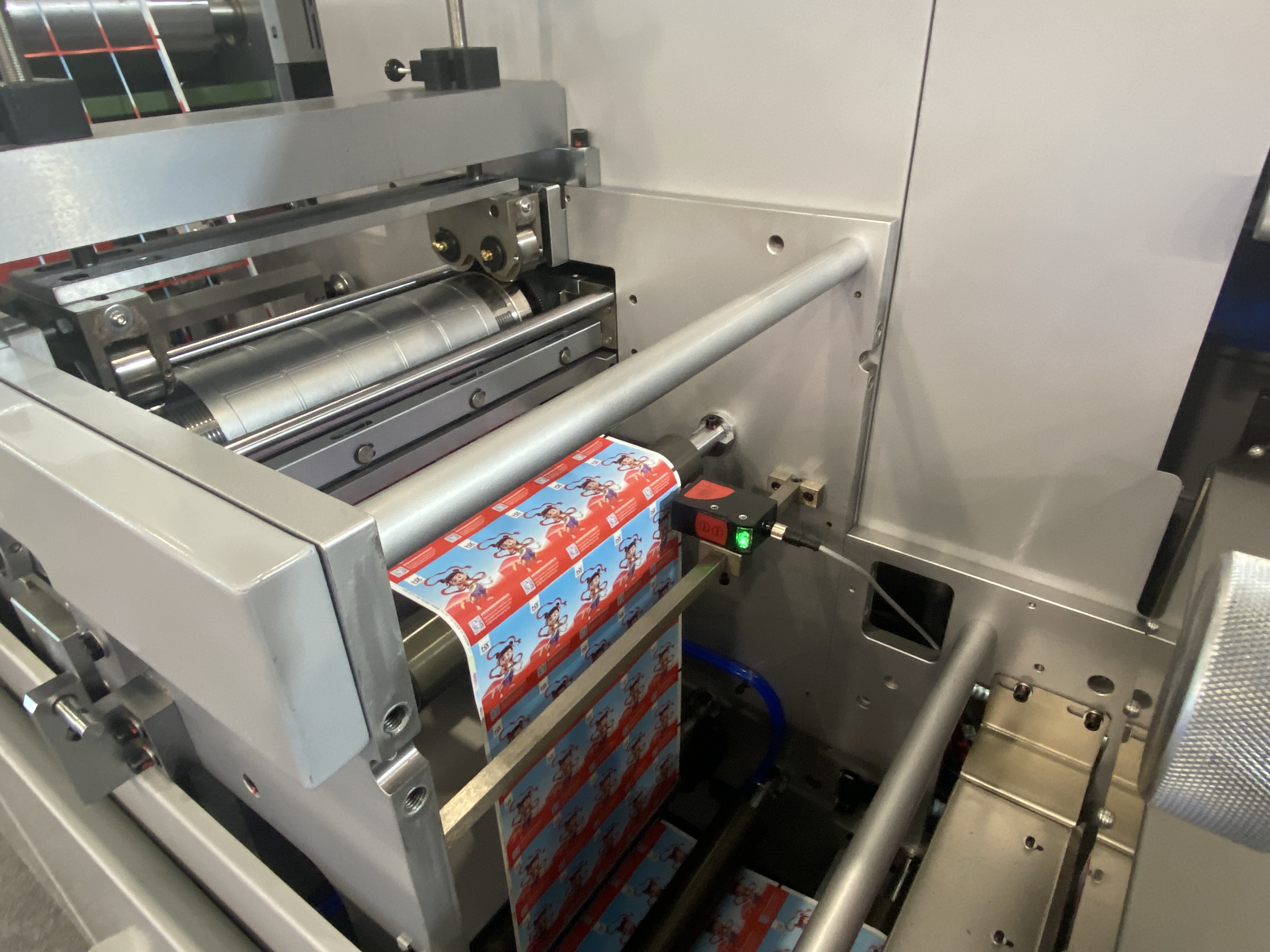

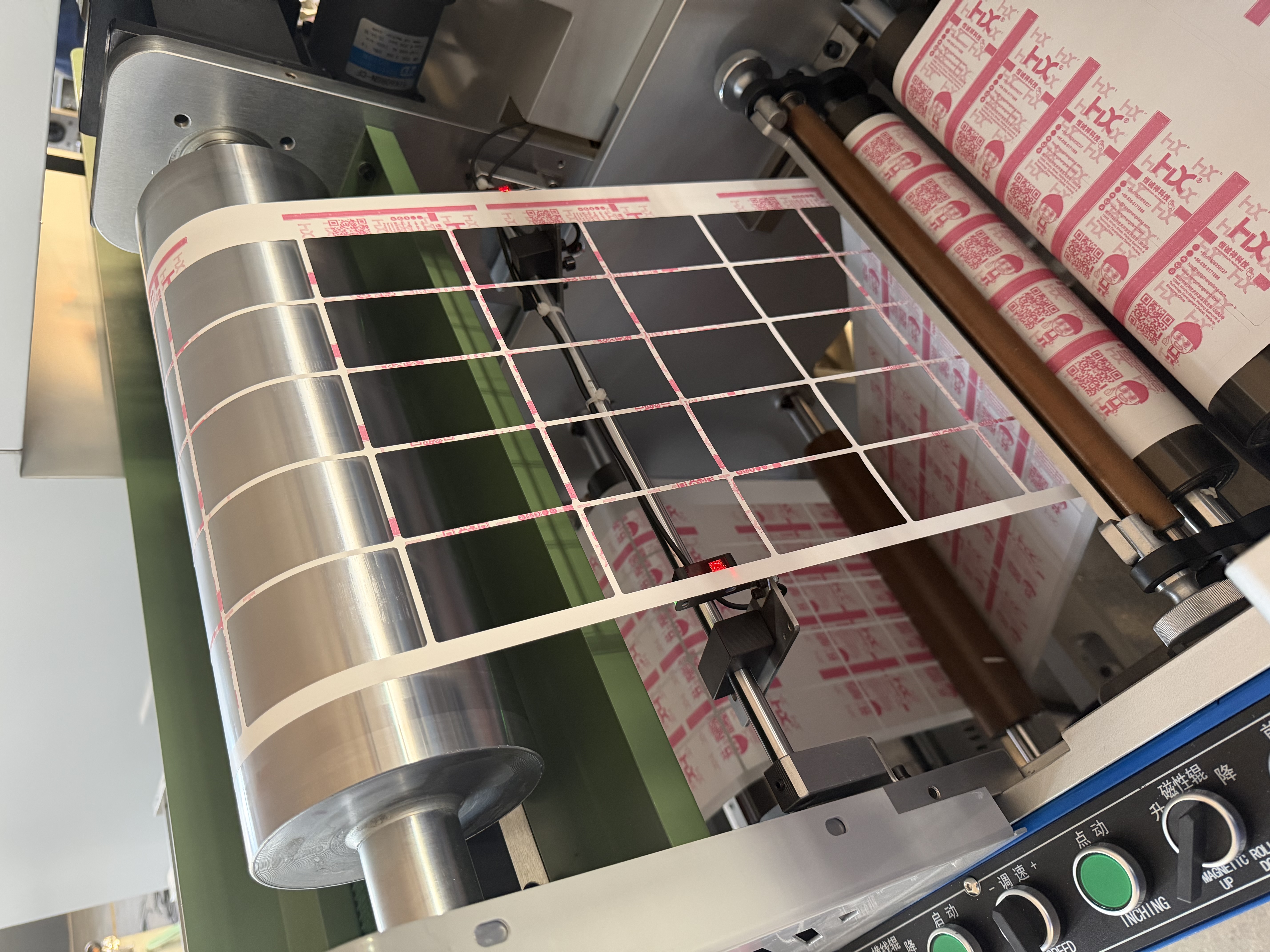

HX350MF-JY Details 1 HX350MF-JY Details 2 HX350MF-JY Details 3
Technical Specifications
Type HX350MF-JY
Max. paper loading width 350mm
Max. unwinding diameter 1000mm
Max. die-cutting rewinding diameter 630mm
Rewinding shaft diameter 25mm, 40mm, 76mm
Unwinding shaft diameter 76mm
Standard magnetic cylinder size 120T
Full rotary die cutting speed 0-120m/min
Intermittent die cutting speed 0-70m/min
Waste discharge mode Servo (scraper)
Min. slitting width 20mm
Max. number of slitting blades 10 SETS
Printing speed 0-120m/min
Number of printing colors 1 group
Ink type Water-based ink, UV ink
Drying system Infrared, UV (optional)
Printing roller size 80T-200T
Lubrication system Automatic
Drive Servo motor
Control system Delta
Power specifications 380V/50HZ/3PH
Machine dimensions (L*W*H) 4200*1400*1700mm
Compressed air 0.8Mpa (Clean Compressed Air)
Power 11KW
Weight 2700 kgs
Machine Product Line Banner
Product Details Gallery
Production Process 1 Production Process 2 Production Process 3 Production Process 4 Production Process 5 Production Process 6 Production Process 7 Production Process 8
Frequently Asked Questions
What kind of after-sales service or guarantee do you offer?
We provide a one-year guarantee for key components of the machine. Additionally, we offer machine installation guidance, operator training services, lifetime free technical support, and auxiliary material sourcing support.
Is the machine difficult to operate?
No, our machine features a user-friendly control layout and is straightforward to operate. Once powered, basic operations can be set up immediately. We also offer 24/7 online technical support to assist you with operational inquiries.
How do you handle quality control during manufacturing?
Quality control is prioritized from start to finish. Every machine undergoes comprehensive checks and thorough testing stages before being prepared for shipment to ensure overall equipment performance.
What if we do not know how to choose the right machine configuration?
Our professional technical team will assist you. By analyzing your product requirements, output goals, and material specifications, we can recommend the most appropriate machine configurations for your business.
Can the machine configuration be customized?
Yes. If standard models do not fit your specific production demands, you can provide us with your structural and function requirements. We offer custom solution designs to match your specific production environment.
How can we learn to run the production line if we don't have professional operators?
The machine is shipped with comprehensive installation manuals and operation videos. Its intuitive workflow allows new operators to learn the system's baseline operation functions quickly.
