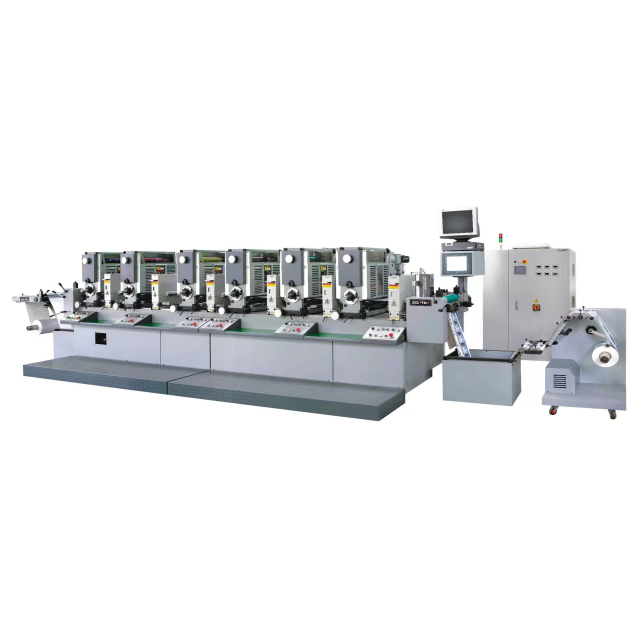

SUPER-320 Intermittent Letter Press High Speed Label Printing Machine

Product Description

Products Description

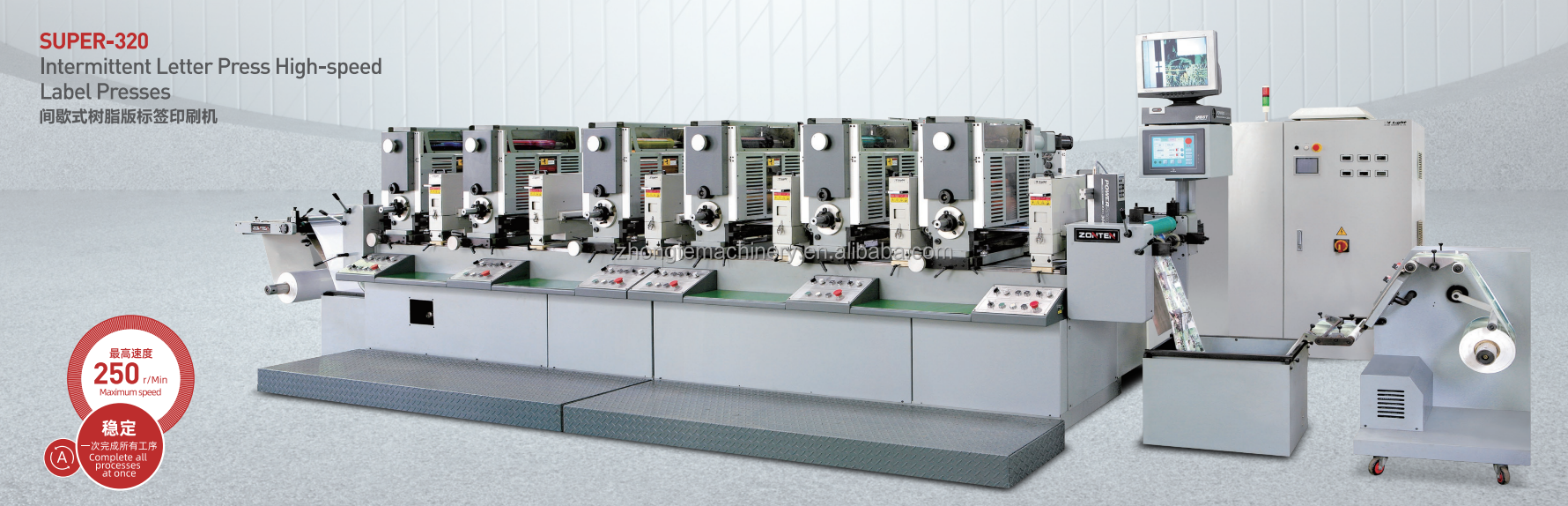

Product Overview

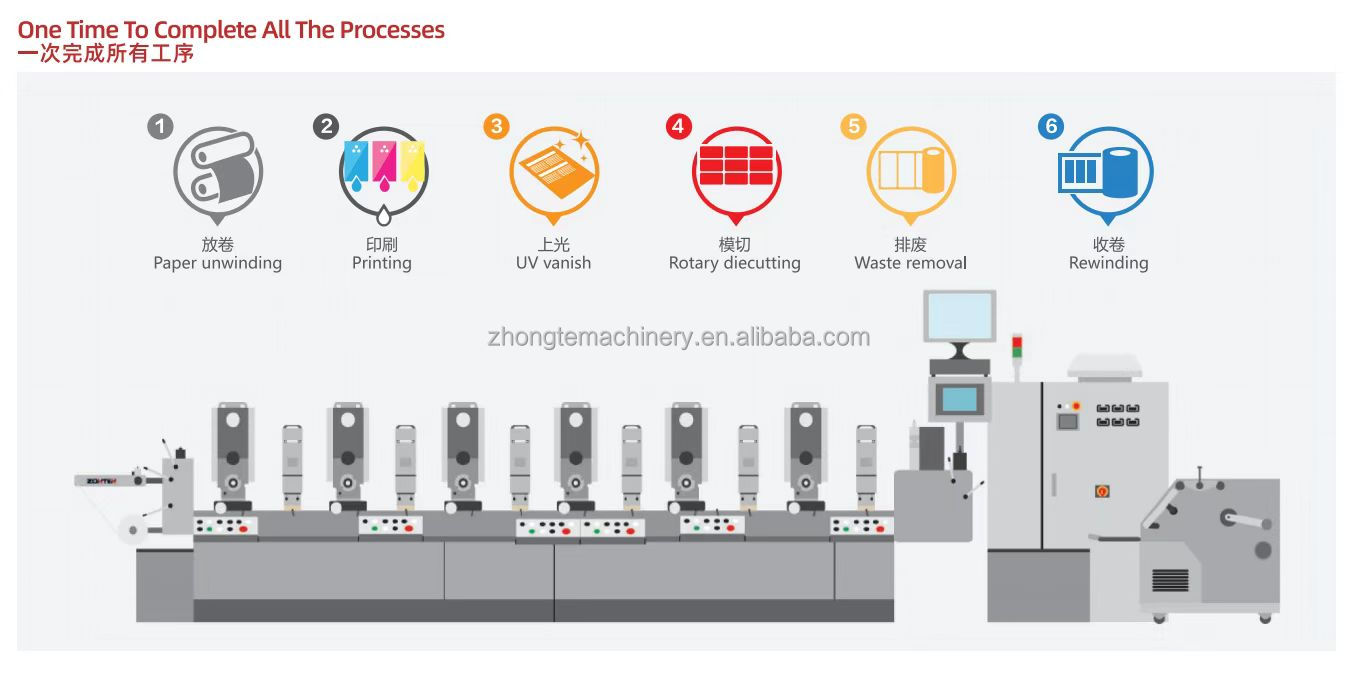

Product Structure
Details Images
Detail Image 1
Detail Image 2

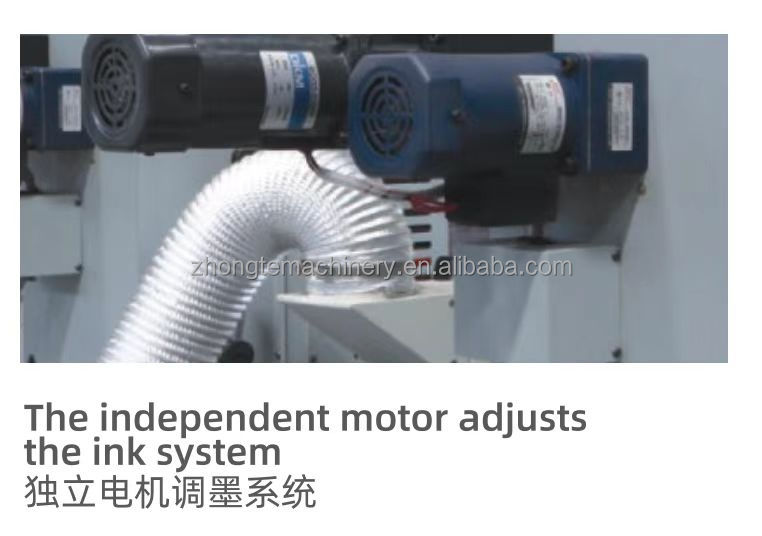

Detail Image 3
Detail Image 4

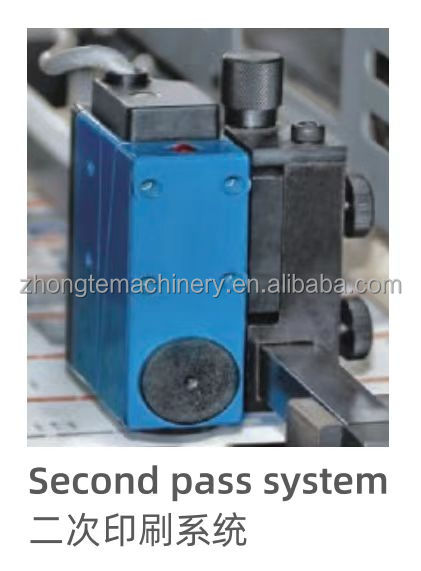

Detail Image 5

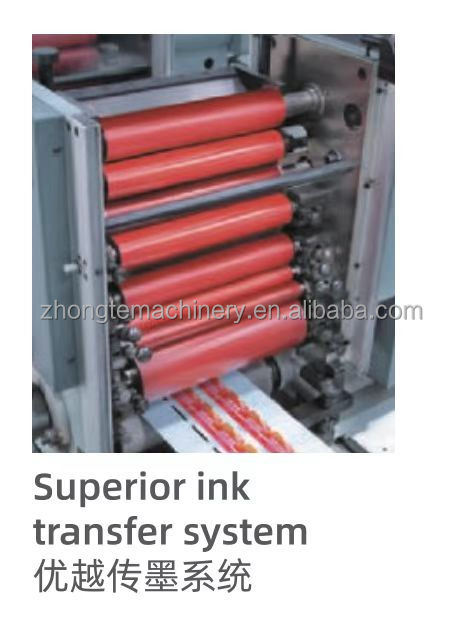

Detail Image 6

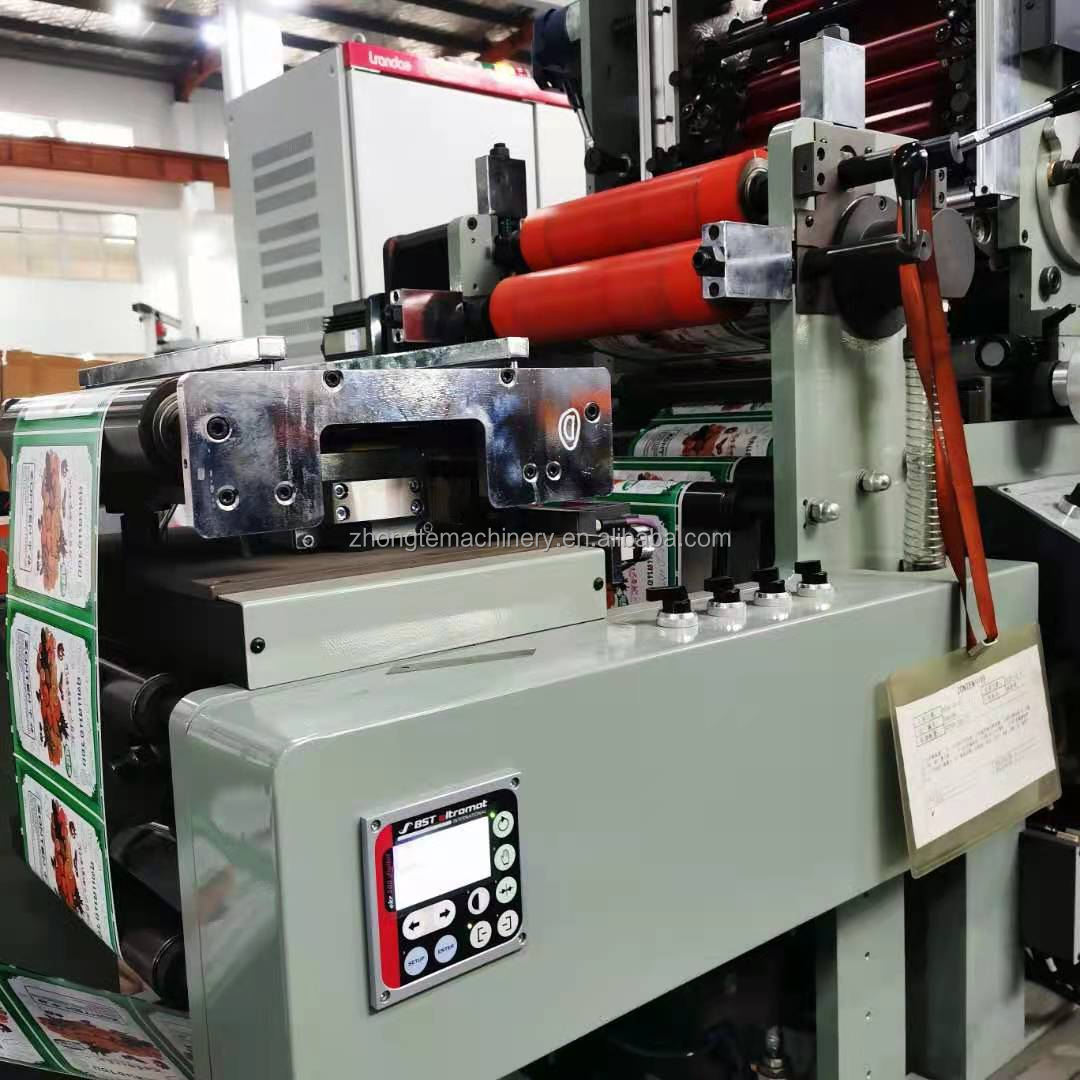

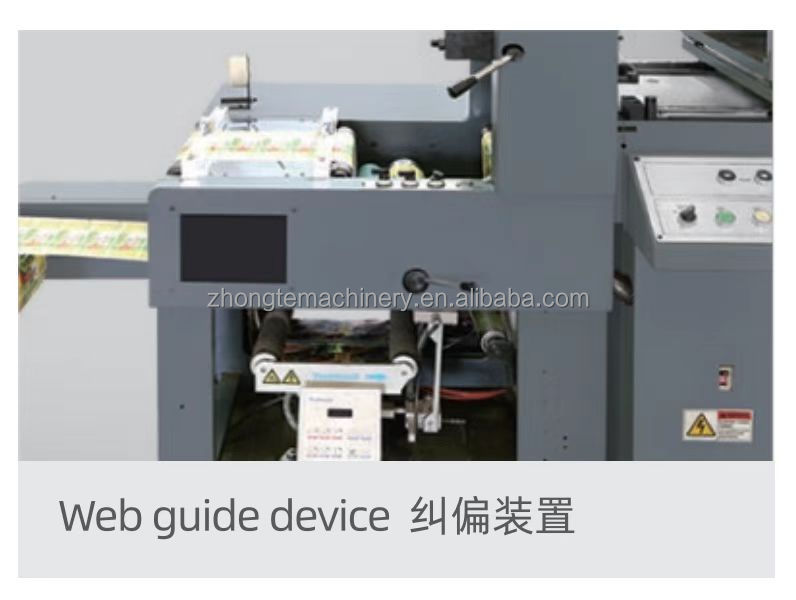

web guider
web guider

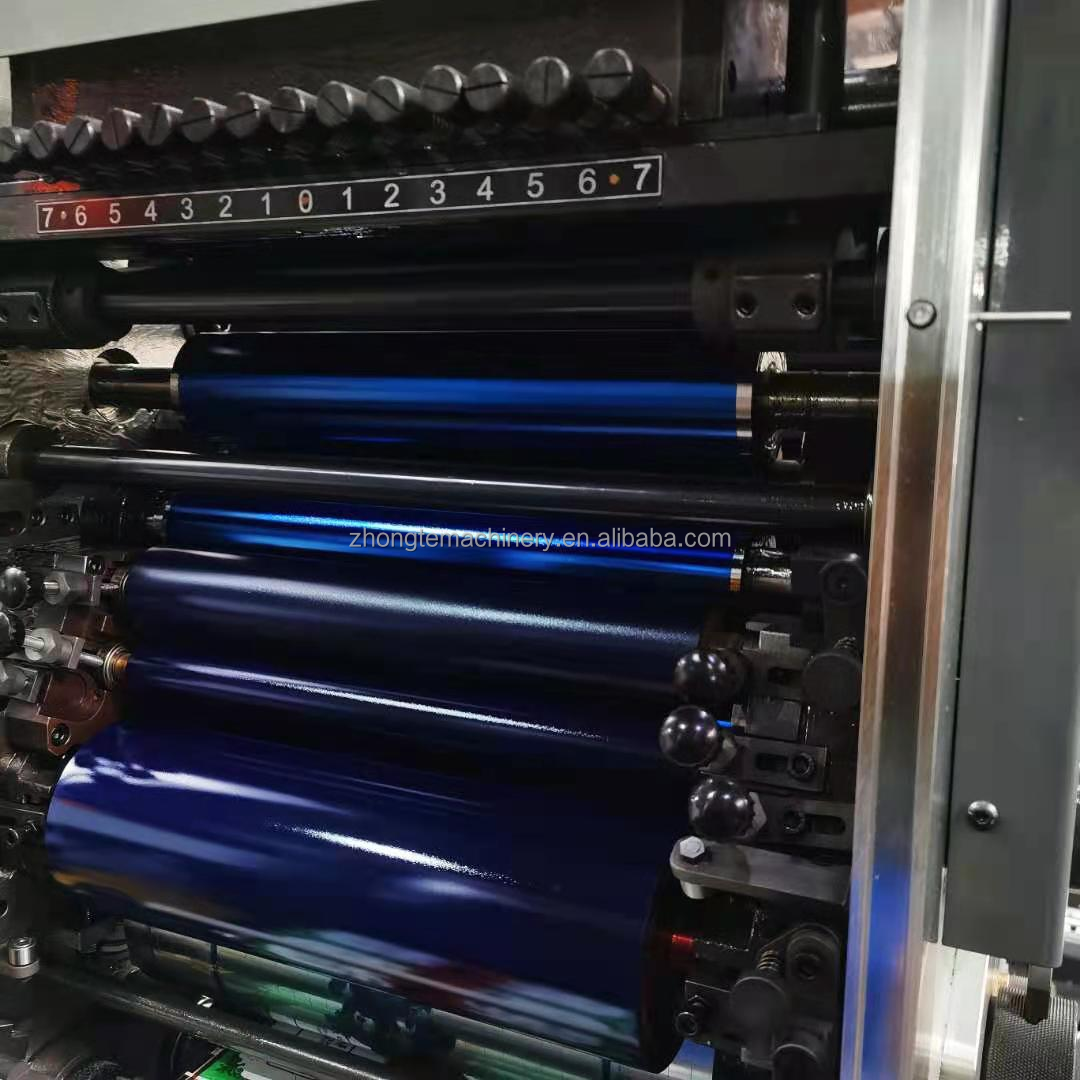

color print structure
color print structure

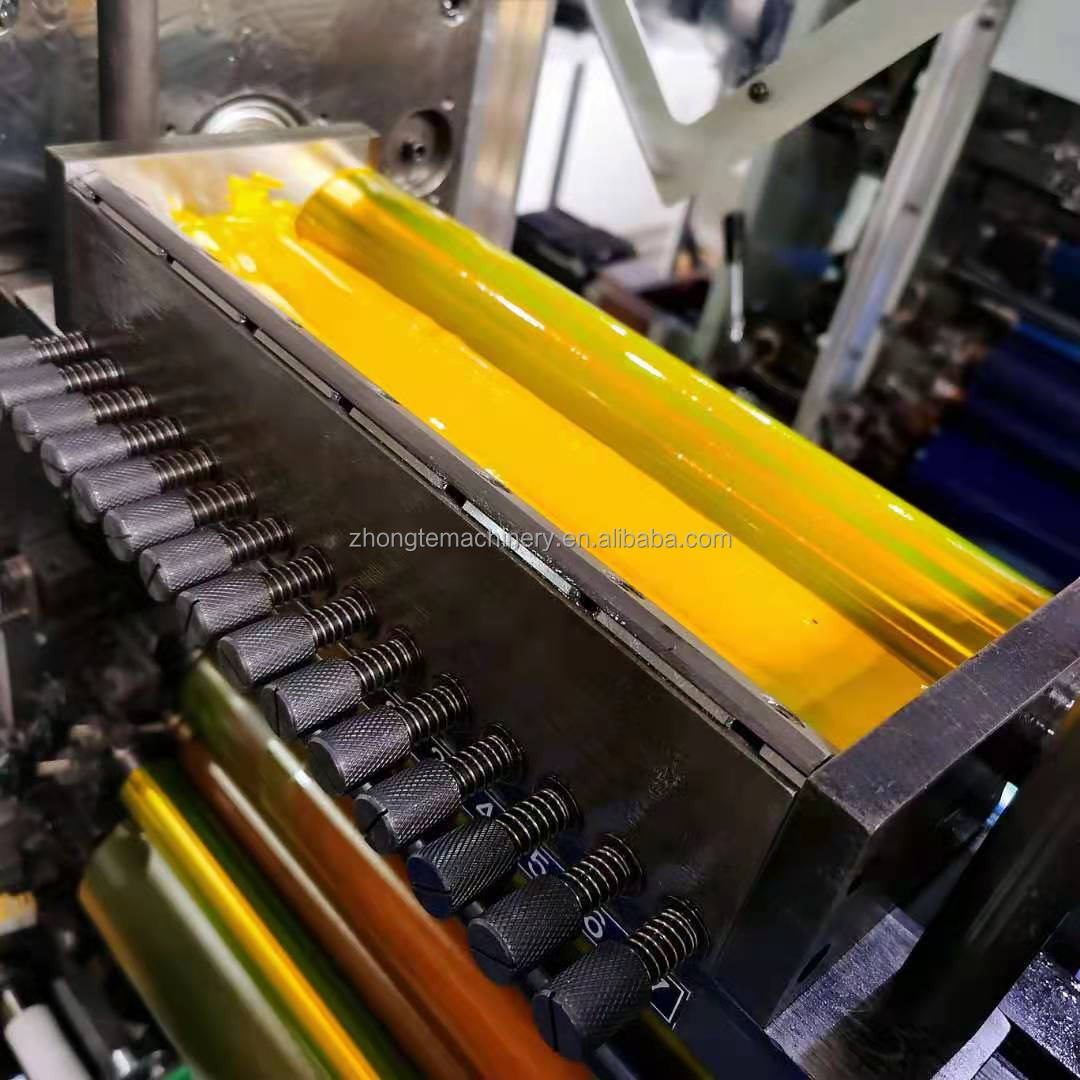

ink tray
ink tray

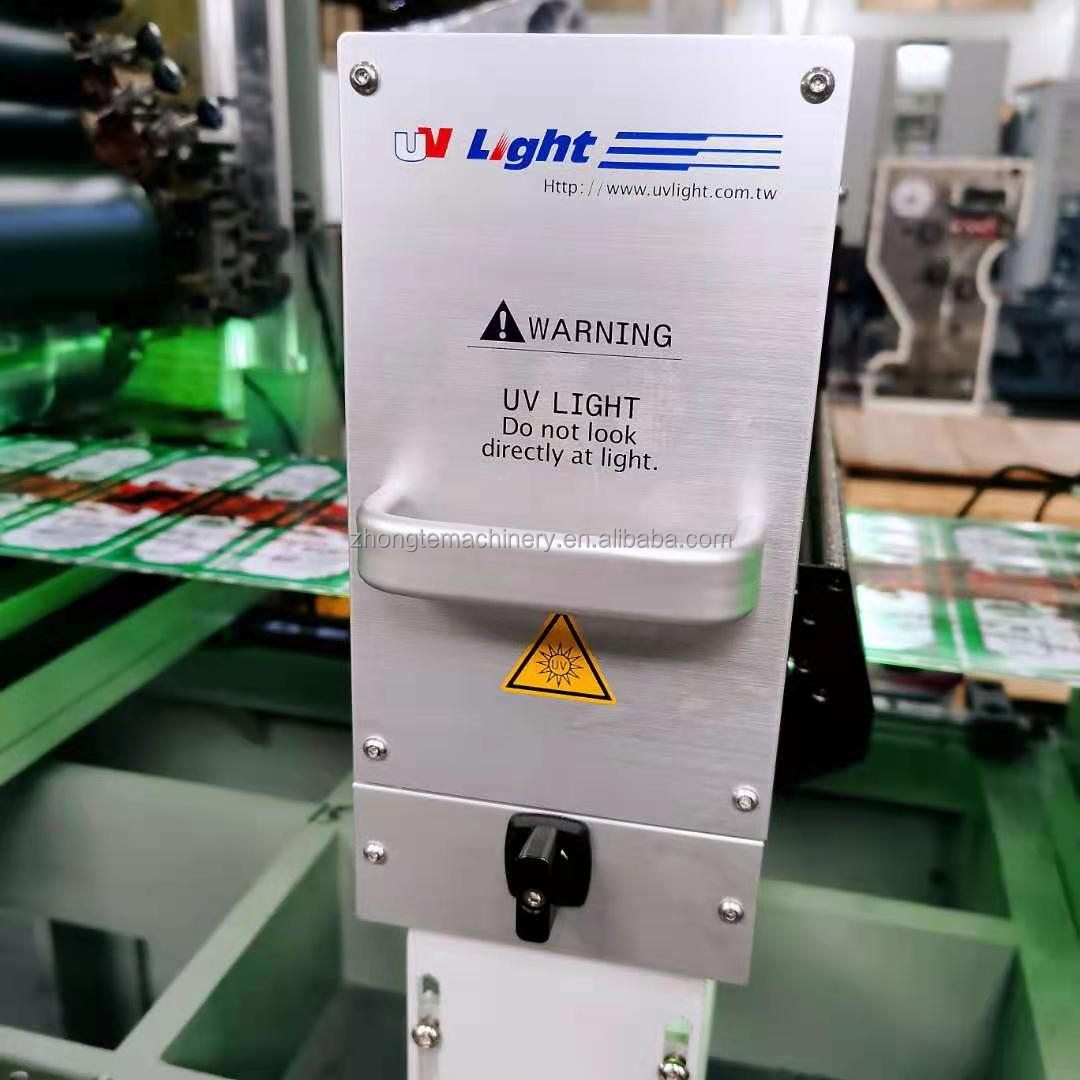

UV dryer
UV dryer

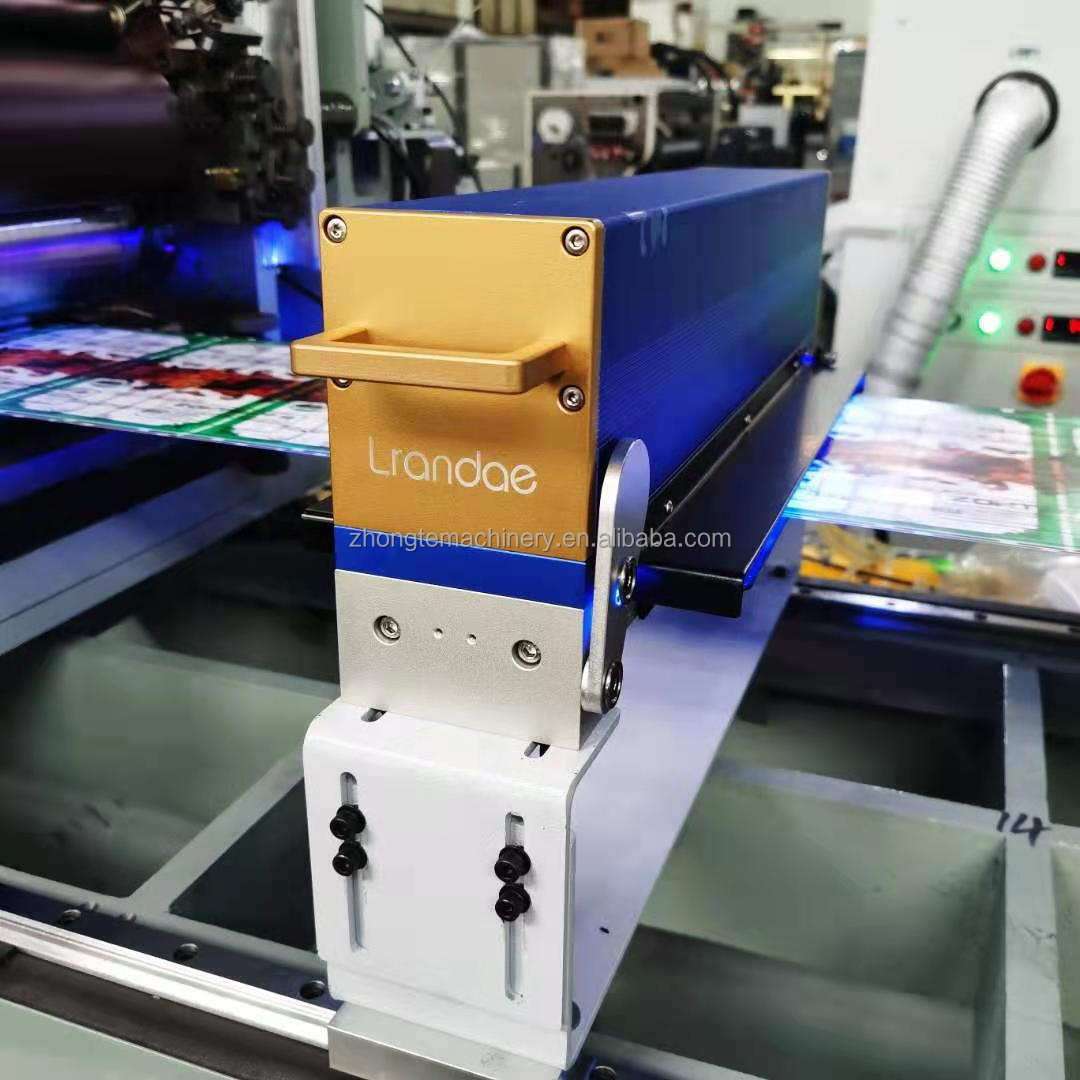

LED UV dryer
LED UV dryer

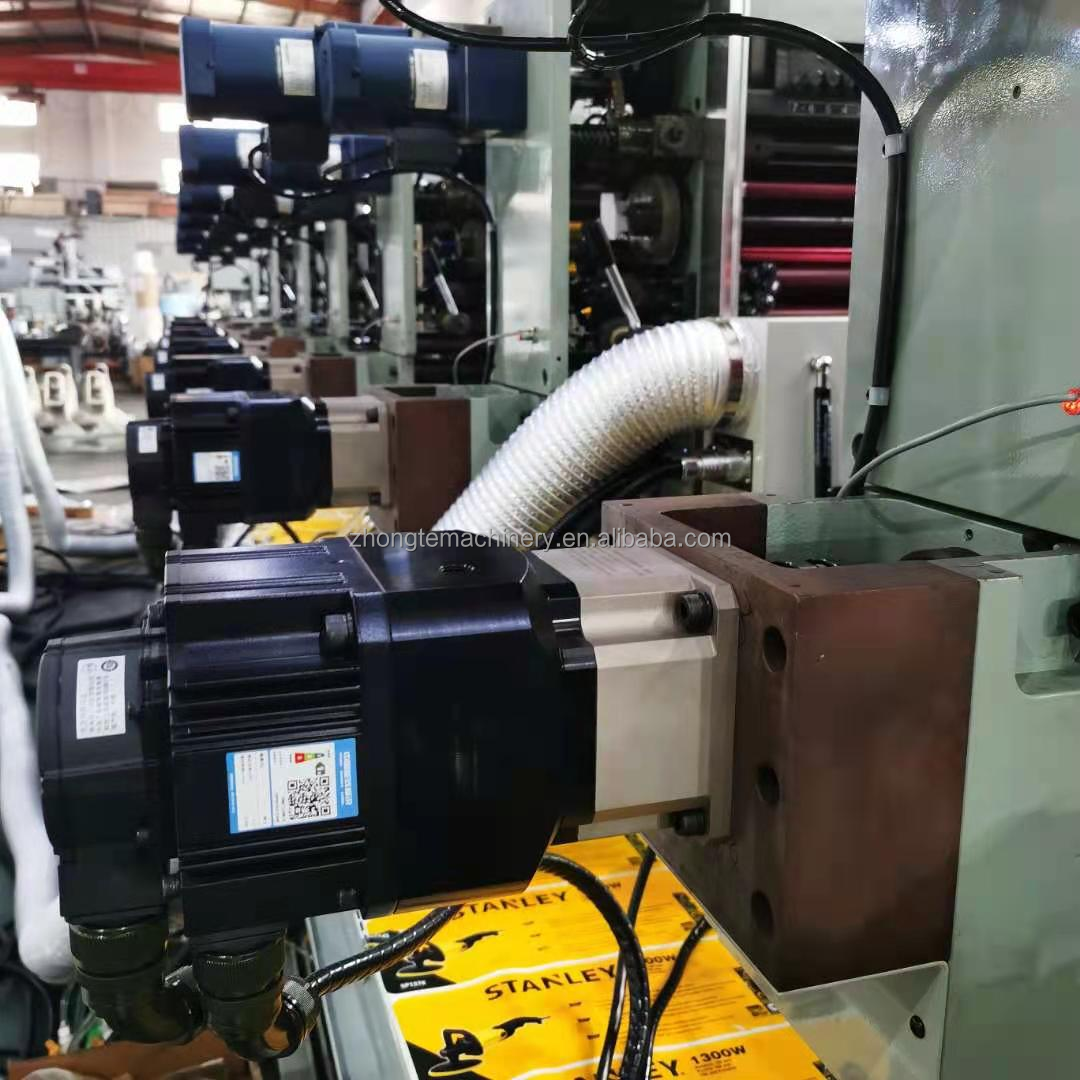

Servo diver and motor
Servo driver and motor

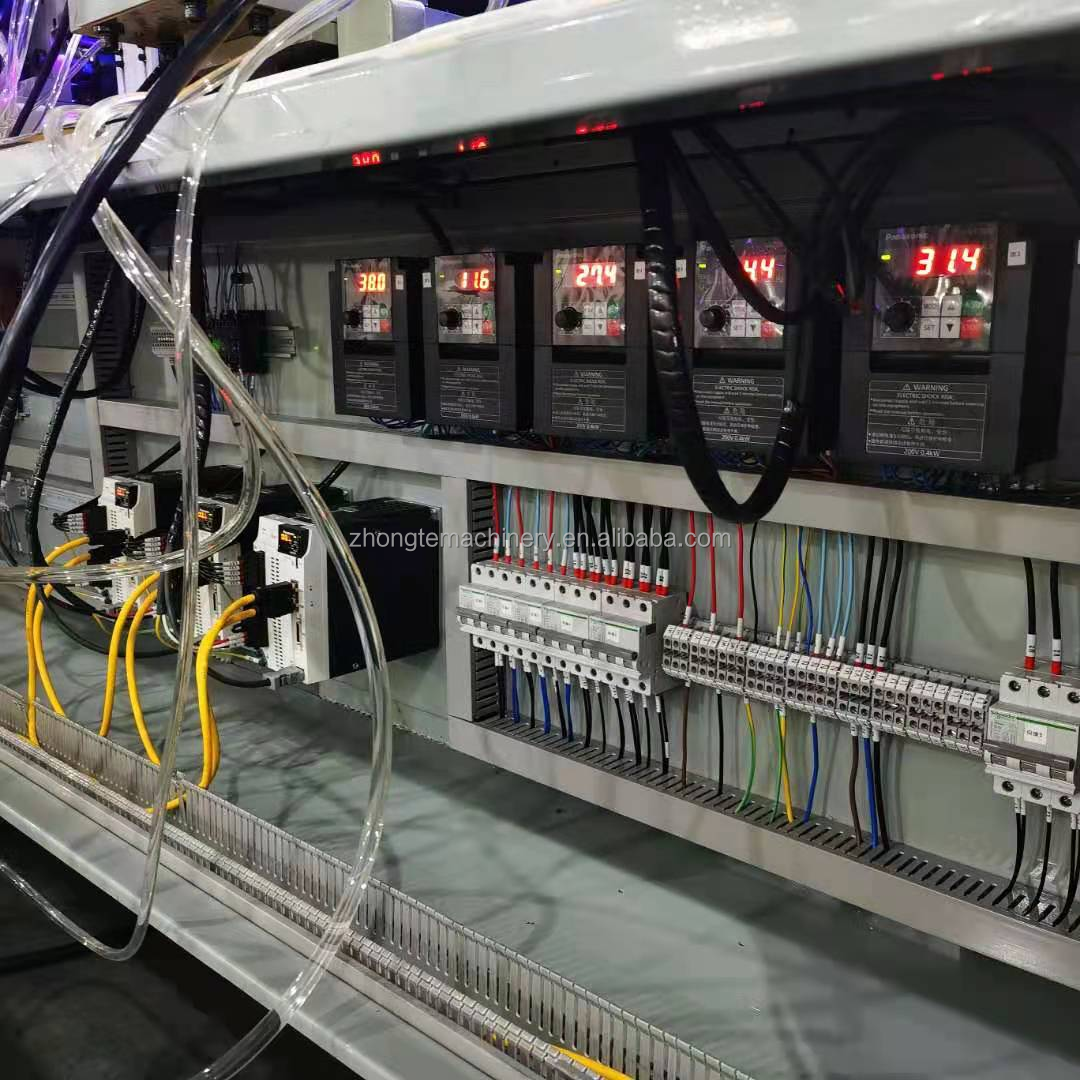

Electrical part
Electrical part

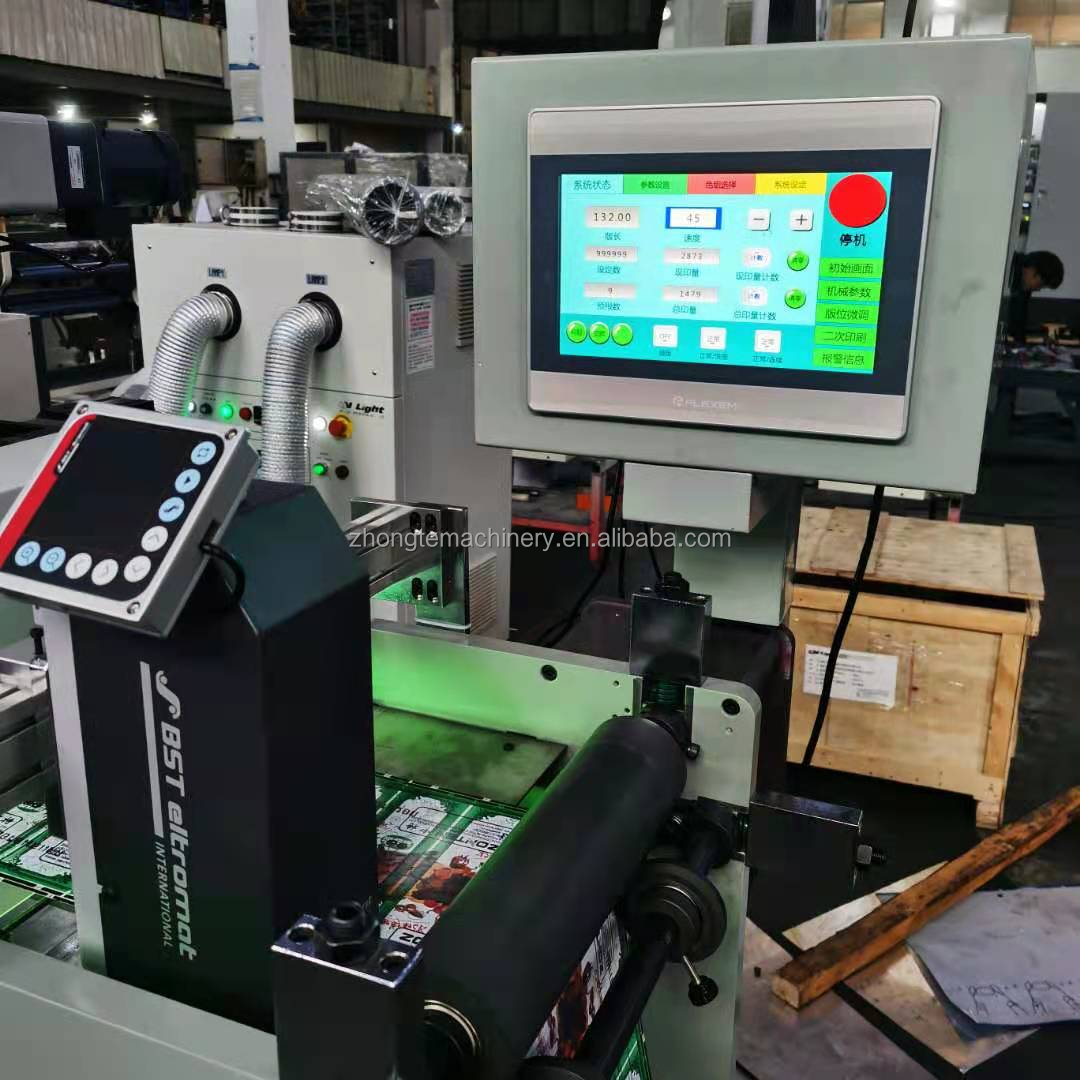

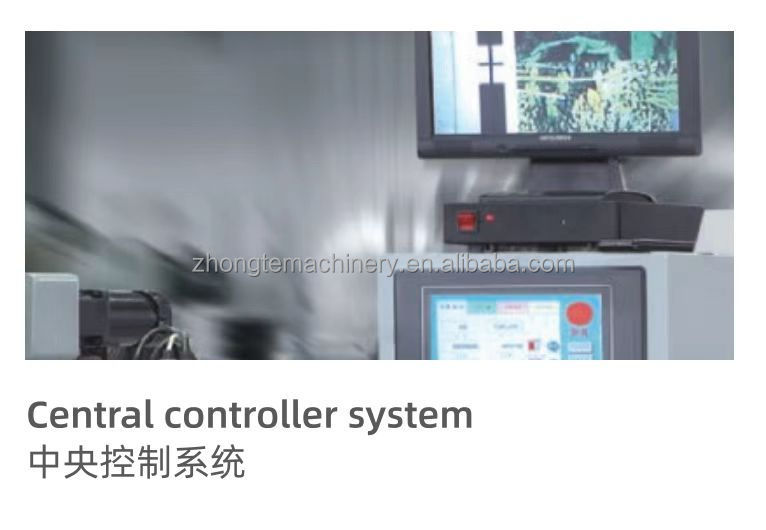

PLC with touch screen
PLC with touch screen

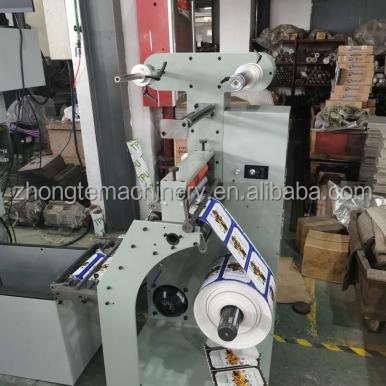

Rewind roll
Rewind roll

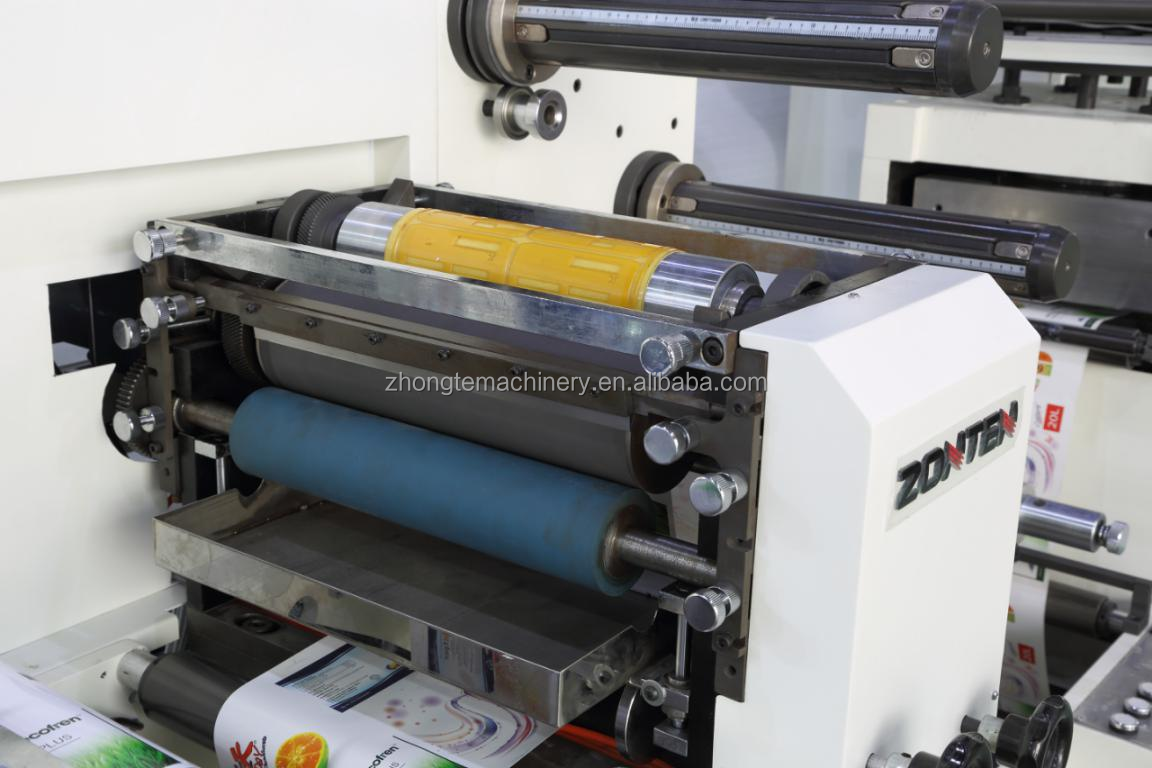

Optional: flexo uv vanish
Optional: flexo uv vanish

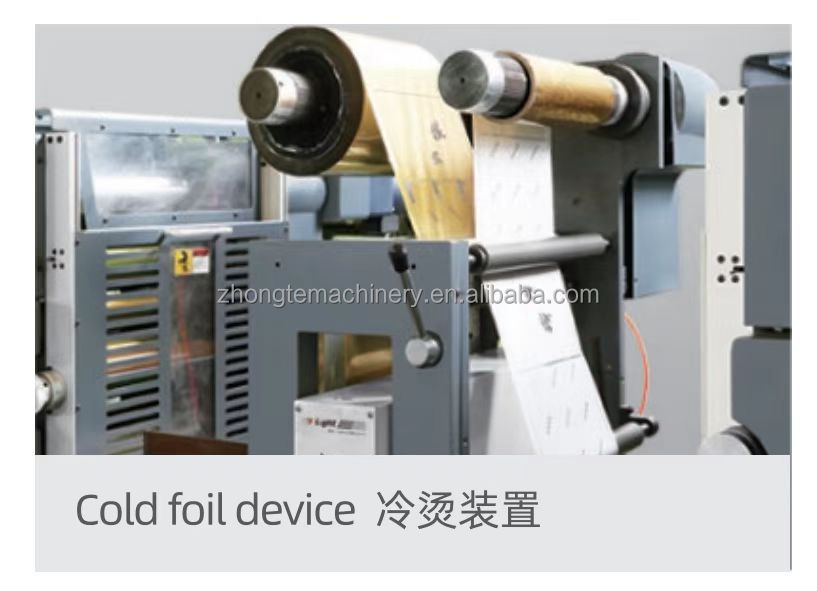

Detail Image 7
Detail Image 8

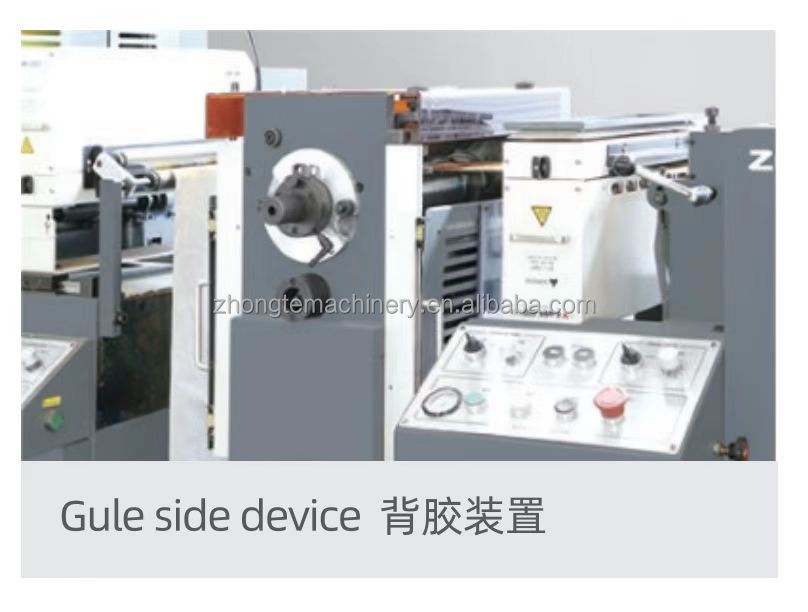

Detail Image 9

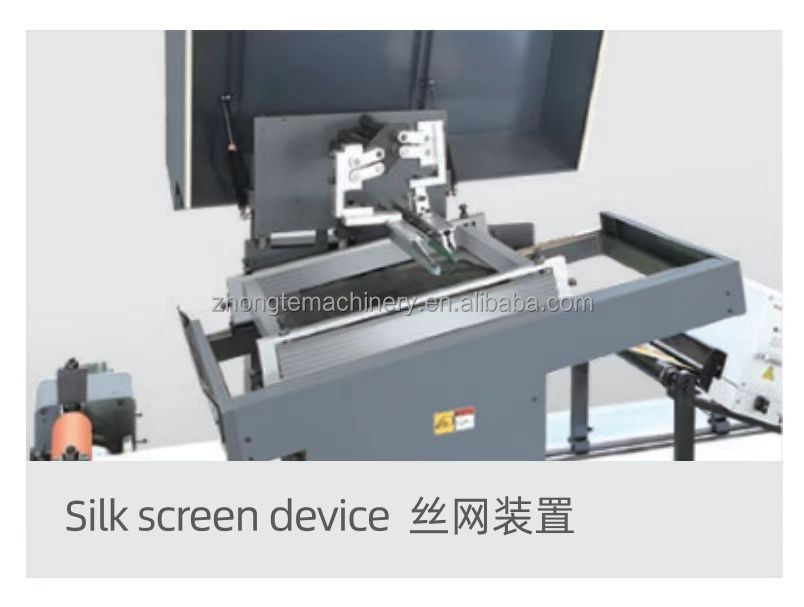

Detail Image 10

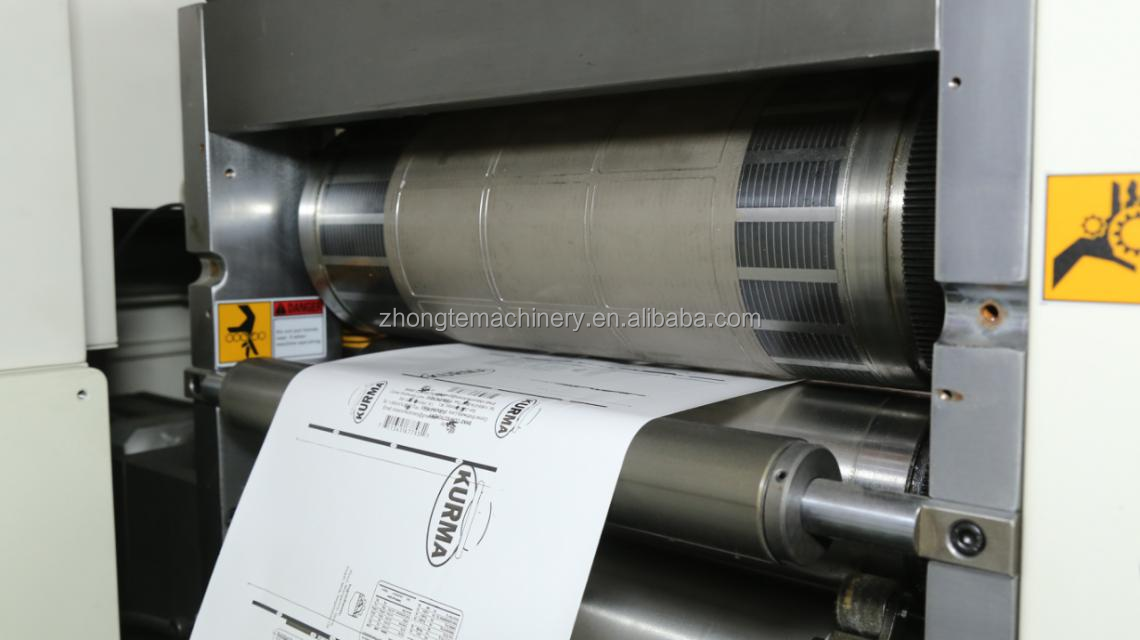

Optional: rotary die cut
Optional: rotary die cut

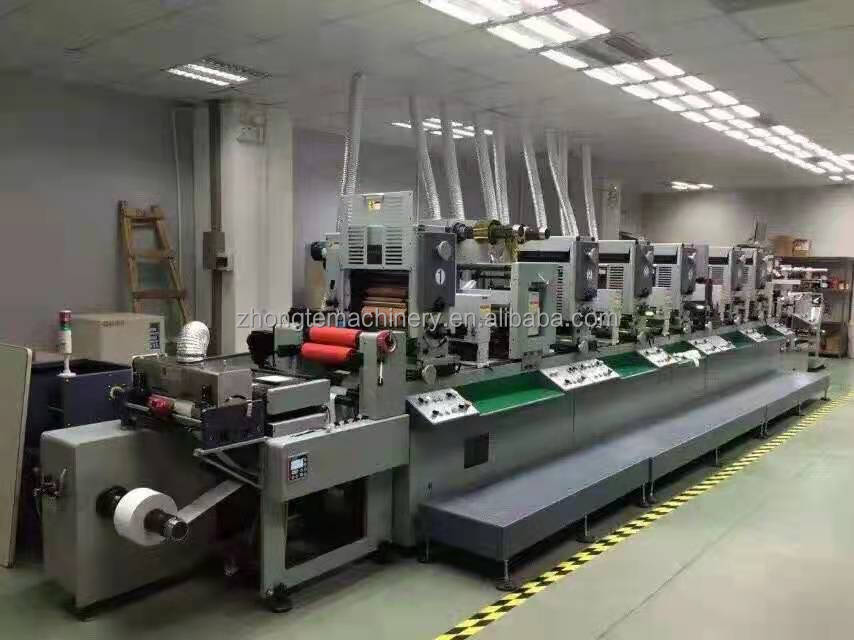

Detail Image 11

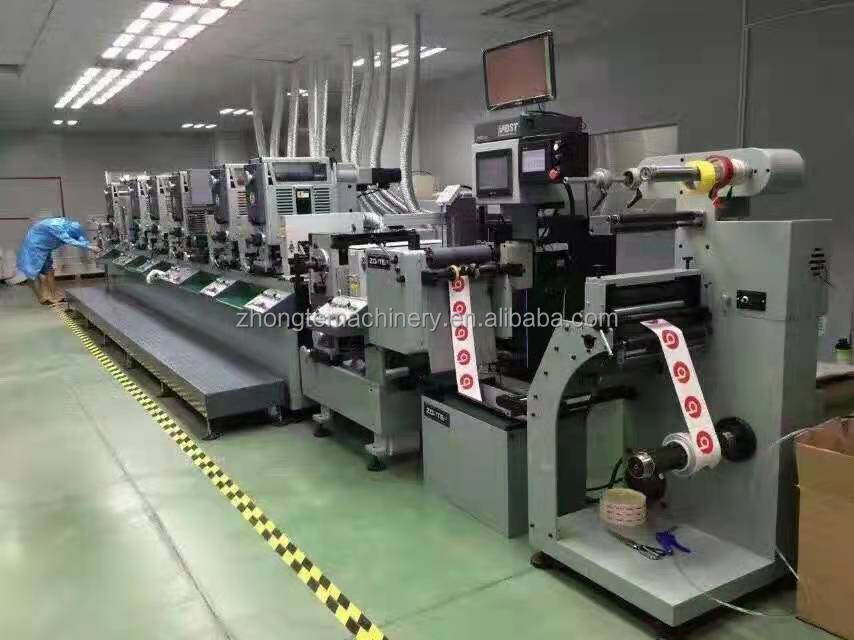

Detail Image 12
SUPER-320 Intermittent Letter Press High Speed Label Printing Machine
Characteristics:

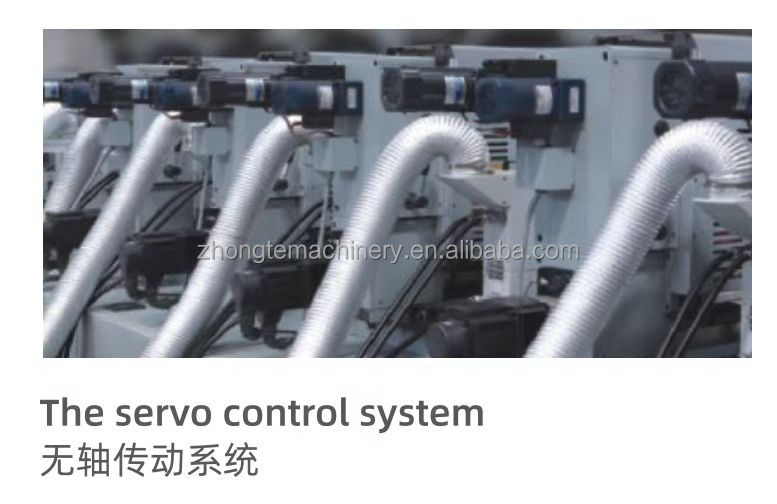

  • Servo-control System Achieves Optimization Control Of Machine, Which Assure High Accuracy And Stability For Registration.

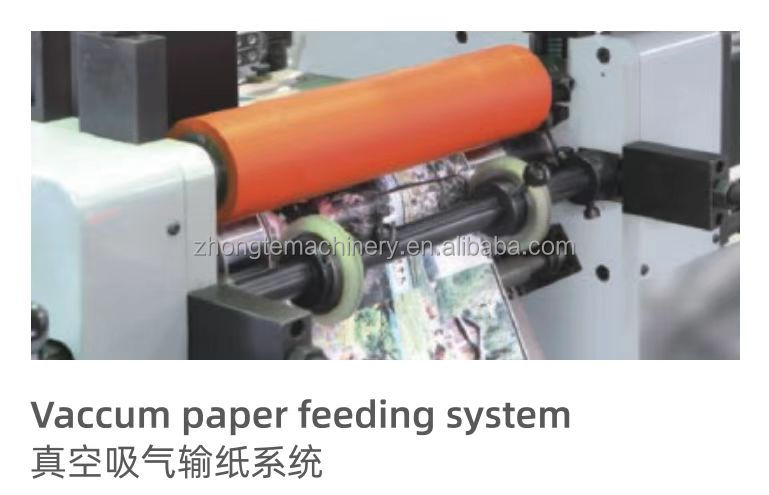

  • Creative Front & Back Vacuum Driving Roller And Ceramic Roller In Paper-feeding System Saves Extra Substrate For Removing Rider Wheels.
  • Special Printing Unit Combined Rotary Letter Press & Intermittent Printing, Convert Both Functions Easily On One Machine.
  • Creative Lateral & Lineal Registration System Electrical Controlled Can Be Adjusted Easily Through The Panel On Printing Unit Or Center Control Screen.
  • Creative Ink Distributing System Avoids Bar Marking And Ghosting, Inks Volume Varies With Printing Speed Automatically.
  • This Machine Is Best One To Print Middle & Top Class Labels In Large, Medium And Small Batch Of Production.
  • Indicate Malfunction Of Machine On The Center Control Screen To Speed Up The Maintenance Of Machine.

Power: 380V/AC. Three-phase 50/60Hz 50A

Overall Dimension (L*W*H): 6800*1600*1400mm

Machine Weight: 6800kg/6 colors

Notes: With the variation of the length to be printed, machine speed should be changed.

Technical Specifications
Model SUPER-320
Max. Web width 310mm
Max. printing width 300mm
Printing repeat intermittent 50-260mm (rotary 55~96T (174.6-304.8mm))
Color 2-9
Thickness of substrate 0.1-0.3mm
Machine speed intermittent 250r/min, rotary 75m/min
Max. rewinding Dia. 700mm
Max. unwind diameter 700mm
Total capacity 17.3kw (Not Including UV)
Main power 380V 3PHASE 50HZ
Overall dimension(around) 6800*1600*1400mm
Machine weight(around) 6800kg/6 colors
Product Packaging
Packaging Image 1

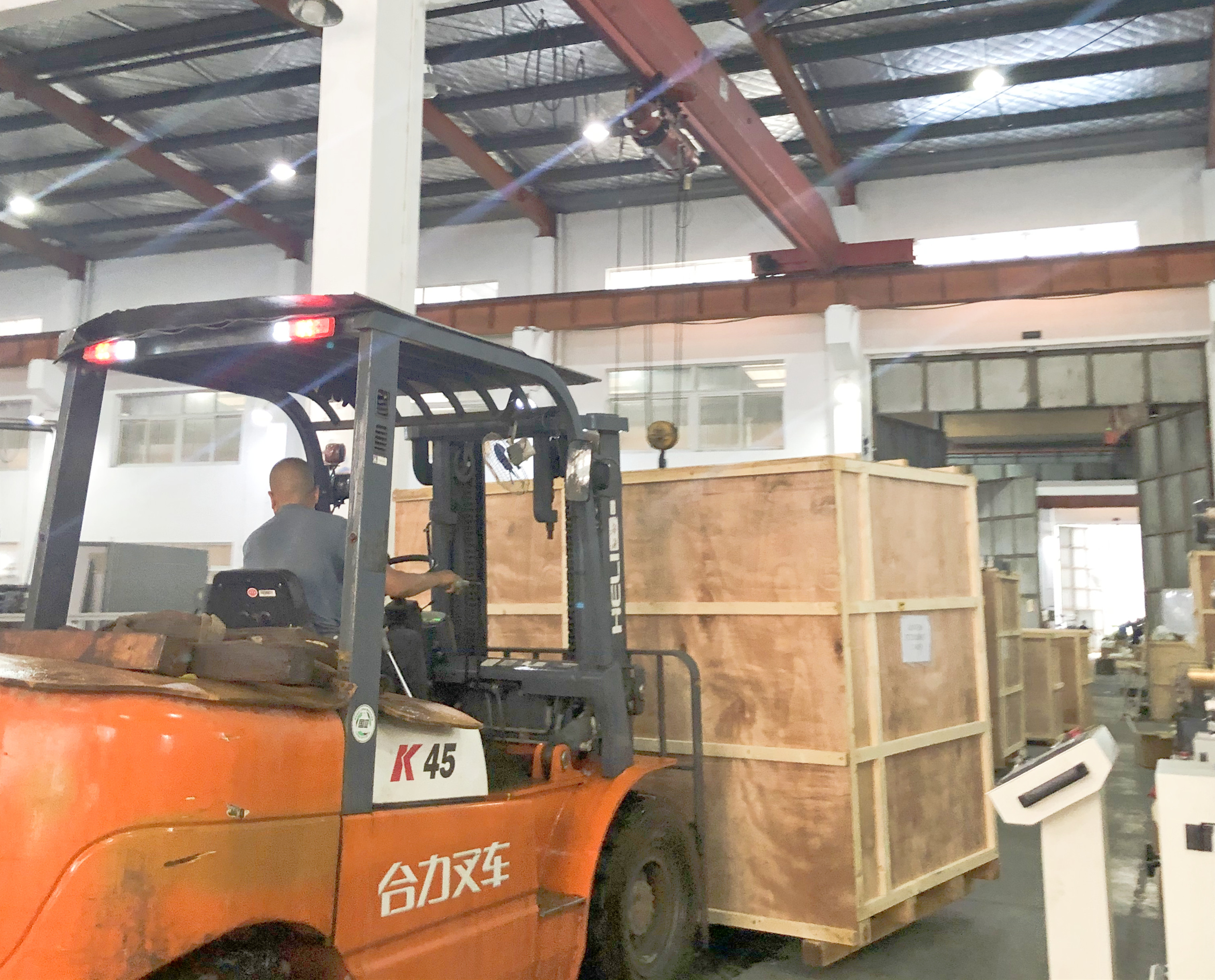

Packaging Image 2
Packaging Image 3
Exhibition
Exhibition Show
Company Profile

We are a professional enterprise specializing in developing, producing, and selling label and packaging printing machines.

We are recognized as a national high-tech enterprise through new government standards, the enterprise for State Torch Projects. The company places strong emphasis on recruitment of international top-notch talent and possesses abundant technical expertise. Based upon a global sales and marketing network, relying on the strength of high technology and adhering to a development strategy of being a industry leader, we have become a well-known enterprise in the printing machinery industry.

Frequently Asked Questions (FAQ)
Are you a factory or a trading company?
We are a factory with nearly 20 years of experience in this field.
How does your factory control product quality?
Quality is our priority. We implement a strict quality control system to monitor and manage all machine details from the very beginning of production.
How long is the machine warranty period and after-sales service?
We provide a one-year guarantee along with full-time online support for both sales and after-sales customer networks.
How many operators are needed to run the printing machine?
The machine is designed for efficient workflow and can be easily operated by a single person.
Why choose our machinery solutions?
We are a industry leader in the label machinery field. Adhering to the managing philosophy of "Win with quality and success by professionalism", our products are highly demanded in domestic markets and exported to over 100 countries globally.
How can we contact you for further inquiry?
You are warmly welcome to visit us or contact us freely through our official inquiry channels.
