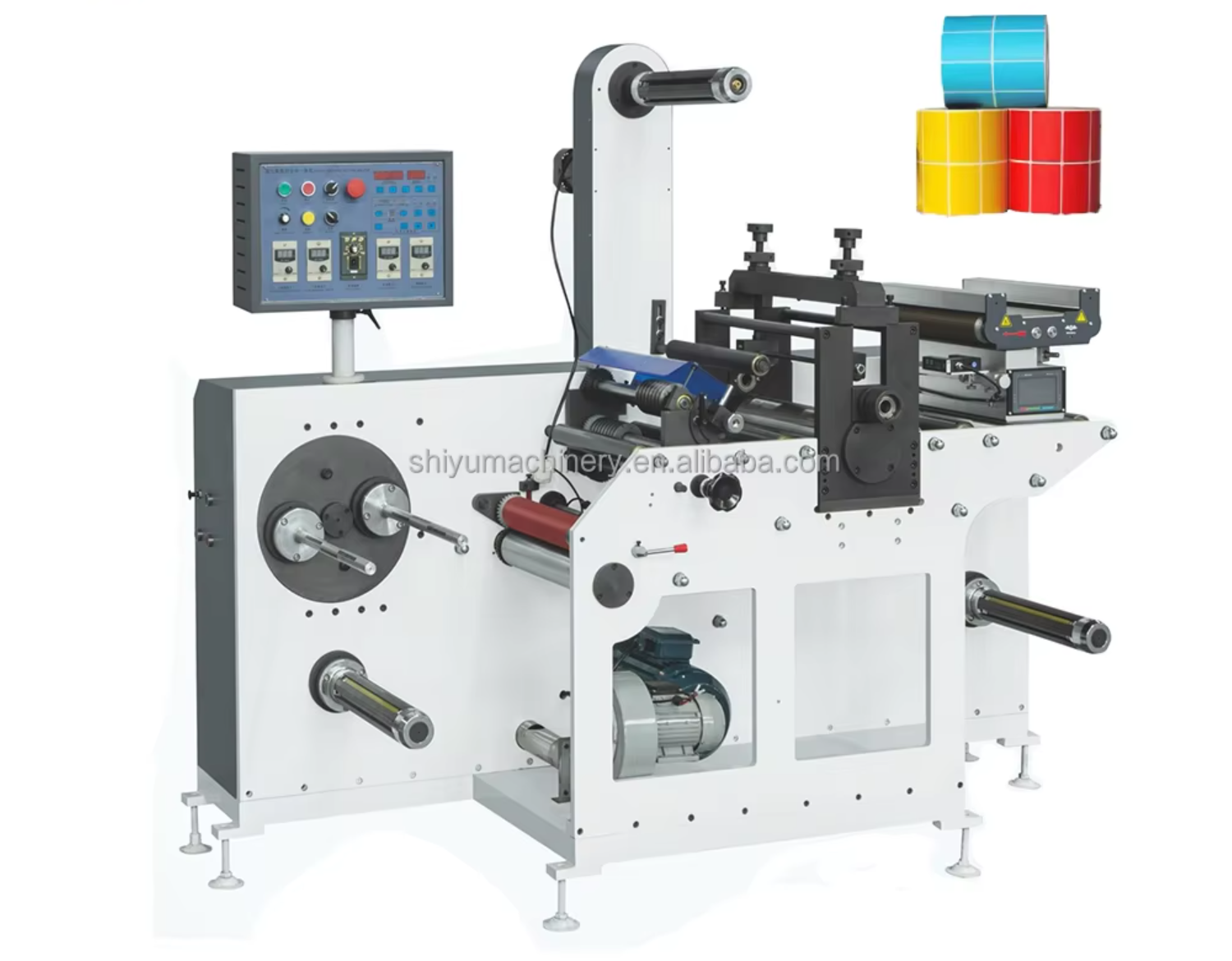

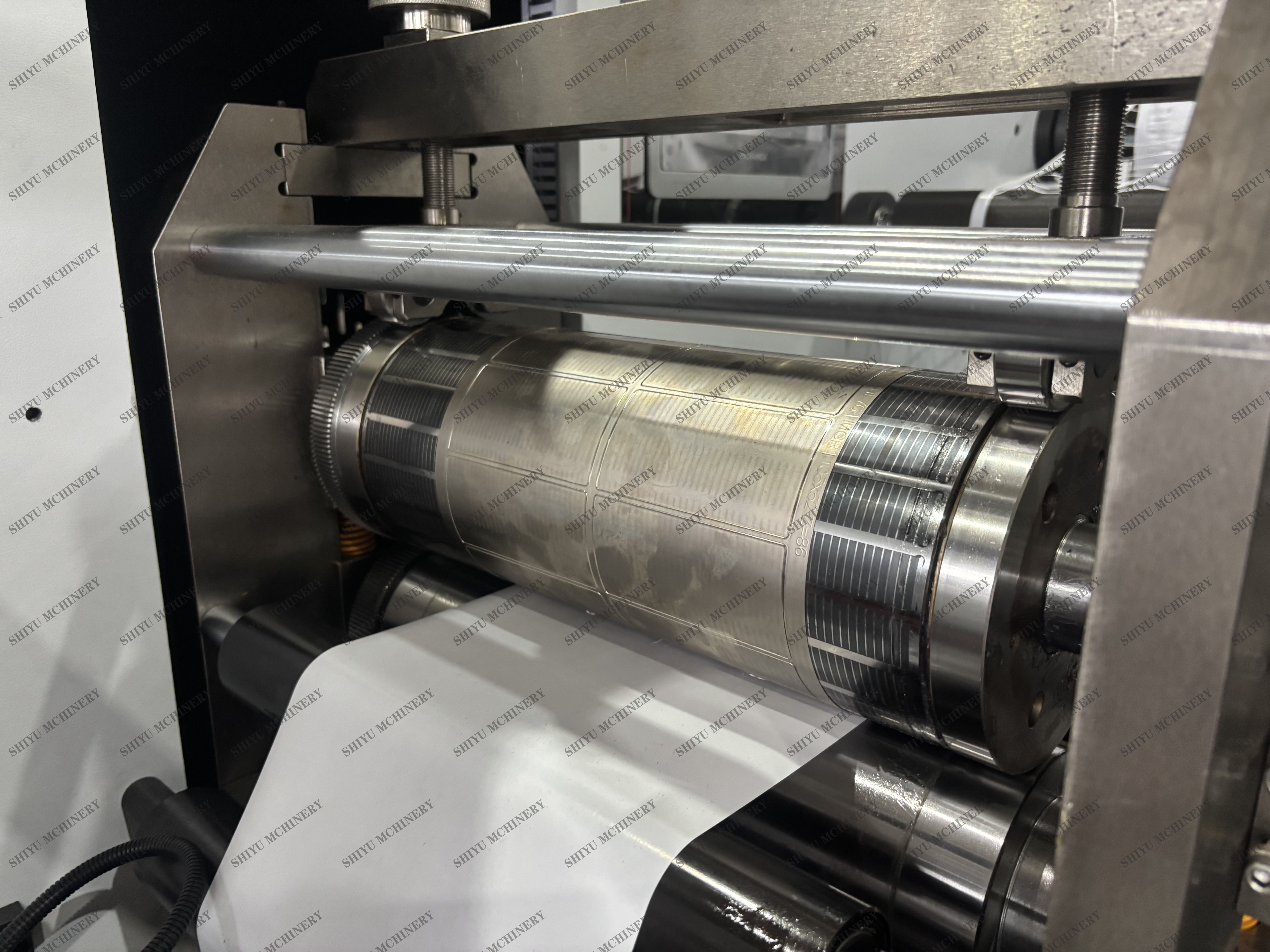

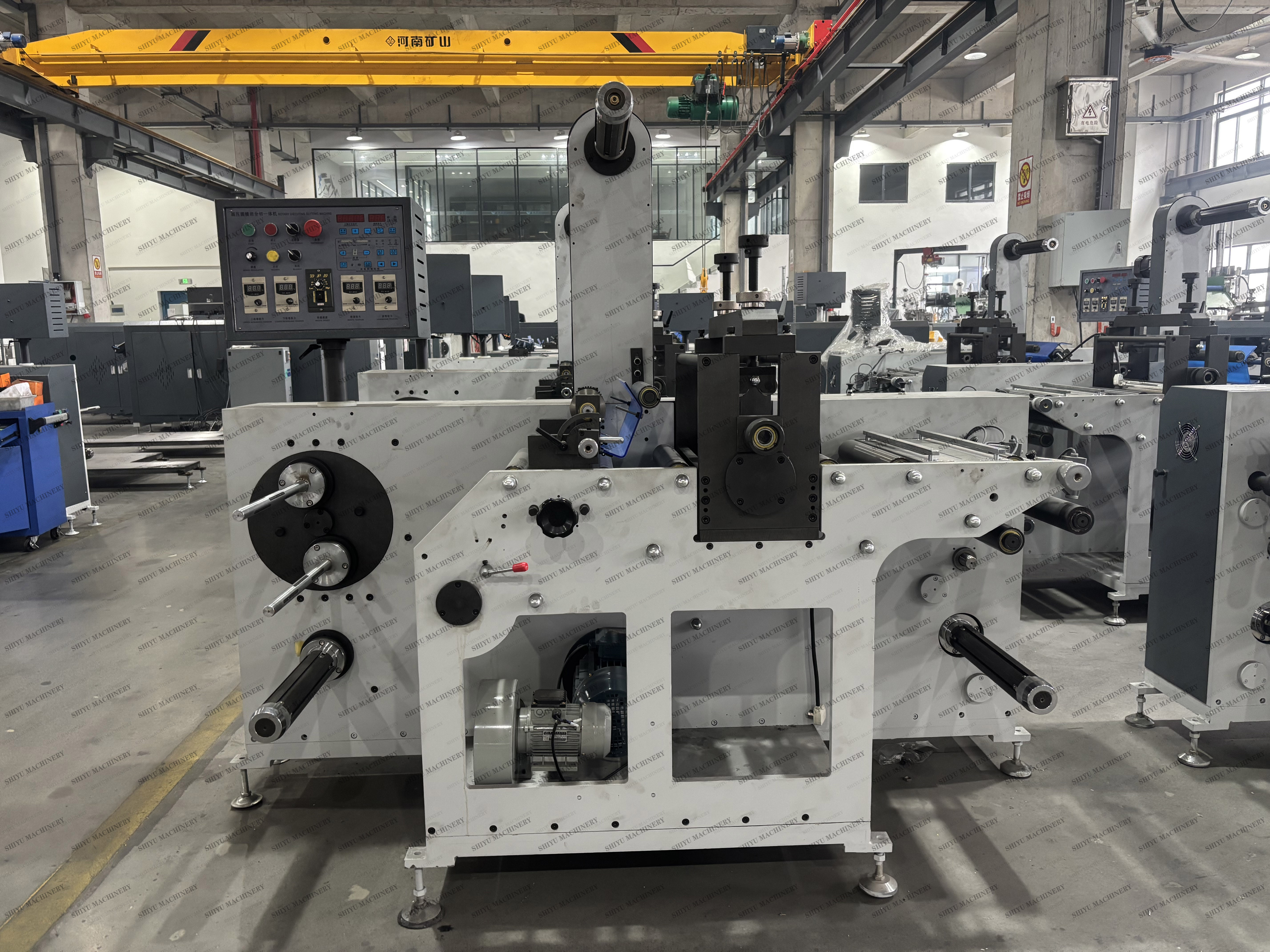

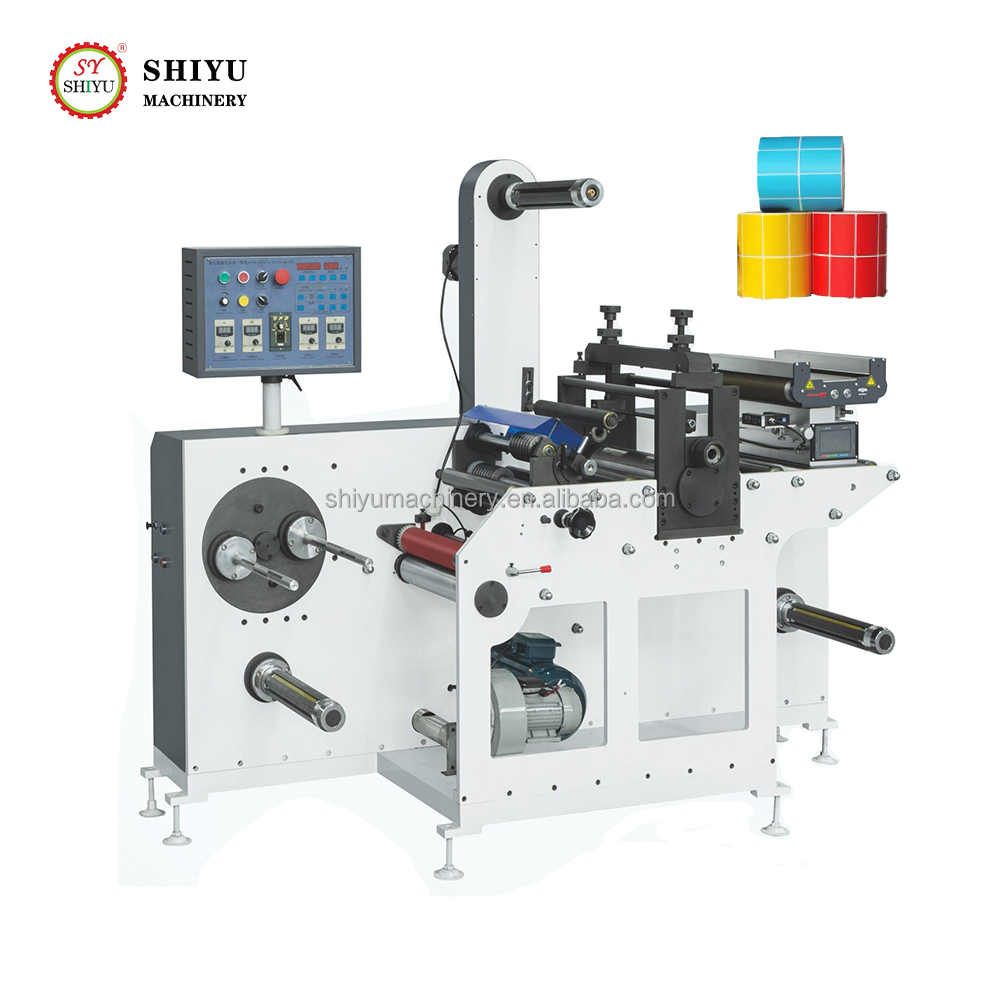

The SY-350YB model circular pressing circular die-cutting and slitting integrated machine adds a set of circular pressing circular die-cutting stations to the SY-350 slitting machine. This machine is suitable for die-cutting and slitting of blank self-adhesive labels, allowing products to be slitted and rolled in one go from the die-cutting knife.

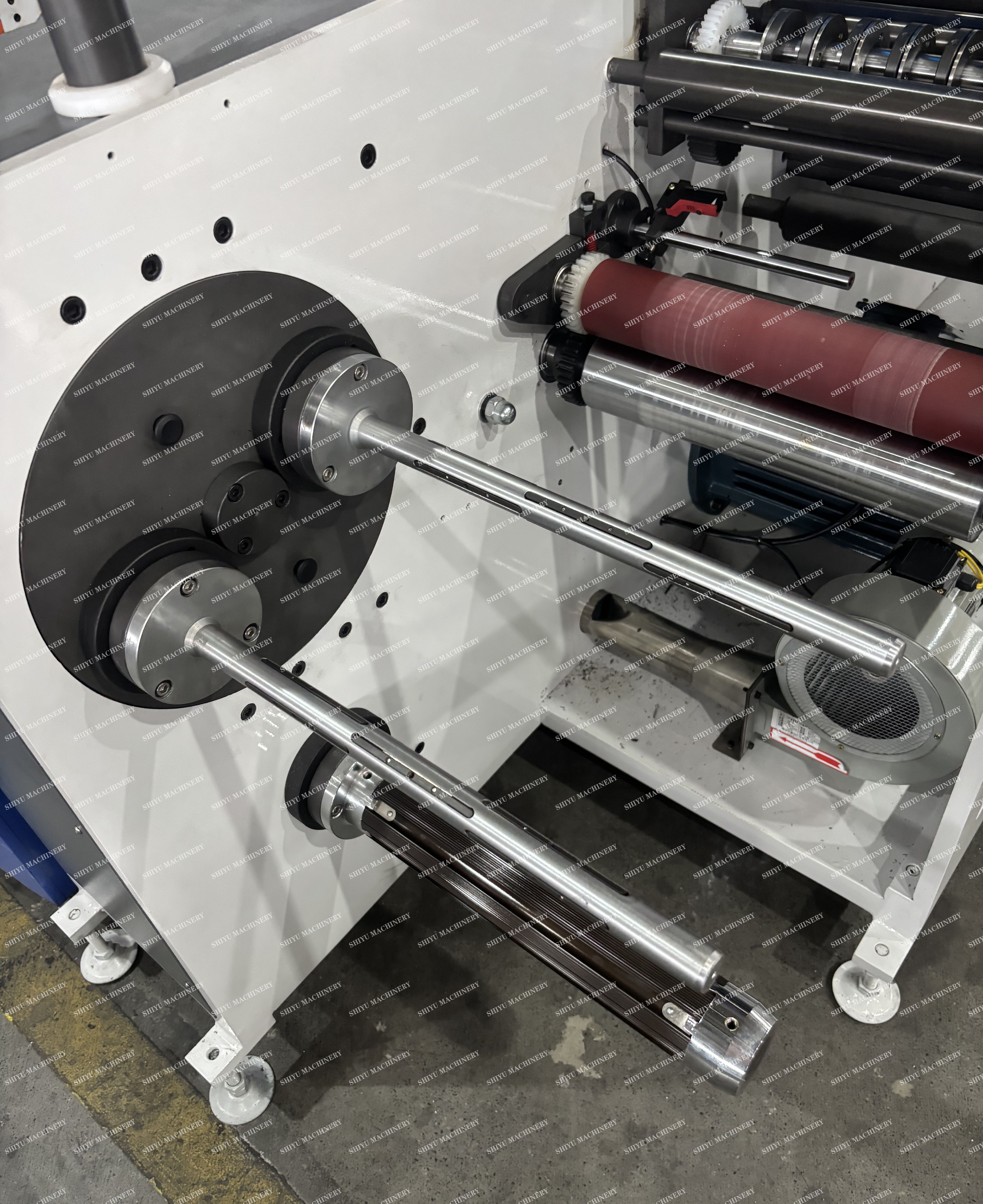

It has functions such as automatic meter counting, counting, length and quantity setting, automatic stop, automatic inflation, magnetic powder tension, dual winding shaft rotation and displacement device, and automatic deviation correction control by optoelectronics for unwinding. The overall structure is compact, fast, efficient, accurate cutting, easy to operate, and runs smoothly.
| Model | SY-350YB | SY-450YB |
|---|---|---|
| Slitting speed | 120m/min | 120m/min |
| Max. web width | 350mm | 450mm |
| Max unwinding diameter | 550mm | 550mm |
| Max rewinding diameter | 550mm | 550mm |
| Positioning accuracy | ±0.10mm | ±0.10mm |
| Machine weight | 1000kg | 1100kg |
| Overall dimensions | 2090*945*1640mm | 2090*1045*1640mm |

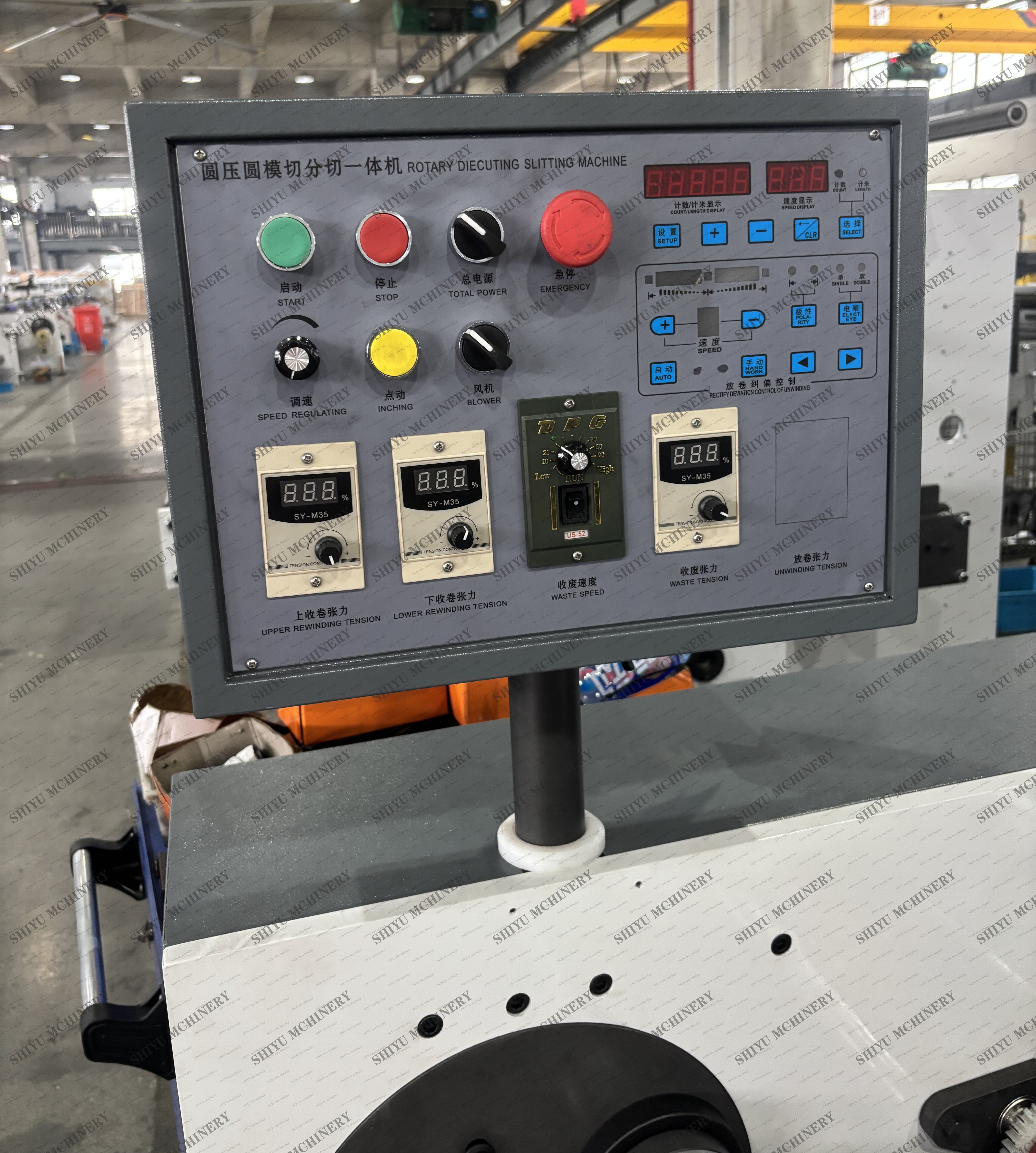

Simple and clear. Can quickly adjust the speed and tension of the machine to increase efficiency.
Machine features a blower fan to blow away and easily collect trimmed sides of waste material.

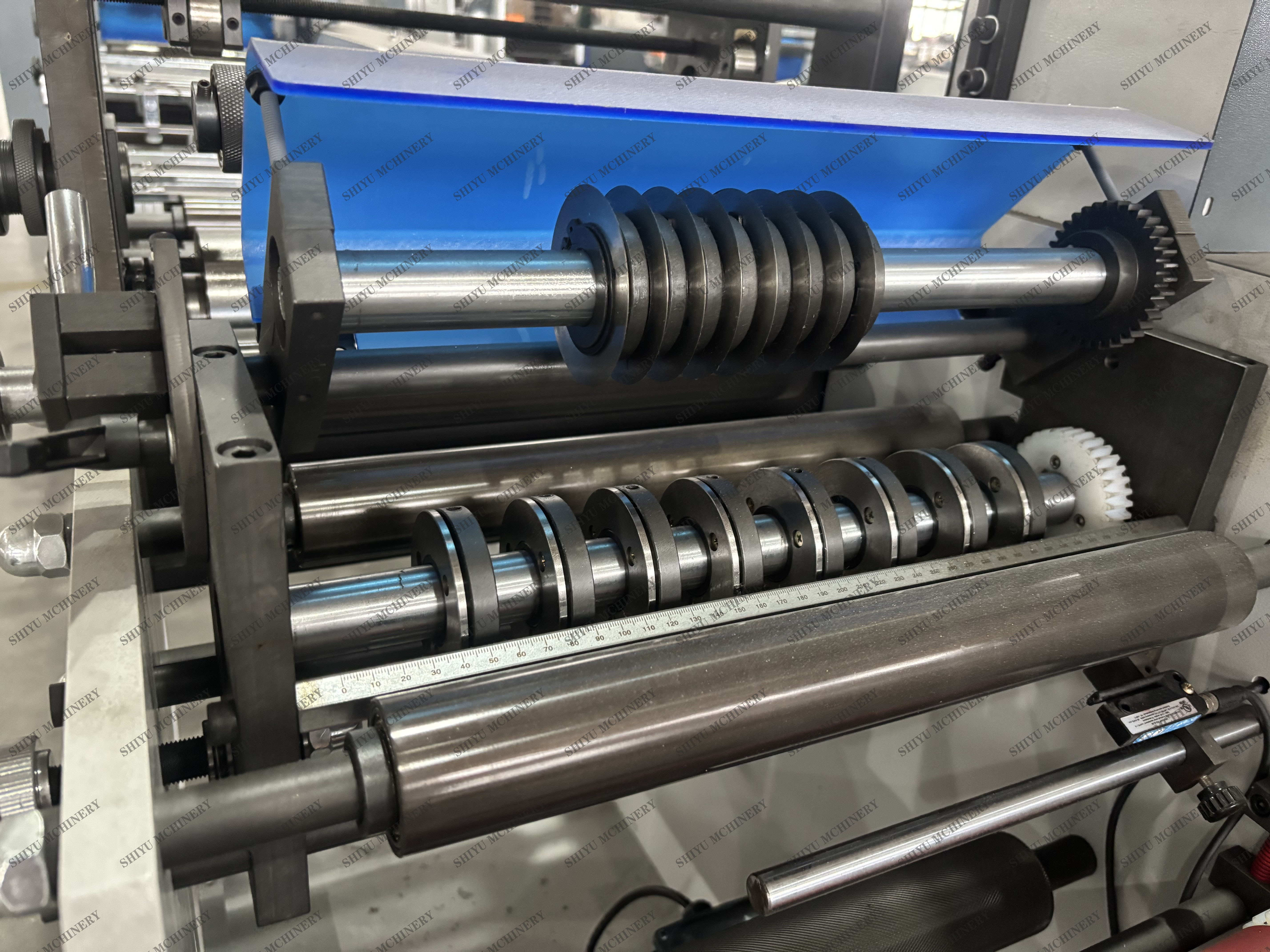

Standard equipped with 8 sets of slitting blades. The minimum slitting width is 20 MM. Self-locking knives can be customized. Easy to adjust based on product specifications.
Electrical photo cell system guides non-neat material to ensure precise slitting. Focuses on material edges, allowing single or double eye configuration.
