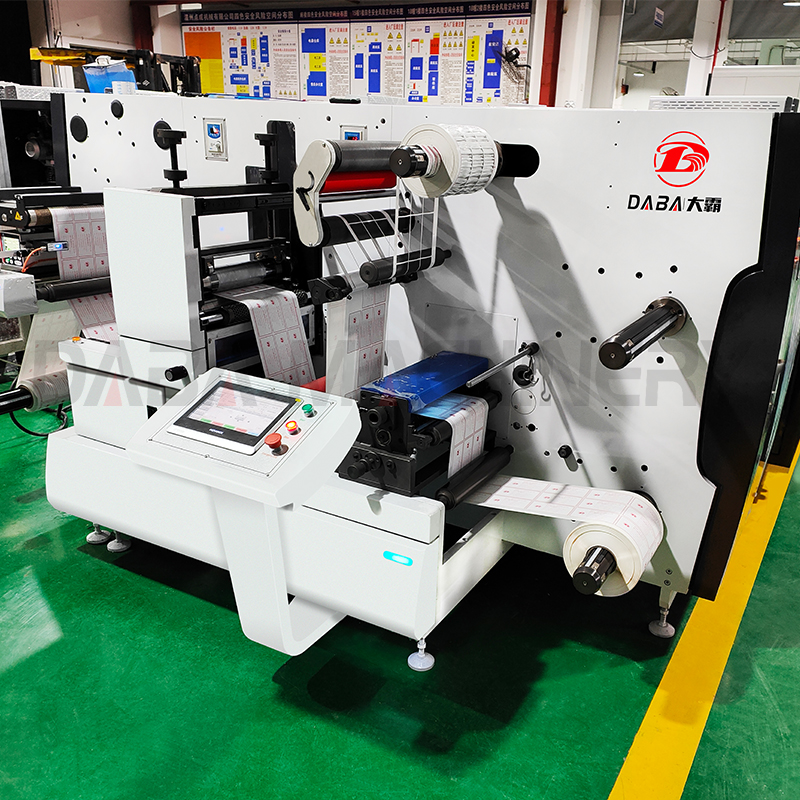

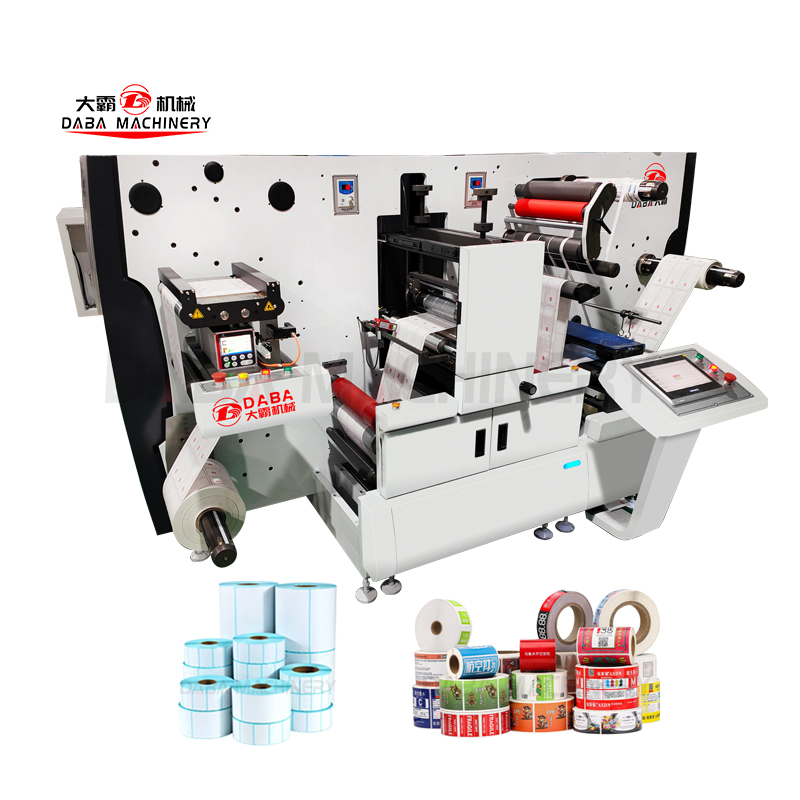

DBMQ Rotary Cold/hot Foil Stamping and Die Cutting Machine for Aluminum Foil

Product Description

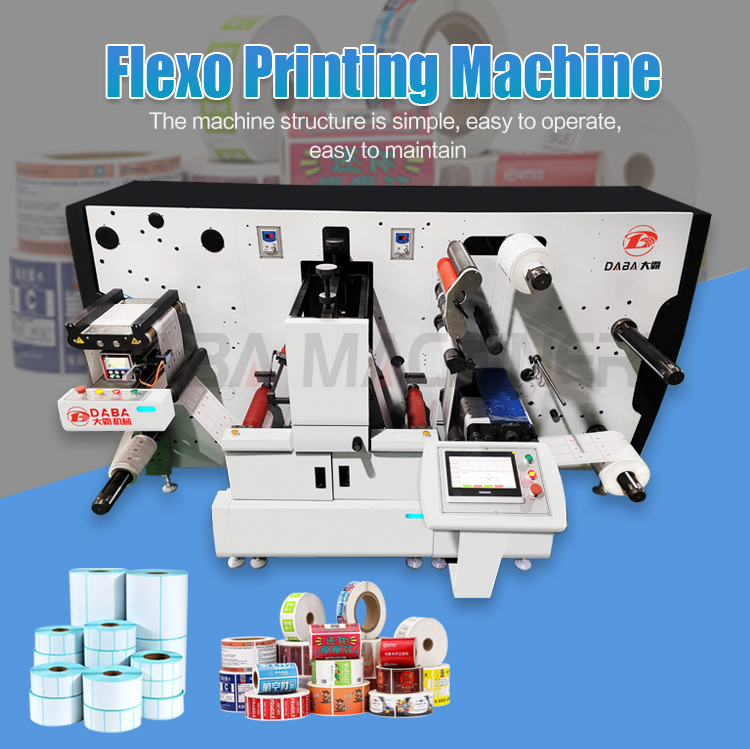

DBMQ-320/370plus Type Rotary Die Cutting Machine is mainly designed for label die cutting, e.g. Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting. Especially, It can process IML(In Molding Label), which is famous as its advanced function, such as: Novel and beautiful appearance, security features, Environment, Difficult to drop off and damage, High efficiency and so on. IML is widely chosen on packaging containers of Health & Beauty, Food & Beverage, Wine & Spirits.

Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting. Especially, It can process IML(In Molding Label), etc.

Machine runs full rotary mode, equipped with conveyor and collection table.
It's also suitable for labels lamination, die-cutting, waste matrix and rewinding.
Machine adopts full servo motors driven, re-register system, solid and durable structure design, leading to clean edge of processed materials and non damage of both sides of labels.

Machine Parameters

Machine Specification Parameter

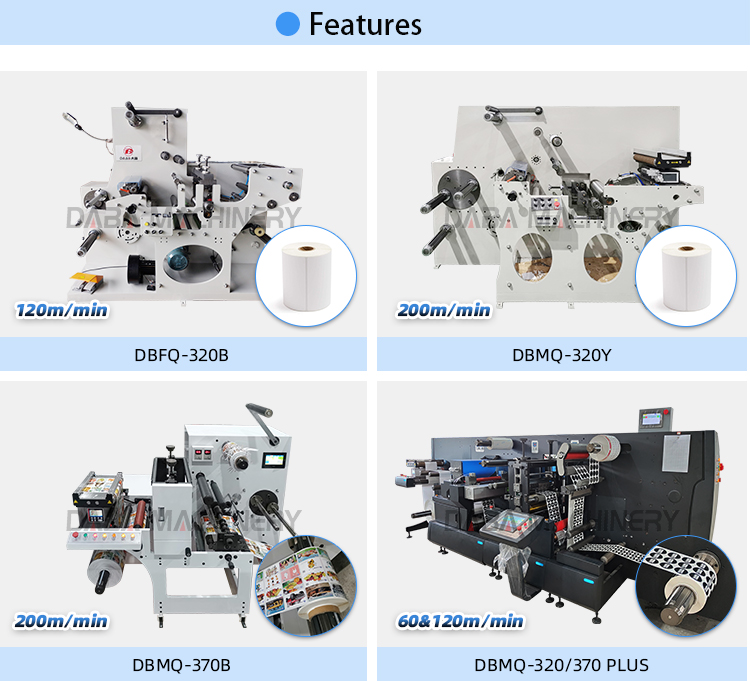

Model	DBFQ-320B	DBMQ-320Y	DBMQ-370B	DBMQ-320/370 Plus
Slitting Speed	120m/min	200m/min	200m/min	200m/min
Die Cutting Speed	120m/min	200m/min	200m/min	200m/min
Max Web Width	Up to 320mm	Up to 320mm	370 mm	370 mm
Max Unwinding Diameter	500mm	500mm	700 mm	700 mm
Max Rewinding Diameter	480/220mm	480/220mm	700 mm	500 mm
Die cutting length	178-470mm (7" - 18.5")	178-470mm (7" - 18.5")	178~470 mm (7"~18.5")	178~470 mm (7"~18.5")
Overall Dimension	180011001500mm	190012001500mm	210011001500 mm	210011001500 mm
Machine Weight	1200kgs	1400kgs	2000 kg	1500 kg
Power Supply	380V/220V 50Hz	380V/220V 50HZ	380V/220V 50HZ	380V/220V 50HZ
Accuracy	± 0.10 mm

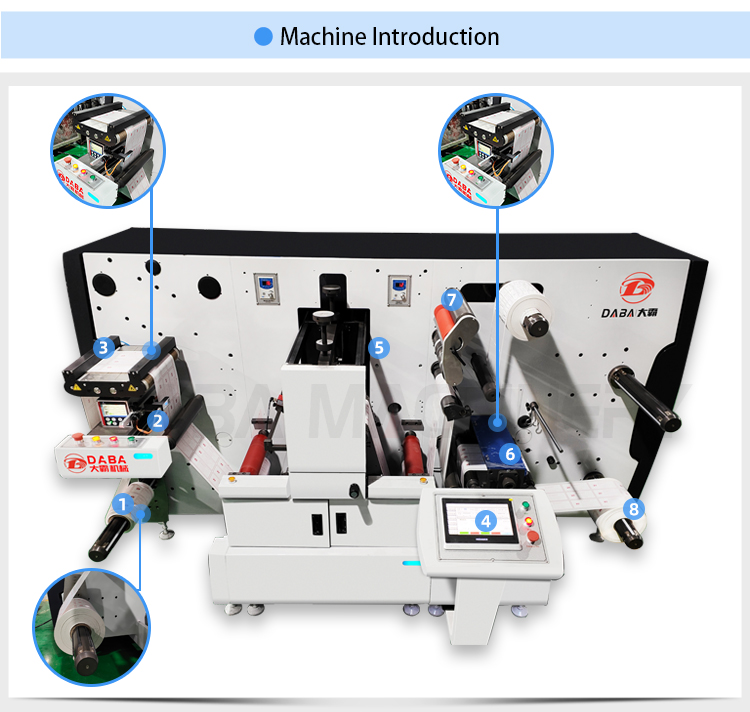

Details Images

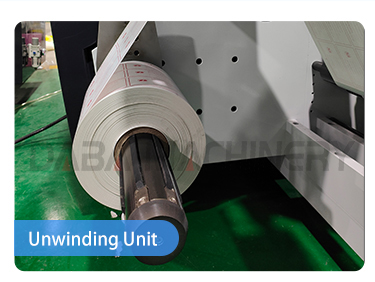

1. Unwinding Unit

Maximum unwind diameter: 800mm (31.5″). 76mm (3″) air mandrel. Merobel electromagnetic particle brake. Taper tension control – No roll-followers or external sensors to be adjusted or maintained.

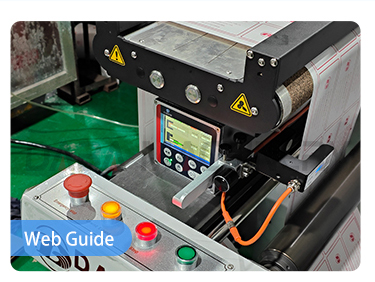

2. Web Guide

Maintains high precision tracking and alignment of the material web before entering the die-cutting section.

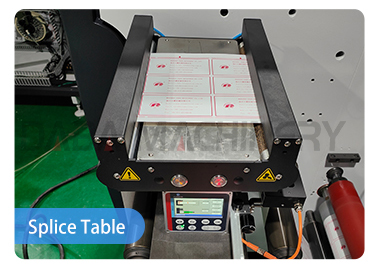

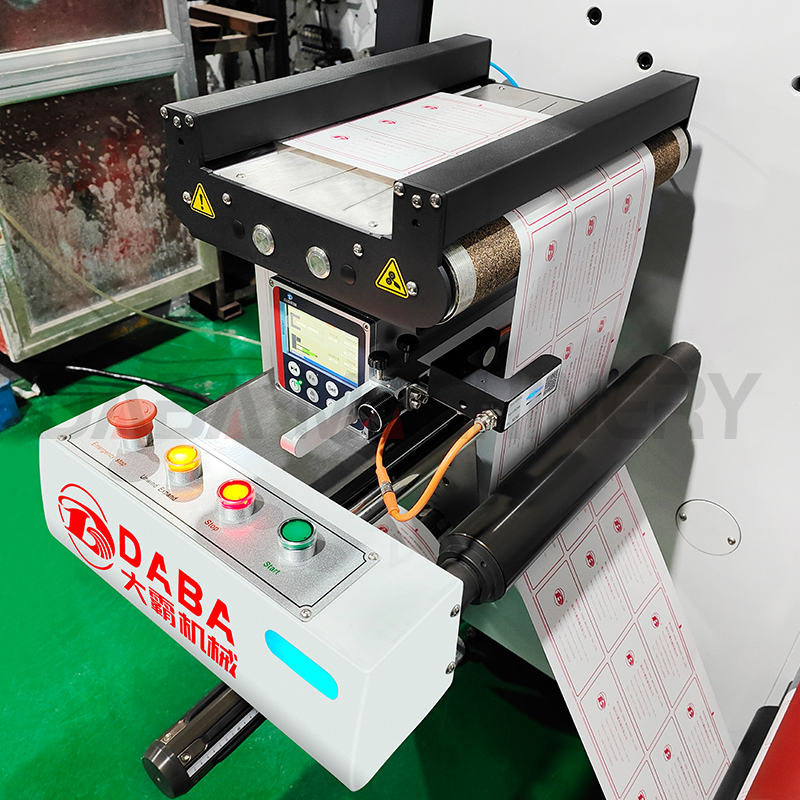

3. Splice Table

Facilitates quick and easy web splicing, minimizing down-time during roll changes.

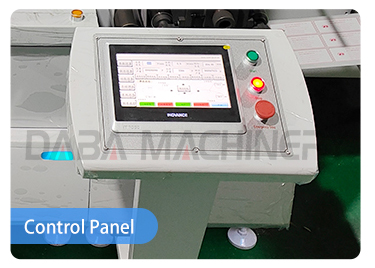

4. Control Panel

User-friendly HMI interface for adjusting key settings, tension parameters, and observing running speeds.

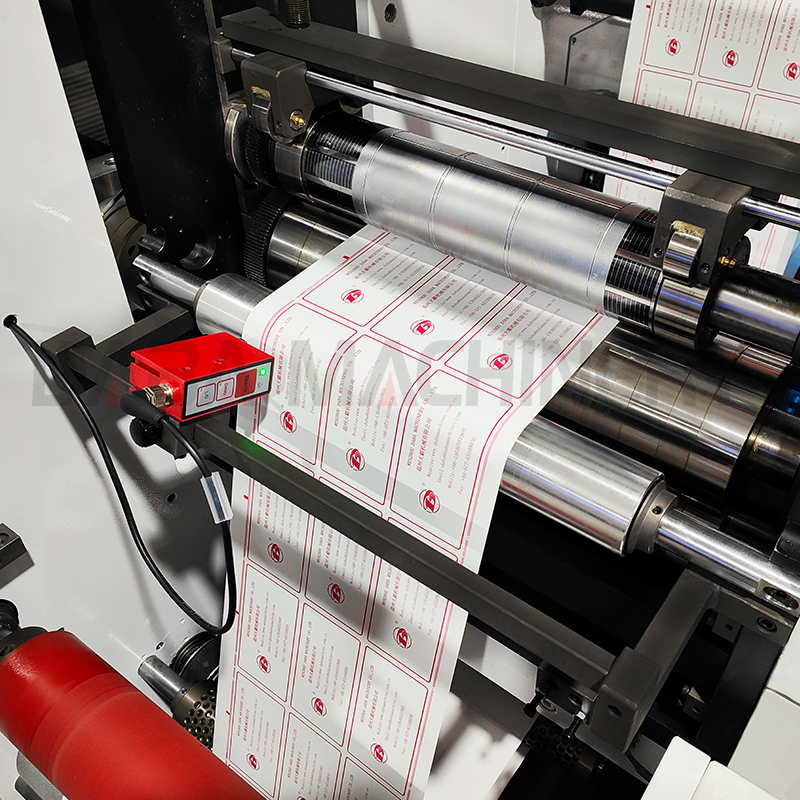

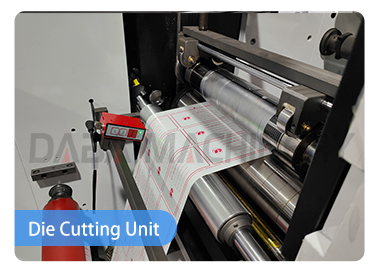

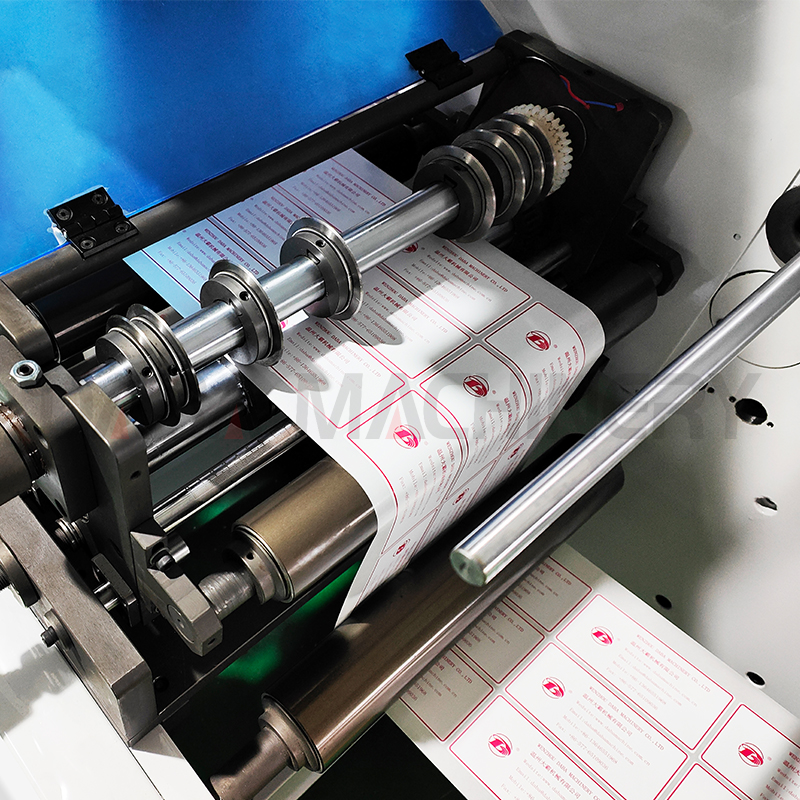

5. Die Cutting Unit

190 – 666.75mm die repeats. 666.75 Max Full Rotary. Hardened anvil – 120T. Magnetic Cylinder – 210T – repeat. Gearing – 1/8 cp, 20 degree pressure angle.

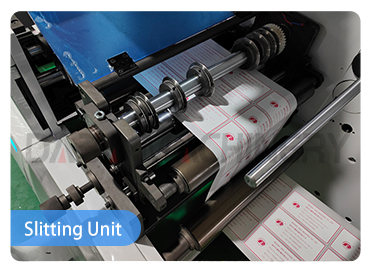

6. Slitting Unit

With 6 sets circular knife or razor blade. With automatic suction waste matrix. With scaled roller for slitting width adjustment by manual.

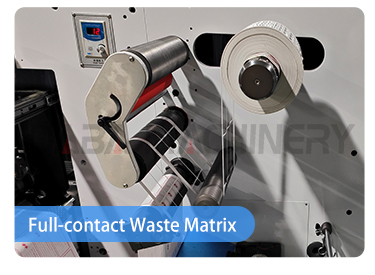

7. Full-Contact Waste Matrix

A driven capstan roller with adjustable tension control ensures reliable matrix stripping, enabling high speed running even if the matrix rewind becomes unstable. 600mm diameter. 76mm (3″) mechanical mandrel.

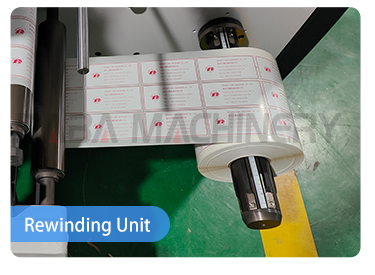

8. Rewinding Unit

2 Product rewind. Maximum rewind diameter: 600mm. 76mm (3″) quick change air mandrel. Label in / labels out rewinding. Electromagnetic particle clutch (5 KG).

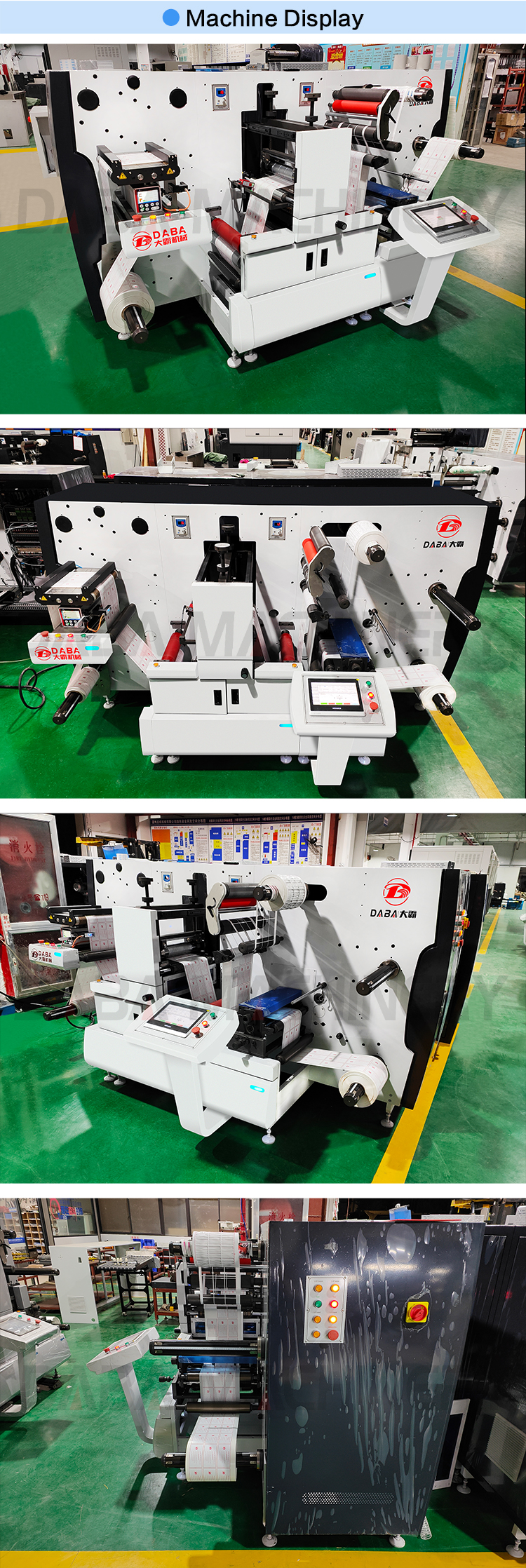

In Factory Photo

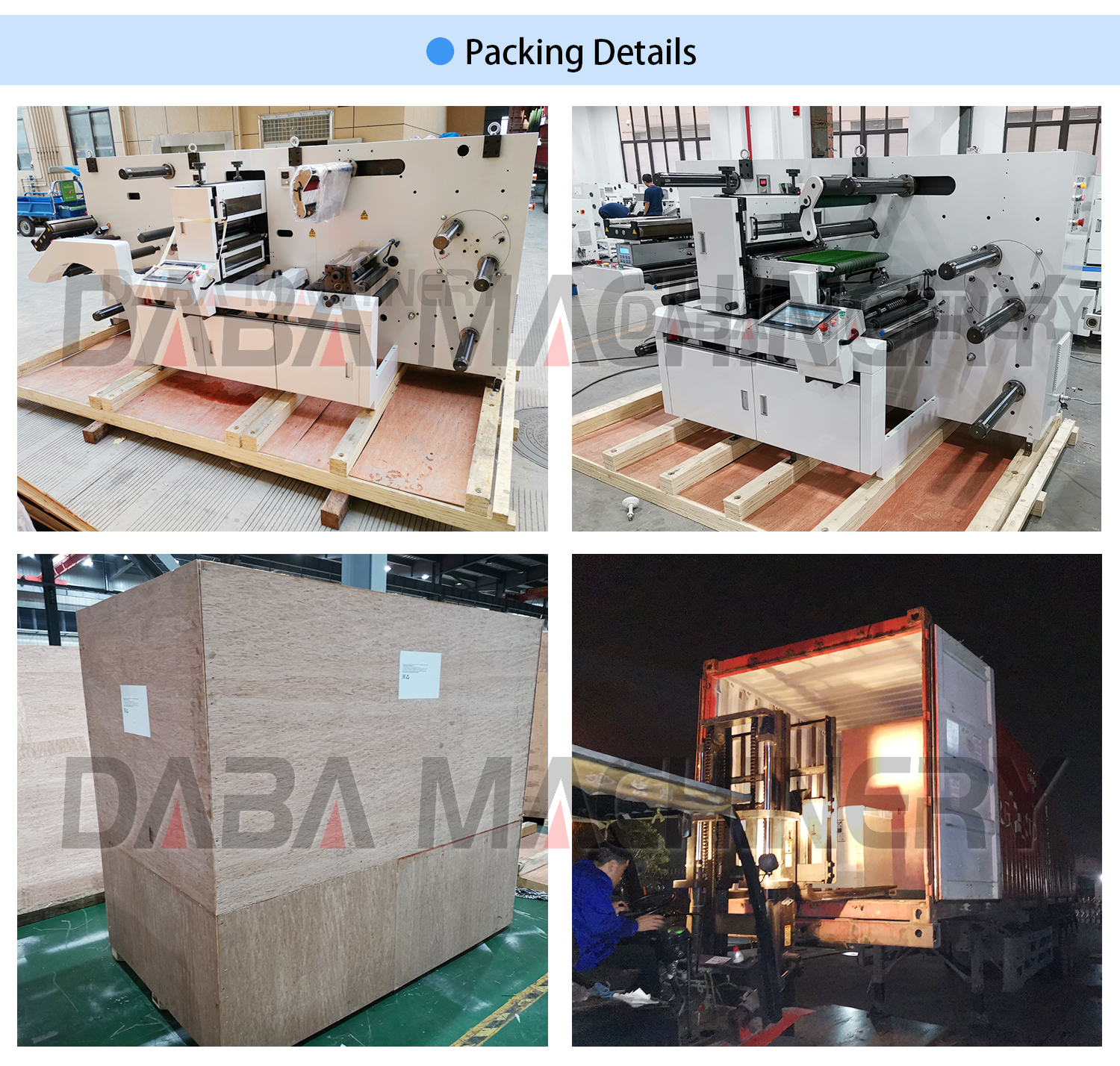

Packing & Delivery

Our Service

1. Purchase Service

We have a specialized and efficient working team. If you are new to the printing and packing area, some samples of your products shown to us would be appreciated, and we will give you specialized suggestions for the entire setup.

2. Shipping Service

We have a specialized and independent department solely for shipping buyers' goods. Our staff is well-versed in T/T and L/C terms. All export documents will be prepared perfectly. We cooperate with leading shipping companies to provide the best and most economical shipping methods to the buyer's port.

3. Installation Services

Installation services are available for all our machines. We will dispatch technicians to the buyer's factory for the installation and pre-operation of machines. However, the buyer needs to cover the round-trip tickets, food, and hotel costs.

4. Clients Training Services

We advise buyers to send their own technicians to our factory to learn how to operate the machines. Our technicians will provide hands-on, step-by-step training until they can operate the machine independently. Training during the installation period is also acceptable.

5. After Sales Service

Our machine guarantee period is one year. Many easy-to-wear spare parts are included in the tool box with the machines. For any broken parts, simply send a photo or video, and new free parts will be delivered within 3-7 express working days.

FAQ

What's your delivery date?

Usually finish the production within 30 days after your 30% advanced payment, actually need to check according to our stock & production plan.

What are the terms of payment?

We accept T/T (30% in advance and 70% balanced against B/L copy), L/C at sight, and Cash.

How long is your machine's warranty period?

All our machines have a one-year guarantee, starting from the completed installation.

How could we do if the parts break within warranty?

We will send free replacement parts via express shipping during the warranty period.

How many workers do we need to run these machines?

For the flexo printing, slitting, and die-cutting machines, only one person is needed to operate each.

What charges are required for your engineer's overseas service?

You should cover the cost of our engineer's visa, air tickets, hotel, food, and also a salary of 100 USD per day per person.
