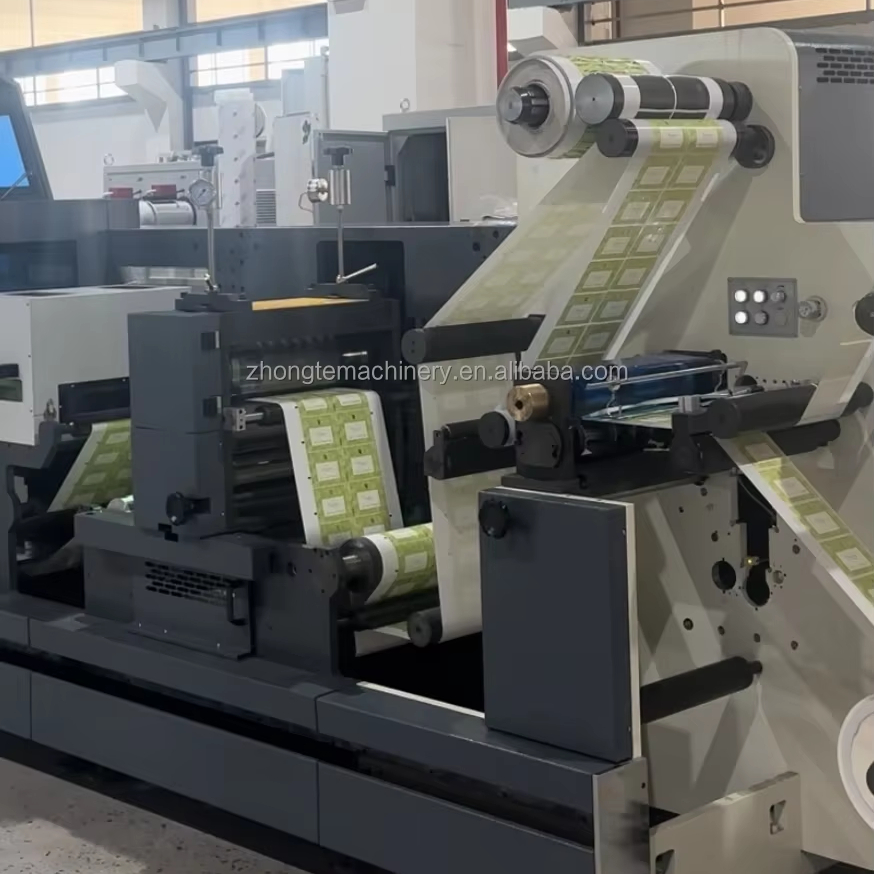

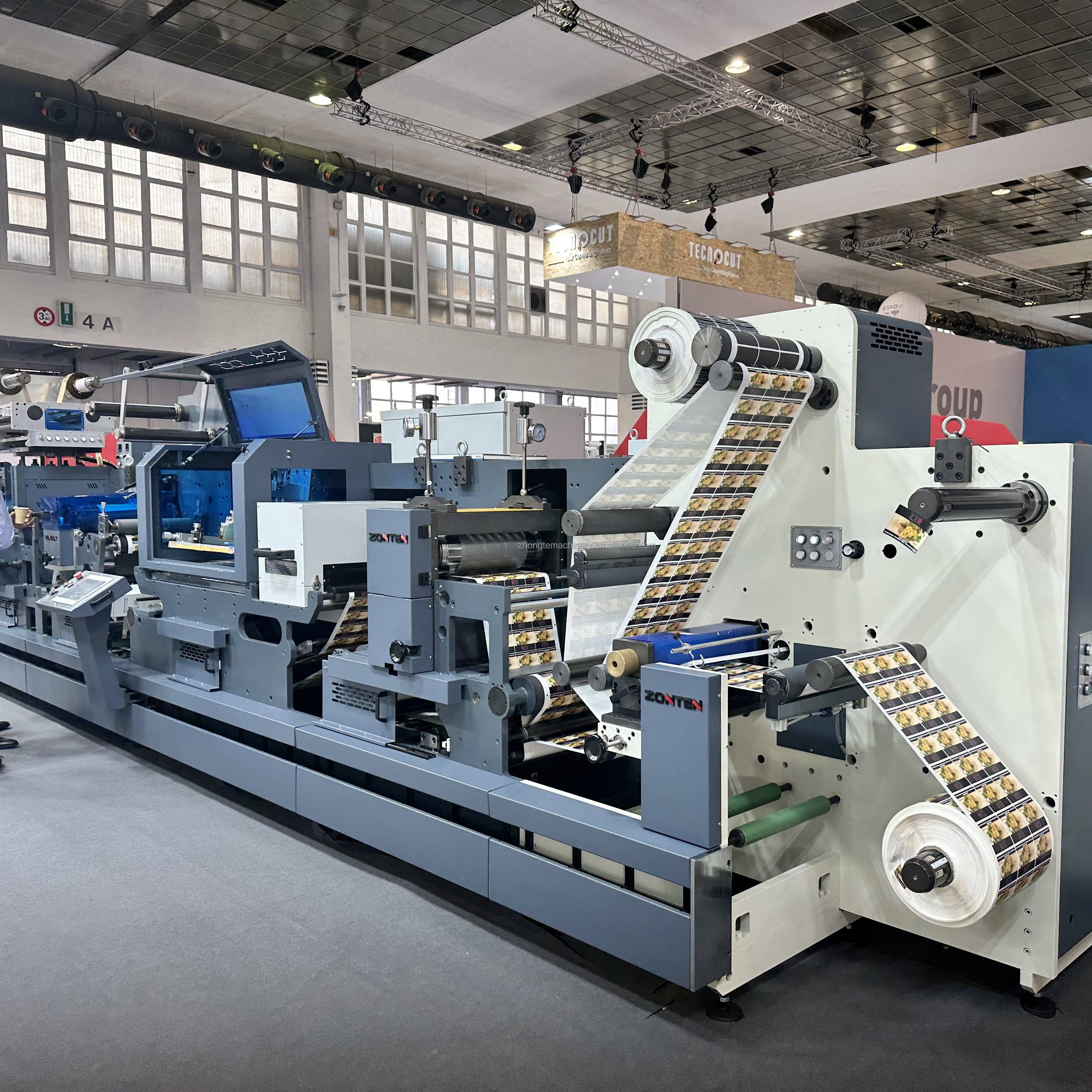

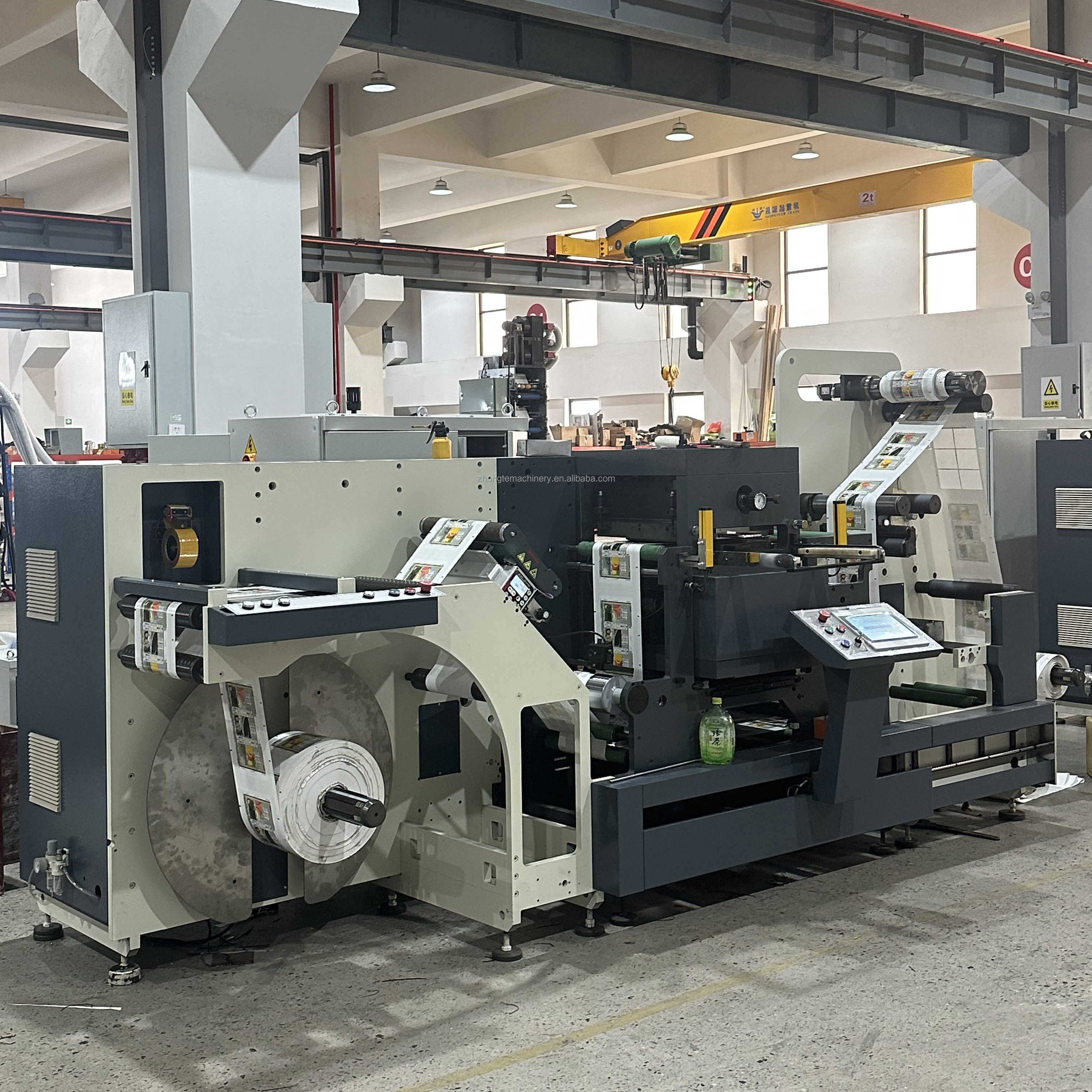

ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
1 / 5
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit

ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit

Send Inquiry

Product Description

Products Description

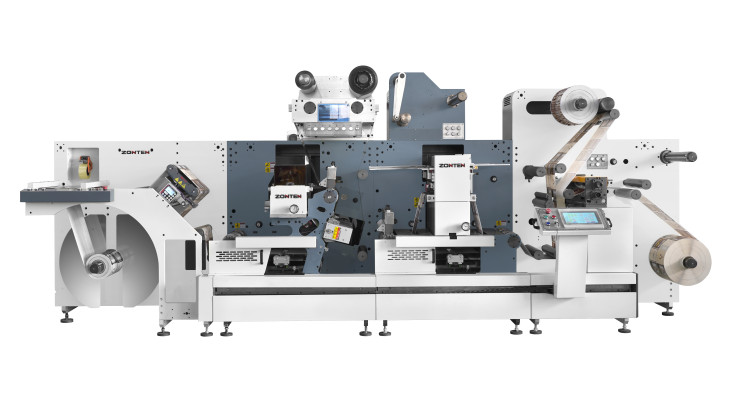

Product Overview 1

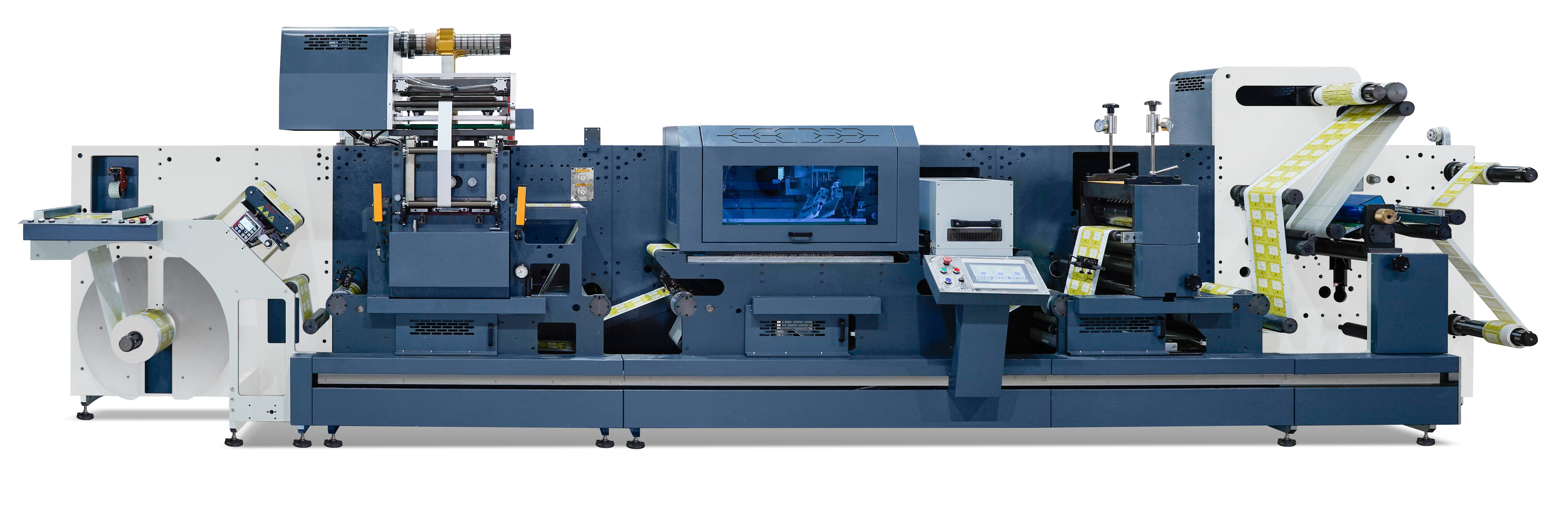

Product Overview 2
Details Images

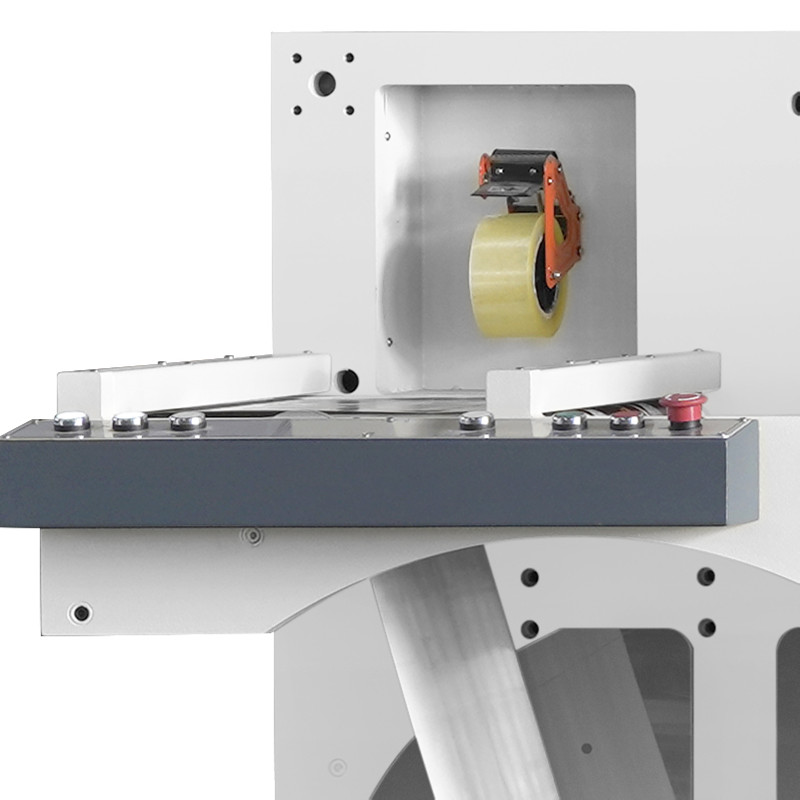

Paper connect platform
Paper connect platform

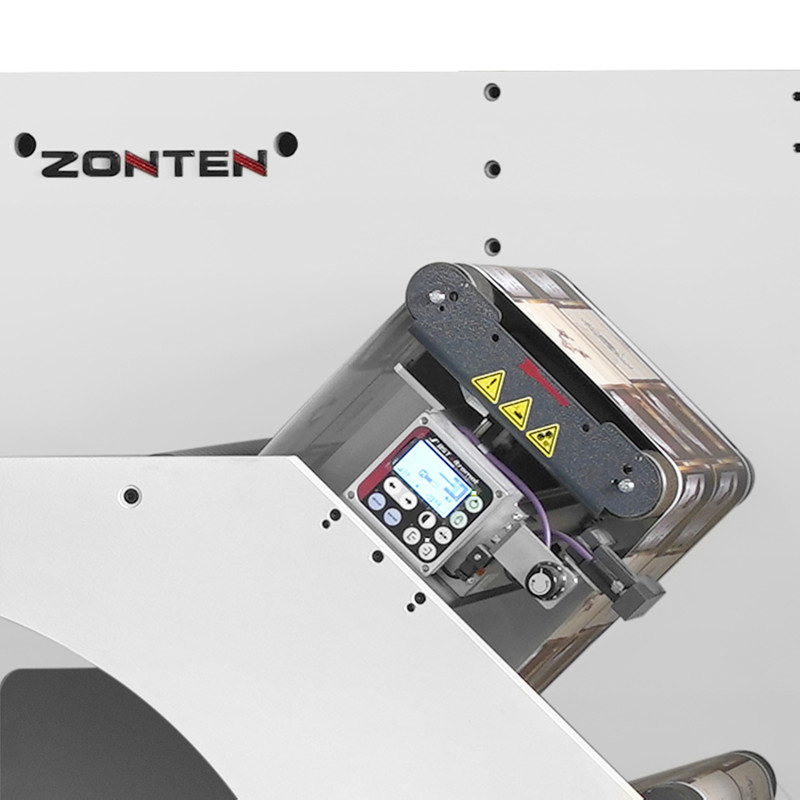

BST web guider
BST web guider

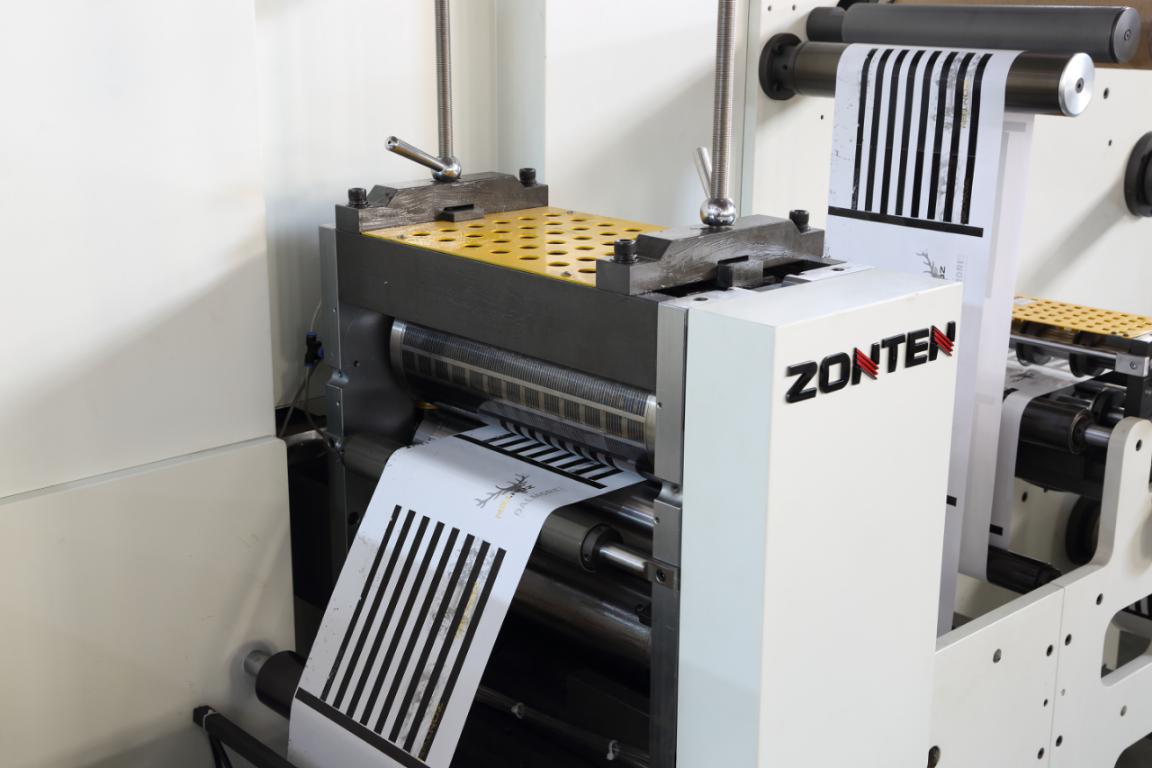

Semi rotary die cut unit
Semi rotary die cut unit

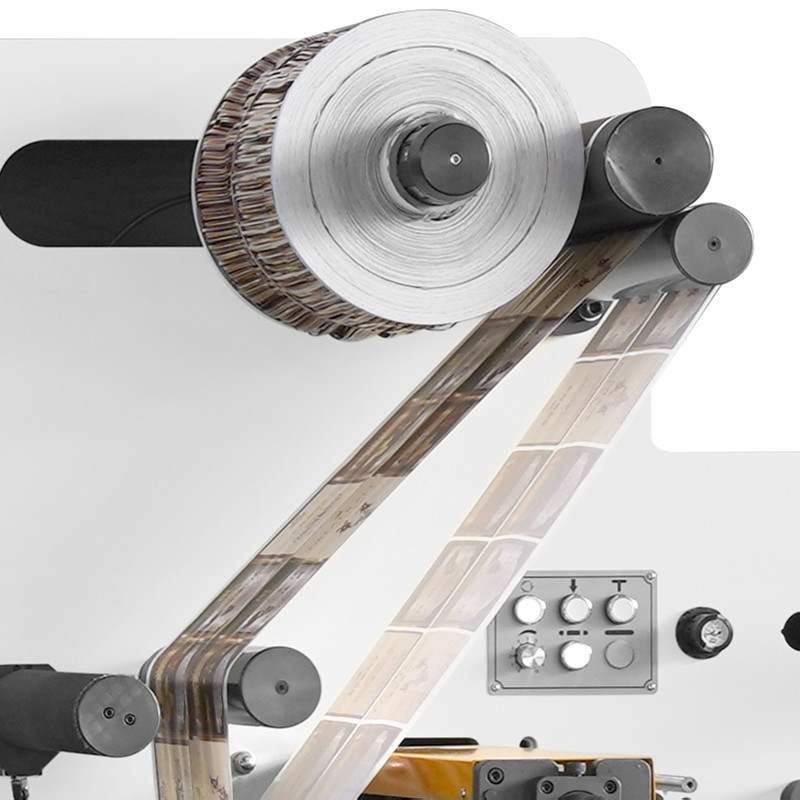

Snow ball waste collect rewind
Snow ball waste collect rewind

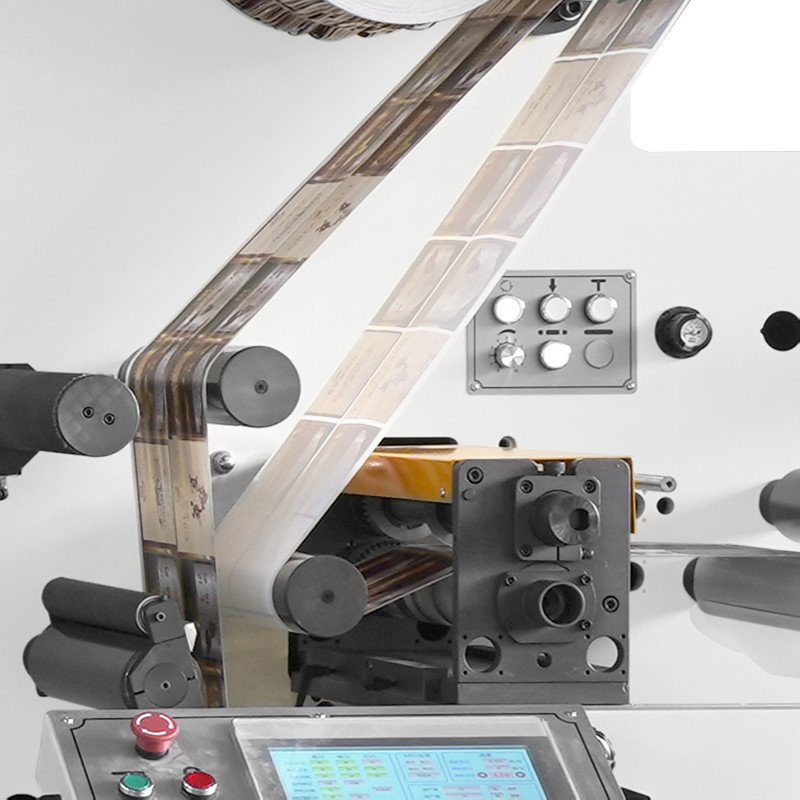

Slit unit
Slit unit

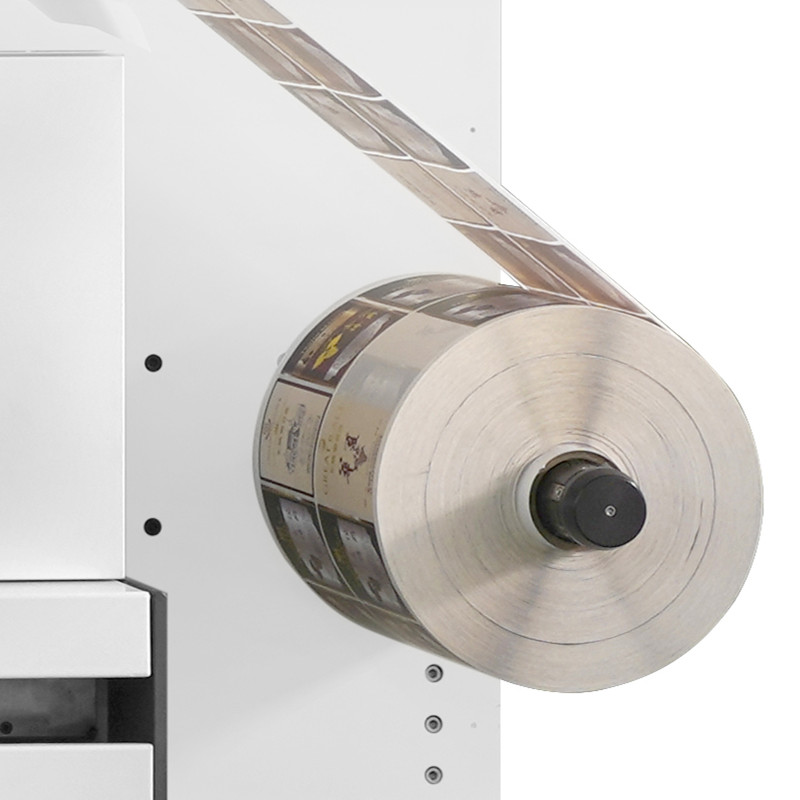

Rewind finish rolls
Rewind finish rolls

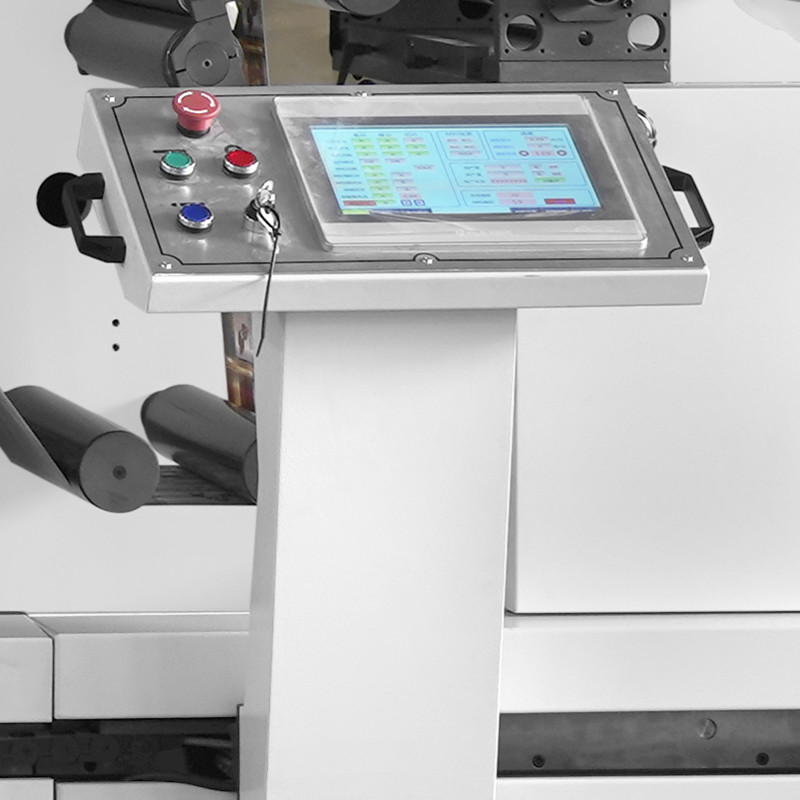

Movable control panel -touch screen
Movable control panel -touch screen

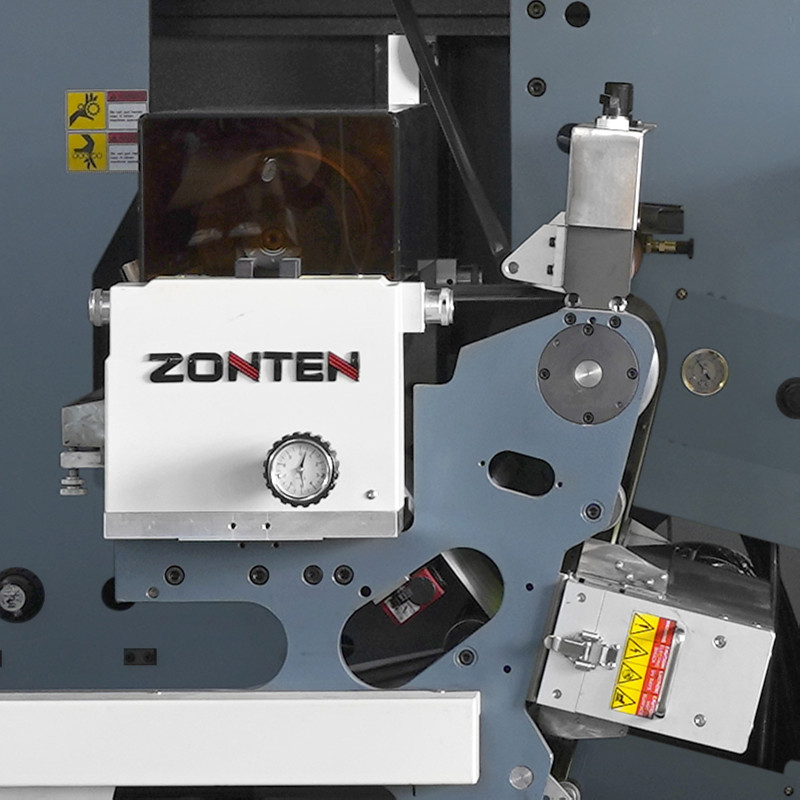

Optional: flexo unit with uv dryer
Optional: flexo unit with uv dryer

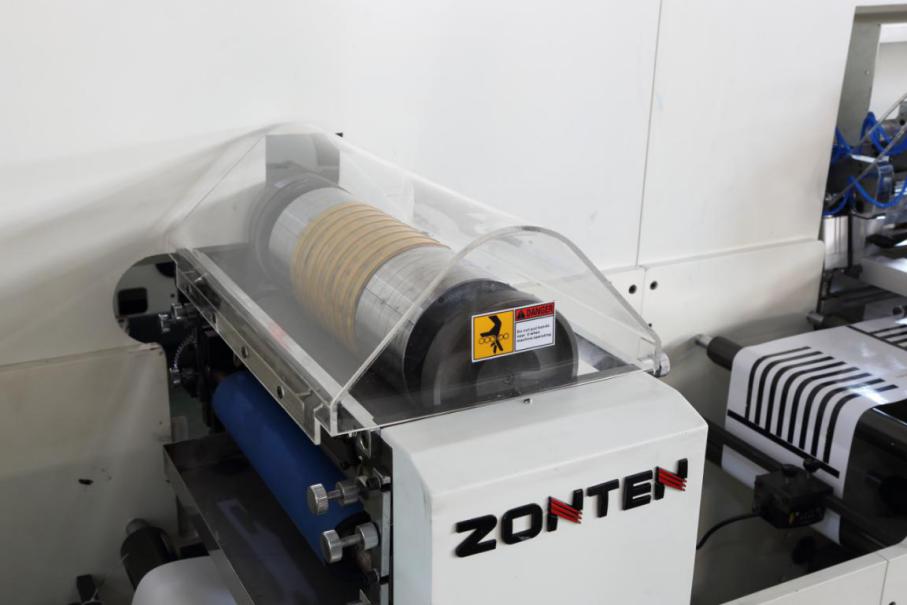

flexo print cylinder
flexo print cylinder

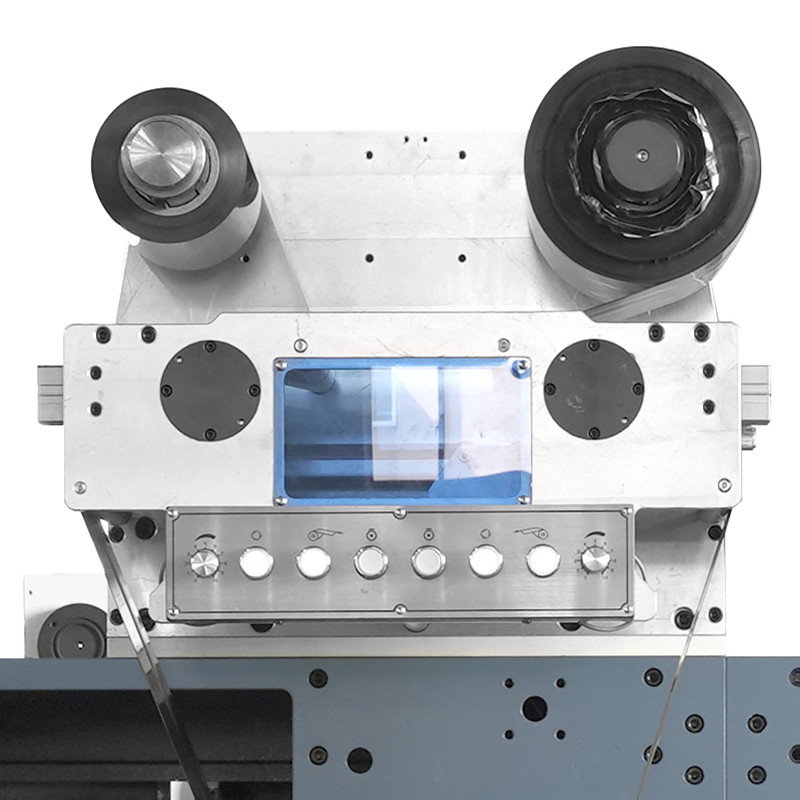

Optional: Cold foil unit
Optional: Cold foil unit

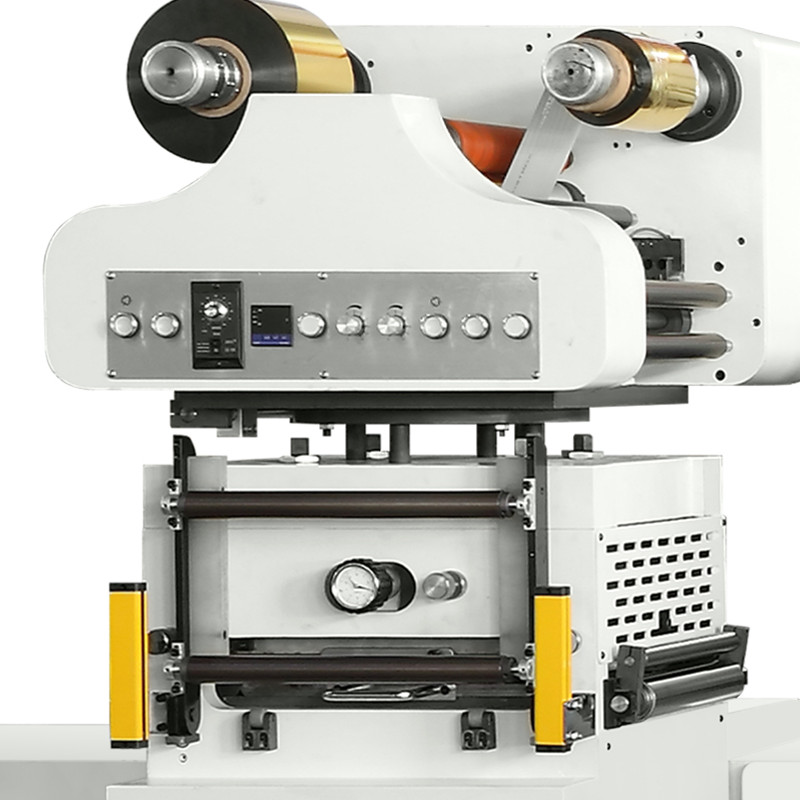

Optional: flat bed hot foil stamping unit
Optional: flat bed hot foil stamping unit

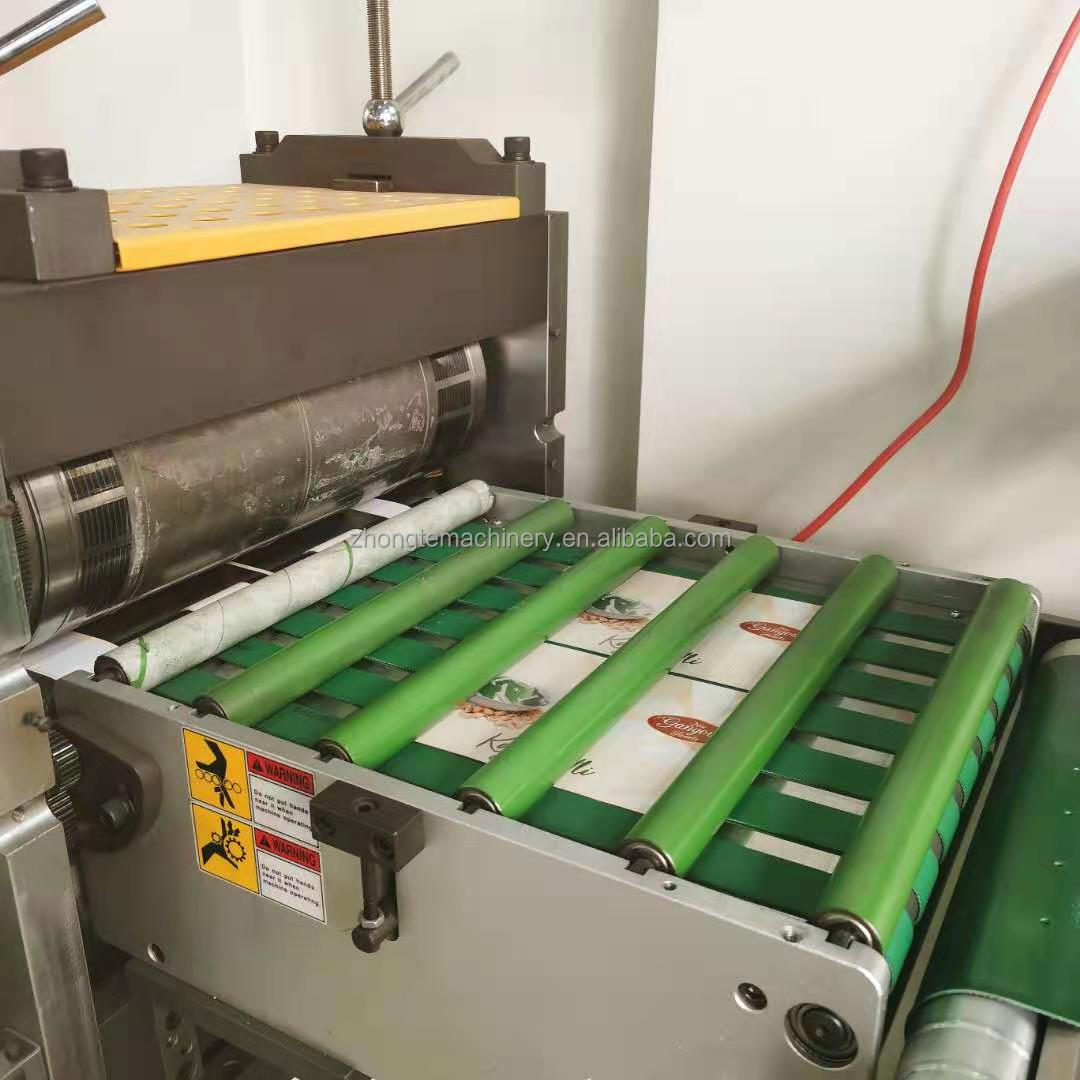

Optional: IML die cut unit
Optional: IML die cut unit

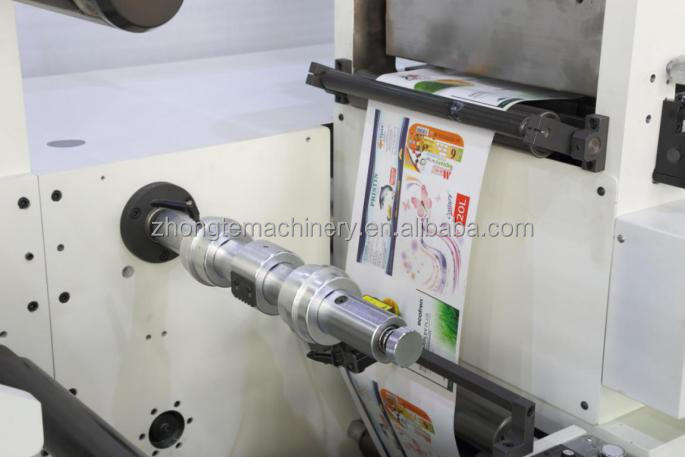

Optional: rotary lamination
Optional: rotary lamination

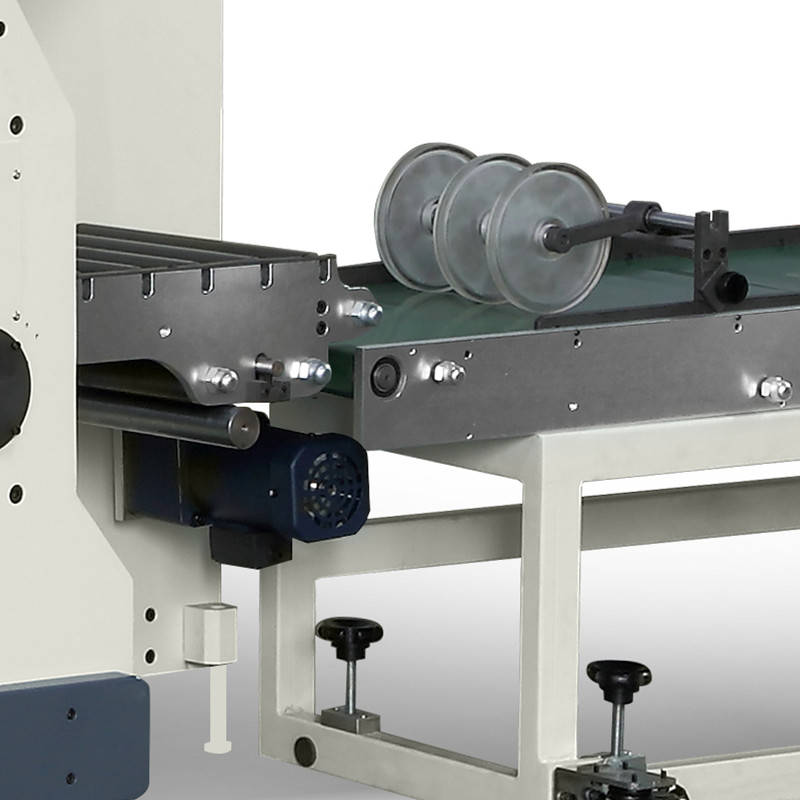

Optional: cut sheet conveyor
Optional: cut sheet conveyor

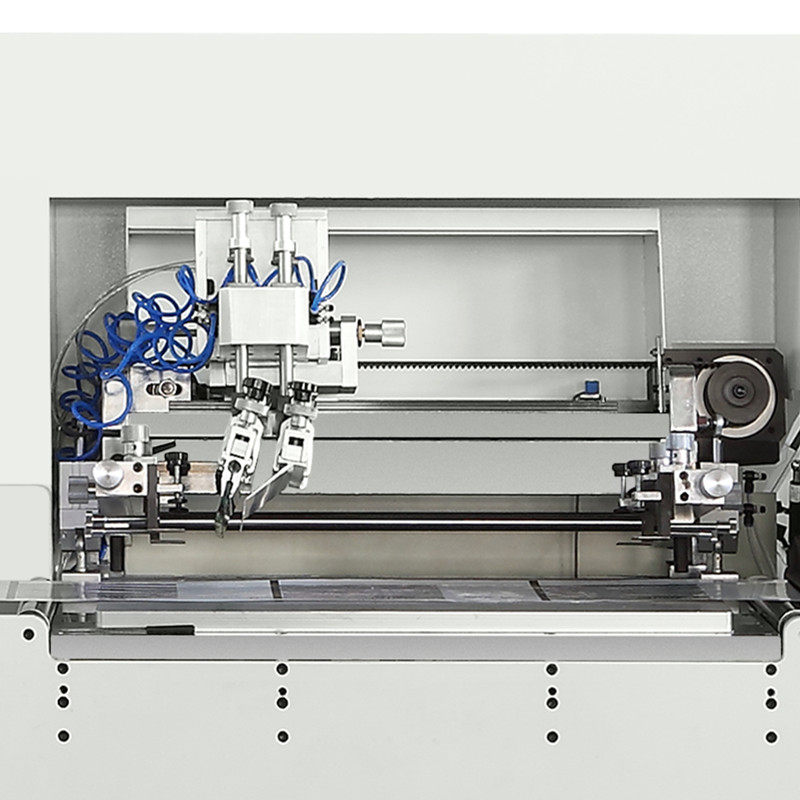

Optional: silk screen unit
Optional: silk screen unit

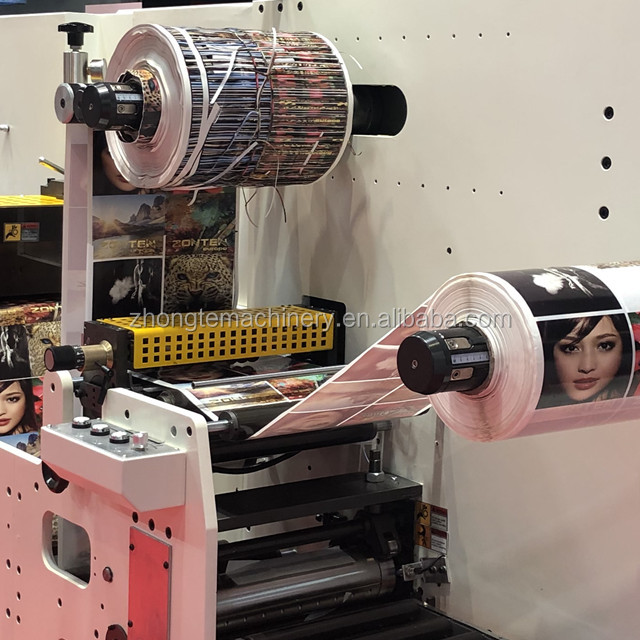

Additional detail 1
Additional detail 2
Additional detail 3

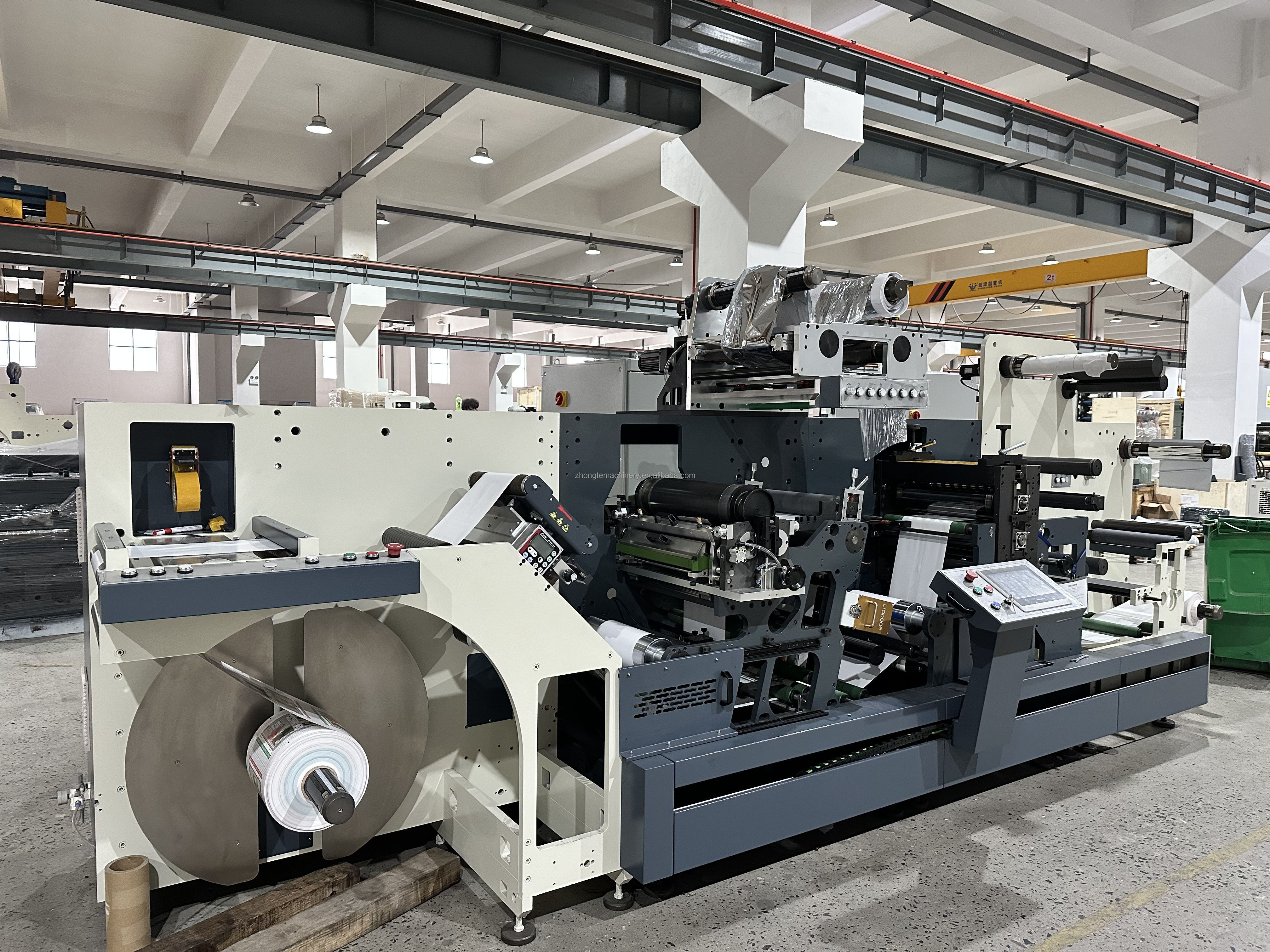

Additional detail 4

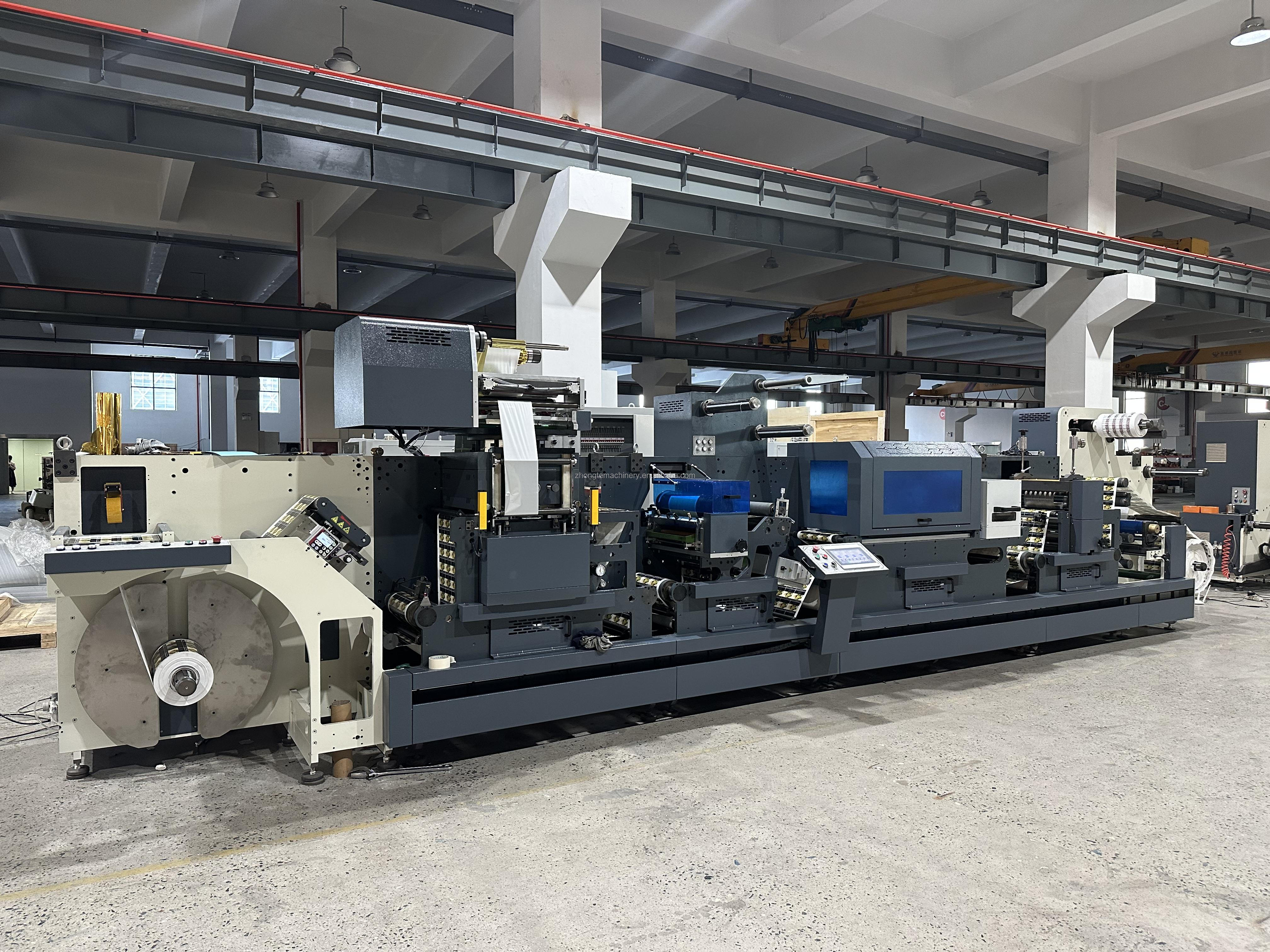

Additional detail 5

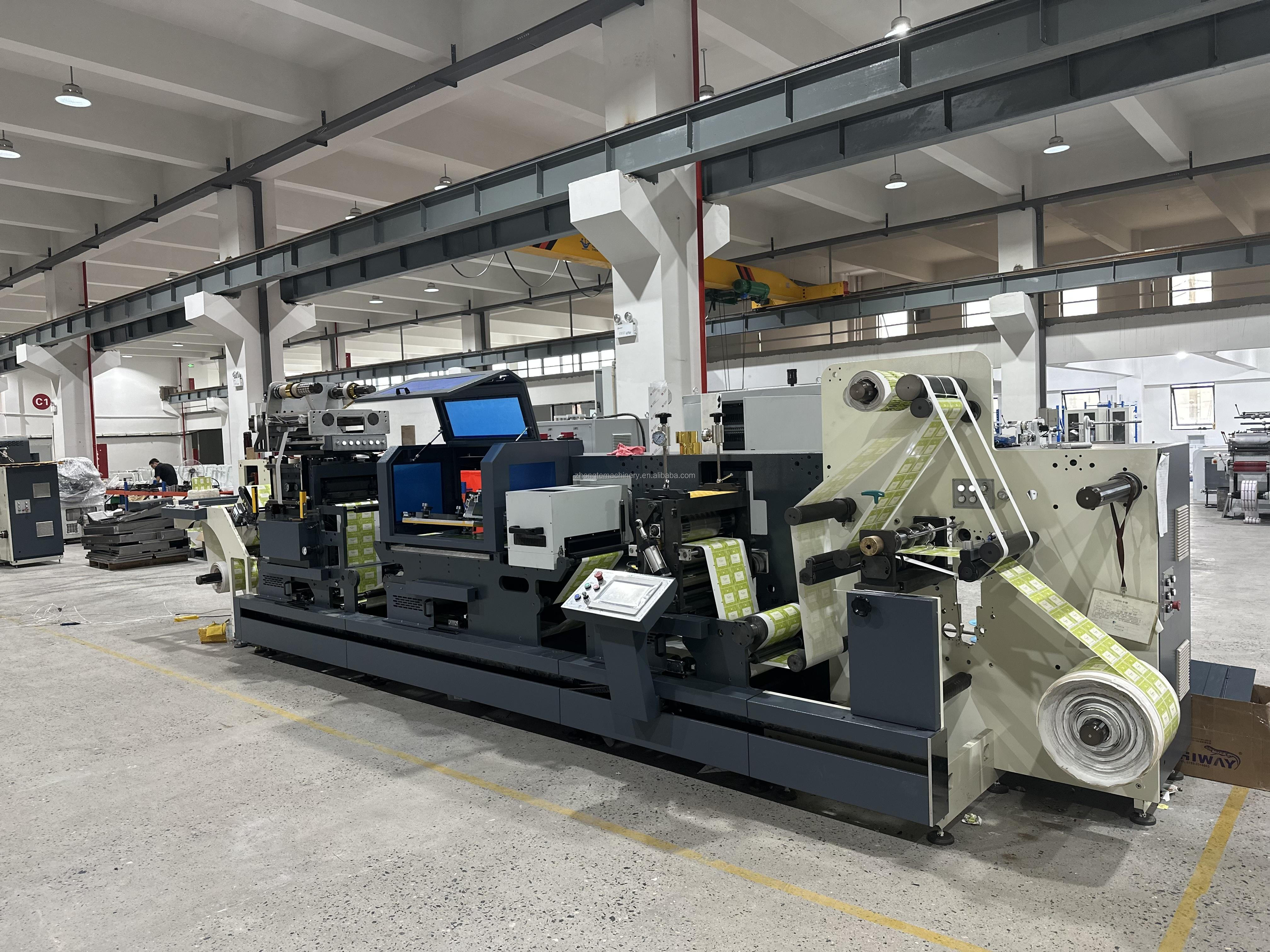

Additional detail 6

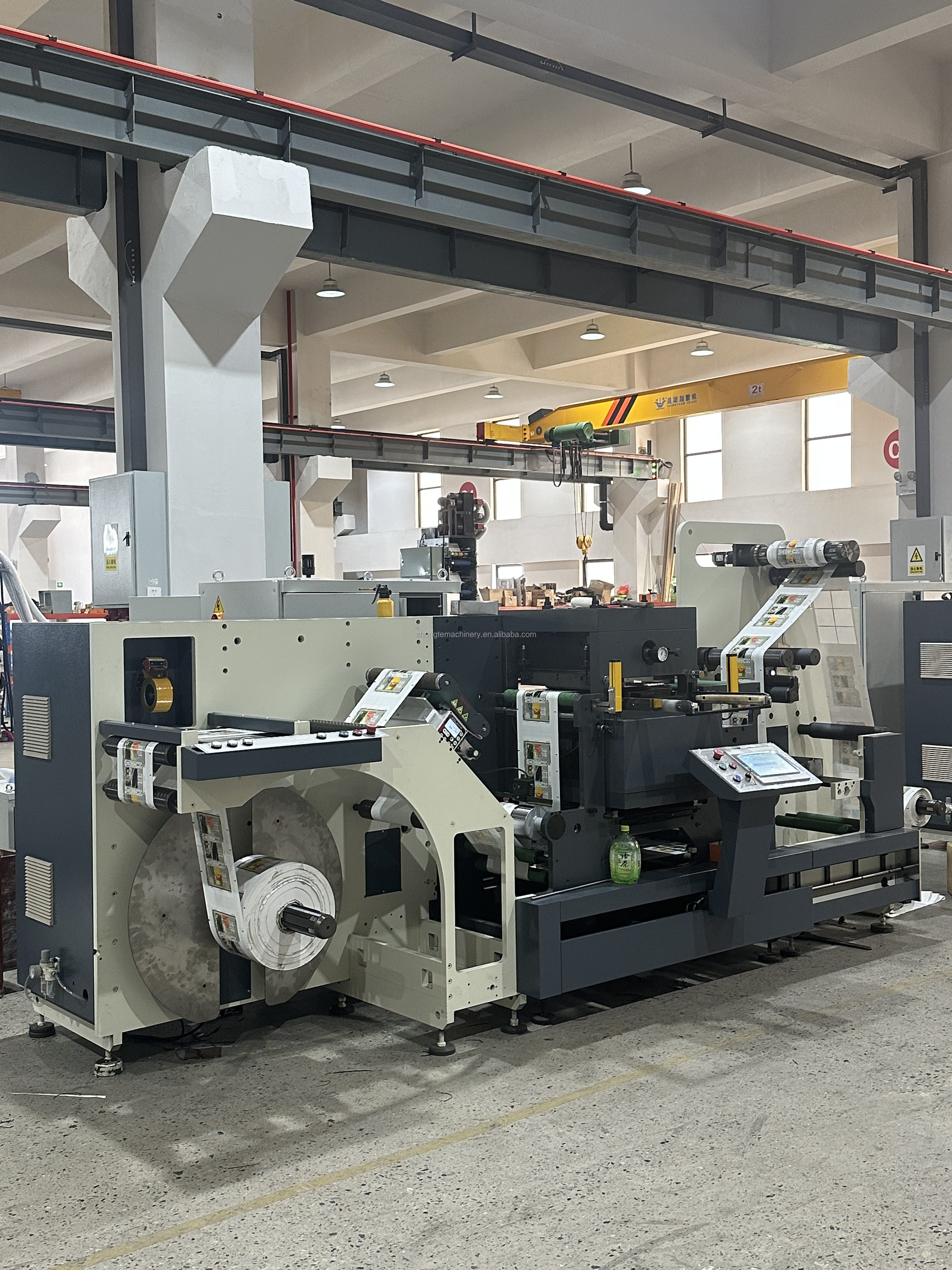

Detail view 7

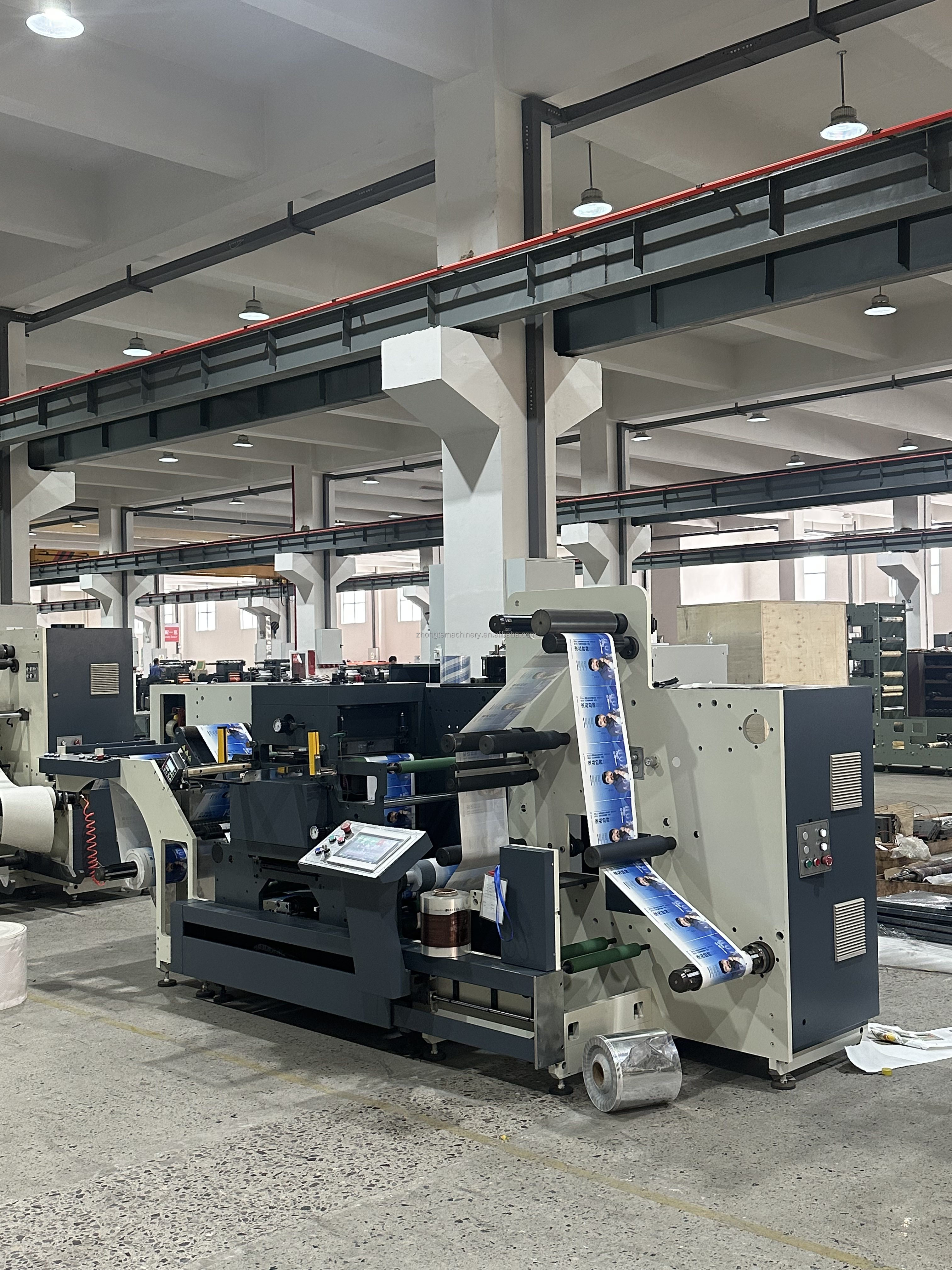

Detail view 8

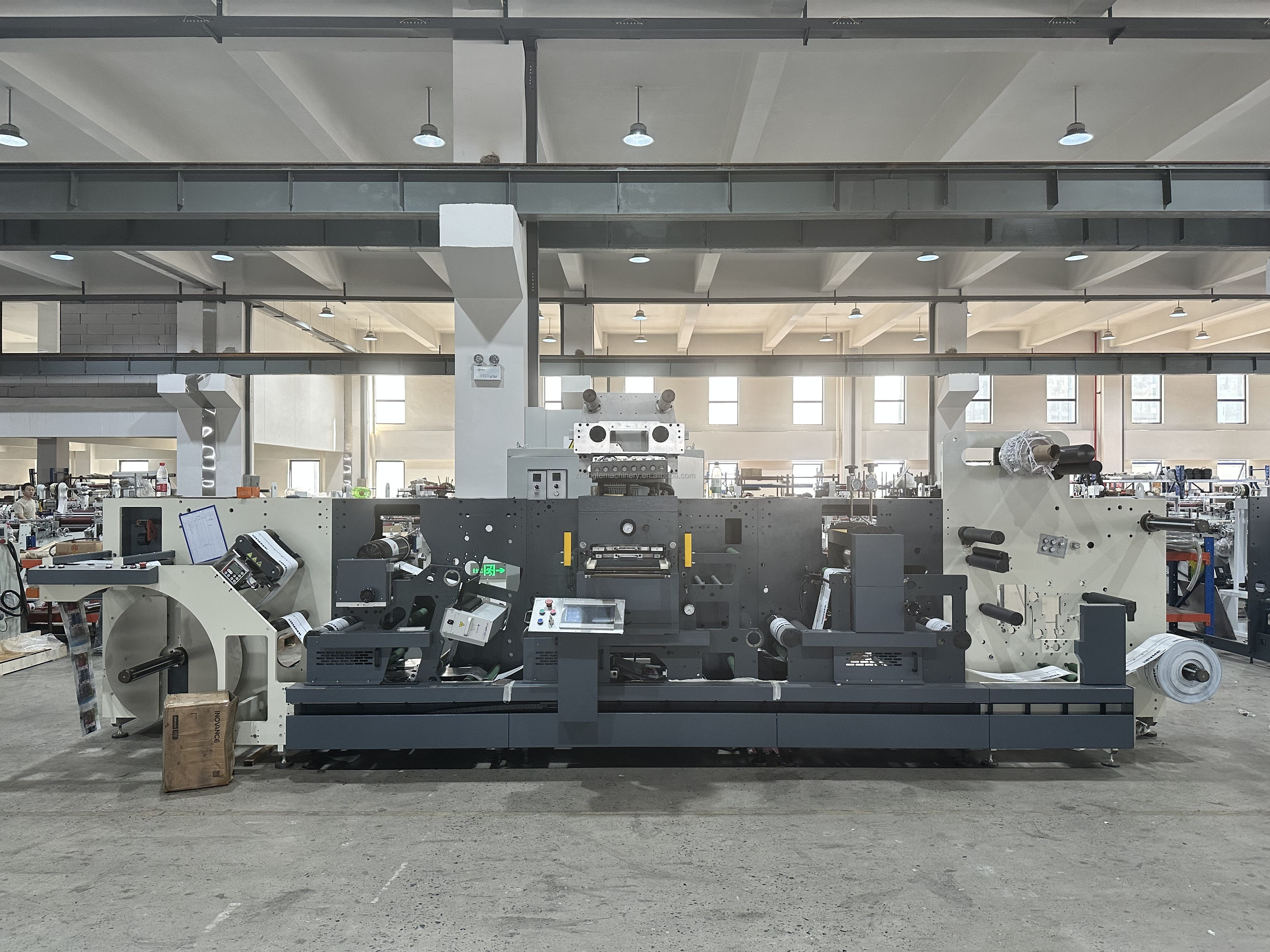

Detail view 9
Detail view 10

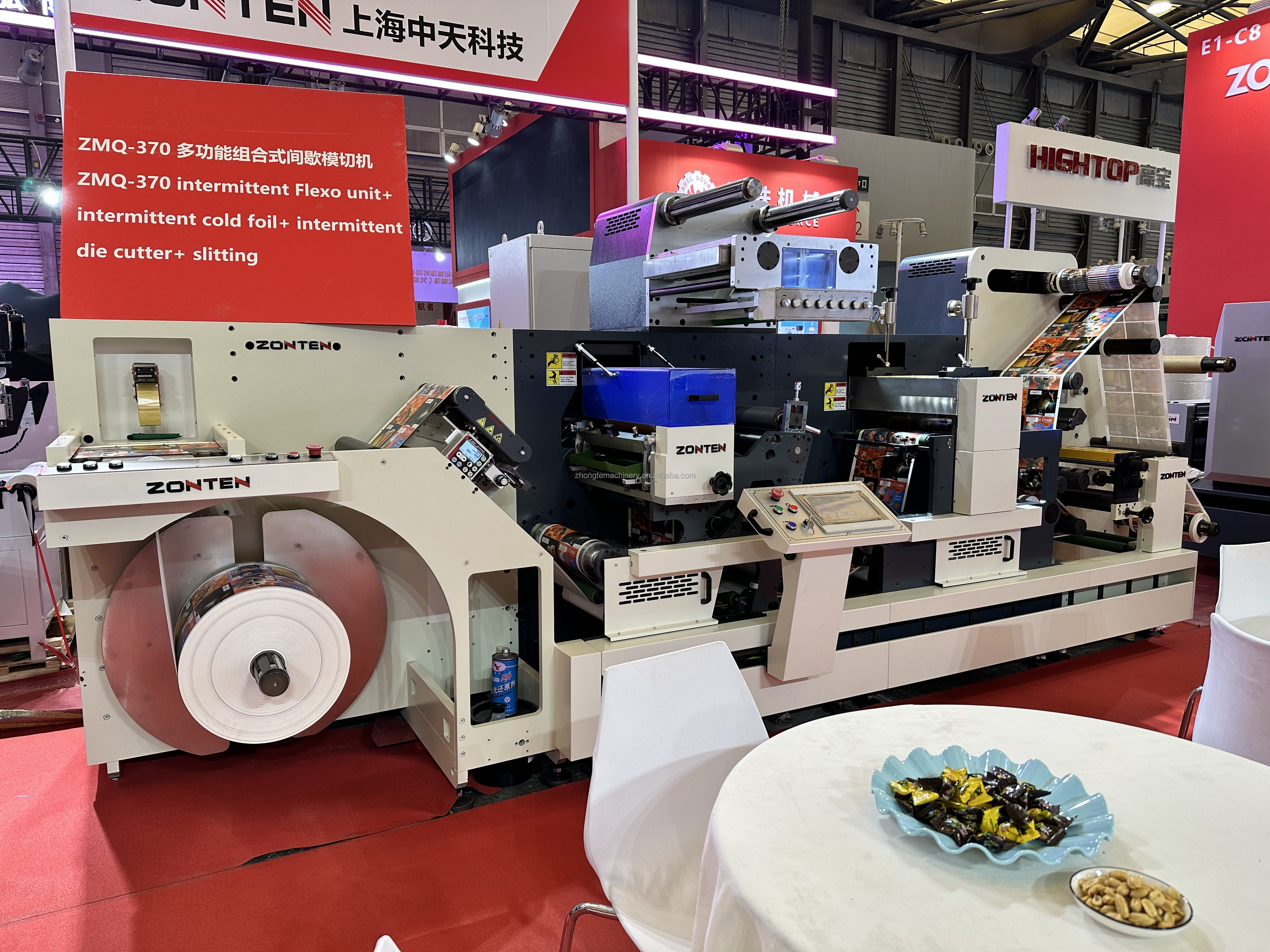

Detail view 11

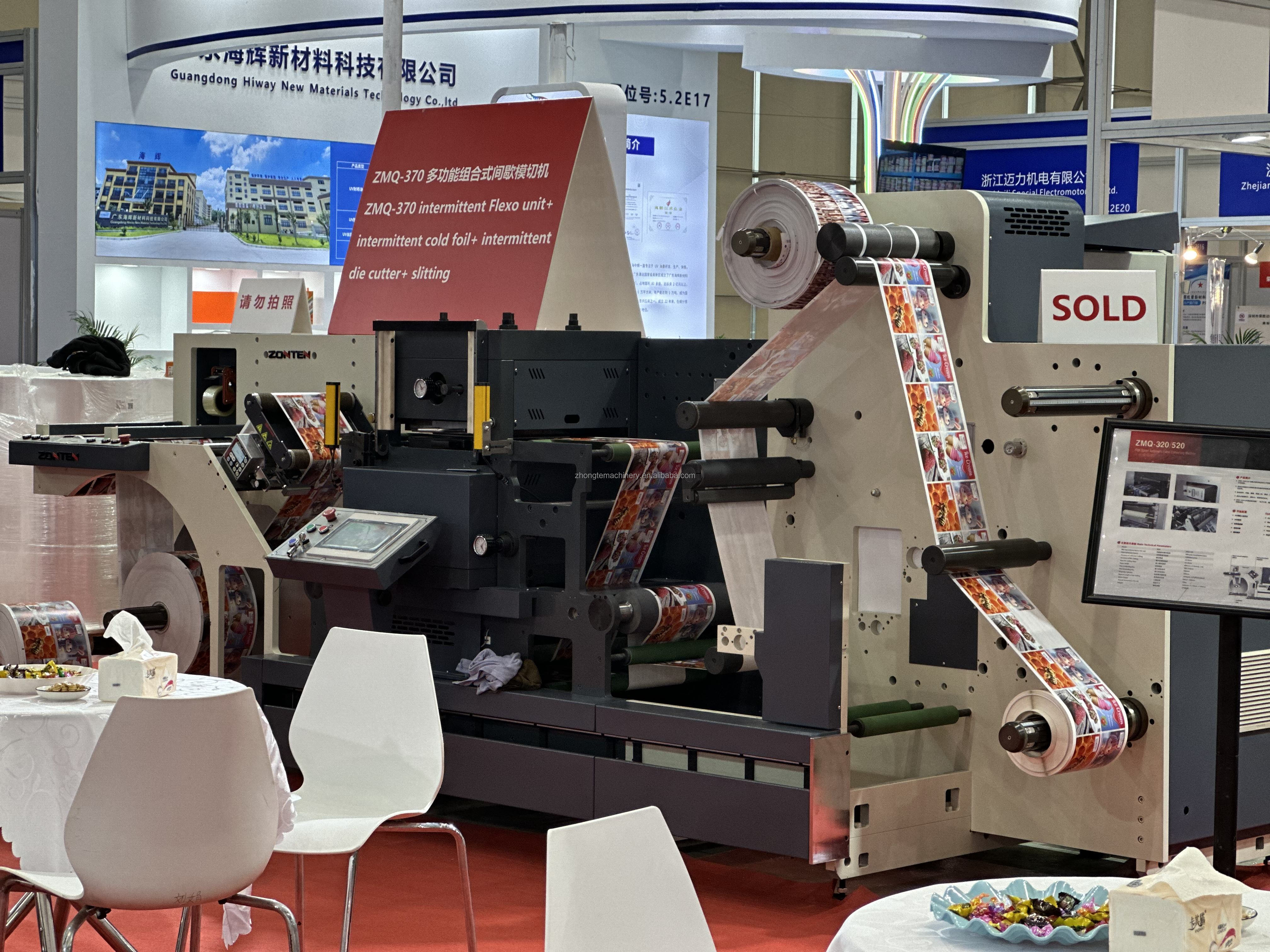

Detail view 12

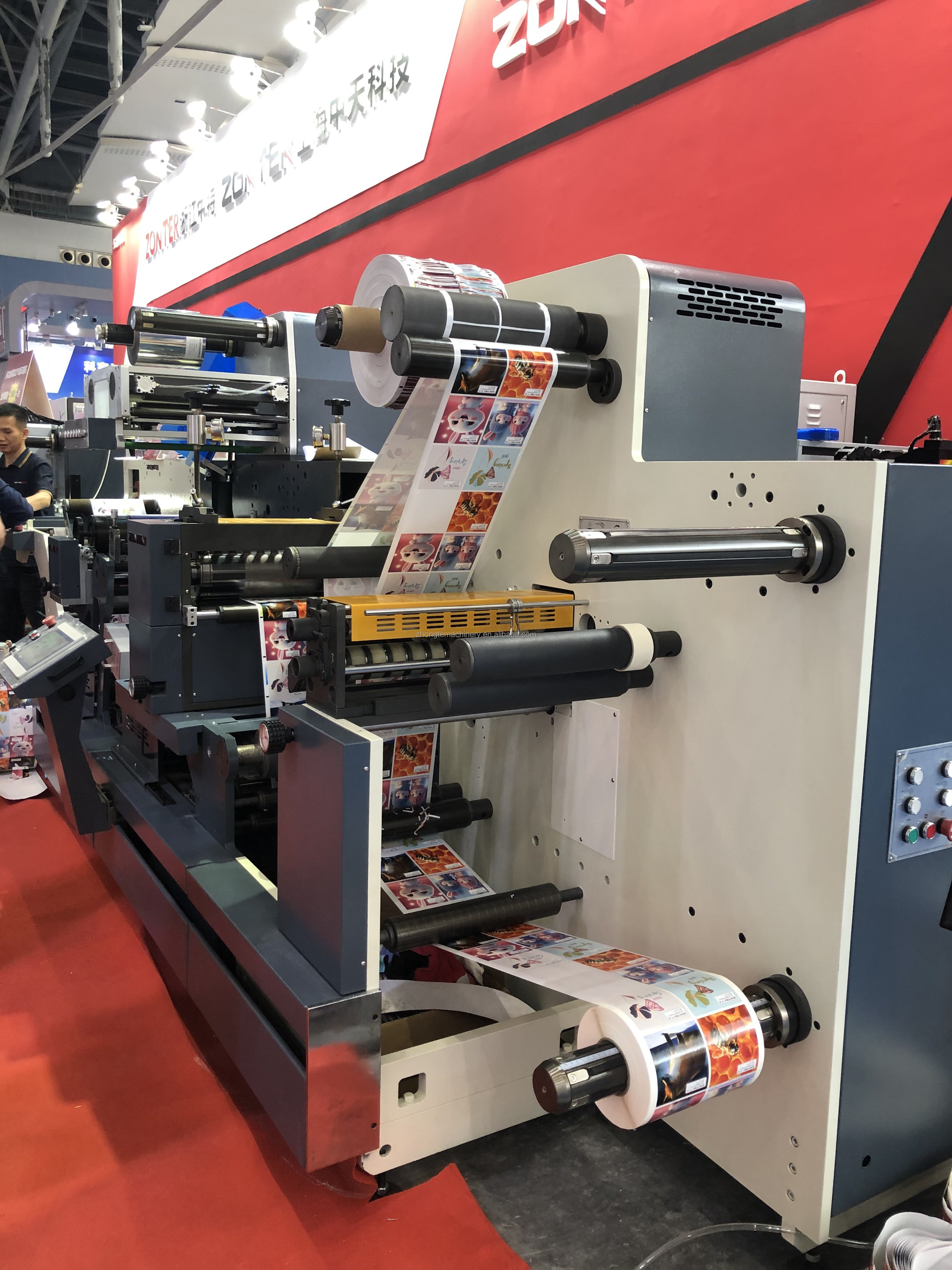

Detail view 13

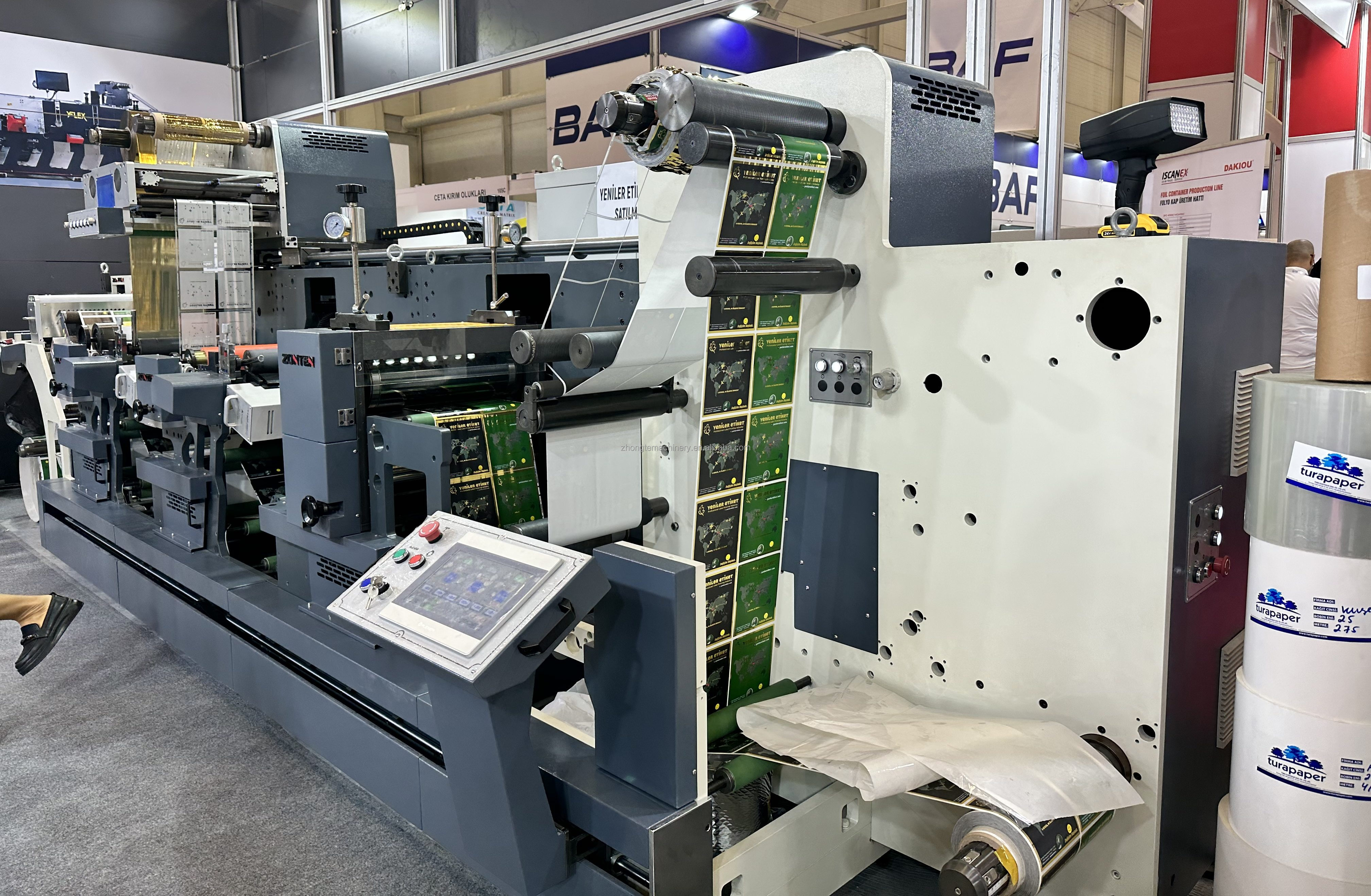

Detail view 14

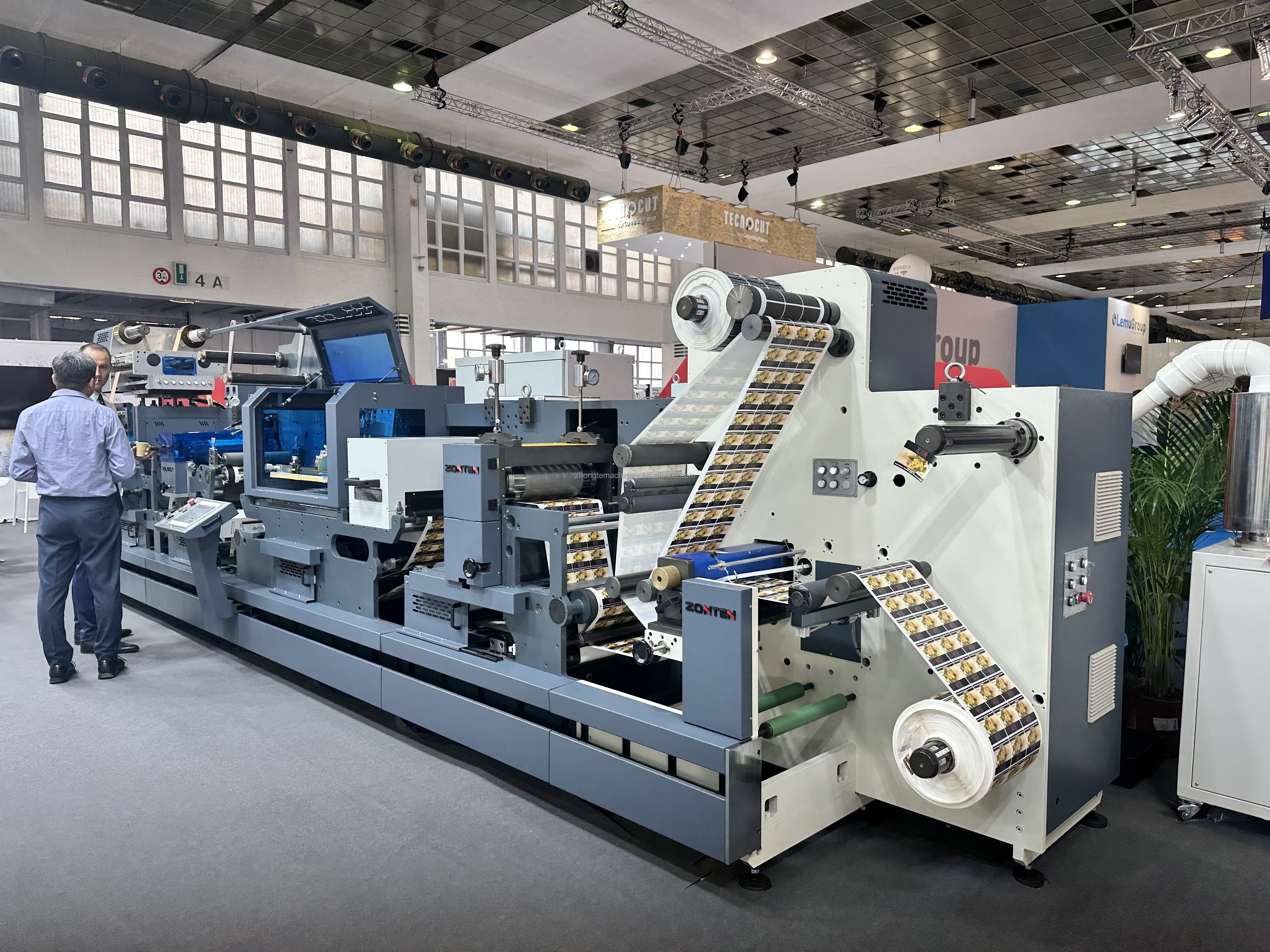

Detail view 15
Product Parameters
Machine Videos Overview
1). Printing Machines:
  • ZTJ-330/520 intermittent offset label printing machine
  • Super-320 intermittent letterpress label printing machine
  • LRY 330/450 stack flexo label printing machine
  • RY-330/450 flexographic label printing machine
  • flexo plate making machine
2). Die Cutting Machines:
  • MQ-320 die cutting machine
  • FQ-330/450R rotary die cutting and slitting machine for blank label
  • ZMQ-320 semi rotary die cutting machine
3). Slitting Machines:
  • FQ-320/450 label slitting and rewinding machine
4). Inspecting Machines:
  • ZJP inspecting machine

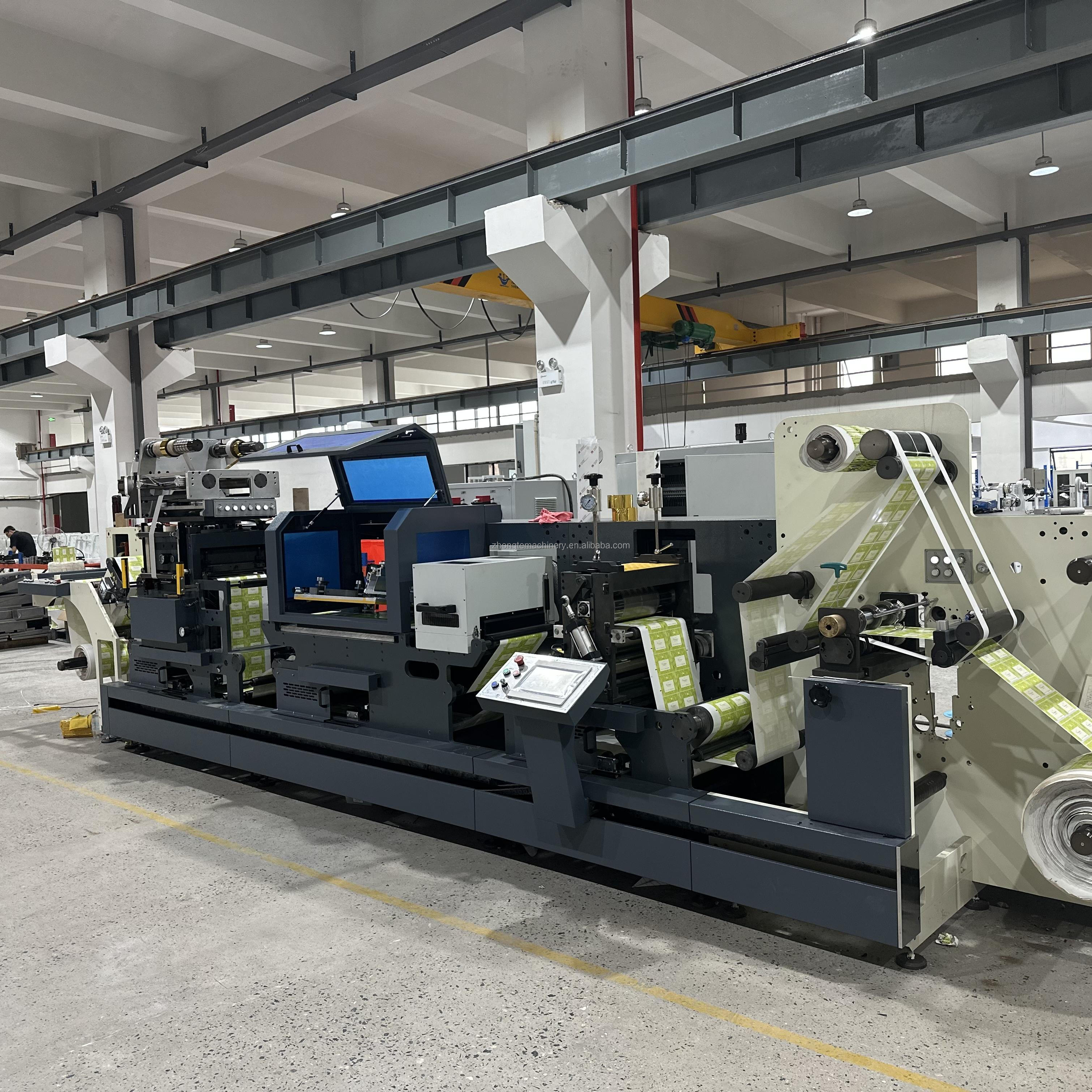

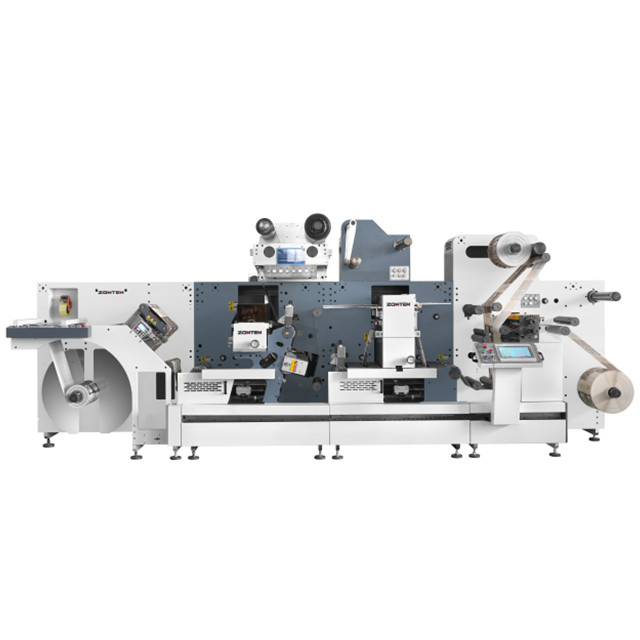

ZMQ-370 High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machine with Flexo Unit
ZMQ-370/450/520 is the newly developed equipment for die cutting and slitting.
It adopts a servo-control system to achieve optimization control of the machine which assures high accuracy and the stability of the die cutter.
Automatic paper feeding, web guider, lamination, UV flexo coating, die cutting, and slitting can be completed in one single pass.
The machine has many distinct advantages such as smaller floor space requirements, lower operational noise, and high production speeds.
ZMQ-370/450/520 is an ideal option for die cutting and shaping in label printing factories, electronic industries, and viscose products industries.
Model Specification ZMQ-370 Details
Model ZMQ-370
Max. Speed 300cycle/min
Max. full rotary speed 130m/min
Accuracy adhesive cutting +-0.10mm
Accuracy of IML cutting +-0.25mm
Max. die cutting area 400mm * 350mm
Max. unwinding Dia. 700mm
Max. rewinding Dia. 700mm
Paper width 100-370mm
Magnetic cylinder 152T
Die cutting repeat length 50-400mm
Main power 10kw
Overall dimension (approx.) 3200 * 1310 * 1700MM
Machine weight (approx.) 2750kg
Product Packaging
Packaging Process 1
Packaging Process 2
Packaging Process 3

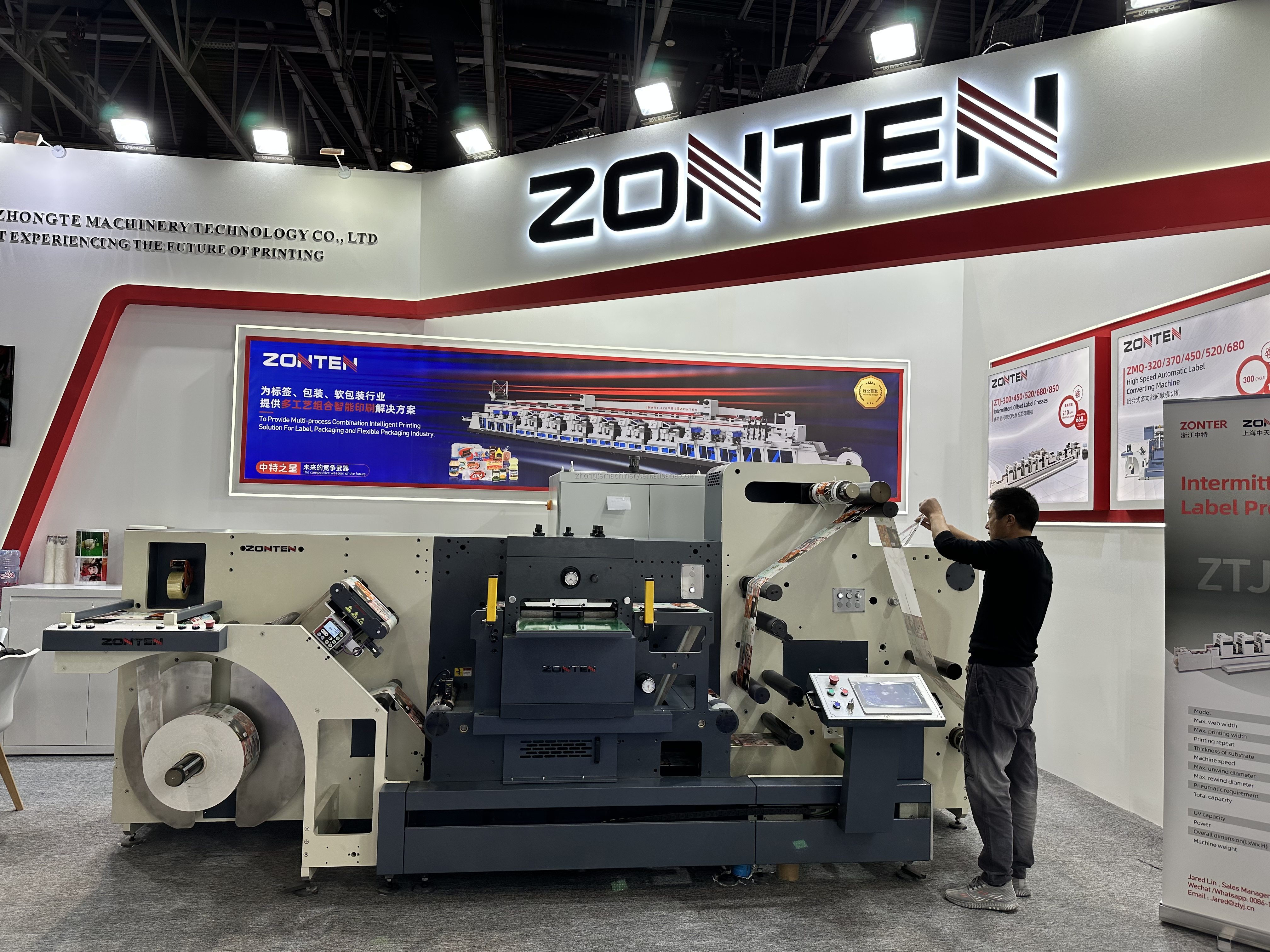

Exhibition
Machinery Exhibition
Frequently Asked Questions
Are you a factory or a trading company?
We are a factory in this field with nearly 20 years of manufacturing experience.
How does your factory control quality?
Quality is our priority. We implement a strict quality controlling system to control all machine details right from the beginning.
How long is the machine warranty period and service?
We provide a one-year guarantee along with full-time online sales and after-sales support networks for our customers.
How many operators are needed to run this machine?
One operator can handle and run the machine efficiently.
Why choose our machinery?
We are one of the industry leaders in the label machinery field. We hold the managing philosophy of "Win with quality and success by professionalism". Our products are highly recognized in domestic markets and exported to more than 100 countries.
