Moveco Machine
1 / 5

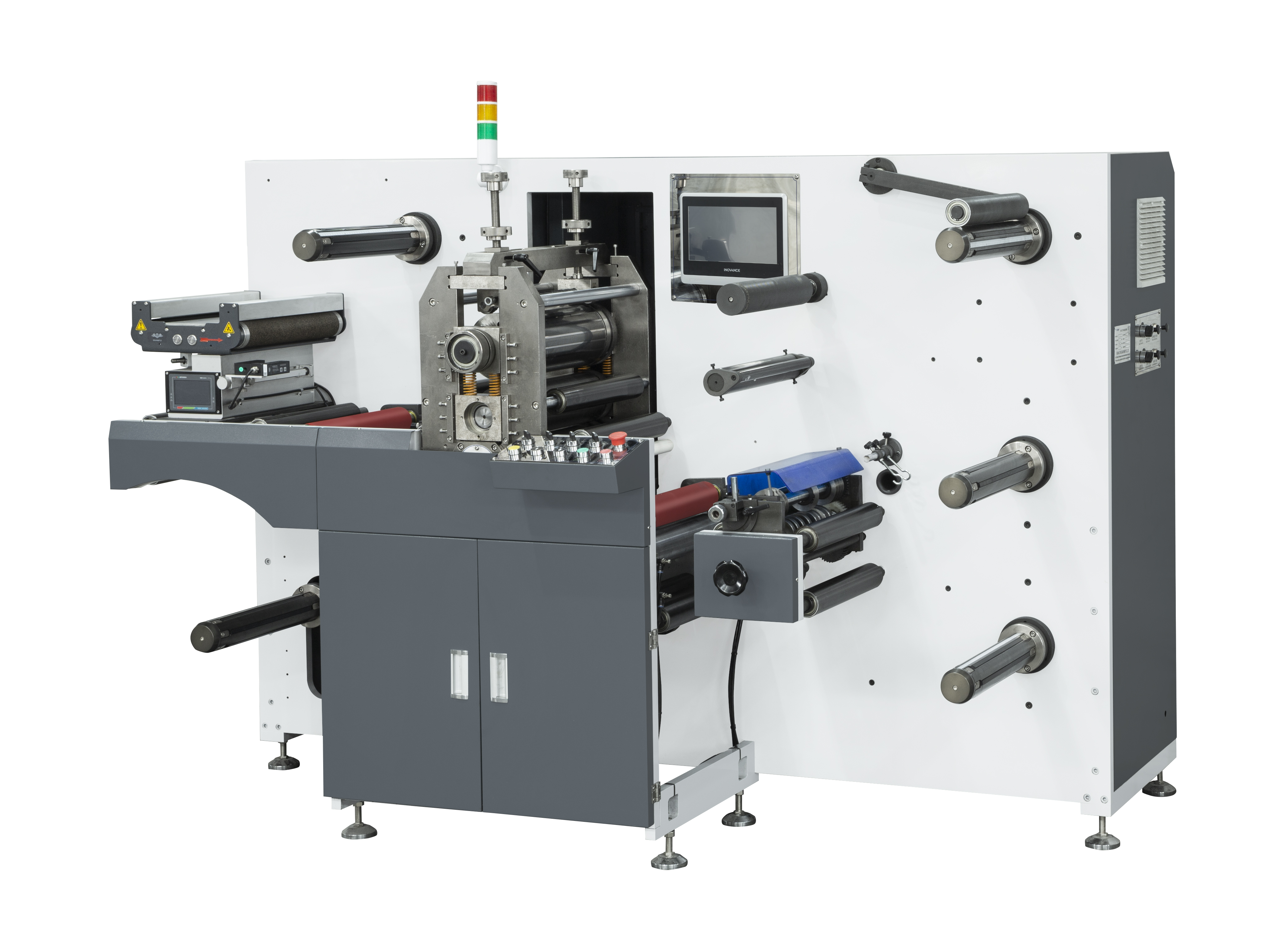

| Machine model | LY-RS350 | LY-RS450 |
| Slitting speed | 120m/min | 120m/min |
| Die cutting speed | 65m/min (intermittent) 120m/min (full rotary) |
65m/min (intermittent) 120m/min (full rotary) |
| Max. web width | 350mm | 450mm |
| Max. unwinding diameter | 700mm | 700mm |
| Max. rewinding diameter | 700mm | 700mm |
| Die cutting length | 200-450mm (intermittent) 250-550mm (full rotary) |
200-450mm (intermittent) 250-550mm (full rotary) |
| Voltage | 380V 3Phases, 50Hz | 380V 3Phases, 50Hz |
| Power | 12kw | 12kw |

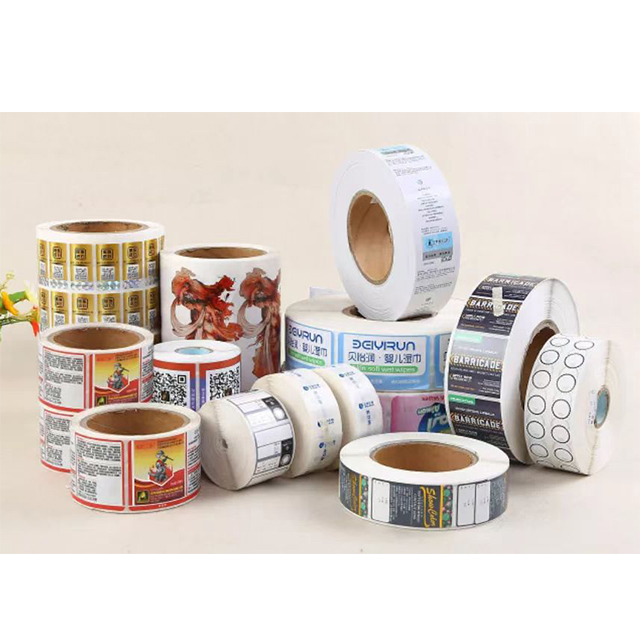

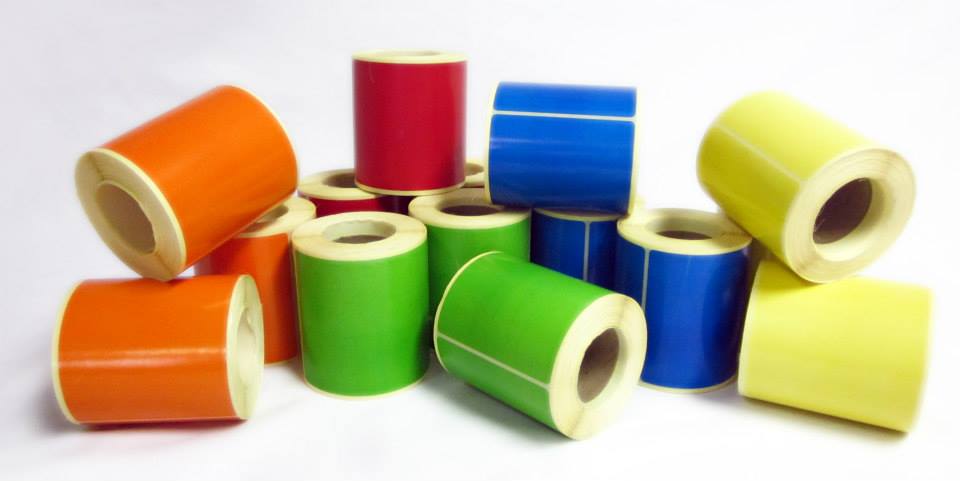

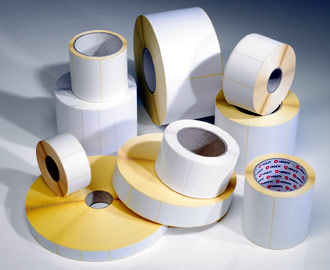

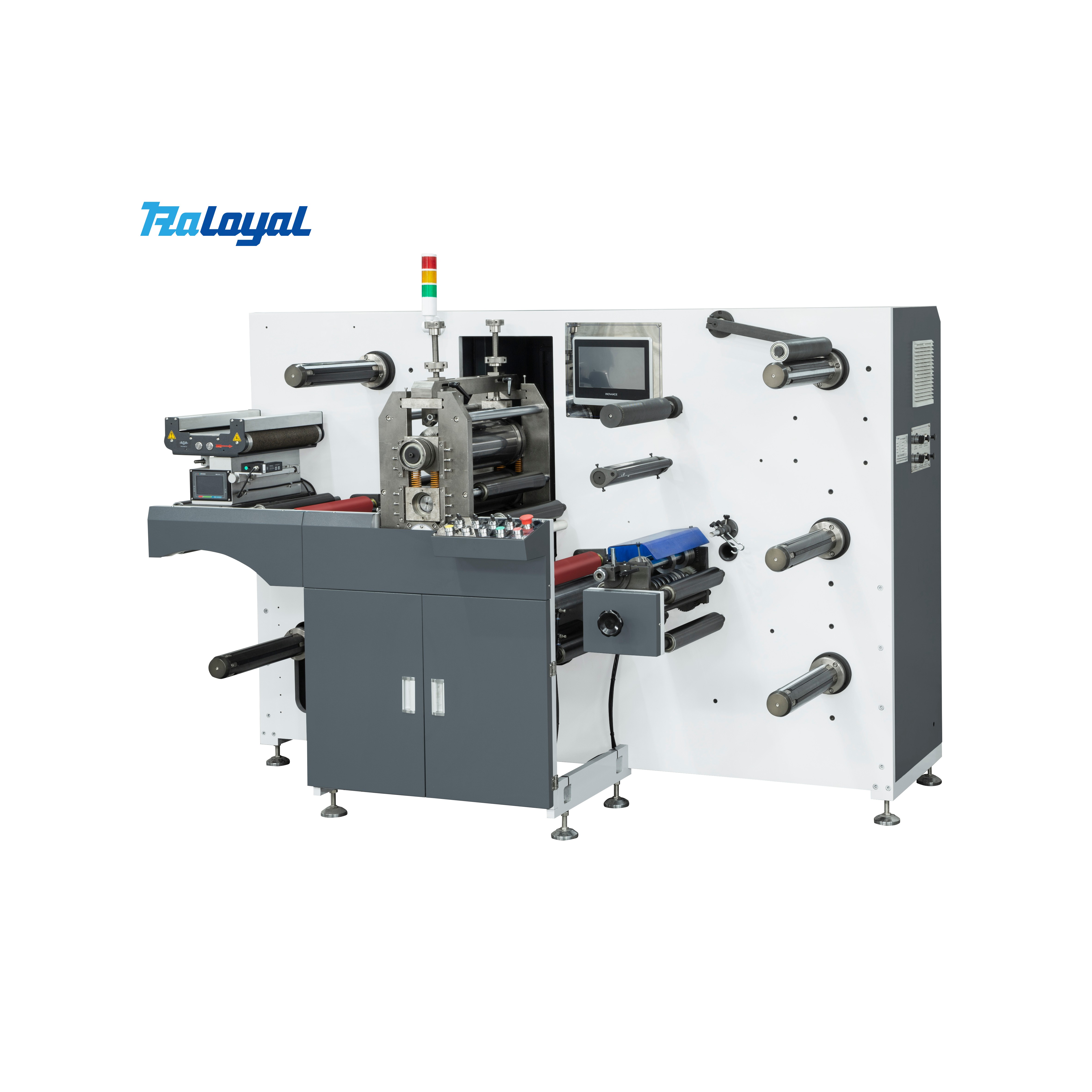

This machine is ideally designed for processing printing materials, adhesive labels, and adhesive films, delivering precise slitting and die-cutting.
Yes, the machine features an intermittent semi-rotary structure that allows it to run efficiently in both semi-rotary and full rotary modes depending on your production needs.

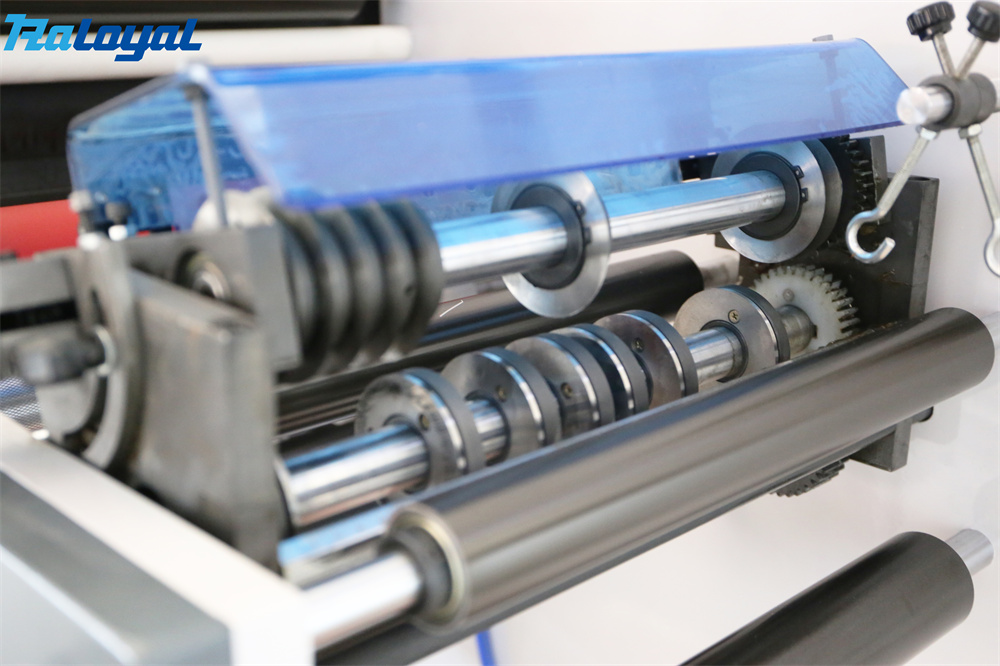

For both the LY-RS350 and LY-RS450 models, the die-cutting speed reaches 65m/min under intermittent mode and up to 120m/min under full rotary mode, while the slitting speed reaches up to 120m/min.

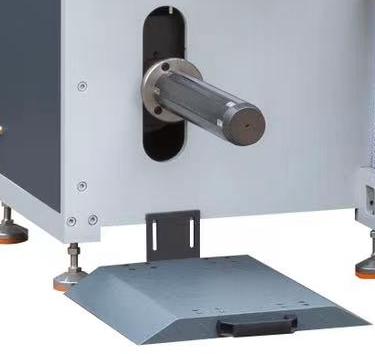

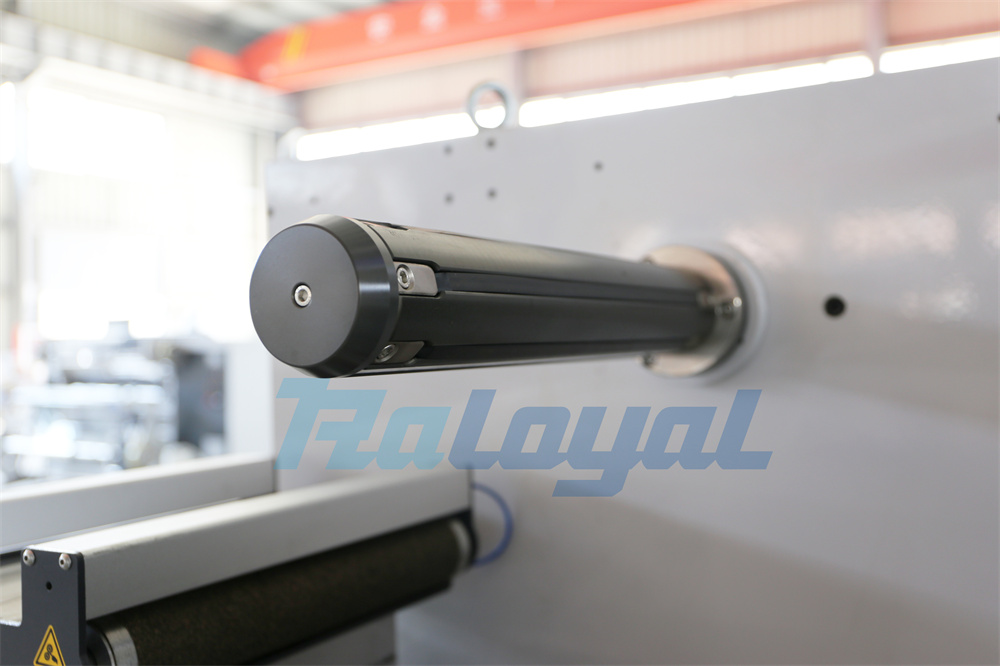

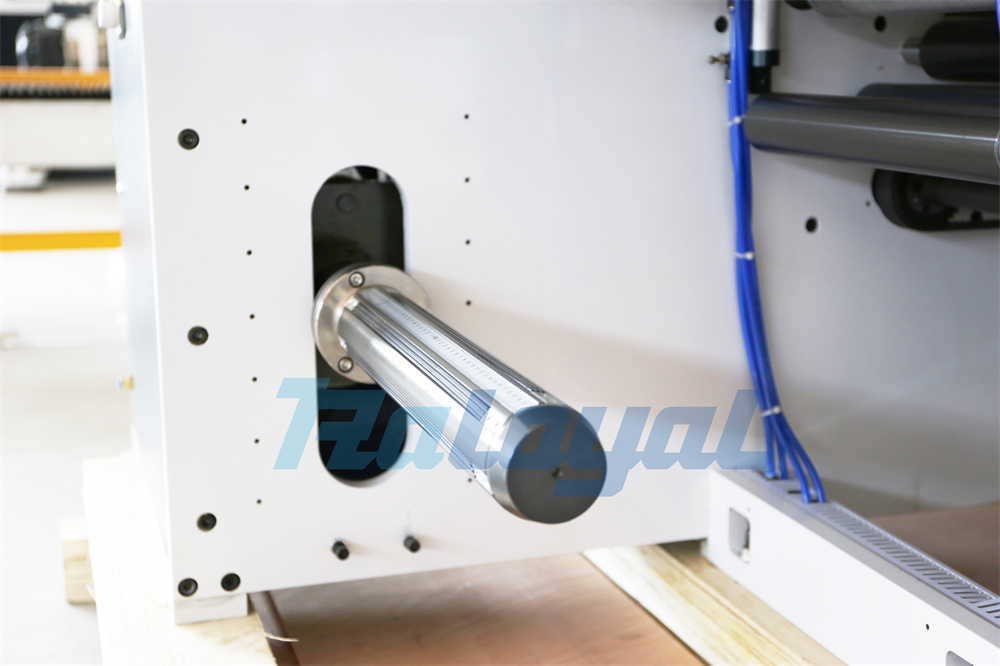

The system automates the unwinding shaft inflation and deflation using simple buttons instead of manual air guns. Workers only need to press a button to automatically load material and inflate the shaft, saving labor and time.

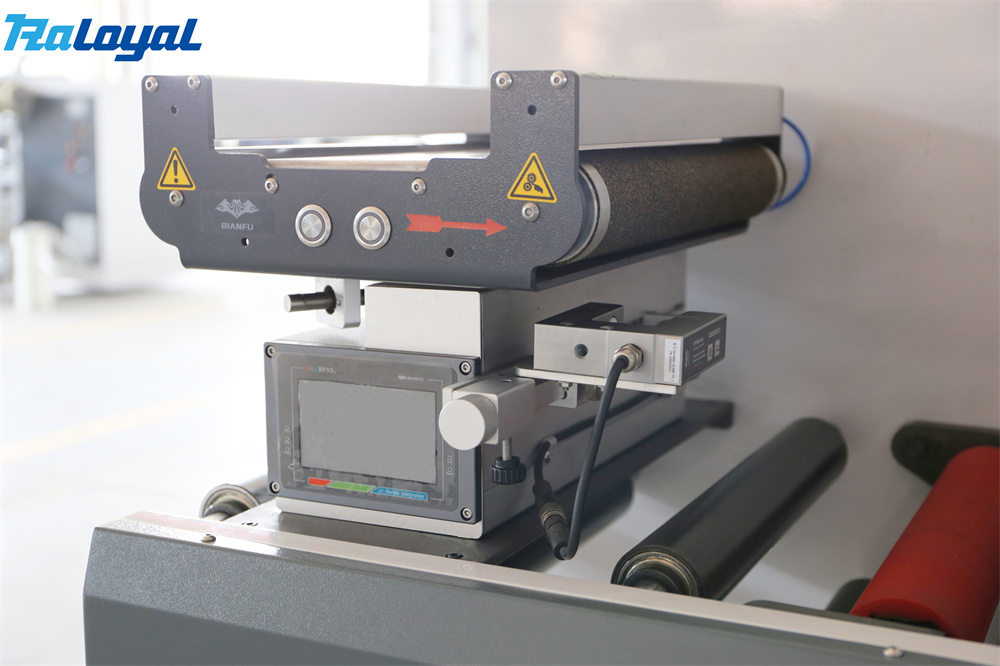

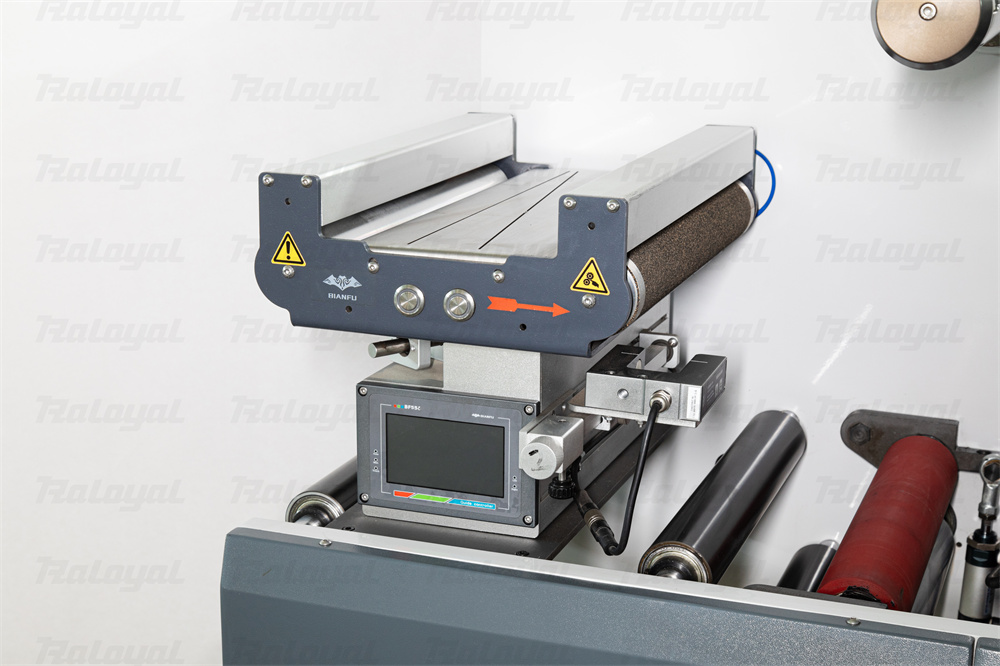

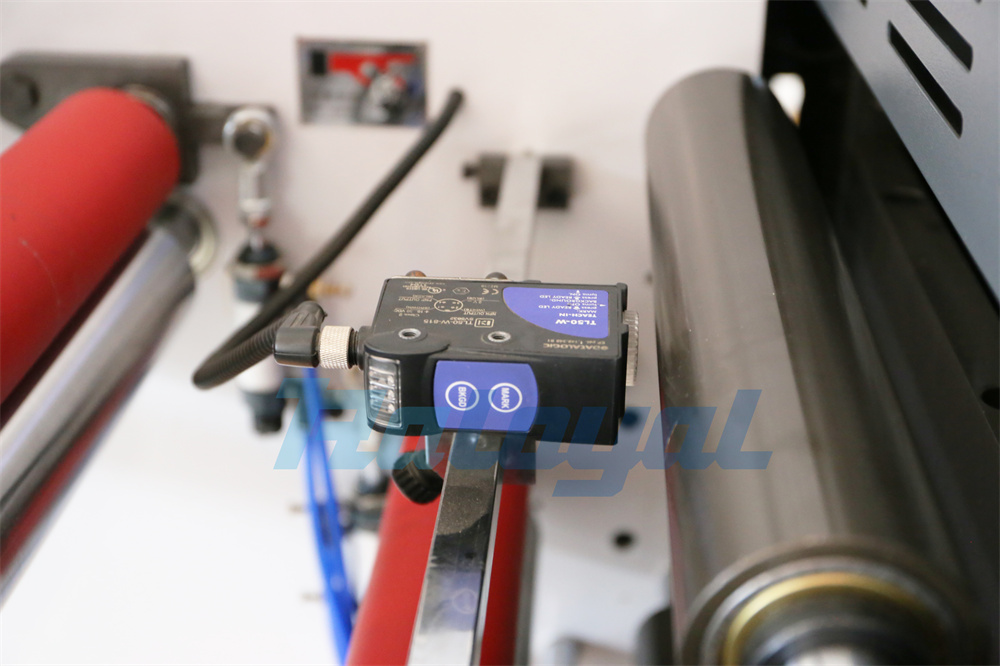

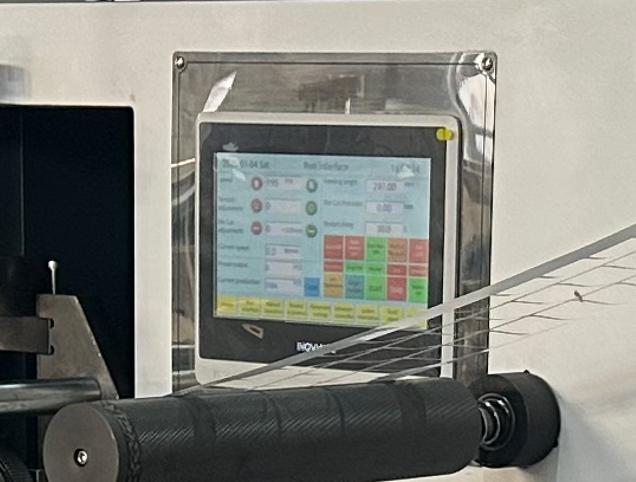

The machine integrates a user-friendly PLC system paired with a large 10-inch touch screen control for simple, intuitive operations. Precise web guiding is ensured via ultrasonic edge-positioning simulation tracking.

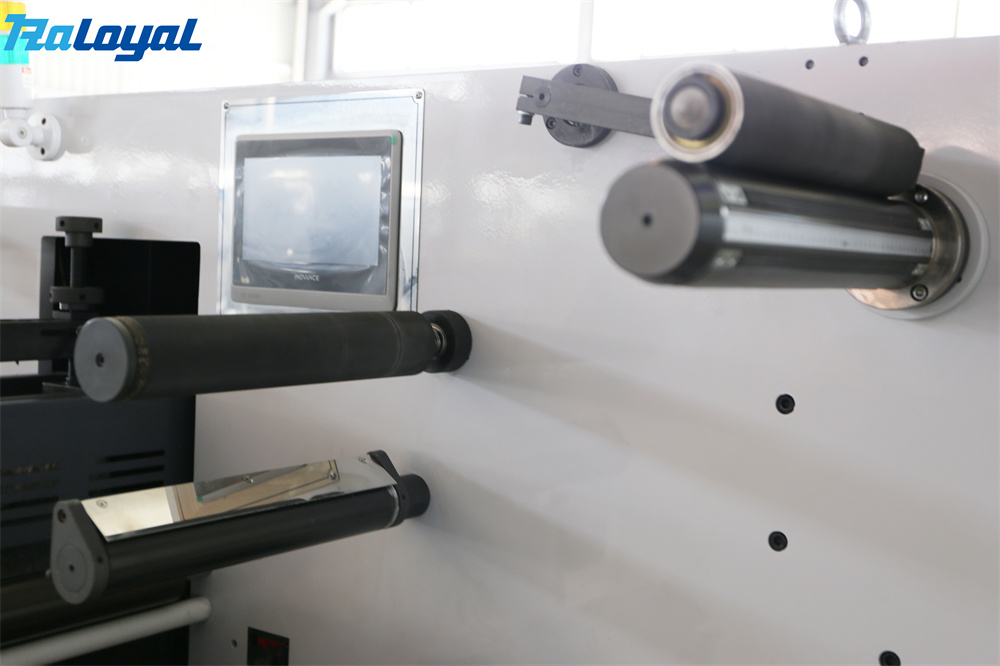

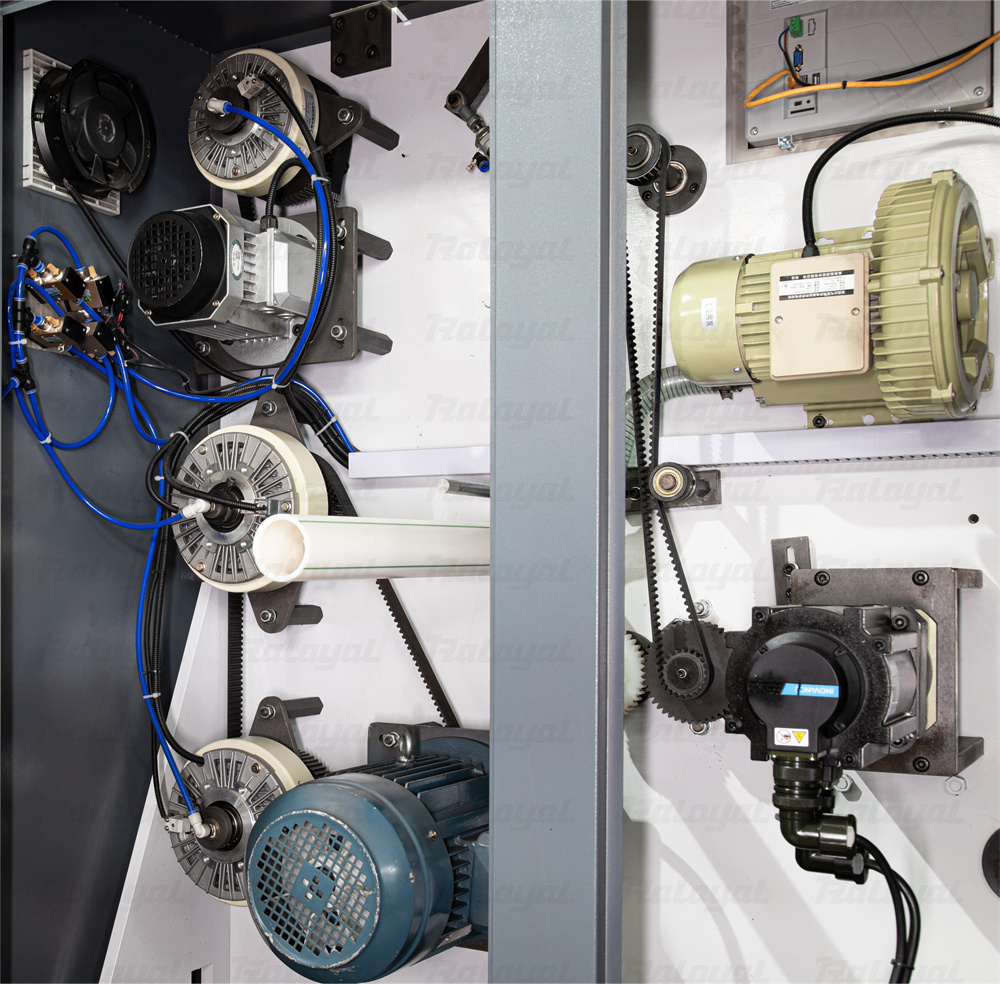

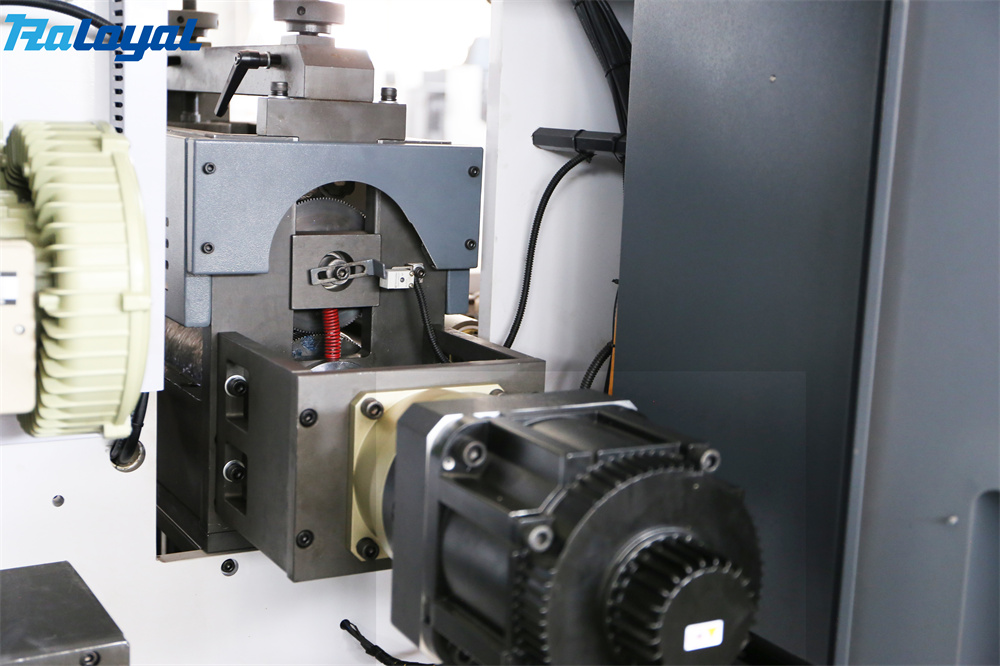

The system utilizes 4 sets of servo motors for control (two for traction, one for die cut, and one for the semi-swing roller). The rewinding and waste rewinding shafts are separately driven by dedicated motors and inverters.
