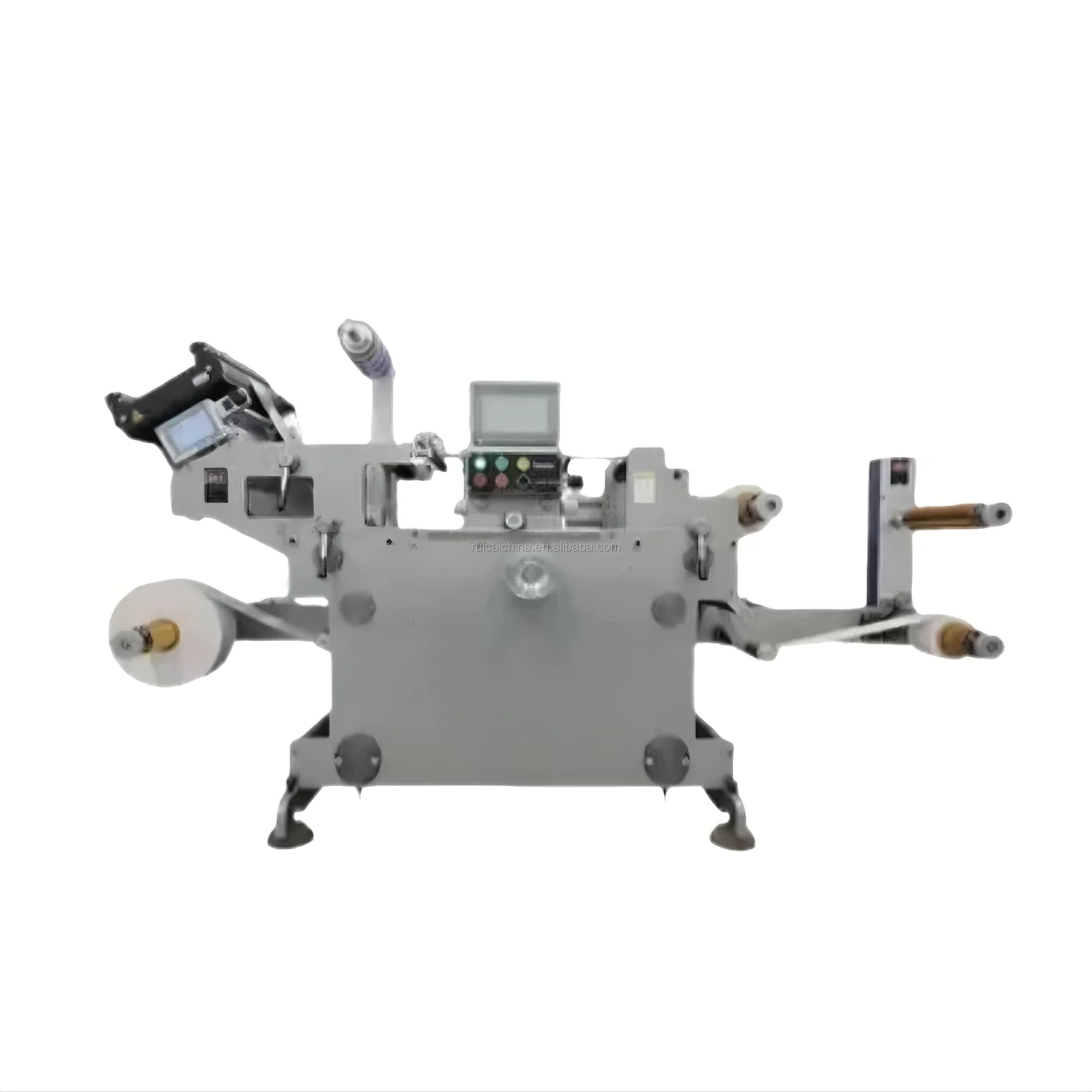

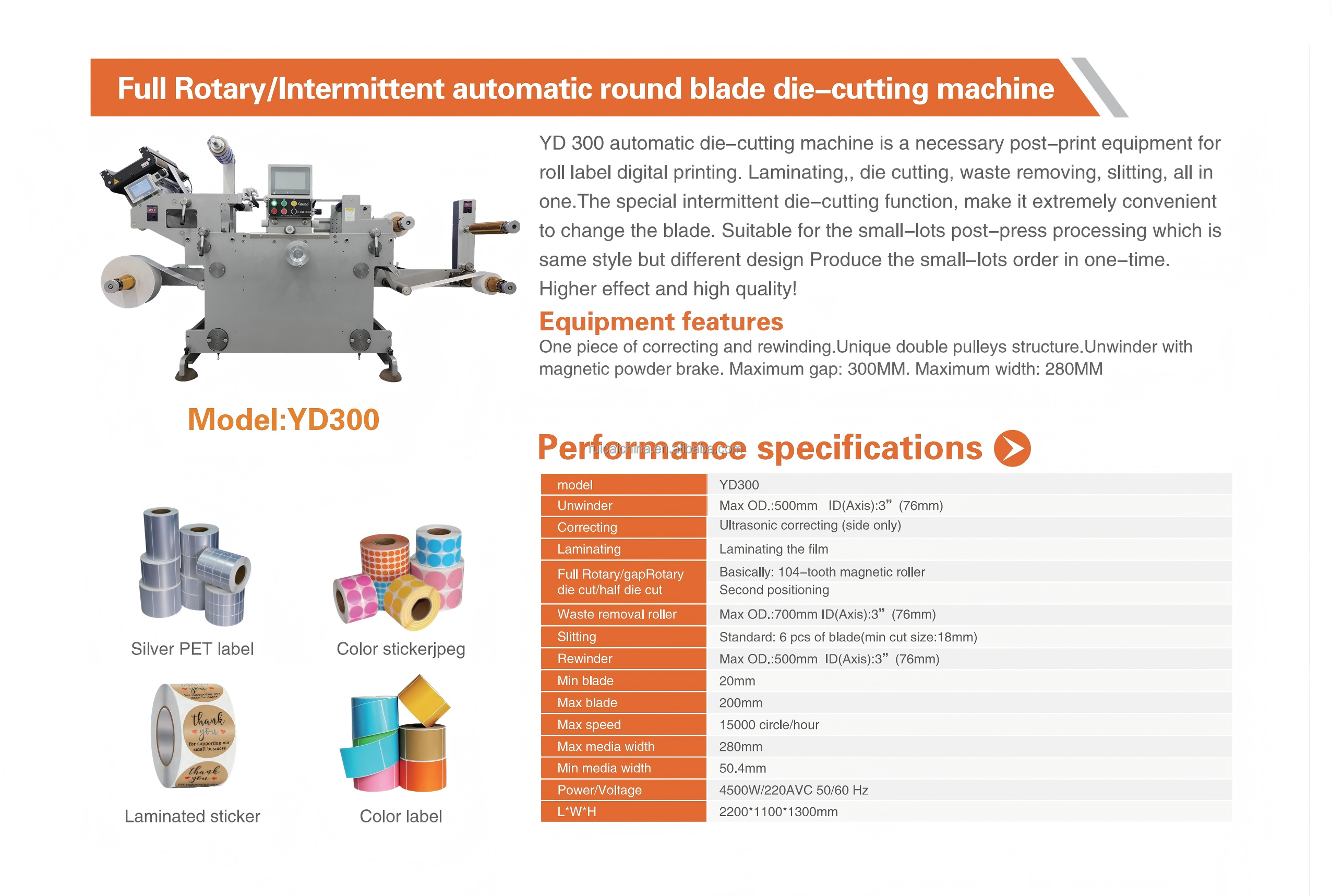

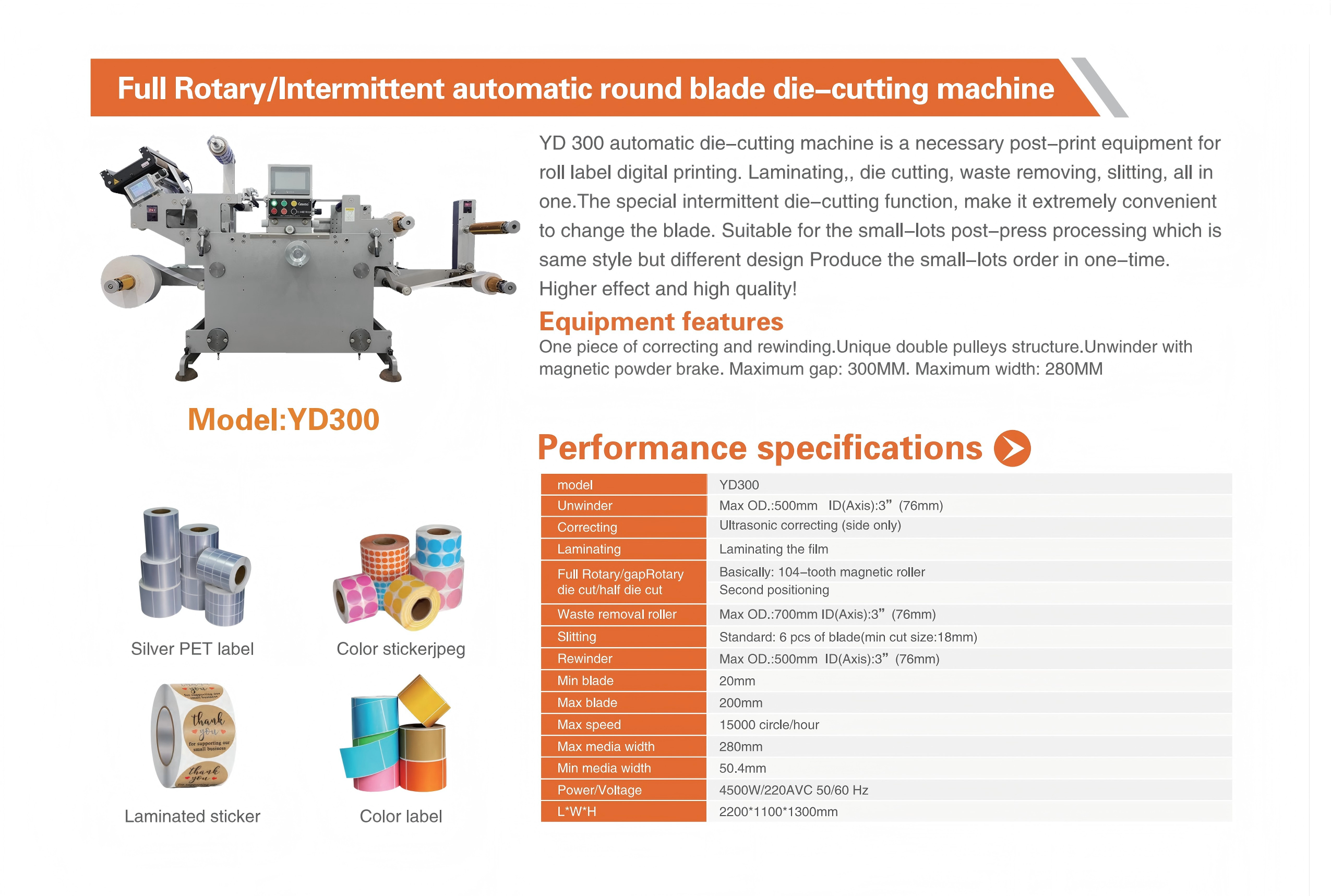

| Product Name | YD 300 Roll Label Digital Printing with Special Intermittent Die-cutting Automatic Die Cutter Machine |
| Name | Full Rotary/Intermittent Automatic Round Blade Die - cutting Machine |
| Model | YD300 |
| Unwinder | Max OD.:500mm ID(Axis):3” (76mm) |
| Correcting | Ultrasonic correcting (side only) |
| Laminating | Laminating the film |
| Full Rotary/gap Rotary die cut/half die cut | Basically: 104 - tooth magnetic roller Second positioning |
| Waste removal roller | Max OD.:700mm ID(Axis):3” (76mm) |
| Slitting | Standard: 6 pcs of blade (min cut size: 18mm) |
| Rewinder | Max OD.:500mm ID(Axis):3” (76mm) |
| Min blade | 20mm |
| Max blade | 200mm |
| Max speed | 15000 circle/hour |
| Max media width | 280mm |
| Min media width | 50.4mm |
| Power/Voltage | 4500W/220AVC 50/60 Hz |
| L*W*H | 2200*1100*1300mm |
|
Detailed Description: YD 300 automatic die-cutting machine is a necessary post-print equipment for roll label digital printing. Laminating, die cutting, waste removing, slitting, all in one. The special intermittent die-cutting function makes it extremely convenient to change the blade. Suitable for the small-lots post-press processing which is same style but different design. Produce the small-lots order in one-time. Higher effect and high quality! Equipment features: One piece of correcting and rewinding. Unique double pulleys structure. Unwinder with magnetic powder brake. Maximum gap: 300MM. Maximum width: 280MM. |
|
