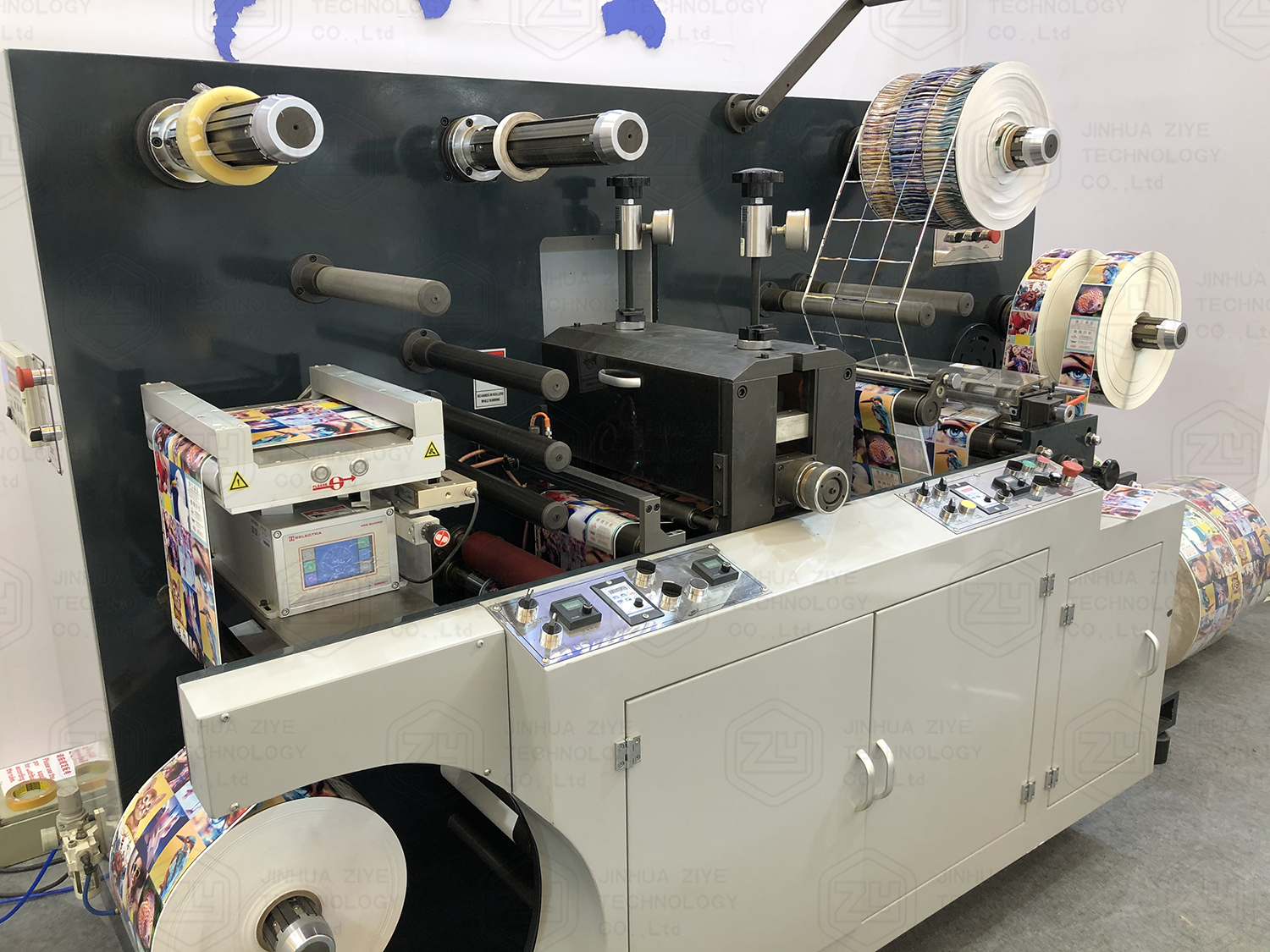

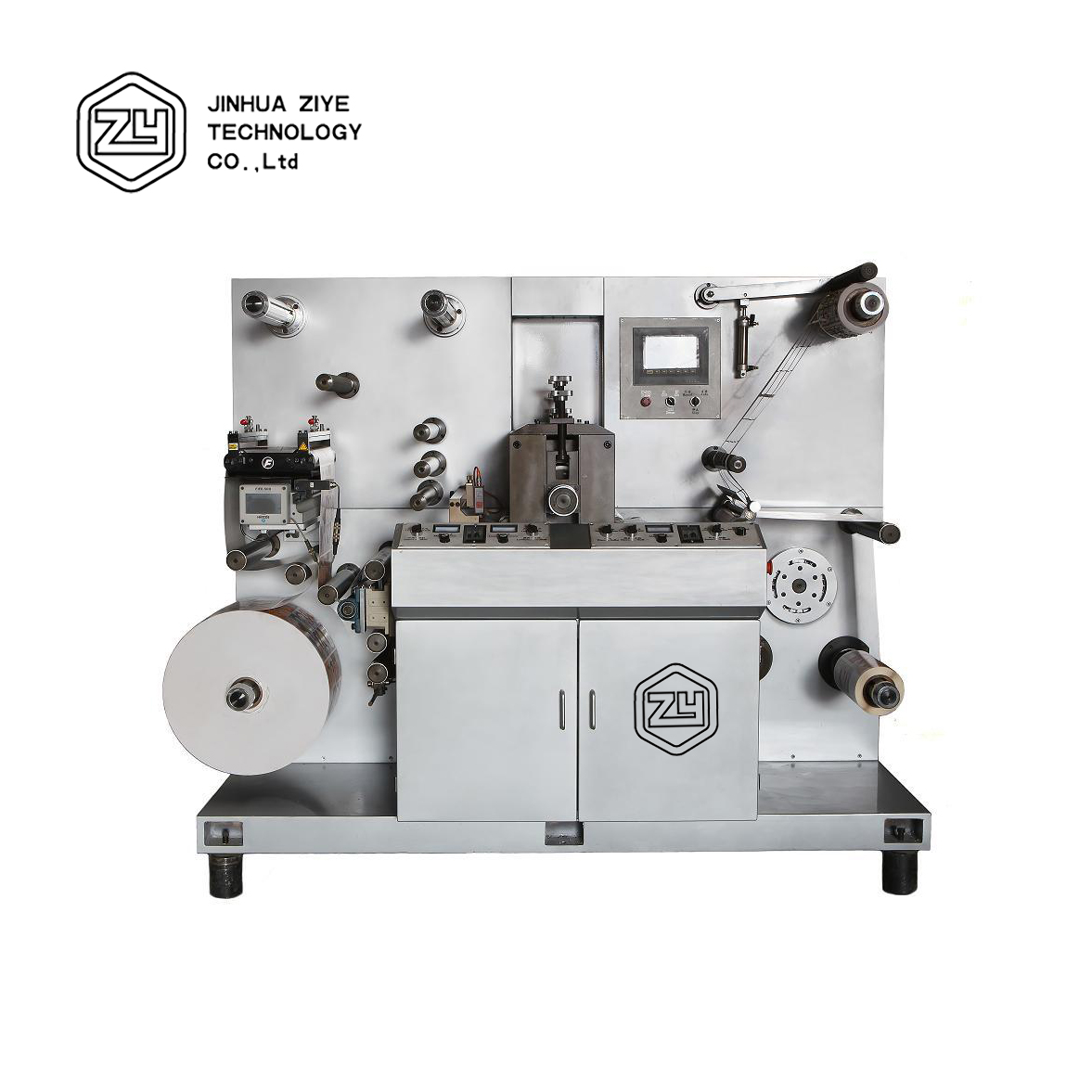

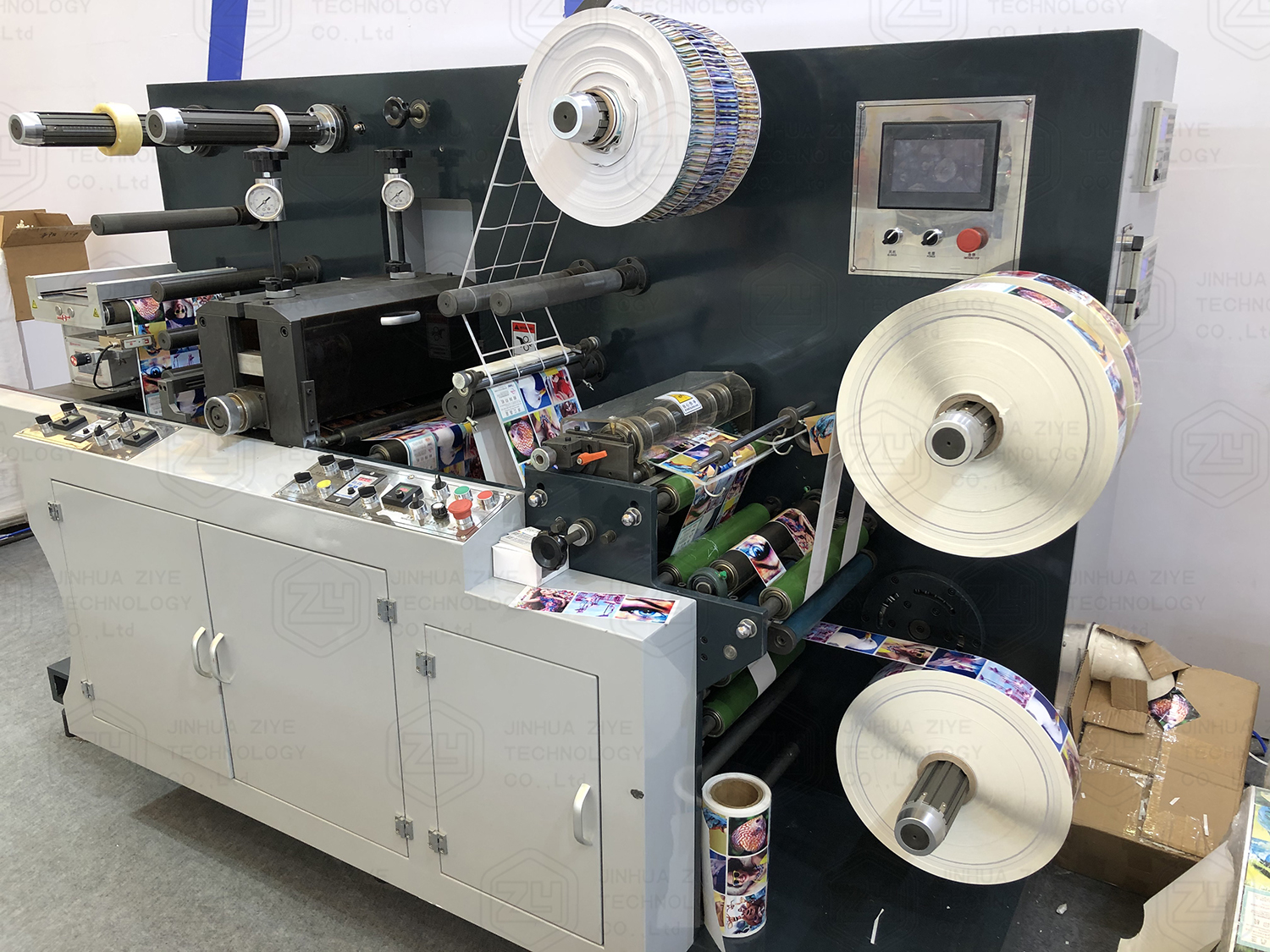

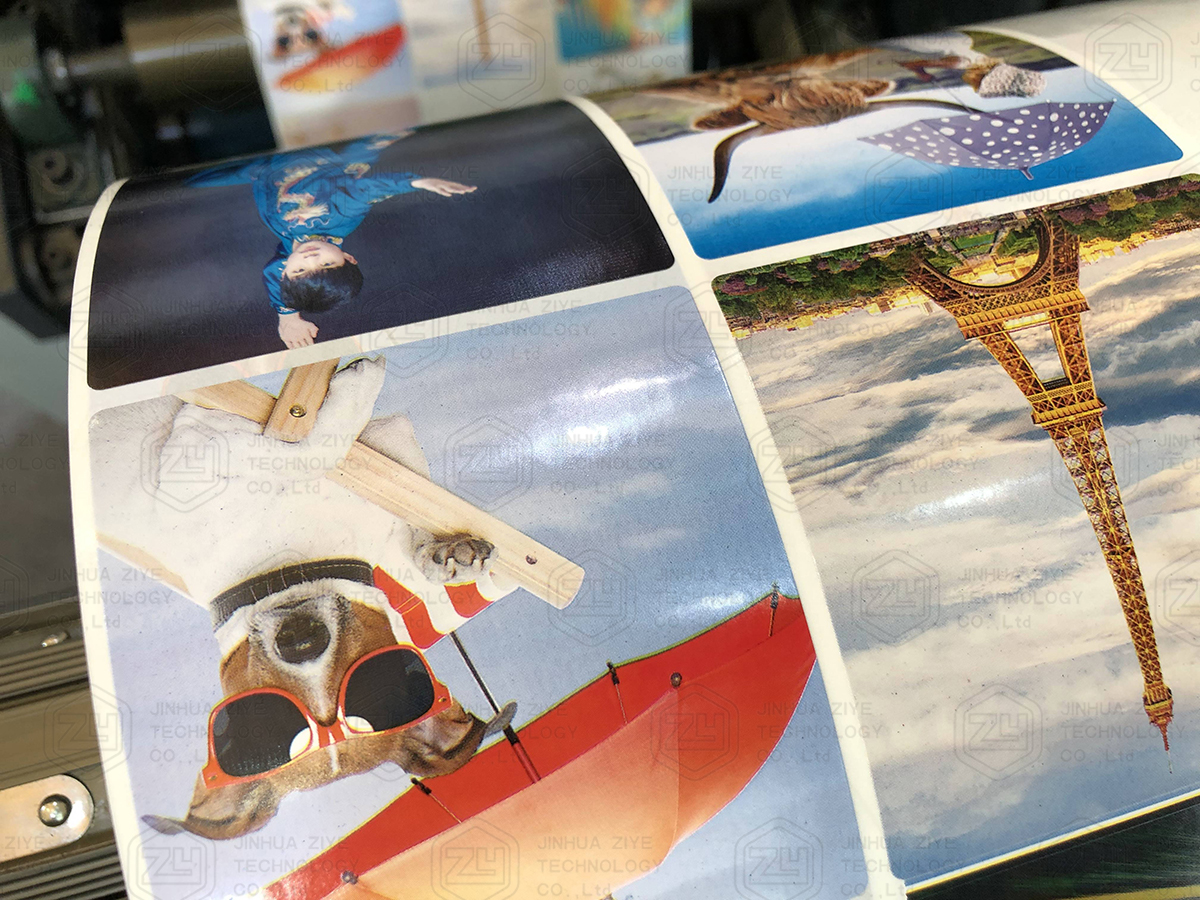

The DES320S Semi-rotary die cutting with slitting machine is an advanced solution equipped with a high-performance Omron (Japan) Servo Motor motion control system and register sensor to arrange a high-accuracy rotary die-cutting system. Specially applicable to pre-printed labels, this machine integrates unwinding, rotary die-cutting, slitting, and rewinding processes into a single efficient operation. It can run in both semi-rotary and full rotary modes. Under semi-rotary mode, the machine operates without changing different magnetic cylinders for different labels because it supports backward feeding, meaning only the flexible die is required to be changed. Equipped with a high-precision web guiding system to ensure smooth material flow, it delivers a compact structure, fast speed, high efficiency, simple operation, accurate slitting, and steady running.
| Machine Parameter | Specification Details |
|---|---|
| Machine Model | DES320B |
| Slitting Speed | 120 m/min |
| Die Cutting Speed | 120 m/min |
| Die Cutting Speed (Semi-Rotary) | 80 m/min |
| Max. Web Width | 320mm |
| Max. Unwinding Diameter | 600mm |
| Max. Rewinding Diameter | 600mm |
| Length of Die Cutting | 250-550 mm |
| Dimensions | 2100*1500*1700 mm |
| Main Motor | 12 KW |
| Voltage | 220V/380V |
| Min. Slitting Width | 15mm |
| Machine Weight | 2500 kgs |

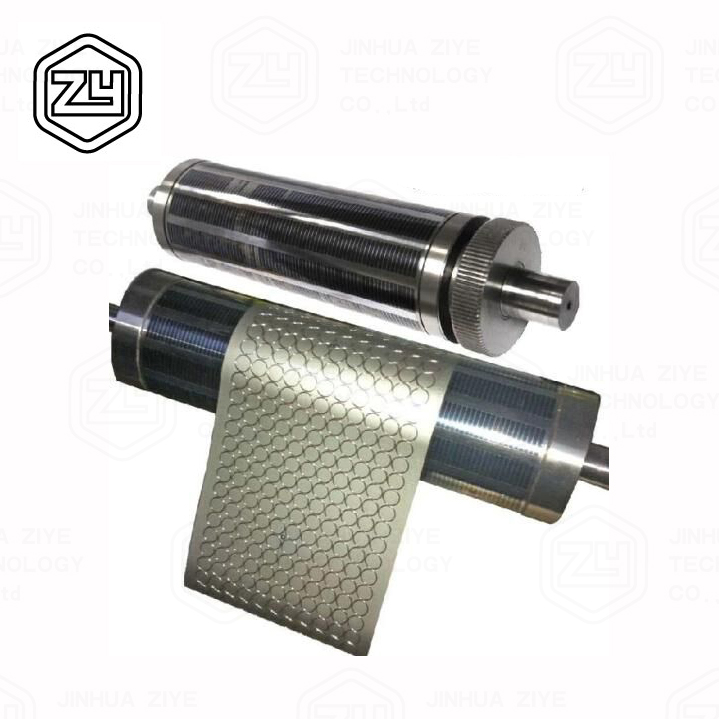

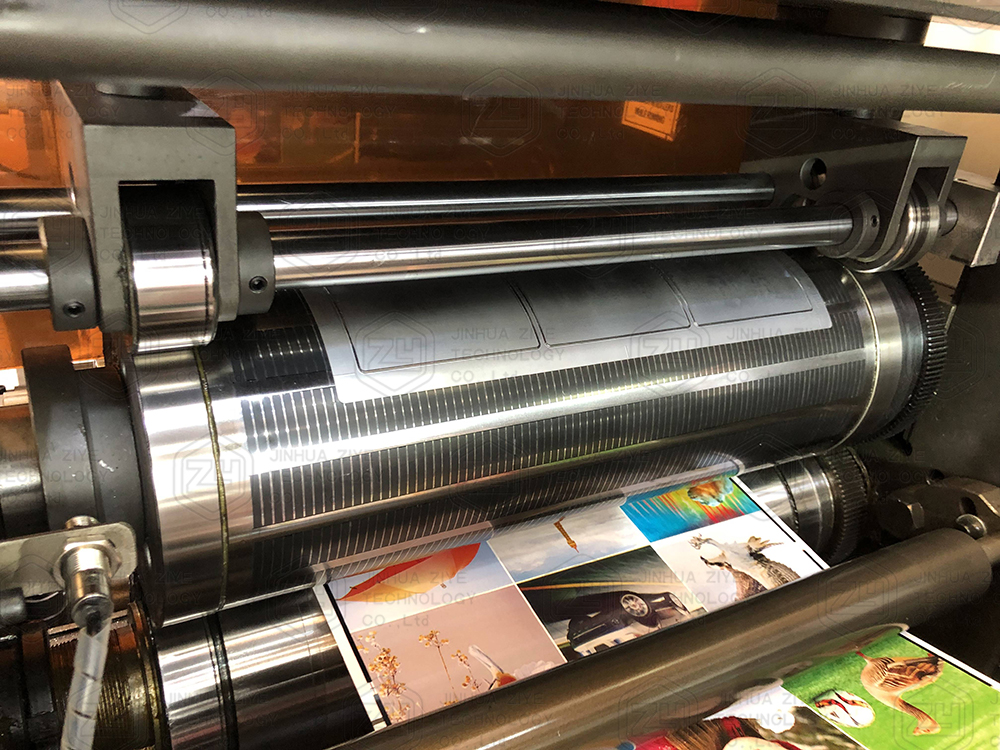

Cooperates efficiently with magnetic cylinders and flexible dies.

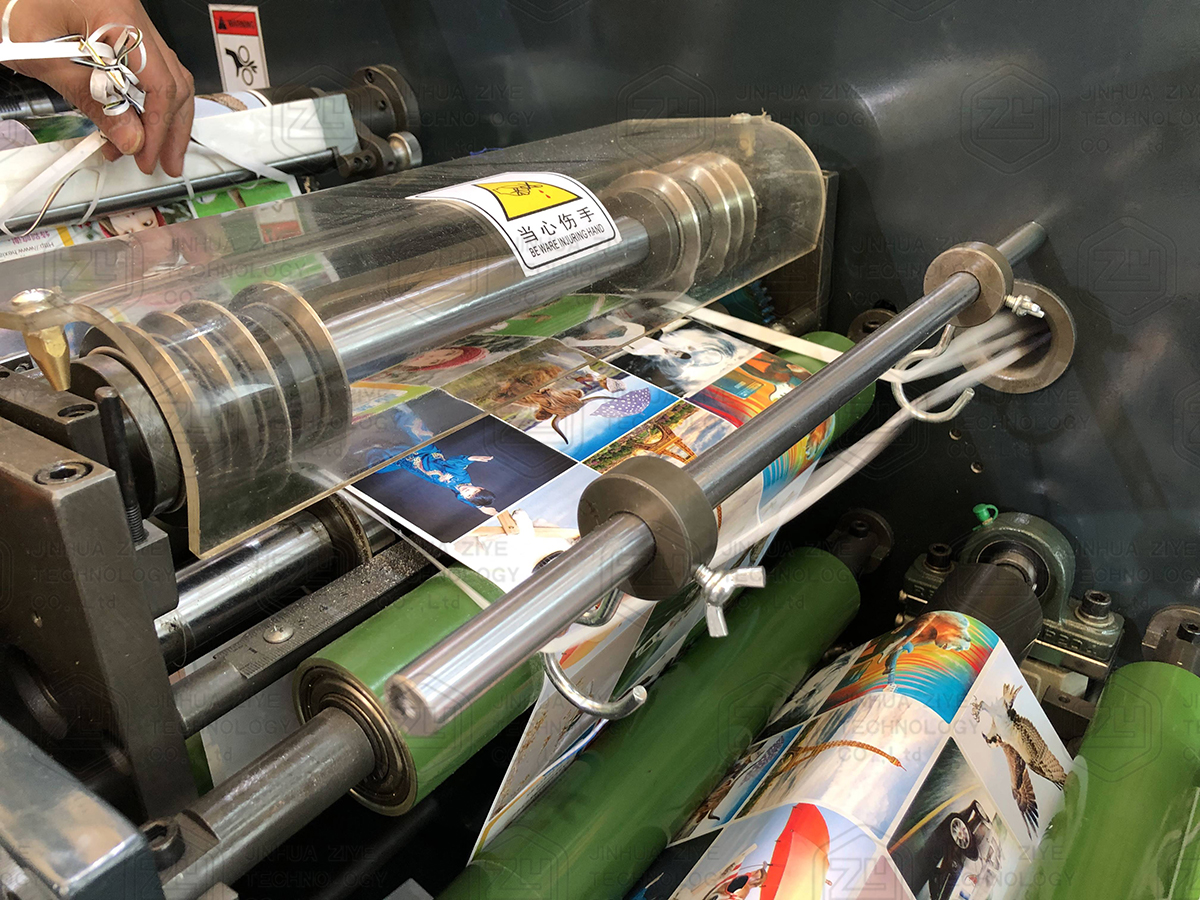

1-Set Slitting Unit standard configuration comes with 8 Sets of Rotary Knives.

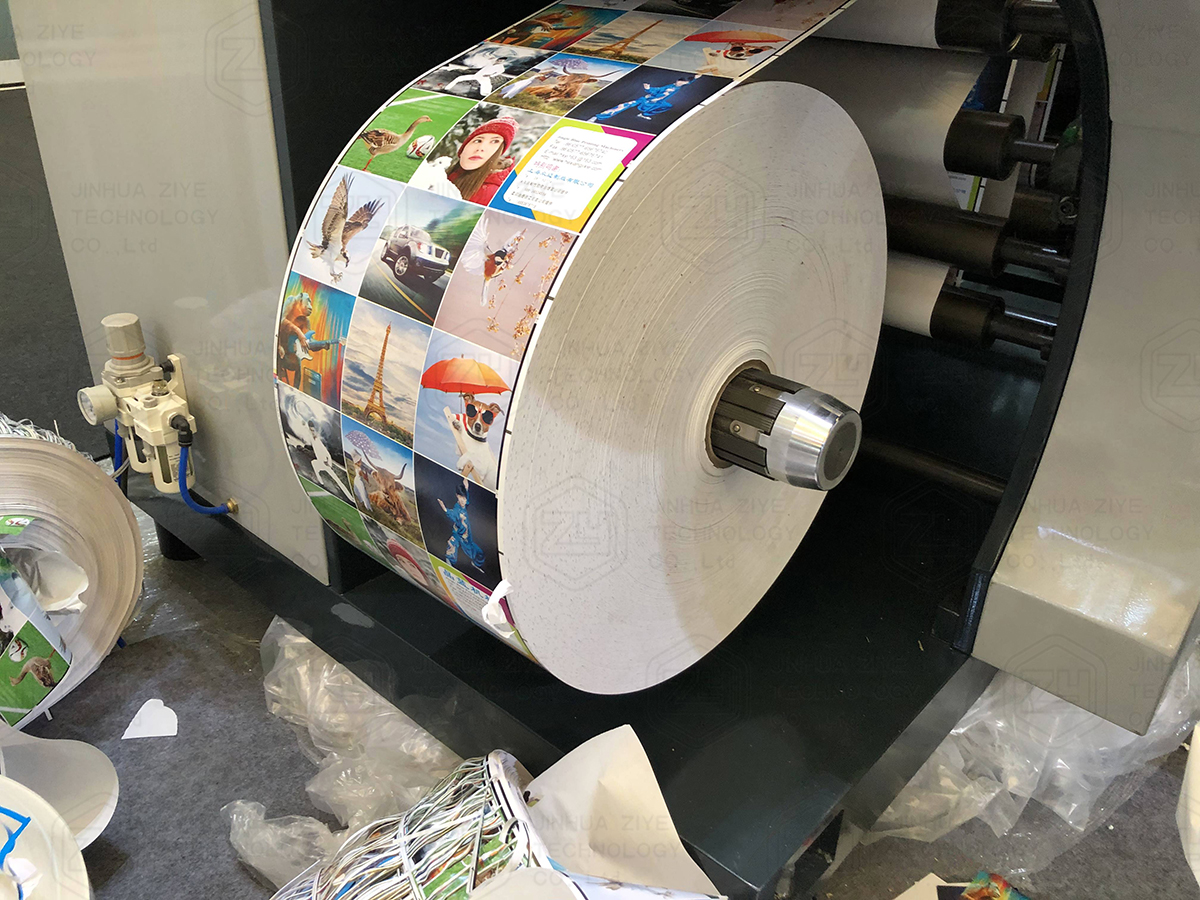

Equipped with 1 pc 3" Air Expanding Shaft. Accepts max diameter 600mm material jumbo rolls (customizable).

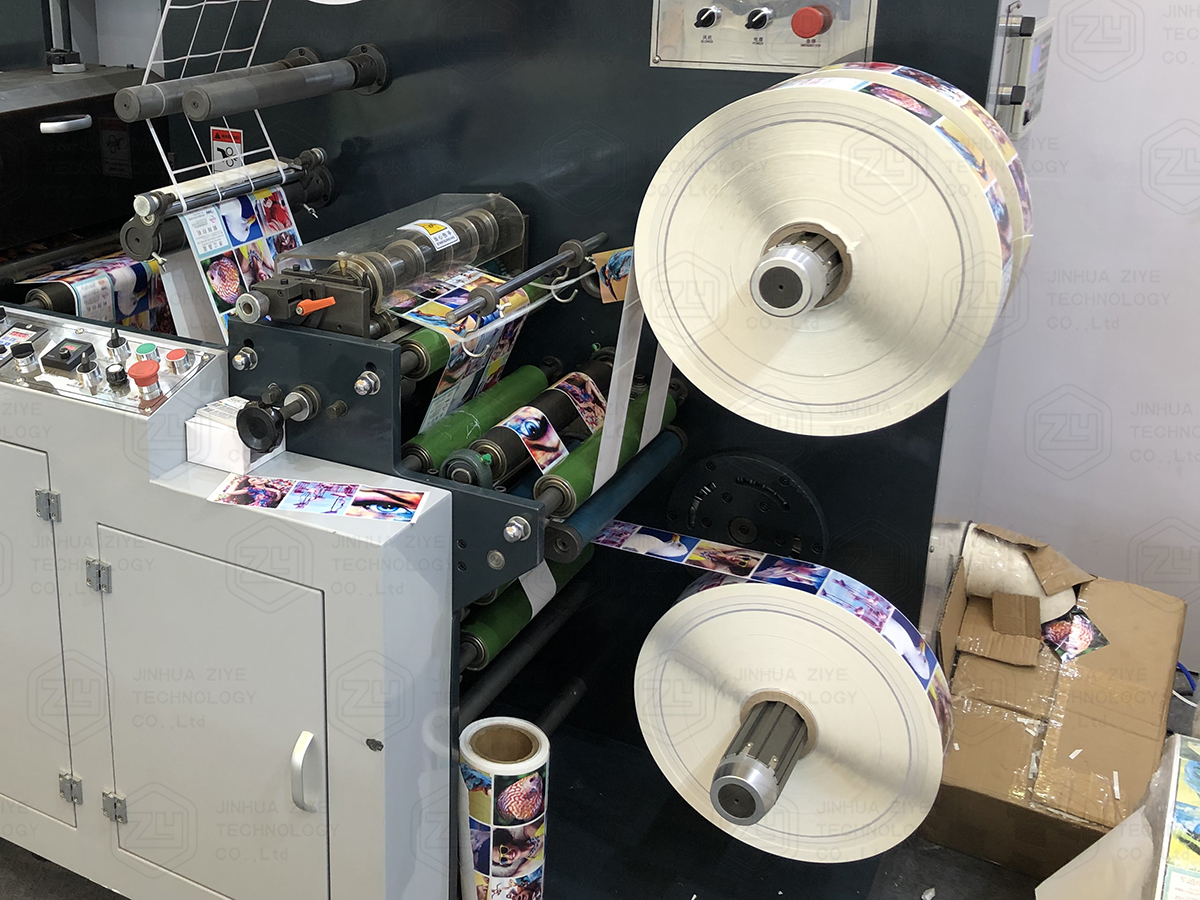

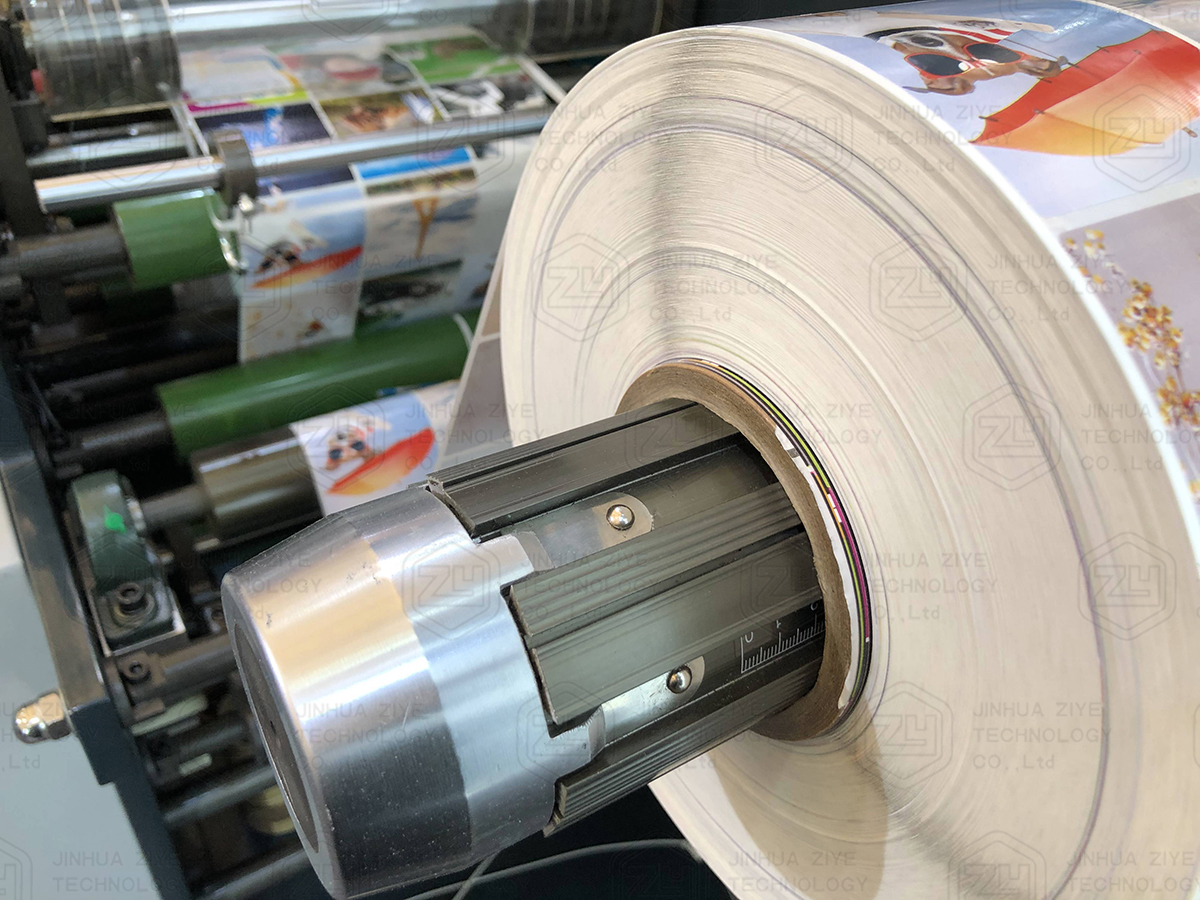

Equipped with 2 pcs 3" Air Expanding Shafts, accepting up to 600mm diameter rolls.

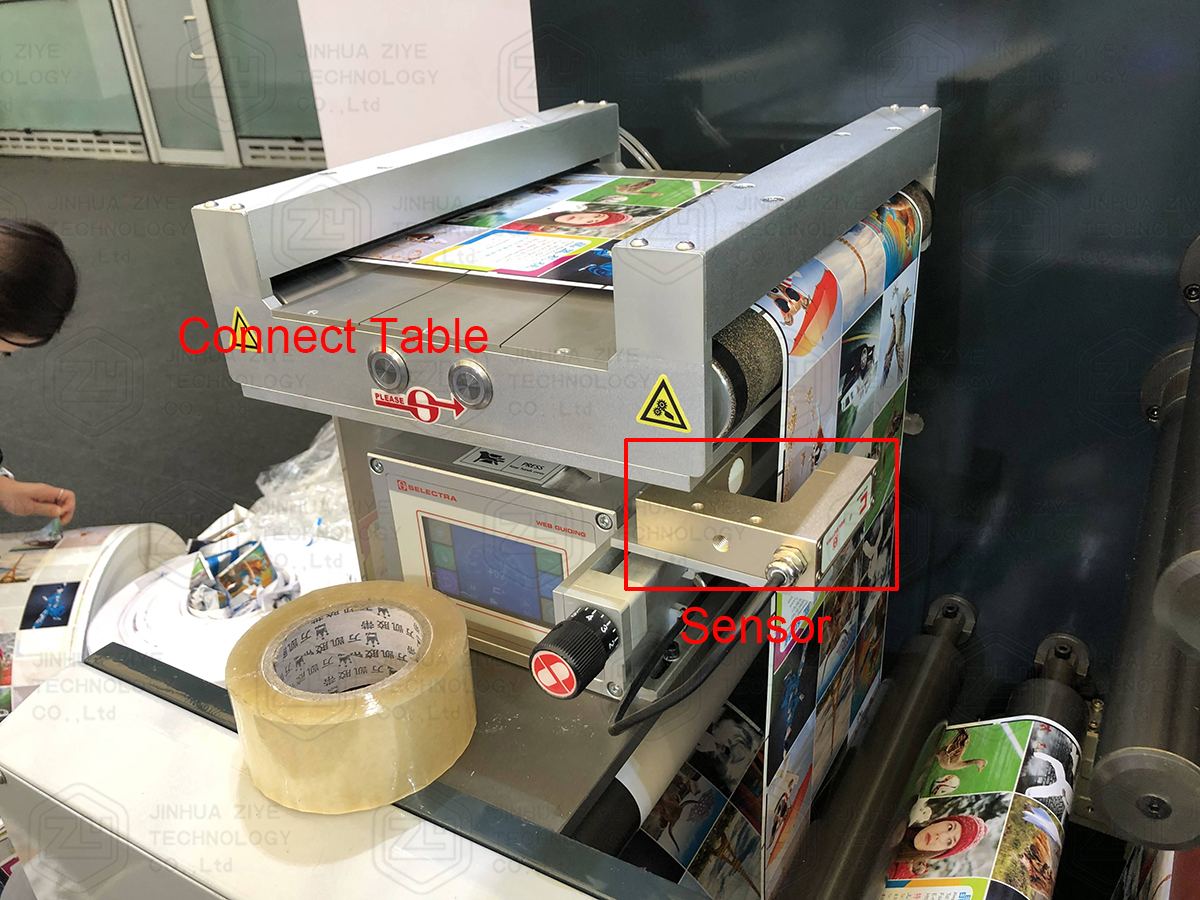

Ensures smooth, precise alignment during material feeding.

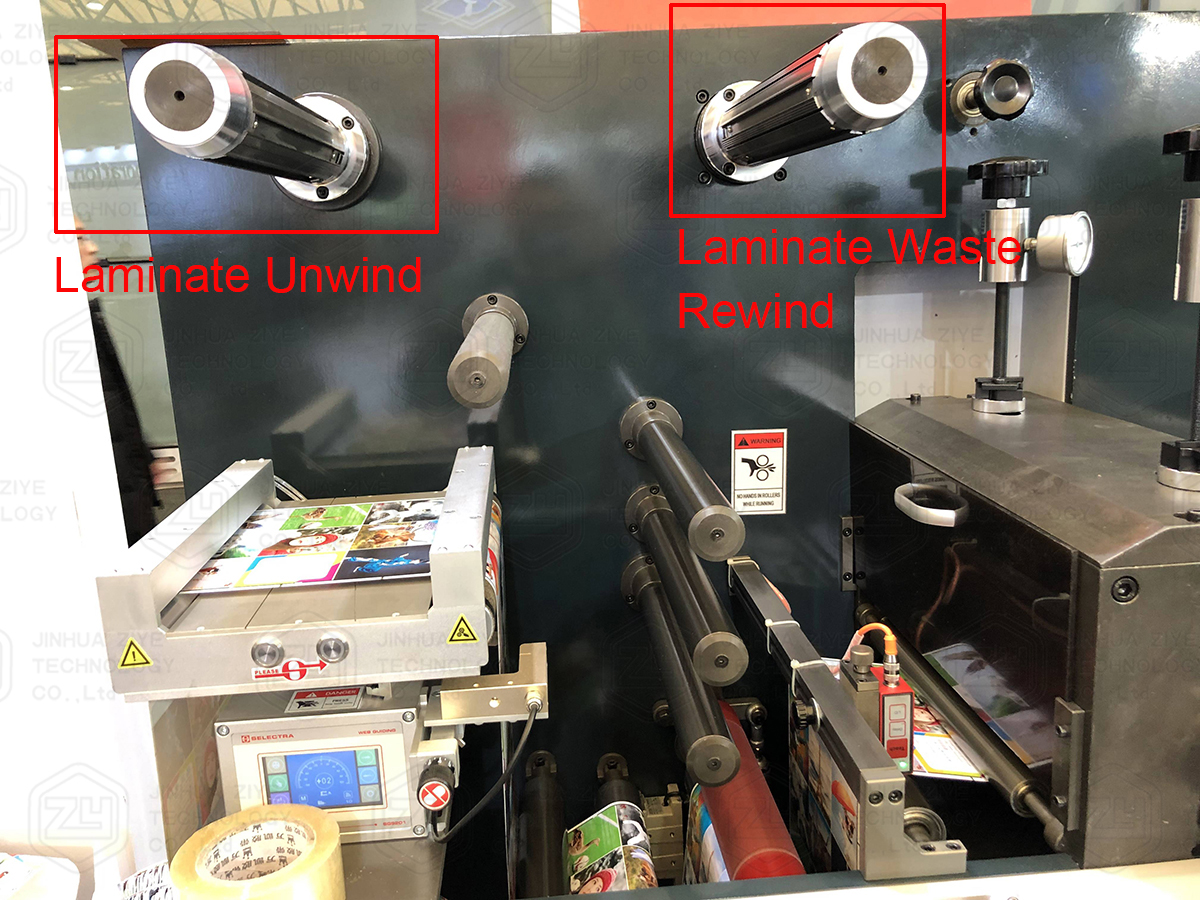

Equipped for over-lamination processes with ease.

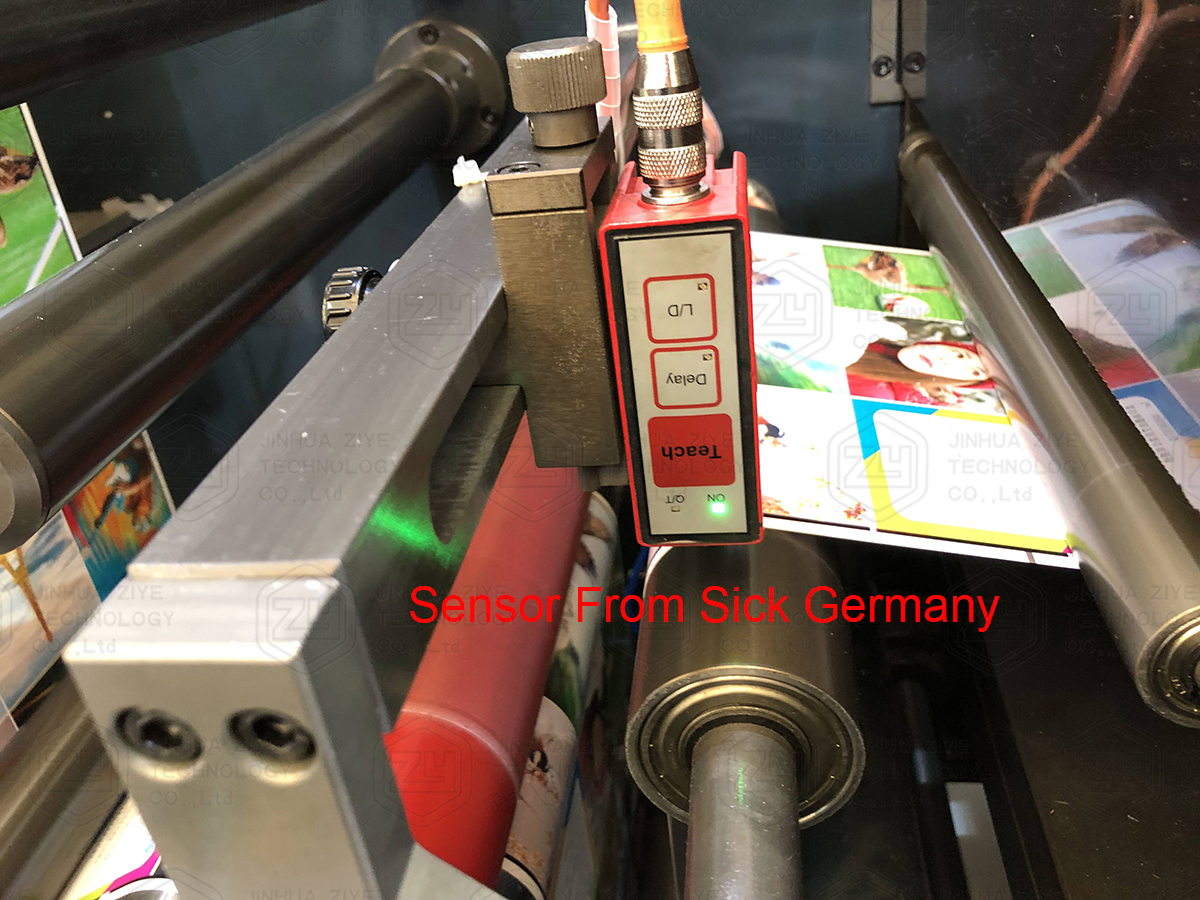

High accuracy tracking sensor tailored for pre-printed labels.

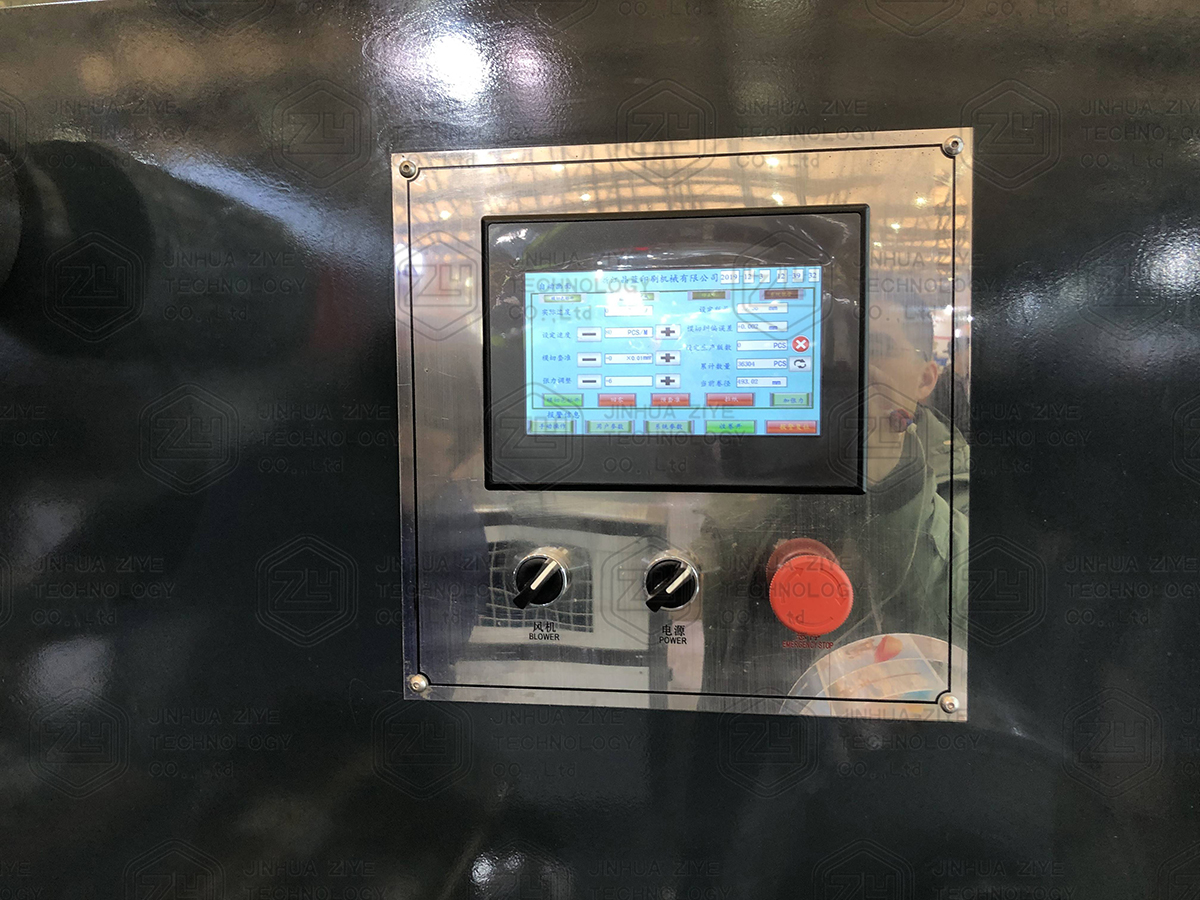

Centralized management interface for seamless operational control.

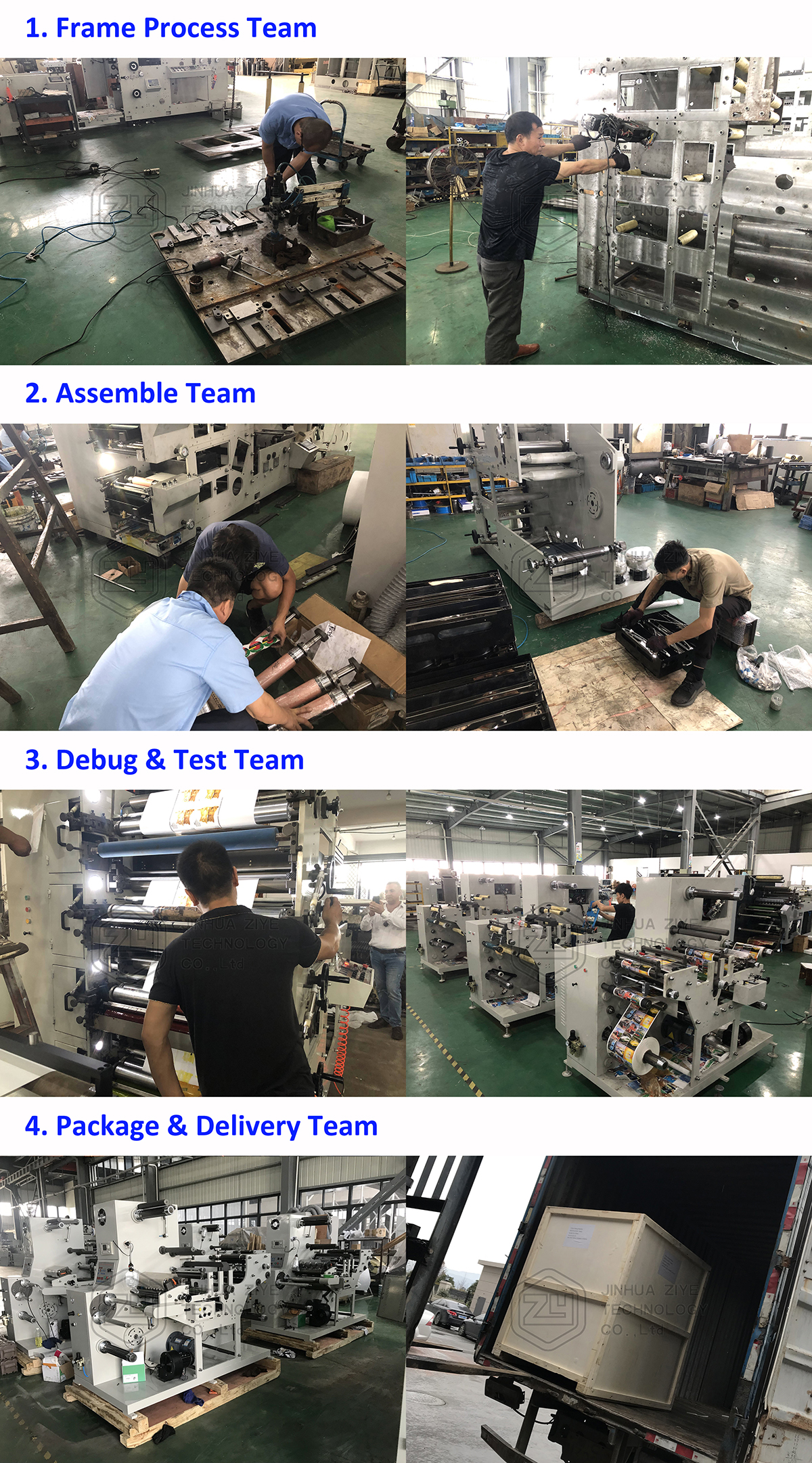

With a dedicated production team of over 50 professionals, we support an output of 50 sets monthly. Delivering high-quality machines in 5 to 20 days.

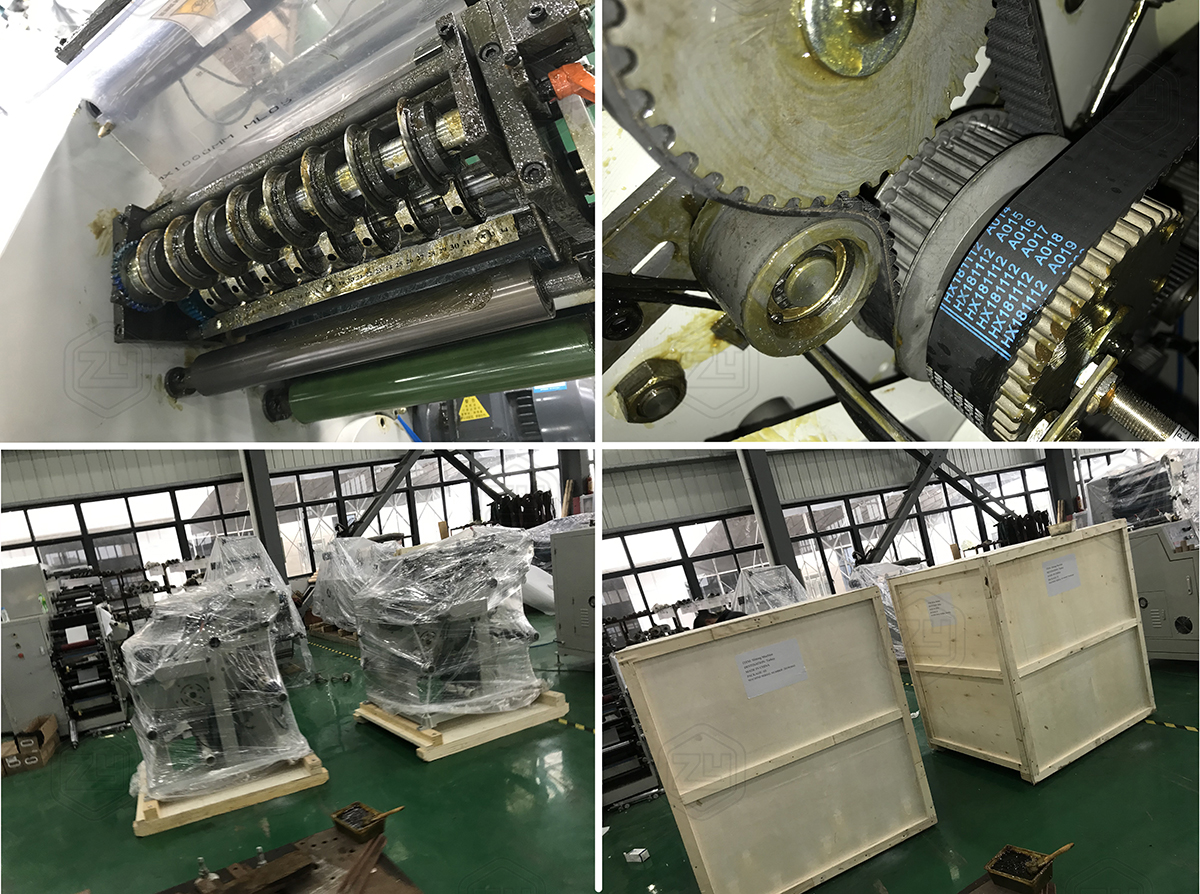

Interior: Wrapping film to keep dry and prevent rust. Outer: Sea-worthy wooden case to ensure machine safety. Covered with protective oil prior to shipment.
This multi-functional machine completes unwinding, rotary die-cutting, slitting, and rewinding in a single unified process, maximizing production efficiency.
Yes. The machine operates in both semi-rotary and full rotary modes. In semi-rotary mode, you do not need to change magnetic cylinders for different label lengths; you only need to change the flexible die.
The machine uses a premium Omron (Japan) Servo Motor motion control system, a dedicated tracking register sensor for preprinted label stock, and a built-in PLC system with a touch screen interface.
It features a maximum slitting speed of 120 m/min, a full rotary die-cutting speed of 120 m/min, and a semi-rotary die-cutting speed of 80 m/min. The maximum web width is 320mm, and both the unwinding and rewinding units support rolls up to 600mm in diameter.
The machine is first coated with anti-rust oil, wrapped tightly in wrapping film for moisture control, and then secured inside a sturdy sea-worthy wooden case to ensure safe delivery.
