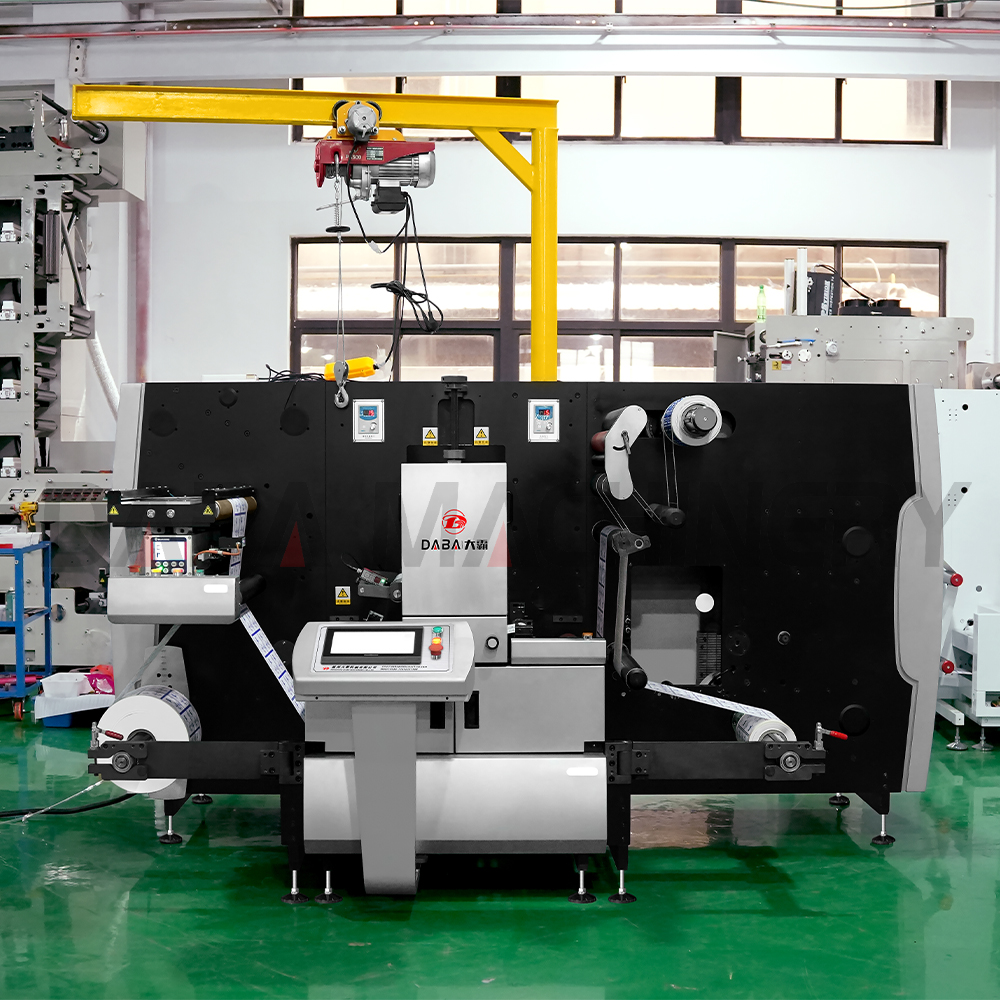

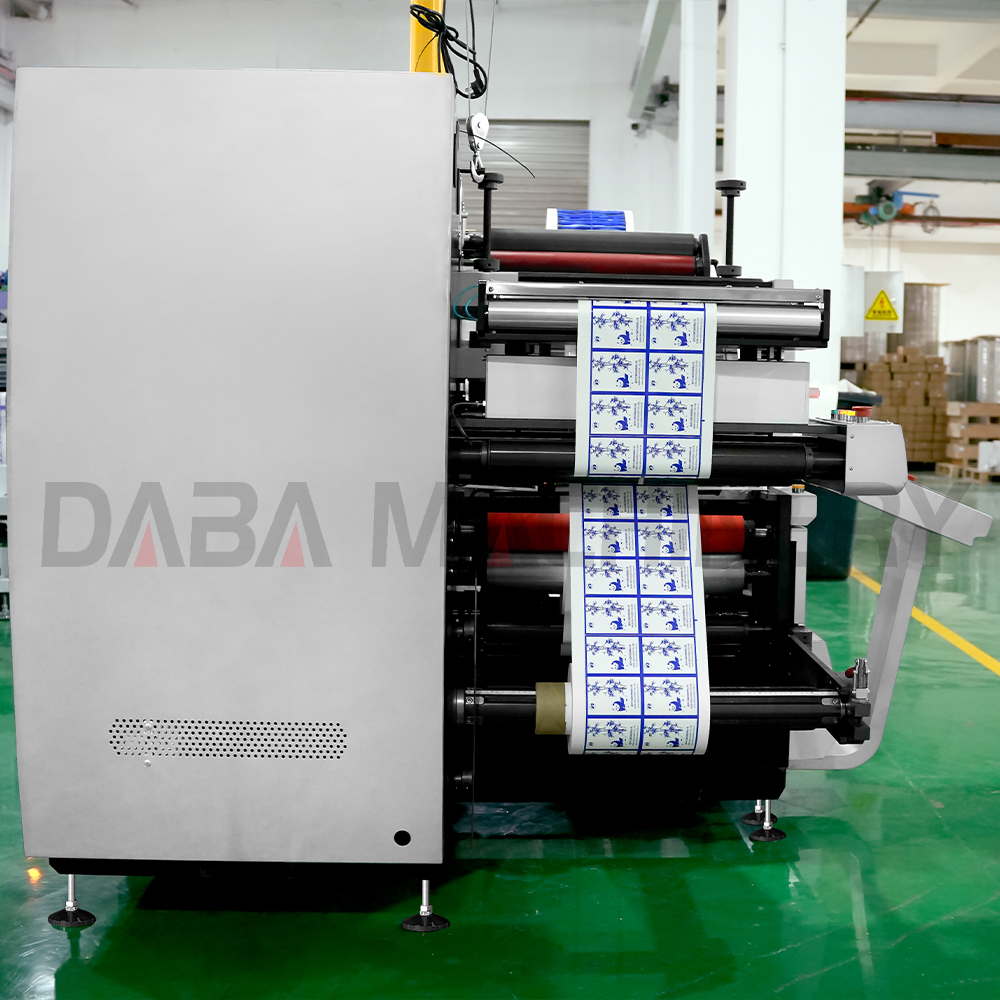

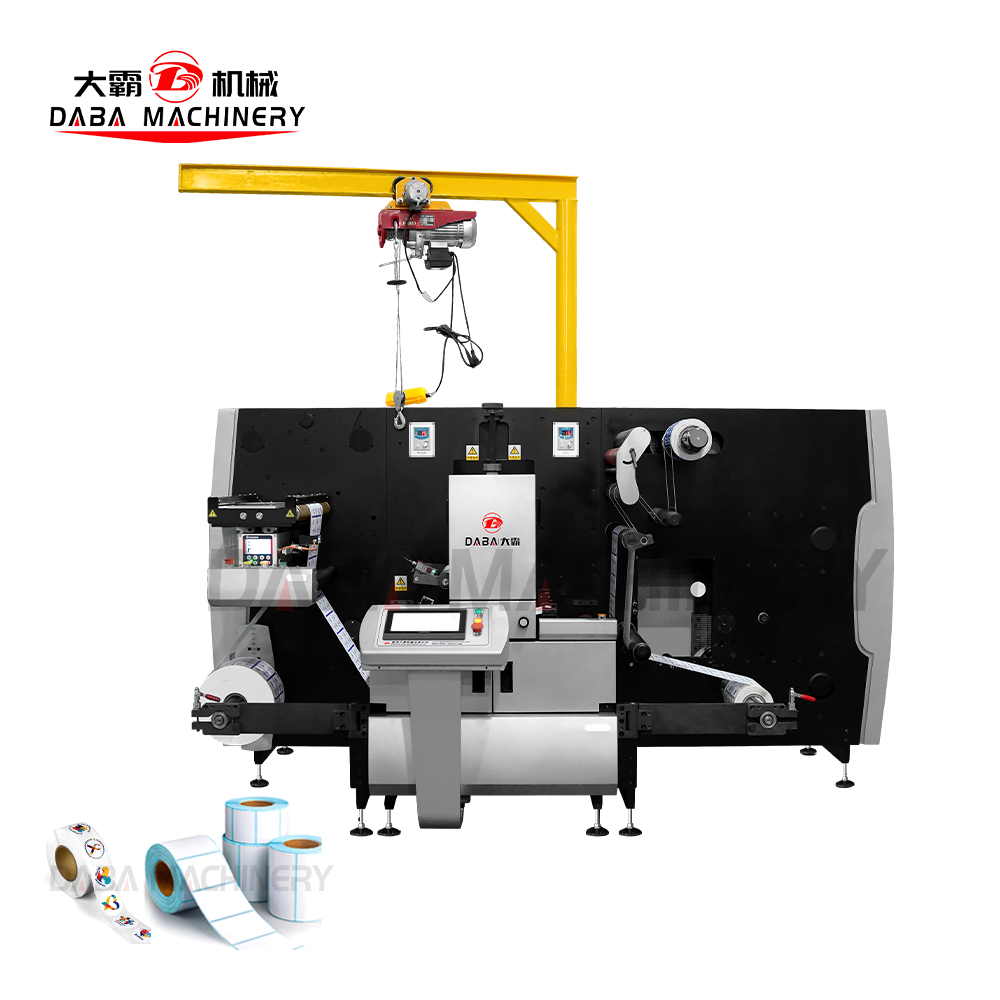

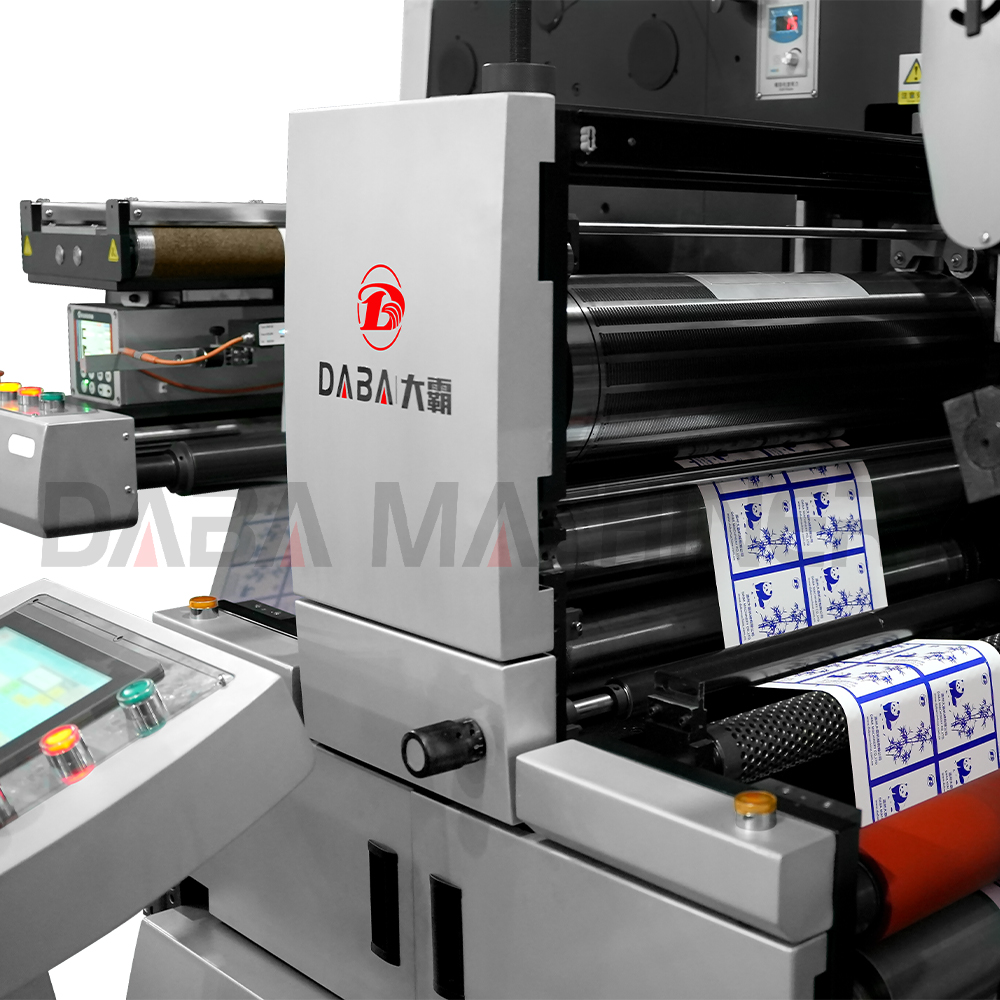

DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
1 / 5
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels
DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels

DABA High-Speed Full Rotary Intermittent Die Cutting Machine With Servo Control System for Sticker Labels

Send Inquiry

Product Description

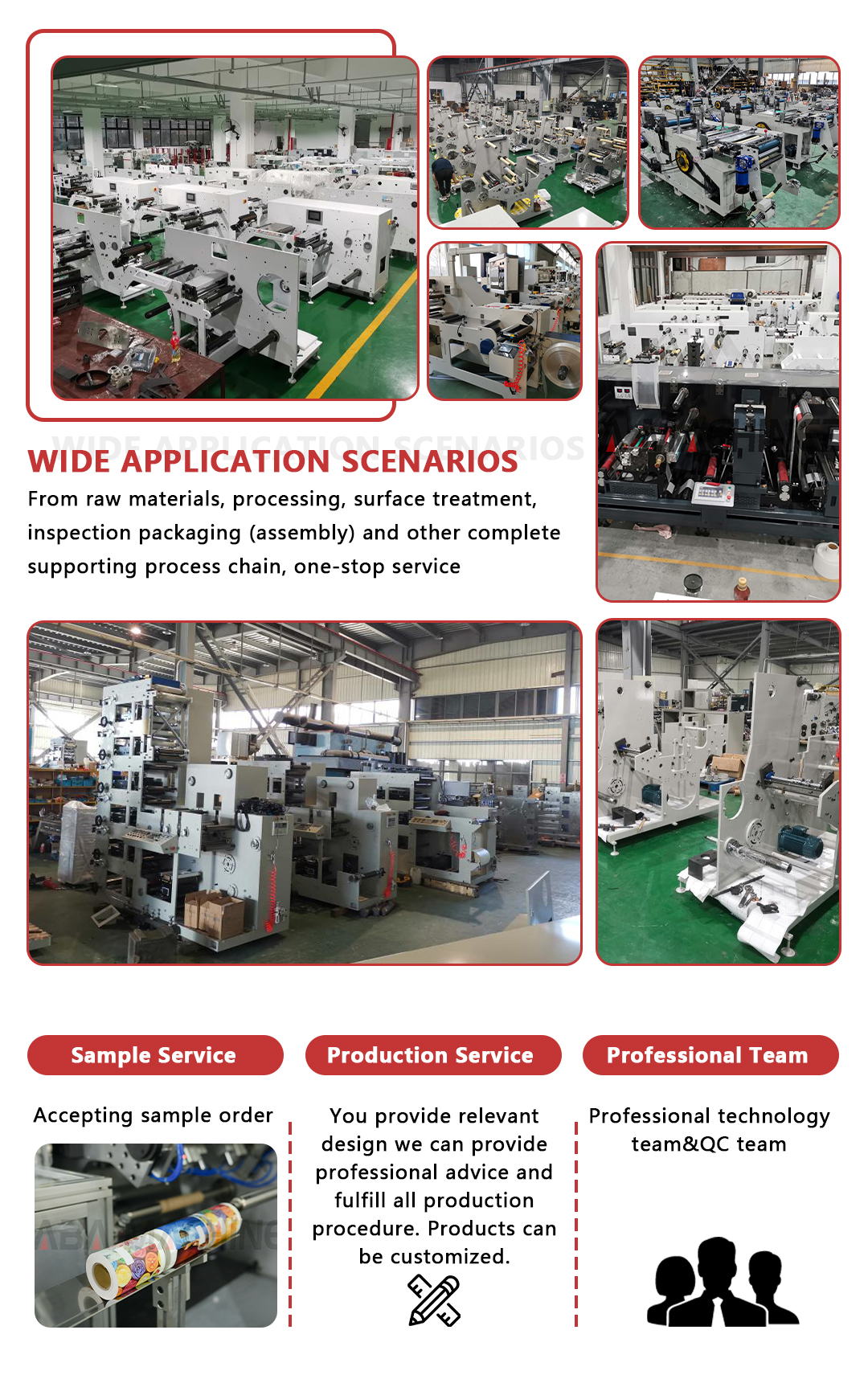

Rotary Die Cutting Machine Overview Rotary Die Cutting Machine Front View Rotary Die Cutting Machine Detailed View Rotary Die Cutting Machine Controls
DBMQ-320/370plus Type Rotary Die Cutting Machine is mainly designed for label die cutting, e.g. Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting. Especially, It can process IML(In Molding Label), which is famous for its advanced functions, such as: Novel and beautiful appearance, security features, environmental friendliness, difficult to drop off and damage, high efficiency and so on. IML is widely chosen for packaging containers of Health & Beauty, Food & Beverage, Wine & Spirits.
Supported Material Types: Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting, IML (In Molding Label), etc.
Rotary Die Cutting Machine Structure
  • Machine runs in full rotary mode, equipped with a conveyor and collection table.
  • It is also suitable for label lamination, die-cutting, waste matrix removal, and rewinding.
  • Machine adopts full servo motors driven, re-register system, and a solid, durable structure design, leading to clean edges of processed materials and no damage to both sides of labels.
Machine Parameter
Model DBFQ-320B DBMQ-320Y DBMQ-370B DBMQ-320/370 Plus
Slitting Speed 120m/min 200m/min 200m/min 200m/min
Die Cutting Speed 120m/min 200m/min 200m/min 200m/min
Max Web Width Up to 320mm Up to 320mm 370 mm 370 mm
Max Unwinding Diameter 500mm 500mm 700 mm 700 mm
Max Rewinding Diameter 480/220mm 480/220mm 700 mm 500 mm
Die cutting length 178-470mm (7" - 18.5") 178-470mm (7" - 18.5") 178~470 mm (7"~18.5") 178~470 mm (7"~18.5")
Overall Diameter 1800*1100*1500mm 1900*1200*1500mm 2100*1100*1500 mm 2100*1100*1500 mm
Machine Weight 1200kgs 1400kgs 2000 kg 1500 kg
Power Supply 380V/220V 50Hz 380V/220V 50HZ 380V/220V 50HZ 380V/220V 50HZ
Accuracy ± 0.10 mm

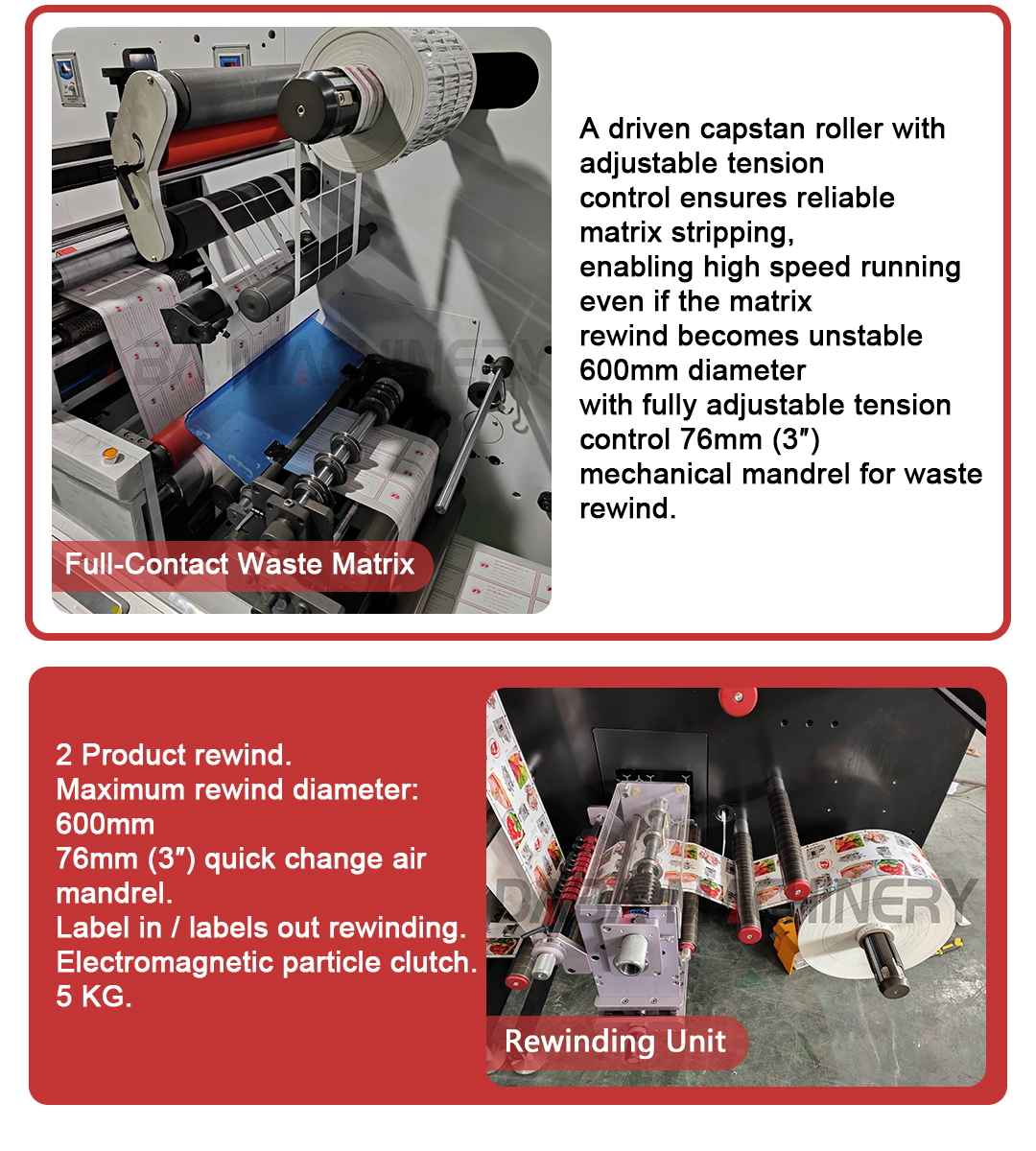

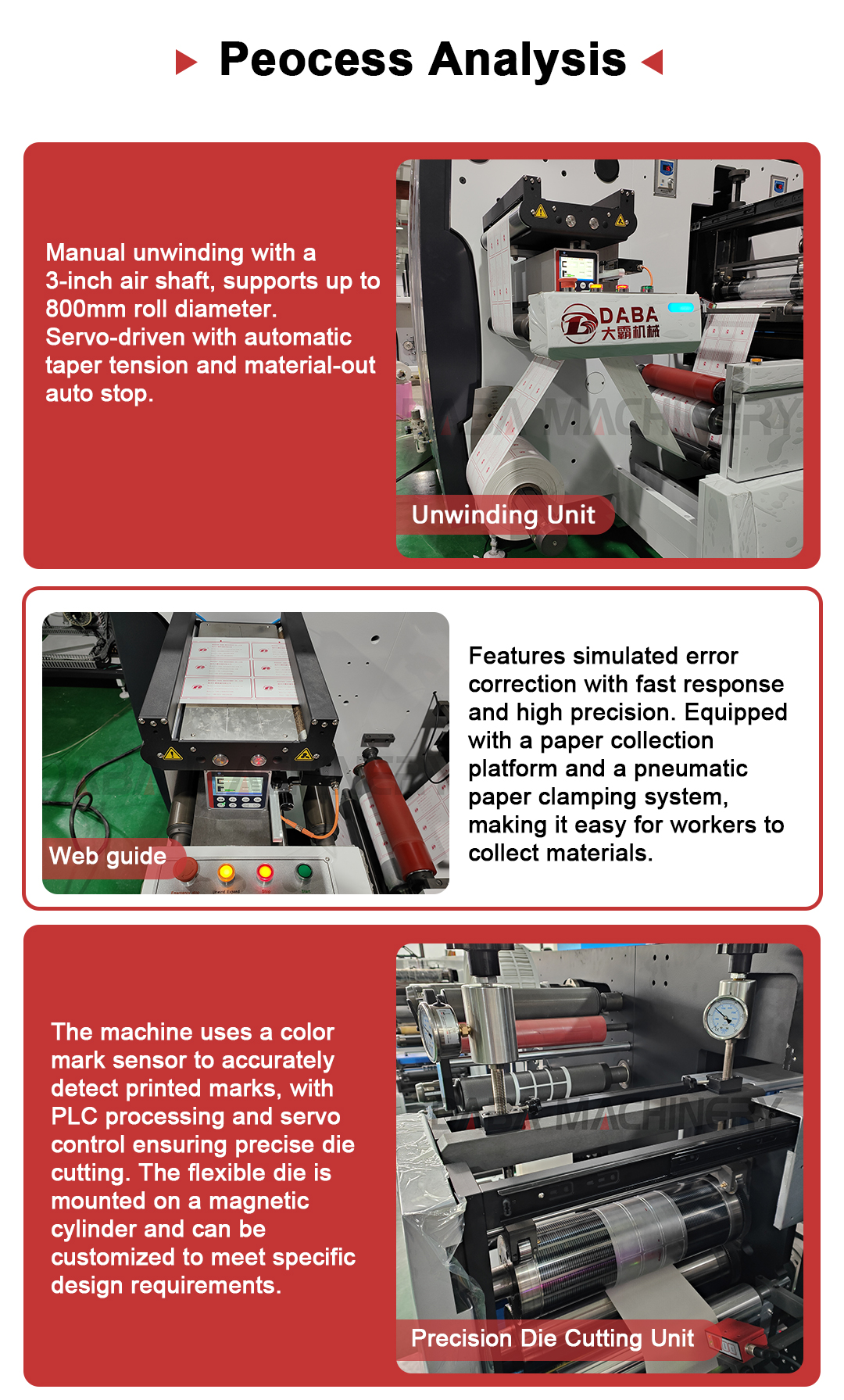

Rotary Die Cutting Component 1 Rotary Die Cutting Component 2 Rotary Die Cutting Component 3 Rotary Die Cutting Component 4 Rotary Die Cutting Component 5 Rotary Die Cutting Component 6 Rotary Die Cutting Component 7 Rotary Die Cutting Component 8 Rotary Die Cutting Component 9 Rotary Die Cutting Component 10

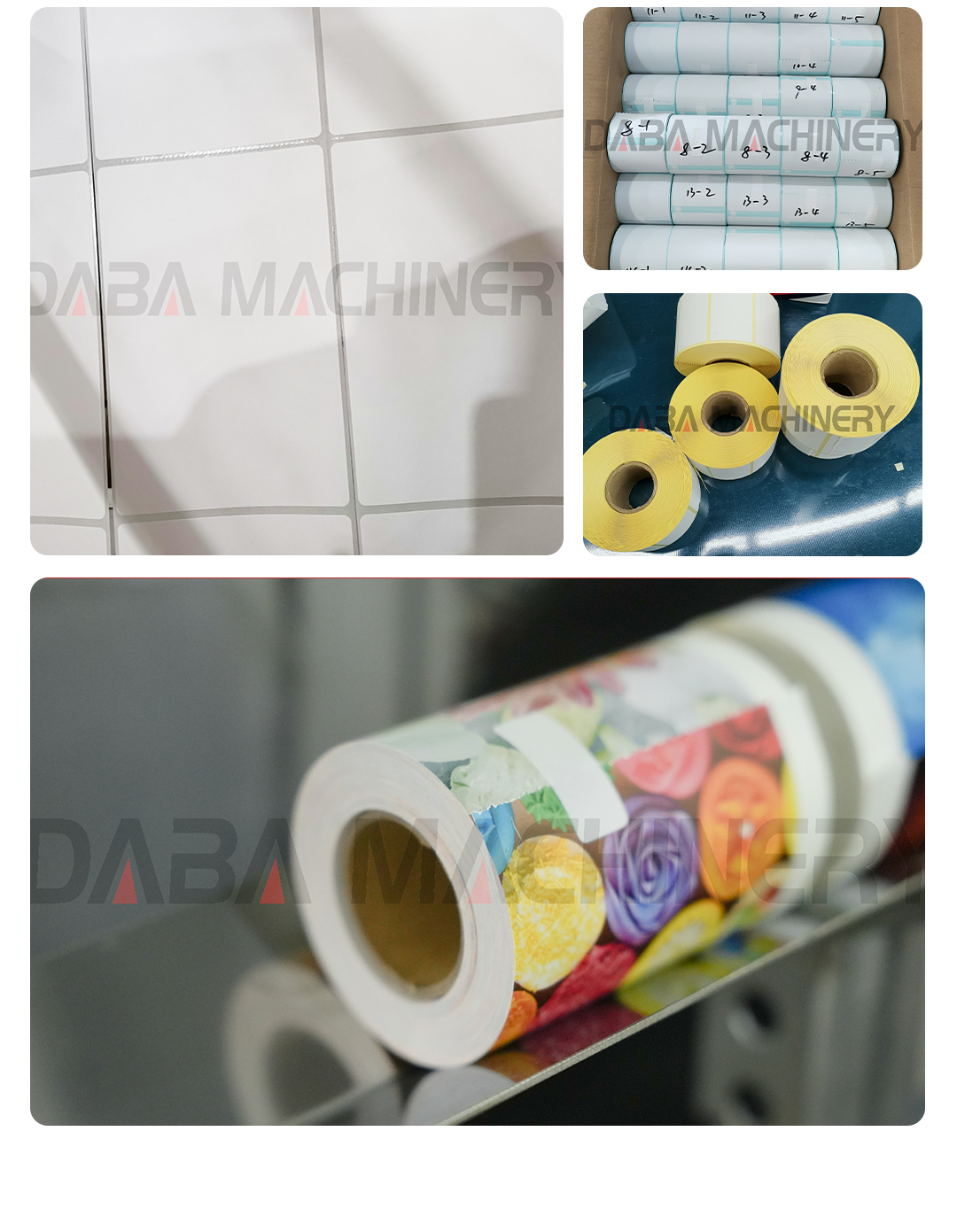

Machine Sample Output 1 Machine Sample Output 2 Machine Sample Output 3 Machine Sample Output 4 Machine Sample Output 5 Machine Sample Output 6 Machine Sample Output 7 Machine Sample Output 8 Machine Sample Output 9
FAQ
Q What's your delivery date?
Usually finish the production within 30days after your 30% advanced payment, actually need to check according to our stock & production plan.
Q What are your terms of payment?
We accept T/T (30% in advance and 70% balanced against B/L copy), L/C at sight, and Cash.
Q How many days will you finish installing?
We will finish installation and training within 15 days.
Q How long is your machine's warranty period?
All our machines have a one-year guarantee, starting from finished installation.
Q How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
Q How many workers do we need to run these machines?
For flexo printing, slitting, and die-cutting machines, you only need one person for each.
