Moveco Machine
1 / 5
| Machine Model | DES320B | DES550B |
|---|---|---|
| Slitting Speed | 100m/min | 100 m/min |
| Die Cutting Speed | 100m/min | 100 m/min |
| Max. Web Width | 320mm | 550mm |
| Max. Unwinding Diameter | 700mm | 700mm |
| Max. Rewinding diameter for big roll | 600mm | 600mm |
| Max. Rewinding diameter for small roll | 200mm | 200mm |
| Length of Die Cutting | 178-470 mm | 178-470 mm |
| Dimensions | 1800*1100*1800 mm | 1800*1500*1800 mm |
| Main motor | 3 KW | 3 KW |
| Voltage | 220V/380V | 220V/380V |
| Min. Slitting width | 15mm | 15mm |
| Machine weight | 1200 kgs | 2000 kgs |

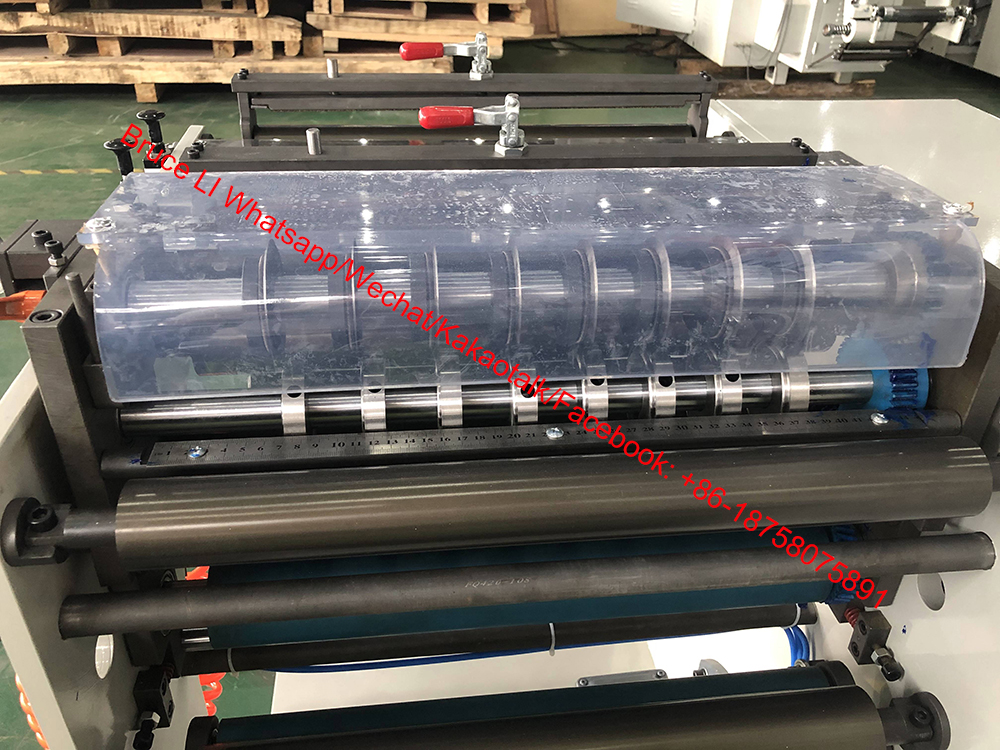

1-Set Slitting Unit comes with 8 Sets Rotary Knives in Standard Configuration.

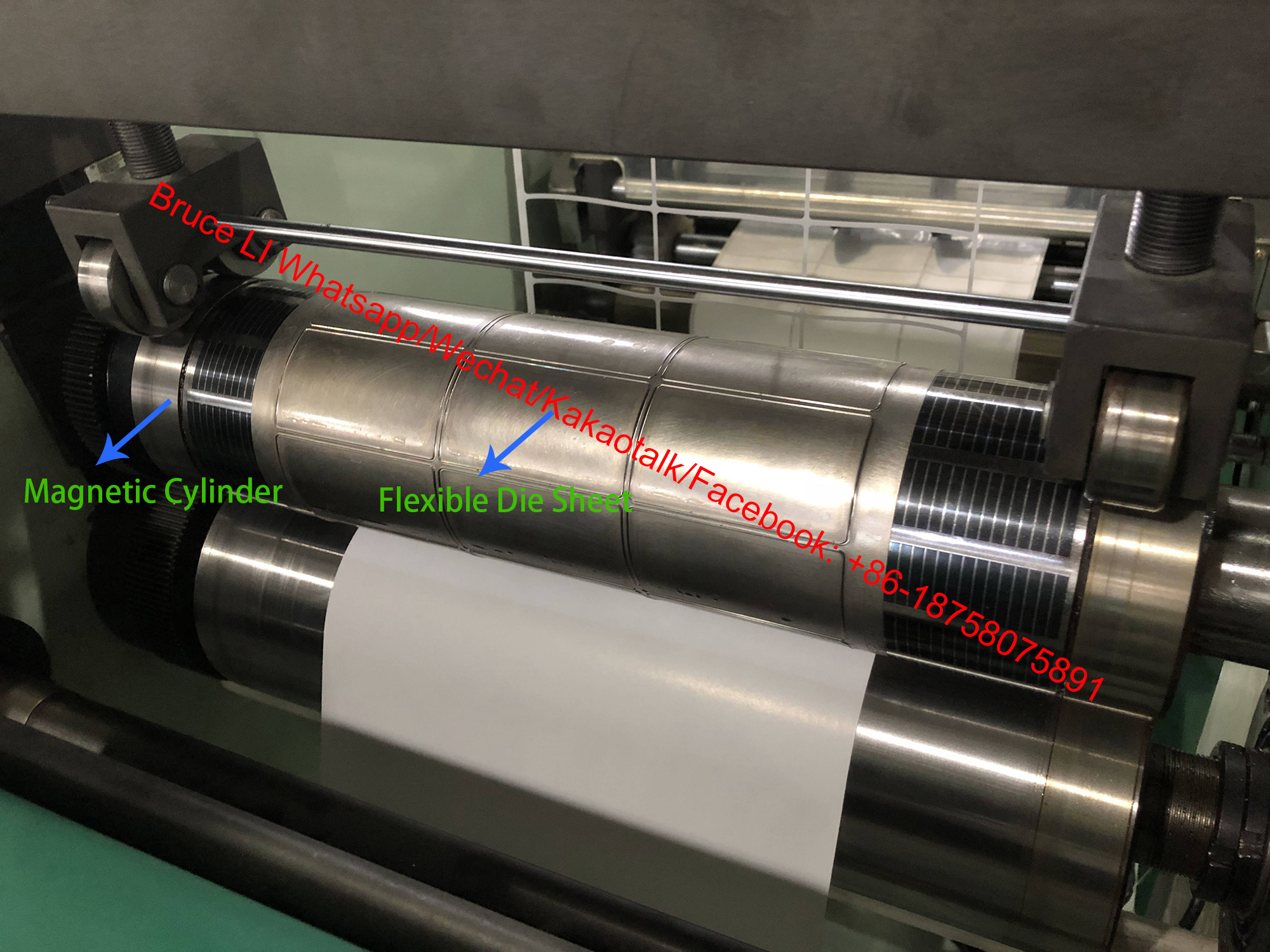

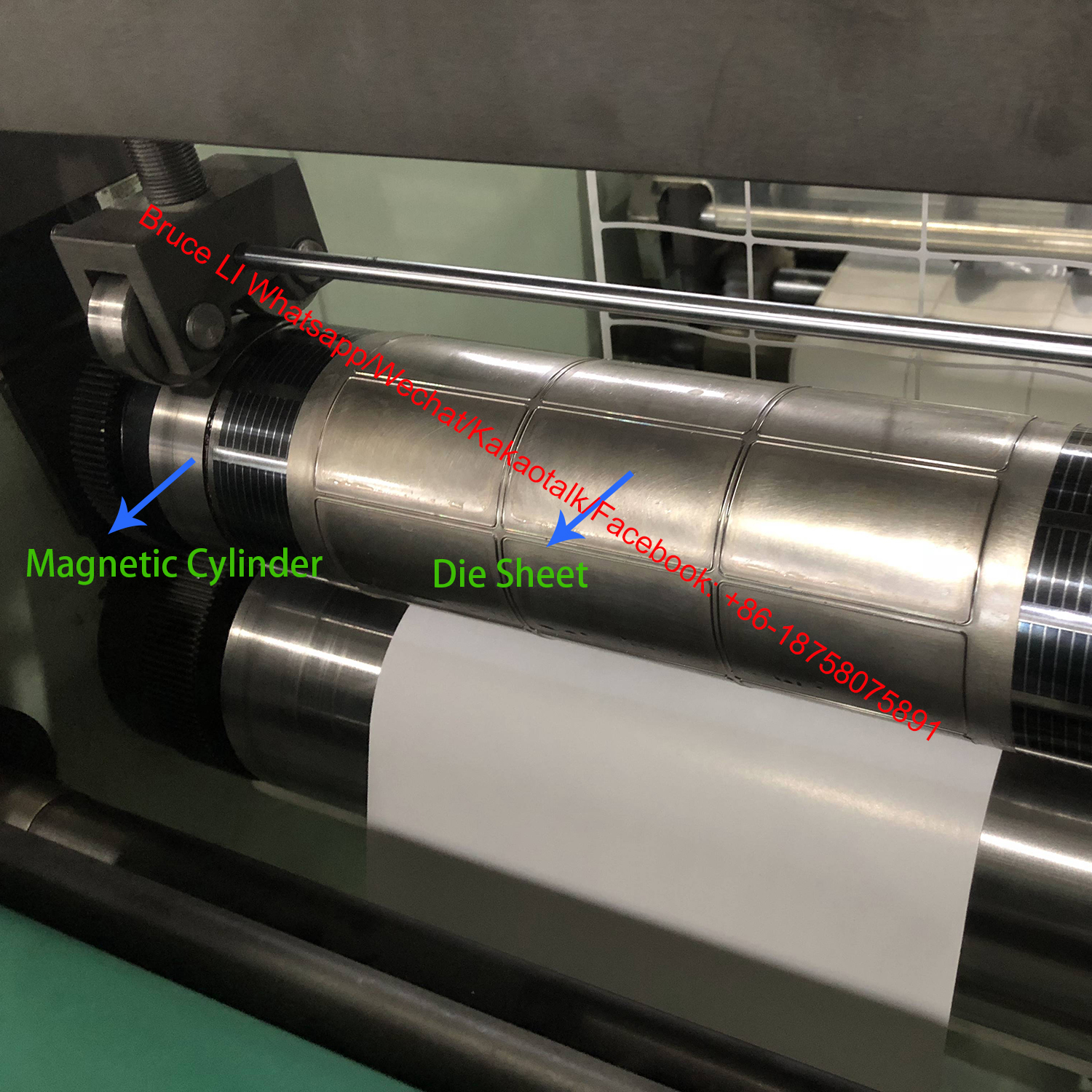

Cooperates with magnetic cylinders and flexible dies for high precision.

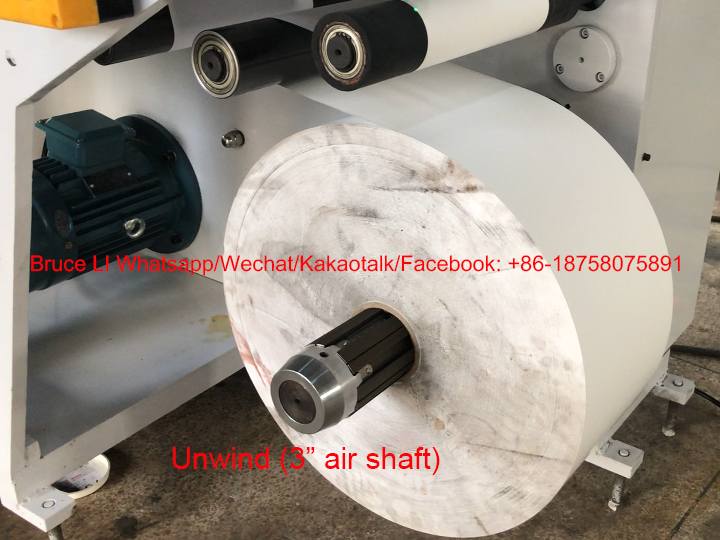

With 1 pc 3" Air Expanding Shaft. Accepts max diameter 600mm material jumbo rolls (customizable).

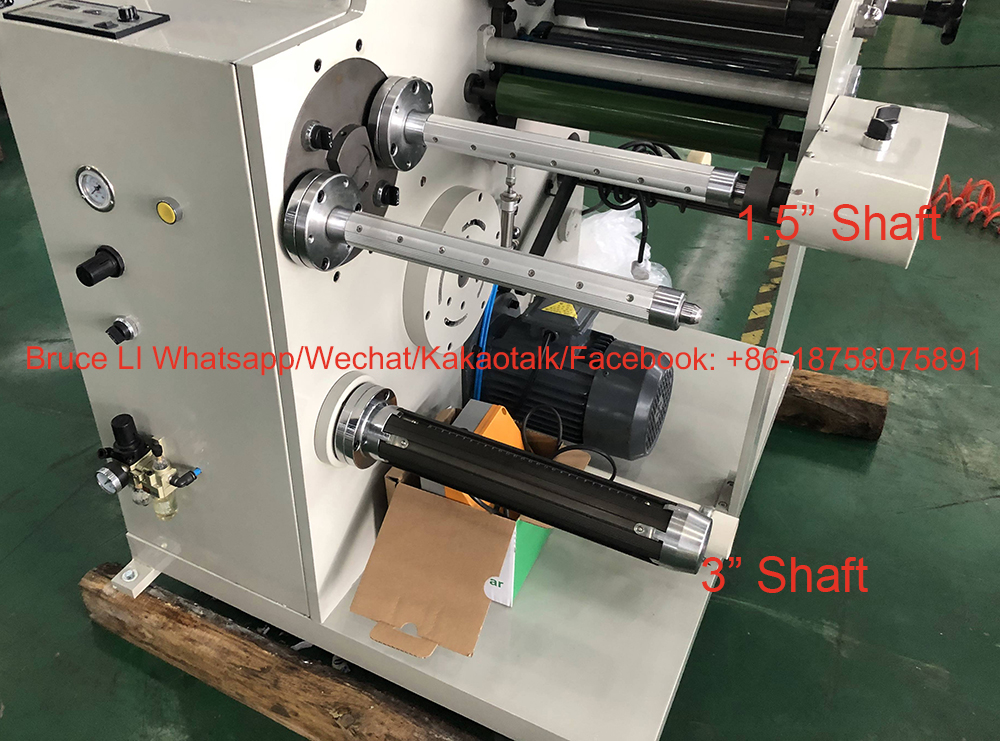

With 2pcs 1.5" Air shaft (Turret Rewind) for 200mm diameter rolls, and 1 pc 3" Air Expanding Shaft for 500mm diameter rolls.

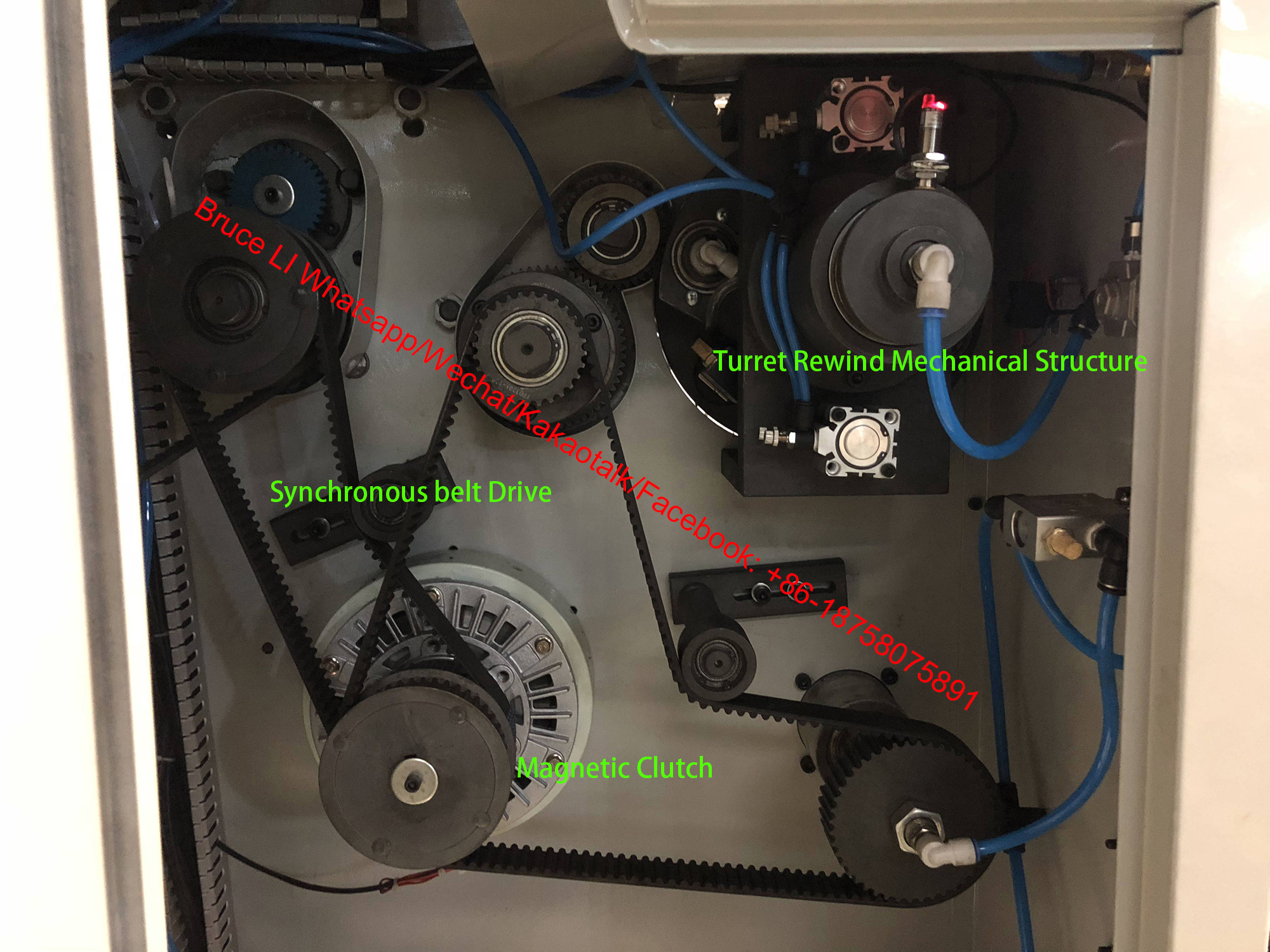

With One 25 N.M Magnetic Brake and One 50 N.M Magnetic Clutch. Drive system runs via synchronous belt for low noise and stable operation.
Equipped with 2 Sets of ZXT Auto Constant Tension Controllers for both unwind and rewind processes.

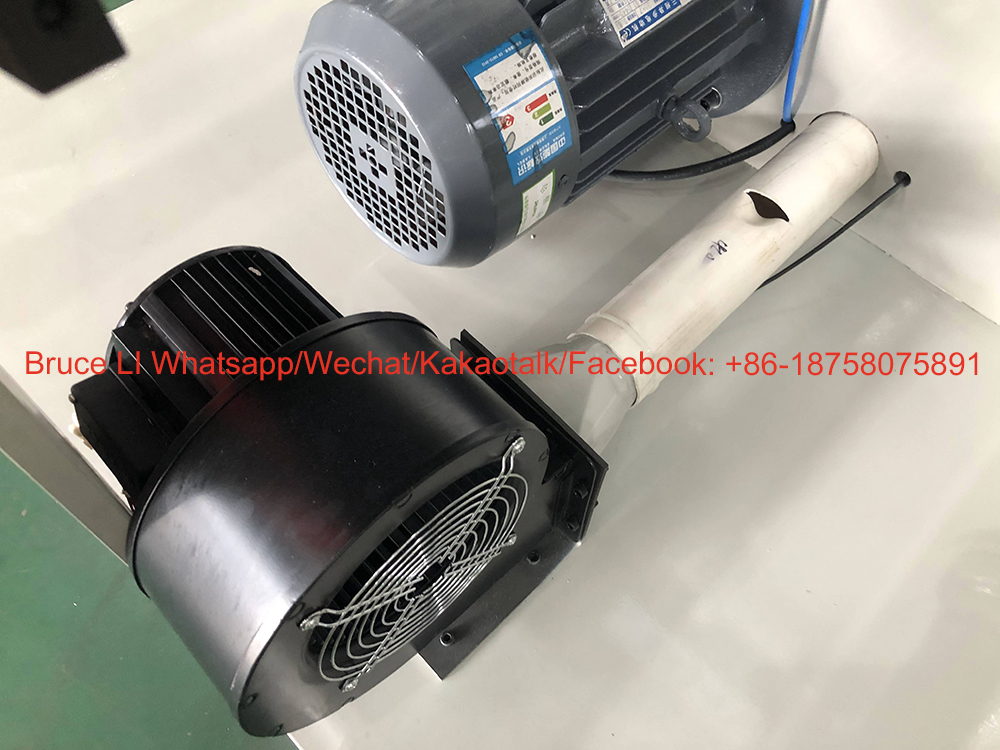

Features a built-in blower fan to clear and collect trimmed side waste effectively.

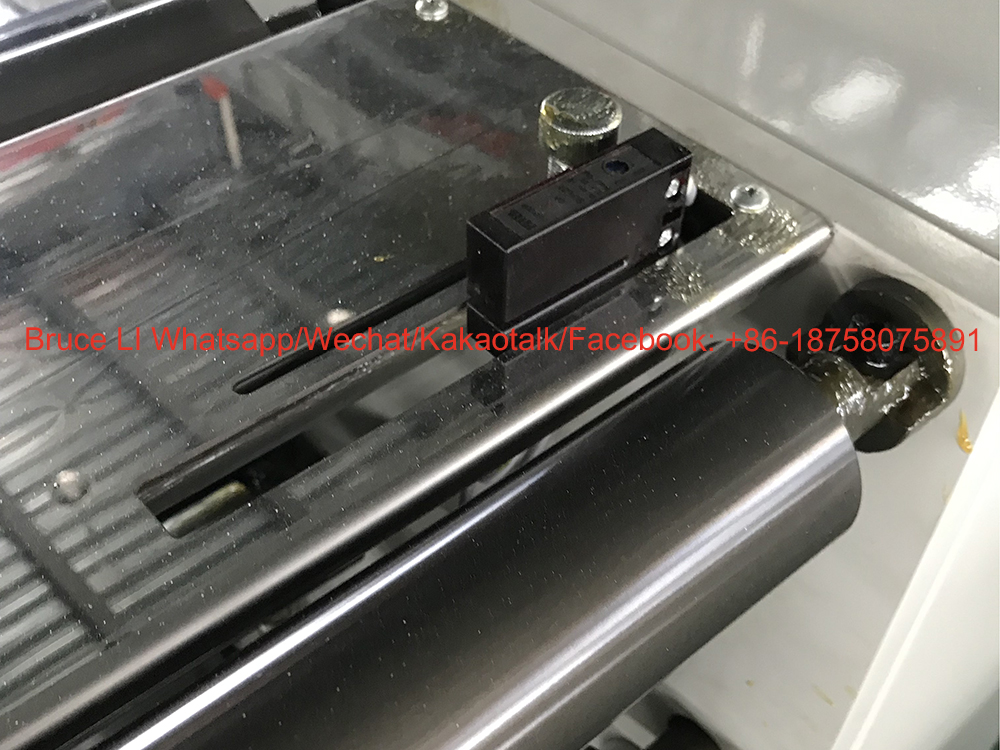

Accurate counting system supporting measurement by either meters or roll quantity.
Professionally researching and manufacturing flexo printing machines, label die cutting machines, label slitting machines, and related series products. We focus heavily on talent acquisition and technical innovation, implementing "technical innovation" as our core development strategy to drive advancement in the post-printing machinery industry.
Sincerity, quality, and service form the cornerstone of our operation principles. We strive to offer brave, aggressive, pragmatic, and highly efficient manufacturing standards. With a diverse lineup of specialized post-printing machinery models, we look forward to supporting global clients.
For slitting machines, we can deliver orders within 5-20 days depending on specific configurations.

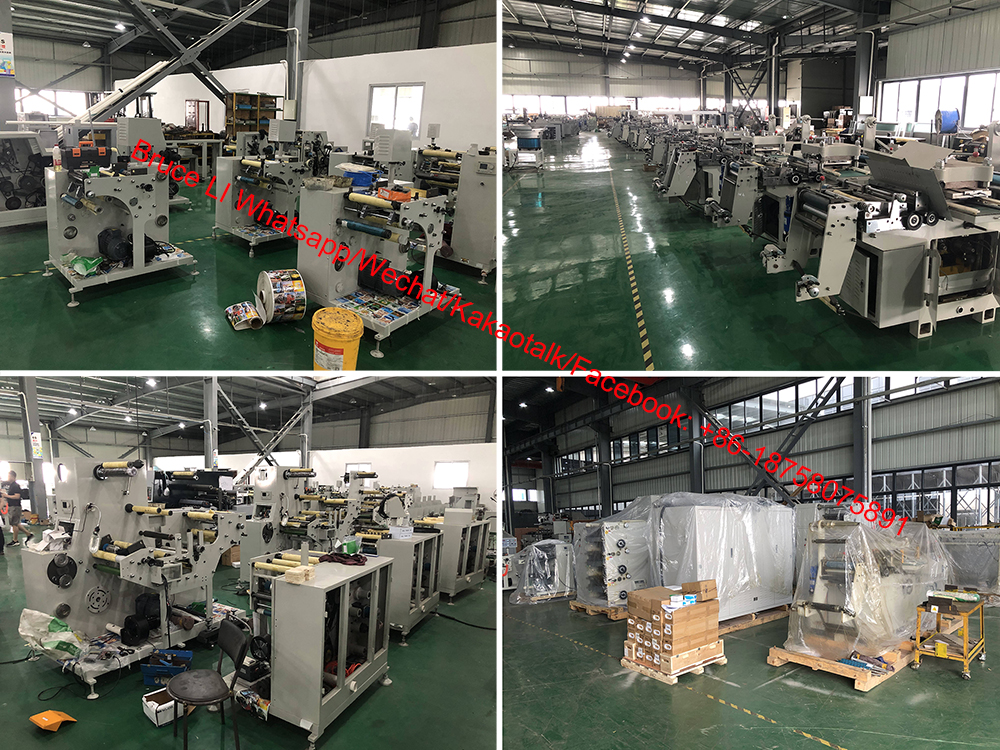

Our monthly manufacturing output is 50 sets, backed by an experienced production team of over 50 professionals.

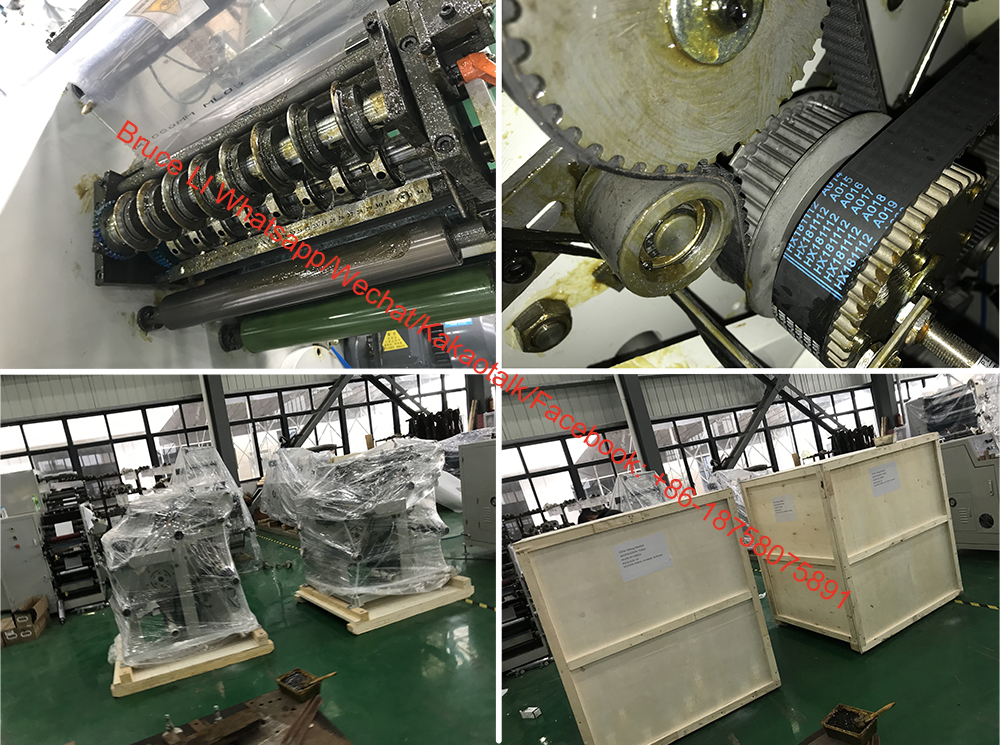

Interior: Wrapping film is wrapped around the machine to keep components dry and prevent rust accumulation.
Outer: Sea-worthy heavy-duty wooden cases ensure the machine remains secure and safe throughout long-distance ocean shipping.
Additionally, the machine is coated with anti-rust oil prior to transport to safeguard metallic surfaces.

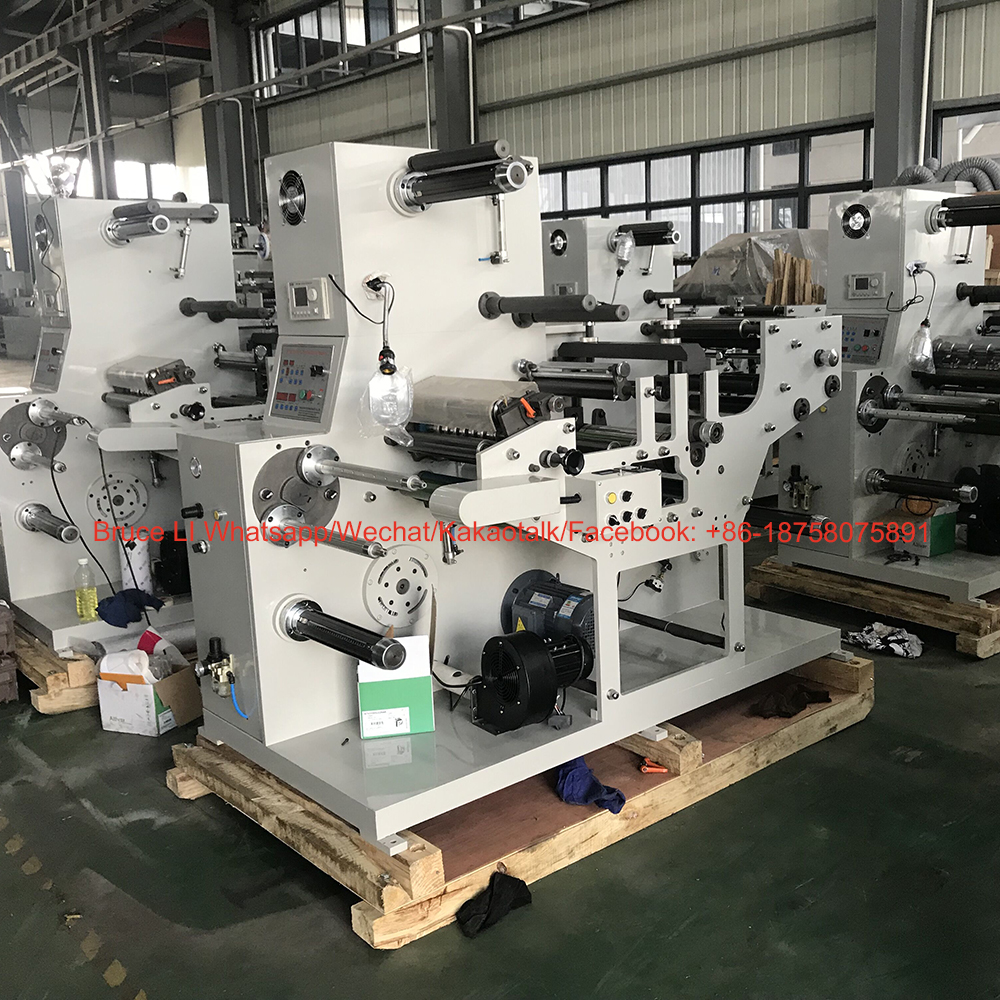

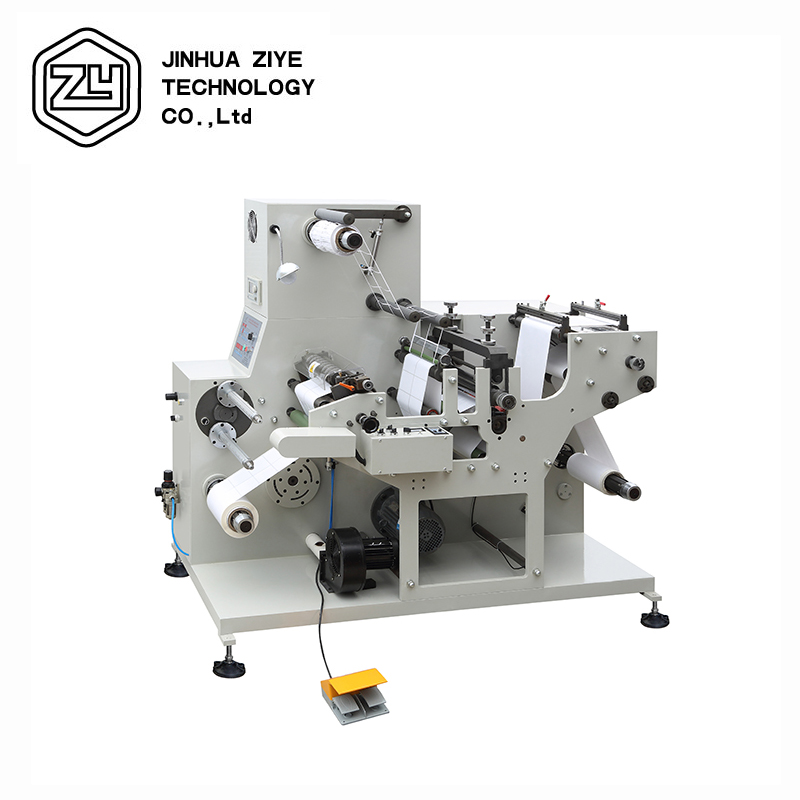

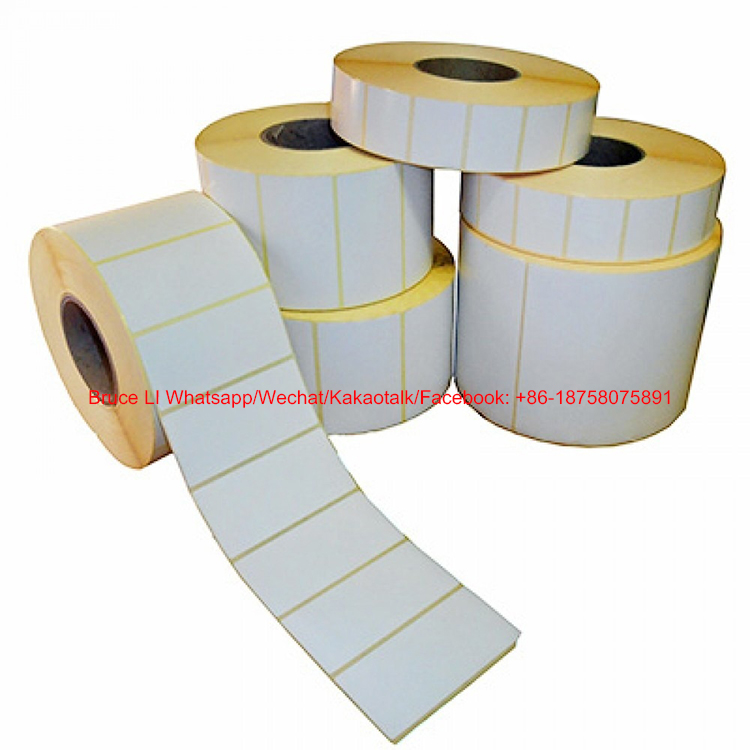

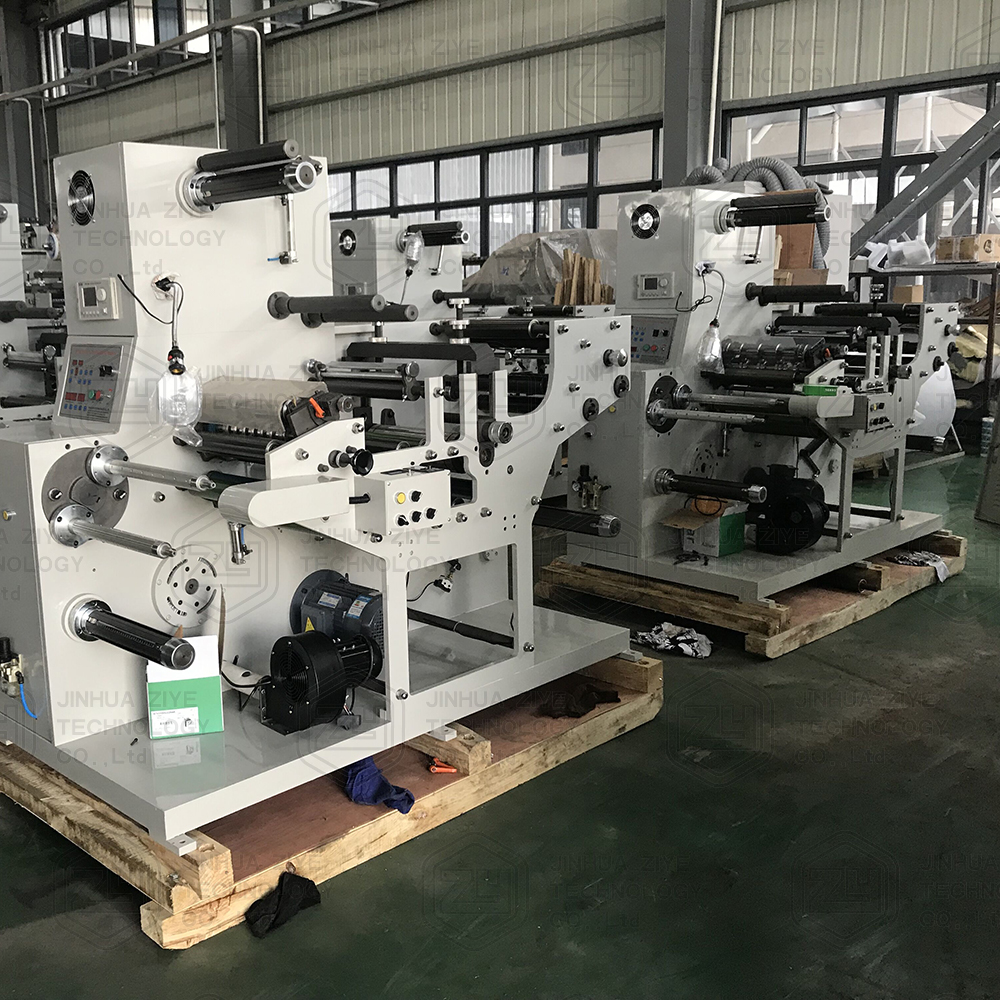

The DES550B is a multifunctional machine that combines rotary die-cutting and slitting into one single process, specifically designed for blank adhesive labels.
For standard slitting machines, production and delivery typically take between 5 to 20 days. Our monthly factory output capacity is 50 sets.

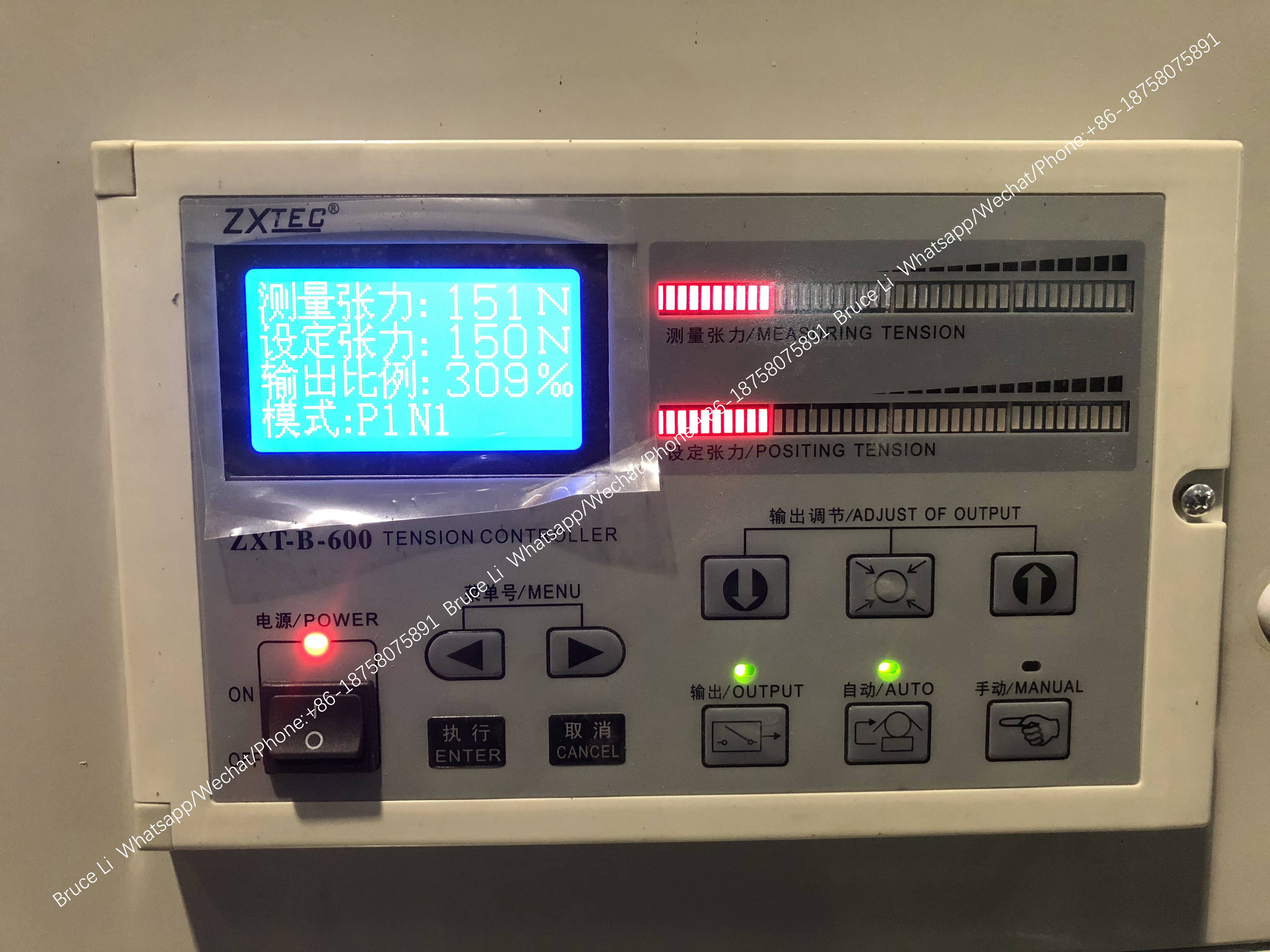

The machine is equipped with two sets of Automatic Constant Tension Controllers (one constant tension controller for the unwinder and one constant taper tension controller for the rewinder) to maintain optimal web tension.
It utilizes two photoelectric eye sensors as part of the Web Guide System to monitor, correct, and ensure precise material alignment during operations.
A dedicated 1-set blower fan is integrated to automatically blow away the trimmed sides, allowing easy collection of waste materials.
The machine is treated with anti-rust oil, wrapped in protective film to keep out humidity, and then packed in a sturdy, sea-worthy wooden case to ensure safe delivery.
