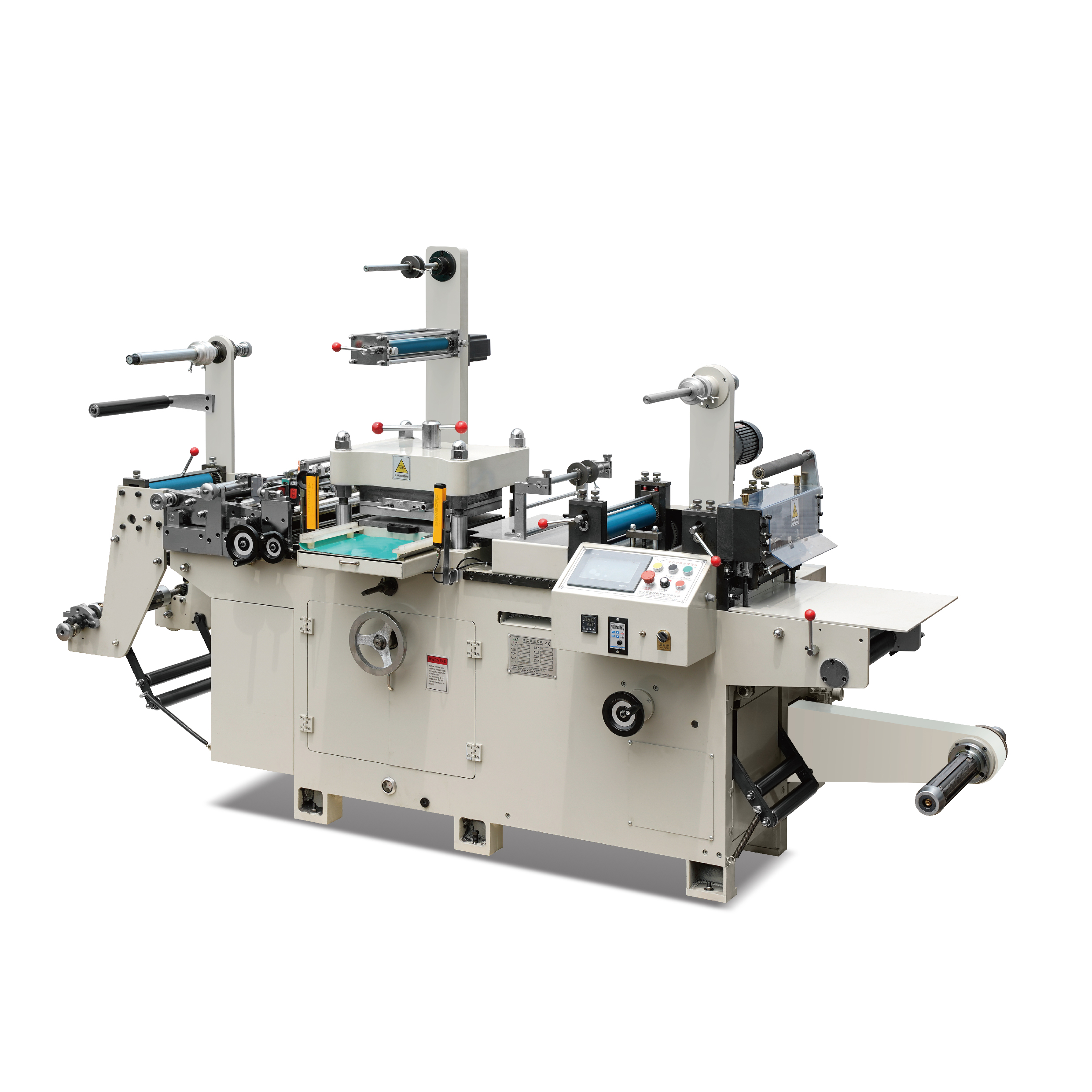

Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
1 / 5
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision
Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision

Multifunction Automatic High Speed Electric Paper Roll Rotary Flatbed Die Cutting and Embossing Machine With High Precision

Send Inquiry

Product Description

Die Cutting Machine Banner
Technical Specifications
Model Y-MQ-320
Product name Die Cutting Machine
Die Cutting Speed 20-230 times/min
Max. Unwinding diameter 450mm
Max. Web width 320mm
Max. Die cutting width 300mm
Max. Die cutting length 290mm
Main motor power 2.5kw
Power supply voltage 380v±10%
Machine weight About 2300kgs
Dimensions 2600 * 950 * 1400mm
Machine Overview 1

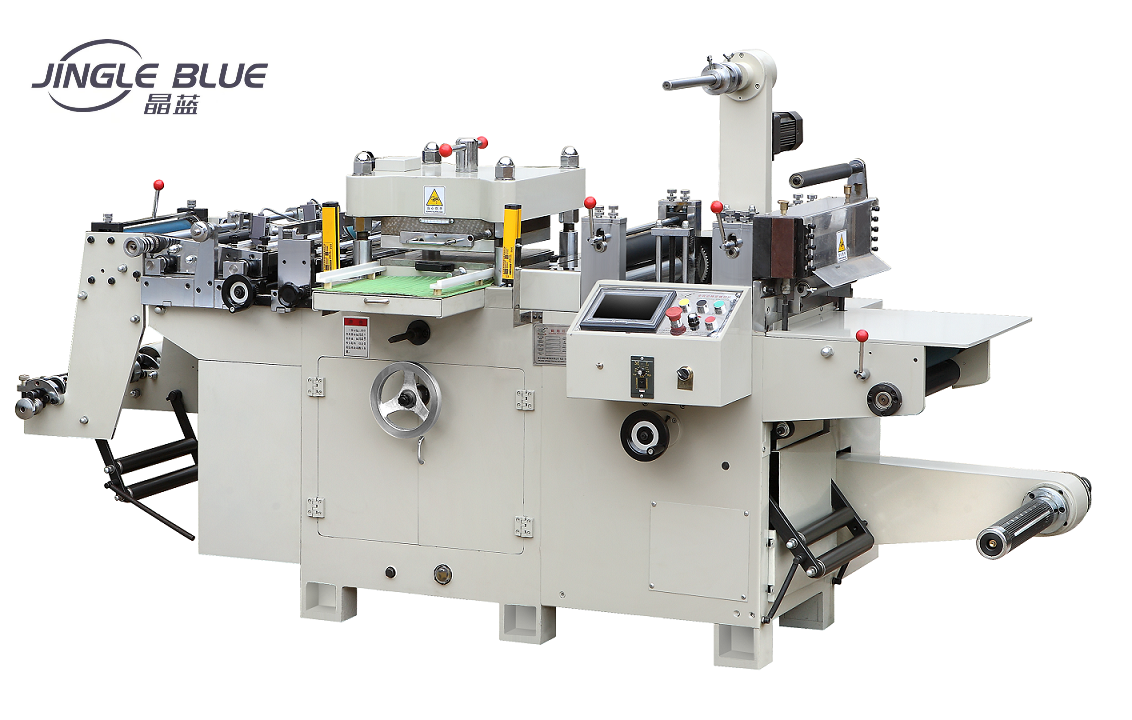

Machine Overview 2
Key Component Details

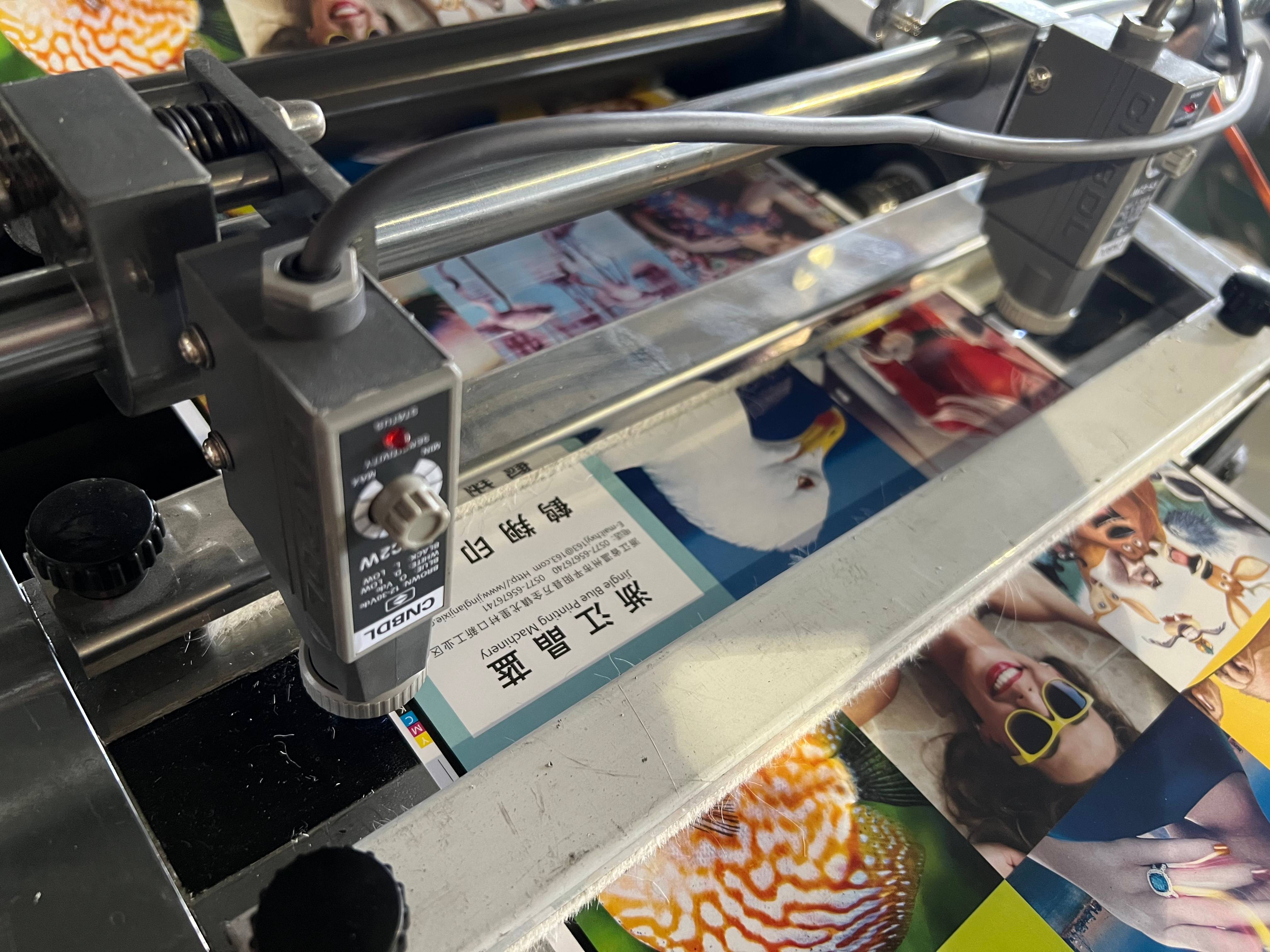

web guide sensor
Web Guide Sensor

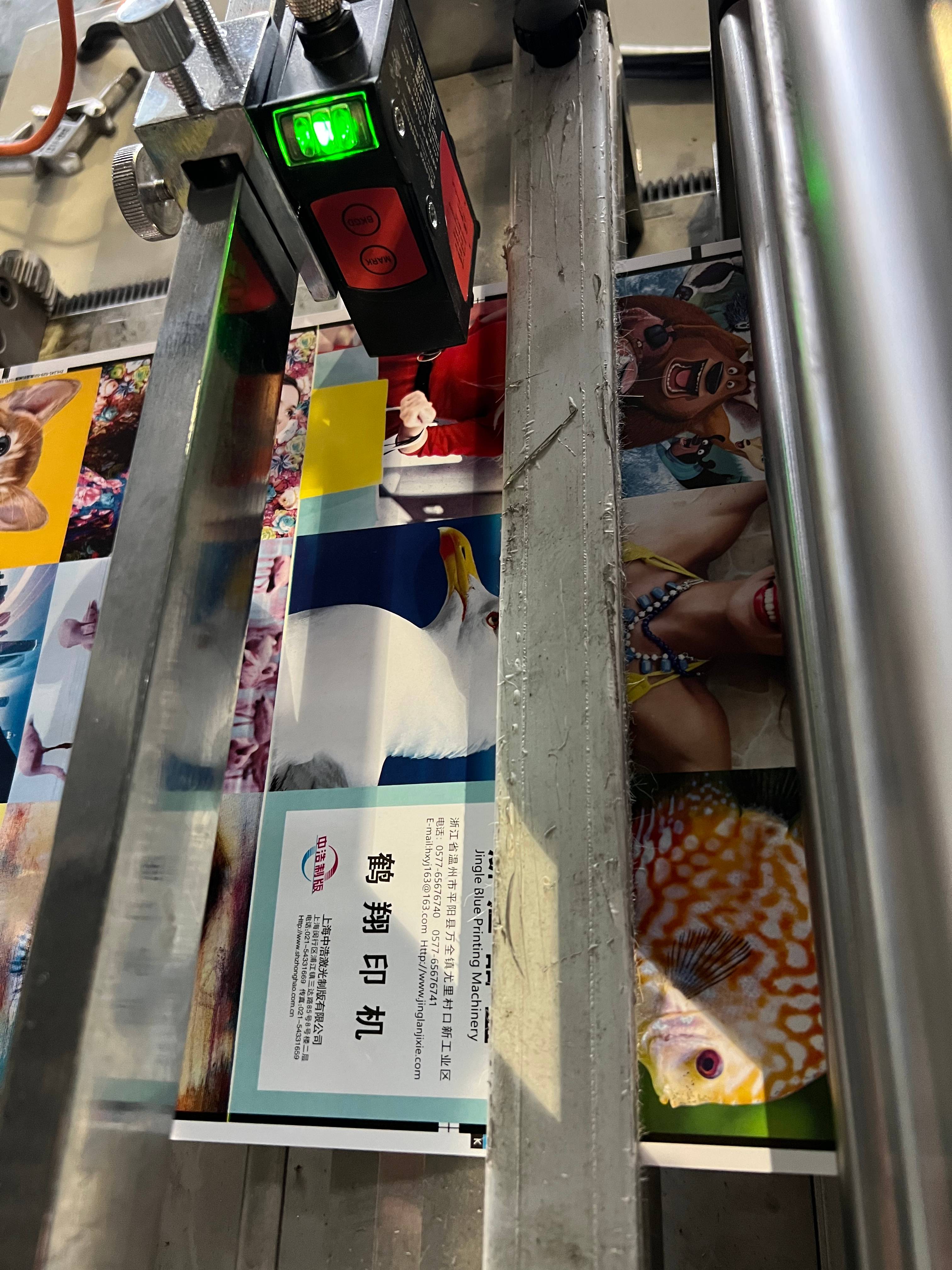

color mark sensor
Color Mark Sensor

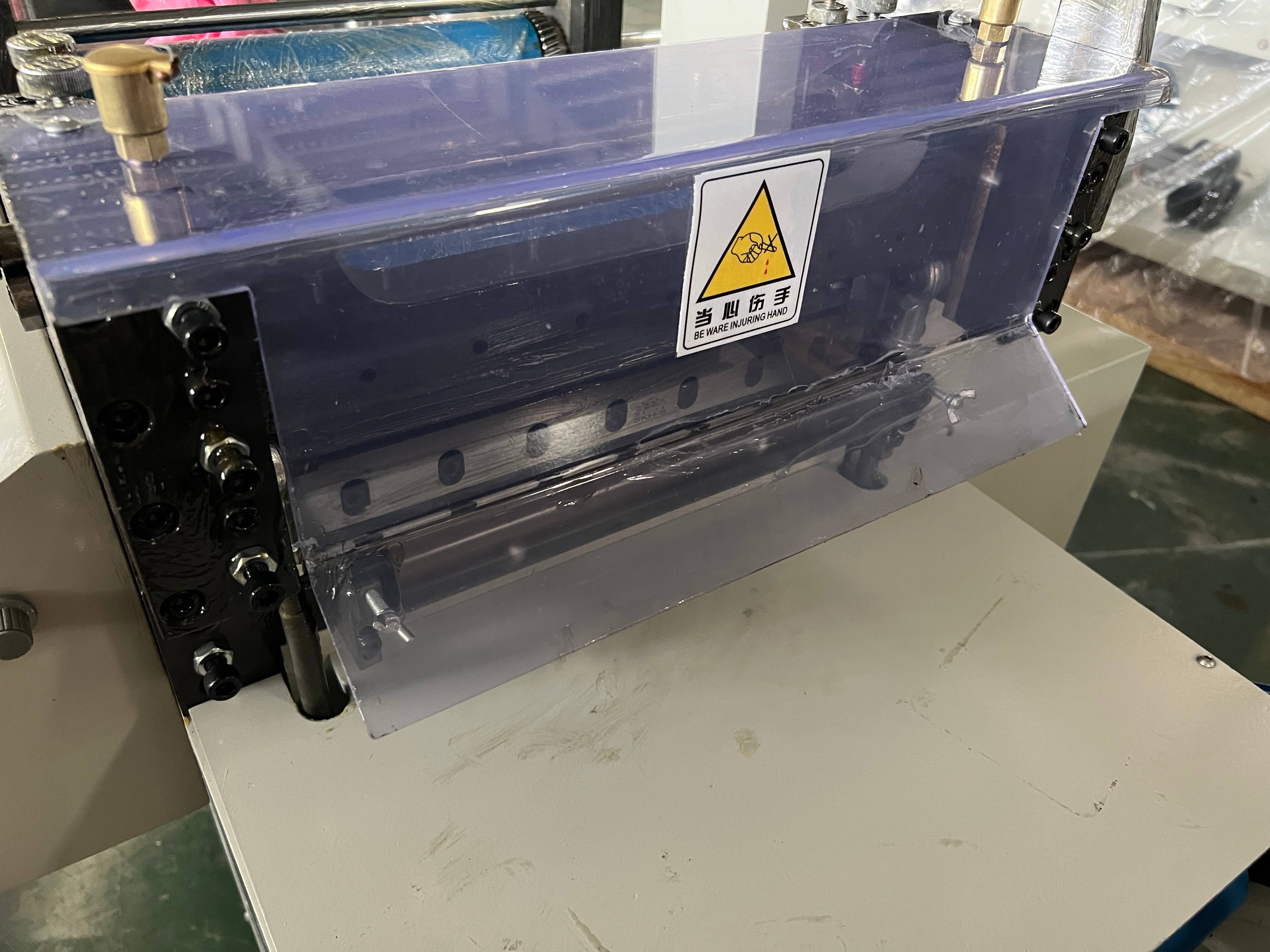

sheet station
Sheet Station

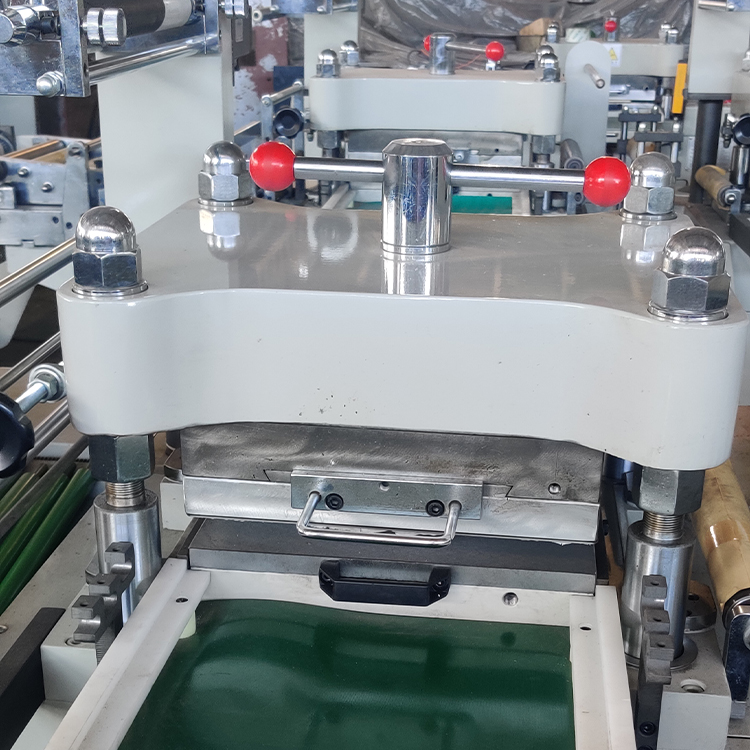

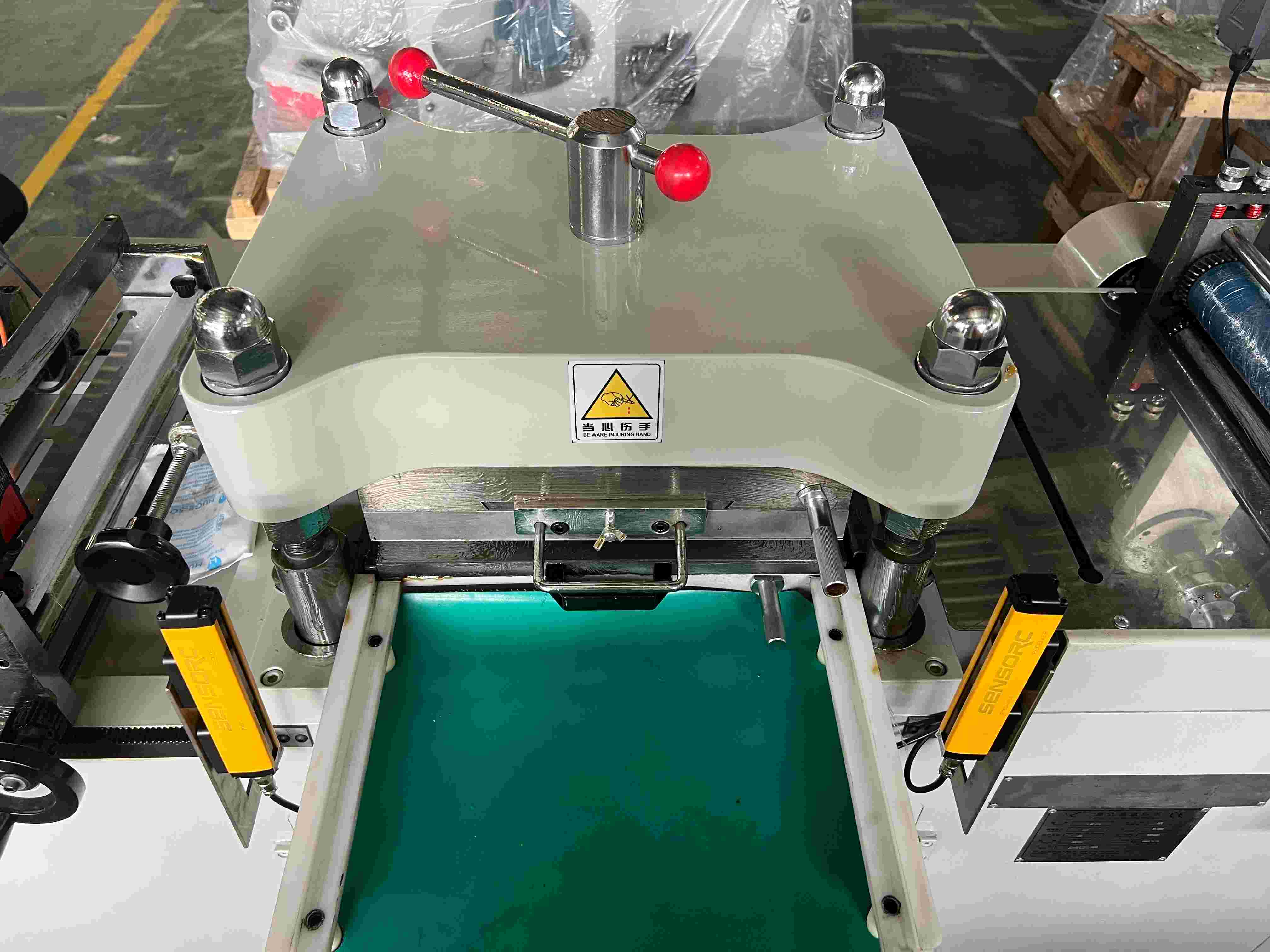

die cutting station & light curtain
Die Cutting Station & Light Curtain

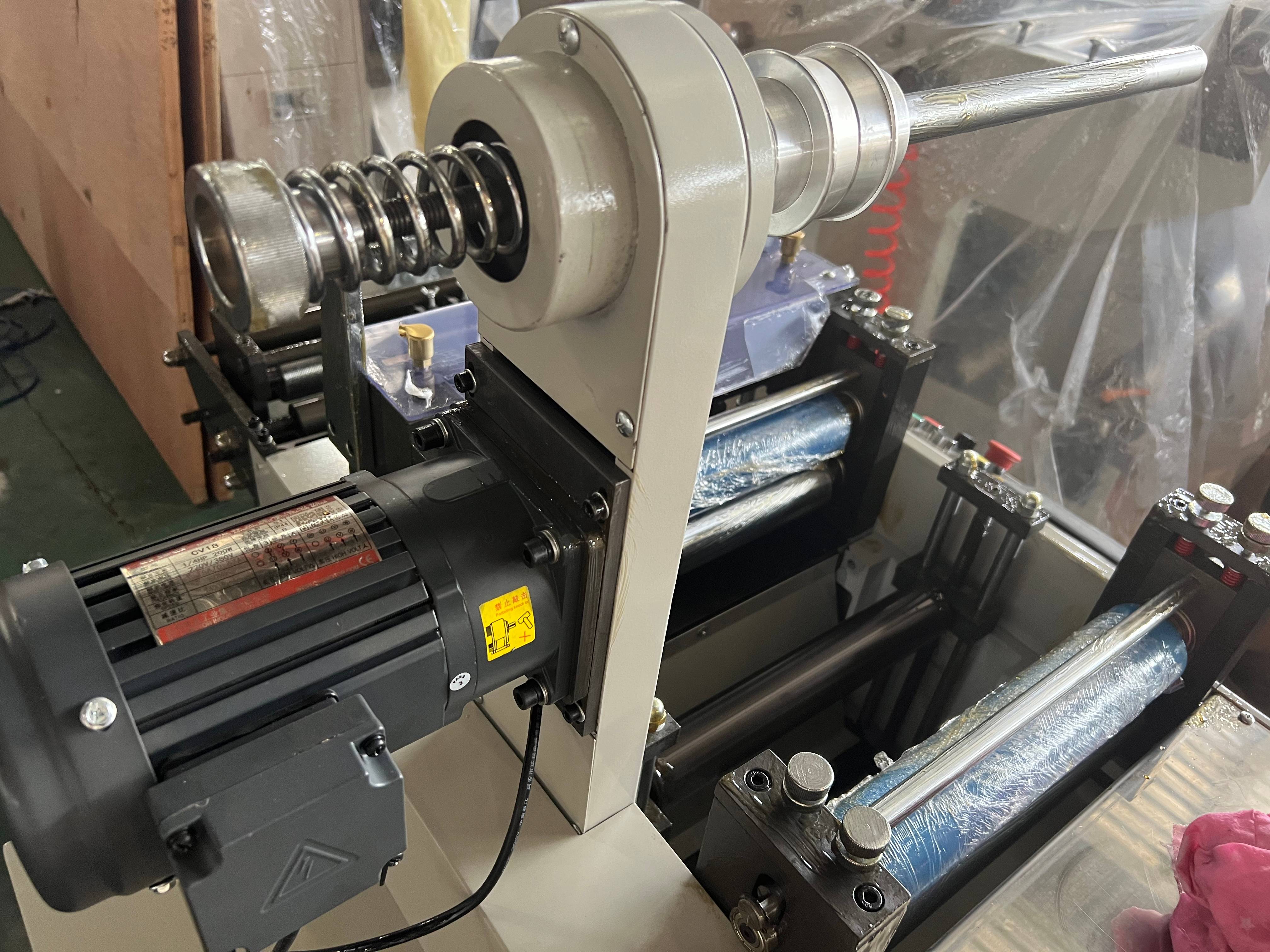

waste rewind & motor
Waste Rewind & Motor

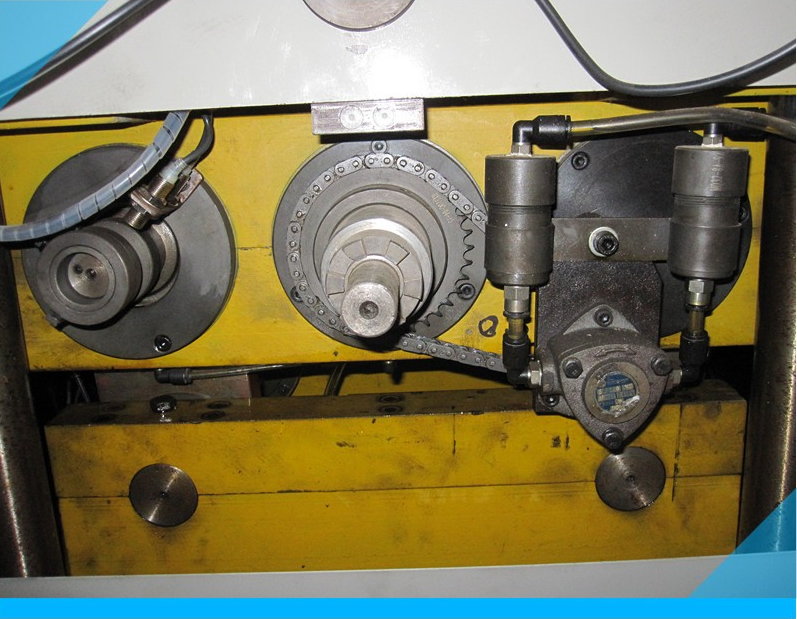

oil supply system
Oil Supply System

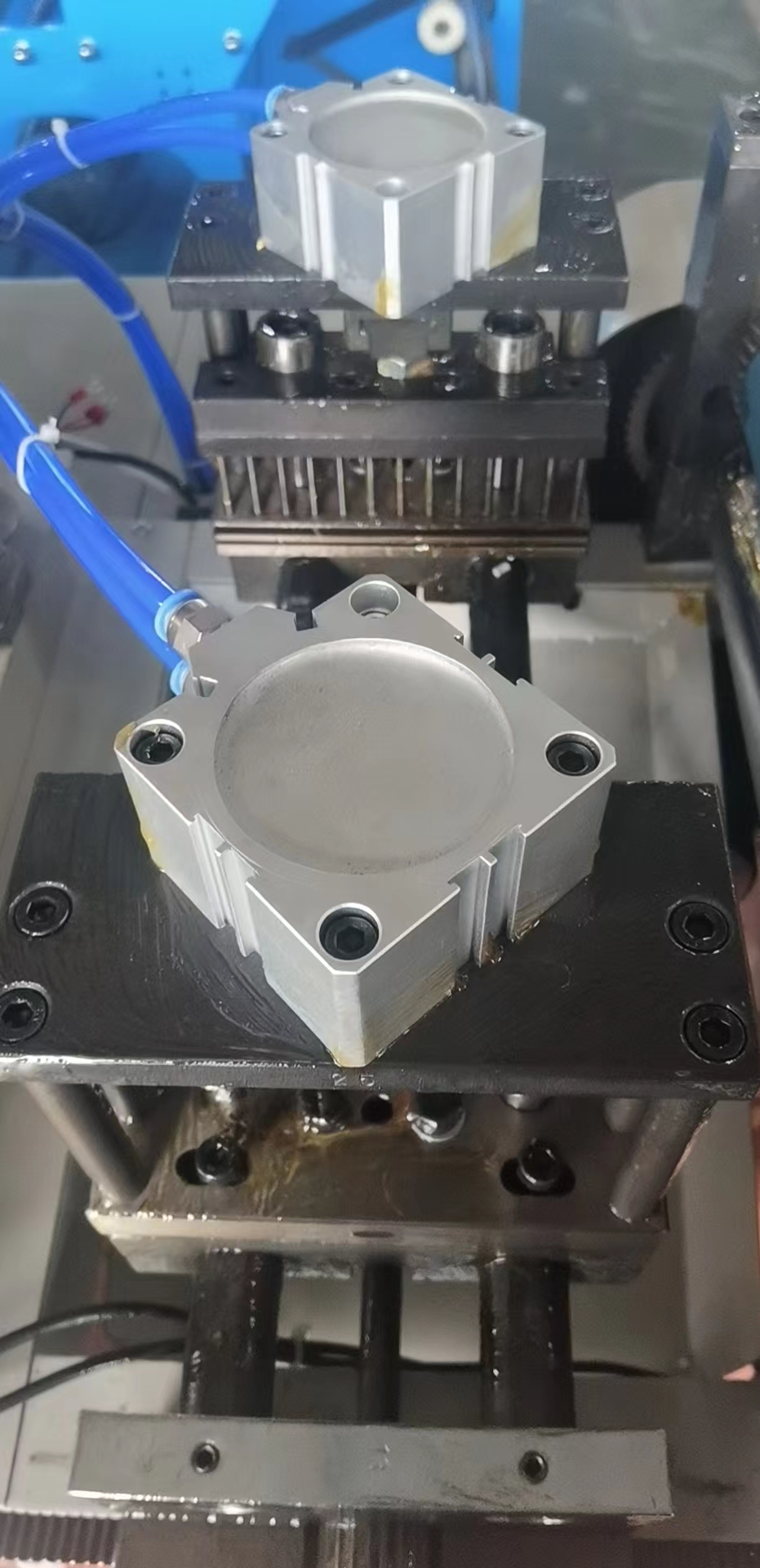

punch unit(option)
Punch Unit (Option)

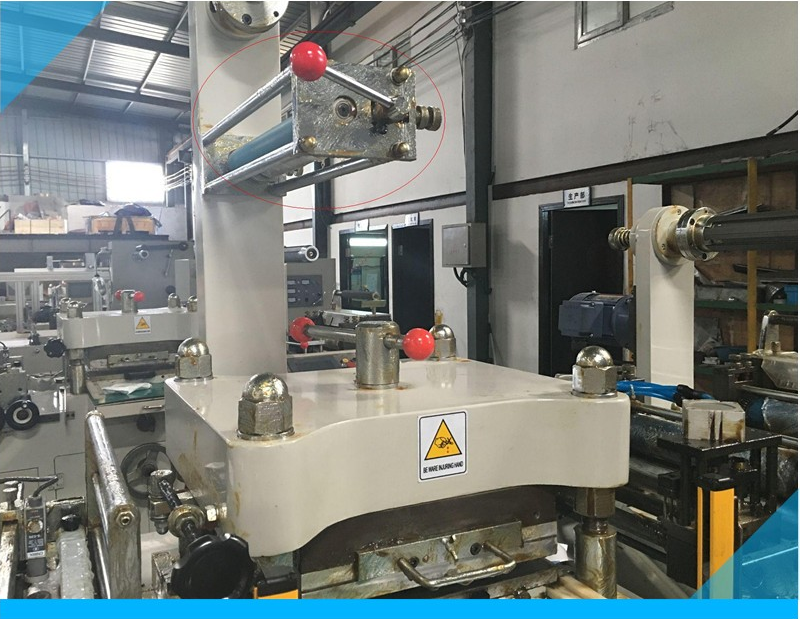

hot stamping(option)
Hot Stamping (Option)
Production & Equipment Display
Production Process 1
Production Process 2
Product Range Specifications
Factory Workshop 1
Factory Workshop 2
Packaging & Quality Check
Shipping and Logistics
Finished Products Showcase
Certificate of Compliance
Frequently Asked Questions (FAQ)
Q1: What is the maximum die cutting speed of the Y-MQ-320?
A: The Y-MQ-320 Die Cutting Machine features an adjustable die cutting speed ranging from 20 to 230 times per minute, allowing optimized output based on the specific material and complexity of the job.
Q2: What are the web width and unwinding limitations for this machine?
A: The machine supports a maximum web width of 320mm and features a maximum unwinding diameter capability of 450mm. The maximum die cutting width and length are 300mm and 290mm respectively.
Q3: Are optional stations like hot stamping or punching units supported?
A: Yes, both a punch unit and a hot stamping system are available as modular options. These can be integrated depending on your custom processing requirements.
Q4: Does the Y-MQ-320 include tracking and guide sensors?
A: Yes, the machine is equipped with a high-precision web guide sensor and a color mark sensor to ensure accurate web alignment and registration tracking during the cutting process.
Q5: What are the power supply and physical installation requirements?
A: The standard voltage requirement is 380V±10% with a main motor power of 2.5kW. The physical dimensions are 2600 * 950 * 1400mm, and the overall weight is approximately 2300kgs.
Q6: What safety features are integrated into the cutting station?
A: Safety is prioritized with an integrated light curtain system at the die-cutting station, designed to instantly pause operations to prevent injuries if an obstruction is detected.
