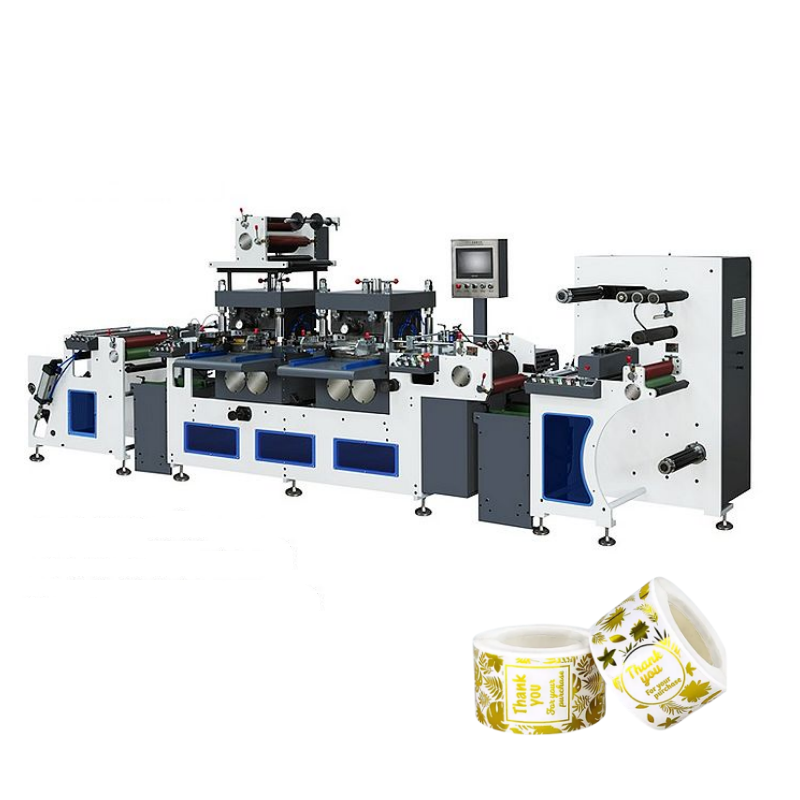

Hot Stamping Foil Printing Machine Rotary Die Cutter Cutting Machine Roll to Roll Aluminium Foil Printer Machine

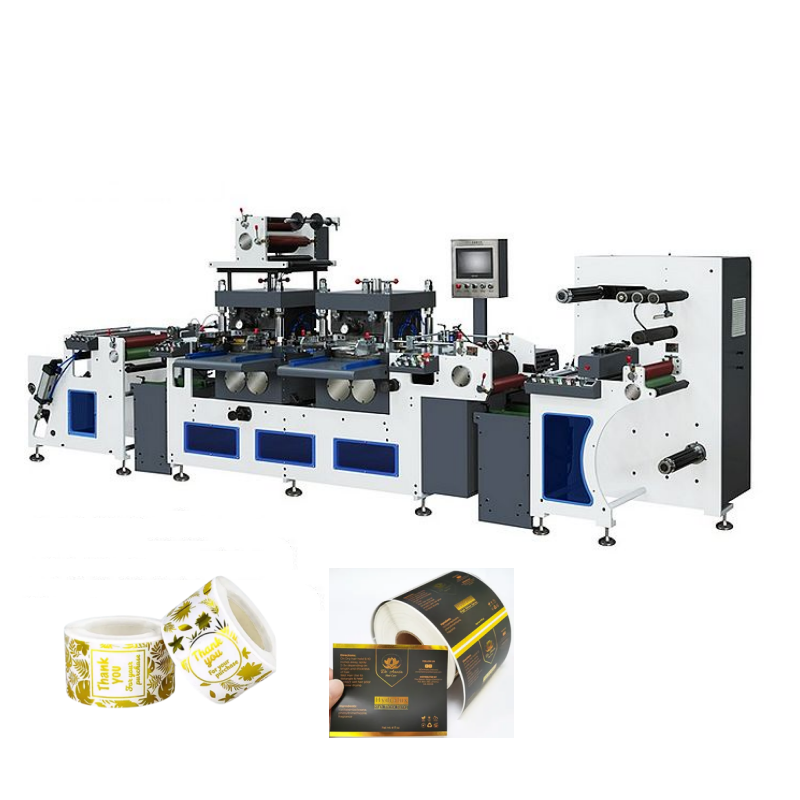

Double-station self-adhesive label high-speed die-cutting machine

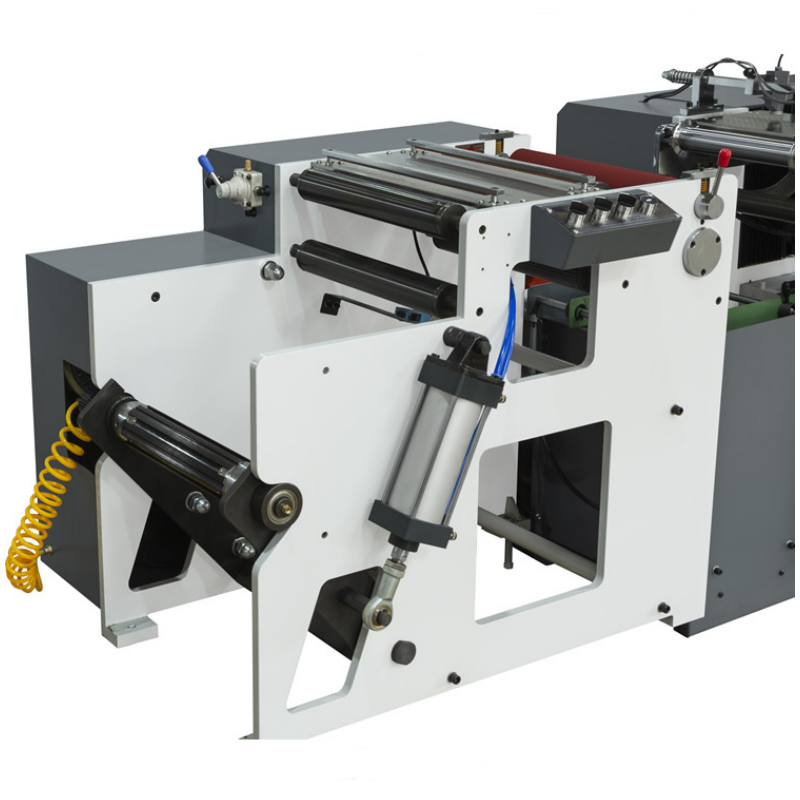

High-speed die-cutting machine detail view

Product Introduction

Double-station self-adhesive label high-speed die-cutting machine for flat structure, the use of downward working principle, computer servo system paper. Discharge - hot stamping - die cutting - waste removal - winding - flat cutting, complete by computer control.

Machine Features

✓ Performance Features: Motion controller. Servo integrated intelligent control.
✓ Speed: 24,000 cars/hour, 4,800 meters per hour high-speed die cutting to ensure speed loss, accuracy, and stable operation.
✓ Knife Plate: The use of wooden (rubber) knife plate, simple, affordable, and durable.
✓ Automatic Systems: The retracting and discharging shaft is automatically inflated, automatically tensioned, and the power system adopts an automatic lubrication system.
✓ Premium Components: Imported accessories, electrical, optical eye, bearing, servo motor, etc.

Machine Specification

Parameter Specification Details
Max Feeding Width	350mm
Hot Stamping Area	300mm x 300mm
Die Cutting Area	340mm x 340mm
Max. Speed	24,000 times/h
Max. Length Of Meter	80m/min
Max. Hot Stamping Speed	20,000 times/h
Position Accuracy	±0.1mm
Max. Unwinder Dia	800mm
Max. Rewinder Dia	800mm
Voltage	380V (3-phase 380)
Gross Power	18kw
Weight	3,000kgs
Dimension (LxWxH)	5,430(L) x 1,400(W) x 1,600(H) mm

Scope of Application

Paper self-adhesive, tape products die cutting and hot stamping. This machine is a full rotary high-speed web trademark printing machine, flexographic printing machine, satellite, PS printing machine, and intermittent printing machine supporting equipment.

Our Service

1. Purchase Service

We have a specialized and efficient working team. If you are new to the printing and packing area, you can show us some samples of your products, and we will provide specialized suggestions for the entire project.

2. Shipping Service

We have a specialized and independent department dedicated to shipping. Our logistics staff know T/T and L/C requirements thoroughly. All export documentation will be handled professionally. We partner with leading shipping carriers to provide secure and cost-efficient shipping to your port.

3. Installation Services

Installation services are available with all our machines. Technicians will be dispatched to the buyer's factory to complete the installation and pre-operation setup. The buyer is responsible for round-trip tickets, meals, and hotel costs.

4. Client Training Services

We advise buyers to send their own technicians to our factory to learn machine operation. Our technicians will provide hands-on training until the operator is self-sufficient. Training can also be conducted during the installation period.

5. After-Sales Service

Our machines include a one-year guarantee. Key spare parts are included in the toolbox shipped with the machine. In case of any part failures, simply provide photos or videos, and replacement parts will be delivered via express service within 3-7 working days.

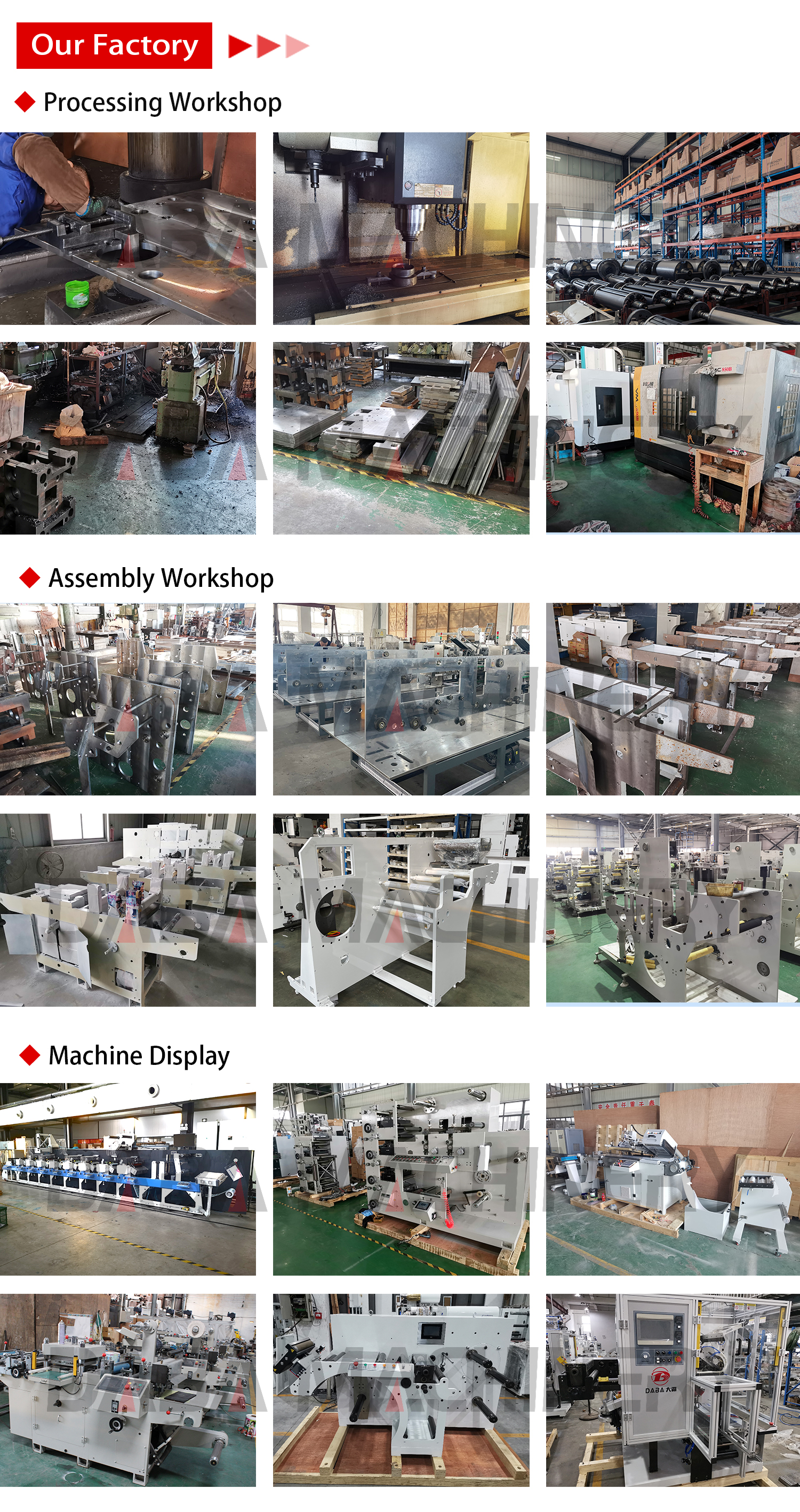

Production Gallery

Frequently Asked Questions

What is your delivery date?

Usually, production is completed within 30 days after receiving your 30% advance payment. The exact schedule will be confirmed based on our current stock and production plan.

What are your terms of payment?

We accept T/T (30% in advance and 70% balanced against B/L copy), L/C at sight, and Cash payments.

How long is the machine warranty period?

All our machines come with a one-year guarantee, which starts from the date installation is completed.

How do you provide support after the one-year warranty period?

We continue to offer post-warranty services. If overseas technician services are requested, the customer will cover travel costs along with a service charge of USD 100 per day.

How are replacement parts handled within the warranty?

We will ship replacement parts free of charge via express delivery during the warranty period.

How many operators are required to run these machines?

For flexo printing, slitting, and die-cutting machines, only one person is needed to operate each machine.
