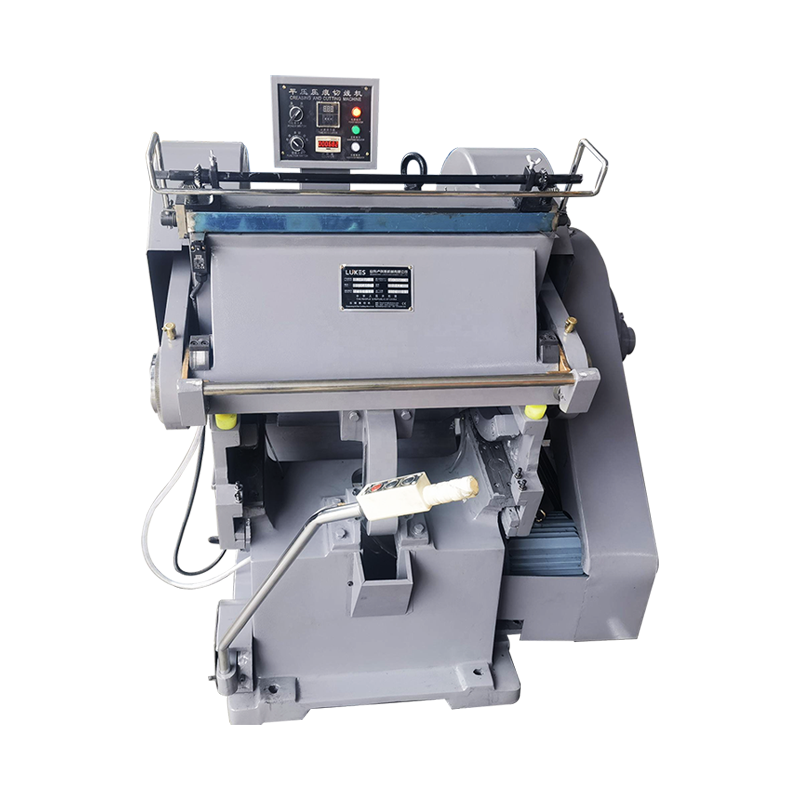

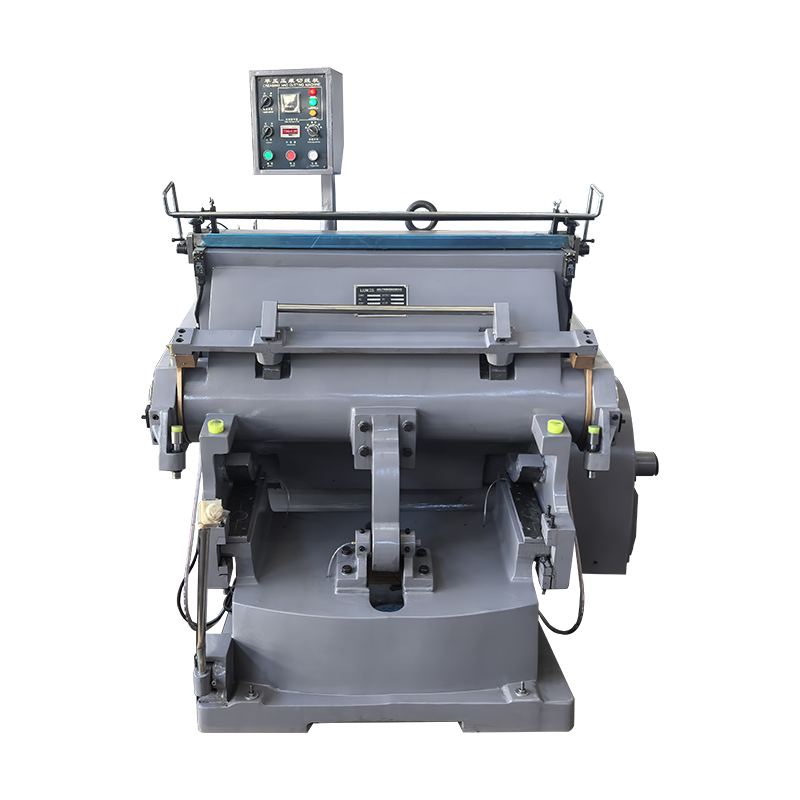

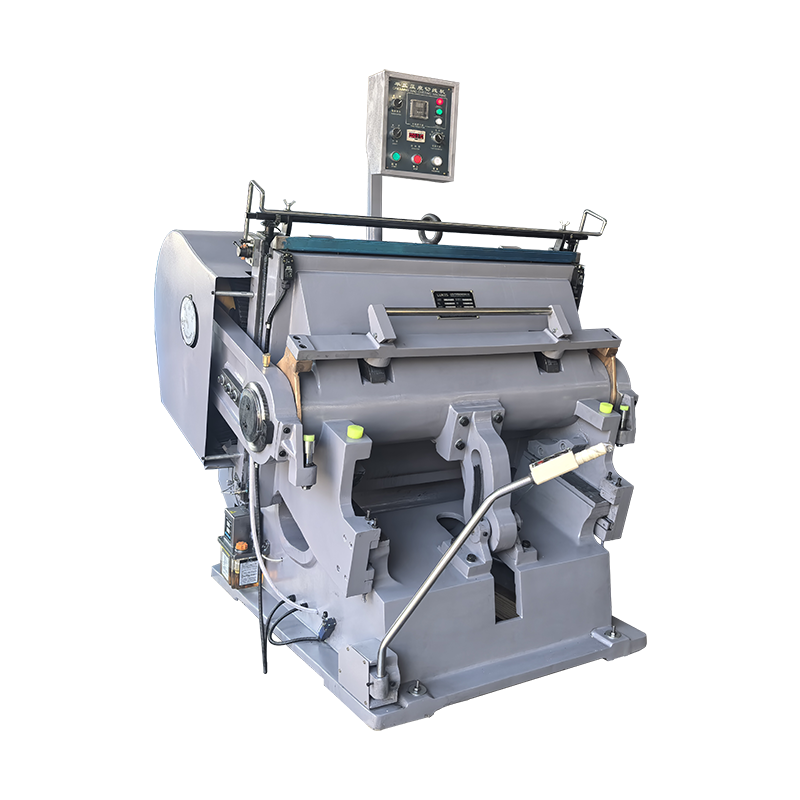

ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
1 / 5
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine
ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine

ML Series Platen Press Die Cutting Machine Cutting Die Clamshell Creasing Machine Manual Die-cutting and Creasing Machine

Send Inquiry

Product Description

PRODUCT HIGHLIGHTS

  • Compact structure with stable performance and easy operation
  • High-strength cast body for durability and long service life
  • Helical gear transmission ensures smooth running and low noise
  • Electromagnetic clutch for sensitive and reliable control
  • Supports single, continuous and delay operation modes
  • Reliable safety protection system
  • Centralized lubrication system for easy maintenance
CUSTOMIZATION CAPABILITIES

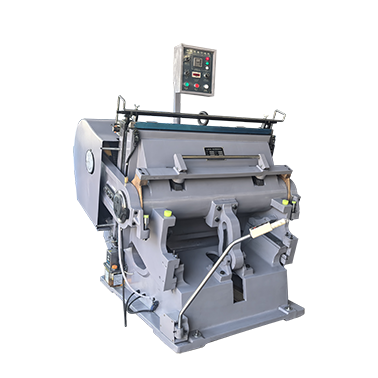

Standard Model Platen Press Die Cutting Machine
Standard Model
Standard machines are used for die cutting and creasing paper.
Standard Model Parameters
Model Platen Size (mm) Speed (times/min) Max. rule length (m) Motor power (Kw) Weight (Kg) Dimension (cm)
ML750 750X520 25 < 15 2.2 2000 165x140x150
ML930 930X670 23 +3 < 25 4 3000 175x190x170
ML1040 1040x720 23 +3 < 28 4 3500 200x201x190
ML 1100 1100x800 22+ 3 < 35 5.5 4500 200x201x190
ML 1200 1200x820 20 +2 < 32 5.5 5000 202x202*195
ML 1300 1300x920 15 +2 < 40 7.5 6000 260*210*195
ML 1400 1400x1000 15 +2 < 45 7.5 7000 260*210*195
ML 1500 1500x1050 14+ 2 < 45 7.5 7500 265*210*200
ML 1600 1600x1250 13 + 2 < 50 11 11500 285*225*210
ML 1800 1800x1400 13 + 2 < 60 15 13000 315*225*225
Machine packaging: Wooden case with free fumigation

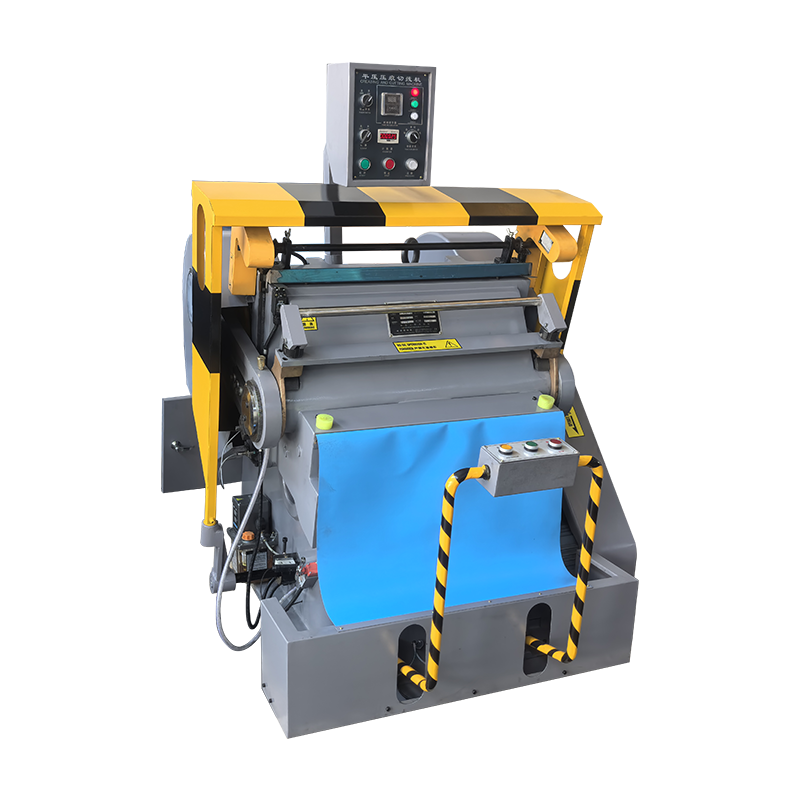

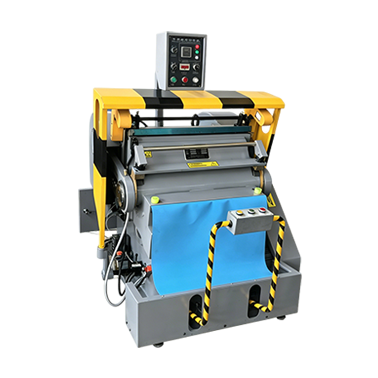

CE Model Platen Press Die Cutting Machine
CE Model
The CE standard machine is equipped with big gantry, dust cover and fence, infra red device.

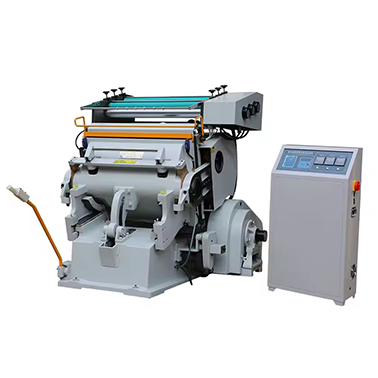

Hot Stamping Model Platen Press
Hot Stamping Model
The hot foil stamping machine is used for paper hot foil.
Hot Stamping Model Parameters
Model TYMB750 TYMB930 TYMB1040 TYMB1100 TYMB1200
Max. Platen Working Area 750*520mm 930*670mm 1040*720mm 1100*800mm 1200*820mm
Max.Gilding Printing Area 740*510mm 920*660mm 1020*700mm 1080*780mm 1180*800mm
Skip Order Range Built-in Processing with Computer
Working Pressure 100T 170T 170T 220T 220T
Foil-delivered Length 500mm 640mm 700mm 800mm 800mm
Foil-delivered Group 2 Groups 3 Groups
Working Speed 1380 Time/h 1320 Time/h 1320 Time/h 1200 Time/h 1200 Time/h
Main Motor 2.2kw 4kw 4kw 5.5kw 5.5kw
Overall Power 10kw 13kw 13kw 19kw 19kw
Dimensions (cm) 215*140*190 220*200*195 230*210*200 225*220*200 225*220*205
Total weight (kg) 2500 3500 4500 5000 5500

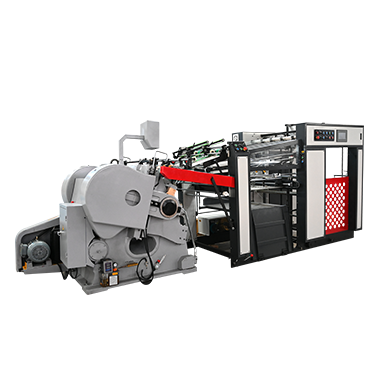

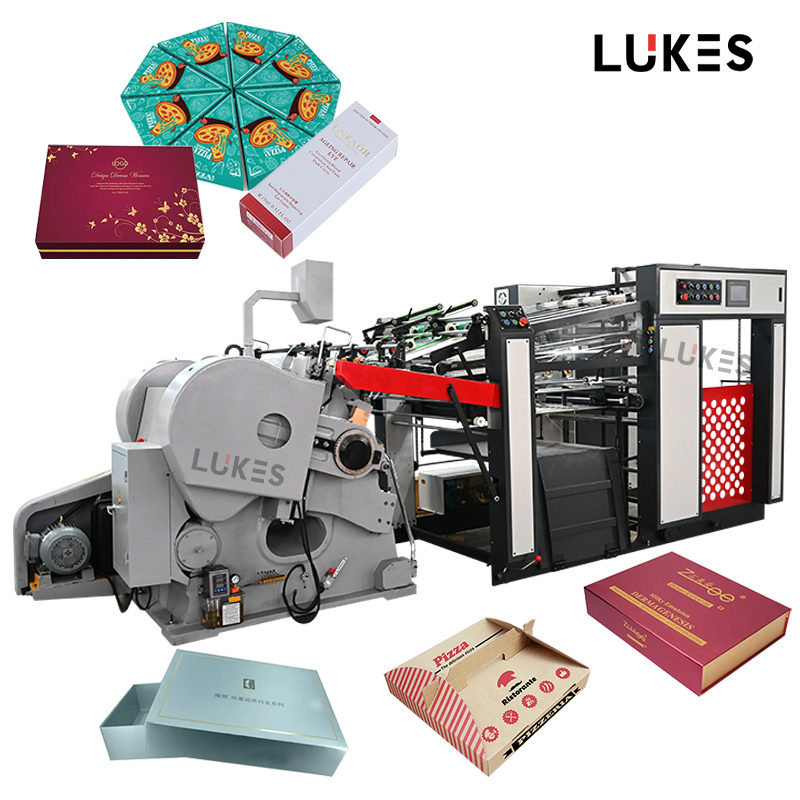

Auto Feeder Model Platen Press
Auto Feeder Model
After 5 years of R&D and testing, we developed the first domestic full-servo automatic manipulator for creasing machines and obtained a national patent (Patent No. 2021201036434).

The system upgrades manual creasing machines with automatic paper feeding and delivery, improving both safety and efficiency. More than 3,000 machines worldwide have already been upgraded.

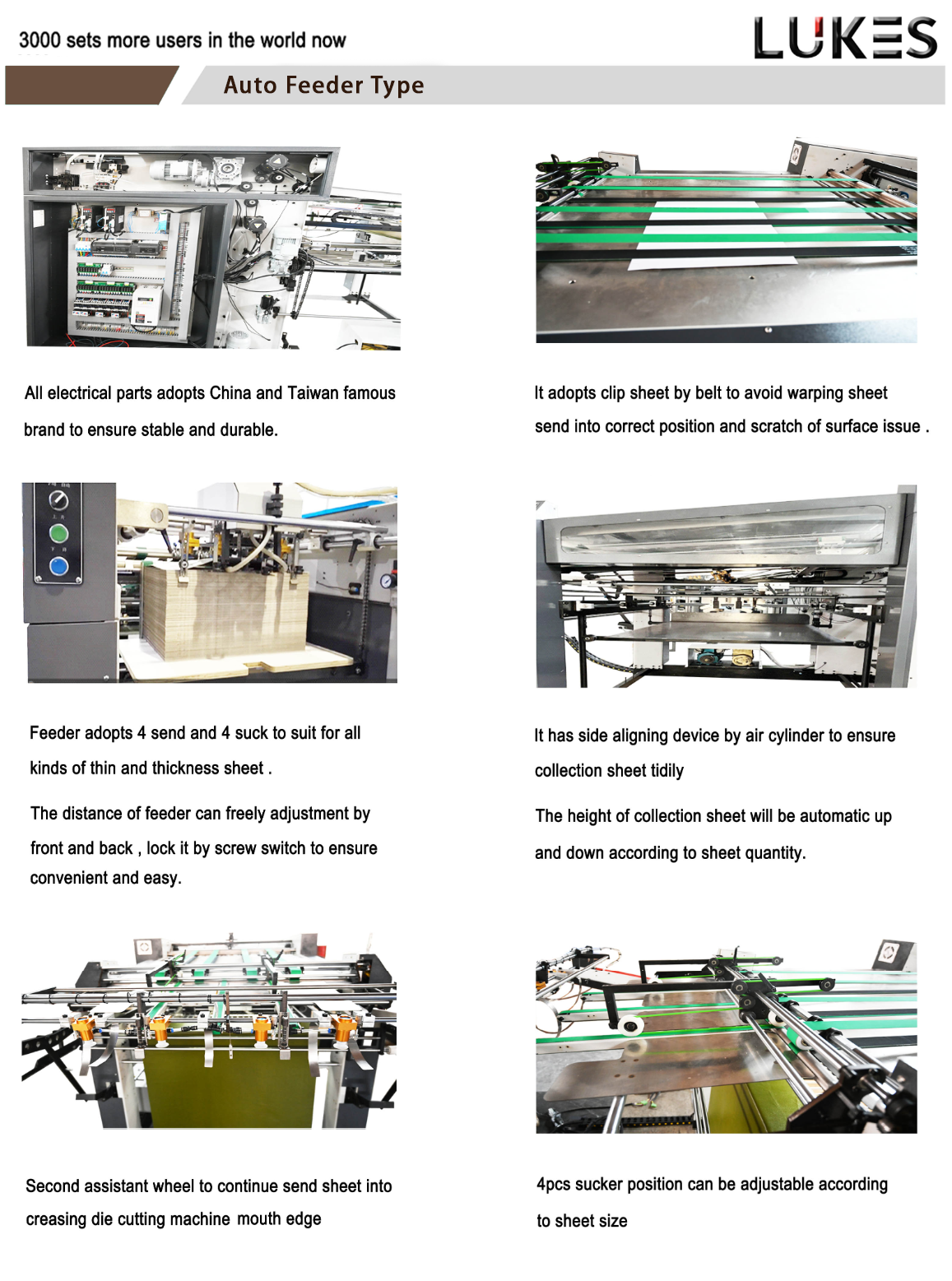

Advantages of Auto Feeder
Advantages
  • Suitable for both new and existing manual creasing machines.
  • Full-servo control for paper feeding & delivery, easy operation and high precision.
  • Fully automatic linkage system with one-button start.
  • Pneumatic positioning ensures accurate paper feeding.
  • One operator can run 2–3 machines, boosting efficiency by over 3 times.
  • Working speed reaches 900–1500 sheets/hour after upgrading.

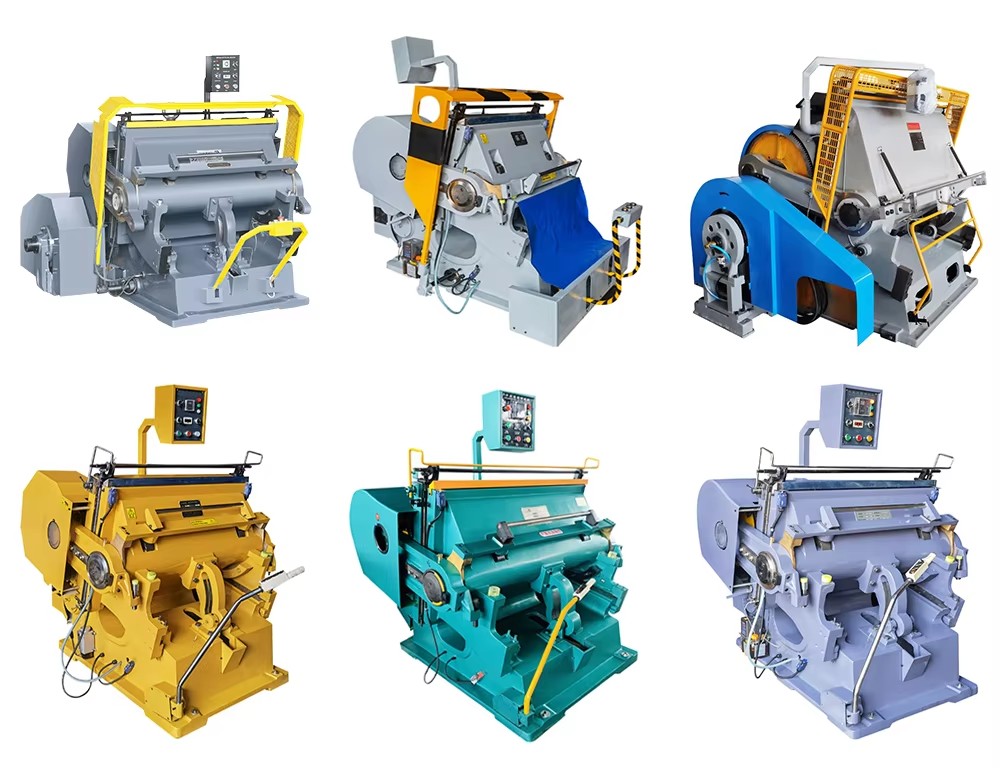

Customizable Colors Options
Customizable colors
Custom colors are available to match your brand style and production needs. The machine body, covers, and key components can be customized in different colors, helping your equipment stand out and create a more professional appearance.
SCENE IMAGE

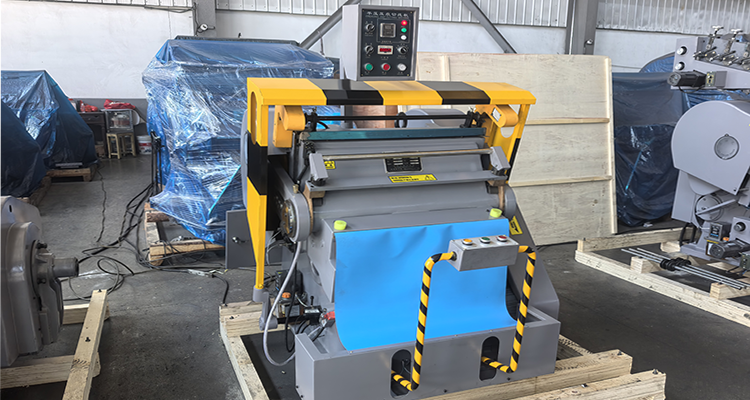

Machine Scene Image Large

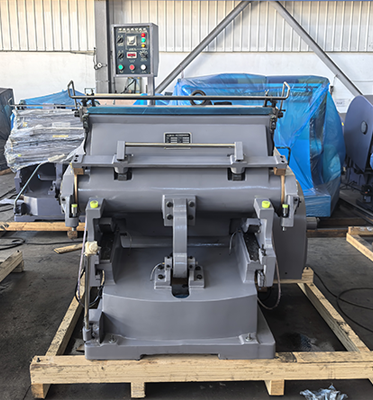

Machine Scene Detail 1

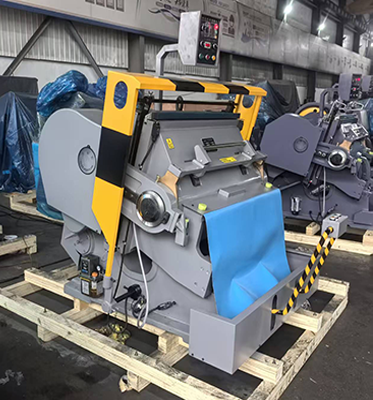

Machine Scene Detail 2

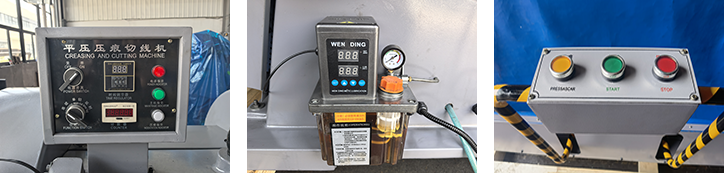

DETAIL SHOT

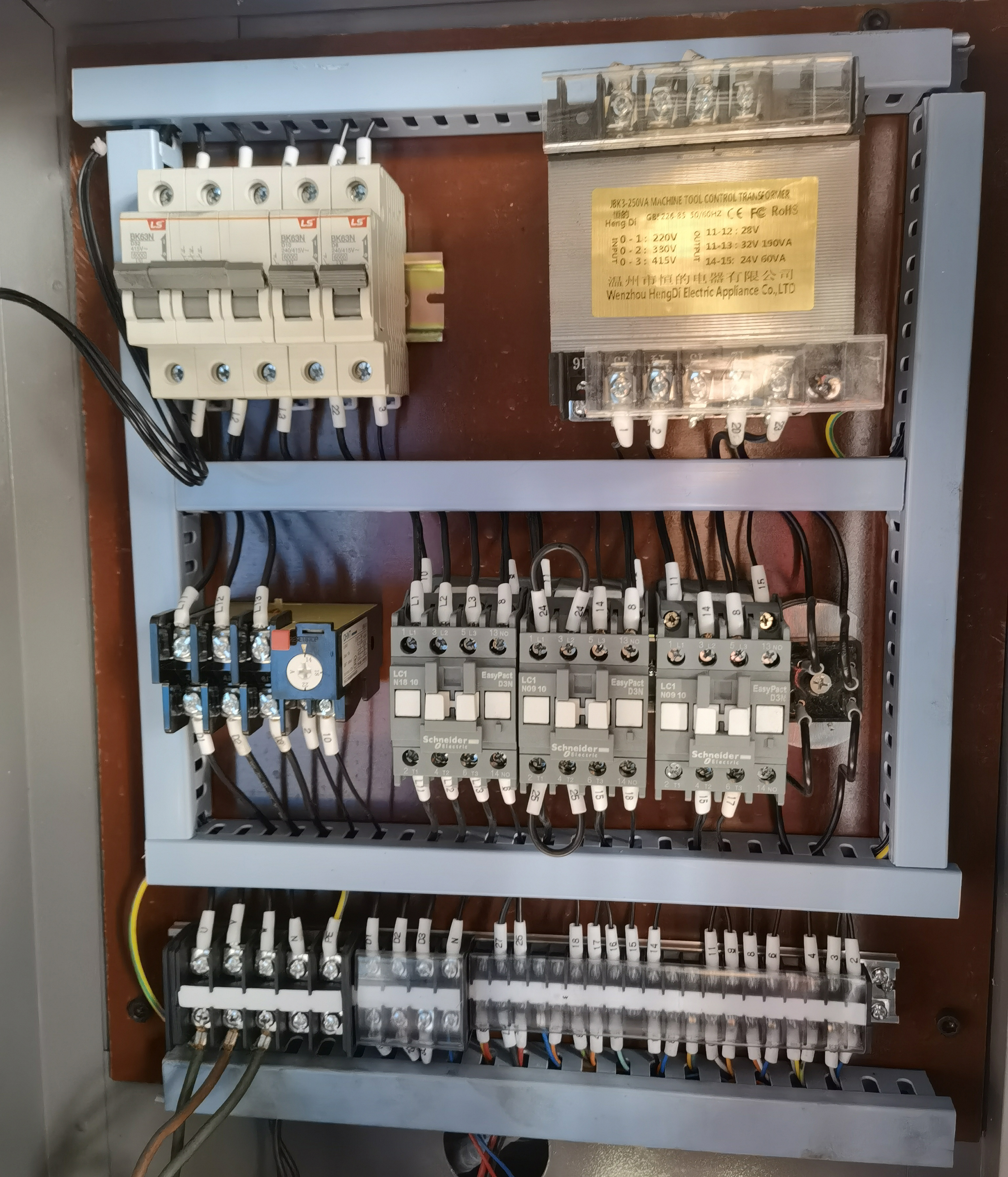

Detail Shot 1
Detail Shot 2
APPLICATION
Machine Application Presentation
ABOUT THE SUPPLIER

Established in China with over 20 years of industry experience, we specialize in paper packaging post-press machinery, providing customers with comprehensive and complete product solutions. We focus on the manufacturing of post-printing machinery for paper packaging, mainly engaged in the production of paper gluing machines, flat-pressing and flat-cutting machines, folding machines, box-nailing machines, as well as equipment and consumables required for the post-packaging process.

COMPANY OVERVIEW
Company overview display
COMPETITIVE ADVANTAGES
Competitive advantages list visual

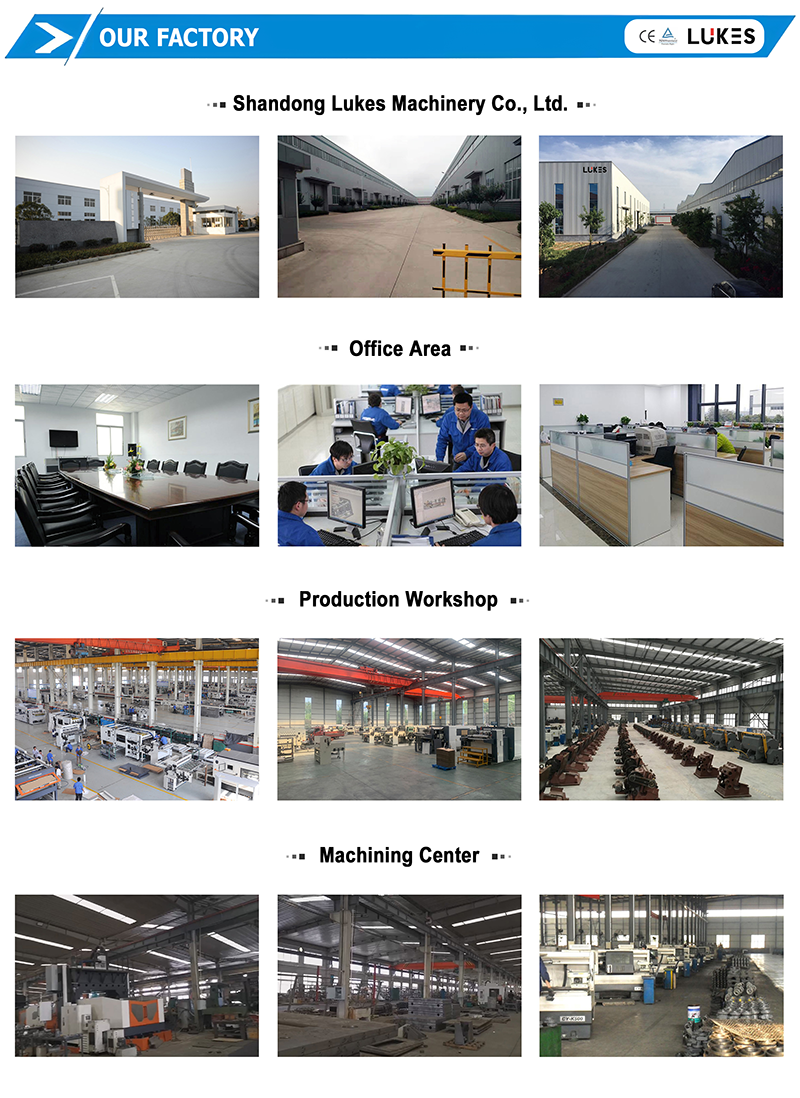

FACTORY PROFILE
Factory Workshop View
TRADE SHOW PARTICIPATION
Exhibition trade show booth

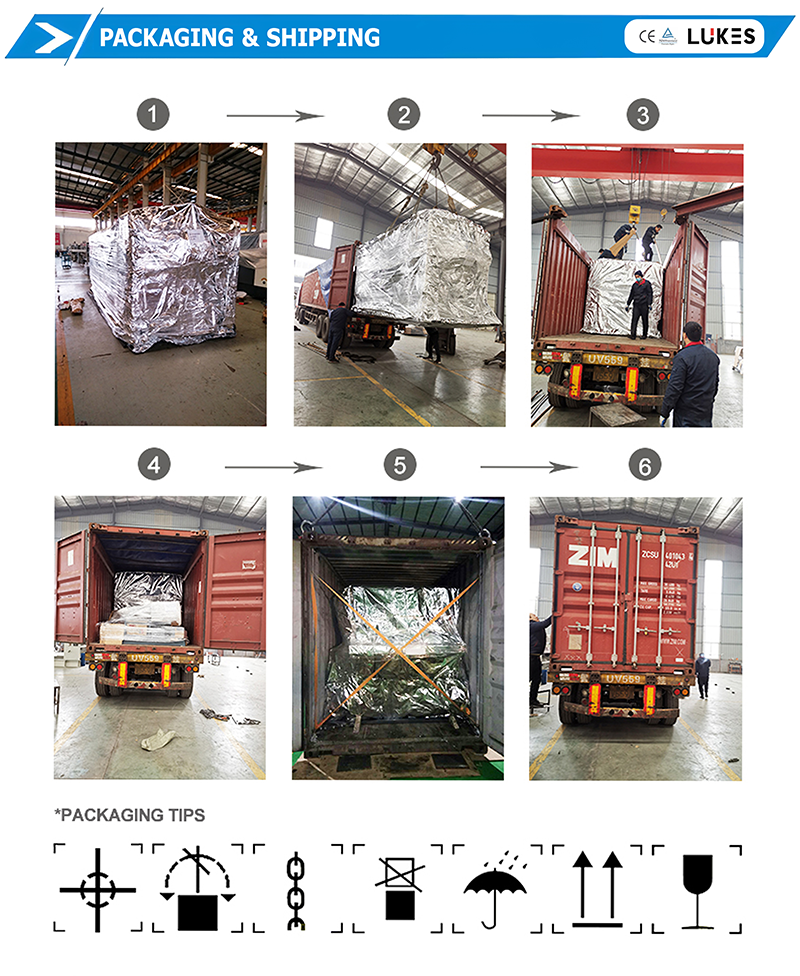

PACKAGING & SHIPPING SPECIFICATIONS
Packaging & shipping procedures detail
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, and we also provide comprehensive business solutions to all our clients.
What is your typical delivery time?
Our normal delivery time is 30 to 55 working days for non-stock models, starting after we receive your deposit.
What is the warranty coverage on your machinery?
All our machines come with a one-and-a-half-year (18 months) guarantee. Beyond the warranty period, we continue to supply spare parts at cost and offer free maintenance knowledge support.
How do you handle after-sales service?
In addition to our quality guarantee, we highly value after-sales service to resolve client issues efficiently. We offer multiple service channels including 7x24 hour phone support, remote technical assistance, on-site service, preventive maintenance, and operator training programs.
What are your payment terms?
We accept a 30% deposit via TT, with the remaining 70% balance due before shipping via TT or at sight L/C. We also accept Western Union and cash payments.
