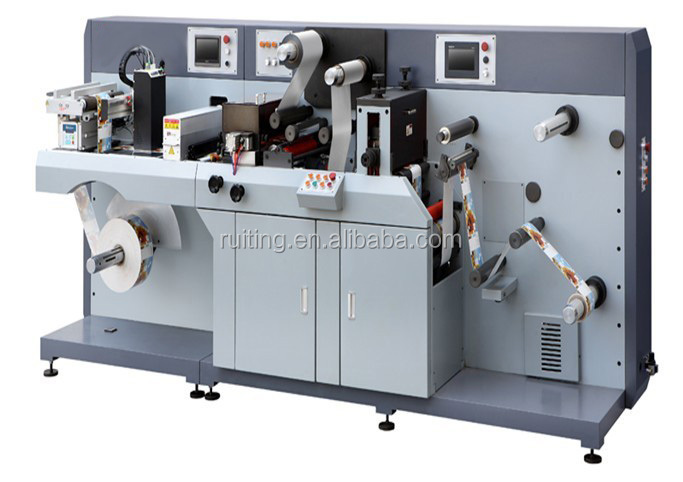

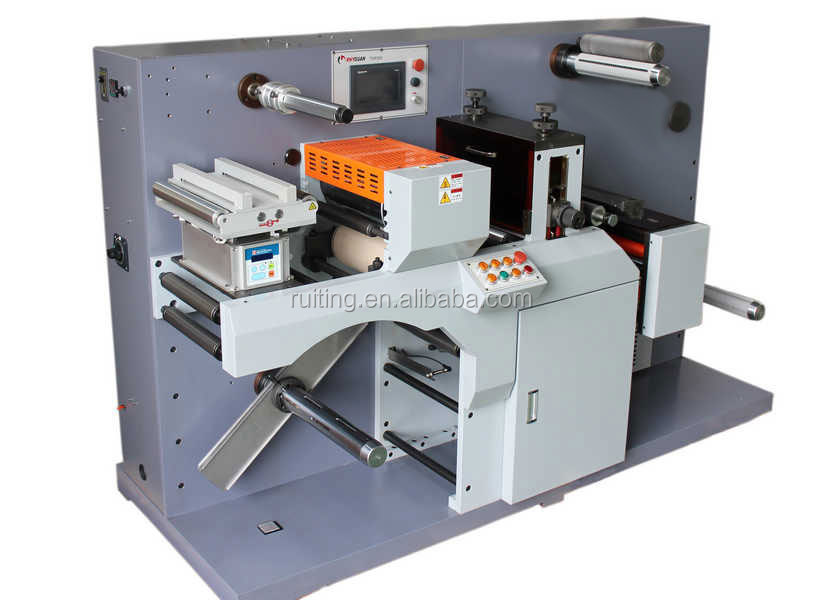

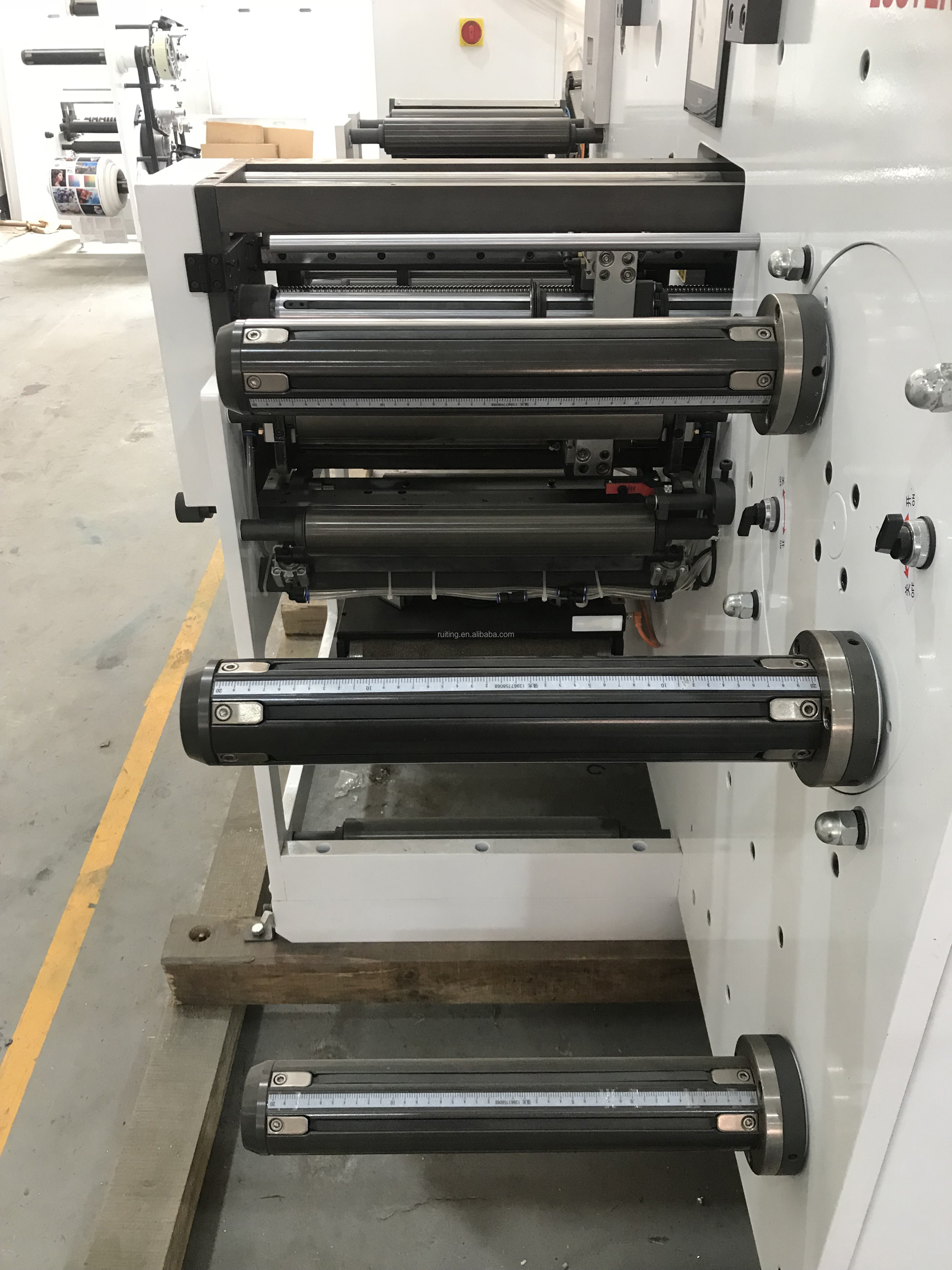

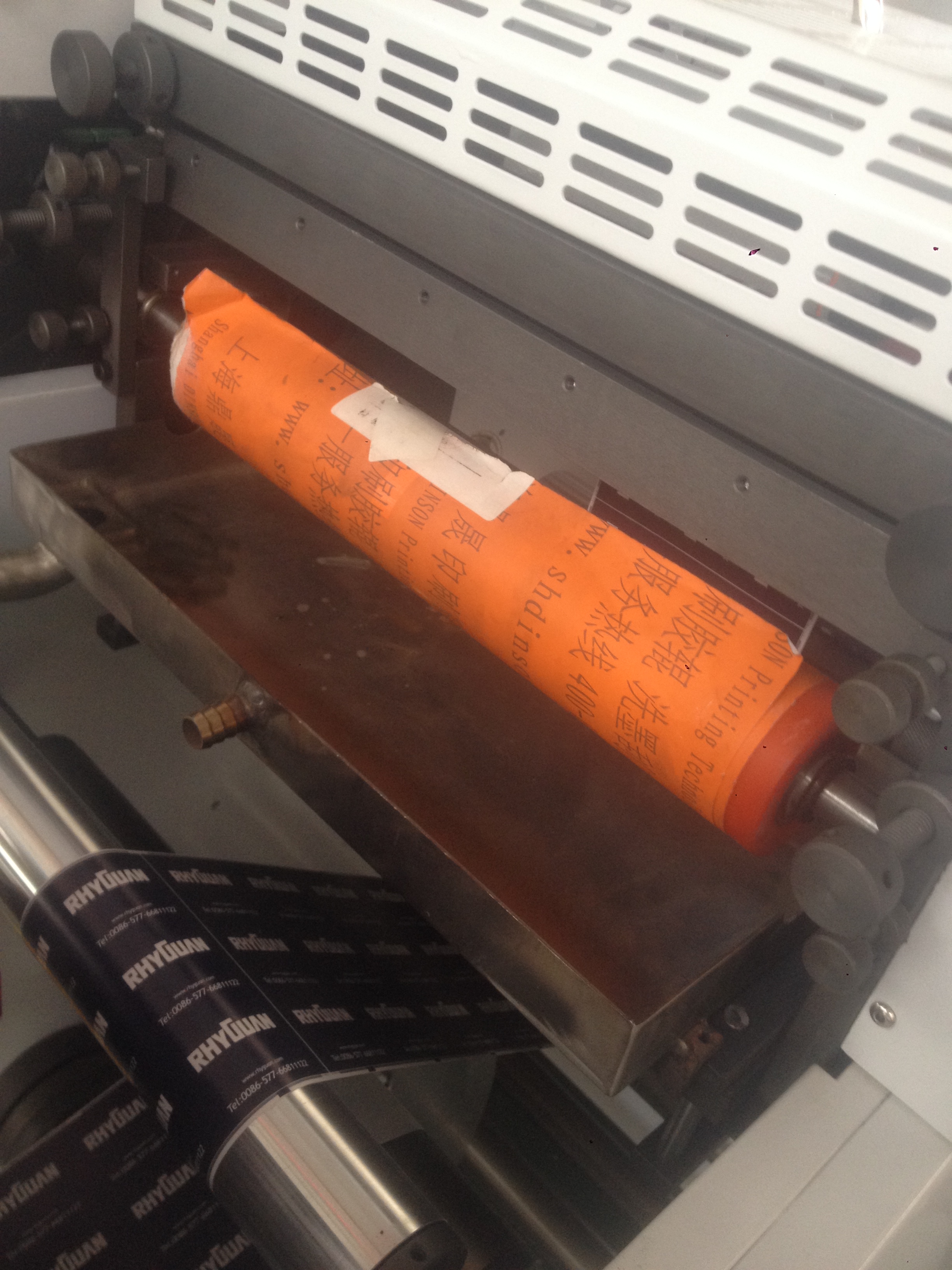

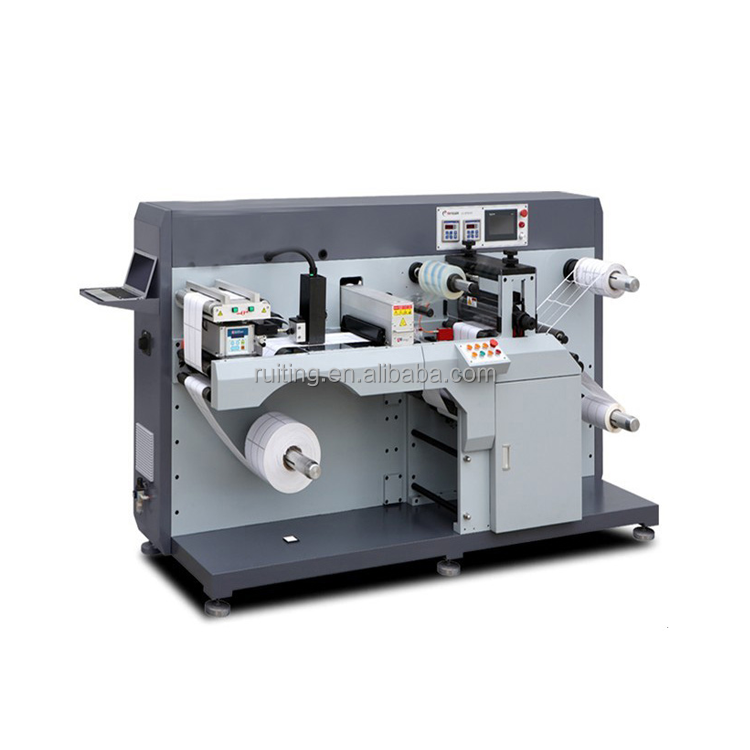

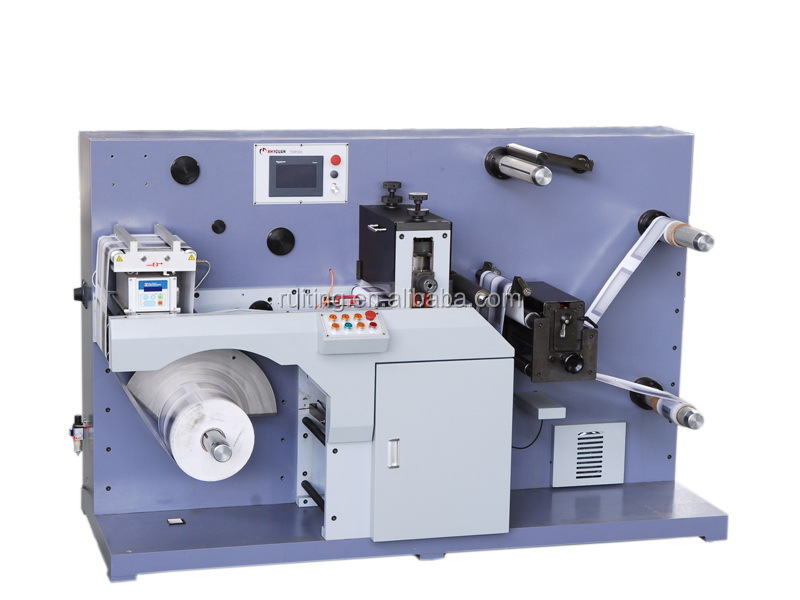

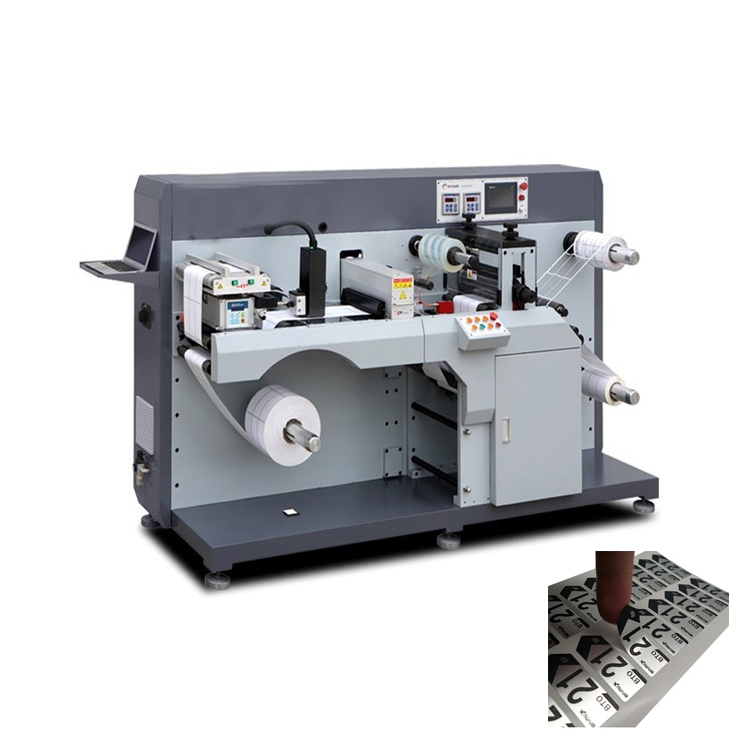

RTOP-330 intermittent automatic intermittent rotary die cutting machine for full printed label is designed for the label converting and finishing process,is able to work in both semi rotary(Intermittent) and fully rotary mode.

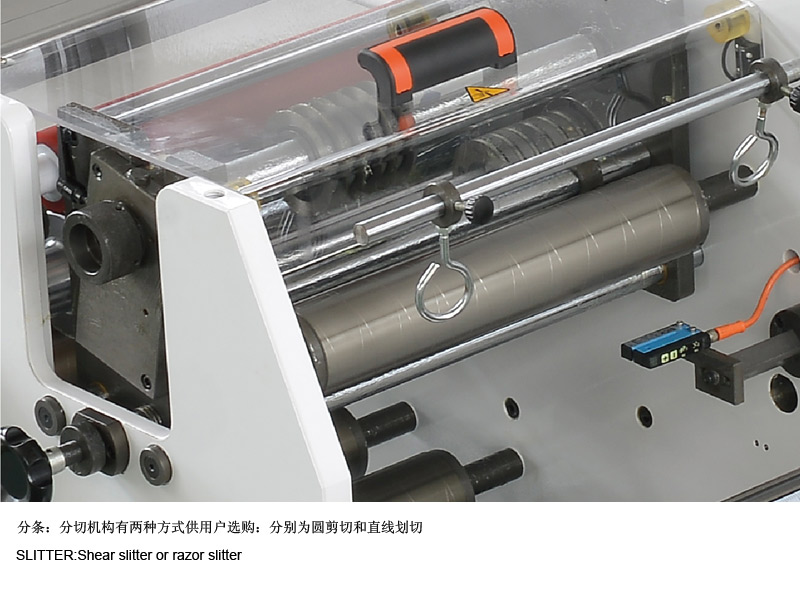

Modular designs with many functions optional,Inkjet press platform,flexographic UV(Varnishing,Cold foil), Die cutting,Slitting,Sheeting.etc.The machine shows great effort in humanity design and friendly operating.
| Max Speed | 300Cyles/min(65meters/min) |
| Accuracy of Cutting | ±0.15mm |
| Max Die Cutting Area | 330mm×320mm (L×W) |
| Paper Width | 80mm---330mm |
| Max Unwinding Dia. | φ700mm(about 2000Meters) |
| Max Rewinding Dia. | φ700mm(about 2000Meters) |
| Magnetic Cylinder | 120Teeth 1/8 “CP(Standard) |
| Cylinder range | 55T~160T |
| Length of Die Cutting | 50mm~330mm |
| MOTOR Power | 8 KW |
| UV POWER(KW) | Inkjet:4.8 Cold stamping:7.0 |
| Overall Dimension(L×W×H) | 2900mm×1200mm×1500mm |
| Weight | 2500KG |
