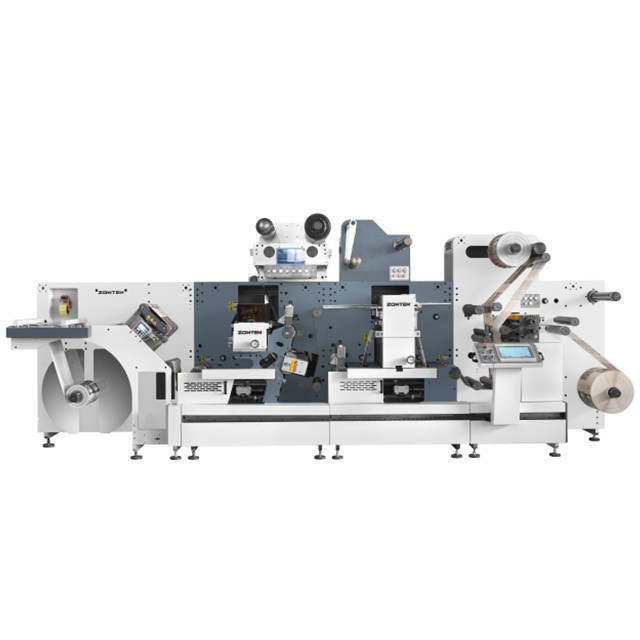

ZMQ-370 China Hot Sale Label Sticker Auto Semi Rotary Die Cutting Machine with Hot Foil Stamping

Product Description

Products Description
Machine Flow Chart 1
Machine Flow Chart 2
Details Images
Paper connect platform
Paper connect platform
BST web guider
BST web guider
Semi rotary die cut unit
Semi rotary die cut unit
Snow ball waste collect rewind
Snow ball waste collect rewind
Slit unit
Slit unit
Rewind finish rolls
Rewind finish rolls
Movable control panel -touch screen
Movable control panel -touch screen
Optional: flexo unit with uv dryer
Optional: flexo unit with uv dryer
flexo print cylinder
Flexo print cylinder
Optional: Cold foil unit
Optional: Cold foil unit
Optional: flat bed hot foil stamping unit
Optional: flat bed hot foil stamping unit
Optional: IML die cut unit
Optional: IML die cut unit
Optional: rotary lamination
Optional: rotary lamination
Optional: cut sheet conveyor
Optional: cut sheet conveyor
Optional: silk screen unit
Optional: silk screen unit
Details Image 16
Details Image 17
Details Image 18
Details Image 19
Details Image 20
Details Image 21
Details Image 22
Details Image 23
Details Image 24
Details Image 25
Details Image 26
Details Image 27
Details Image 28
Details Image 29
Details Image 30
Product Parameters
1). Printing Machines:
  • 1. ZTJ-330/520 intermittent offset label printing machine
  • 2. Super-320 intermittent letterpress label printing machine
  • 3. LRY 330/450 stack flexo label printing machine
  • 4. RY-330/450 flexographic label printing machine
  • 5. flexo plate making machine
2). Die Cutting Machines:
  • 1. MQ-320 die cutting machine
  • 2. FQ-330/450R rotary die cutting and slitting machine for blank label
  • 3. ZMQ-320 semi rotary die cutting machine
3). Slitting Machines:
  • 1. FQ-320/450 label slitting and rewinding machine
4). Inspecting Machines:
  • 1. ZJP inspecting machine

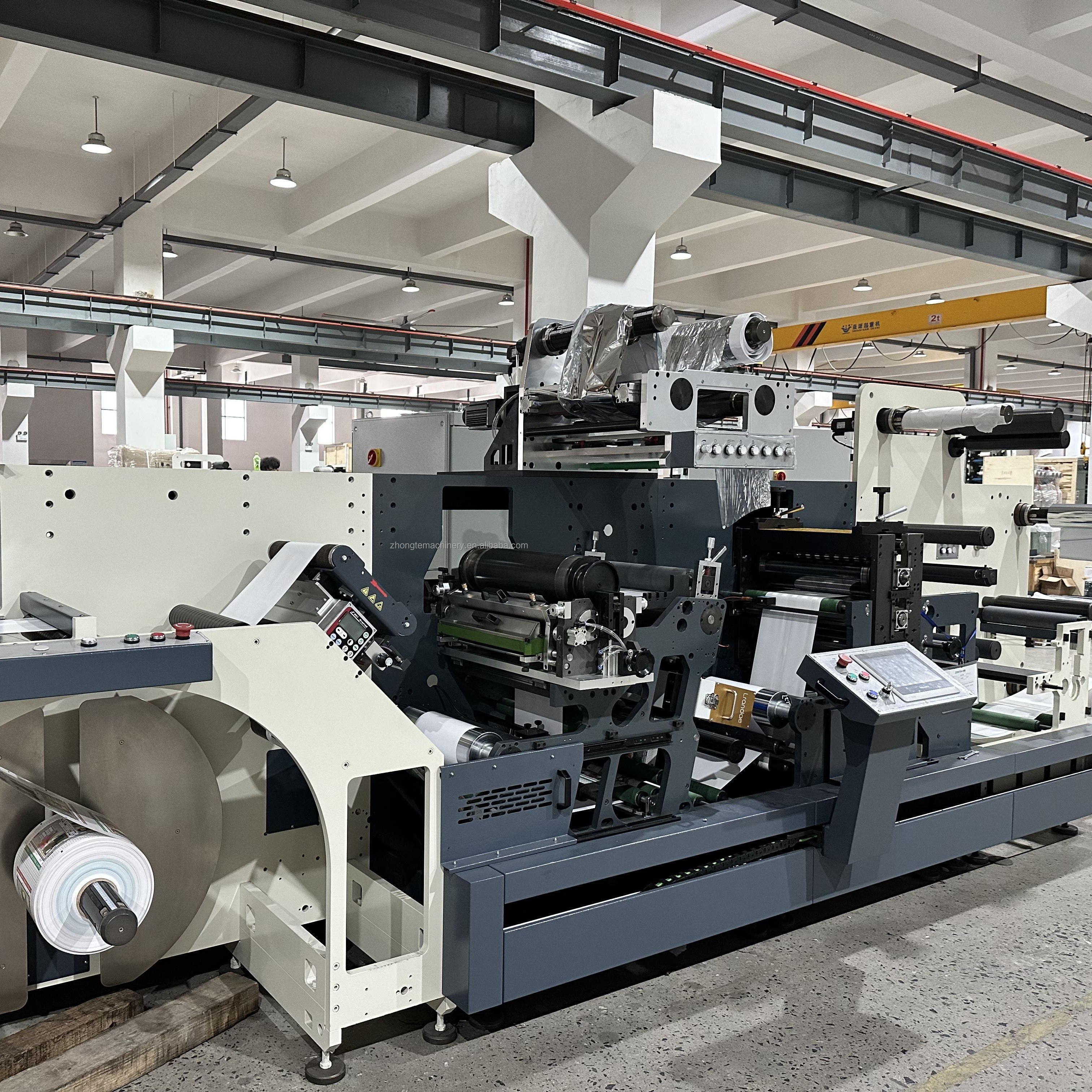

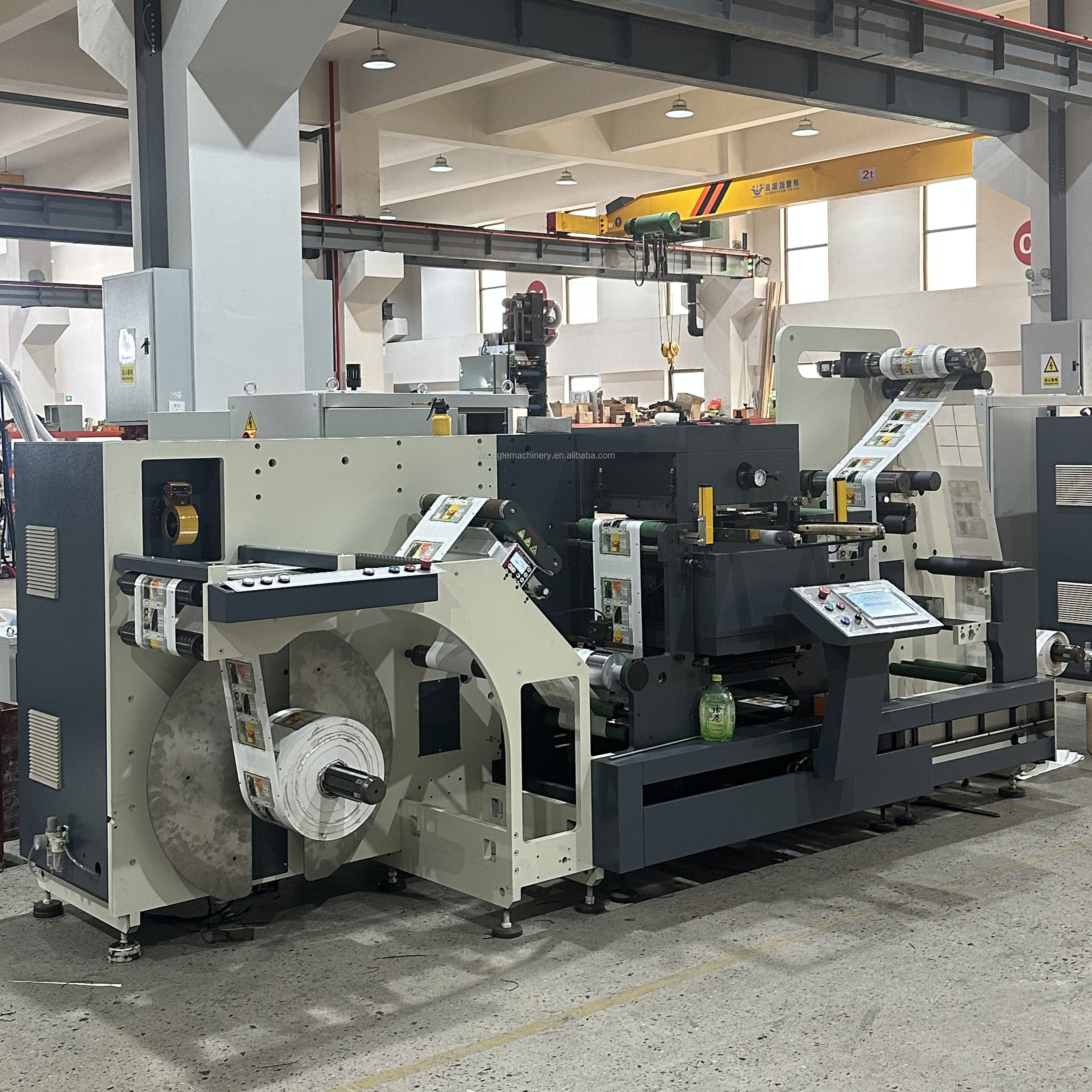

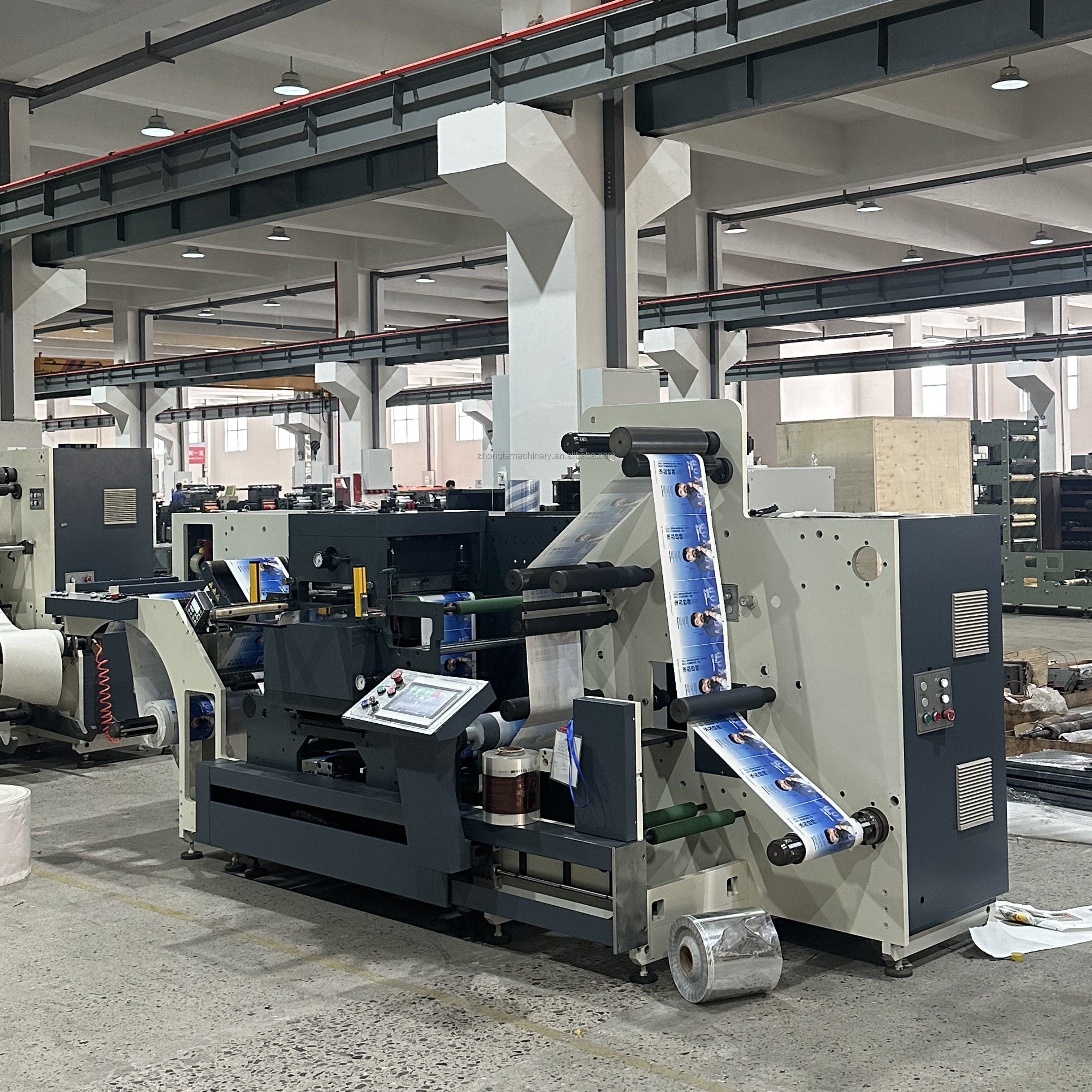

ZMQ-370 high speed auto sticker flat bed hot foil stamping semi rotary die cutting slitting machine with flexo unit

ZMQ-370/450/520 is the newly developed equipment for die cutting and slitting. It adopts a servo-control system to achieve optimization control of the machine, which assures high accuracy and stability of the die cutter. Automatic paper feeding, web guider, lamination, UV flexo coating, die cutting, and slitting can be completed in one pass. The machine has many advantages such as smaller floor space, lower noise, high speed, etc. It is an ideal option for die cutting and shaping in label printing factories, electronic industries, and viscose products industries.

Model ZMQ-370
Max. Speed 300 cycle/min
Max. full rotary speed 130 m/min
Accuracy adhesive cutting +-0.10 mm
Accuracy of IML cutting +-0.25 mm
Max. die cutting area 400 mm * 350 mm
Max. unwinding Dia. 700 mm
Max. rewinding Dia. 700 mm
Paper width 100 - 370 mm
Magnetic cylinder 152T
Die cutting repeat length 50 - 400 mm
Main power 10 kw
Overall dimension (around) 3200 * 1310 * 1700 mm
Machine weight (around) 2750 kg
Product Packaging
Packaging Image 1
Packaging Image 2
Packaging Image 3

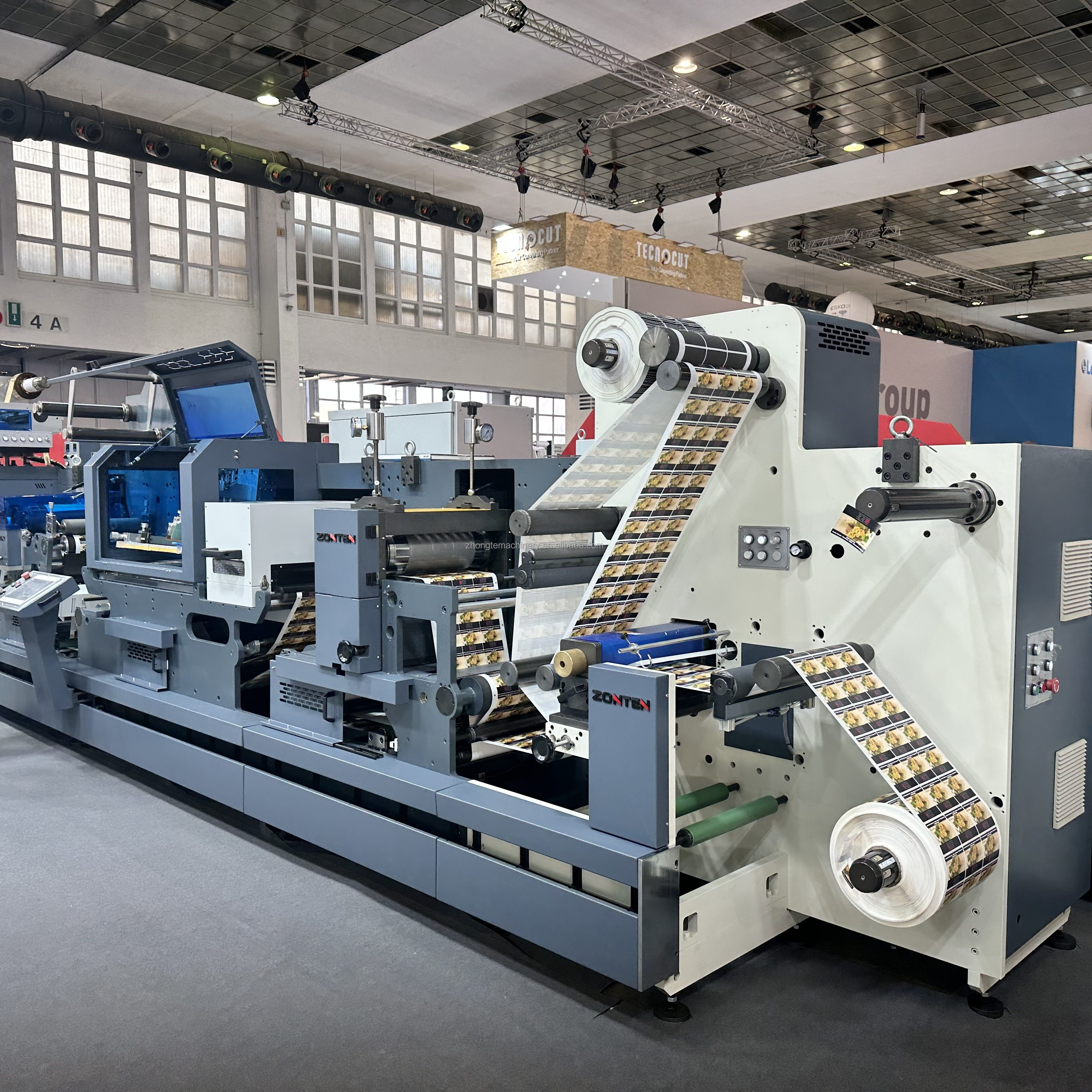

Exhibition
Exhibition Poster
Company Profile
We are a professional enterprise specializing in developing, producing, and selling label and packaging printing machines. We are recognized as a national high-tech enterprise through new government standards, the enterprise for State Torch Projects, and a Provincial High-tech SME. Our company emphasizes the recruitment of top-notch international professionals and possesses abundant technical expertise. Relying on a global sales and marketing network and high-tech capabilities, we adhere to the development strategy of "Be a science and technology leader, to create the national brand." We have established a reputable status within the printing machinery industry.

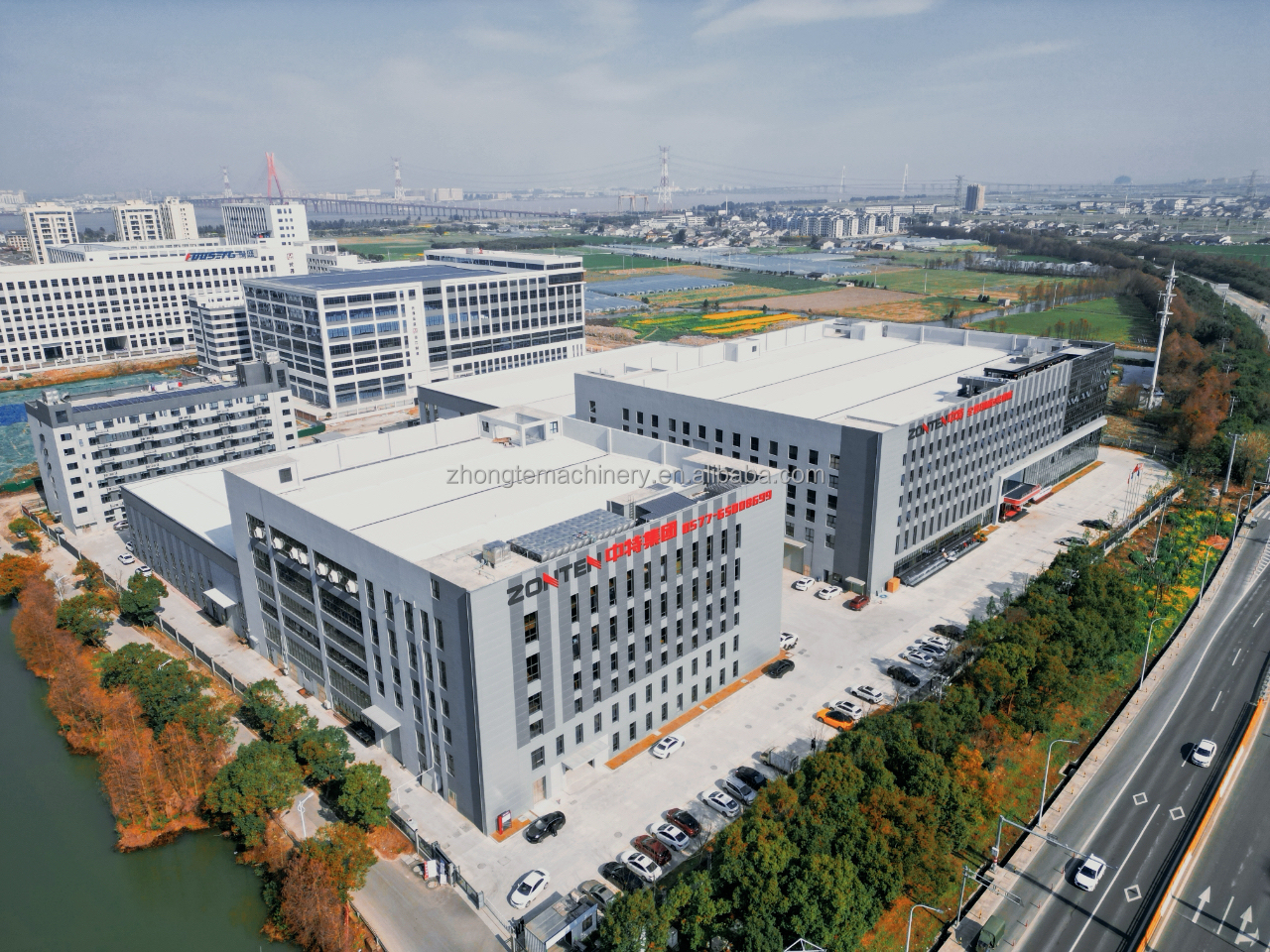

Company Facility
FAQ
Are you a factory or a trading company?
We are a professional manufacturing factory in this field with nearly 20 years of experience.
How does your factory control machine quality?
Quality is our priority. We implement a strict quality control system to manage every detail of the machine right from the start.
How long is the machine warranty period and after-sales service?
We offer a one-year guarantee and provide customers with full-time online support for sales and after-sales inquiries.
How many operators are needed to run this machine?
A single operator can handle and run the machine with ease.
Why choose our machinery?
We are one of the industry leaders in the label machinery field. We hold the management philosophy of "Win with quality and success by professionalism". Our products perform strongly in domestic markets and are exported to more than 100 countries.
