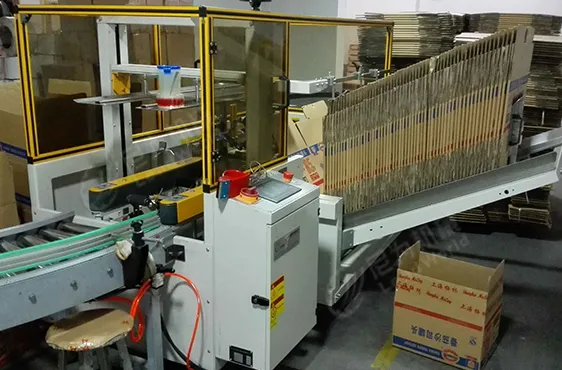

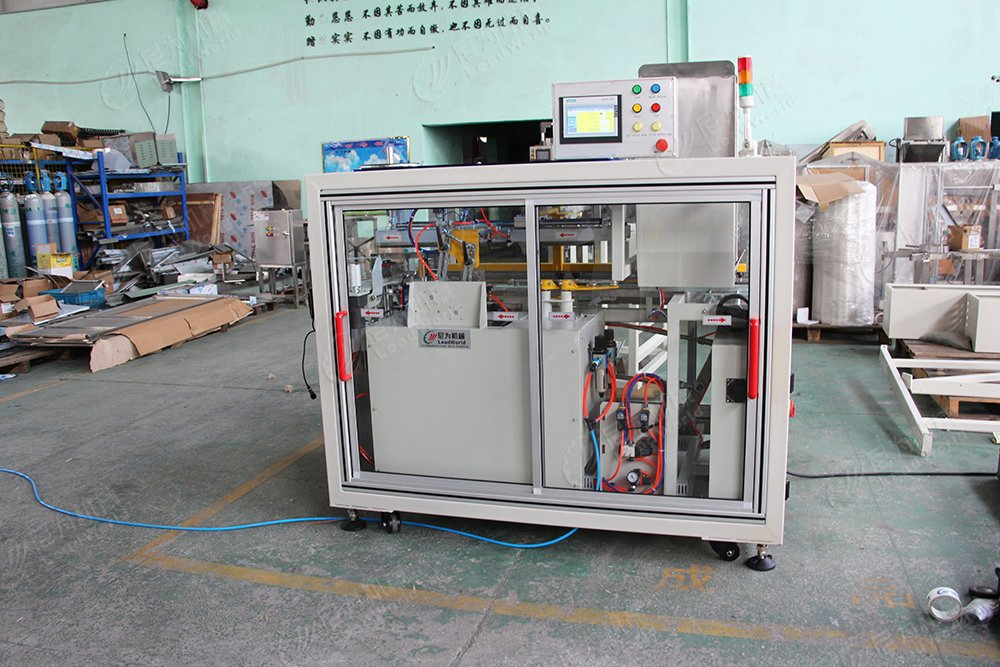

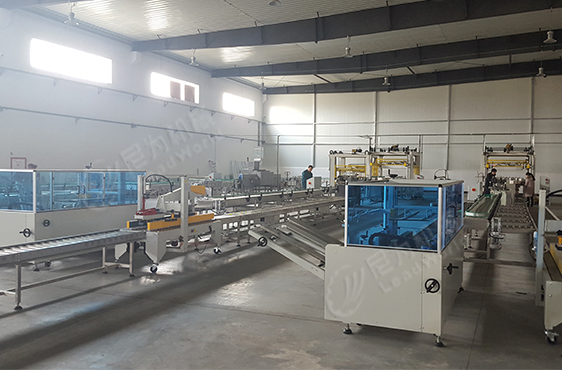

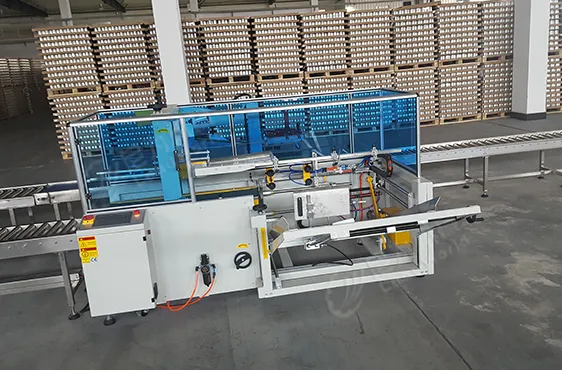

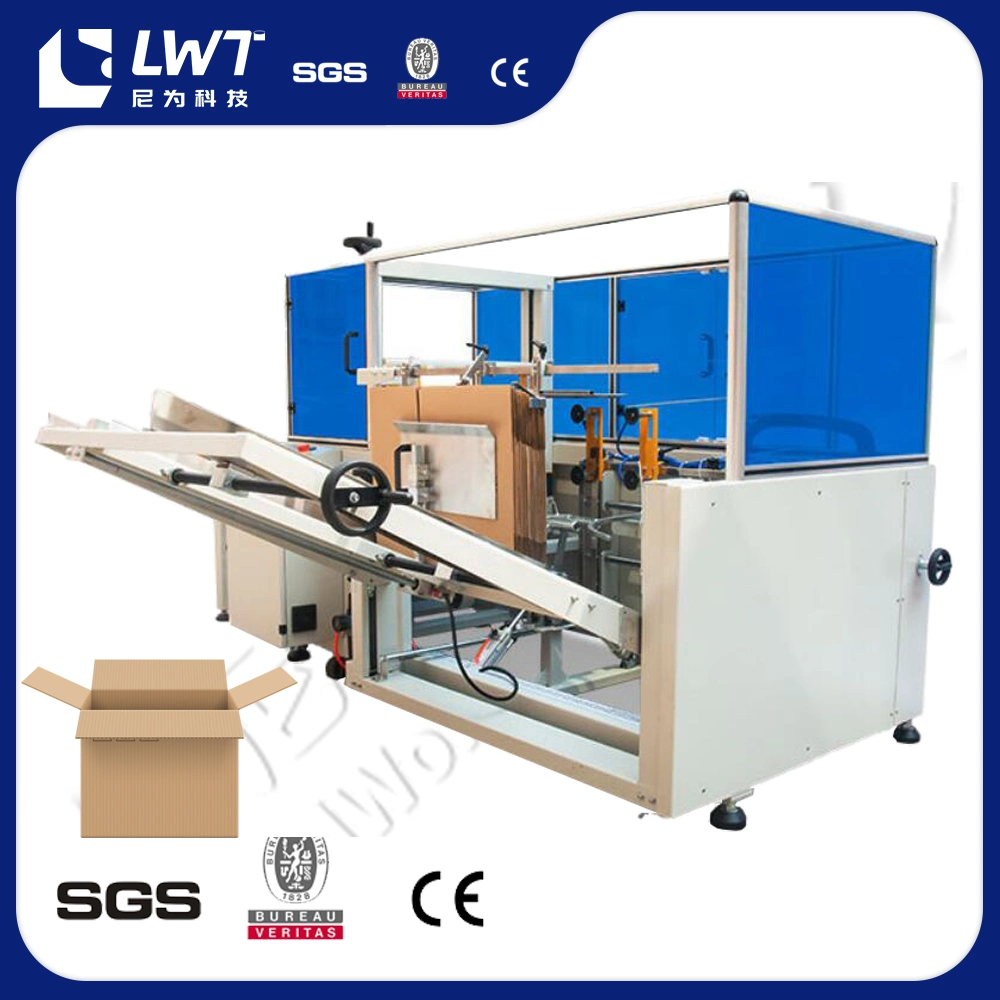

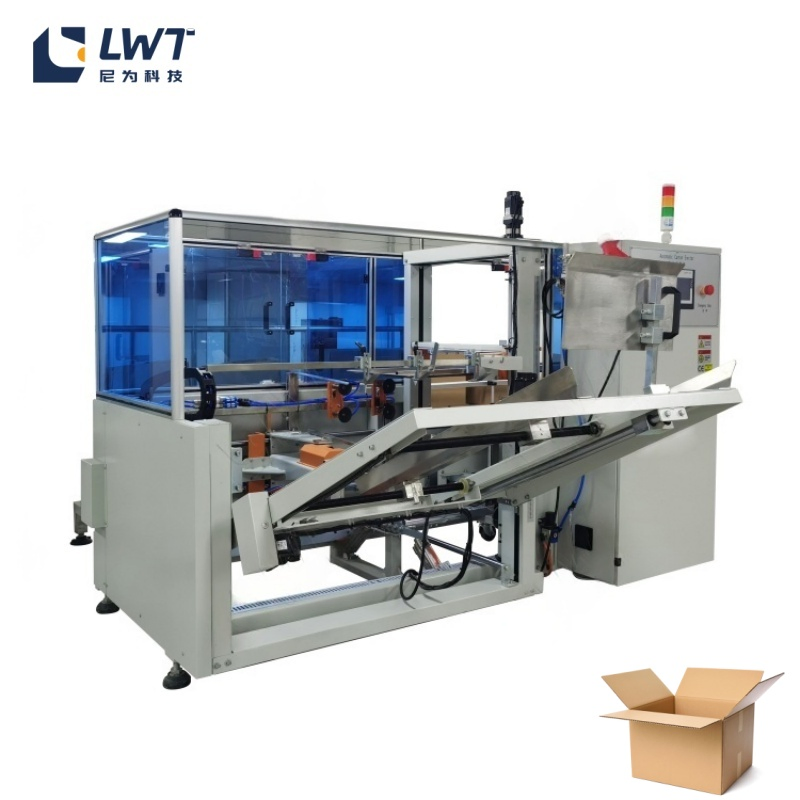

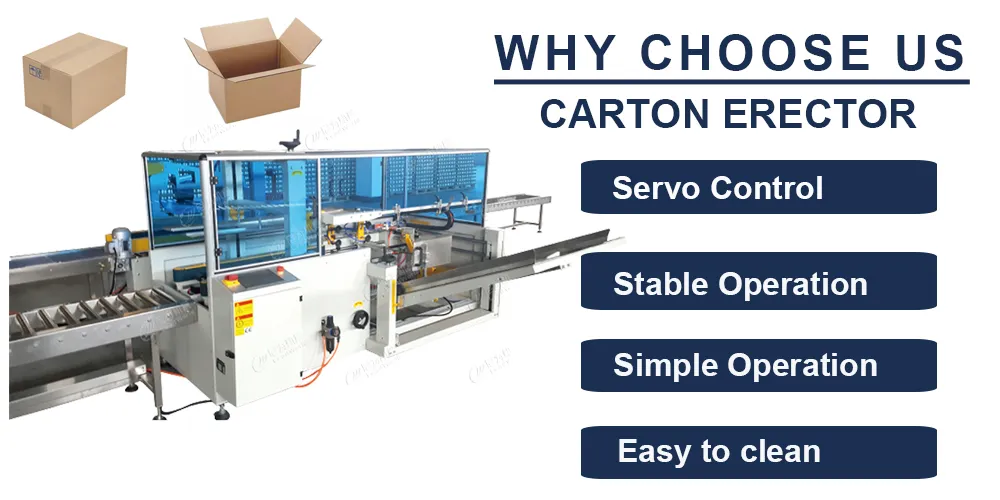

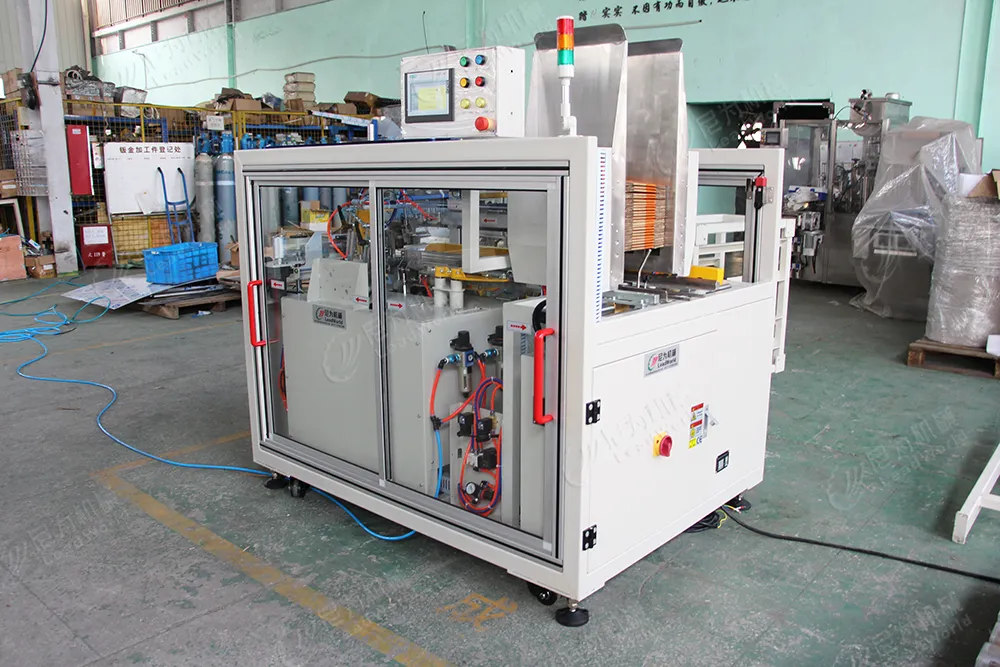

Carton Erector is designed to let cartons placed in the machine's storage board manually, the machine will automatically pull the carton shape, automatically fold the bottom of the page and automatically seal it.
The carton erector is a Semi-auto carton sealing machine which can fold the bottom cover of carton and seal; it can be operated separately, economic and high-efficiency, which is an ideal packaging machine. The main parameters are listed as follows:
| Model | LW-EV18 | LW-EH30 | LW-EH50 |
|---|---|---|---|
| Capacity | 18pcs/min | 30pcs/min | 50pcs/min |
| Carton collecting | 100pcs(1000mm) | 80pcs(800mm) | 80pcs(1000mm) |
| Carton size | L:250-400mm W:150-350mm H:100-350mm |
L:240-510mm W:190-400mm H:120-400mm |
L:250-450mm W:150-400mm H:100-300mm |
| Power | 220V 1Φ 200W | 380V 3Φ 746W | 380V 3Φ 746W |
| Air Consumption | 0.6Mpa 450NL/min | 0.5Mpa 300NL/min | 0.5Mpa 300NL/min |
| Machine Size | L2400*W1200*H1450mm | L2372*W1210*H1820mm | L3120*W1250*H1740 |
| Belt Size | 48,60,75mm | 2'', 2.5'' | 2'', 2.5'' |
We can customize different types of products according to your needs.
| Item | Brand |
|---|---|
| Robot palletizer | ABB |
| PLC | Siemens |
| Touch screen | Siemens |
| Label photoelectric detection | SICK |
| Lack of label photoelectric detection | OMRON |
| Out label photoelectric detection | BANNER |
| Servo motor | Panasonic |
| Contactor | Schneider |
| Electronic control system | Schneider |
| Bearing | Germany igus |
Professional packaging machines: labeling machine, palletizing machine, sealing machine, unpacking machine and packing machine.
