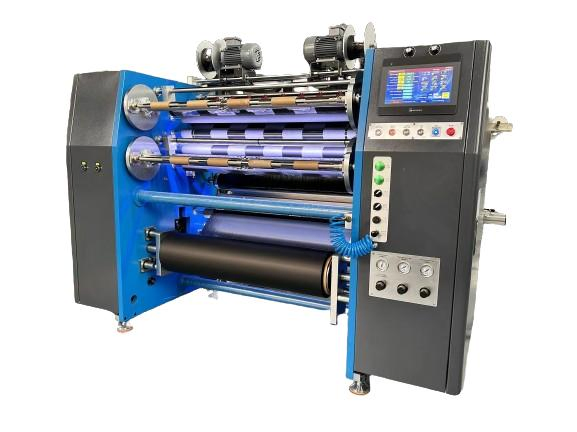

N SERIES is the most advanced and efficient TTR slitting machine currently available. It is specifically designed to meet the demands of Industry 4.0 for large TTR slitting factories and businesses operating in high-labor-cost regions.
By integrating Fully Automatic Blade Setting, Fully Automatic Leader Tables, and Automatic Turret/Cross-Cutting technology, this model removes the human error factor and maximizes uptime, delivering a world-class production speed of 450m/min.
| Parameter Name | Specification Details | ||
|---|---|---|---|
| Slitting Layer | Single Layer | ||
| Slitting Width | 650 MM | ||
| Slitting Thickness | 40–120 GR/M² | ||
| Unwinding Diameter | 1200 MM | ||
| Unwinding Type | Air Shaft | ||
| Unwinding Core Size | 3 Inch | ||
| Unwinding Brake Type | Magnetic Powder Brake | ||
| Rewinding Width | 20 MM (Min.) | ||
| Rewinding Diameter | 250 MM (Max.) | ||
| Rewinding Shaft | 8–50 MM | ||
| Slitting Unit | 10 Pcs Circle Blades | ||
| Wall Thickness | 30 MM | ||
| Mechanical Speed | 200 M/Min (Max.) | ||
| Working Speed | 180 M/Min (Max.) | ||
| Power Supply | 380 V, 3 Phases, 50 Hz, 2.2 KW | ||
| Air Power Supply | 0.8 MPa (Min.) | ||
| Net Weight | 1500 KG | ||
| Machine Size | 1800 × 2000 × 1450 MM |

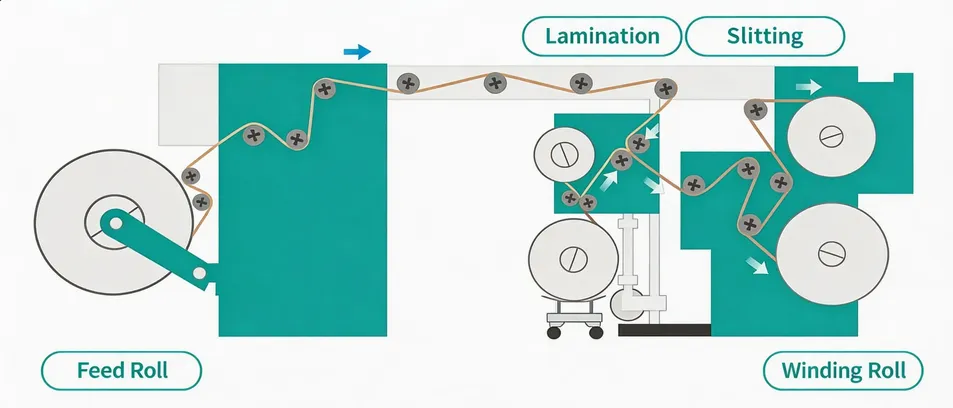

This slitting machine is designed for flexible packaging, delivering precise and efficient converting from jumbo rolls to finished rolls. With advanced unwinding and rewinding systems, it ensures stable tension control, smooth web handling, and clean slitting performance. The machine guarantees consistent roll quality, high productivity, and reliable operation, making it an ideal solution for modern packaging production.
We provide a one-year warranty for the key parts of the machine, including: Motor, PLC, touch screen, and magnetic powder clutch.
On-site Installation: Engineer services are available for installation and training (client covers visa, flights, meals, lodging, and daily subsidy).
Factory Training: Free training at our facility (client covers own accommodation expenses).
We provide comprehensive lifetime technical support for all our machines to ensure continuous production efficiency.
