Overview
Basic Info.
Model NO.
BY-FR500
Usage
Paper Printer, Label Printer, Card Printer
Automatic Grade
Automatic
System Supported
Windowsxp32
Product Name
Friction Feeding and Rewinding Machine
Keywords
Rewinding Machine
Material
Stainless Steel/Painted Carbon Steel
Feature
High Efficiency , Multi-Function, Stable
OEM Custom
Yes
ODM Custom
Yes
Package
in Standard Export Package
Transport Package
Standard Packaging or Customized
Specification
Standard Specifications or Customized
Production Capacity
100sets/Year
Packaging & Delivery
Package Size
200.00cm * 120.00cm * 170.00cm
Package Gross Weight
350.000kg
Product Description

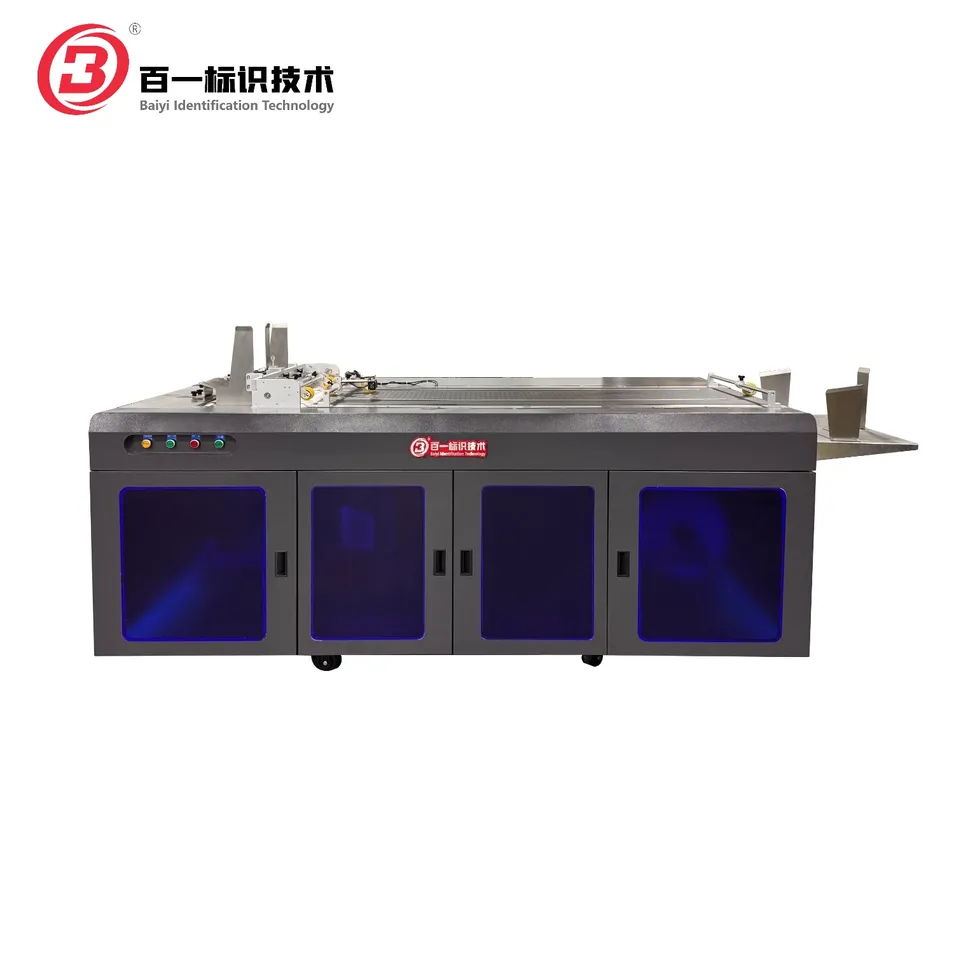

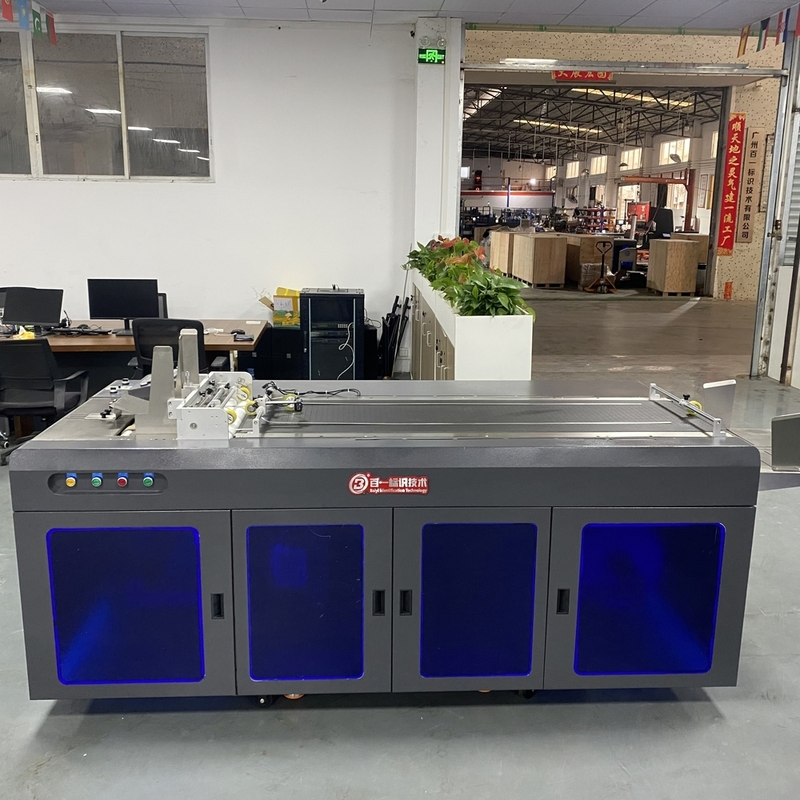

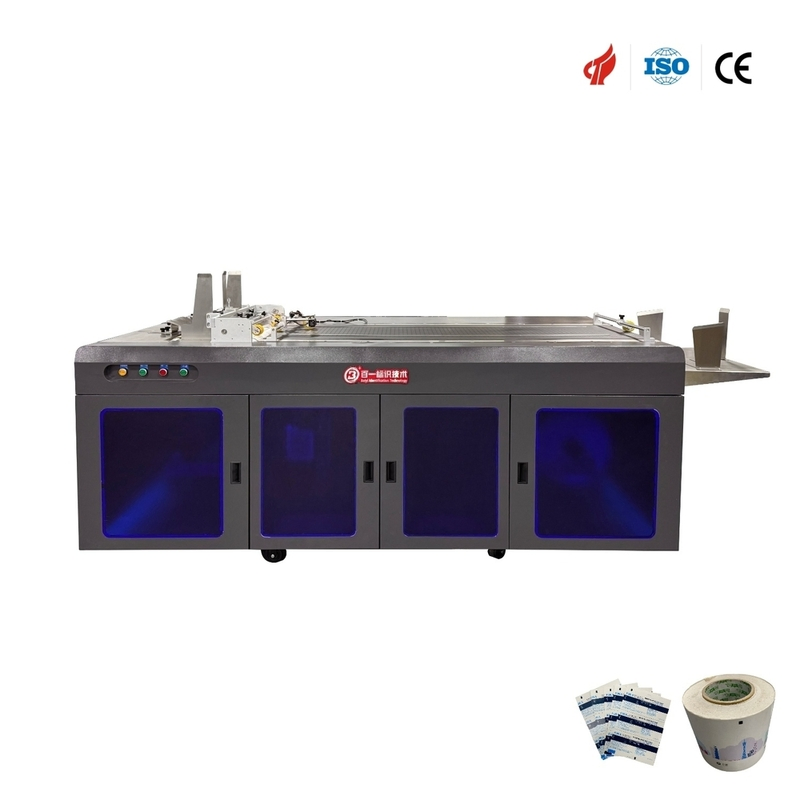

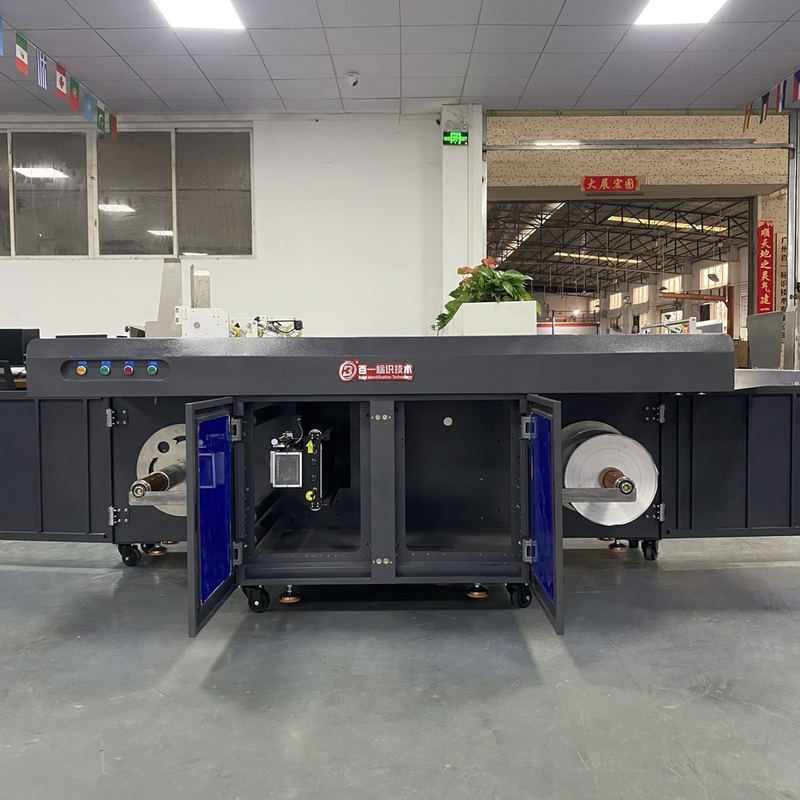

FEEDING AND REWINDING MACHINE
This advanced Intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.
Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.
The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions with integrated printing and coding capabilities.
Application
- Flexible Packaging Industry: Roll film feeding, printing, and rewinding for food packaging, pharmaceutical packaging, and consumer goods wrapping materials.
- Label Manufacturing: Production of adhesive labels, product tags, barcode labels, and identification stickers with integrated printing and finishing.
- Film Processing & Converting: Handling plastic films, BOPP films, PET films, aluminum foil, and specialty materials requiring unwinding and rewinding operations.
- Variable Data Printing: Batch coding, expiration dates, serial numbers, and personalized information on roll materials using integrated printing systems.
- Pharmaceutical & Food Industries: Compliance coding and marking on packaging materials with precise tension control for delicate substrates.
- Industrial Materials Processing: Roll-to-roll processing for technical textiles, protective films, release liners, and specialty converting applications.
Certifications
Product Parameters
| Technical Parameters |
| Voltage |
220Vac, 50Hz |
Releasing Tension Control |
Linear Tension Control |
| Efficiency |
About 500Pcs/Min (Based on 100mm product reference. Speed is relative to printing speed and frequency.) |
| Weight |
About 500Kg |
Collection Tension Control |
Linear Tension Control |
| Conveyor Speed |
5-150M/Min (Adjustable continuously) |
Power |
About 4.5Kw |
| Dimension (L*W*H) |
2600 * 1000 * 1200 mm |
Available Product |

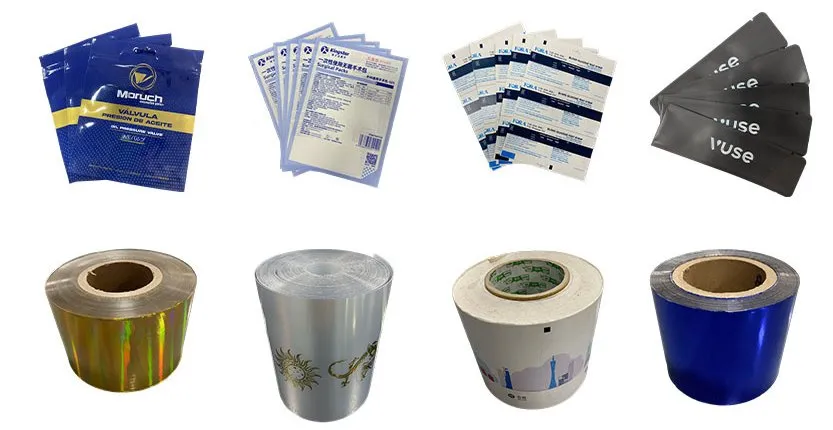

BOPP, CPP, PET, PE, Paper, Composite Film, Aluminized Film, etc. Material in roll and sheet |
| Core Diameter |
3 Inch (76mm) |
Available Product Size |
Material Width: 30-480mm, Max Material Diameter: 500mm, Max Weight: 50Kg |
System Configuration

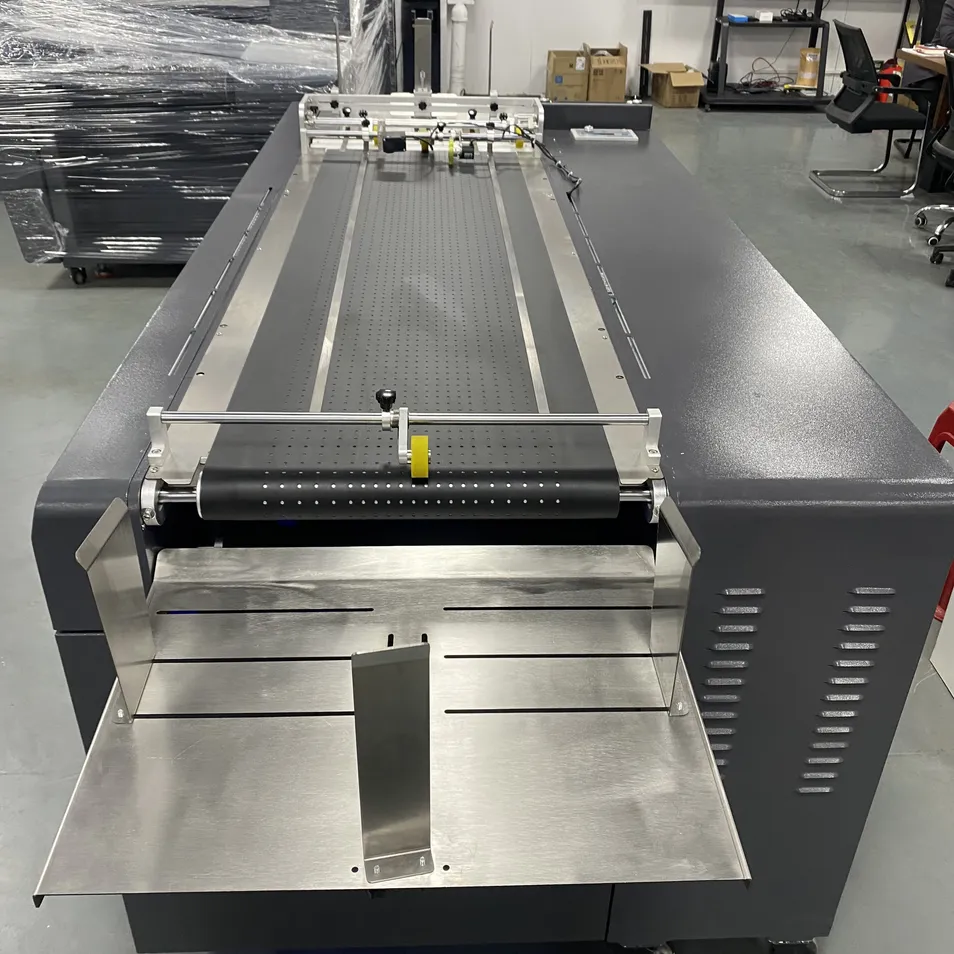

1. Feeding System Configuration
- Method: Multi-friction belt, down-out feeding
- Friction belt adjustment: Independent electric adjustment
- Vacuum method: Large flow vacuum pump
- Collection: Includes collection tray
- Conveyor size: 2000 * 500 mm

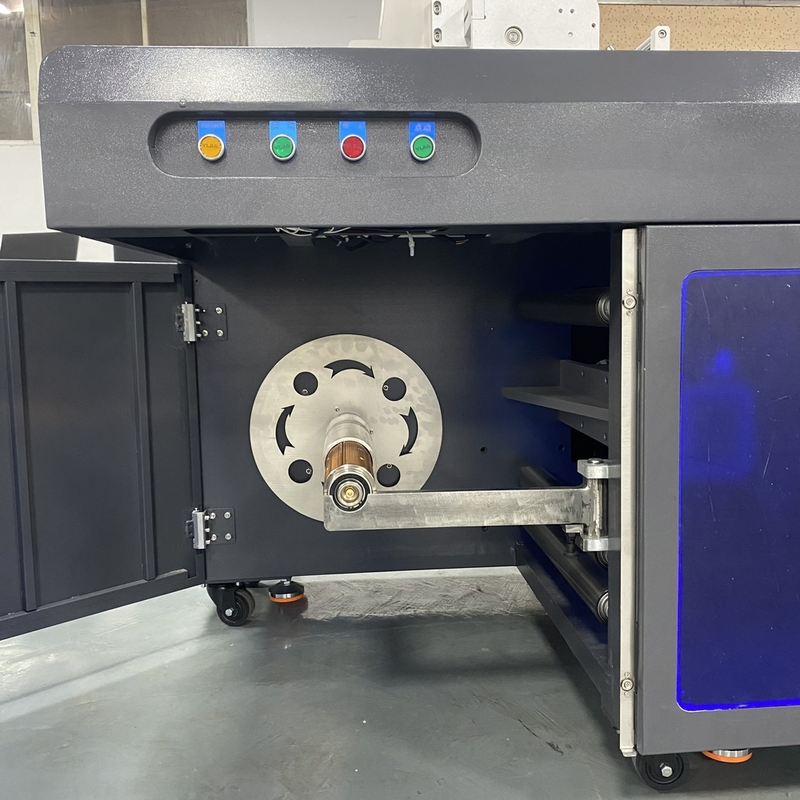

2. Rewinder Configuration
- Unwinding & rewinding axis: Inflation axis
- Unwinding, rewinding & traction power: Servo drivers
- Tension controlling: Linear tension
- Inner core diameter: 76mm (3 inch)
- Max roll material diameter: 600mm
- Available roll material width: 30-600mm
- Compatibility: Suitable for UV inkjet, laser, TIJ, CIJ printers, etc.
Detailed Photos

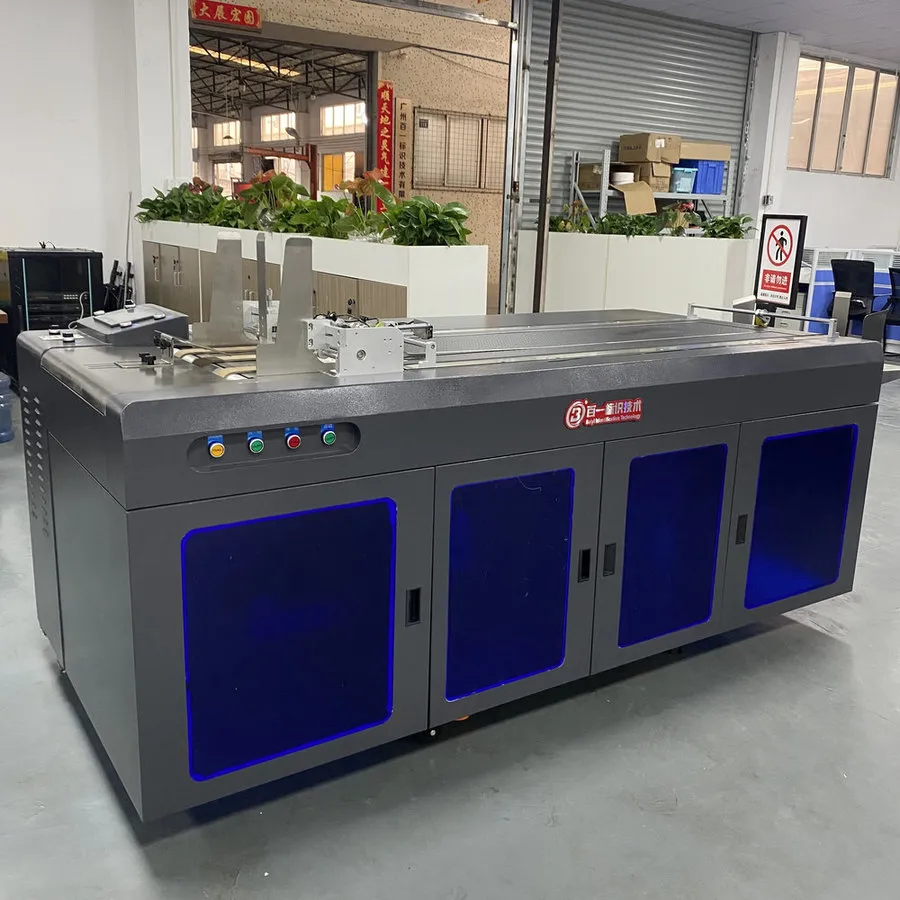

PROGRAMMABLE PARAMETER SETTINGS
Customizable working parameters adaptable to different films and labels structures, with real-time monitoring and automatic alarm notifications for operational issues.

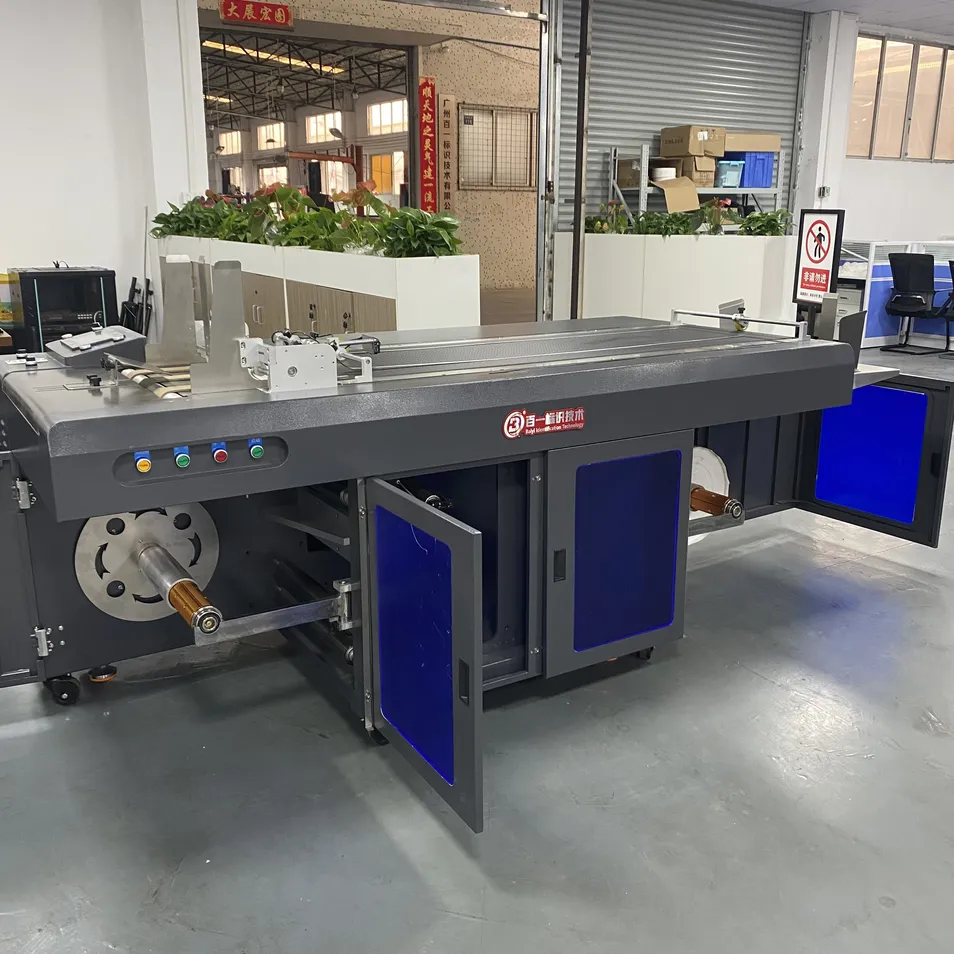

MULTI-FUNCTION CAPABILITIES
Fast/slow adjustable lifting speeds, automatic shutdown prevention, white mark or colorful mark trigger sensing, and accurate counting functions for complete production control.

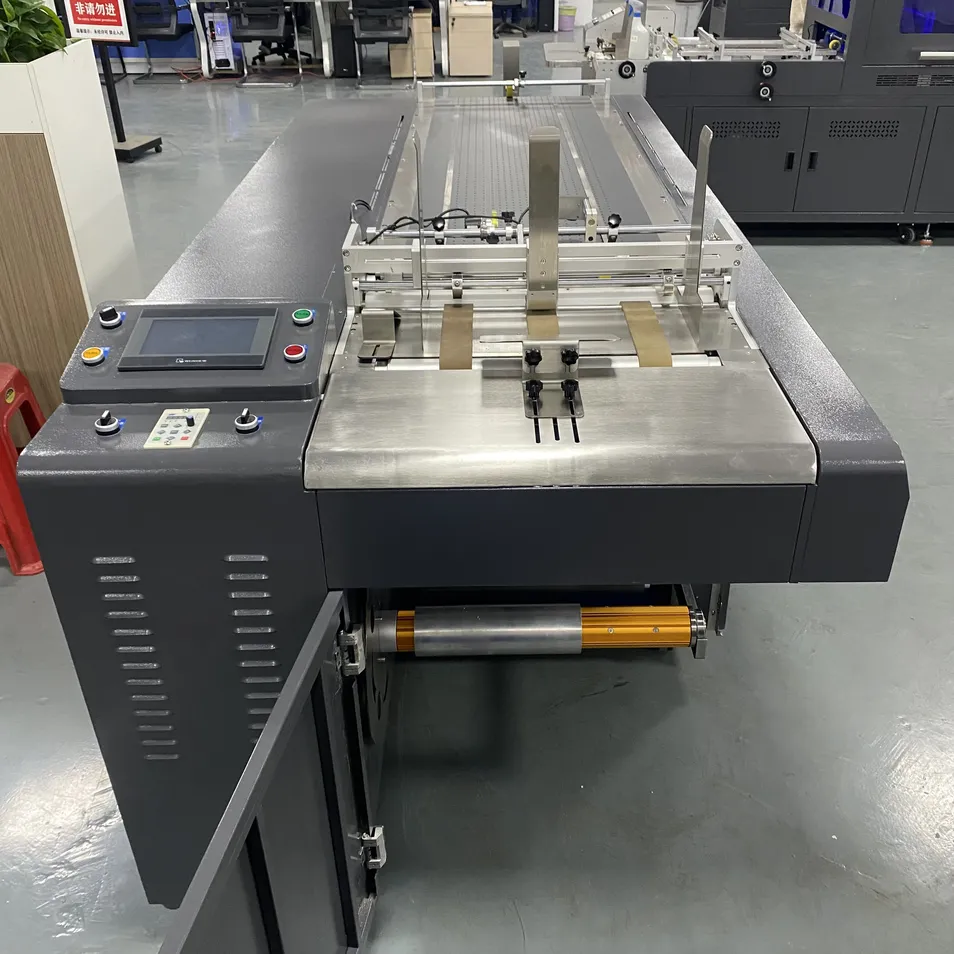

ENHANCED SPEED & PERFORMANCE
Built upon a standard rewinding machine foundation with upgraded speed capabilities and more powerful functionality for high-volume production environments.
REAL-TIME STATUS MONITORING
Comprehensive HMI system displays working status, production data, and diagnostic information with an intelligent alarm system for proactive maintenance.
Other Related Machines

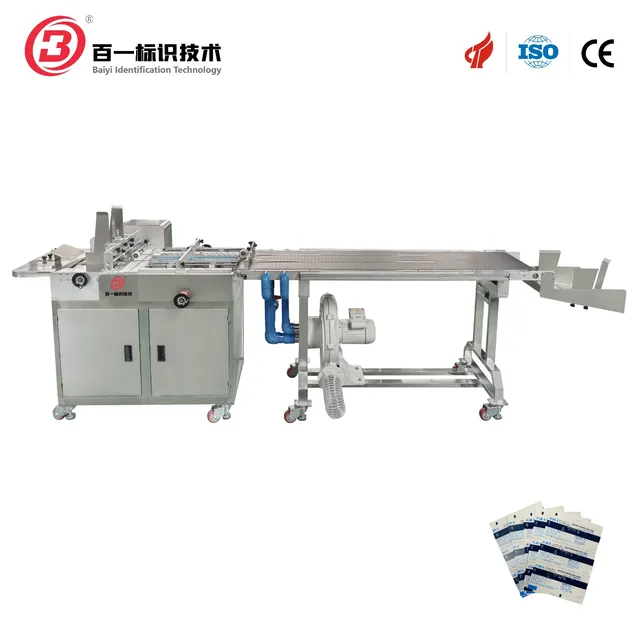

Intelligent feeder with alignment

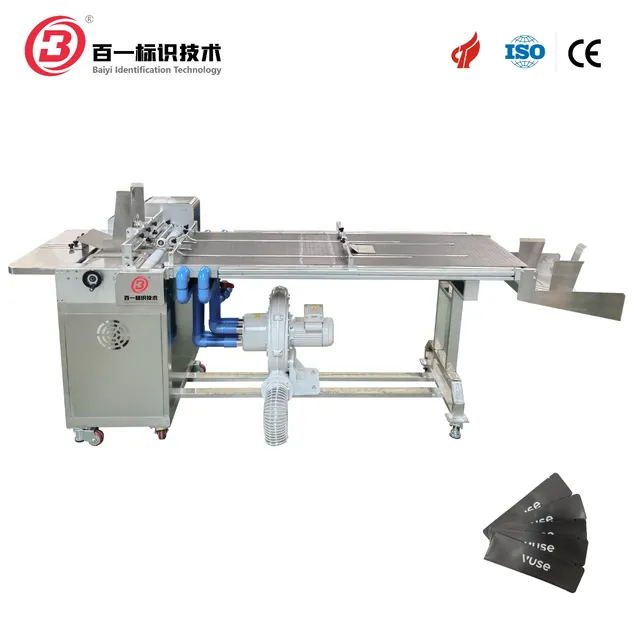

Intelligent feeding machine

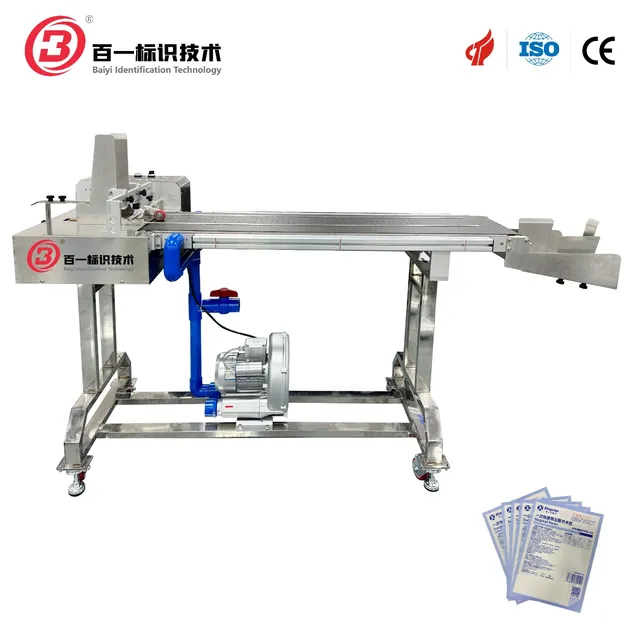

Standard Feeding machine

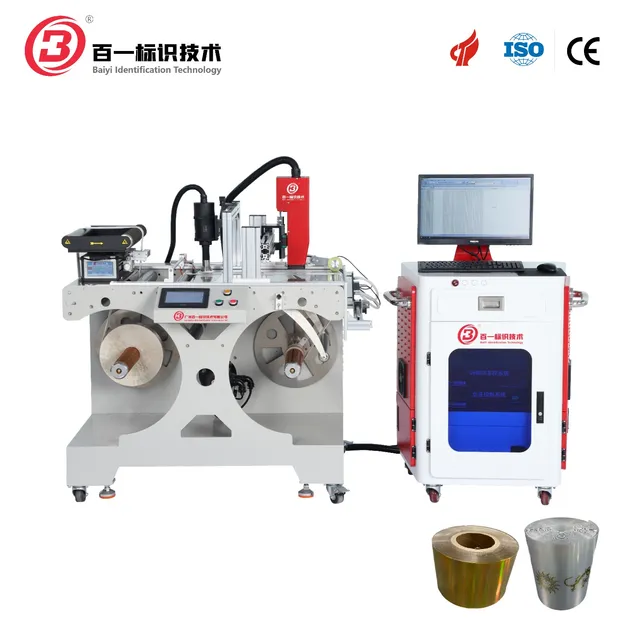

Rewinder machine with inkjet

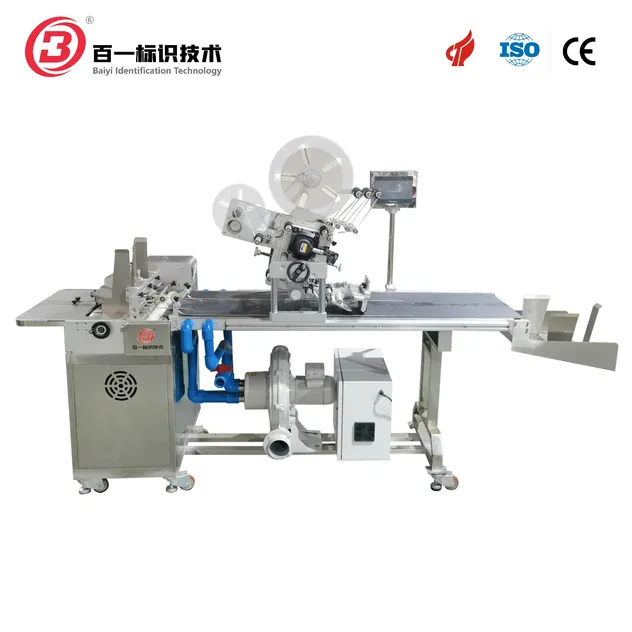

Feeding and labeling machine

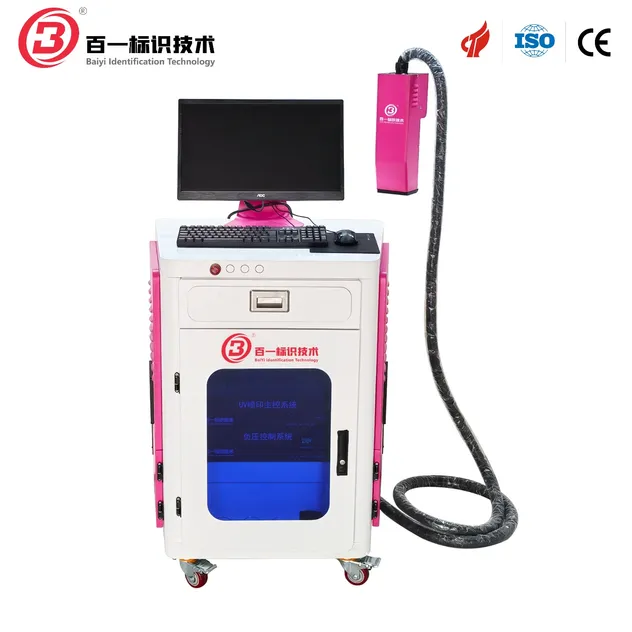

Inkjet printing machine
Machine Showcase
FAQ
What are your prices?
Price is related the machine configuration as your production requirement.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. MOQ is 1 set.
What is the average lead time?
It depends on your selection and configuration, typically ranging from 2 working days to 30 working days.
What kinds of payment methods do you accept?
At present, we accept TT, with a 50% payment after order confirmation and the remaining balance to be settled before shipment.
What is the product warranty?
Generally, the warranty is one year after delivery. Please note that wearable parts are not included.
Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized packaging for dangerous goods and validated cold storage options for temperature sensitive items. Custom packaging requirements may incur additional charges. Typically, products are placed in strong export packages.
