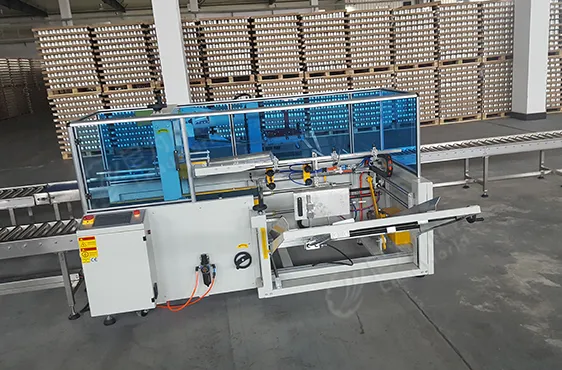

Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
1 / 5
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine

Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info & Specifications
Model NO. Carton Erector
Application Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food, Carton Erector
Driven Type Electric
After-Sales Service Overseas Service Center Available
Automatic Grade Automatic
Product Name Fully Automatic Carton Erector
Capacity 18-50PCS/Min
Carton Collecting 100PCS
Power 220V 200W
Air Consumption 0.6MPa 450nl/Min
Machine Size L2400*W1200*H1450mm
Belt Size 48, 60, 75mm
Transport Package Wooden Packing
HS Code 8428903100
Production Capacity 100PCS/Month
Packaging & Delivery
Package Size 1203.00cm * 235.00cm * 265.00cm
Package Gross Weight 2000.000kg
Product Description

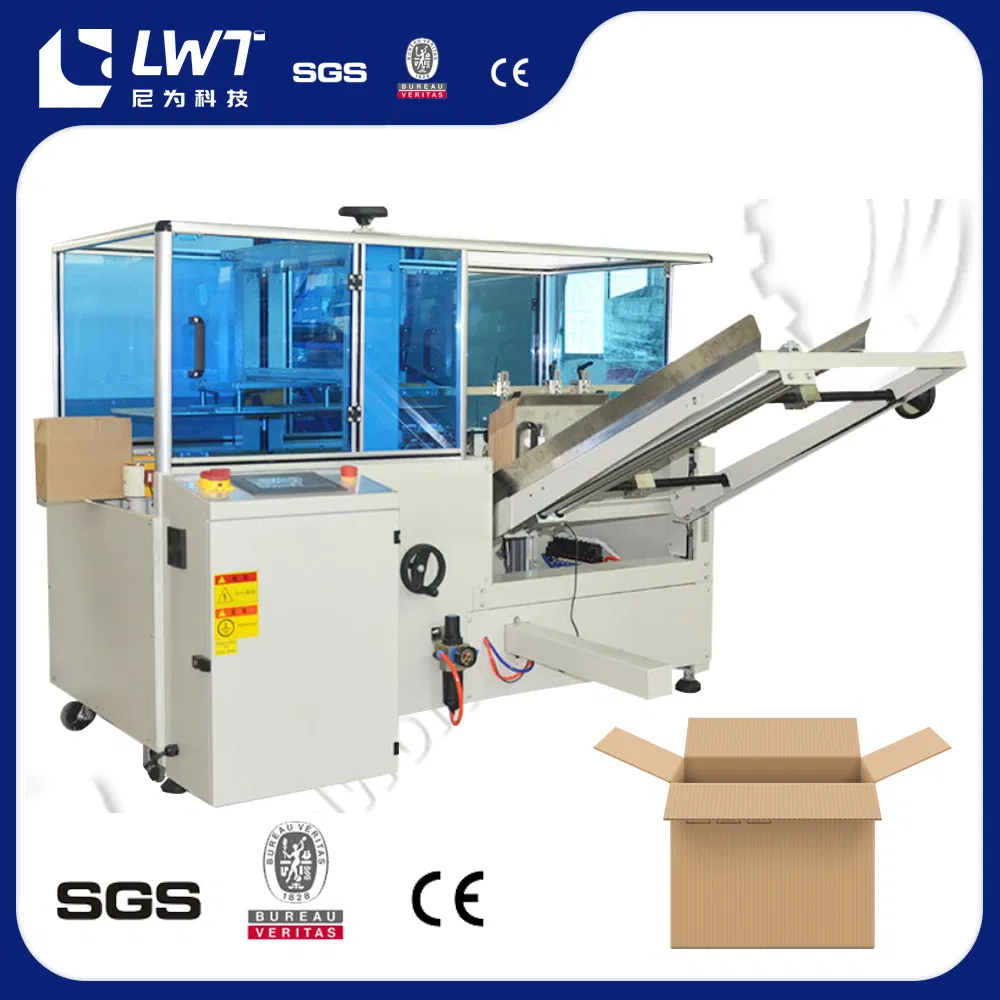

Low Speed Fully Automatic Carton Case Erector Set Machine with Bottom Tape Sealer Box Forming Machine
Carton Erector is designed to let cartons be placed in the machine's storage board manually, after which the machine automatically pulls the carton shape, folds the bottom flaps, and seals them.
The carton erector is a highly efficient machine that can fold the bottom cover of cartons and seal them. It can be operated separately, providing an economic and high-efficiency packaging solution.
Main Technical Parameters
Model LW-EV18 LW-EH30 LW-EH50
Capacity 18pcs/min 30pcs/min 50pcs/min
Carton collecting 100pcs(1000mm) 80pcs(800mm) 80pcs(1000mm)
Carton size L:250-400mm
W:150-350mm
H:100-350mm		 L:240-510mm
W:190-400mm
H:120-400mm		 L:250-450mm
W:150-400mm
H:100-300mm
Power 220V 1Φ 200W 380V 3Φ 746W 380V 3Φ 746W
Air Consumption 0.6Mpa 450NL/min 0.5Mpa 300NL/min 0.5Mpa 300NL/min
Machine Size L2400*W1200*H1450mm L2372*W1210*H1820mm L3120*W1250*H1740mm
Belt Size 48, 60, 75mm 2'', 2.5'' 2'', 2.5''
Main Features
  • Vertical storage: cartons can be added at any time without stopping the machine.
  • Suitable for forming and sealing cartons of the same size.
  • Manually adjust to change carton sizes easily (finished in 2-3 minutes).
  • Advanced photo electricity induction control system.
  • Rationally designed: the forming, folding, and sealing processes are accomplished simultaneously.
  • Cutter safety system to prevent hands from being stabbed by the cutter.
  • Heavy-duty build, available in both steel and stainless steel types.
Product Show

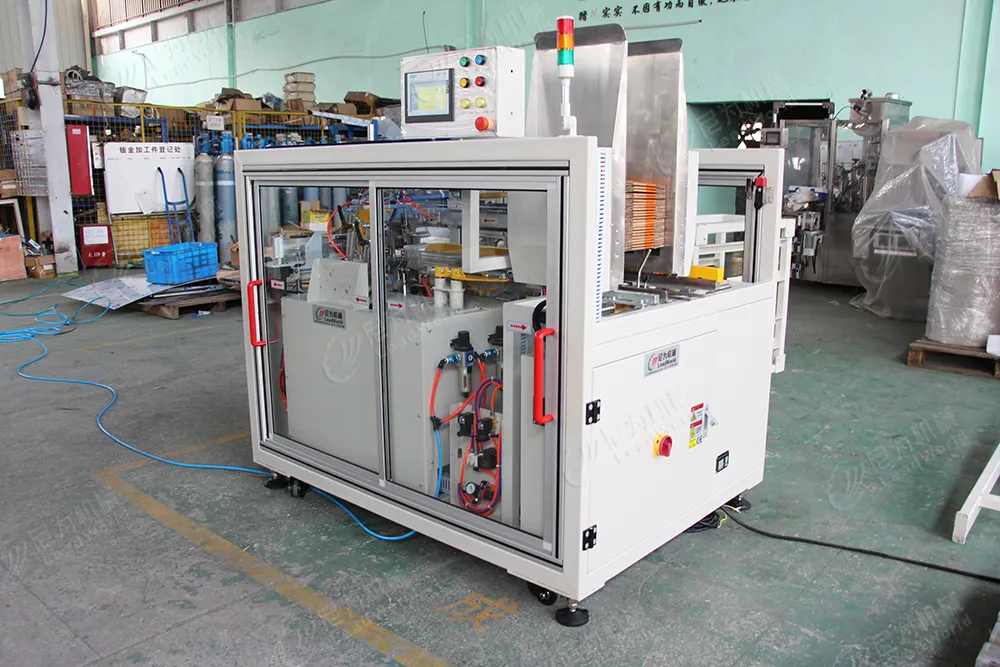

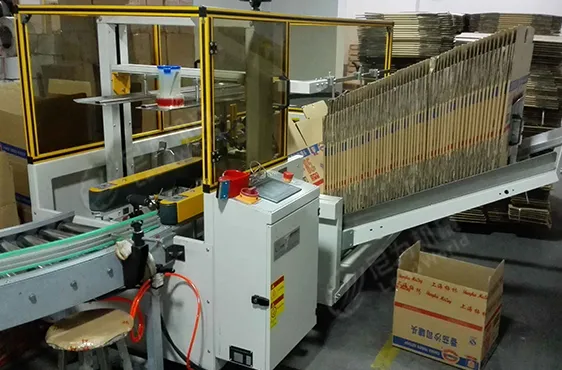

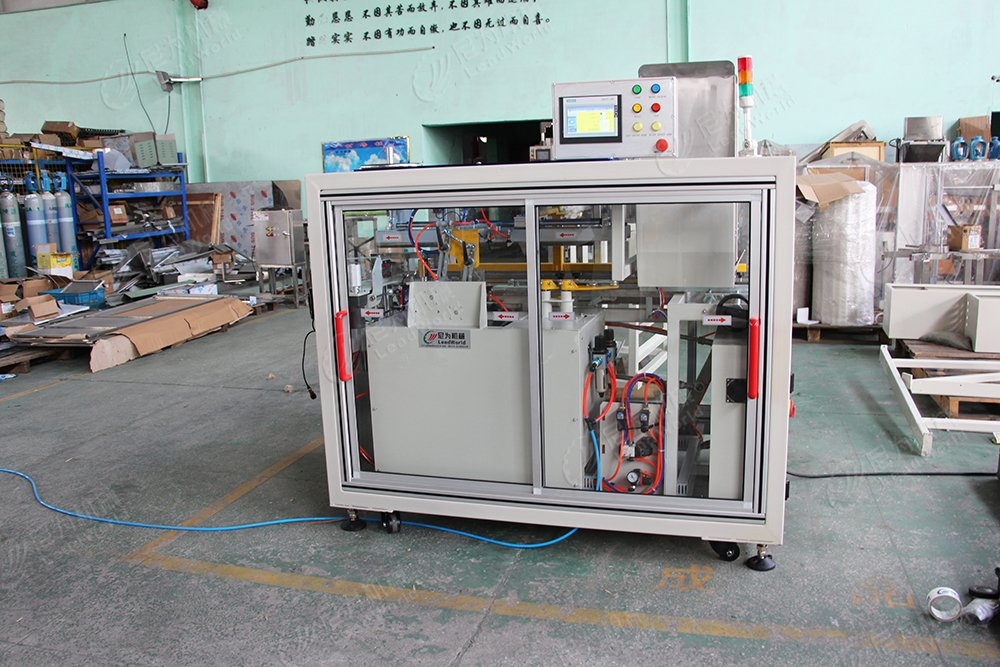

Carton Case Erector Set Machine Bottom Tape Sealer Box Forming Machine Automatic Carton Erector Details Carton Case Sealer Machine
Product Details

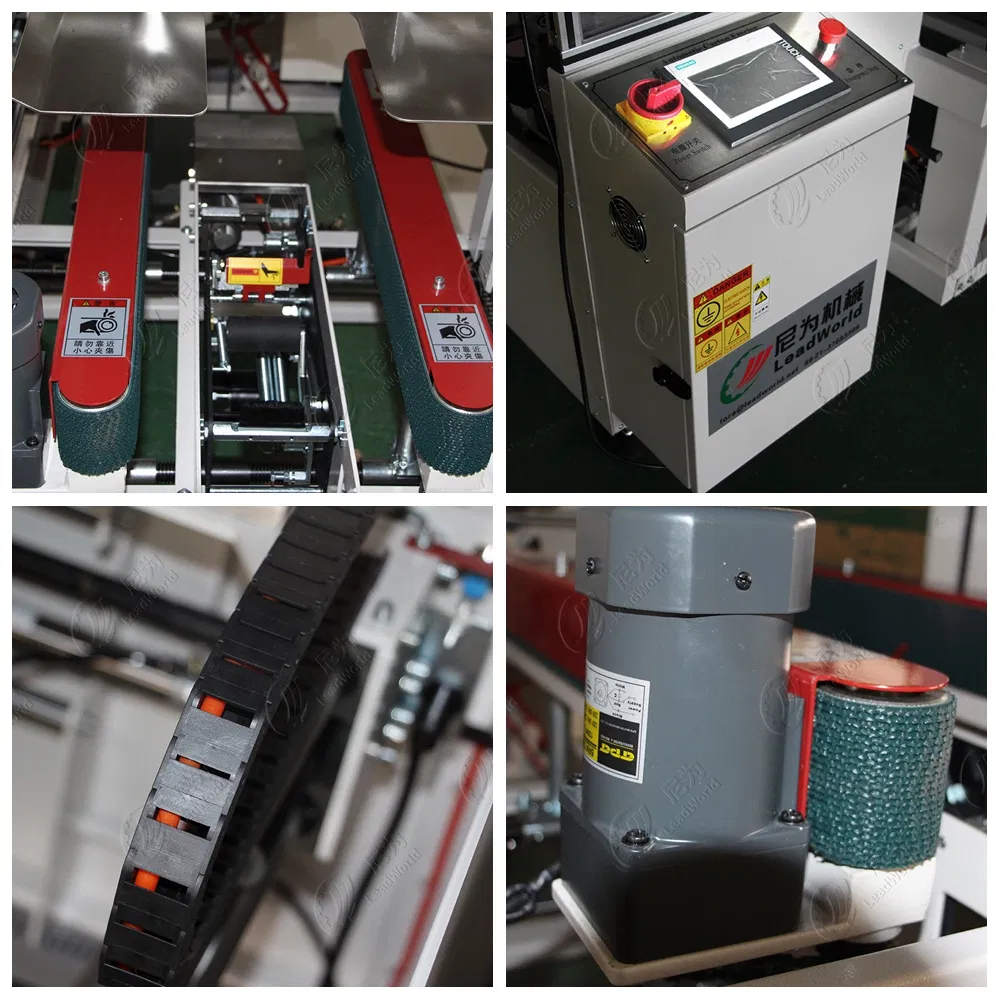

Detailed Carton Case Erector Diagram
We can customize different types of products according to your needs.
Customization Options Diagram
Our Service
After-Sales Support:
  • Experienced senior engineers available for on-site installation and configuration.
  • Systematic operation training provided for workers.
  • One-year guarantee for all equipment (except human factors) with lifetime maintenance services.
  • Detailed refurbishment programs, hardware, and software upgrades available after years of use to extend machine service life.
  • Prompt technical support and timely supply of wearing parts in case of quality issues.
Electrical Configuration
Item Brand
Robot palletizer ABB
PLC Siemens
Touch screen Siemens
Label photoelectric detection SICK
Lack of label photoelectric detection OMRON
Out label photoelectric detection BANNER
Servo motor Panasonic
Contactor Schneider
Electronic control system Schneider
Bearing Germany igus
Similar Products
Professional packaging machines including: labeling machines, palletizing machines, sealing machines, unpacking machines, and packing machines.
Packaging Machine Banner
Product Options Display
Company Overview
Production Workshop Quality Management System
Frequently Asked Questions
What are the main products?
Our main product range includes Palletizers, Conveyors, Case Packers, Sealing machines, Case Erecting machines, Capping Machines, Packing Machines, and Labeling Machines.
What is the standard delivery date for the products?
The standard delivery time is generally 30 working days for most of our packaging machines.
What are the payment terms?
We accept a payment structure of a 30% deposit in advance and the remaining 70% due prior to shipment of the machine.
Are you a manufacturer or a trading company?
We are a verified manufacturer with our own dedicated design and engineering team.
How do you guarantee product quality?
Quality is maintained through strict measures:
1. Implementation of structured working systems and rigorous procedures.
2. Dedicated processes handled by experienced operators.
3. Integration of world-renowned electrical and pneumatic components (such as Siemens and Panasonic).
4. Thorough testing processes post-assembly.
5. Compliance and certification under CE, ISO, and SGS standards.
Can you offer overseas technical support?
Yes. If requested, we can dispatch engineers to client facilities for installation, configuration, and workforce operation training.
