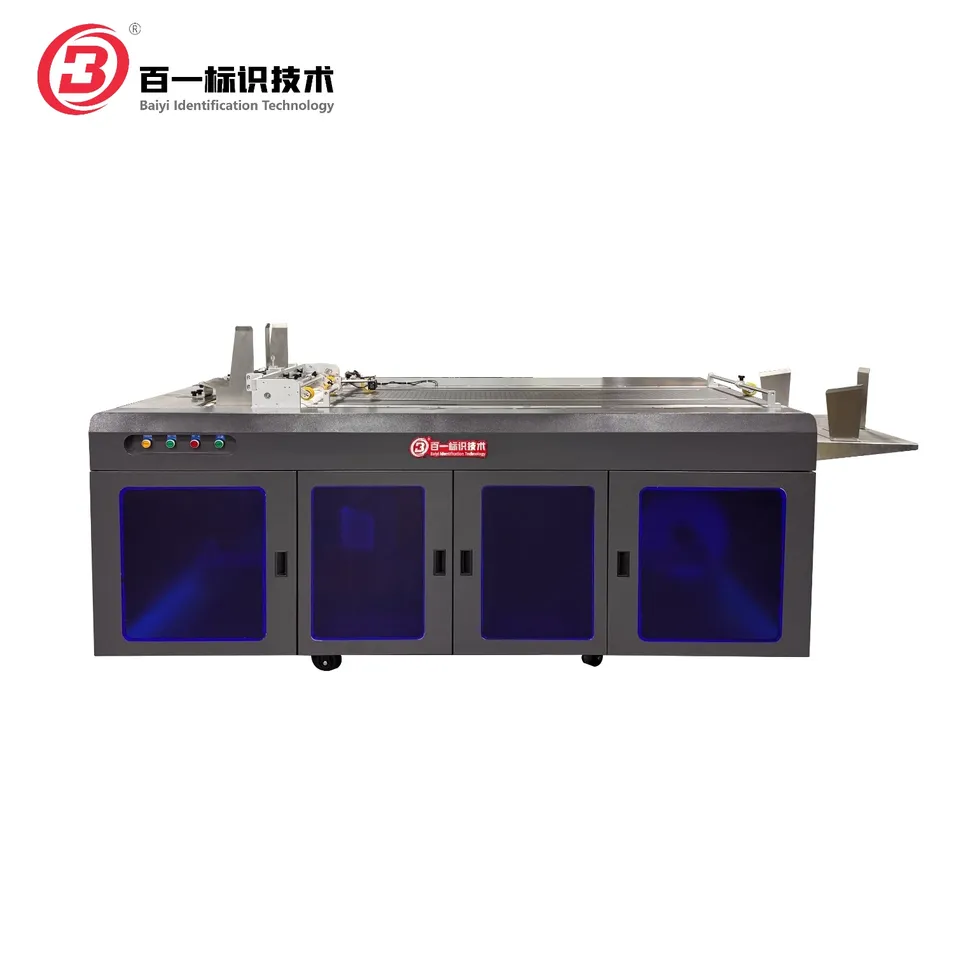

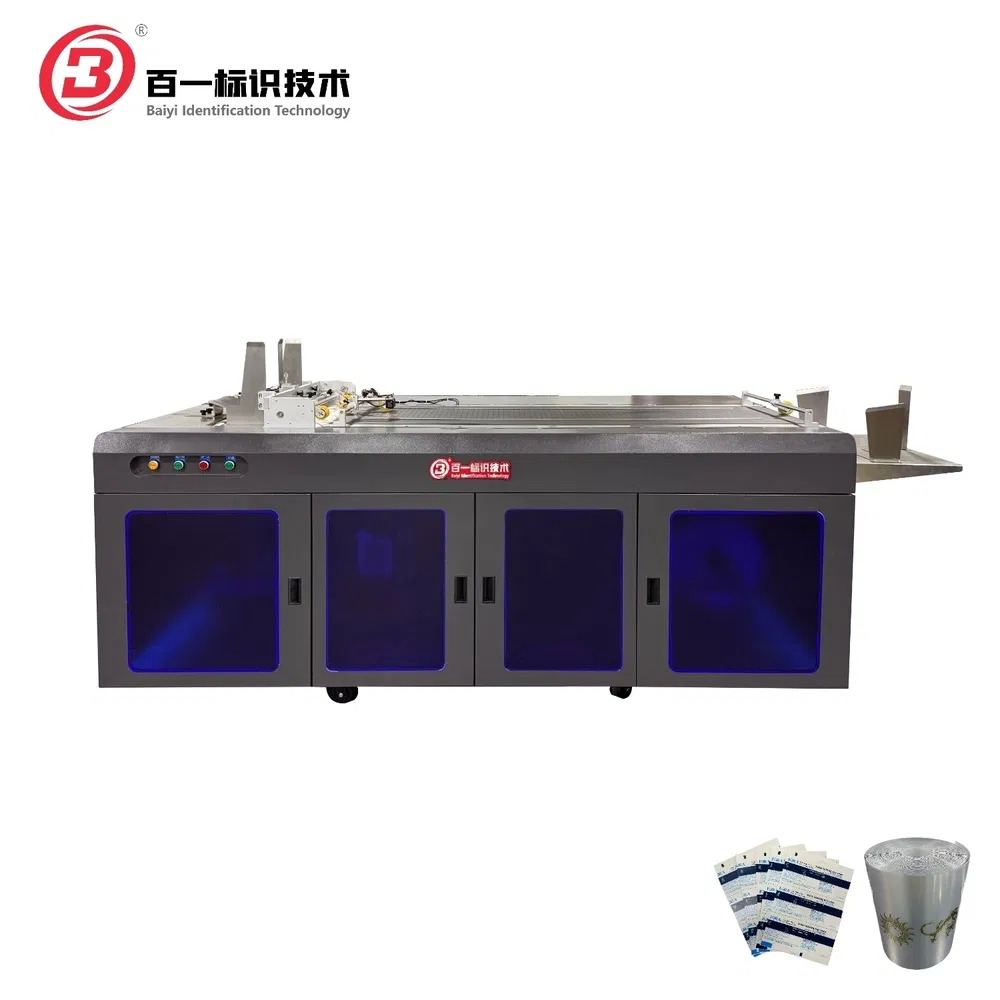

Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
1 / 5
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine

Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine

Customization: Available
After-sales Service: Overseas Engineering Team Technical Support
Warranty: One Year
Send Inquiry

Product Description

Overview
Model NO.BY-FR500
UsagePaper Printer, Label Printer, Card Printer
Automatic GradeAutomatic
System SupportedWindowsxp32
Product NameFriction Feeding and Rewinding Machine
KeywordsRewinding Machine
MaterialStainless Steel/Painted Carbon Steel
FeatureHigh Efficiency, Multi-Function, Stable
OEM CustomYes
ODM CustomYes
Packagein Standard Export Package
Transport PackageStandard Packaging or Customized
SpecificationStandard Specifications or Customized
Production Capacity100 sets/Year
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Product Description
FEEDING AND REWINDING MACHINE
This advanced intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.
Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.
The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions with integrated printing and coding capabilities.
Multifunctional Friction Type Feeding Intelligent High Speed Paper Rewinding Machine
Applications
Flexible Packaging Industry
Roll film feeding, printing, and rewinding for food packaging, pharmaceutical packaging, and consumer goods wrapping materials.
Label Manufacturing
Production of adhesive labels, product tags, barcode labels, and identification stickers with integrated printing and finishing.
Film Processing & Converting
Handling plastic films, BOPP films, PET films, aluminum foil, and specialty materials requiring unwinding and rewinding operations.
Variable Data Printing
Batch coding, expiration dates, serial numbers, and personalized information on roll materials using integrated printing systems.
Pharmaceutical & Food Industries
Compliance coding and marking on packaging materials with precise tension control for delicate substrates.
Industrial Materials Processing
Roll-to-roll processing for technical textiles, protective films, release liners, and specialty converting applications.
Product Parameters
Technical Specifications
Voltage 220Vac, 50Hz
Releasing Tension Control Linear Tension Control
Efficiency About 500 Pcs/Min (Based on 100mm product reference. Varies with printing speed and frequency)
Weight About 500Kg
Collection Tension Control Linear Tension Control
Conveyor Speed 5-150M/Min (Adjustable Continuously)
Power About 4.5Kw
Dimension L*W*H = 2600*1000*1200 mm

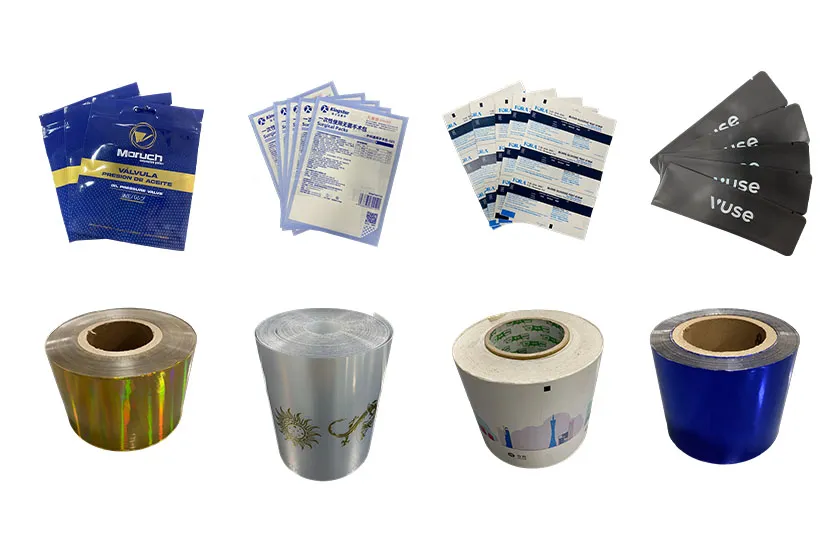

Available Product BOPP, CPP, PET, PE, Paper, Composite Film, Aluminized Film, etc. (Roll & Sheet materials)
Core Diameter 3 Inch (76 mm)
Available Product Size Material Width: 30-480 mm, Max Material Diameter: 500 mm, Max Material Weight: 50 kg
Detailed Photos

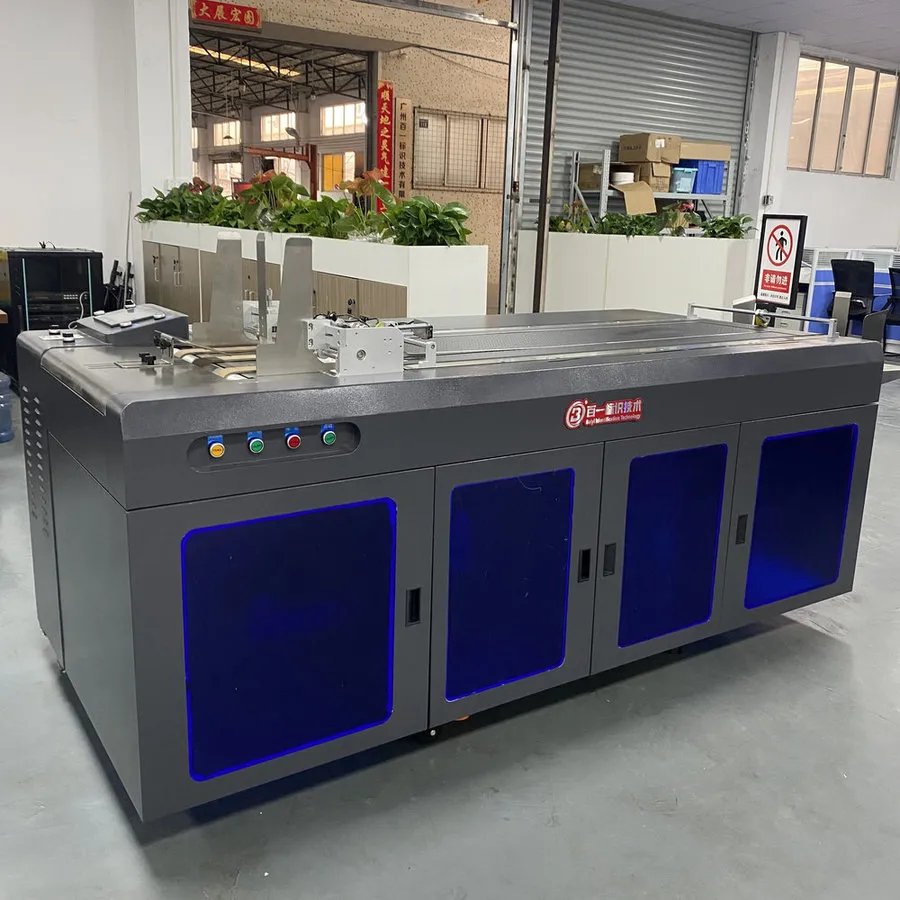

Programmable Parameter Settings
PROGRAMMABLE PARAMETER SETTINGS
Customizable working parameters adaptable to different films and labels, with real-time monitoring and automatic alarm notifications.

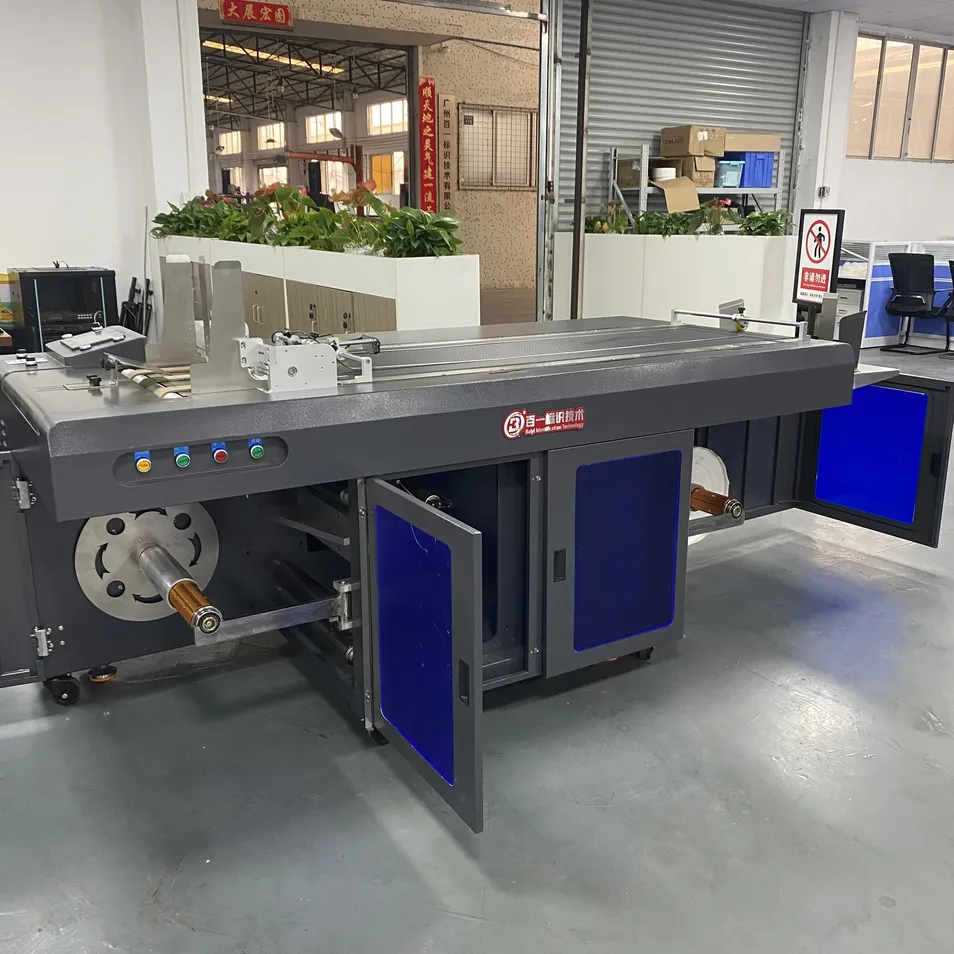

Multi-Function Capabilities
MULTI-FUNCTION CAPABILITIES
Fast/slow adjustable lifting speeds, automatic shutdown prevention, mark sensor triggering, and accurate counting control.

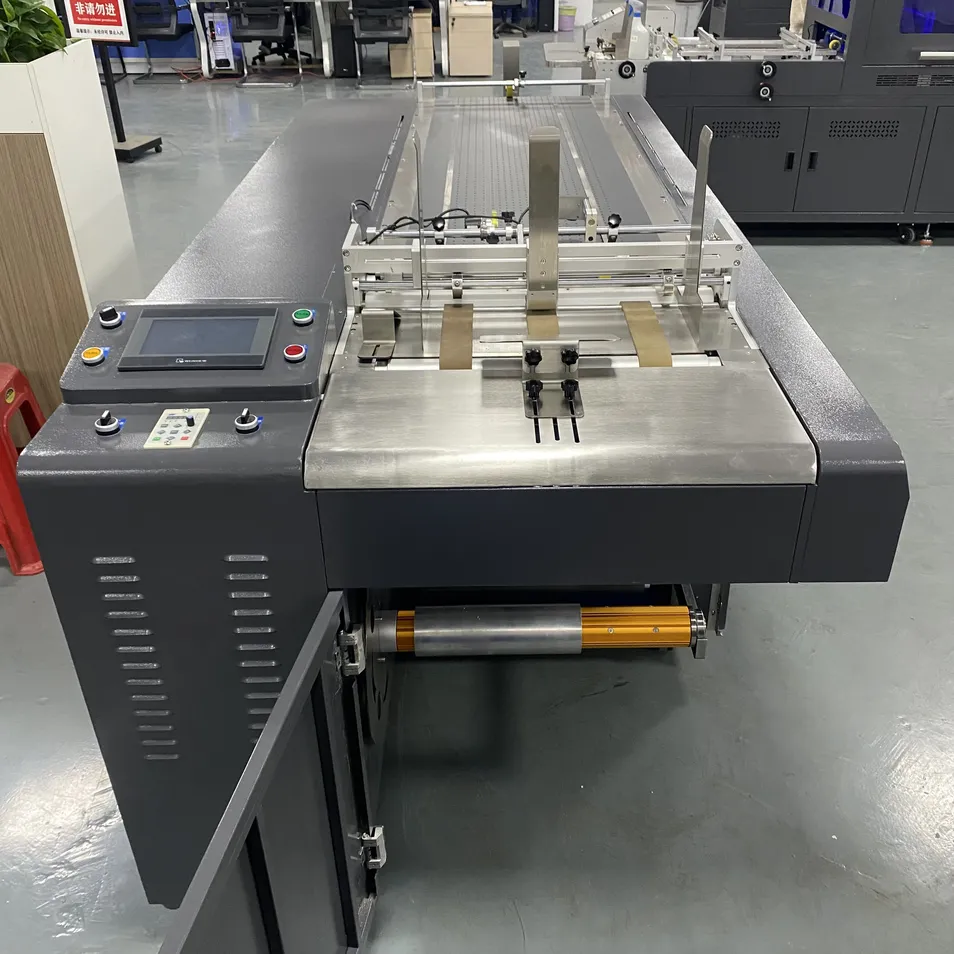

Enhanced Speed & Performance
ENHANCED SPEED & PERFORMANCE
Upgraded high-speed capabilities and robust functionality optimized for heavy-duty, high-volume production environments.

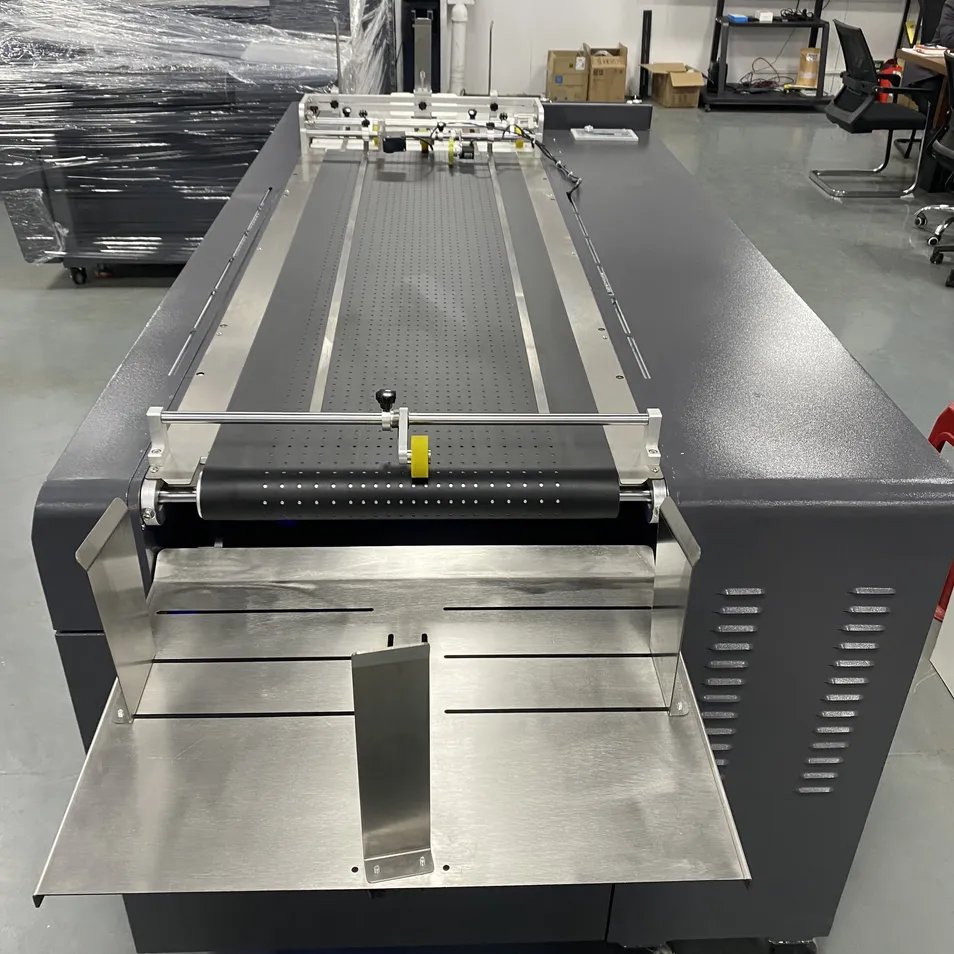

Real-Time Status Monitoring
REAL-TIME STATUS MONITORING
Comprehensive HMI system displays working status, production statistics, and diagnostic notifications for smart maintenance.
System Configuration Structure
System Configuration
1. Feeding System Configuration
  • Feeding method: Down-out feeding with multi-friction belt
  • Friction belt adjustment: Independent electrical adjustment
  • Vacuum method: Large flow vacuum pump
  • Collection method: Heavy duty collection tray
  • Conveyor dimensions: 2000 * 500 mm

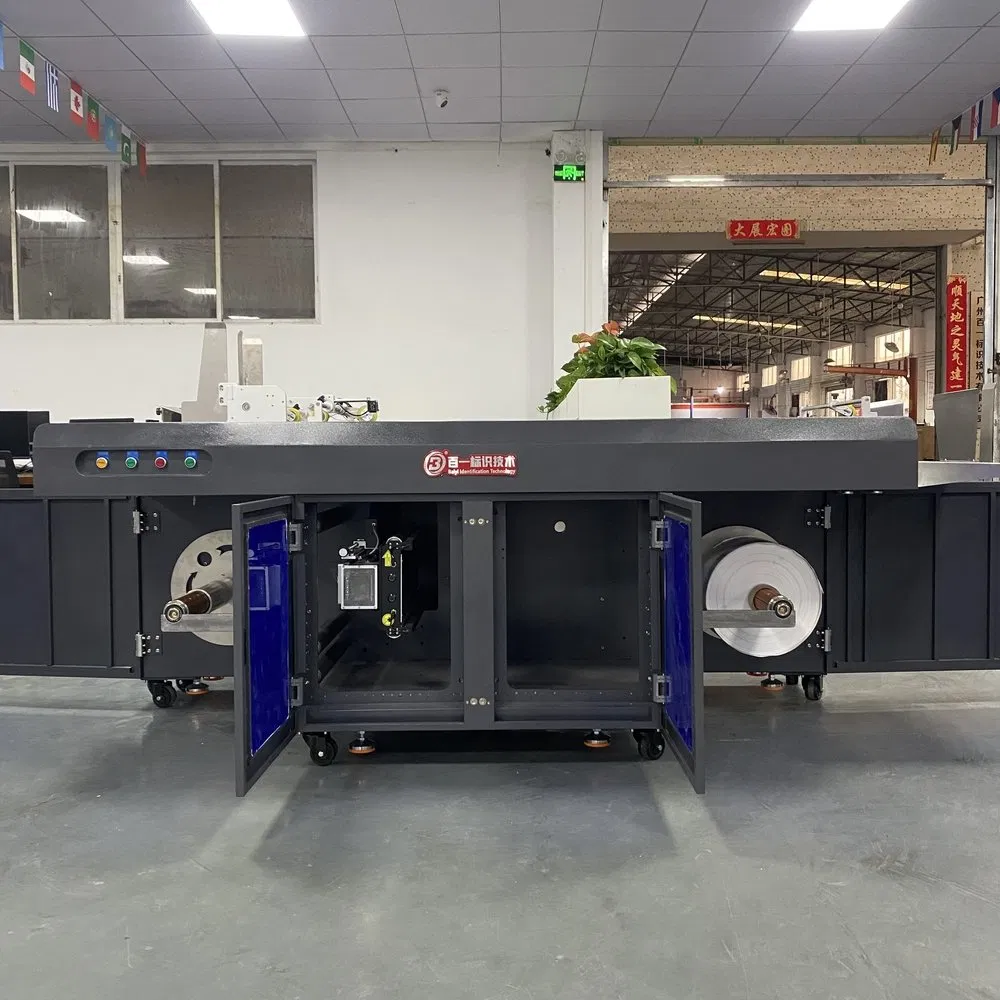

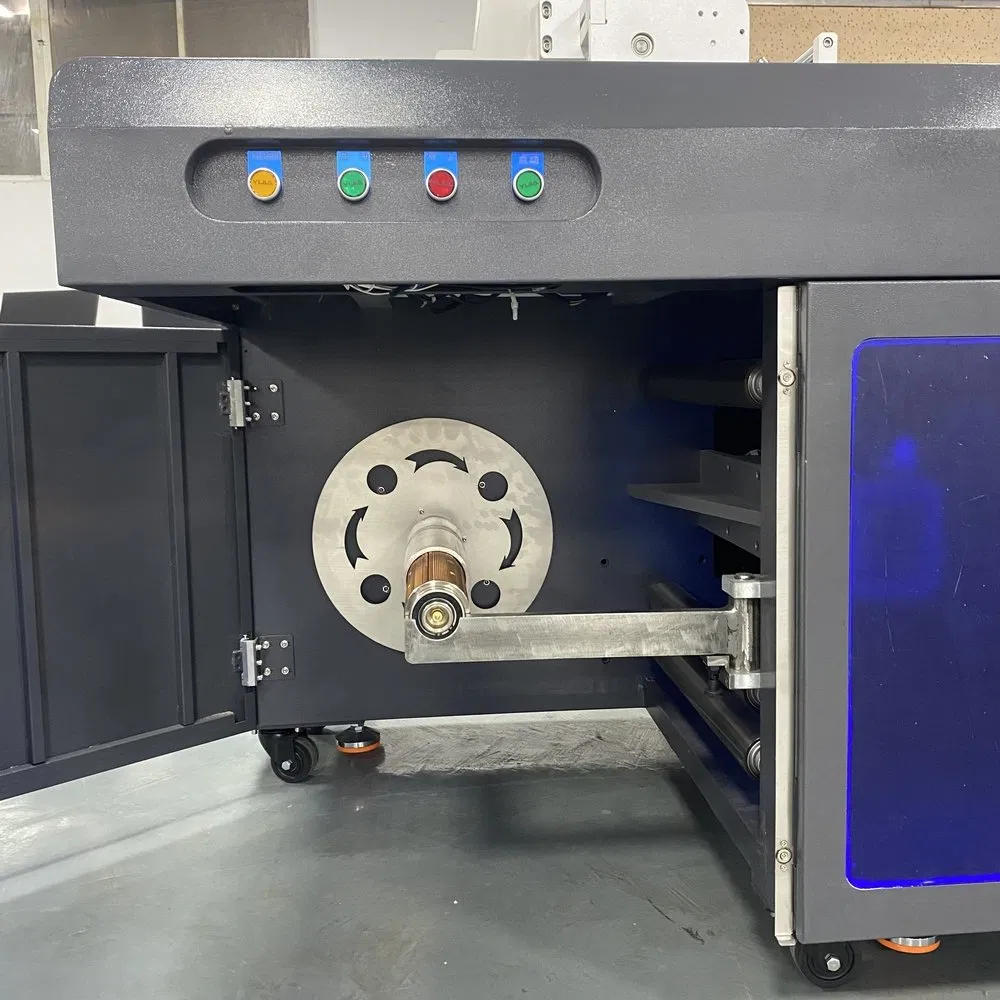

2. Rewinder Configuration

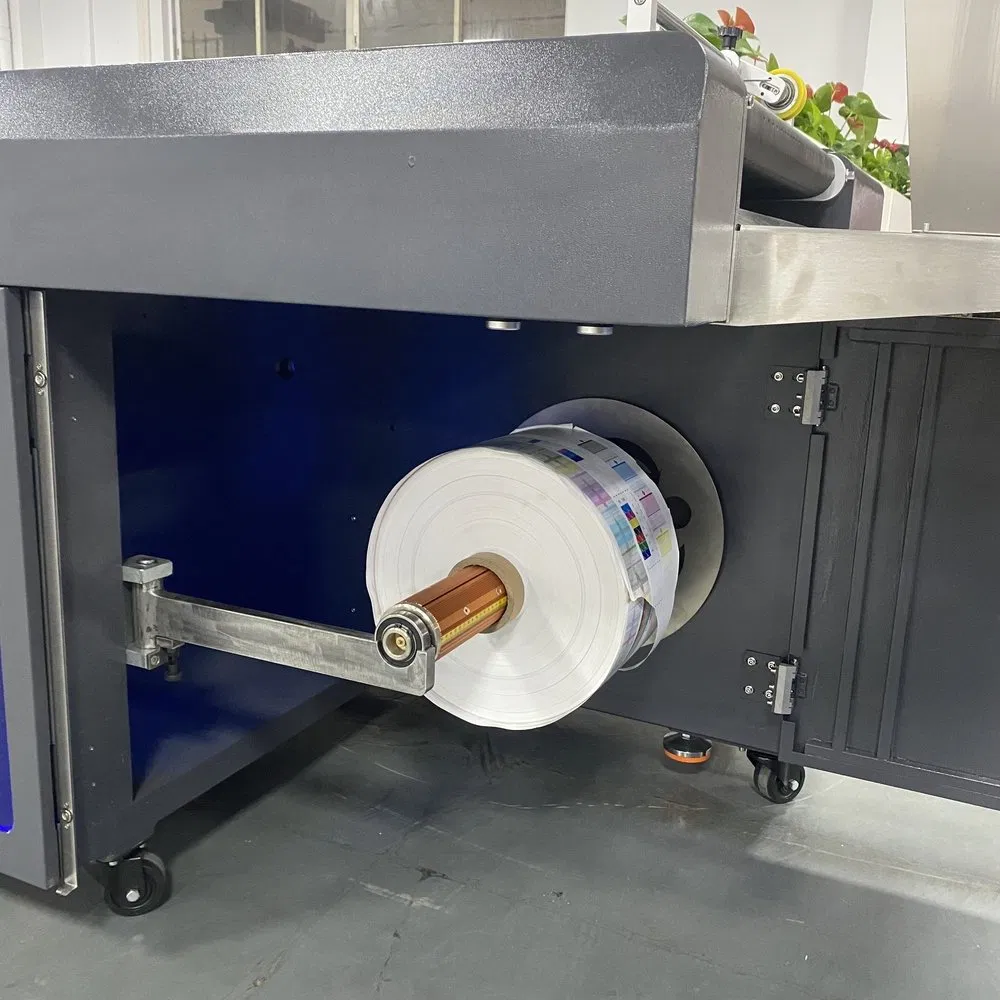

  • Unwinding & rewinding axis: Air inflation axis
  • Unwinding / Rewinding / Traction power: High-precision servo drivers
  • Tension control: Linear tension control
  • Inner core diameter: 76 mm
  • Max roll diameter capacity: 600 mm
  • Available roll material width: 30-600 mm
  • Compatibility: Fully compatible with various UV inkjet printing, laser, TIJ, and CIJ marking systems
Detailed Component View 1
Detailed Component View 2
Detailed Component View 3
Detailed Component View 4
Detailed Component View 5
Detailed Component View 6
Frequently Asked Questions
What are your prices?
Prices depend on the specific machine configuration tailored to your production requirements.
Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. The MOQ for this machinery is 1 set.
Can you supply the relevant documentation?
We can process and supply relevant documentation based on customer requests and application requirements.
What is the average lead time?
Lead times vary depending on the chosen configuration, ranging from 2 working days to 30 working days.
What kinds of payment methods do you accept?
Currently, we accept Bank Transfer (T/T). The standard term is 50% deposit upon order confirmation, and the remaining 50% balance settled prior to shipment.
What is the product warranty?
Generally, we offer a one-year warranty post-delivery. Please note that wearable parts are excluded from this standard warranty.
