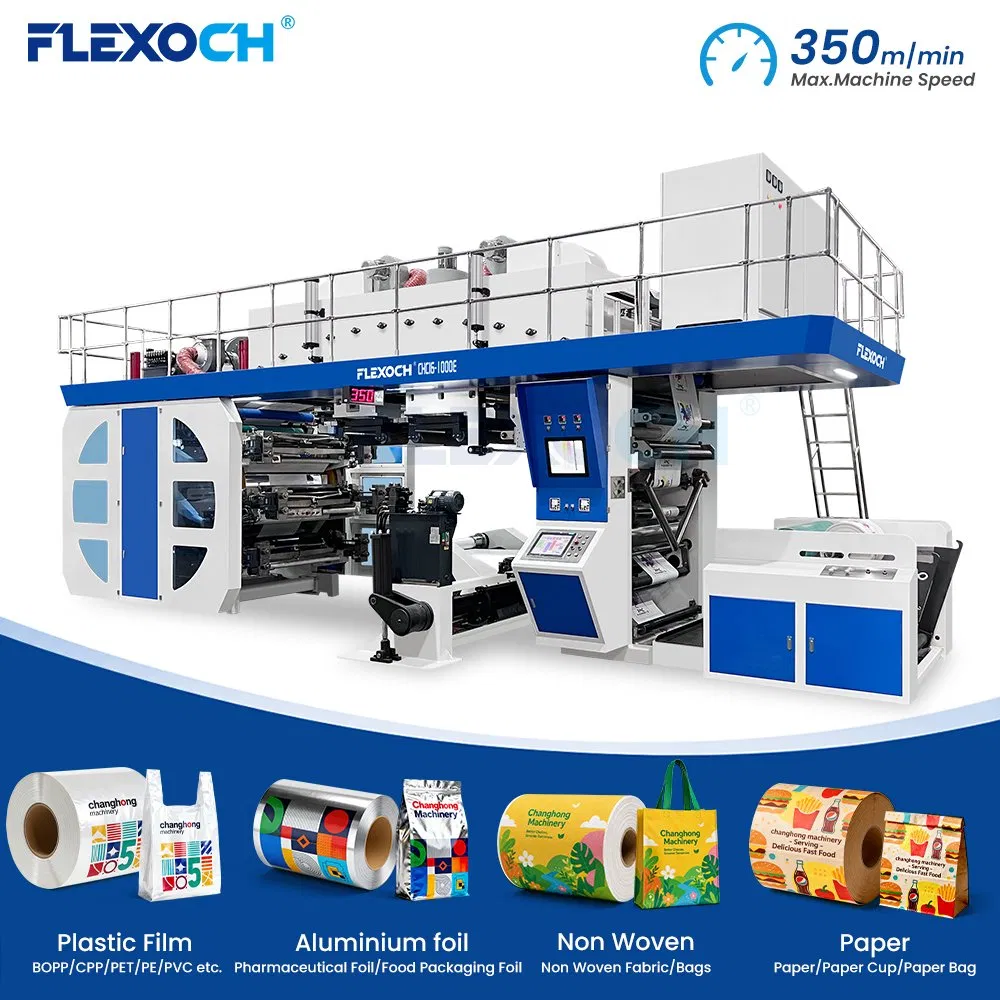

Automatic 6 8 Color Paper Bag/Cup Ci Flexo/Flexographic Printing Machine

Basic Info.

Model NO.CHCI-E-Z

Anilox RollerCeramic Anilox Roller

DryerElectric Heating

TypeFlexographic

Embossing StructureRoll to Roll

StructureSatellite

ApplicationFlexograhic

Automatic GradeAutomatic

Printing Speed350m/Min

Colors6 Color

Width1200

RollerCeramic Anilox Roller

Voltage380V50Hz3p

Printing MaterialRolling Type

WinderAutomatic

PlateResin Plate

Transport PackageWooden Pallet

SpecificationCE, ISO Certificate

OriginChina

HS Code8443140000

Production Capacity20sets/Month

Packaging & Delivery

Package Size9000.00cm * 3500.00cm * 5000.00cm

Package Gross Weight10000.000kg

Product Description

We are a source manufacturer specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.

Production Capacity: two modern manufacturing facilities covering 60,000 m², with 10+ R&D engineers and 100+ experienced technicians, producing 200+ machines annually.

Experience & Certification: Over 20 years of manufacturing experience in flexographic printing machinery; all products are CE certified.

Global Reach: Serving 1,500+ clients across 65+ countries, including Asia, North America, South America, the Middle East, Europe, and Africa.

After-Sales Service: We provide on-site commissioning after delivery, operation training, and remote video troubleshooting, along with free replacement of wearing parts within the first year.

Automatic 6 8 Color Paper Bag/Cup Ci Flexo/Flexographic Printing Machine

Machine Features

#01

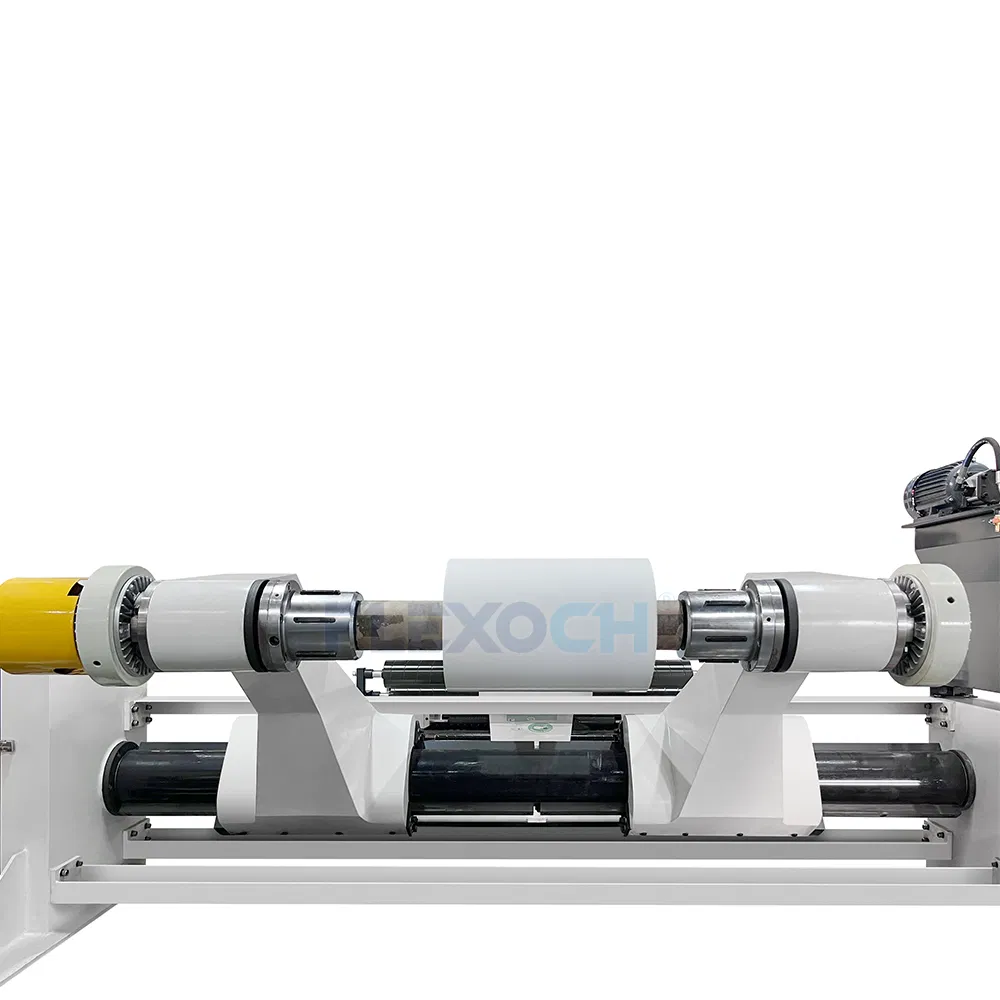

Unwinding & Control Unit

Shaftless Unwinding Unit
Center Driven Unwind System
Ultrasonic Web Guide System
Automatic Tension Control

#02

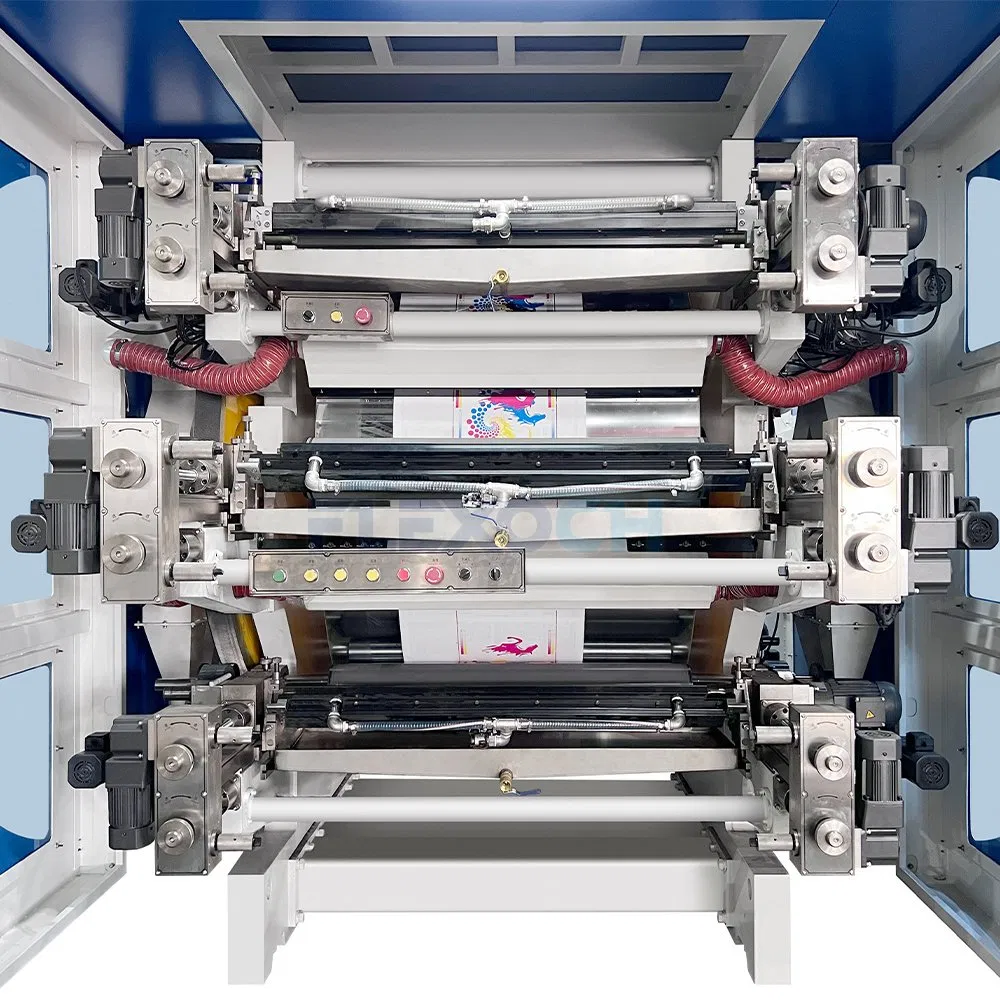

Printing Unit

Plate Self-Cleaning Function

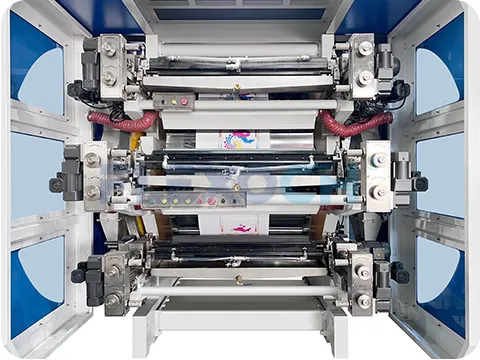

Central Impression (CI) Drum
Hydraulic Position Printing
Ceramic Anilox Roller
Chambered Doctor Blade

#03

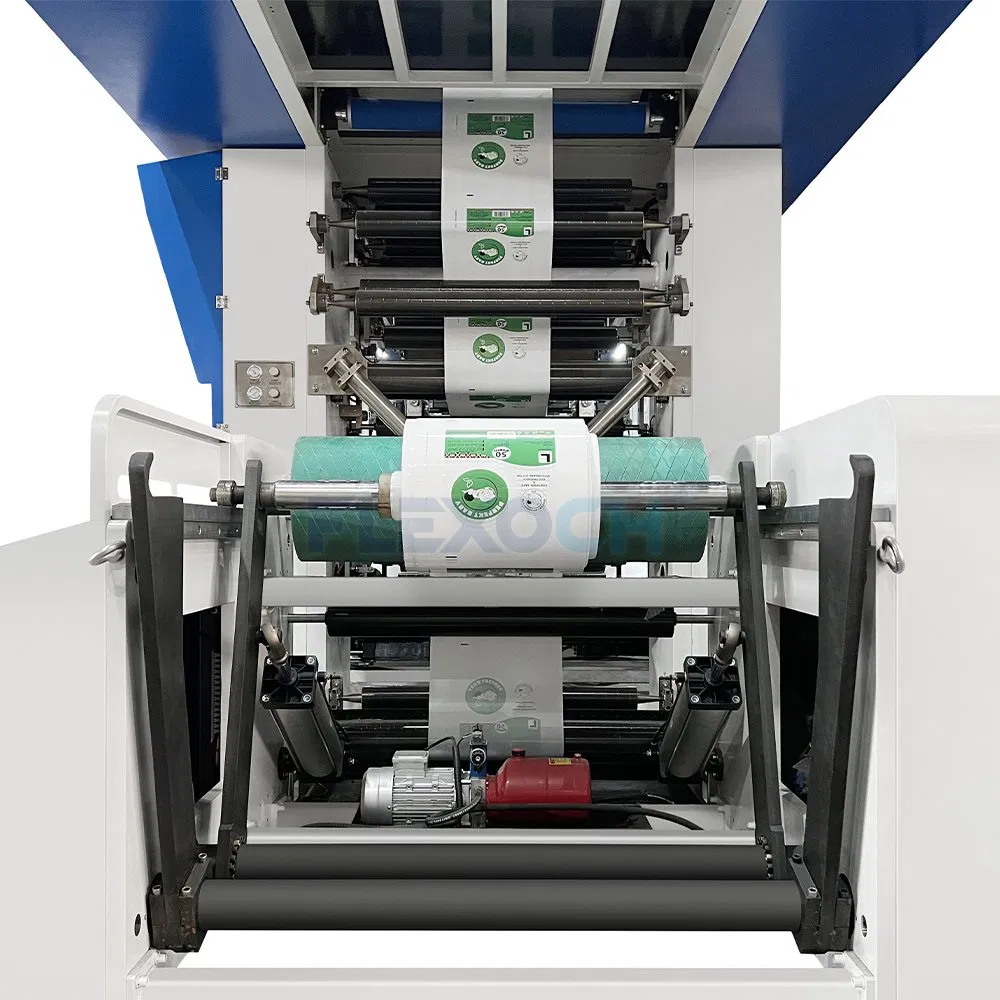

Double-Side Printing Design

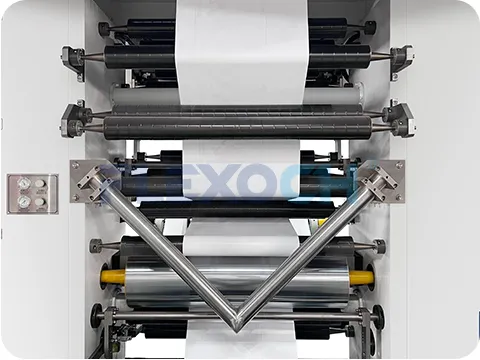

Half-web turning design
Flips one side of the web to enable double-side printing in a single pass

#04

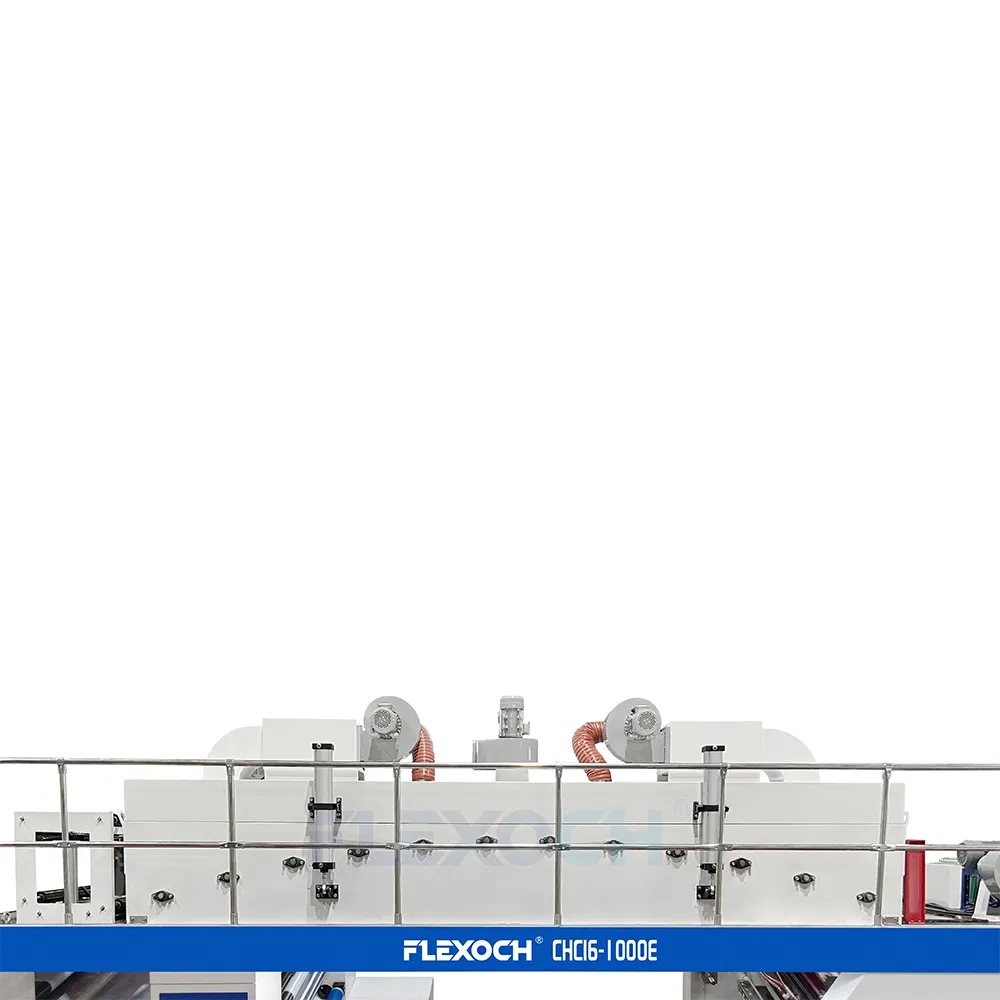

Drying & Oven Structure

Electric Heating System
Variable Frequency Airflow Control
Intelligent Constant Temperature Control
Hot Air Circulation Drying System
Fully Enclosed Oven Structure

#05

Rewinding & Detection Unit

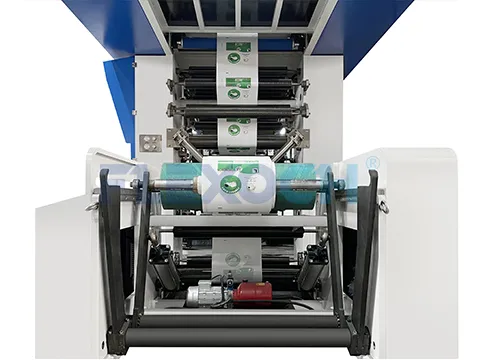

Surface Rewind System
Automatic Tension Control
High-Performance Motor
Automatic Fault Detection

Testimonials

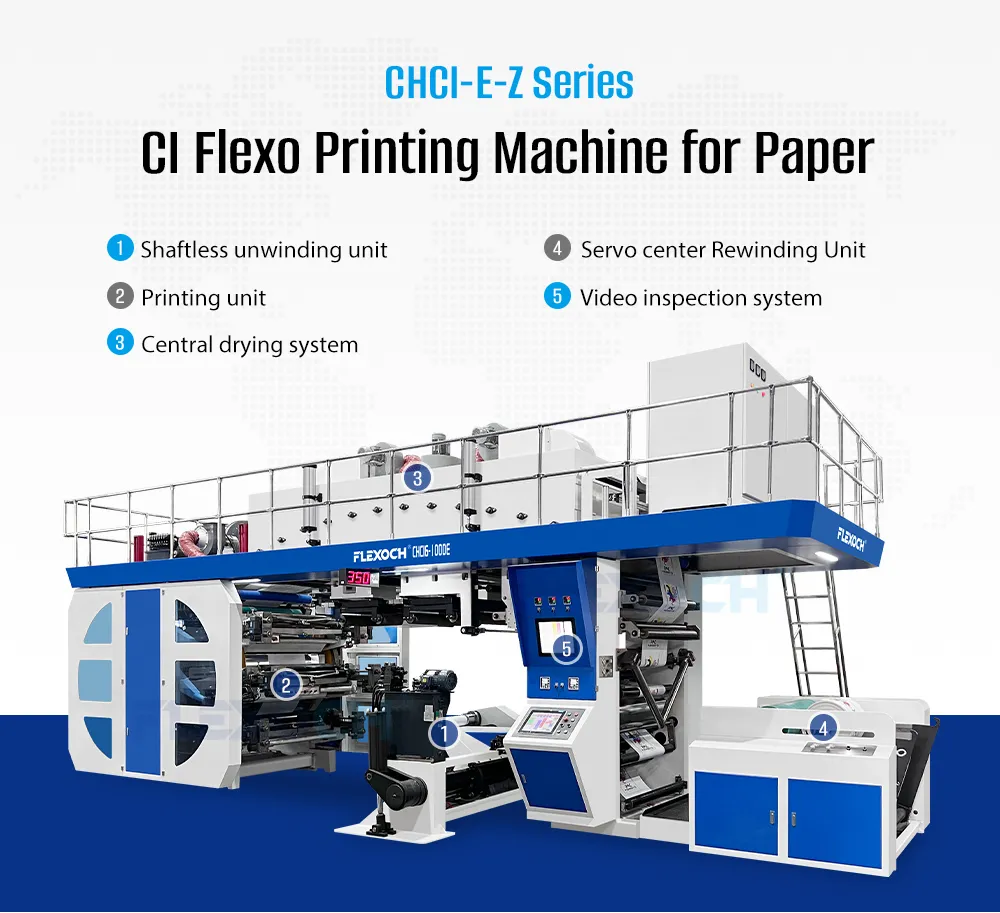

Specification

This 6-color Paper CI Flexographic Printing Machine features a central drum (CI) structure for precise registration, stable tension, and consistent color quality. It is specially designed for high-speed, high-volume printing on various paper materials—including kraft paper, cup stock paper, napkin paper, and other specialty paper rolls. The machine is equipped with an independent friction rewinding system and shaftless unwinding, ensuring smooth roll handling and efficient, safe operation.

Central Drum Design: Maintains stable paper tension and precise registration for high-quality printing.
High-Speed Production: Maximum speed up to 350 m/min, suitable for large-volume paper printing.
Independent Friction Rewinding: Ensures consistent roll winding and smooth material handling.
Shaftless Unwinding: Automatic roll loading, safer and more efficient operation.
Half-Width Turn Bar: Enables quick and easy double-sided paper printing.
Static Picture Inspection System: Real-time monitoring of print image quality and registration accuracy.
Automatic Tension Control: Precise tension management during unwinding, printing, and rewinding.

TECHNICAL SPECIFICATIONS
Model	CHCI-600E-Z	CHCI-800E-Z	CHCI-1000E-Z	CHCI-1200E-Z
Max. Web Width	700mm	900mm	1100mm	1300mm
Max. Printing Width	600mm	800mm	1000mm	1200mm
Max. Mechanical Speed	350m/min
Max. Printing Speed	300m/min
Max. Unwind/Rewind Dia.	φ1200mm/φ1500mm
Drive Type	Central drum with Gear drive
Printing Length (repeat)	350-950mm
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified
Ink	Water base ink or solvent ink
Range of Substrates	Paper, Non Woven, Paper Cup
Photopolymer Plate	To be specified
