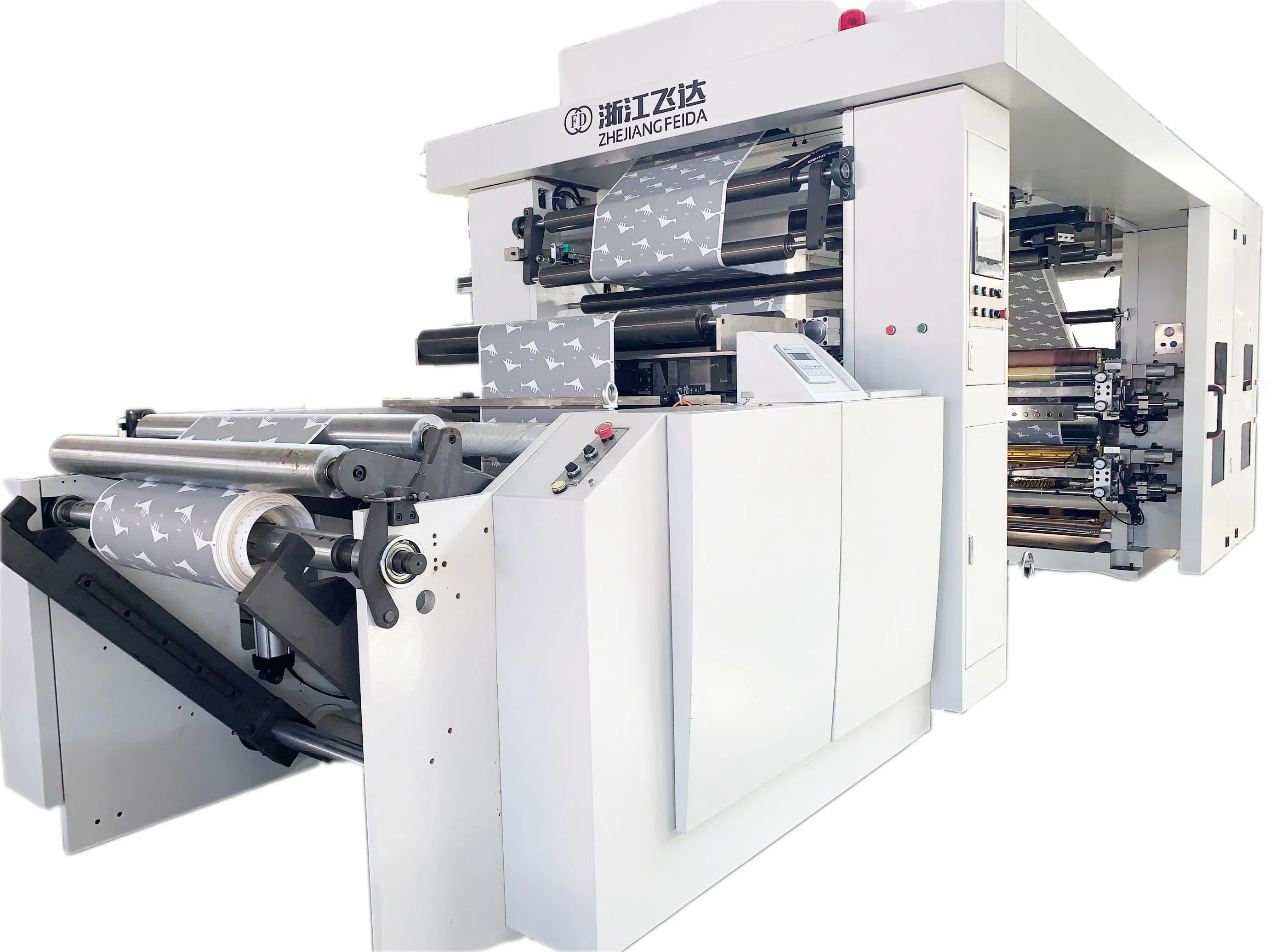

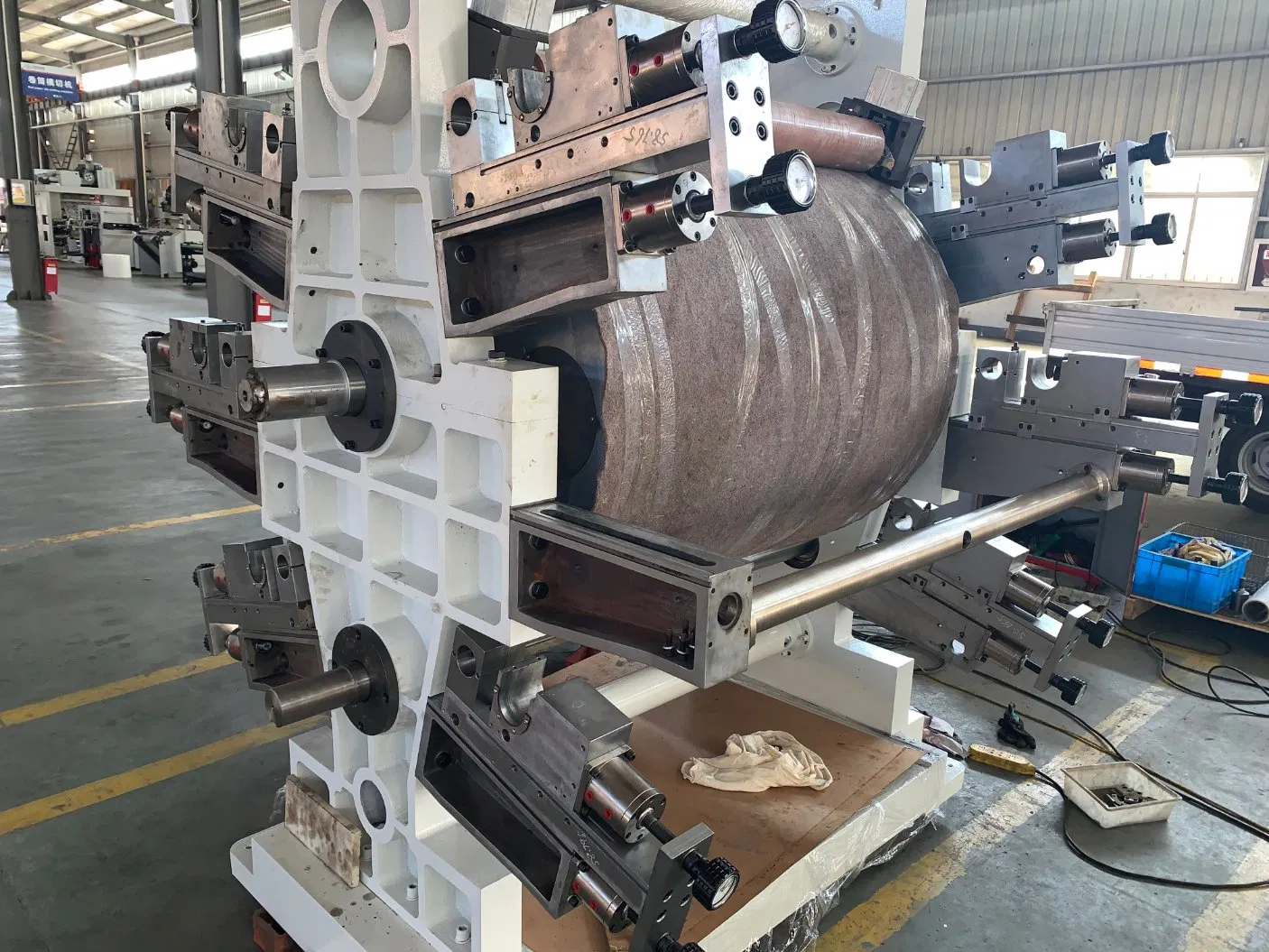

Four Color Ci Central Drum Flexo Printing Machine for Film PE BOPP

1 / 5

Four Color Ci Central Drum Flexo Printing Machine for Film PE BOPP

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Printing Page Single Faced

Printing Color 4 Colors

Anilox Roller Ceramic Anilox Roller

Dryer IR

Type Ink Jet

Embossing Structure Rotary Letterpress

Structure Satellite

Application Flexible Packaging Printing

Automatic Grade Automatic

Printing Speed 200m/min

Transport Package Flexible Packaging

Specification 7600x2700x3400

Origin China

Product Description

Main Parameter

Items	Describe
Maximum paper width	1050mm
Maximum printing width	1000mm
Registration Precision	0.1mm
Printing repeat	300-600mm
Maximum unwinding dia	1500mm
Maximum rewinding dia	1500mm
Unwinding type	Air shaft
Rewinding type	Surface tension
Gear format	5mm per tooth
The speed	150-200m/min
The thickness of plate	2.28mm
The thickness of tape	0.38mm
Suitable materials	Paper cup, paper box etc
The color of machine	Grey and white
Operation language	Chinese
Air comsuption	6KG, 0.6L/Min clear, dry, no water/oil AIR
Voltage required	380 VAC +/-10% 3PH 50HZ
Dry type	Electric heating, Heating power 27KW
Total power	102kw
Dimension	760027003400mm

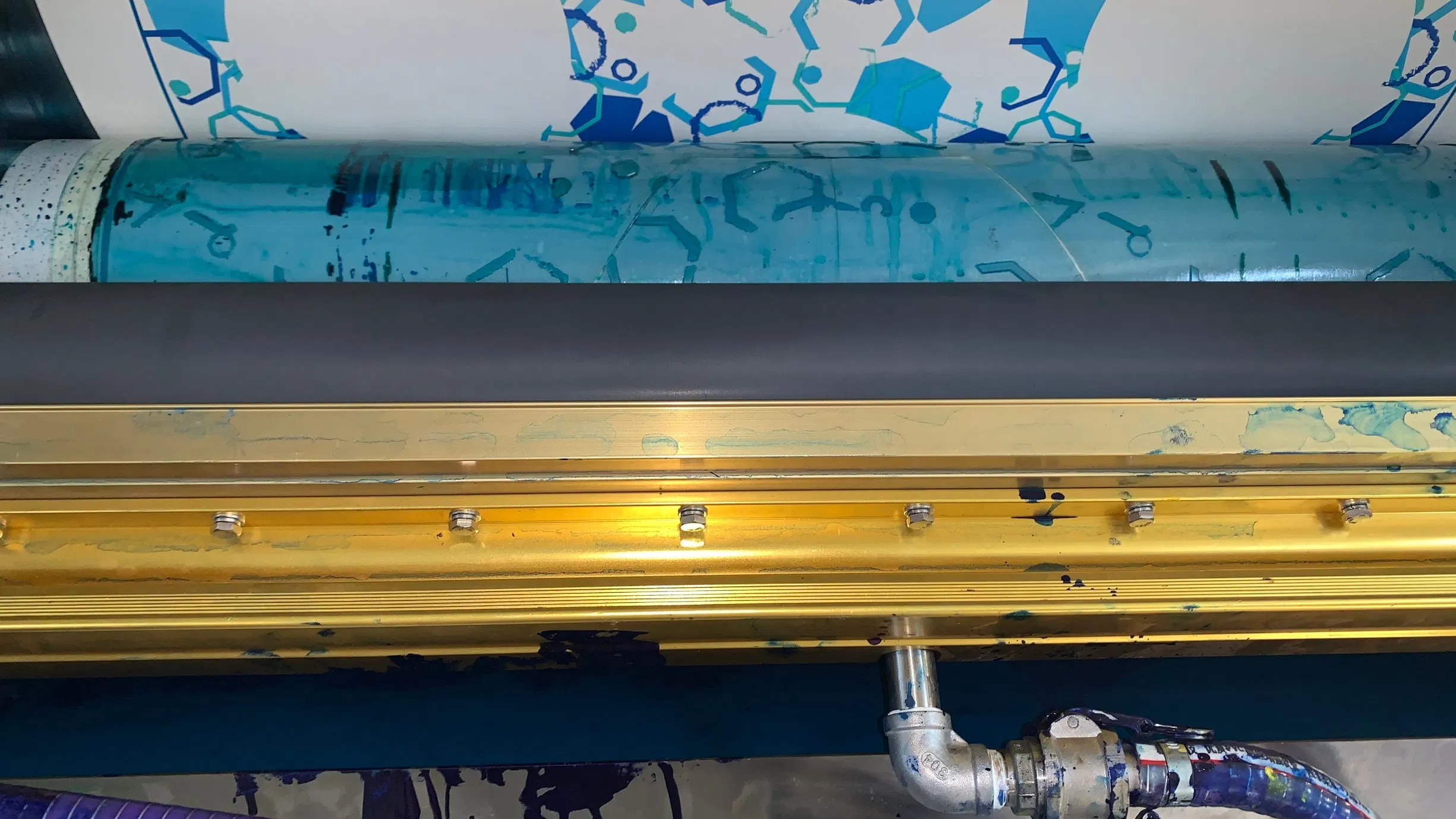

Samples Reference

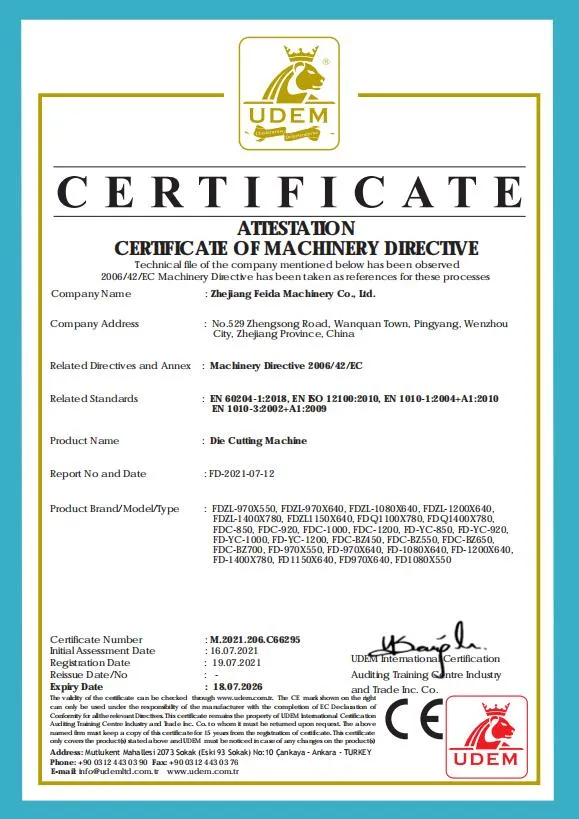

Certifications (ISO & CE)

Win-win cooperation with clients

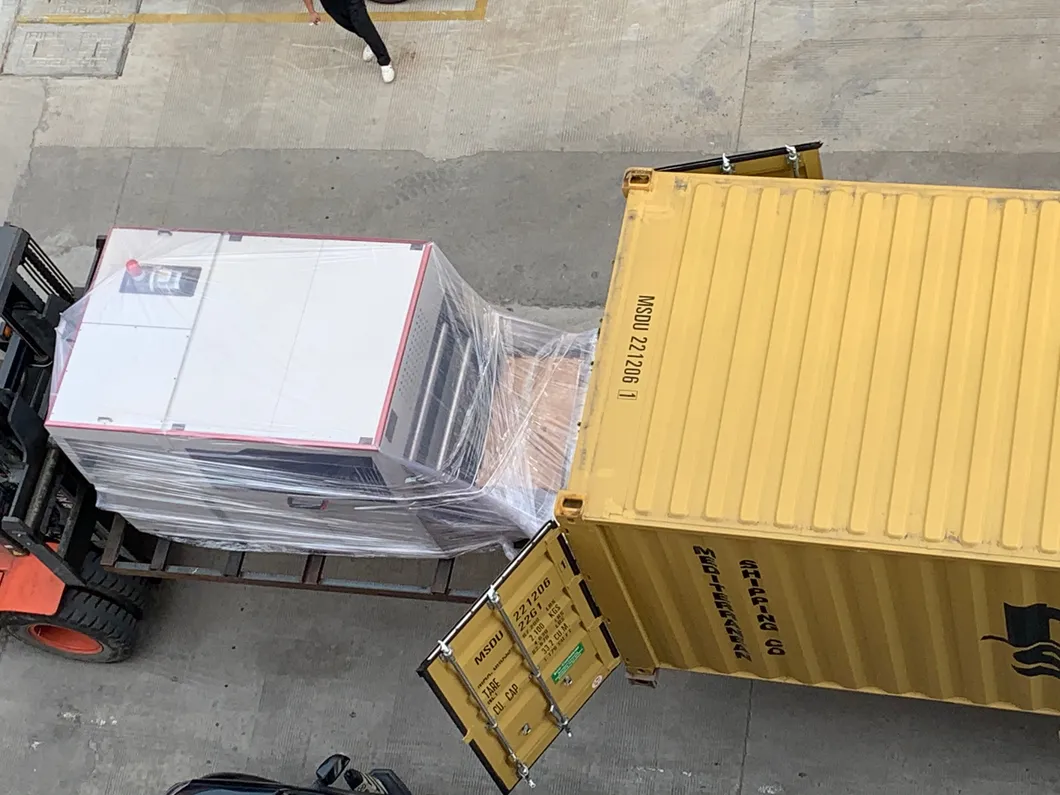

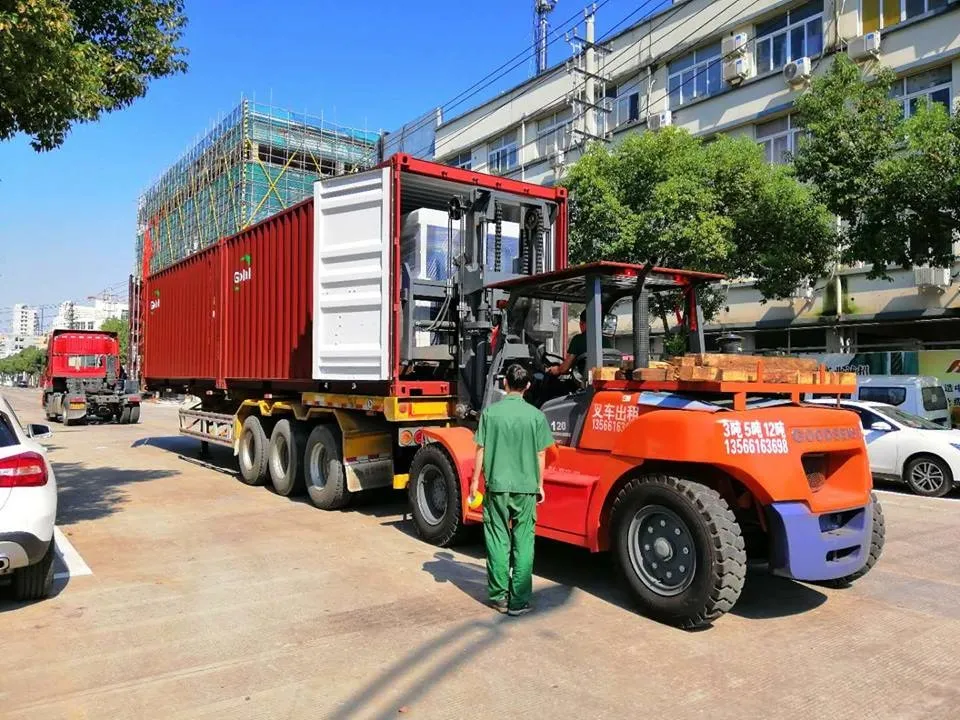

Container loading

Frequently Asked Questions

Q: What types of machines do you have, and how long have you been in this field?

We have more than 10 years of experience in manufacturing Roll Die Cutting Machines, Roll Die Punching Machines, Carton Erecting Machines, Paper Box Forming Machines, Paper Cake Box Machines, Flexo Printing Machines, and Cartoning Machines, working with major packaging enterprises globally.

Q: What is the machine delivery time, and how is it packed for delivery?

Generally speaking, the CI flexo printing machine can be shipped within 60-90 days after confirming all specifications. It is securely packed using flexible packaging with a strong iron underframe to prevent movement during transit.

Q: How about the machine guarantee and warranty policy?

During the one-year warranty period, the seller will repair or replace any damaged parts caused by machine-self issues for free, though the buyer is responsible for the freight. After the first year, spare parts are supplied at cost. Support and service are available throughout the lifespan of the machine.

Q: How do you handle after-sales service and technical support?

Based on our highly skilled after-sales team and rich experience, we are capable of resolving the vast majority of technical issues online through video calls, instant messaging, and email.

Q: Do you accept customized machine configurations?

Yes, we can customize and engineer our machinery setups based on the specific technical parameters and requirements provided by the client.

Q: What is your typical working and response time?

We provide continuous support, keeping our services active and responding to all messages from 7:30 AM to 12:00 AM (midnight) daily to assist clients across different time zones.
