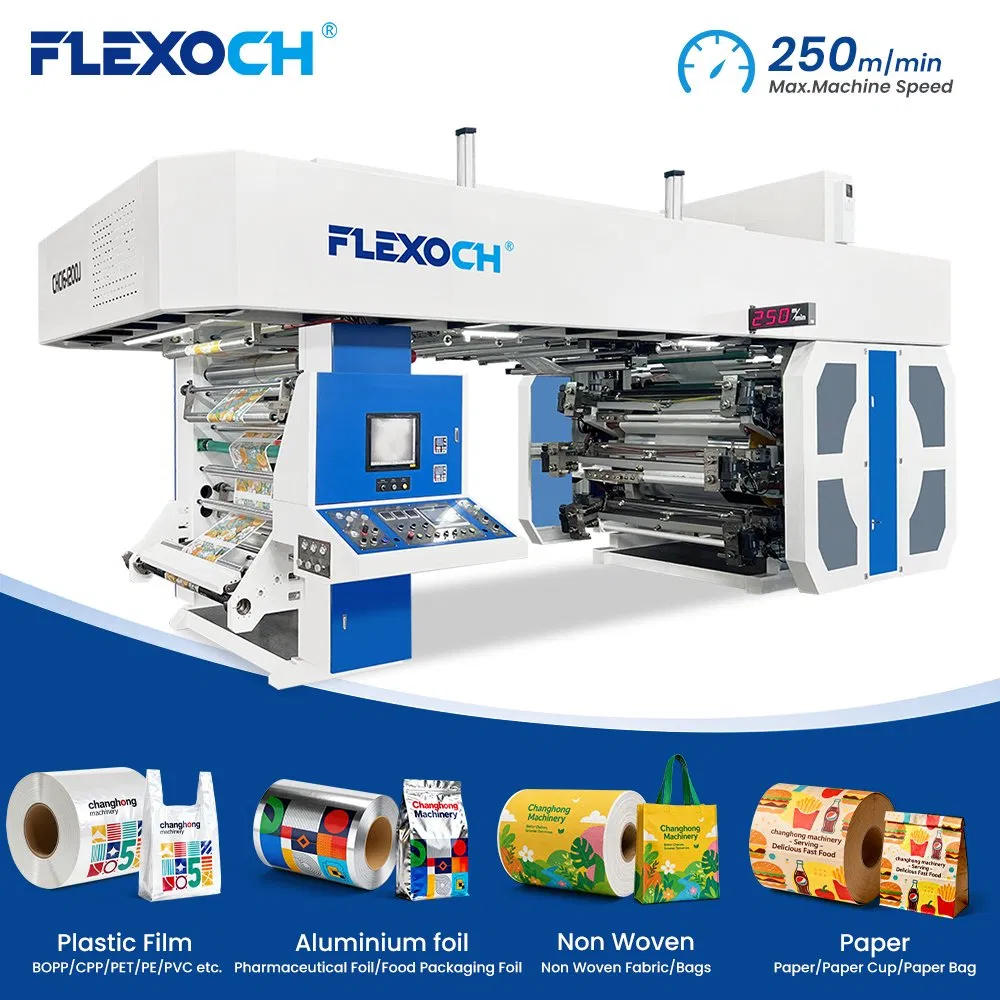

High Speed 4 6 Colors Plastic Film Kraft Paper Bag Roll to Roll Ci Flexo Flexographic Printing Machine Price

Basic Info

Model NO. CHCI-J-S

Anilox Roller Ceramic Anilox Roller

Dryer UV & IR

Type Flexographic Printer

Embossing Structure Rotary Letterpress

Structure Satellite

Application Pre Printed Carton

Automatic Grade Semi-Automatic

Printing Speed 200m/min

Plate Type Photopolymer Plate

Usage Paper Printer

Color 6 Color

Color & Page Multicolor

Gross Power 50kw

Weight 8000kg

Lead Time Within 60 Work Days

Voltage 380V

Certification CE Certification

Size 7.8m * 2.4m * 3.3m

Production Capacity 20 Set/Sets Per Month

Packaging & Delivery

Package Size 5500.00cm * 2000.00cm * 2600.00cm

Package Gross Weight 9000.000kg

Product Description

We are a source manufacturer specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.

60,000 m² Manufacturing Facilities

10+ R&D Engineers

100+ Experienced Technicians

200+ Machines Annually

20+ Years Experience

CE Certified

1,500+ Clients in 65+ Countries

After-Sales Service: We provide on-site commissioning after delivery, operation training, remote video troubleshooting, and free replacement of wearing parts within the first year.

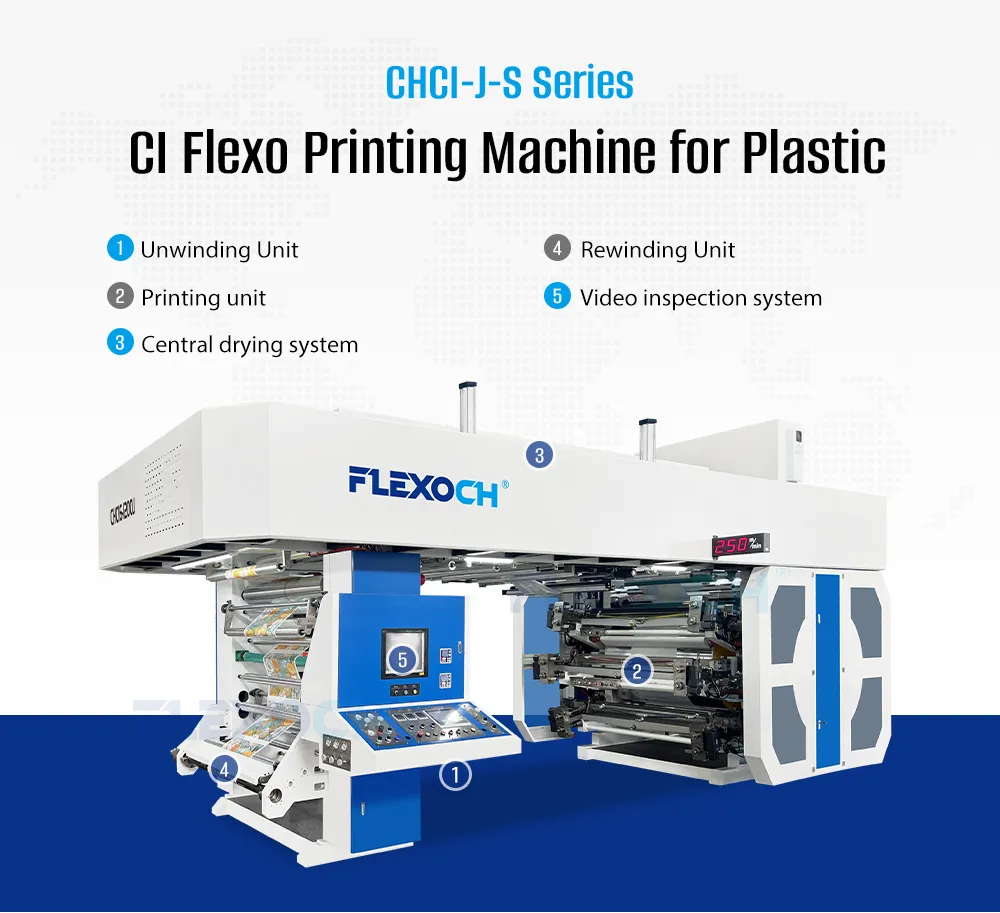

High Speed Ci Flexographic Printing Machine Overview

Machine Features

#01

Unwind & Web Control

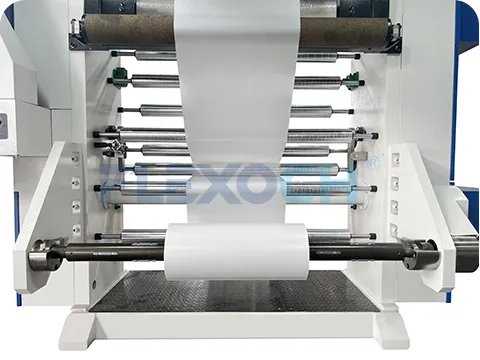

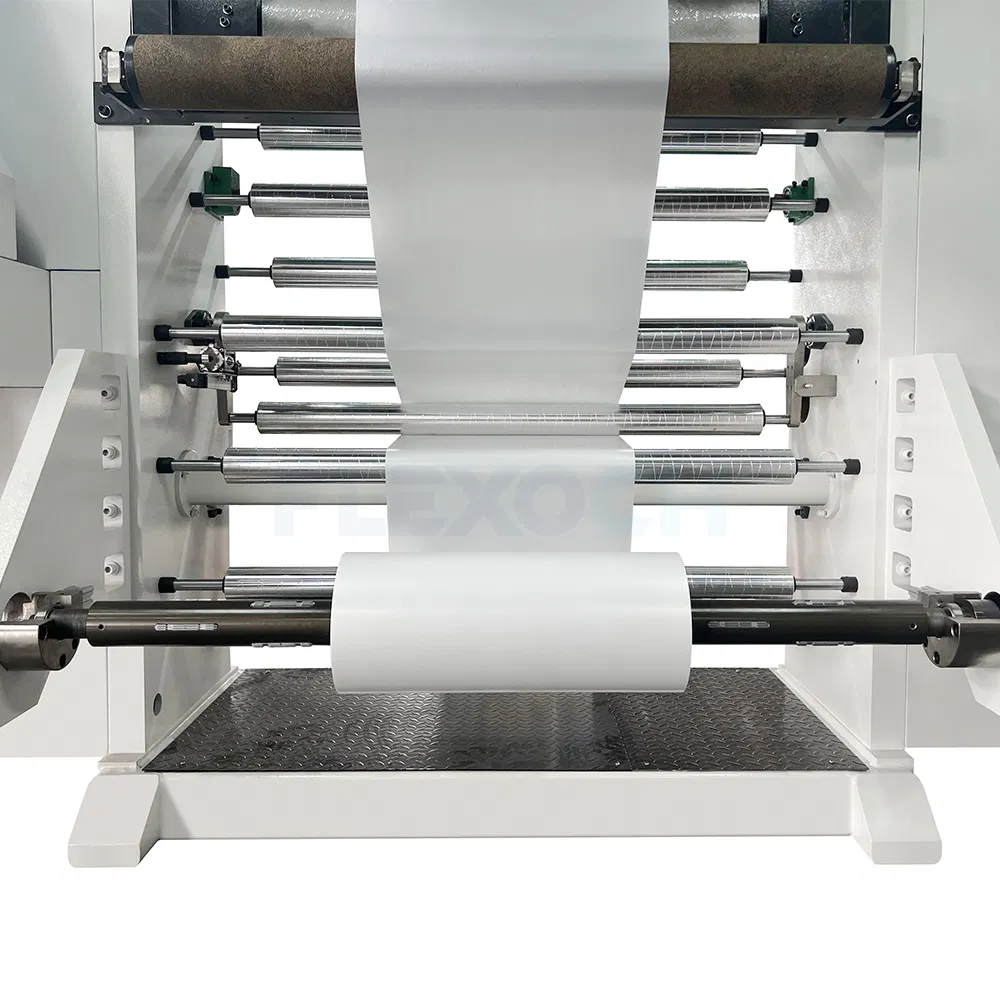

Center Driven Unwind System
Ultrasonic Web Guide System
Automatic Tension Control

#02

Printing Unit Configuration

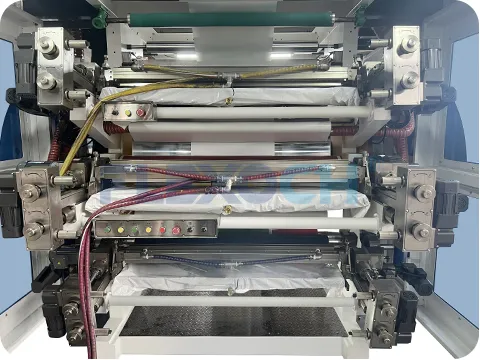

Plate Self-Cleaning Function
Central Impression (CI) Drum
Hydraulic Position Printing
Ceramic Anilox Roller
Chambered Doctor Blade

#03

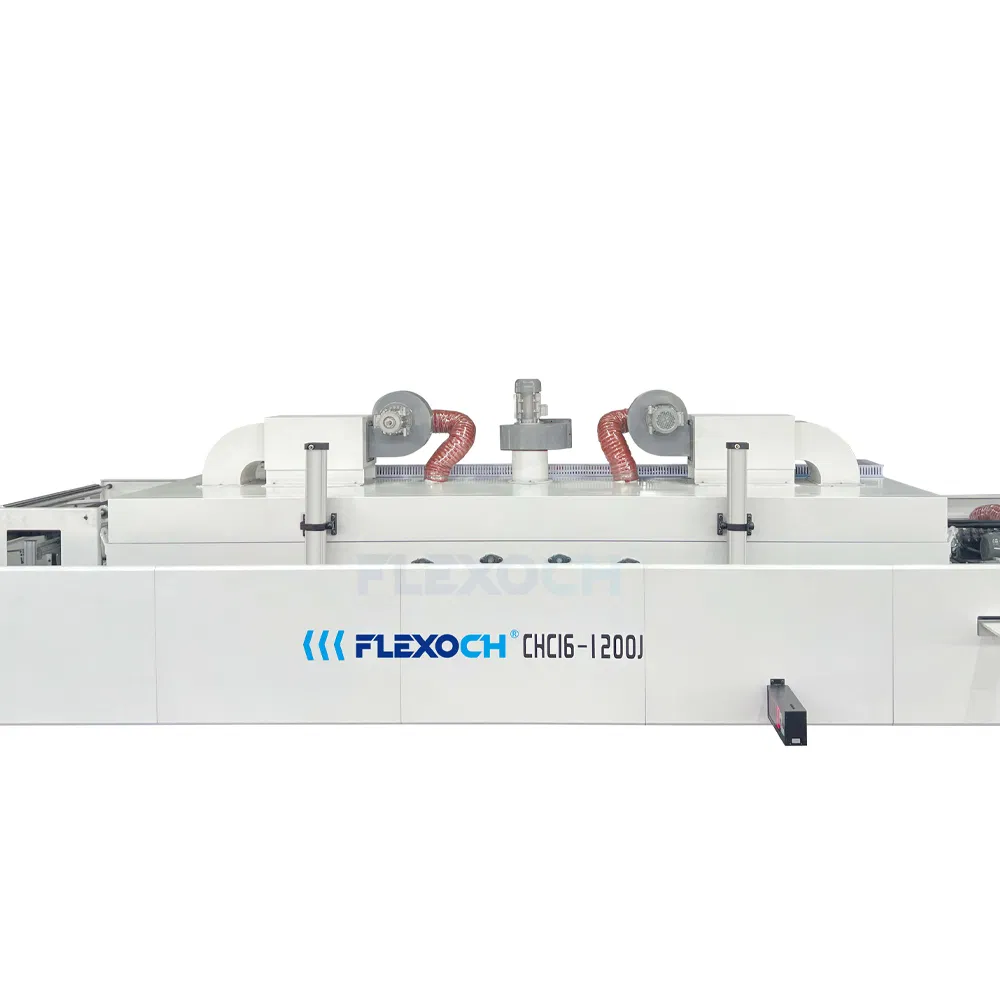

Drying & Temperature Control

Electric Heating System
Variable Frequency Airflow Control
Intelligent Constant Temperature Control
Hot Air Circulation Drying System
Fully Enclosed Oven Structure

#04

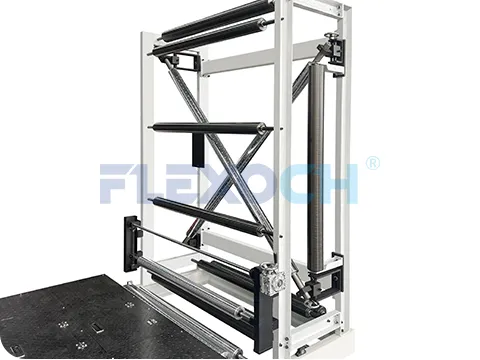

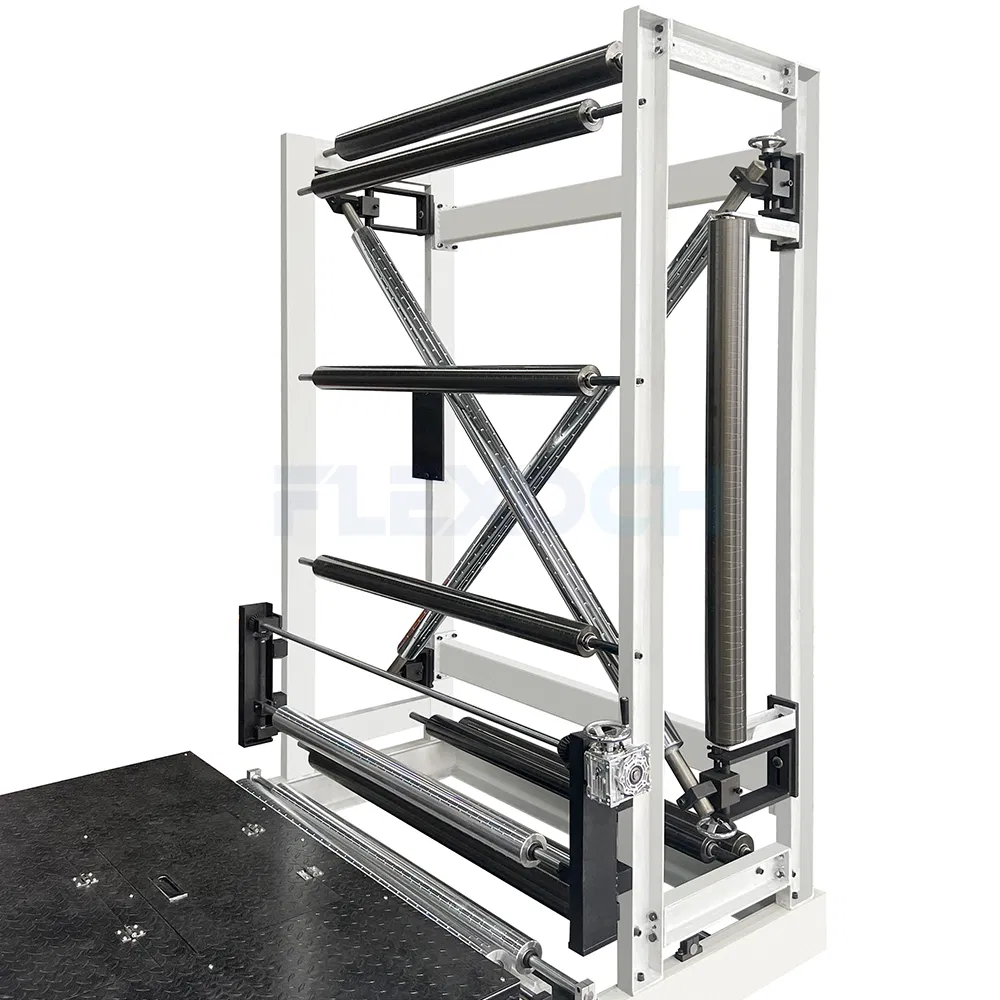

Full-Width Turn Bar

Full-width turn bar ensures smooth web reversing for double-sided printing

#05

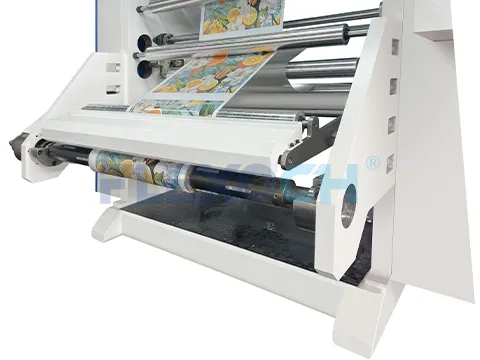

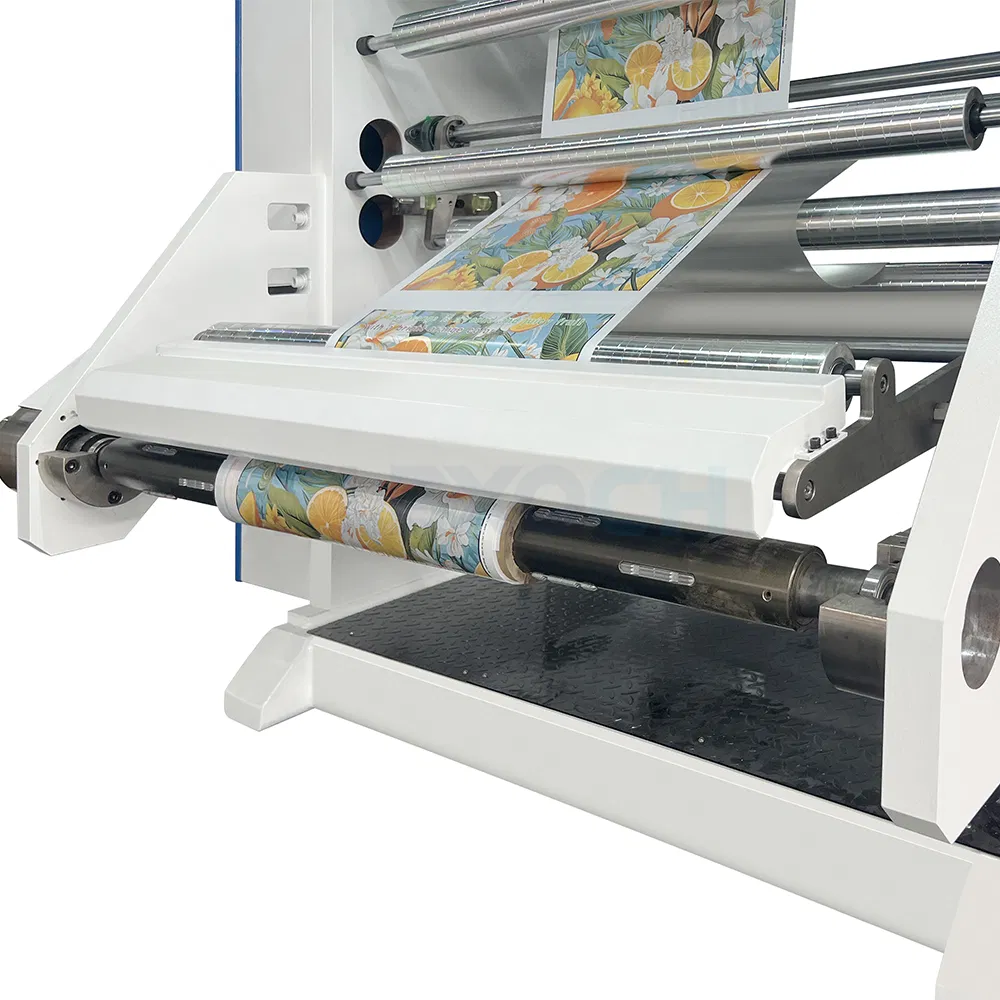

Rewind & Motor Safety

Center Driven Rewind System
Automatic Tension Control
High-Performance Motor
Automatic Fault Detection

Testimonials

Specification

CI Flexo Printing Machine, also known as Central Drum Flexo Printing Machine, is used in the printing industry for producing high-quality packaging materials such as Plastic Film, paper, paper cups, non-woven fabrics, aluminum foil, and more.

Flexibility: Prints on various substrates (papers, films, non-woven) with custom setups.
High Accuracy: Delivers high-quality printing with accurate color registration alignment.
High Speed: Operates at 200m/min for large volumes.
Cost-Effective: Fewer ink changes, less waste, and minimal maintenance.
Durable: Engineered to withstand regular wear and tear.
Eco-Friendly: Supports water-based inks free of harmful chemicals.

TECHNICAL SPECIFICATIONS
Model	CHCI6-600J-S	CHCI6-800J-S	CHCI6-1000J-S	CHCI6-1200J-S
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	600mm	800mm	1000mm	1200mm
Max. Mechanical Speed	250m/min
Max. Printing Speed	200m/min
Max. Unwind/Rewind Dia.	φ 800mm / φ 1000mm / φ 1200mm
Drive Type	Central drum with Gear drive
Printing Length (repeat)	350-900mm
Electrical Supply	Voltage 380V. 50 HZ. 3PH or specified
Ink	Water-based ink or solvent ink
Range of Substrates	LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon

Samples Display

Factory Overview

Packaging & Shipping

Frequently Asked Questions

How does a CI Flexo Printing Machine work?

The substrate is fed through the machine and is positioned over the central drum. The printing plate, which carries the image to be printed, is mounted onto the cylinder that rotates around the central drum. As the cylinder rotates, the ink is transferred from the ink rollers onto the printing plate. The substrate then comes in contact with the printing plate on the central drum, and the image is transferred onto it.

What are the advantages of a CI Flexo Printing Machine?

It features high-quality printing, higher speed and production rates, better ink transfer to the substrate, reduced ink waste, efficient use of plate cylinders and ink rollers, consistent image placement, and the ability to print on various substrates.

What materials can be printed on?

Central Drum Flexo Printing Machines can print on a wide range of materials, including LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, papers, and non-woven fabrics.

What is the maximum printing speed of a Central Drum Flexo Printing Machine?

The maximum printing speed depends on the specific model and configuration. However, the standard printing speed of this machine is 200m/min, and the mechanical speed can reach up to 250m/min.

What drying system is used in this machine?

The machine uses a combined UV & IR drying system. This features an electric heating system, variable frequency airflow control, intelligent constant temperature control, and a hot air circulation drying design with a fully enclosed oven structure.

What unwind and rewind diameters does the machine support?

The machine supports maximum unwind/rewind diameters of φ 800mm, φ 1000mm, or φ 1200mm, depending on the specific product custom configuration requirements.
