We are a source manufacturer specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.
60,000 m²
Modern Facilities
110+
Engineers & Technicians
200+
Annual Machine Output
20+ Years
Manufacturing Experience
Global Reach: Serving 1,500+ clients across 65+ countries, including Asia, North America, South America, the Middle East, Europe, and Africa.
After-Sales Service: We provide on-site commissioning after delivery, operation training, and remote video troubleshooting, along with free replacement of wearing parts within the first year.
Basic Info.
Model NO.CHCI4-J-Z
Anilox RollerCeramic Anilox Roller
DryerUV & IR
TypeFlexographic
Embossing StructurePlaten Press
StructureSatellite
ApplicationPre Printed Carton
Automatic GradeAutomatic
Printing Speed200m/min
ColourFour Colour
Voltage380V/220V/400V
Gross Power40kw
Whole MachineCentral Drum Control
TensionMagnetic Power & Auto Tension
Speed200m/Min
Transport PackageWooden Boxes, Wooden Plate
SpecificationCE, ISO Certificate
OriginChina
HS Code8443160090
Production Capacity20sets/Month
Packaging & Delivery
Package Size9000.00cm * 3500.00cm * 5000.00cm
Package Gross Weight10000.000kg

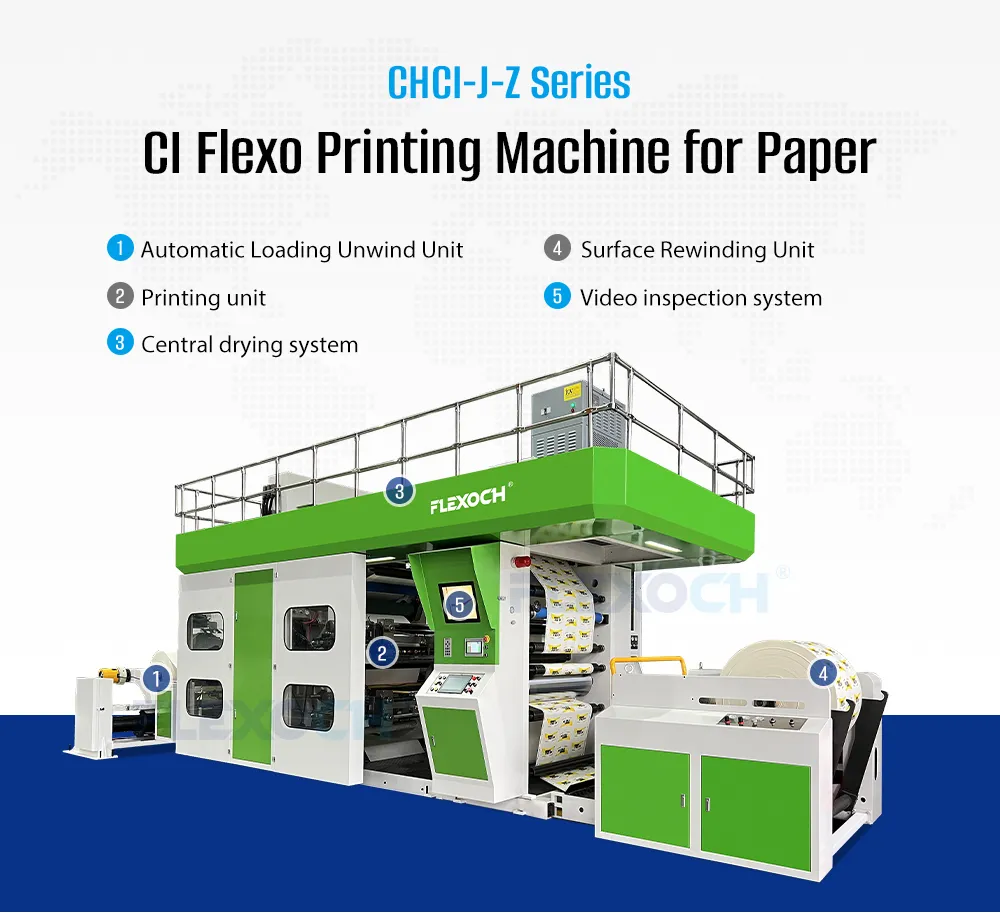

Machine Features
Feature #01

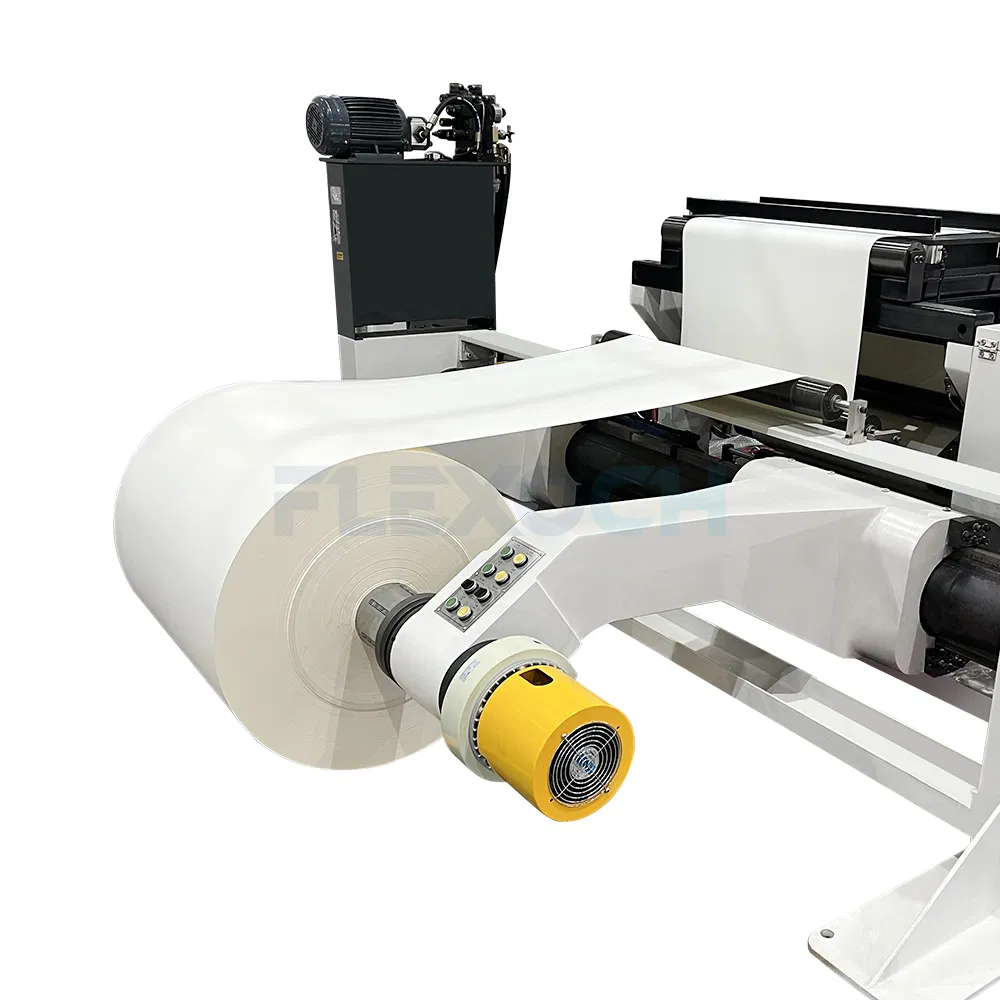

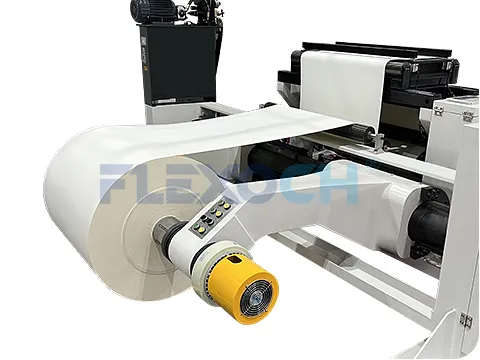

Shaftless Unwinding & Control
Center Driven Unwind System
Ultrasonic Web Guide System
Automatic Tension Control
Feature #02

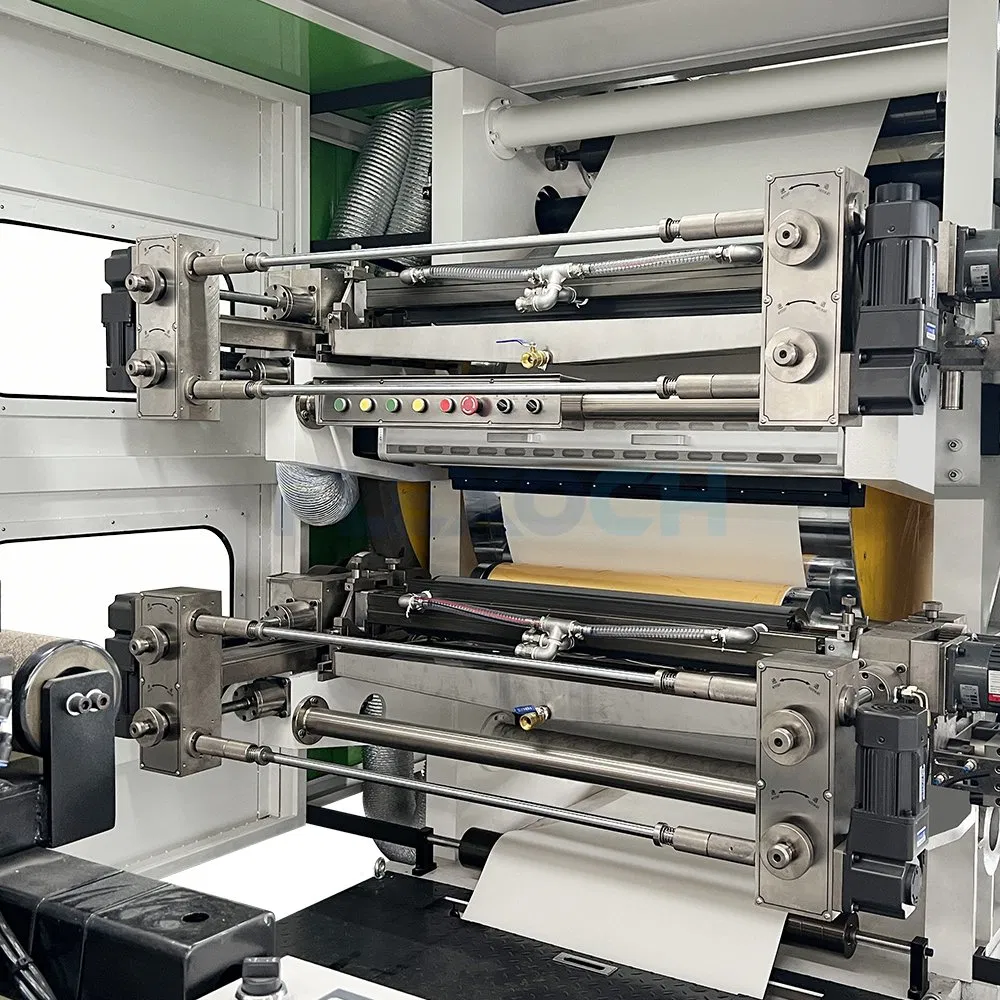

Advanced CI Drum & Printing

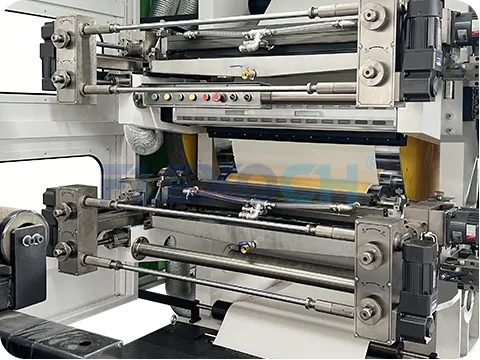

Plate Self-Cleaning Function
Central Impression (CI) Drum
Hydraulic Position Printing
Ceramic Anilox Roller
Chambered Doctor Blade
Feature #03

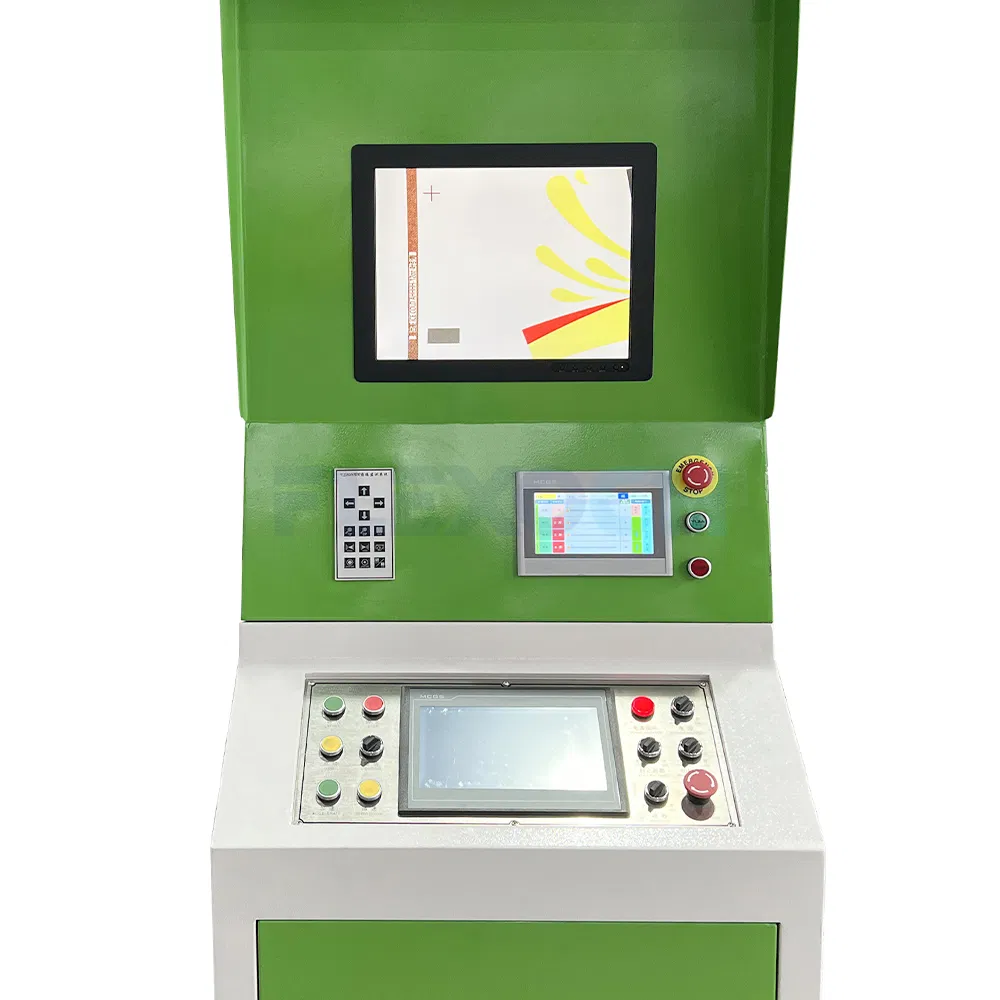

Video Inspection System
High-speed cameras monitor the entire web width in real time, automatically detecting print defects such as color variation, missing print, and streaks.
Feature #04
Surface Rewind & Safety

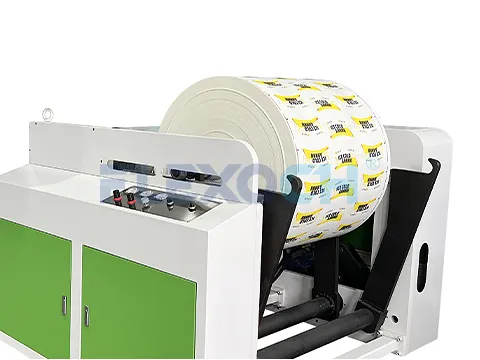

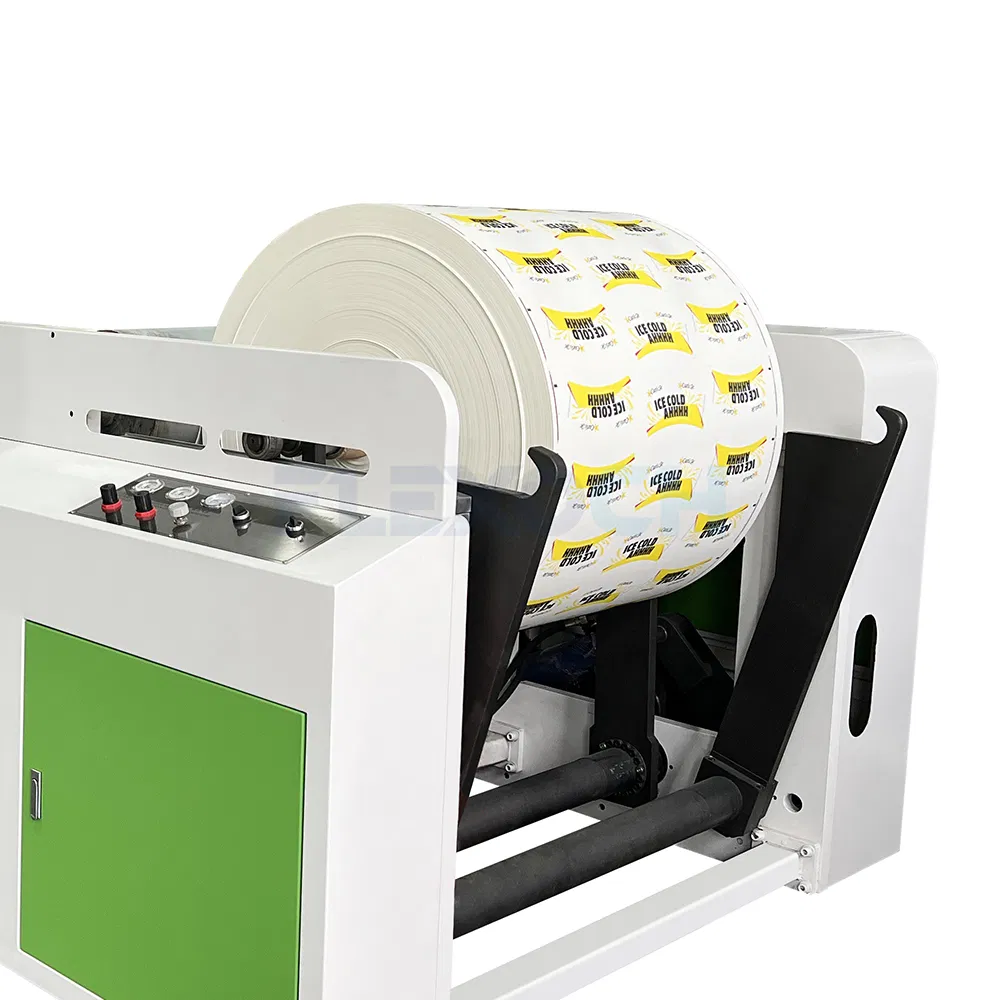

Surface Rewind System
Automatic Tension Control
High-Performance Motor
Automatic Fault Detection
Testimonials
Specification

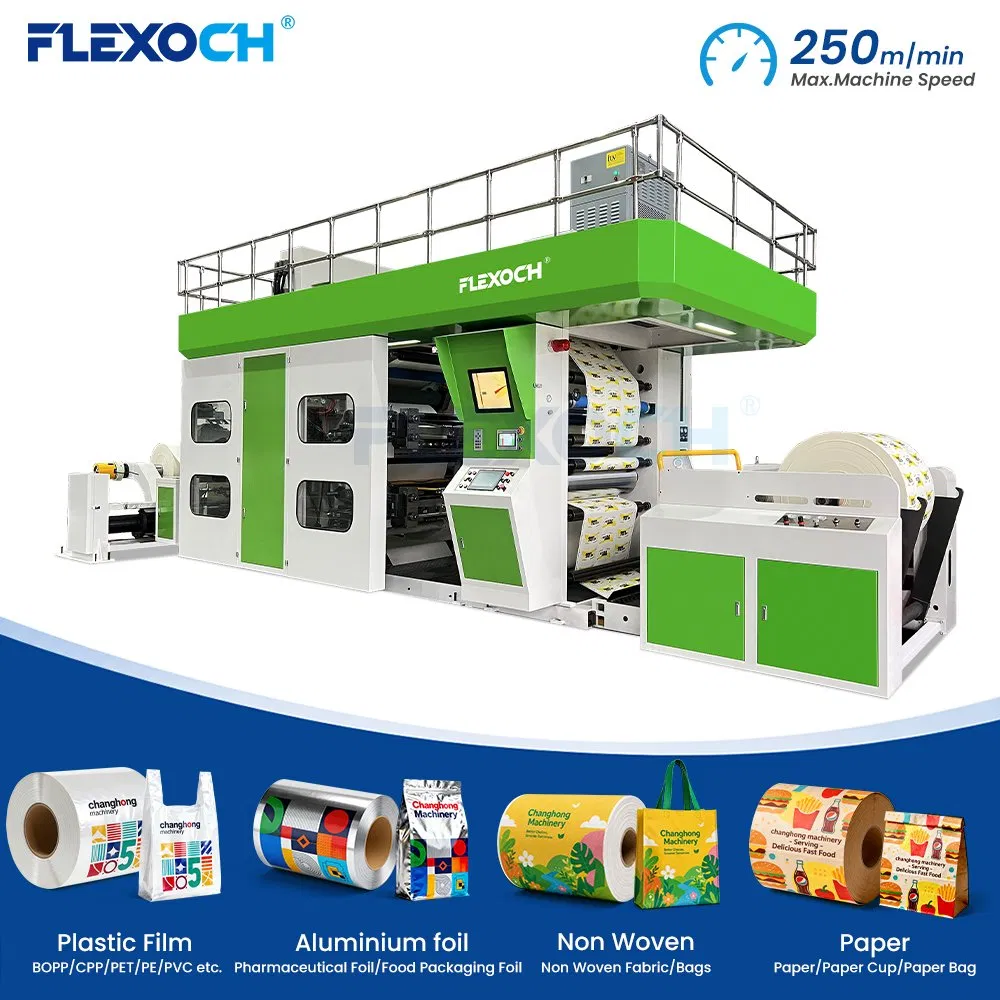

CI Flexo Printing Machine, also known as Central Drum Flexo Printing Machine, are used in the printing industry for producing high-quality packaging materials such as Plastic Film, paper, paper cup, non-woven fabric, aluminum foil, etc.
Flexibility: High degree of flexibility when printing on various substrates like paper, films, and Non-Woven. Can be customized to suit specific printing needs.
High Accuracy: Delivers high-quality printing with accurate registration, aligning all colored inks to produce sharp, high-quality images.
High Speed: CI Flexo Printing Machine speed up to 300m/min, producing large volumes of printed material quickly and efficiently.
Cost-Effective: Requires fewer ink changes, produces less waste, and needs minimal maintenance.
Durable: Highly durable structure, capable of standing regular use and wear and tear without frequent repairs.
Environmentally Friendly: Uses water-based inks that are environmentally friendly and free of harmful chemicals.
TECHNICAL SPECIFICATIONS
Model
CHCI4-600J-Z
CHCI4-800J-Z
CHCI4-1000J-Z
CHCI4-1200J-Z
Max. Web Width
650mm
850mm
1050mm
1250mm
Max. Printing Width
600mm
800mm
1000mm
1200mm
Max. Mechanical Speed
250m/min
Max. Printing Speed
200m/min
Max. Unwind/Rewind Dia.
φ1200mm/φ1500mm
Drive Type
Central drum with Gear drive
Printing Length (repeat)
350-900mm
Electrical Supply
Voltage 380V. 50 HZ. 3PH or to be specified
Ink
Water base ink or solvent ink
Range of Substrates
Paper, Non Woven, Paper Cup
Photopolymer Plate
To be specified
Samples Display
Company Profile
Packaging & Shipping
FAQ
CI Flexo Printing Machine - How does it work?
The substrate is fed through the machine and is positioned over the central drum. The printing plate, which carries the image to be printed, is mounted onto the cylinder that rotates around the central drum. As the cylinder rotates, the ink is transferred from the ink rollers onto the printing plate. The substrate then comes in contact with the printing plate on the central drum, and the image is transferred onto it.
What are the advantages of a CI Flexo Printing Machine?
Key advantages include: High-quality printing, higher speed and production rates, better ink transfer to the substrate, reduced ink waste, efficient use of plate cylinder and ink rollers, ability to print on various substrates, and consistent image placement.
What materials can be printed on?
Central Drum Flexo Printing Machines can print on a wide range of materials, including papers, plastics, films, non-woven materials, paper cups, aluminum foil, and more.
What is the maximum printing speed of a Central Drum Flexo Printing Machine?
The maximum printing speed of a Central Drum Flexo Printing Machine depends on the specific model and configuration. However, many machines reach a production printing speed of up to 200m/min.
What after-sales service and support do you provide?
We provide complete on-site commissioning after machine delivery, hands-on operational training, and remote video troubleshooting support. Additionally, we provide free replacement of wearing parts within the first year.
Are your printing machines certified for global shipping?
Yes, all of our flexographic printing machinery is fully CE certified and complies with major international manufacturing standards, backed by over 20 years of manufacturing experience.
