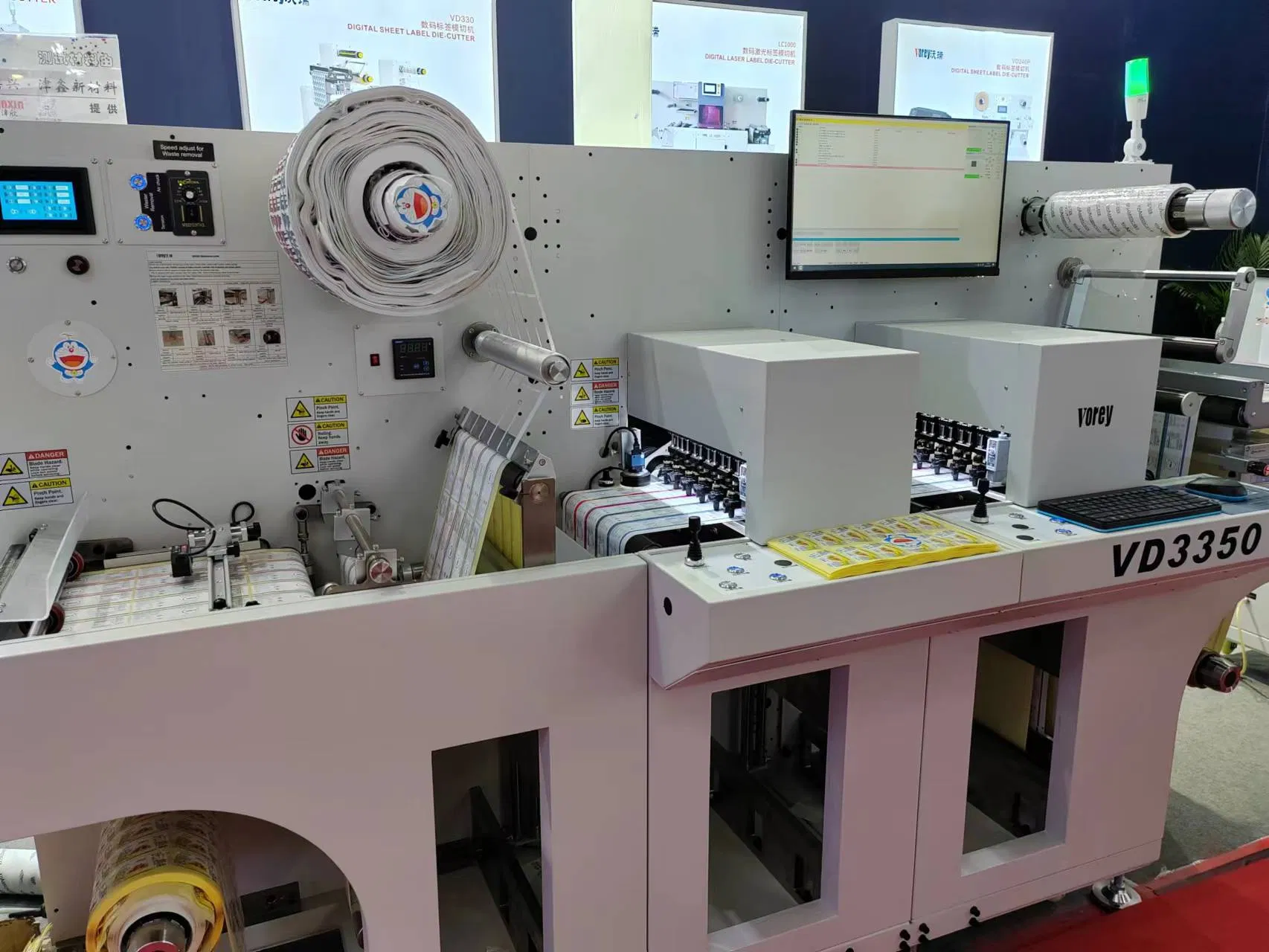

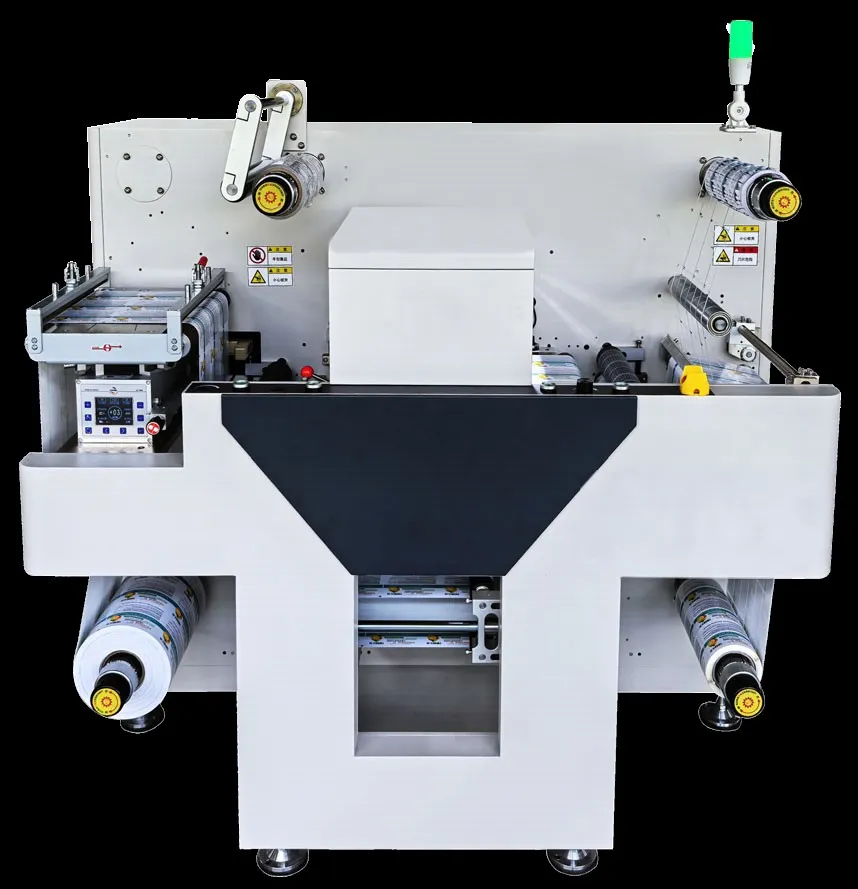

This high-speed, easy to operate and multifunctional digital label die-cutter system is designed for professional label printing applications. As an all-in-one label finishing solution, the system integrates laminating, die-cutting, slitting, and rewinding into one workflow. It provides an efficient and cost-effective finishing solution with multi-functional capabilities.
| Parameter Details | Technical Value |
|---|---|
| Model | LSC-E |
| Blade dropping mode | Solenoid |
| Blade depth adjustment | Manual rotate |
| Technology | Blade dropping mode Clutch |
| Cut mode | Roll to roll fly |
| Max. media roller | Diameter 500mm |
| Cutting speed | 9m/min (4cm x 15cm) |
| Cutting precision | 0.1mm (repeat) |
| Media width | 100-350mm |
| Max. label width | 330mm |
| Max. label length | 500mm |
| Cutting tracking | Single eye mark / double eye mark / CCD Camera |
| Cutting blades | 4 pcs |
| Slitting blades | Standard 5 PCS, max. 15pcs |
| Rewinder qty | 1 set 3" |
| Machine size (W*D*H) | 1540 × 1005 × 1636mm |
| Machine weight | Approx. 980kgs |
| Power | 220VAC 2000W |
| Data transfer port | USB2.0 / Ethernet 10/100Base-T / GPIO |
| File format | PLT, DXF, PDF |
| Other functions and device | Auto adjust blade distance | Auto job change (digital number/QR code) | Web guide | Auto optimize file and set drop point | Auto tension adjustment | Waste removal | Counter cutting jobs | Automatic file import | Lamination system |
| Options | Waste discharge interruption shutdown | Film liner remove | Waste removal heating | Sheet cutter (individual) | Auto change sheet cutting job | Link with printer parts |
Utilizes an ultrasonic web-guide system to ensure perfectly aligned media feeding during operation.
Features cold laminating integration to produce bright and protected labels. Back liner removal functions are optionally available.

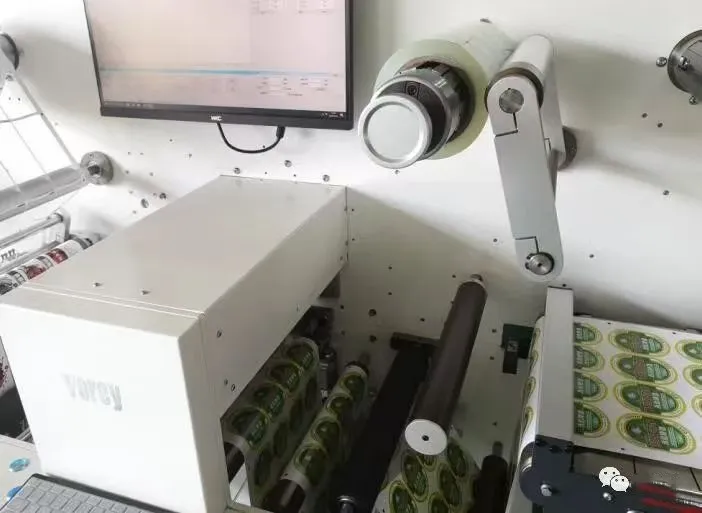

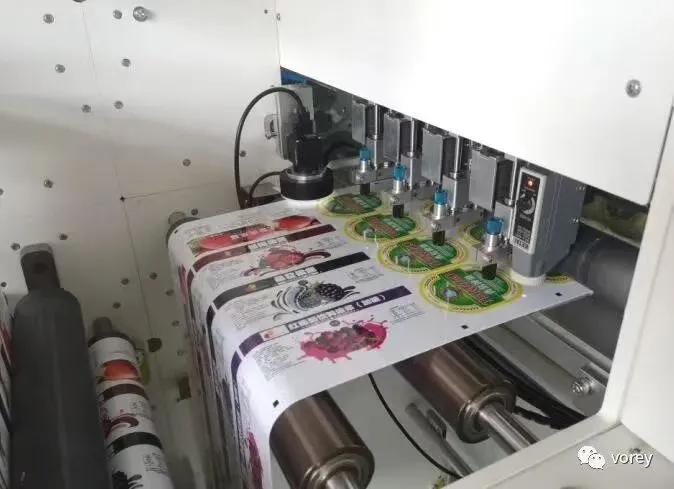

Utilizes a high-precision screw transmission system reaching speeds up to 9m/min. Features individual controls for 4 heads with automatic head distance adjustment.
Equipped with a CCD camera positioning and identification system to recognize sequence patterns, enabling automatic job changes and graphics cutting.

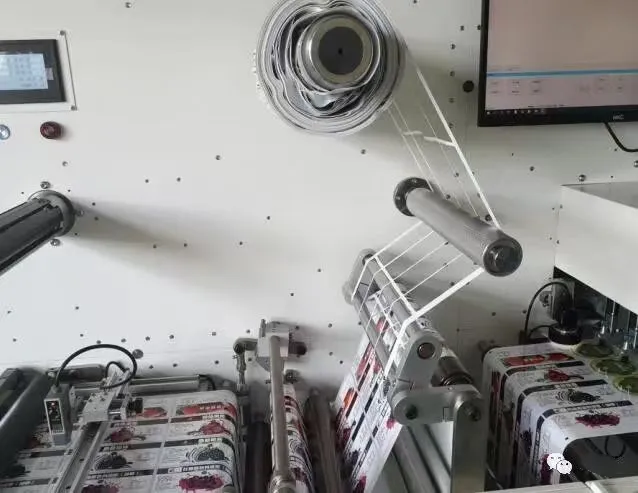

Incorporates dual mechanical force expansion control and a multi-angle waste discharge frame to ensure even and clean waste removal without interruptions.
Supports an optional built-in slitter (such as the PC350) to achieve simultaneous in-line cutting, die-cutting, and sheet cutting actions.
Uses a rotary slitting mode supporting up to 15 blades, offering running speeds up to 60m/min. Fully replaces traditional slitting equipment.
The system combines cold laminating, digital die-cutting, slitting, and rewinding functionalities within a single roll-to-roll workflow.
The CCD camera system detects tracking eye marks to recognize job sequences. This enables automatic file importing, automatic job changes, and continuous graphics cutting without manual intervention.
The die-cutting speed reaches up to 9m/min, utilizing up to 4 cutting blades. The slitting section runs at a high speed of up to 60m/min and can support a maximum of 15 blades.
It is widely applicable for paper packaging materials, sticker products, heat insulation materials, insulating materials, dust-proof materials, and earthquake products.
The system supports standard digital design file formats including PLT, DXF, and PDF.
