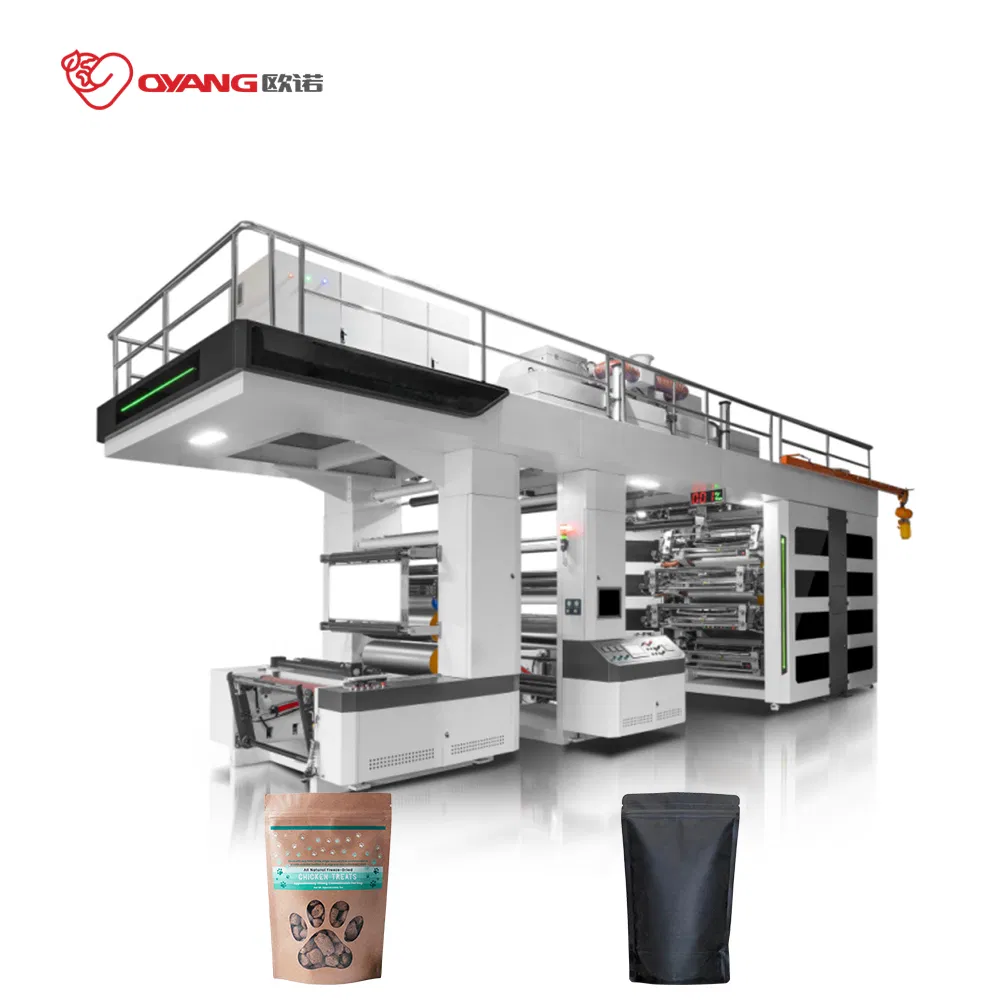

Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
1 / 5
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine

Oyang Ci Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine

Customization: Available
After-sales Service: Overseas Engineering Team Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO. 16 YTB Series
Printing Page Single Faced
Printing Color 2/4/6 Colors
Anilox Roller Ceramic Anilox Roller
Dryer UV & IR
Type Ink Jet
Embossing Structure Rotary Letterpress
Structure Unit Type
Application Flexible Packaging Printing
Automatic Grade Automatic
Printing Speed 100 M/Min
Printing Width Customize
Printing Length Customize
Accuracy 0.10mm
Transport Package Packed by Pearl Cotton and Plastic Film.
Specification Standard Specifications or Customized
Origin China Mainland
HS Code 8443140000
Production Capacity 40sets/Month
Packaging & Delivery
Package Size 900.00cm * 240.00cm * 270.00cm
Package Gross Weight 5500.000kg
Product Description

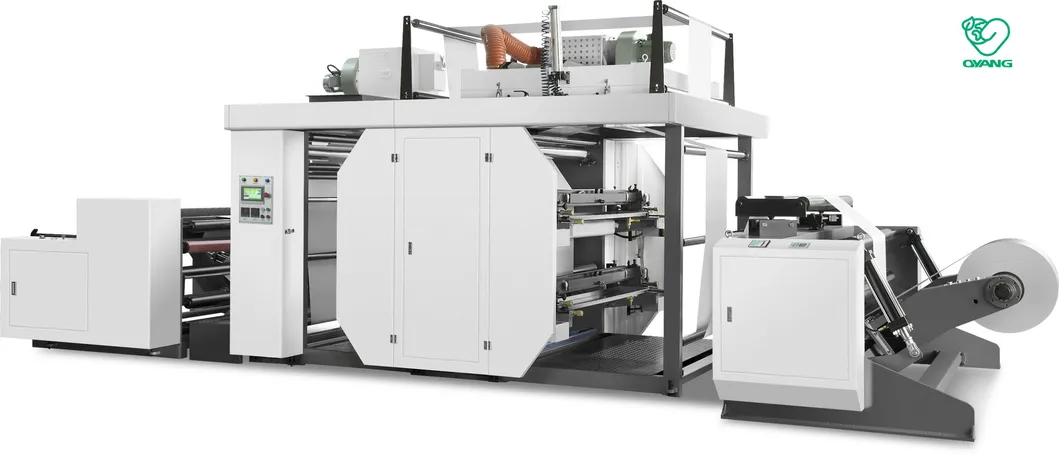

FLEXO PRINTING MACHINE

Flexography Flexo Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexographic Printing Machine
Printing Sample
Printing Sample 1 Printing Sample 2
Product Parameters
Parameter Item Specification Details
Number of printing colors 2/4/8 colors
Maximum paper width 1320 mm
Maximum printing width 1300 mm
Printing length 300mm - 900mm
Registration accuracy ±0.10mm
Maximum machine speed 80 m/min
Electricity demand 380V 50Hz 3PH
Maximum power 180kw
Key Component Specifications
Feeding Material Part
  • Single unwind system, pneumatic loader for unwind system.
  • Automatic stop machine when material breaks; maintains tension to avoid loose material or line deflection upon shutdown.
  • Air shaft mechanism.
  • EPC (Edge Position Control): With manual, automatic, and central return functions, enabling left/right rewind adjustments.
  • Automatic tension control system with magnetic brake (20KG).
  • Roller core diameter: 76mm.
  • Discharge maximum diameter: 1000mm.
Printing Sections
  • Plate roller circumference: 300-1000mm, standard less than 400mm.
  • Print material compatibility: Resin plate or rubber plate.
  • Transmission between printing roller and anilox roller: Helical gears.
  • Printing chromatography: 360-degree rotation.
  • Adjustment method: Manual (Automatic printing after manual adjustment; no need to re-register color or pressure adjustments when restarting).
  • Printing roller lifting system: Automatic hydraulic cylinder controls roll movements up and down.
Drying System
  • Equipped with blowers and heaters utilizing a central temperature control system.
  • Dry apparatus placed between each color printing step, with an additional drying unit positioned after printing is complete.
Rewinding Part
  • Single rewind system, pneumatic loader for rewind system.
  • Film central rewind system.
  • Air shaft mechanism.
  • Roller core diameter: 76mm.
  • Discharge maximum diameter: 1000mm.
Profile & Capability
Founded in 2006, covering an area of 130,000 square meters and staffing more than 400 workers, our manufacturing facility is a comprehensive developer and the largest paper bag machine & nonwoven bag making machine manufacturer in China. We offer complete solutions for eco-friendly bag making projects, including paper bag making solutions, nonwoven bag making solutions, and nonwoven fabric production lines exported worldwide. Every year we design at least one new machine. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!

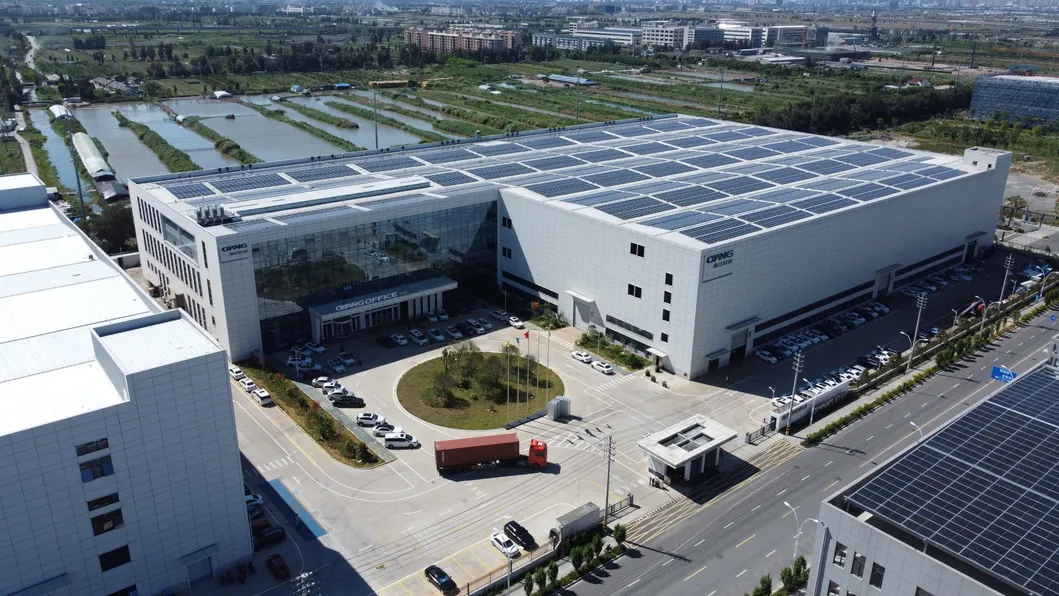

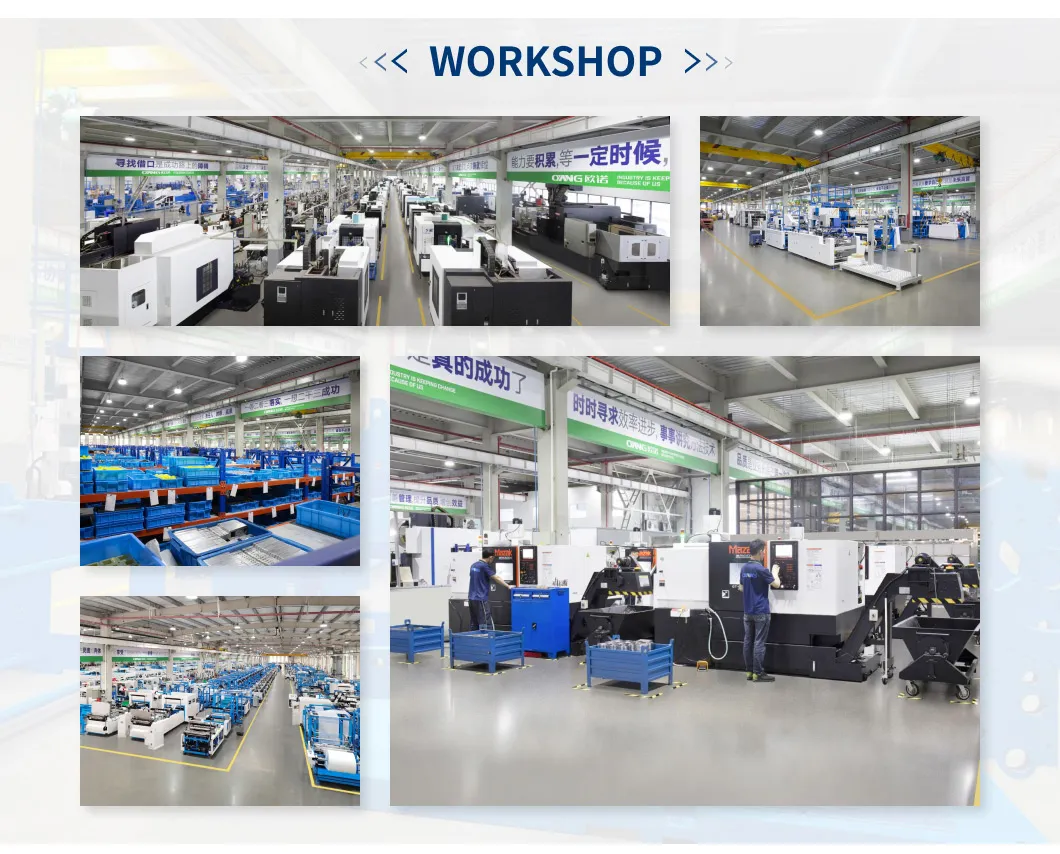

Manufacturing Plant Image 1 Manufacturing Plant Image 2 Manufacturing Plant Image 3 Manufacturing Plant Image 4 Manufacturing Plant Image 5 Manufacturing Plant Image 6
Frequently Asked Questions

How long will your engineer reach our factory?

Our After-sales Specialist will contact you to confirm the final scheduling according to your reasonable request.

How many days will you finish installing?

We will finish installation and training services within 1 to 2 weeks.

What should we charge for your engineer?

You should cover the costs of our engineer's visa, air tickets, SIM card, hotel, food, and their daily salary of 150 USD per person.

How long is the machine's warranty period?

All our machines carry a one-year warranty, which begins once the installation is successfully completed.

How do we proceed if parts break under warranty?

We will arrange for express shipment of free replacement parts during the active warranty period.

How do we solve machine problems after your engineer leaves?

Generally, there will be no issues after setup. If you do encounter a problem, you can contact our after-sales team at any time. Our department has 30 engineers who can provide solution videos based on your descriptions.
